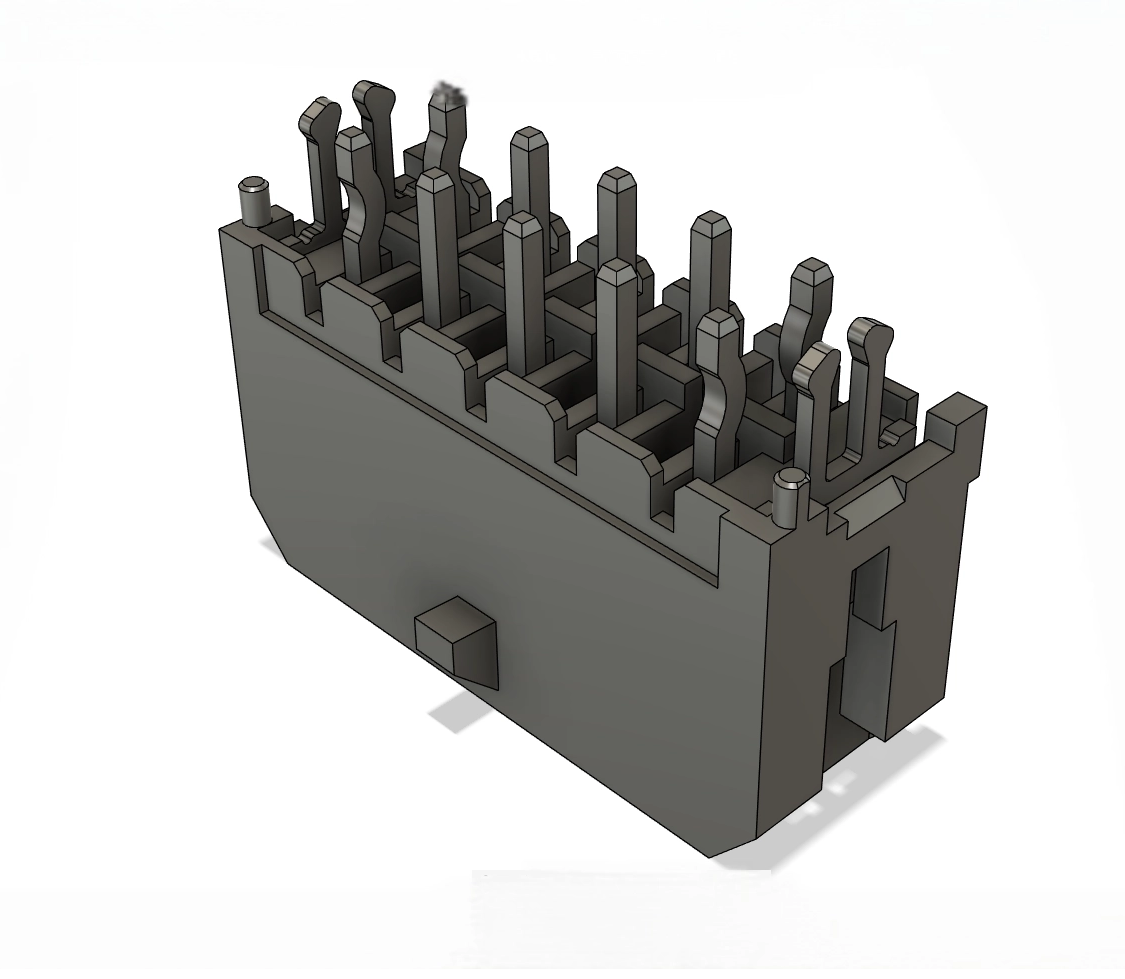

1.This 180° straight plug-in dual-row connector features a 3.00mm pitch, and is engineered for the backplane straight plug-in interconnection scenarios of high-power equipment. It has a pole count ranging from 2X1PIN to 2X12PIN and is compatible with standardized PCB layouts.
2.The housing is made of high temperature-resistant LCP material with UL94V-0 flame retardant rating. The pins and solder tabs adopt the consistent tin-plated C1100 T2 and matte tin-plated brass process. Boasting a rated voltage of 250V AC/DC, a current-carrying range of 3A-12.5A and a withstand voltage of 1000V AC per minute, it operates in a wide temperature range from -40°C to +105°C. The connector can seamlessly adapt to the power transmission requirements of new energy equipment and power energy equipment, and supports both reel and tray packaging methods to cater to the needs of diverse production scenarios.
◆◆ Product Advantage
Excellent straight plug-in stability。The 180° straight plug-in design enables the pins to fit vertically against the PCB board with a larger contact area. Combined with precision dimensional tolerances (A±0.25mm, B±0.30mm), it ensures accurate mounting and positioning, reduces assembly deviations, and is suitable for the long-term stable operation of equipment backplanes.
Flexible scenario adaptability。It supports multi-wire gauge compatibility from AWG16# to AWG24# and is supplied with a detailed current matching table (e.g., 2PIN AWG16# carries 12.5A, 20-24PIN AWG24# carries 3A). This allows for precise model selection based on circuit loads and adaptation to equipment with different power requirements.
Superior harsh environment resistance。The LCP material integrates high temperature and corrosion resistance properties. Matched with a wide operating temperature range of -40°C to +105°C, the connector can withstand severe working conditions such as low outdoor temperatures and high temperature fluctuations in industrial workshops, and operates stably without additional protective measures.
Excellent environmental compliance。It is fully compliant with the RoHS environmental directives and contains no harmful substances such as lead and cadmium, making it ideal for the export of electronic equipment subject to stringent environmental requirements. Detailed installation dimensions and PCB layout drawings are provided to facilitate structural matching and mass production, thus reducing R&D and adaptation costs.
◆◆ Product Uses
1.Consumer Electronics
2.Automotive Electronics (Auxiliary Systems)
3.Industrial Automation Equipment
4.Communication Devices
5.Medical Electronics (Low-Risk Devices)
