Power Connector
Automotive, Industrial, IT Datacom

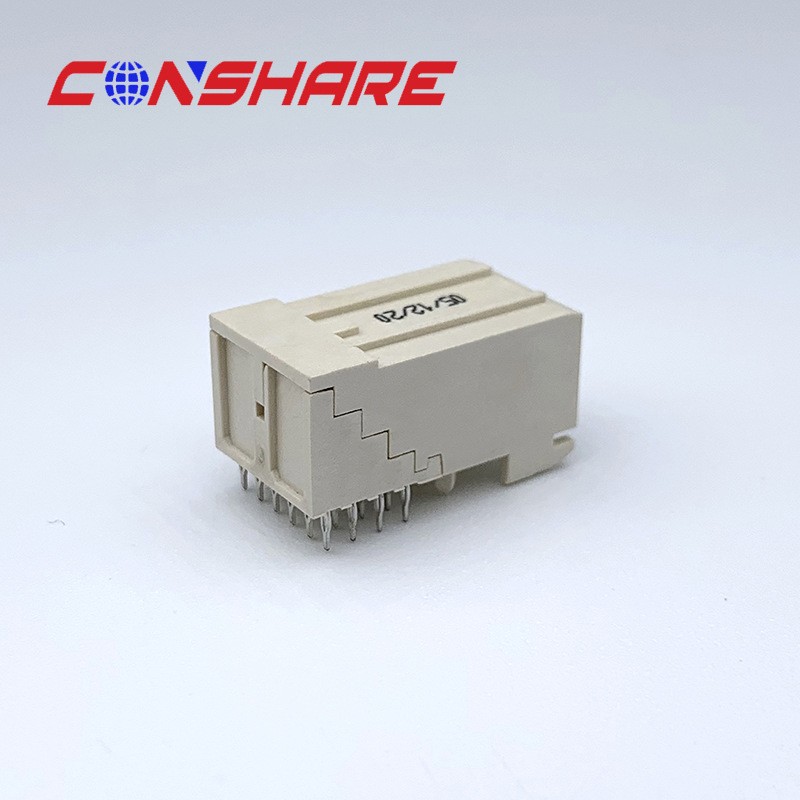

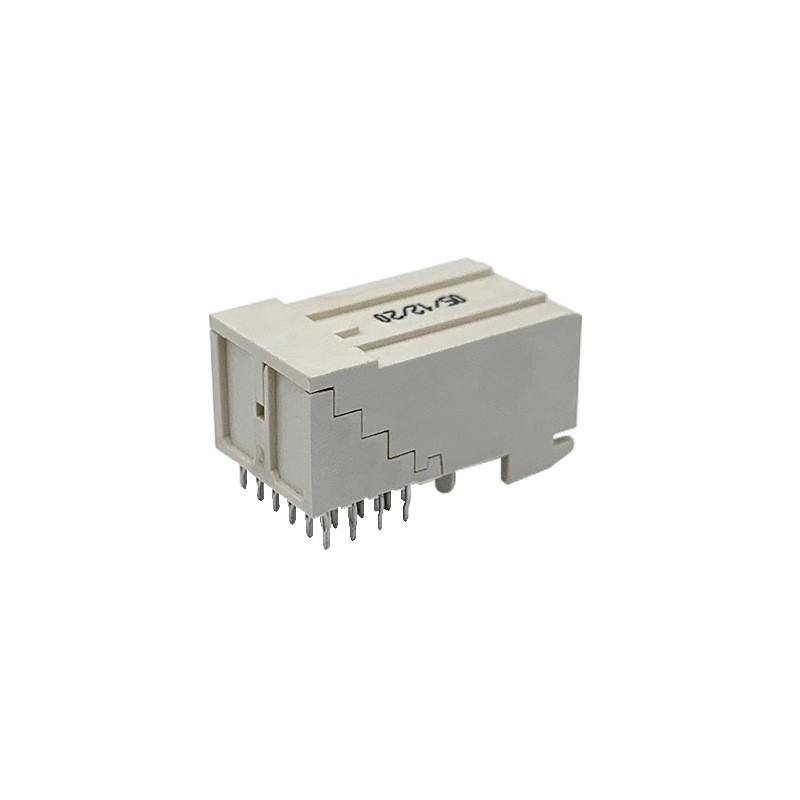

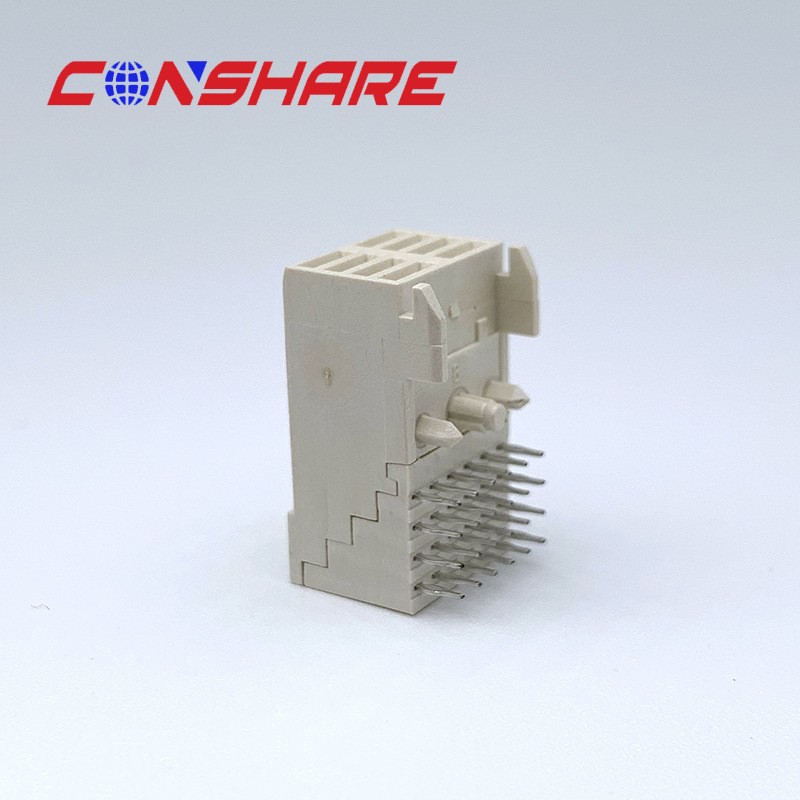

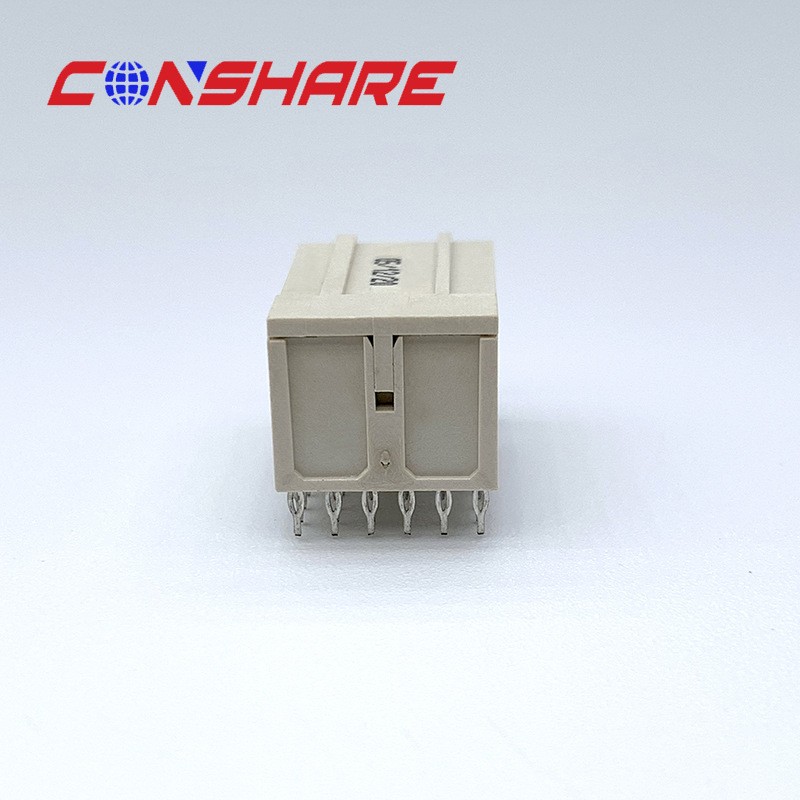

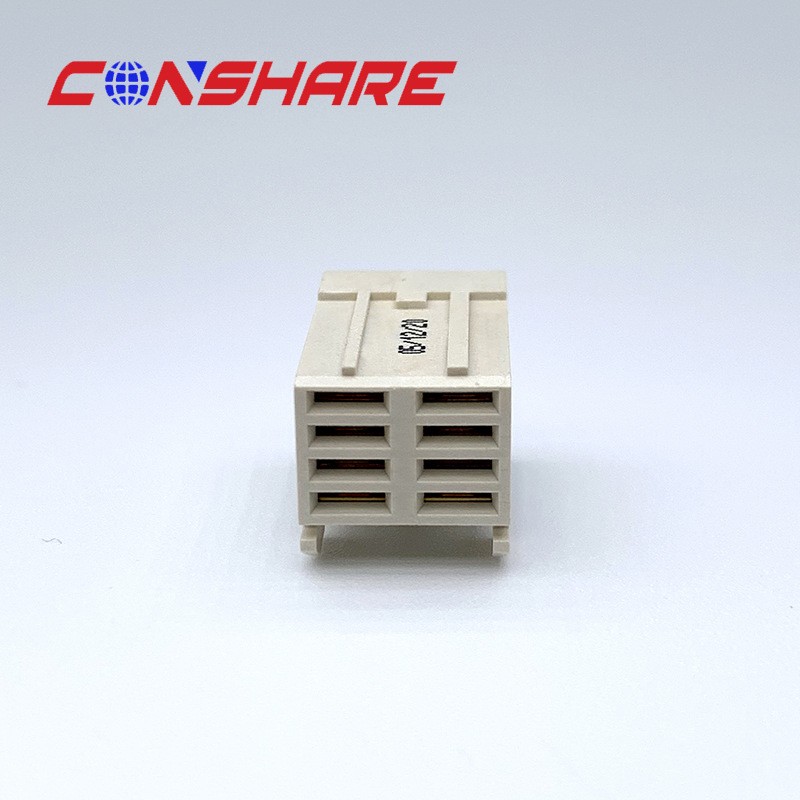

Built for space-constrained PCB installations, this CONSHARE 2x4 right-angle female power connector features a low-profile 90-degree form factor that eliminates mounting strain. It fits seamlessly into tight chassis layouts, ideal for compact embedded systems and slim industrial control hardware.
Engineered for reliable power delivery, this connector maintains stable, low-resistance current flow even under vibration and thermal stress. Its robust housing locks connections securely, preventing loose contacts that could disrupt performance in high-demand electronic setups.
Versatile for diverse power applications, it pairs with standard 2x4 pin male headers, offering flexible integration into computing systems, automation equipment, and custom electronic builds. Backed by CONSHARE’s quality standards, it delivers consistent performance across varied use cases.
CONSHARE’s 2x4 right-angle female power connector adopts a 90° low-profile design optimized for 3.0mm pitch spacing, reducing lateral PCB footprint by over 25% vs. straight connectors. It fits seamlessly into tight chassis layouts, eliminating mounting strain in compact industrial PCs and embedded systems.
Engineered with precision phosphor bronze contacts, this CONSHARE power connector maintains contact resistance ≤10mΩ, rated at 5A per pin. Tin-plated contacts minimize heat buildup and signal noise, ensuring consistent power flow for high-load industrial and computing applications.
Built with UL94-V0 flame-retardant housing, this connector withstands operating temperatures from -40℃ to 105℃ without deformation. Tested for over 50 mating cycles, it retains a secure fit even under prolonged thermal stress and vibration.
CONSHARE offers fully customizable solutions for this 2x4 right-angle power connector, including contact plating, housing colors, and packaging. Our engineering team adapts designs to your form-factor and performance needs, supporting seamless OEM/ODM integration.
Every CONSHARE power connector undergoes multi-stage checks: dimensional validation, electrical testing, and thermal cycling. RoHS and REACH compliant, it meets global safety standards, reducing downtime risks for mass production and international shipments.
Parameter | Specification |
|---|---|
Brand | CONSHARE |
Product Type | 2x4 Pin Right-Angle Female Power Connector |
Pitch | 3.0mm |
Mounting Type | Right-Angle Through-Hole |
Rated Spec | 5A / 250V per pin |
Operating Temperature | -40℃ ~ +105℃ |
Housing Material | UL94-V0 High-Temp Resistant Thermoplastic |
Compliance | RoHS, REACH Certified |
This CONSHARE 2x4 right-angle female power connector is ideal for space-constrained industrial control setups. Its low-profile 90° design saves critical PCB space, while UL94-V0 rated housing withstands fluctuating factory temperatures, ensuring stable power delivery to PLCs and control modules.
Built for slim embedded PCs and edge hardware, this connector enables side-mounted power connections without blocking airflow. Its low-resistance contacts maintain consistent current flow, supporting reliable performance in compact, high-density computing environments with tight chassis layouts.
Suited for high-density servers and compact network switches, this connector solves space challenges in crowded internal layouts. The right-angle design eliminates cable strain, while durable housing resists thermal stress, ensuring uninterrupted power for critical network infrastructure and auxiliary components.
Perfect for slim custom gaming rigs and compact ITX builds, this CONSHARE right-angle power connector maximizes internal chassis space. Its low-profile 90° design avoids airflow blockage, while heat-resistant housing maintains stable power delivery even under intense gaming loads and overclocked system conditions.
A: Yes, it is fully compatible with standard 2x4 pin male power headers. Its 90° right-angle design also saves critical PCB space, ideal for compact industrial and embedded layouts.
A: Absolutely. We offer customizable options including contact plating, housing colors, and packaging. Our engineering team works closely with you to match your exact design and performance requirements.
A: It operates reliably from -40℃ to +105℃, with UL94-V0 flame-retardant housing. It resists thermal stress and vibration, suitable for industrial control and high-density computing environments.
A: Tested for over 50 mating cycles, it maintains low contact resistance and a secure fit. It prevents loose connections even under vibration, ensuring stable power delivery for 24/7 operations.
A: Yes, all CONSHARE connectors are RoHS and REACH certified. They undergo multi-stage quality checks, ensuring safety and compliance for global shipments and mass production.
