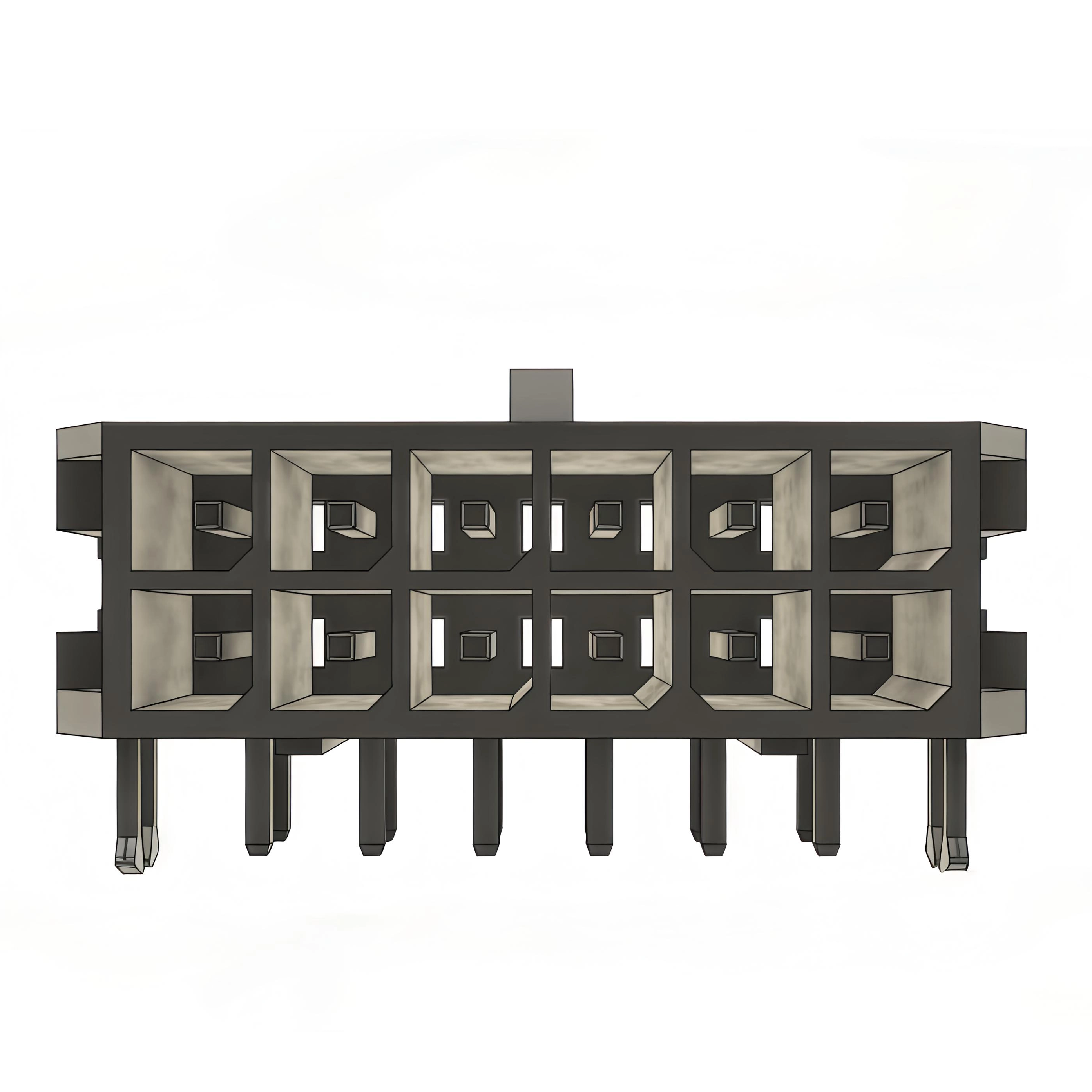

1.Electrical Performance:

The product features a rated voltage of 250V AC/DC and a withstand voltage of 1000V AC/minute, delivering excellent electrical safety. With a minimum insulation resistance of 1000MΩ and a maximum contact resistance of only 20mΩ, it ensures stable and reliable signal transmission. Current-carrying capacity can be flexibly adjusted based on compatible wire specifications and pin count, covering a range of 3A to 12.5A, which meets diverse circuit load requirements.

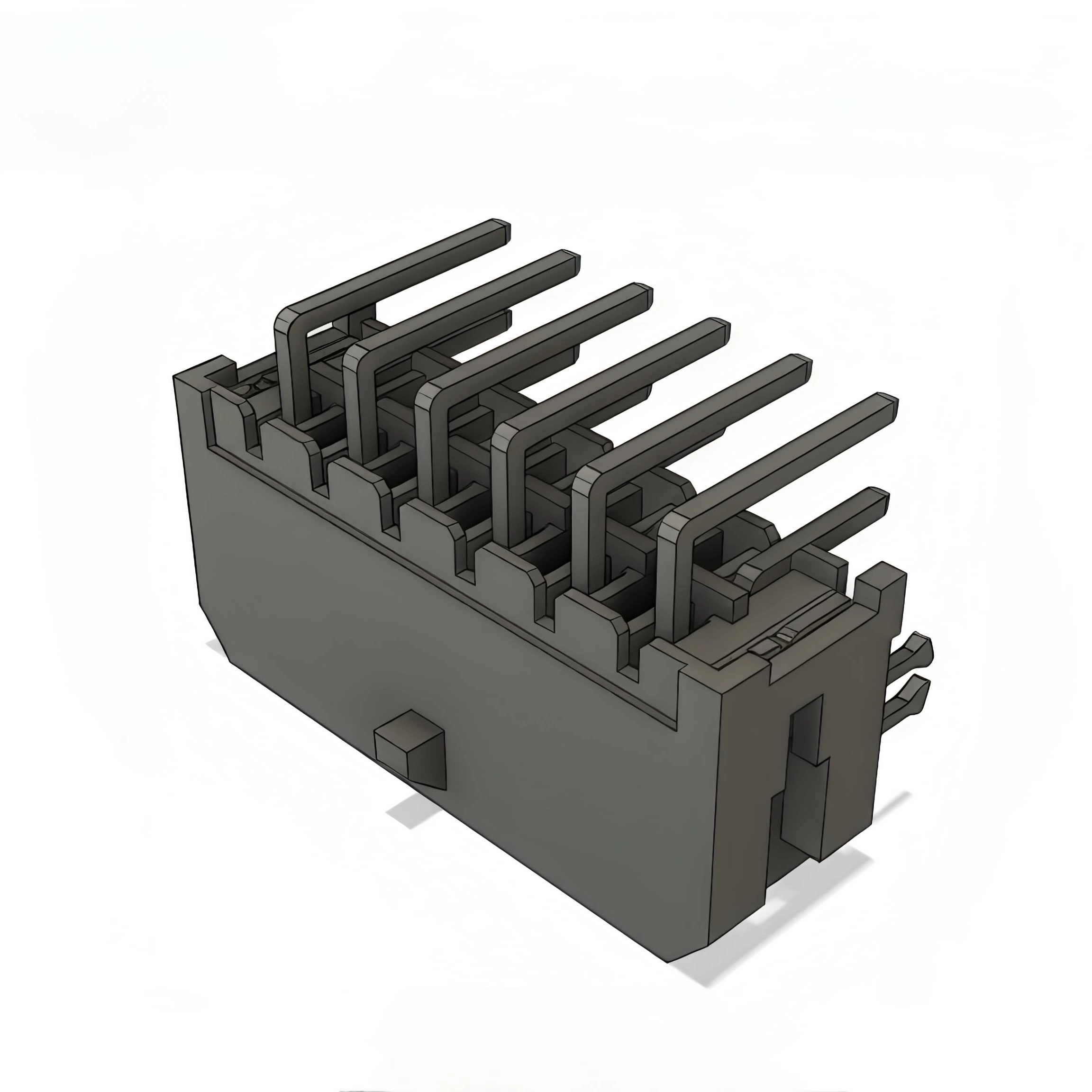

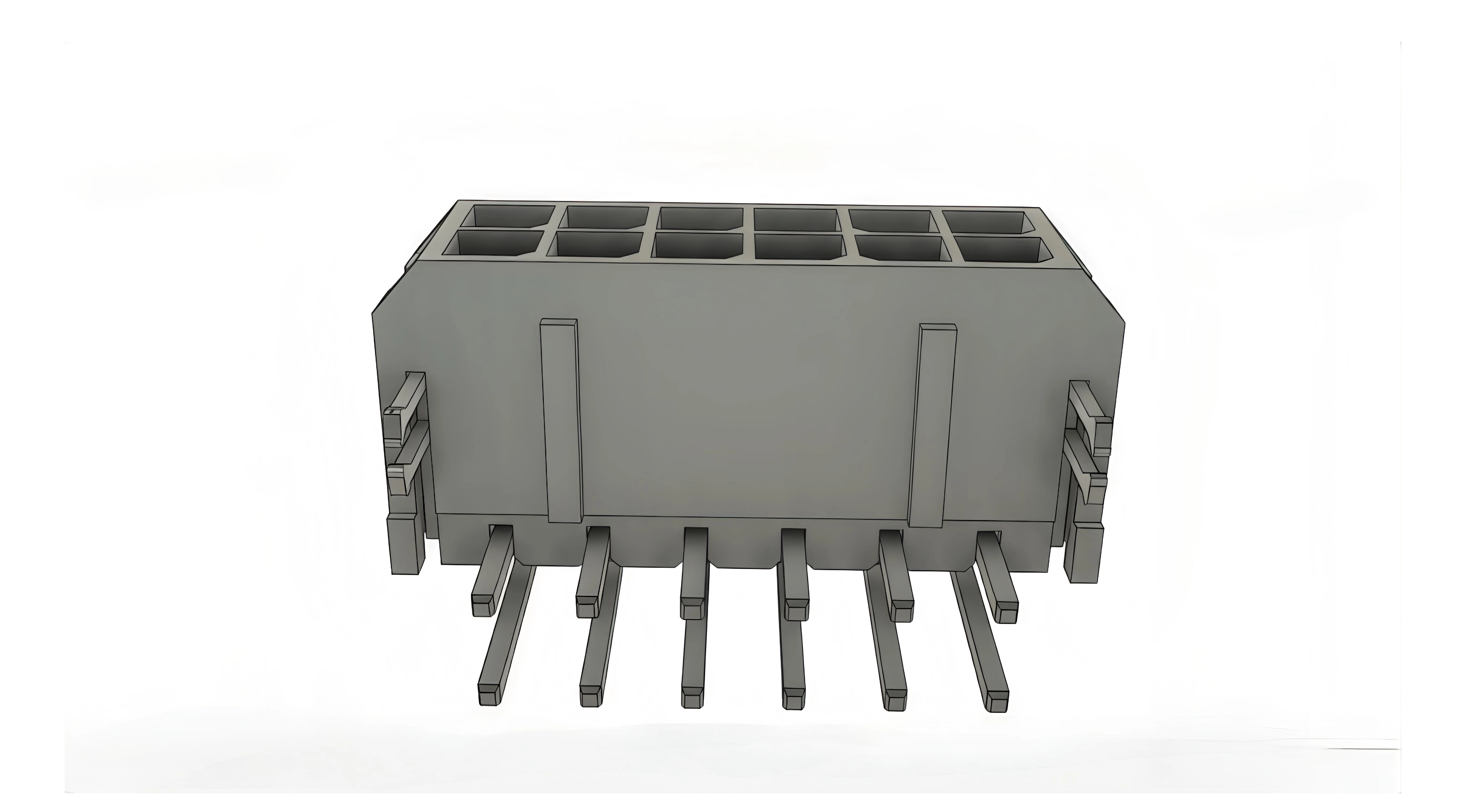

2.Physical and Structural Characteristics:

The product utilizes a black UL94V-0 rated LCP housing material, offering advantages such as high temperature resistance and flame retardancy. The pins are made of C1100 T2 material with tin plating, and the solder tabs employ a brass matte tin-plating process, enhancing conductivity and oxidation resistance. It operates reliably across a wide temperature range from -40°C to +105°C, making it suitable for various demanding working conditions.

◆◆ Product Advantage

1. High Current-Carrying Capacity: Supports a maximum current of 12.5A, making it suitable for medium to high-power applications. A detailed current matching table based on pin count and cable specifications is provided, offering greater design flexibility.




2. Wide Cable Compatibility: Supports multiple wire gauges from AWG16# to AWG24#, accommodating diverse wiring requirements.




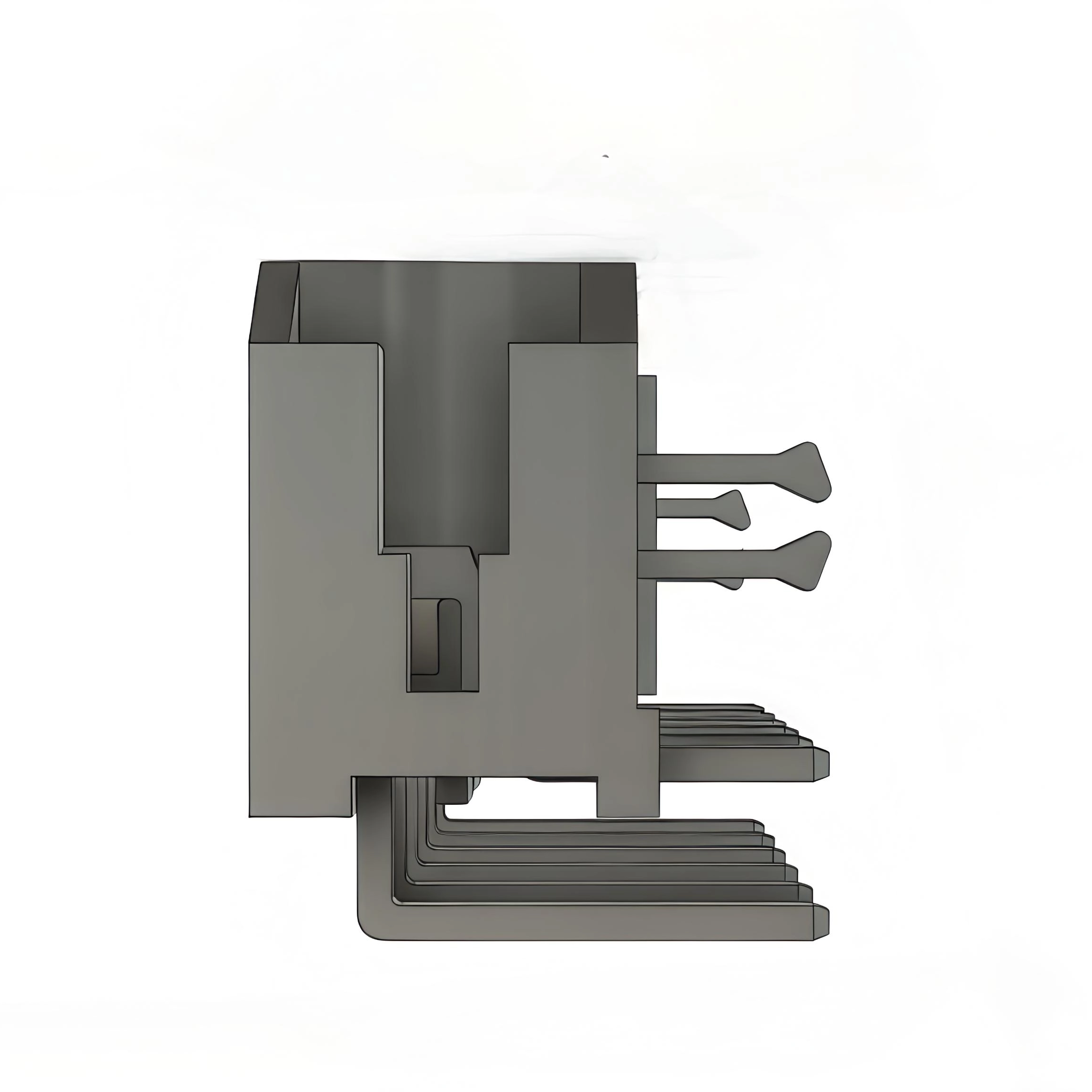

3. High-reliability package, utilizing LCP material for excellent heat resistance, electrical performance, and mechanical strength. The 90° right-angle design facilitates space optimization and wiring.




4. Environmental Compliance: Product conforms to RoHS directives, suitable for electronic equipment with stringent environmental requirements.




5. Standardized Packaging and Installation Guidance: Provides detailed installation dimensions and packaging specifications, facilitating automated production and assembly. Clear packaging specifications support bulk procurement and warehouse management.




6. Standardized Structural Design: Offers detailed dimensional parameters for easy PCB layout and structural matching.


◆◆ Product Uses

1. Consumer Electronics

2. Automotive Electronics (Auxiliary Systems)

3. Industrial Automation Equipment

4. Communication Devices

5. Medical Electronics (Low-Risk Devices)
