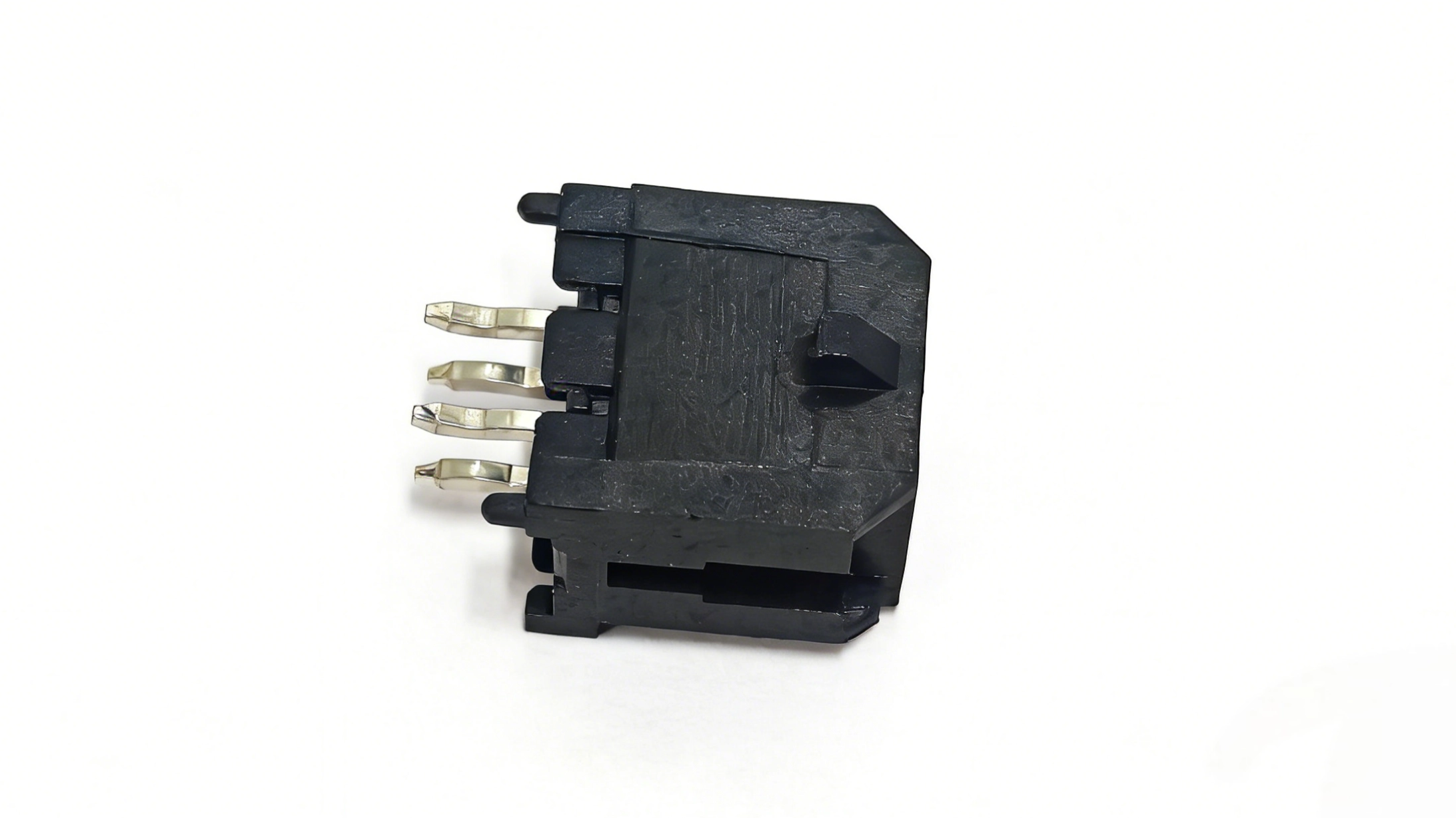

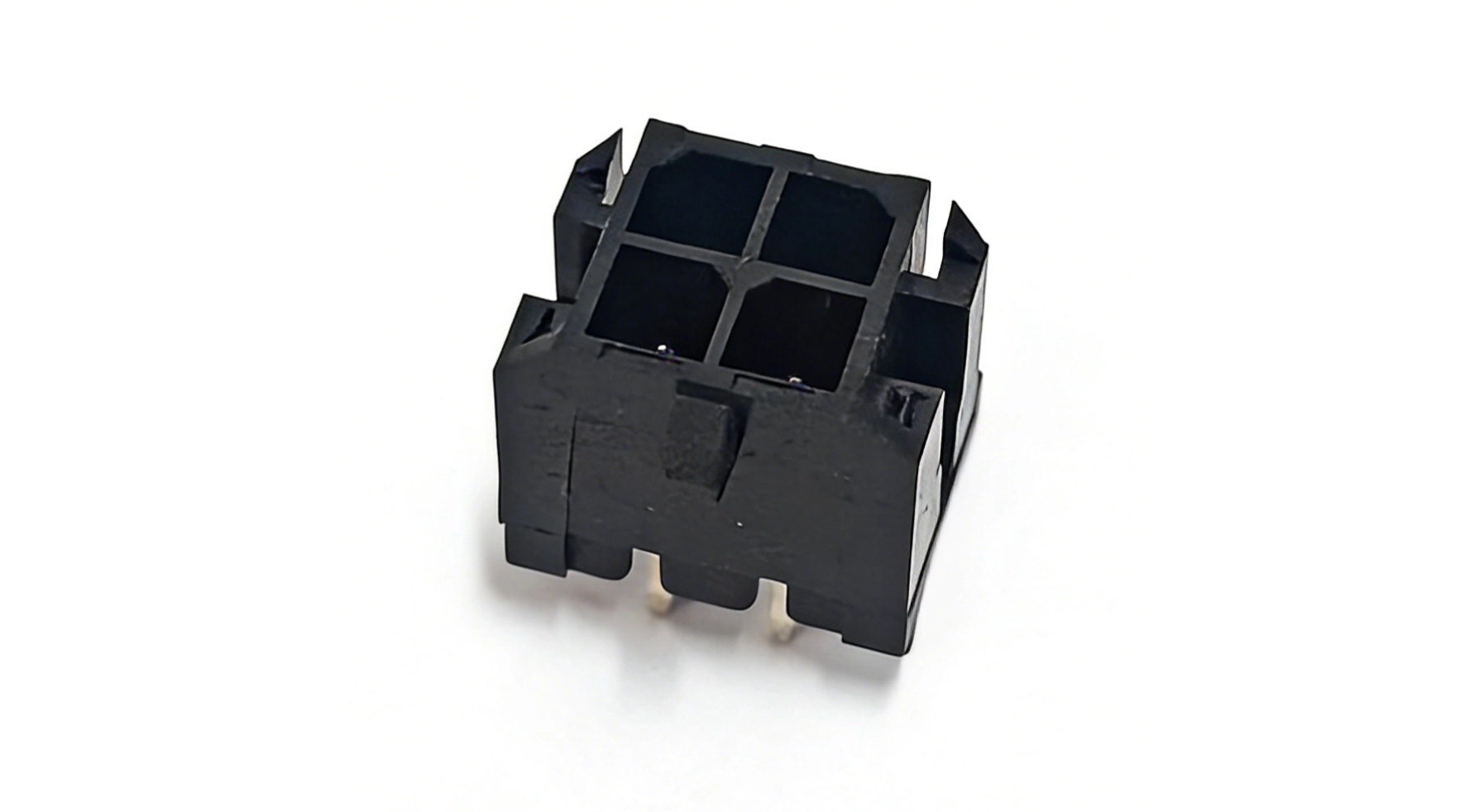

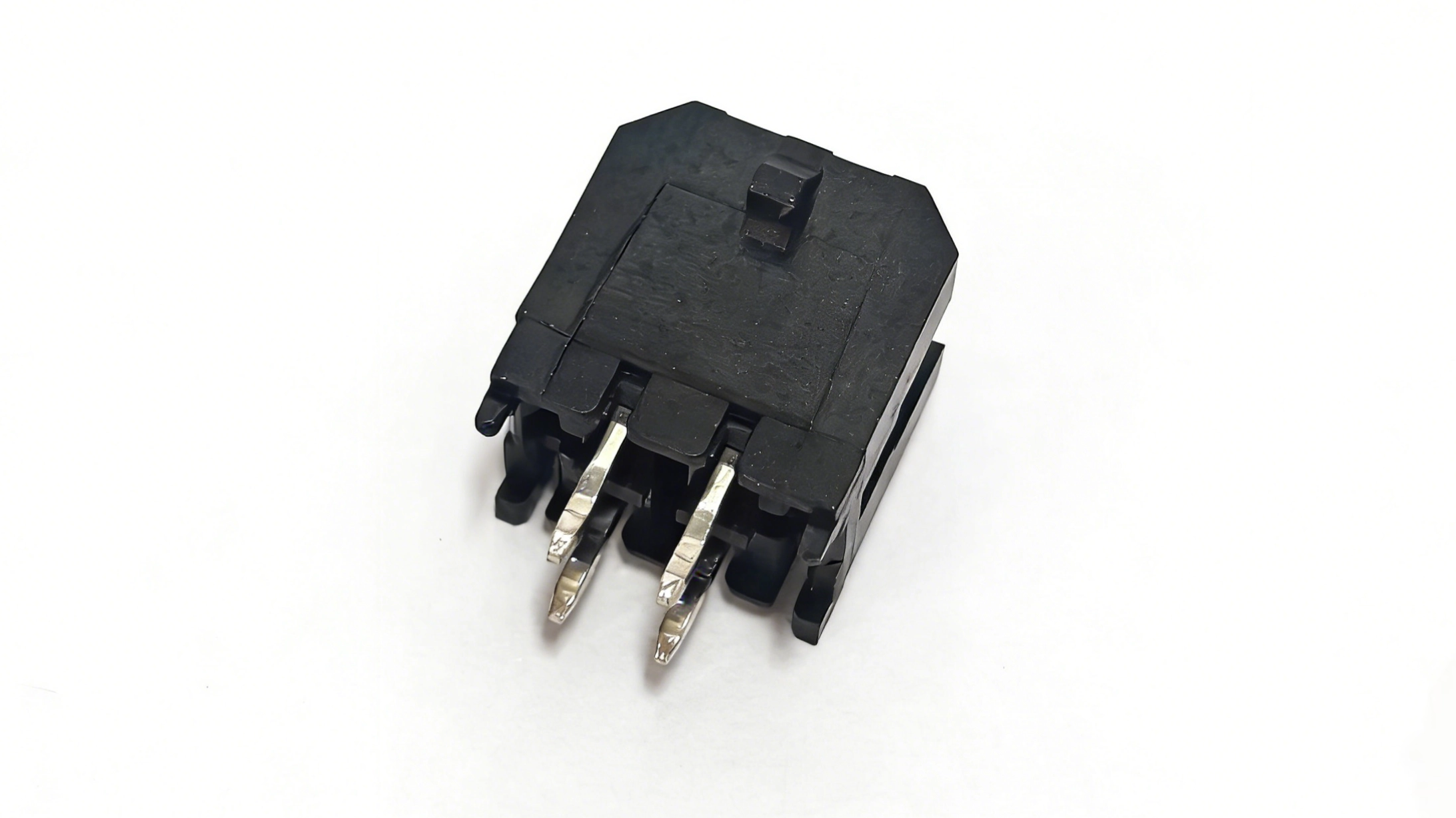

1.This product is a 180° vertical plug-in Wafer type wire-to-board connector with a 3.0mm MX pitch and the part number BIW3045V2xNP. Compliant with RoHS environmental standards, it is the optimal choice for standard front/back mounting on PCB boards and is primarily engineered for signal transmission core links in various electronic devices. It offers a full range of pole counts from 2P to 24P with graded dimensional tolerances by pole count: ±0.25mm for 2x01P-2x06P and ±0.35mm for 2x07P-2x12P, with an angular tolerance of ±1°, making it suitable for various standard PCB layout designs.

2.The housing is made of PA66 + 15% glass fiber, the black version meeting the UL94V-0 flame retardant standard. The pins are constructed from brass with tin-plated contact areas, ensuring robust mechanical structural strength while delivering stable conductive performance. Boasting outstanding core electrical parameters, it has a rated voltage of 250V AC/DC and a rated current of 5A, with a withstanding voltage of 1500V AC per minute, insulation resistance of ≥1000MΩ and contact resistance of ≤20mΩ. Operating within a temperature range of -25°C to +85°C, it enables continuous signal transmission across multiple scenarios. Featuring a vertical plug-in structural design with precisely positioned pins, it is compatible with automated insertion and soldering processes, greatly improving assembly efficiency.

◆◆ Product Advantage

1. Vertical Plug-in Structure for Higher Assembly Efficiency : The 180° vertical plug-in design features precisely positioned pins for simple and convenient installation. It is fully compatible with mass insertion and soldering processes on automated production lines, effectively boosting production efficiency and reducing manual assembly costs.




2. Excellent Contact Stability & Longer Service Life : The vertical plug-in contact structure bears force evenly, preventing pin deformation during plugging and unplugging. It effectively reduces poor contact issues caused by mounting angle deviations, enhancing the product’s mating cycle life and operational stability.




3. Wide Material Adaptability & Superior Protection : The PA66 + 15% glass fiber housing combines flame retardancy and anti-deformation performance, while the tin-plated brass pins offer excellent oxidation and corrosion resistance. The product operates stably in multiple scenarios including industrial control, automotive electronic auxiliary systems and low-risk medical electronics, with no need for additional protective measures.




4. Graded Tolerance Design for Standard Layout Compatibility : Rational dimensional tolerances are tailored for different pole counts, balancing machining precision and assembly convenience. It is suitable for front and back mounting on all types of standard PCB boards without the need for special PCB modification.





5. High-performance Core Parameters & Broad Scenario Adaptability : It shares the same high-spec electrical parameters as other products in the series, featuring high voltage resistance and low contact resistance. With a wide operating temperature range, it meets the application requirements of various fields such as consumer electronics, communication devices and industrial automation equipment, boasting extensive adaptability.


◆◆ Product Uses

1. Consumer Electronics

2. Automotive Electronics (Auxiliary Systems)

3. Industrial Automation Equipment

4. Communication Devices

5. Medical Electronics (Low-Risk Devices)
