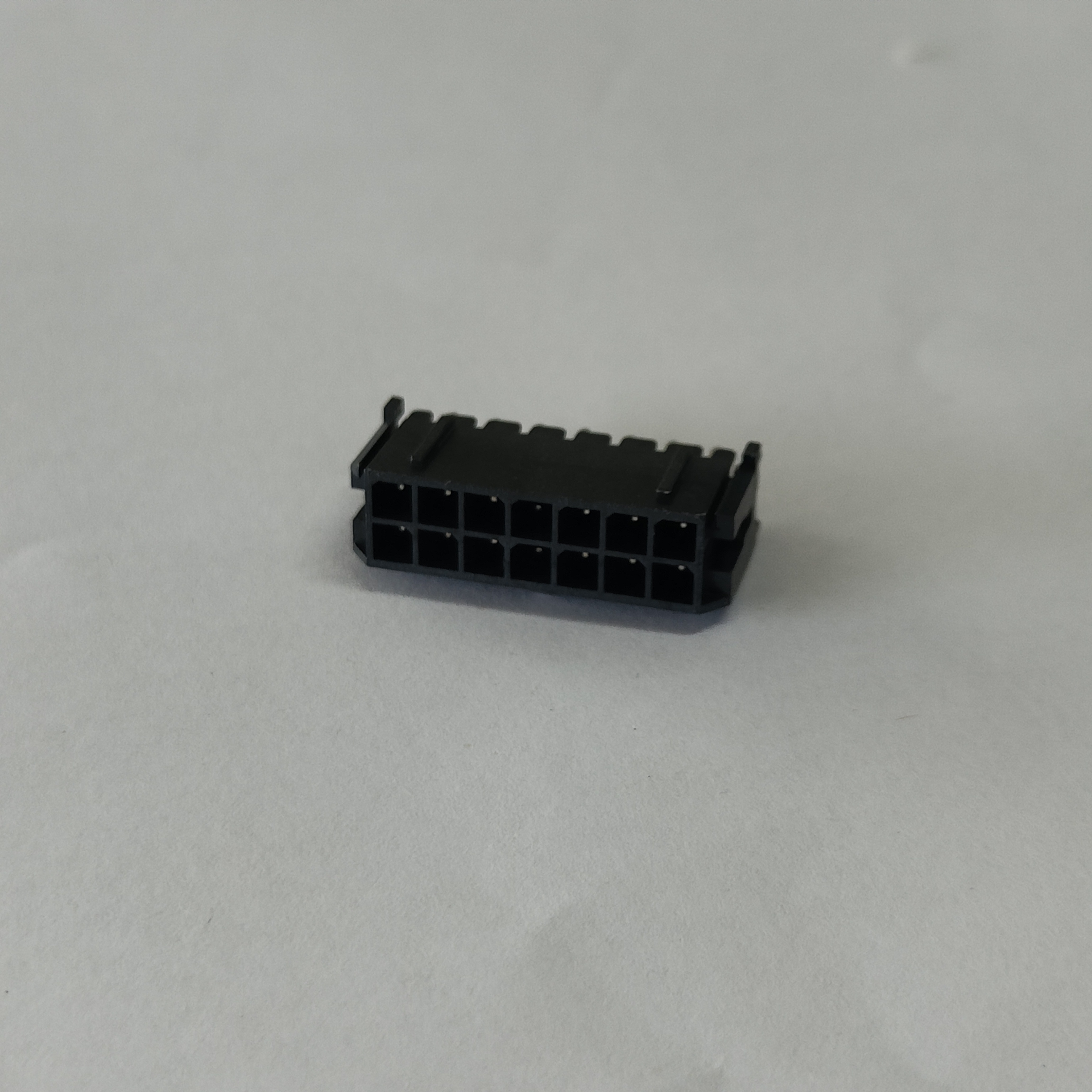

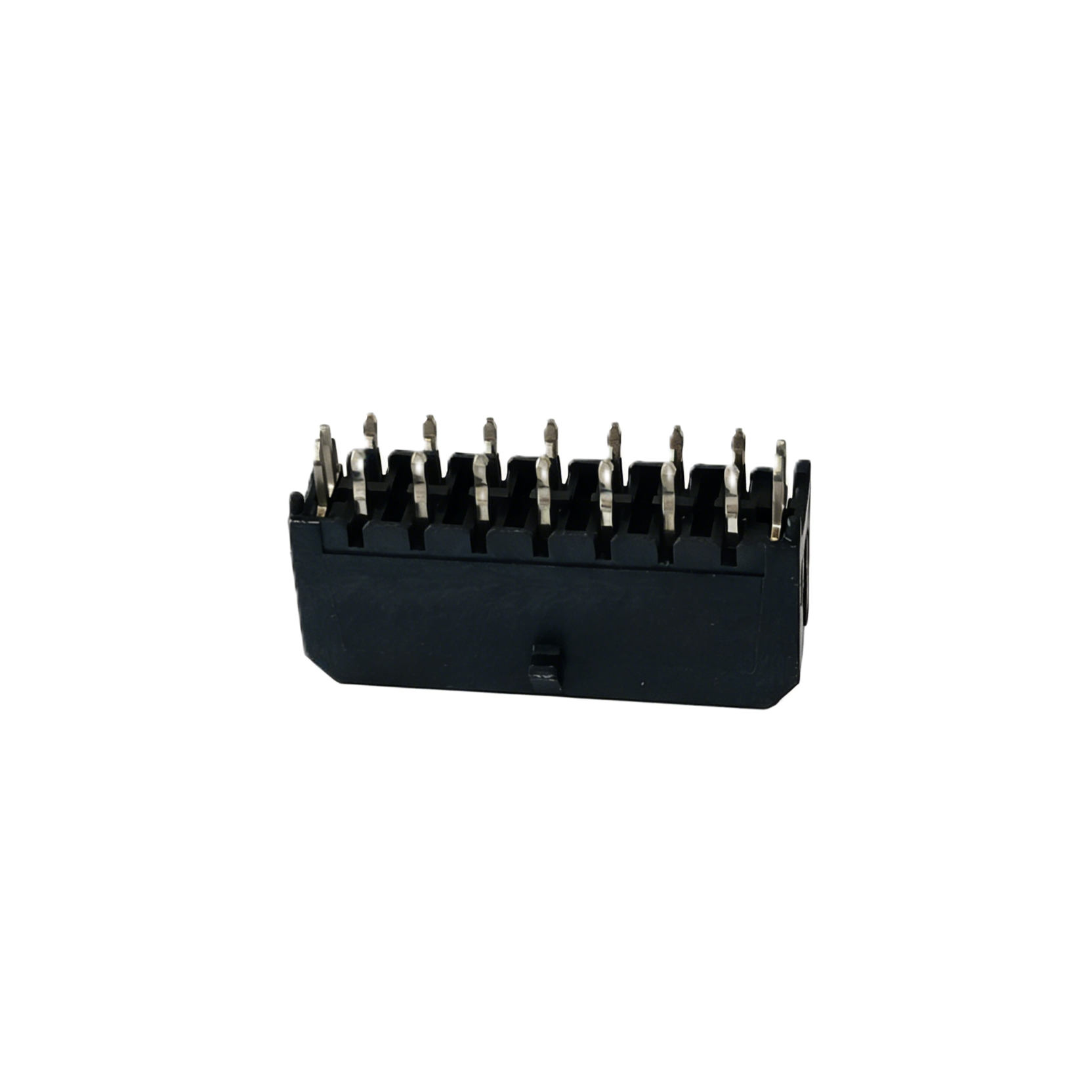

Wire to Board Connector
Industrial, IT Datacom
When your design demands reliable power delivery in a compact form factor, the CONSHARE MX 3.0mm connector series delivers exceptional performance that goes beyond industry standards. Engineered specifically for high-current applications where space efficiency matters, this dual-row straight header configuration represents our commitment to precision manufacturing and consistent quality that design engineers trust across industries.
Unlike commodity connectors that compromise on material quality or manufacturing tolerances, every CONSHARE MX 3.0mm connector undergoes rigorous production control to ensure uniform performance across every pin, every batch, every time. The 180° DIP through-hole configuration provides the mechanical stability required for vibration-prone environments while maintaining the electrical integrity critical for power transmission.
With a 12.5A current rating per circuit, this connector handles power-hungry applications without the temperature rise that plagues lesser alternatives. The optimized contact geometry ensures uniform current distribution across all contact surfaces, preventing hotspots and extending operational lifespan even under continuous load conditions.
Operating confidently from -40°C to +105°C, our LCP insulator maintains dimensional stability and dielectric properties through extreme temperature cycling. This means your connections remain secure and reliable whether deployed in industrial automation equipment, consumer electronics, or automotive subsystems.
250V AC/DC voltage rating provides safety margin for most power applications
1000V AC dielectric withstand ensures robust isolation between circuits
20mΩ maximum contact resistance minimizes power loss and heat generation
1000MΩ minimum insulation resistance prevents leakage and cross-talk
We specify premium T2 copper for all contact terminals – not recycled or lower-grade copper alloys. This choice delivers:
Superior electrical conductivity for minimal voltage drop
Excellent mechanical spring properties that maintain normal force through thousands of mating cycles
Consistent tin plating adhesion for reliable solder joints and corrosion resistance
The liquid crystal polymer (LCP) housing is more than just "high-temperature plastic":
UL 94V-0 flammability rating meets the strictest safety requirements
Exceptional dimensional stability during reflow soldering prevents pin misalignment
Low moisture absorption eliminates performance degradation in humid environments
Excellent chemical resistance against common industrial solvents and cleaning agents

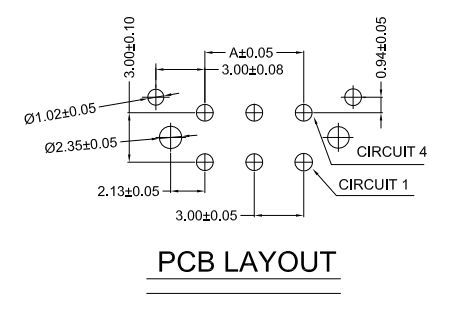

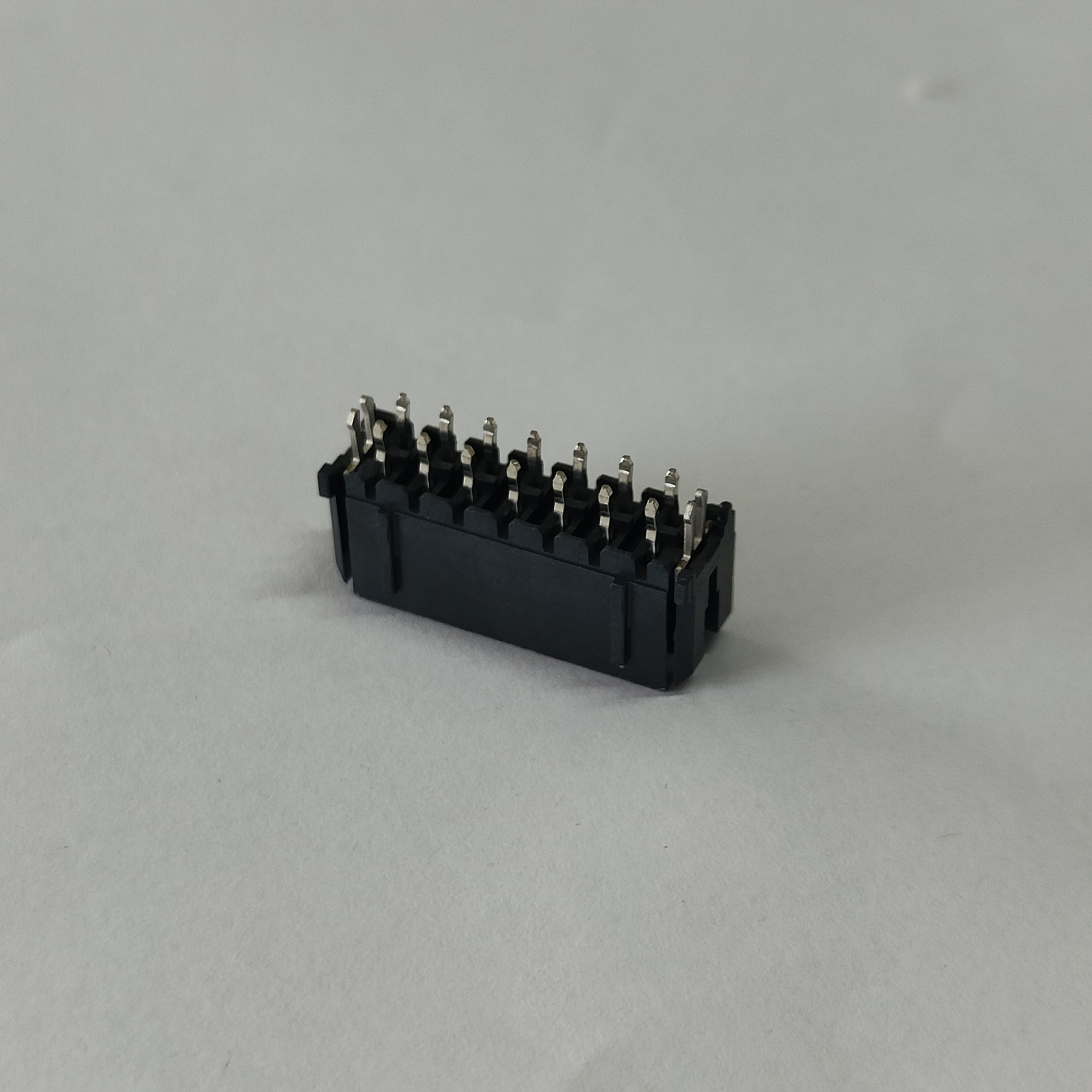

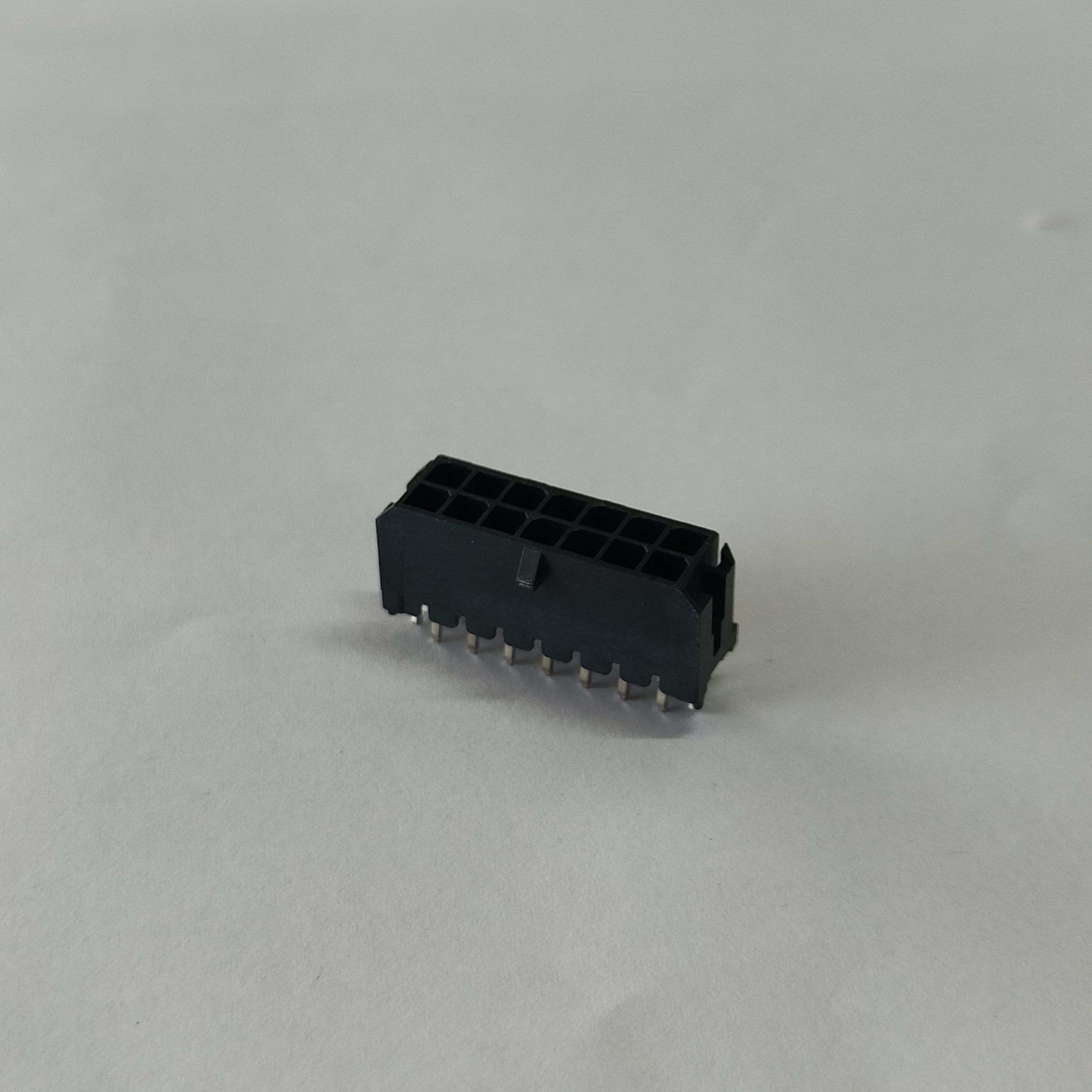

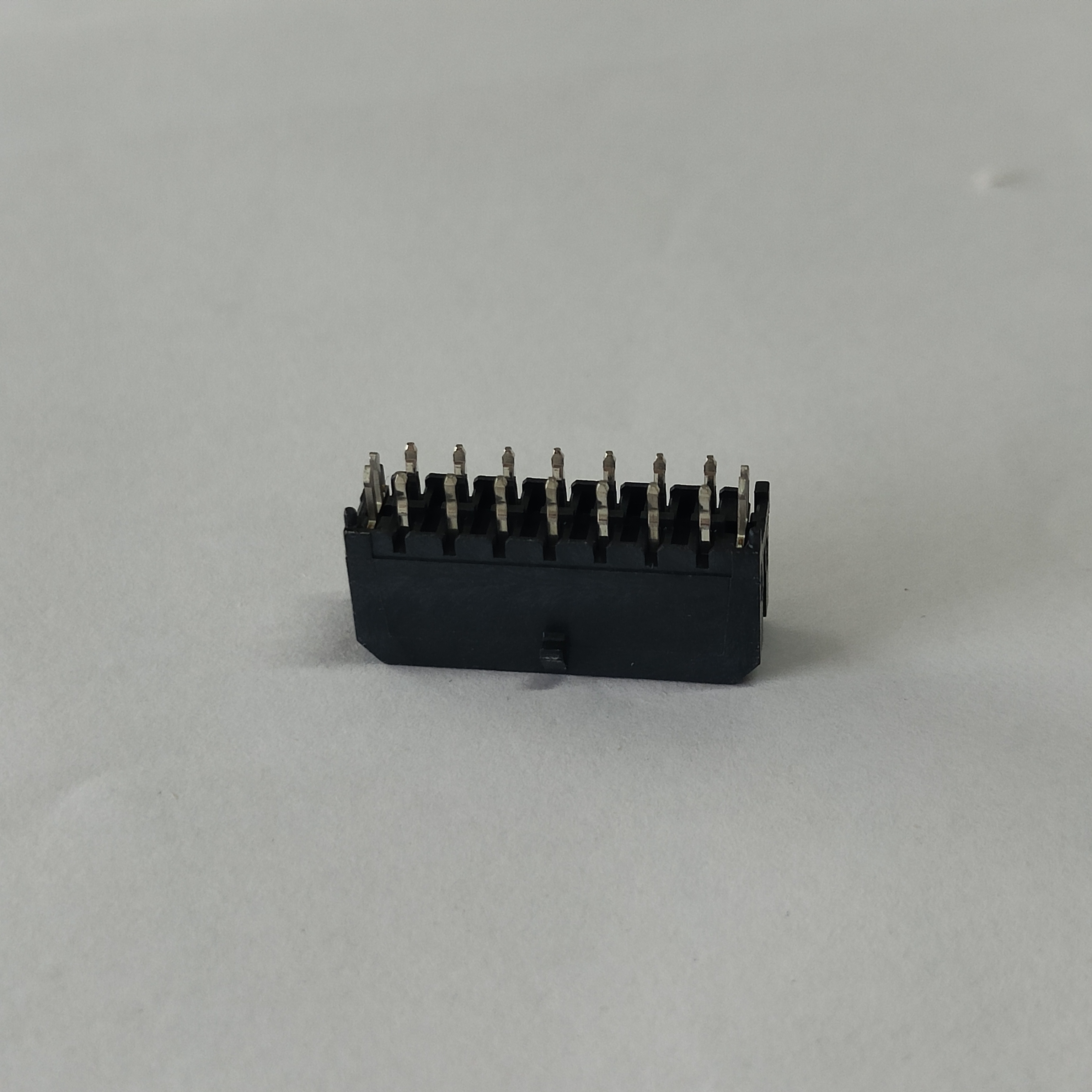

The 180° straight through-hole design features carefully controlled pin dimensions and positioning:
±0.05mm pin position tolerance ensures reliable PCB insertion
Optimized pin length provides proper through-hole penetration for strong solder joints
Robust housing design withstands automated insertion equipment without damage
Consistent standoff height prevents solder wicking up the insulator
Every connector arrives ready for high-volume manufacturing:
Standard tape and reel packaging compatible with all major pick-and-place systems
Precision pocket positioning eliminates feed errors
Protective cover tape prevents damage during shipping and handling
Consistent orientation reduces setup time and changeover costs

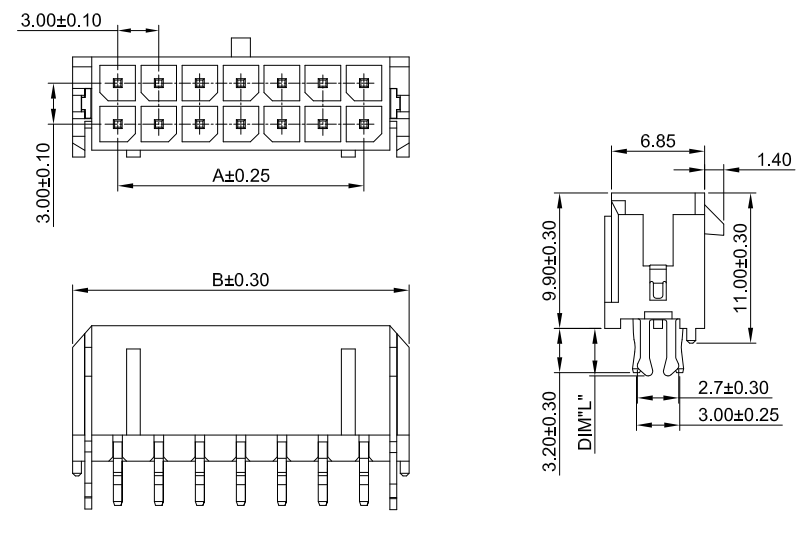

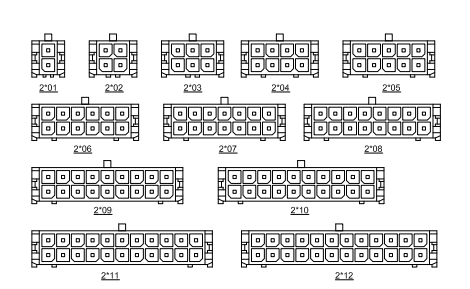

Poles (2×N) | Dimension A (mm) | Dimension B (mm) |
|---|---|---|
2×01 | 3.00 | 6.65 |
2×02 | 6.00 | 9.65 |
2×03 | 9.00 | 12.65 |
2×04 | 12.00 | 15.65 |
2×05 | 15.00 | 18.65 |
2×06 | 18.00 | 21.65 |
2×07 | 21.00 | 24.65 |
2×08 | 24.00 | 27.65 |
2×09 | 27.00 | 30.65 |
2×10 | 30.00 | 33.65 |
2×11 | 33.00 | 36.65 |
2×12 | 36.00 | 39.65 |
Custom configurations available upon request – contact our engineering team for application-specific solutions
Every CONSHARE connector reduces your risk of field failures, rework costs, and production line stoppages. Our manufacturing process includes 100% continuity testing and visual inspection before shipment, so you receive only defect-free components.
As your direct manufacturing partner, we maintain consistent production capacity and transparent lead times. No more unexpected delivery delays from middlemen or unpredictable overseas distributors.
Our technical team understands connector design from both sides of the mating interface. We don't just sell components – we help you optimize your PCB footprint, specify proper mating forces, and solve application challenges before they become production problems.
