Wire to Board Connector
Industrial, IT Datacom

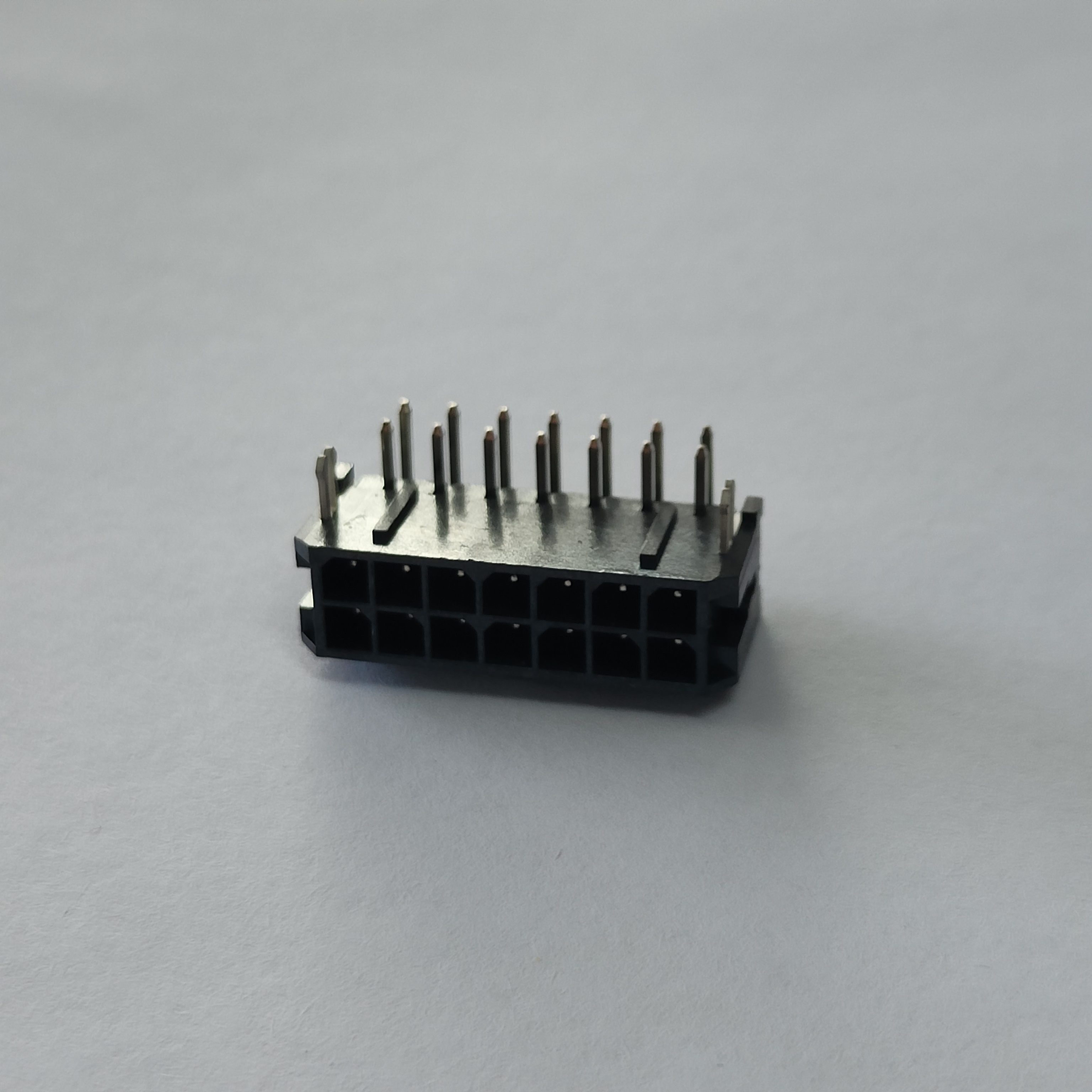

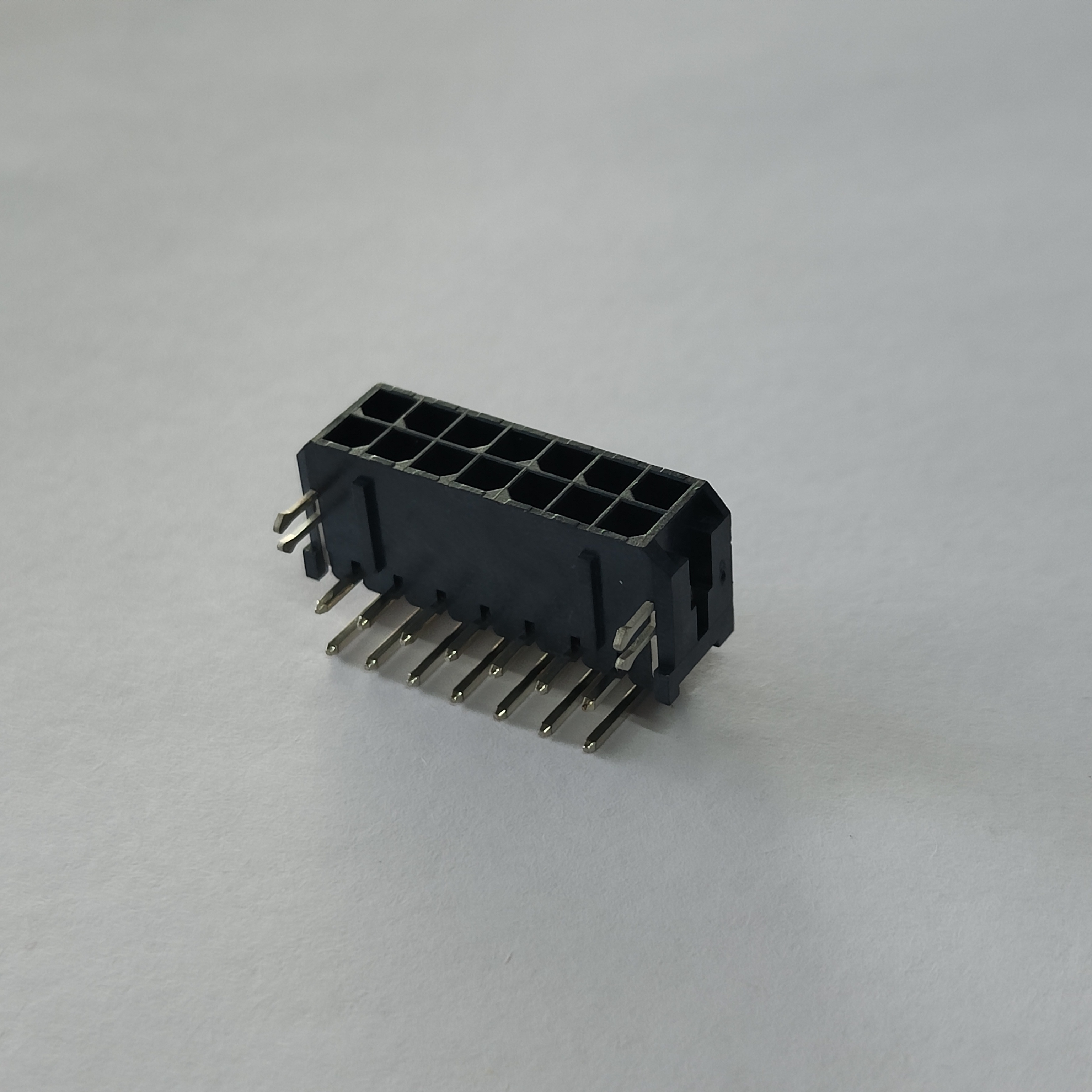

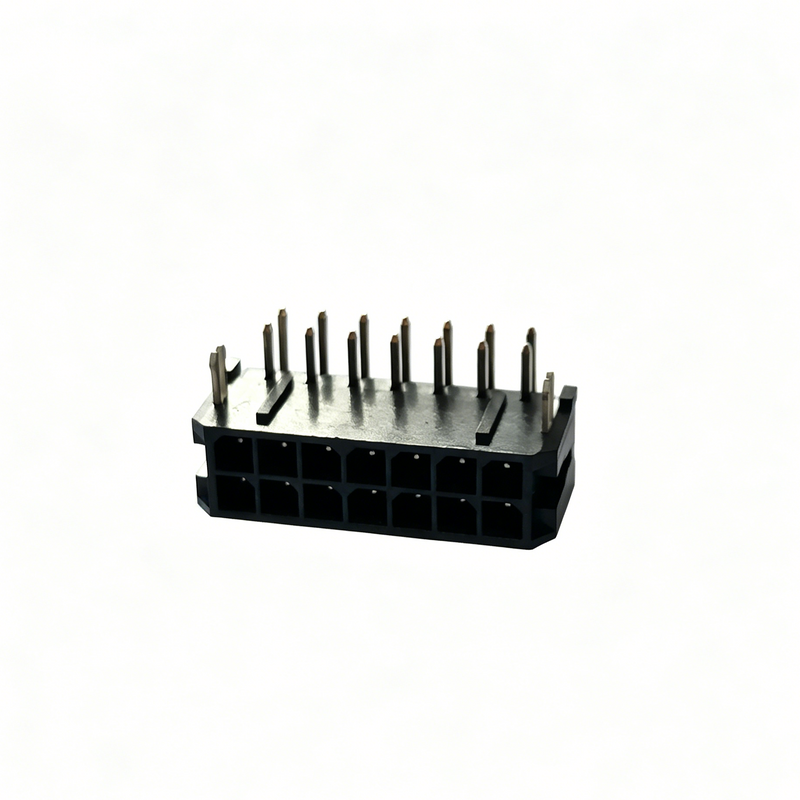

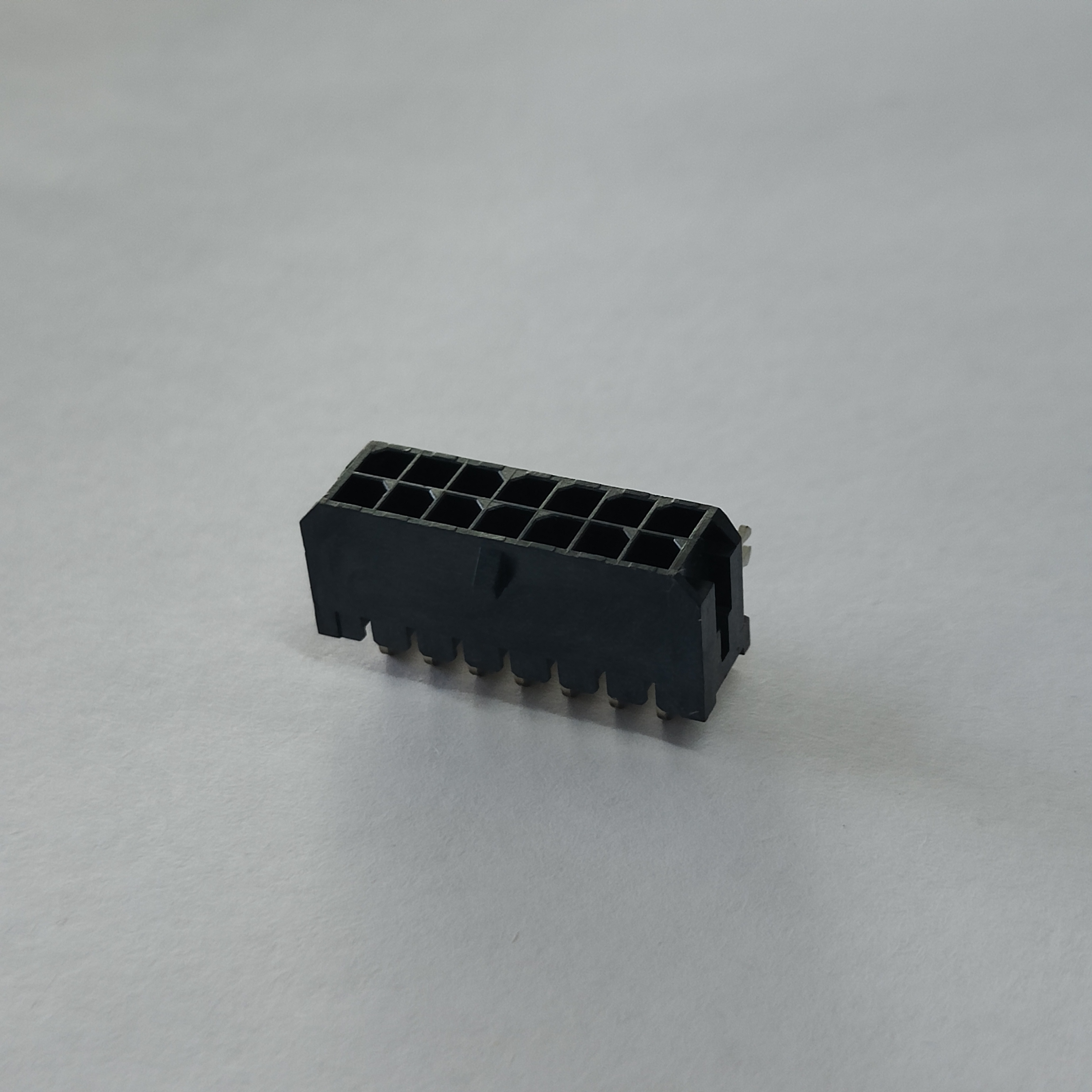

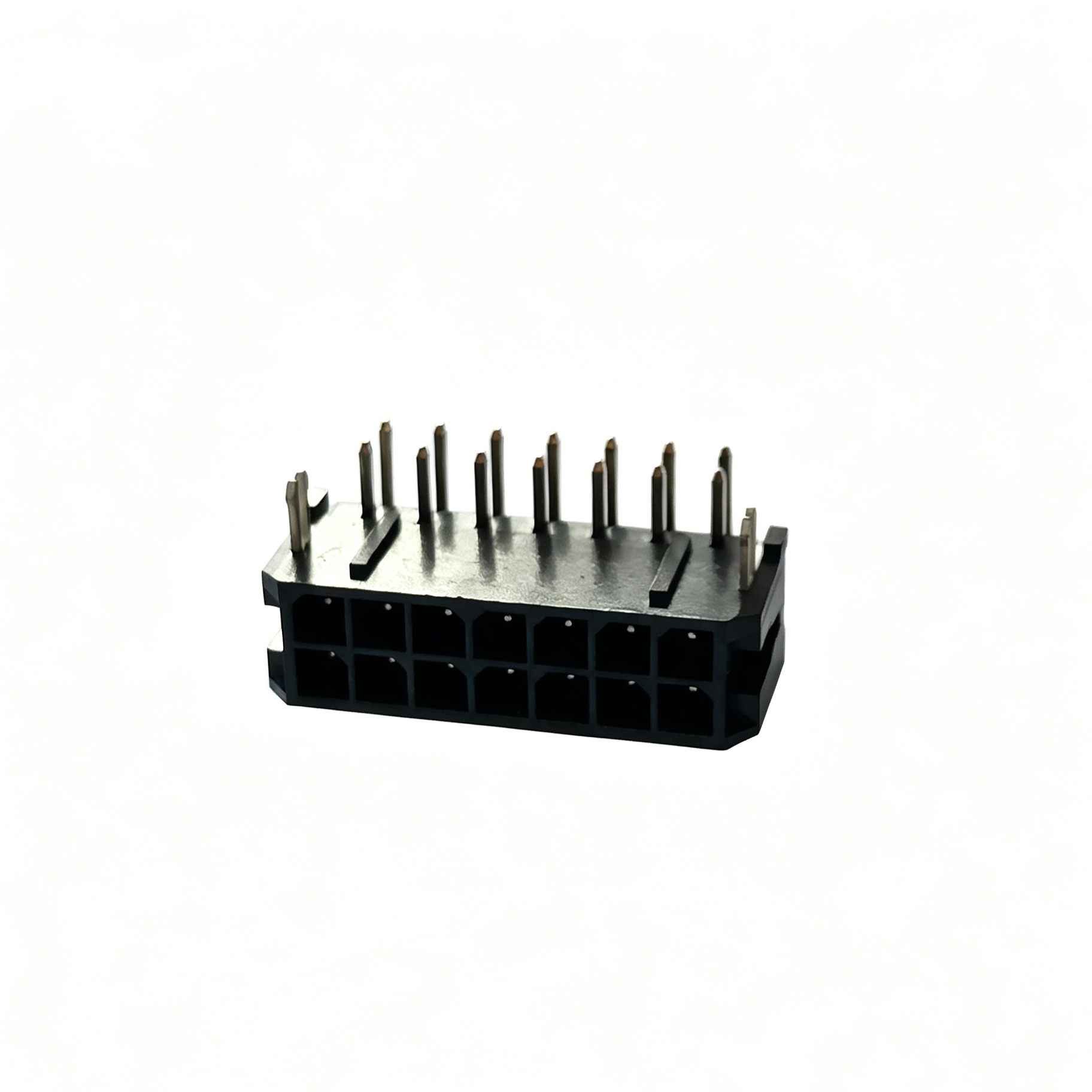

CONSHARE’s dual-row right-angle through-hole header features a fixed 3.00mm pitch and consistent 3.00mm L dimension, engineered to solve space constraints for parallel PCB stacking designs. The 90° bent DIP architecture delivers reliable medium-power connectivity without sacrificing enclosure space. Built with high-temperature flame-retardant LCP housing and precision tin-plated copper terminals, this connector delivers stable electrical performance and long mechanical service life for commercial and industrial mass manufacturing.
Material: LCP UL94 V-0 liquid crystal polymer
Real-world value: Stable operation across -40°C ~ +105°C ambient temperatures; flame retardancy complies with global electronic safety standards; low water absorption prevents short circuits in high-humidity operating environments
Finish: Uniform matte black scratch-resistant surface
Core pin material: C1100 T2 copper with matte tin plating
Real-world value: High copper conductivity supports up to 12.5A per circuit; matte tin plating resists oxidation and maintains consistent solderability for long-term warehousing

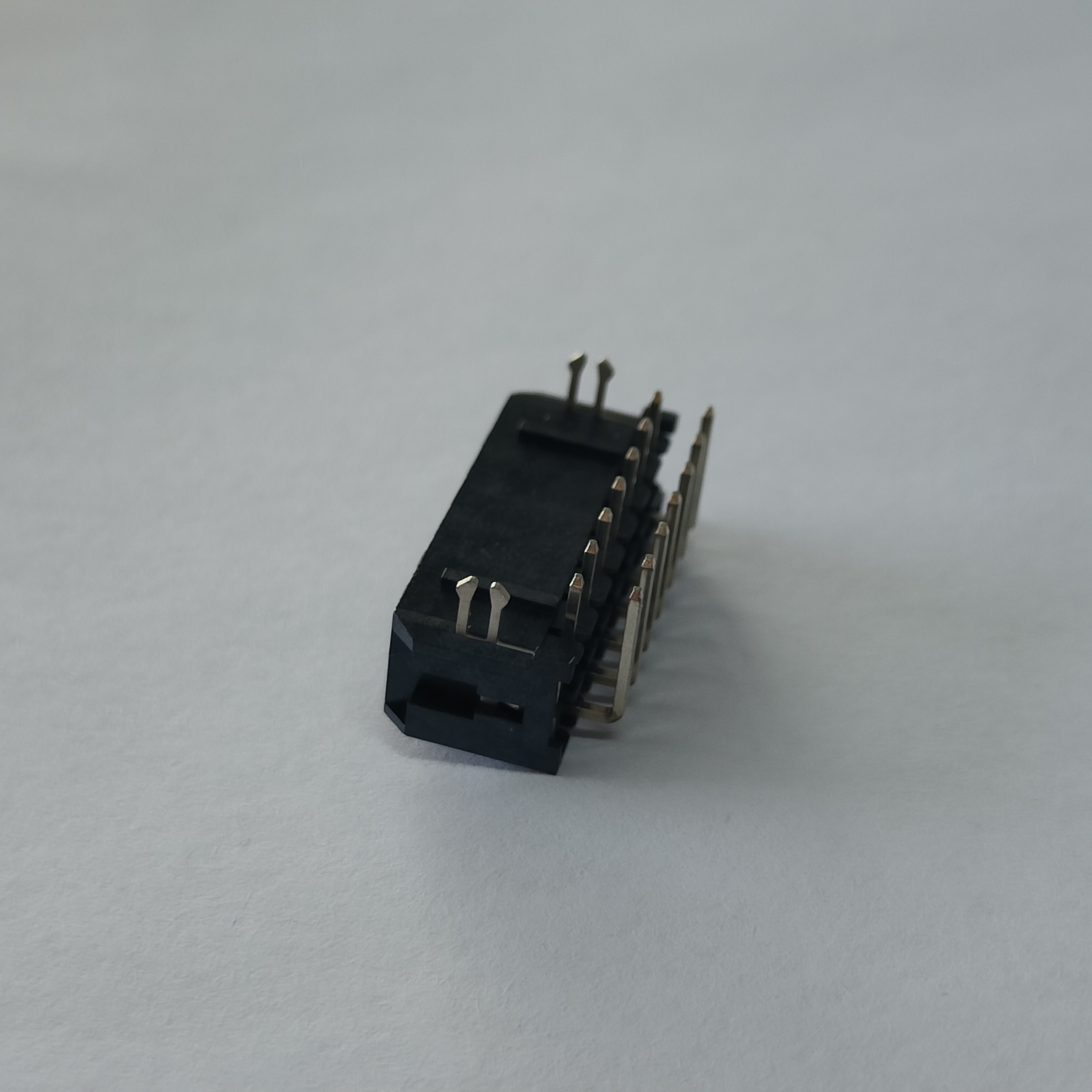

Reinforced brass solder tabs boost PCB holding force to avoid pin loosening under vibration or equipment impact
Performance Index | Practical Design Value |
|---|---|
250V AC/DC universal voltage rating | Compatible with low-voltage signal boards and medium-power PSU modules, one connector covers multiple product lines |
Max 20mΩ contact resistance | Reduces power loss during continuous operation, minimizing extra heat dissipation design costs for finished devices |
≥1000MΩ insulation resistance | Fully isolates power and signal circuits to block interference in sensor, control and communication hardware |
1500V AC 1-minute withstand voltage | Passes standard EMC safety tests, satisfies certification criteria for industrial, medical and automotive electronics |

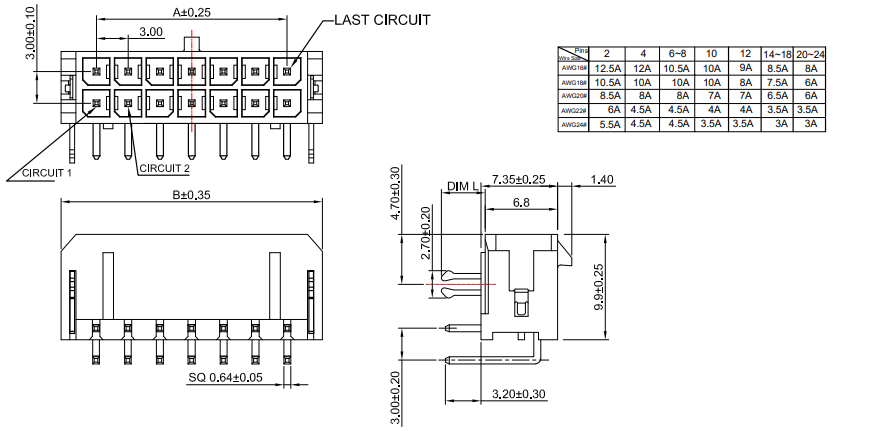

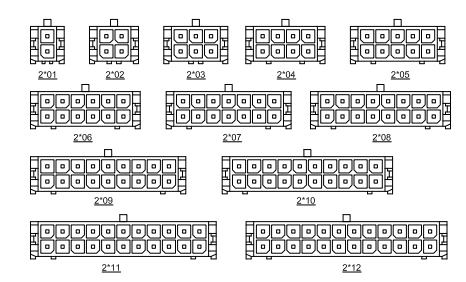

All variants share identical housing thickness, electrical performance and materials, differing only in overall length to fit varying channel counts:
Dual Row Pin Count | Dimension A | Dimension B | Target Application |
|---|---|---|---|
2×03 (6P) | 6.65mm | 8.66mm | Mini sensor modules, compact LED drivers |
2×04 (8P) | 9.65mm | 12.65mm | Low-power control boards, home appliance panels |
2×05 (10P) | 12.65mm | 15.65mm | Mini industrial I/O, small motor drive boards |
2×06 (12P) | 15.65mm | 18.65mm | Switch power supplies, IoT gateway motherboards |
2×07 (14P) | 21.65mm | 24.65mm | Multi-channel data loggers, lighting controllers |
2×08 (16P) | 24.65mm | 27.65mm | Medium automation control boards, communication auxiliary boards |
Custom pin counts (2×02 / 2×09~2×12) are available for volume OEM orders with unchanged core electrical properties.
Industrial Automation: PLC auxiliary signal boards, servo driver internal wiring, factory sensor junction boards
Power Equipment: Small switching power supplies, battery management modules, DC-DC converter PCBs
Lighting Hardware: Commercial LED panel drivers, stage lighting control circuits
Consumer Electronics: Smart home mainboards, small household appliance power connectors
Medical Devices: Low-power diagnostic testing equipment internal wiring modules
Telecom Hardware: Mini signal distribution boards, network terminal auxiliary power interfaces
Fully RoHS compliant, meeting environmental standards for EU, North American and Southeast Asian electronics, eliminating extra certification adjustment costs for cross-border finished goods sales.
All critical assembly dimensions feature strict ±0.05mm tolerance control. Every production batch undergoes 100% electrical continuity and insulation resistance sampling inspection to avoid production line downtime caused by inconsistent product batches.

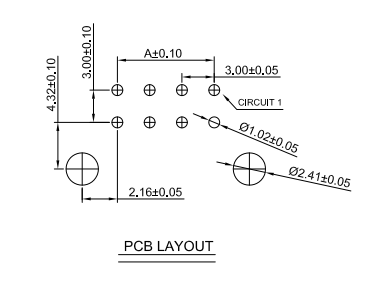

Beyond custom pin counts, we offer adjustable plating thickness, terminal hardness and positioning ribs for unique PCB layout requirements. Free customized PCB footprint drawings are provided to volume clients by our in-house engineering team.
PCB library files (Altium, KiCad compatible), 3D STEP models and complete reliability test reports are available upon request. Our engineers provide one-on-one PCB layout optimization guidance to shorten product R&D cycles.
Two packaging options available: Tube tray for manual assembly, tape & reel for automatic insertion machines
Wide -40°C ~ +105°C operating temperature range suits indoor and semi-outdoor temperature-fluctuating equipment
Anti-oxidation sealed packaging preserves stable solderability during long-term storage
