Built for Modules Where Every Millimeter Matters

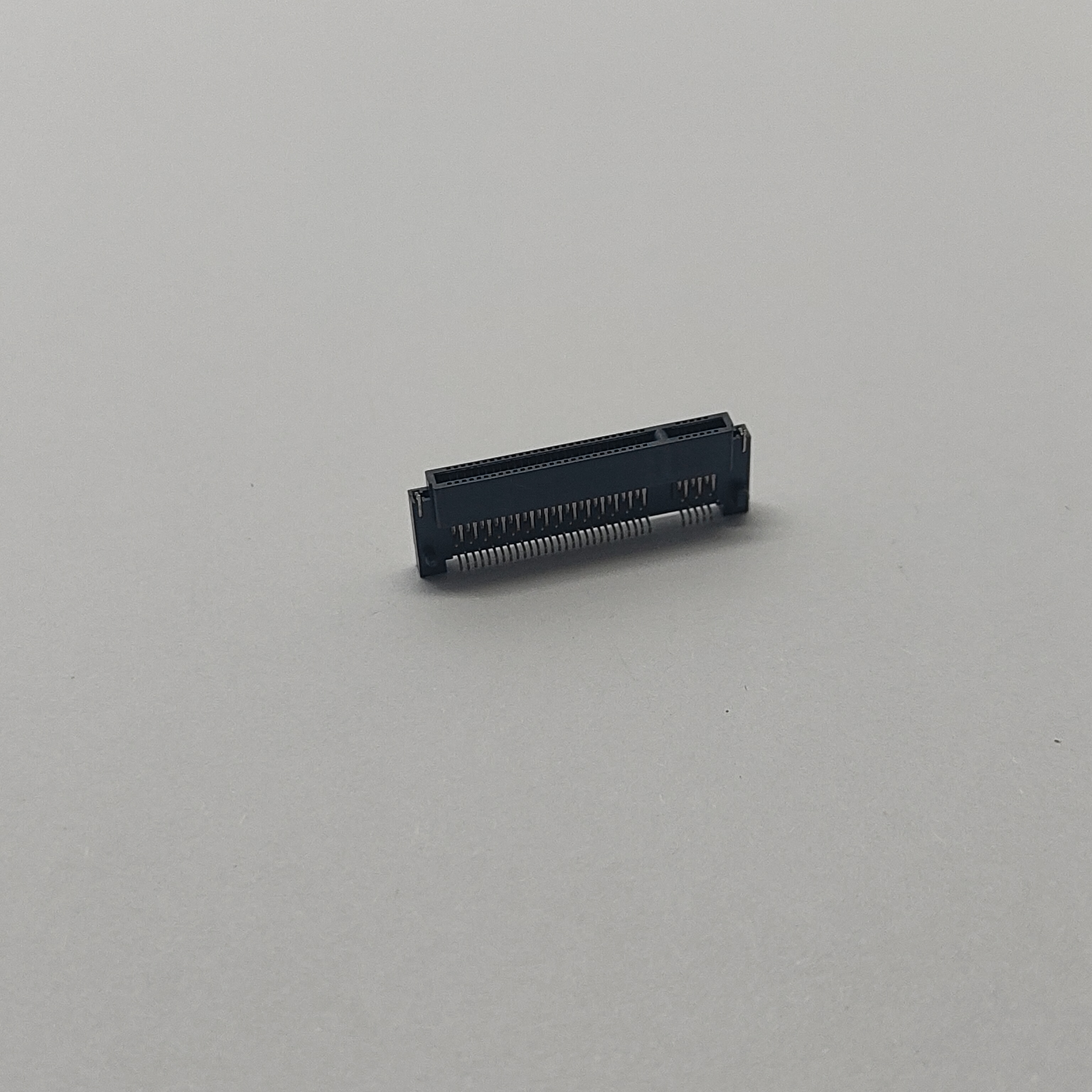

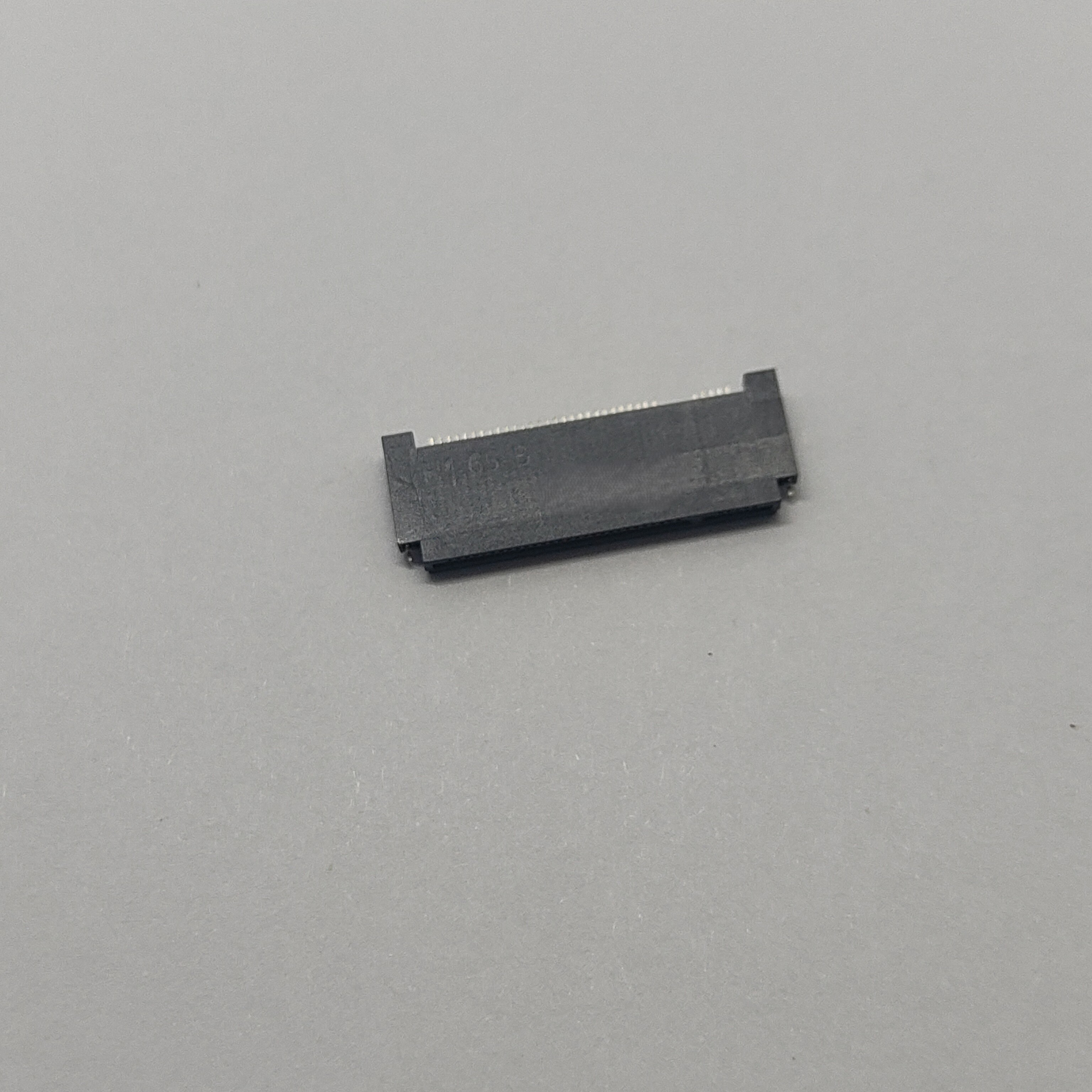

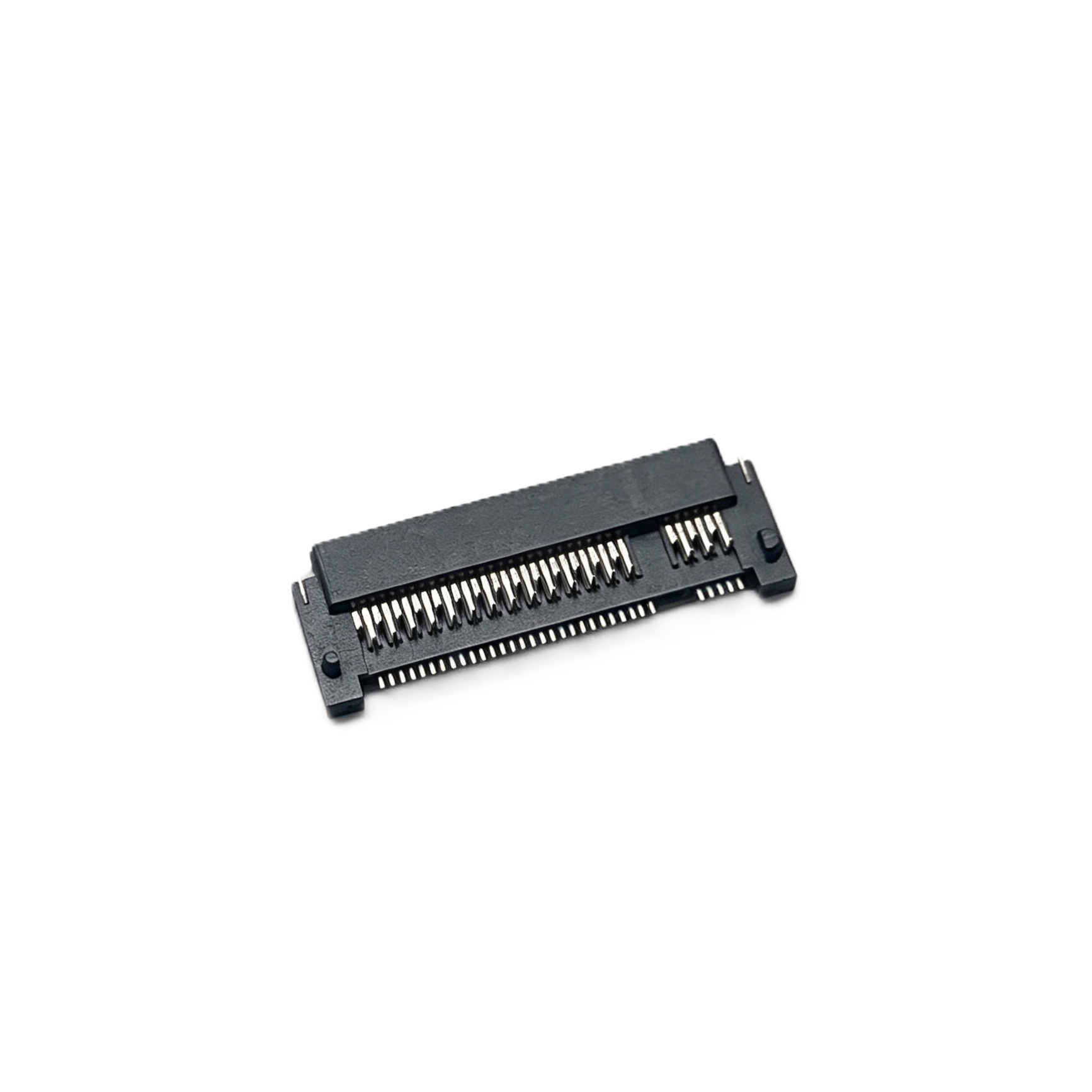

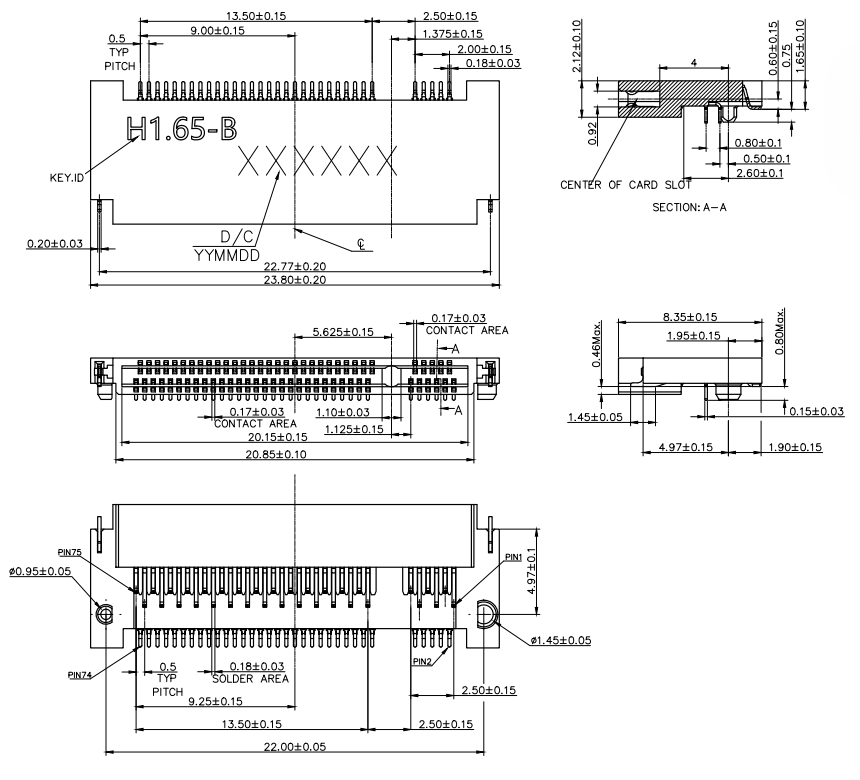

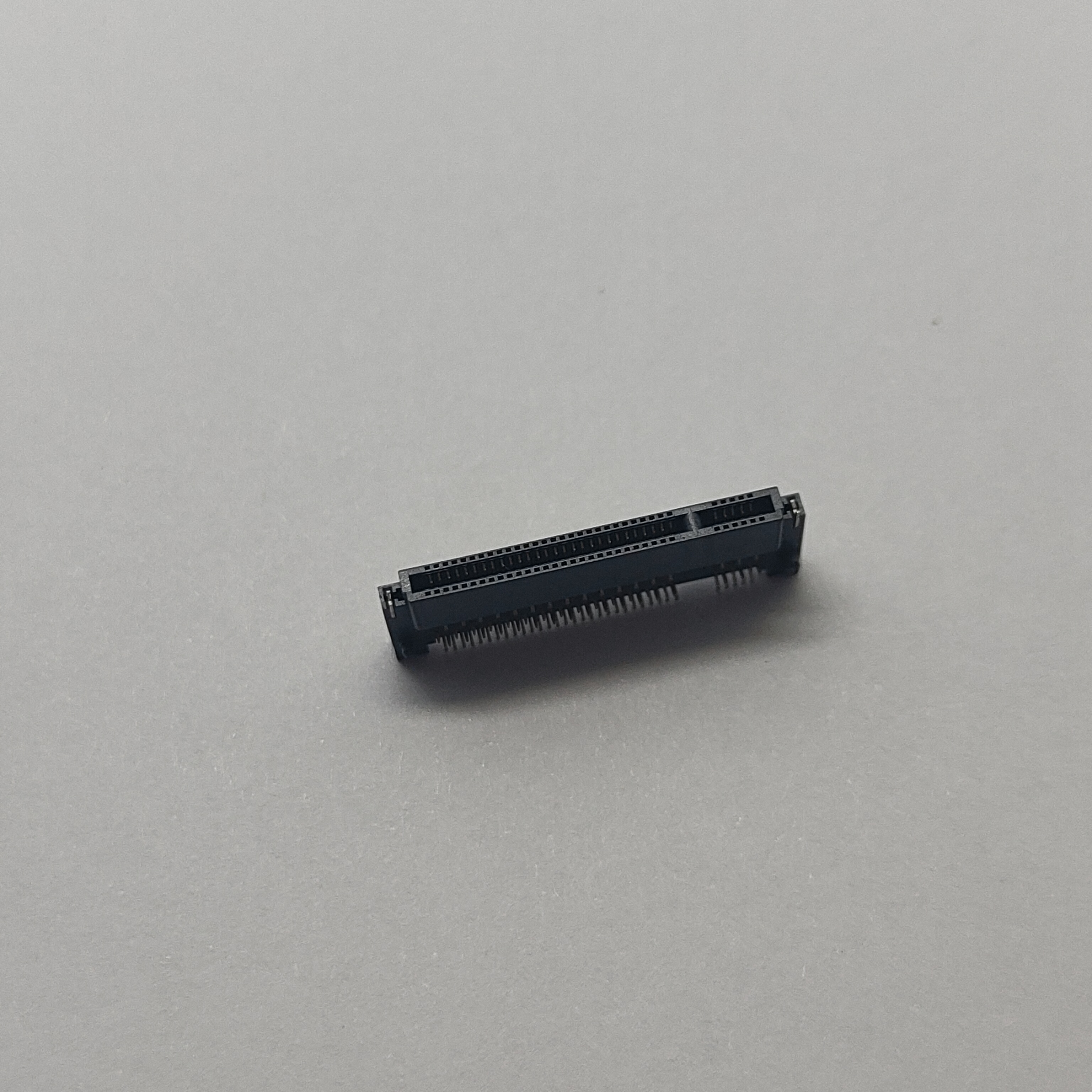

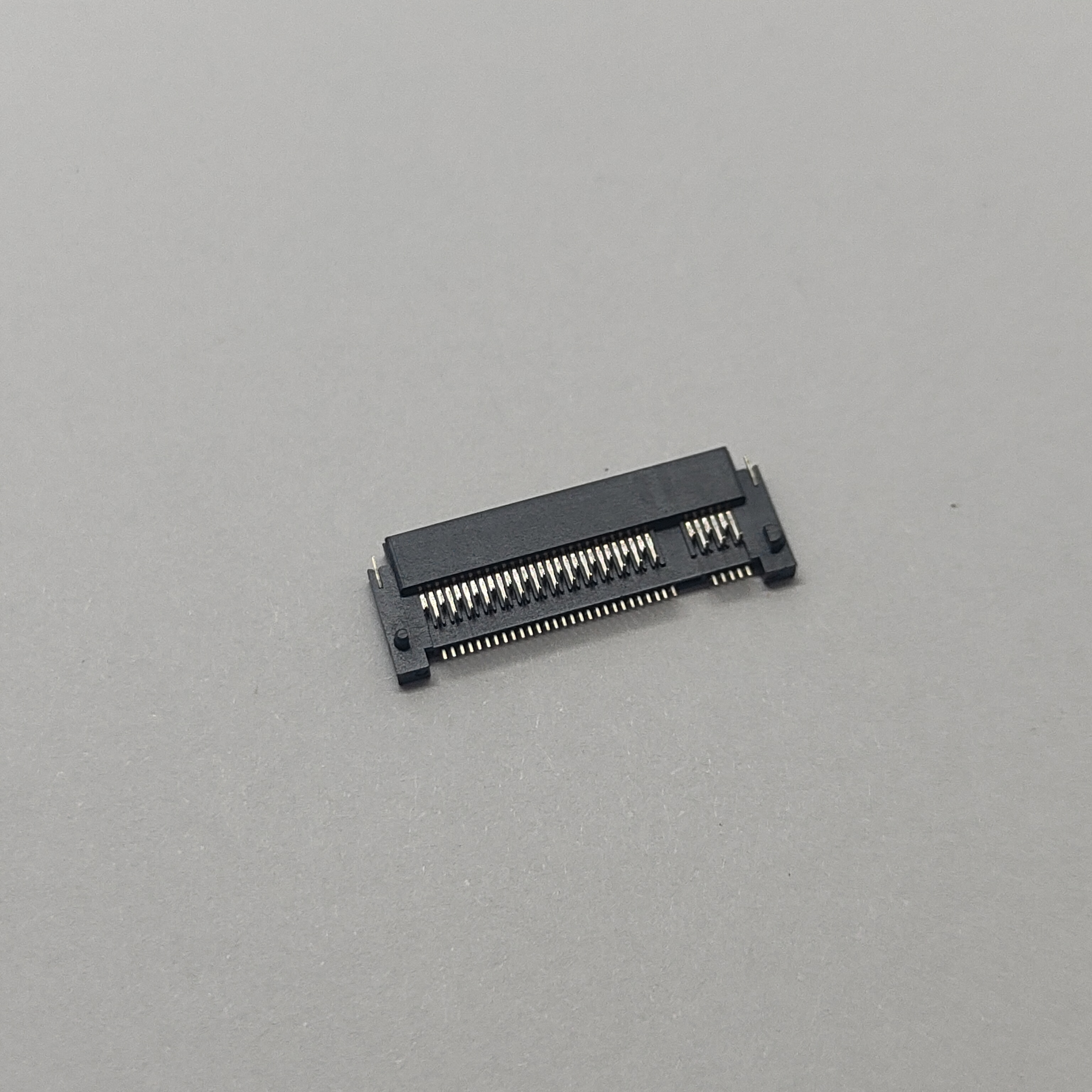

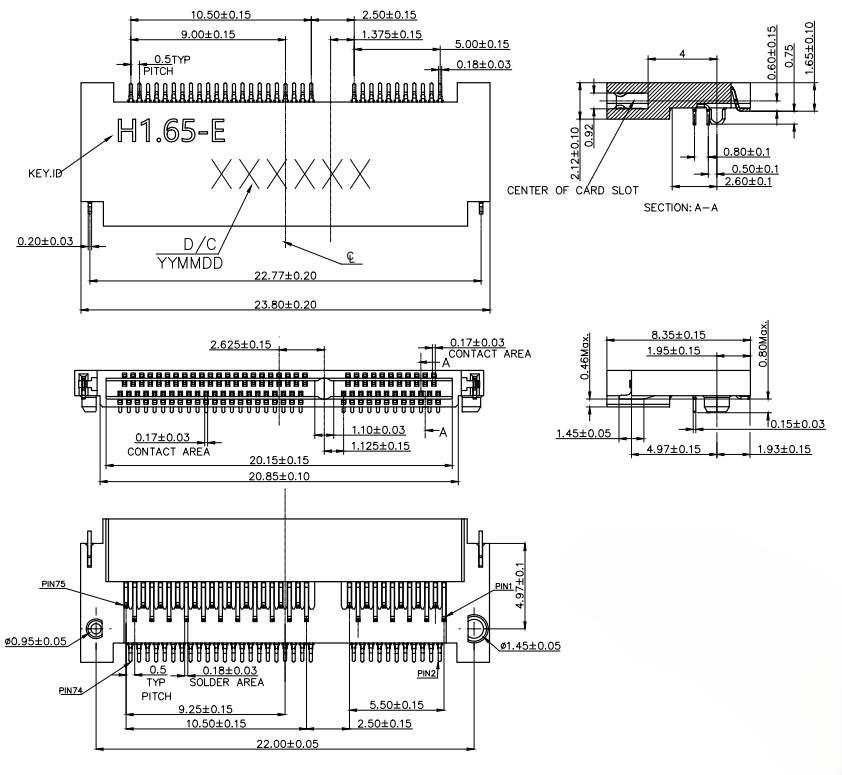

The M.2 socket is the physical bridge between your module and host board — and the wrong choice means signal headaches, assembly yield drops, or field failures traced to a single connector. CONSHARE designed the CUF029G67M142 (B Key) and CUF030G67M142 (E Key) reversed-style M.2 sockets to eliminate those risks, with a 1.65 mm mated height that fits the tightest module enclosures on the market.

Two Keys, Two Missions

What Separates B Key from E Key

The M.2 key notch is not cosmetic — it dictates signal routing and current capacity. Choosing correctly up front prevents costly board respins.

Practical takeaway: If any signal pin on your module exceeds 0.5 A — for instance, a Wi-Fi 6 transmit stage — the E Key variant doubles your current margin without changing your PCB footprint or reflow profile. Both variants share identical mechanical dimensions, so you can qualify both on the same production line.

What 1 Microinch of Gold Actually Buys You

Oxidation Prevention, Not Wear Resistance

Both part numbers ship with a 1 µ" minimum gold flash over nickel. For M.2 sockets rated at 60 mating cycles, this layer serves a specific purpose that thick gold cannot replace: preventing oxidation during shelf storage and pre-reflow handling.

Bare copper or tin-only contacts form oxide films in humid warehouse environments, causing intermittent contact resistance spikes that pass bench testing but fail in the field. The gold flash ensures every contact is electrically clean when your pick-and-place machine loads the reel — regardless of how long it sat in inventory.

Configurable Plating Without Re-Qualification

For applications requiring extended mating cycles or corrosive environments, CONSHARE offers plating thicknesses from 1 µ" up to 30 µ" of tin. You can prototype on the default gold variant and switch to a heavier deposit for production without re-qualifying the connector mechanically.

Signal Integrity in Reversed-Mount Designs

Shorter Routing, Cleaner Ground Returns

The reversed (RVS) mounting style places the socket on the opposite PCB side, which matters for two reasons:

• Shorter signal paths: High-speed differential pairs (PCIe, SATA) route directly to the host controller without wrapping around the connector body, reducing stub length and parasitic capacitance.

• Lower loop inductance: Ground vias sit immediately adjacent to ground contacts, critical for PCIe Gen 3/4 signal margins.

Designing With the Post-Test Resistance Value

Contact resistance starts at 55 mΩ per pin but is allowed to drift up to 20 mΩ after environmental stress. Always calculate worst-case voltage drop using the post-test value — not the initial spec — especially when routing 3.3 V supplies through parallel contacts.

Both variants maintain 1000 MΩ insulation resistance and survive 300 V AC for one minute, so you can safely route adjacent signal pairs at different voltage domains without leakage concerns.

Real-World Application Scenarios

Industrial SSD in a -40 °C Vehicle Data Logger

A customer selected the B Key variant for an NVMe SSD module using PCIe ×2. The -40 °C cold-start rating covered the operating environment without derating, and the reversed mount let the SSD sit flush against the enclosure base plate for vibration resistance and direct thermal padding.

Wi-Fi 6 Module in a Sub-12 mm Access Point

A networking OEM chose the E Key variant for a wall-plate Wi-Fi 6 AP. The 1.0 A per-pin rating provided headroom for the power amplifier during transmit bursts, while the 1.65 mm height enabled a stacked PCB layout that kept total product thickness under 12 mm for standard wall-gang-box installations.

Dual-Socket Kiosk Motherboard

A kiosk computing platform needed both cellular (B Key) and Wi-Fi/BT (E Key) on one board. Since both variants share the same SMT footprint and 260 °C reflow profile, both sockets were placed and reflowed in a single pass — no separate soldering steps or special tooling.

SMT Assembly: Practical Yield Considerations

Tape, Placement, and Reflow

Components ship in embossed tape at 1500 units per reel, with peel-off force controlled between 0.01–0.13 kgf — tight enough to prevent shifting during vacuum pickup but loose enough to avoid feeding jams on high-speed placers.

The 19.85 mm connector width requires at least 3 mm clearance from any adjacent tall component for nozzle access. During reflow, verify that actual peak temperature at the connector location hits 260 °C — the connector's thermal mass can cause underheating at the far end, producing cold joints on outermost contacts. Post-reflow, the flat-top design allows standard AOI of all solder joints without X-ray.

CONSHARE Manufacturing & Quality Standards

Five-Stage Production Gate

Both part numbers are fully RoHS-compliant and halogen-free. Molding compound uses polystyrene; cover film uses polyester — both free of brominated flame retardants, simplifying CE and green-procurement documentation.

Lead Time, Packaging & Customization

Supply Chain Advantages

• Standard lead time: 2–3 weeks for default Au 1 µ" configuration

• Samples: 3–5 business days for engineering validation

• Packaging: 1500 units/reel, 6 reels/carton (9000 units/carton) — optimized for full-shift SMT runs without reel changes

• Moisture handling: Shipped in barrier bags with desiccant; follow J-STD-033 MSL 3 after opening

Plating Customization Matrix

For volume orders over 100K units, CONSHARE provides a lot-specific FAI report with dimensional data. Custom packaging quantities, tape widths, and internal part-number labeling are also available.

Selection Decision Framework

Five Questions to Lock Your Variant

1. What does your module do? Storage/cellular → B Key. Wireless → E Key.

2. Peak per-pin current? Any pin over 0.5 A → E Key (1.0 A capacity).

3. PCIe lane width? ×2 requires B Key. ×1 works on both.

4. Mechanical keying needed? The notch prevents misinsertion — match socket key to intended module.

5. Expected mating frequency? Assembled once → default Au 1 µ". Field-serviceable → upgrade to code 44 or 45.

Frequently Asked Questions

Can I cross-use B Key and E Key?

No. The physical notch must align — a B Key module will not insert into an E Key socket. This is a deliberate safety feature defined by the M.2 standard.

What happens past 60 mating cycles?

The rating is a guaranteed minimum. The connector may survive more, but CONSHARE cannot guarantee contact resistance stability beyond it. For test fixtures requiring frequent mating, upgrade to plating code 46 or 47.

Is 80 °C a limitation?

The connector generates no heat itself — nearby components drive local ambient. If your sealed enclosure exceeds 80 °C at the socket location, improve thermal management or contact CONSHARE for extended-temperature options.

Can I run both sockets on one PCB?

Yes. Both CUF029G67M142 and CUF030G67M142 share the same reflow profile and tape format — place and reflow in a single pass.

Do you provide 3D models?

Yes. CONSHARE supplies STEP files and ECAD footprints generated from production tooling drawings, reflecting as-built dimensions. Contact engineering support with your part number and preferred format.

Why CONSHARE

CONSHARE is not a trading company reselling someone else's connectors. We stamp, plate, mold, and assemble every socket in-house. This vertical integration means we control the variables that matter: spring geometry, plating bath chemistry, molding flash, and lot-to-lot dimensional consistency.

When you source the CUF029G67M142 or CUF030G67M142, you get a connector qualified against the same acceptance criteria whether you order 500 samples or 500,000 production units. And when you need a modification — different plating, custom labeling, tighter coplanarity — you talk to the engineering team that owns the tooling, not a distributor passing requests up a three-layer supply chain.

That is the difference between buying a connector and partnering with a connector manufacturer.
