Card Edge Connector
Industrial, IT Datacom

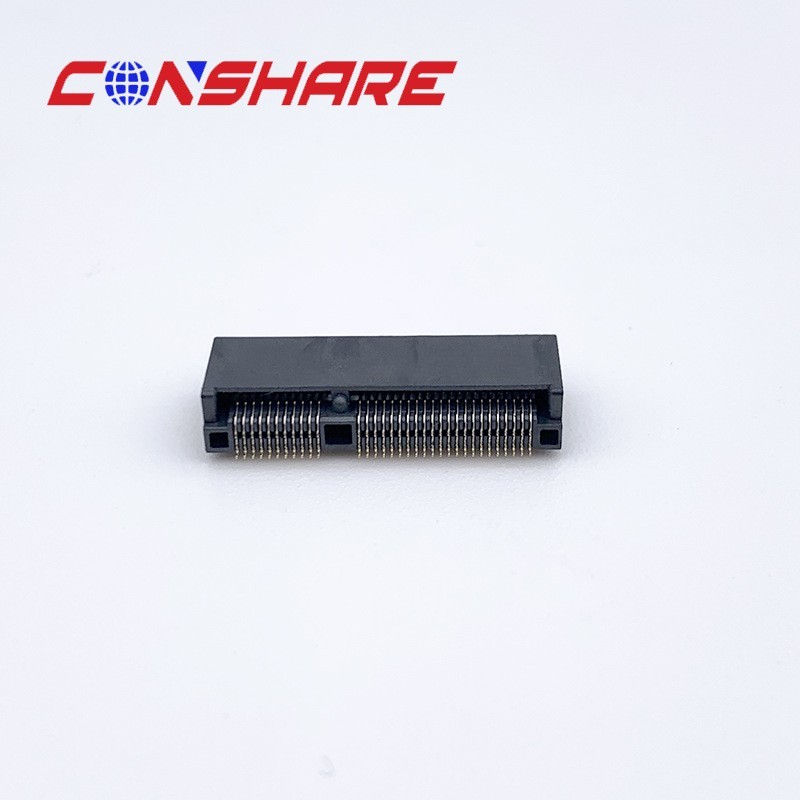

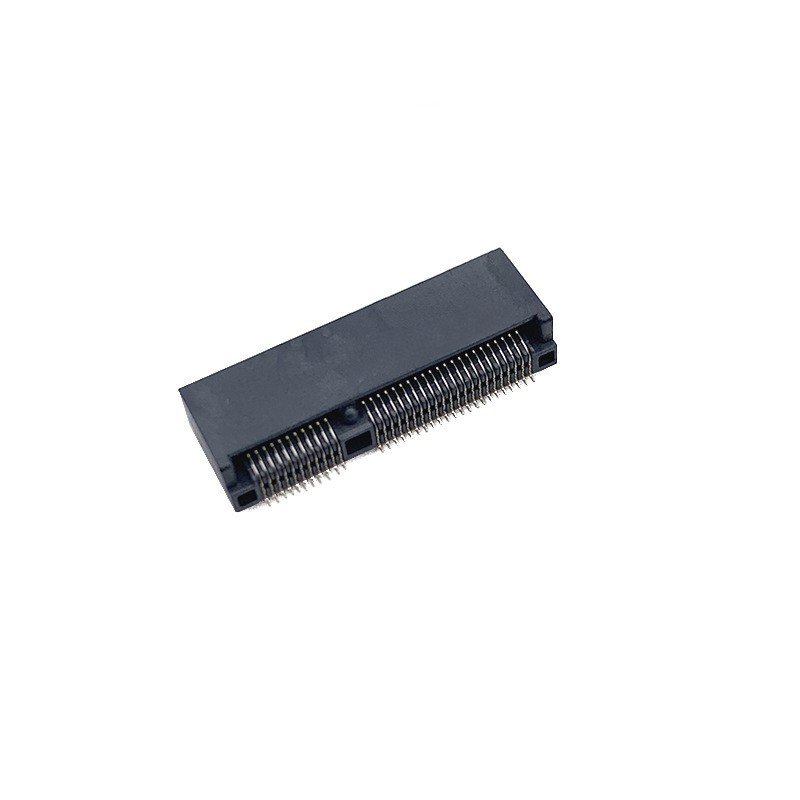

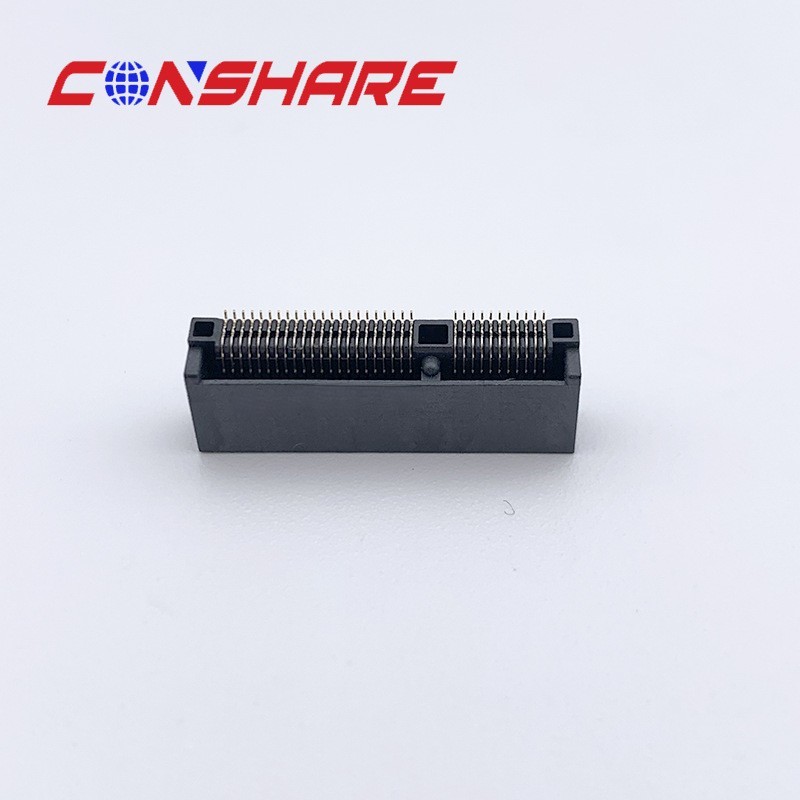

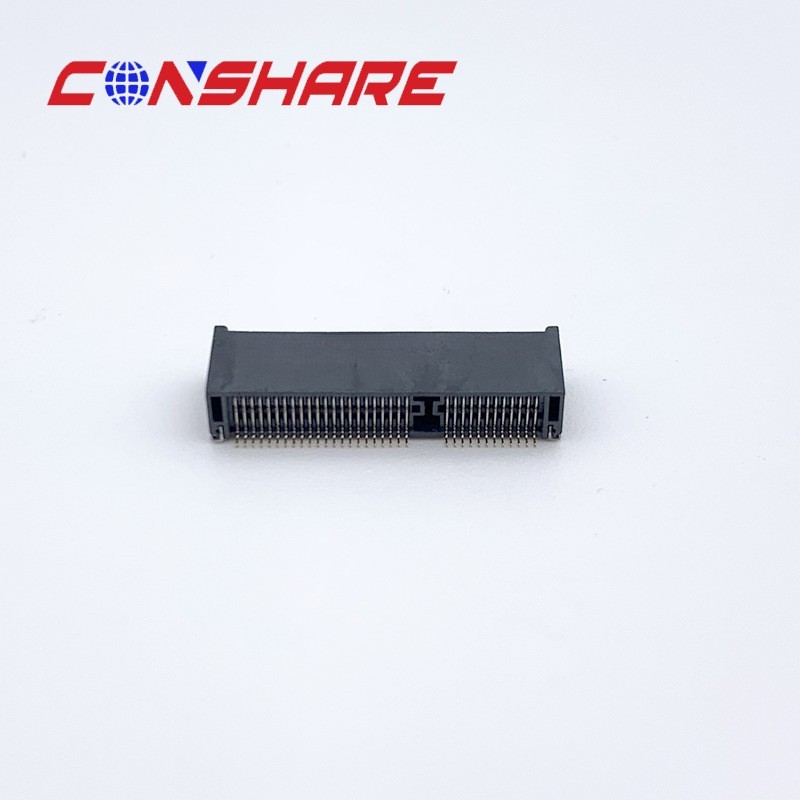

Product Positioning CONSHARE A119106741RHF is a dedicated Gen3 M.2 Key E surface mount connector developed for wireless signal transmission. It adopts exclusive customized structure, not applicable to common storage interface connection, and specially designed to meet interconnection demands of various wireless functional modules.
Typical Applicable Devices This branded connector delivers stable connection performance, perfectly compatible with WiFi 6/6E/7 and high-performance Bluetooth modules. It serves widely in embedded control equipment, IoT terminals, portable electronic gadgets and miniature industrial communication devices.
CONSHARE A119106741RHF is configured with 67 effective contact pins, conforming to standard M.2 Key E notch specification. Built-in anti-misplug structure effectively avoids reverse installation and component damage, efficiently lowering defective rate during mass assembly work.

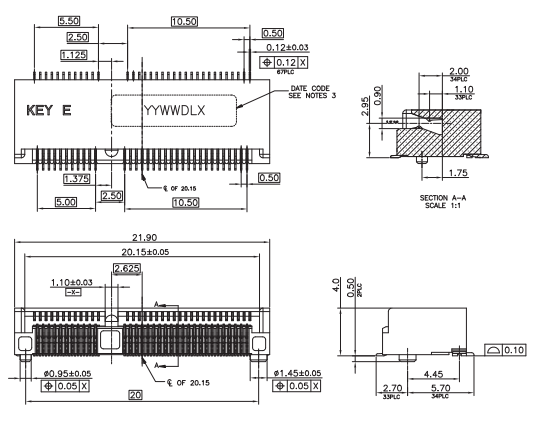

The product features 4.0mm fixed board mounting height, reserving sufficient inner space for heat dissipation. All critical dimensions of A119106741RHF are controlled under high-precision tolerance, realizing seamless assembly with standard modules and matching PCB boards.
Support maximum 8Gbps high-speed data transmission capacity. Optimized internal circuit path reduces signal attenuation and crosstalk interference, enabling CONSHARE A119106741RHF to maintain complete and steady signal output under long-duration continuous operation.
The connector can operate reliably within a wide temperature range from -40℃ to 80℃. It resists drastic temperature change and humid environment erosion, adapting to diversified complex working conditions both indoors and outdoors.
CONSHARE selects high-temperature resistant LCP thermoplastic as housing material for A119106741RHF. The material stays intact without deformation or cracking under high welding temperature, retaining stable structural form amid repeated temperature fluctuation.
Contact terminals are made of high elasticity phosphor bronze. Combined with nickel bottom plating and gold-flash surface treatment, A119106741RHF achieves ultra-low contact resistance, excellent anti-oxidation property and durable conductive performance.
Stainless steel is adopted for welding pins of this CONSHARE connector. The sturdy material enhances overall structural rigidity, preventing bending and falling off issues during high-temperature soldering and long-term vibration working scenarios.
A119106741RHF reaches halogen-free standard and fully complies with RoHS environmental protection regulations. Its housing passes UL94V-0 flame retardant grade test, restraining flame spread effectively and upgrading overall safety of matched electronic equipment.
All CONSHARE A119106741RHF connectors are manufactured through full-automatic stamping, precision injection molding and modular assembly. Unified production parameters are implemented in every procedure, minimizing manual errors and securing fundamental product quality.

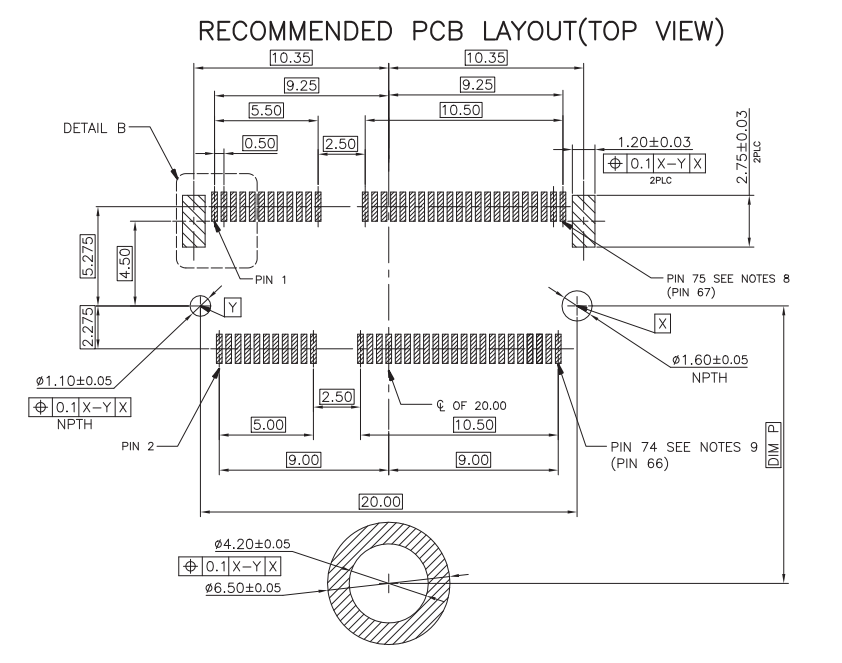

Matched with professional PCB pad layout and recommended 0.12mm minimum stencil thickness. Equipped with NPTH positioning holes, A119106741RHF improves automatic placement accuracy and cuts down defects such as virtual welding and tin bridging.
Each finished CONSHARE A119106741RHF product is marked with standard production date code to support complete batch traceability. Rigorous finished product inspection narrows individual performance difference and guarantees uniform quality in bulk orders.
Both male and female terminals of CONSHARE A119106741RHF follow unified dimensional standard and wear-resistant structure. Identical installation positioning norms ensure good interchangeability during matching assembly.
Female terminal comes with elastic clamping arm structure, providing persistent fastening force to avoid loose contact caused by vibration impact. Male terminal adopts reinforced base framework, effectively resisting bending damage generated by frequent plug and pull actions.
Different from ordinary tin-plated connectors in the market, CONSHARE A119106741RHF equipped with gold-flash contacts owns longer service lifespan. Stainless steel pins and high-strength shell also present prominent advantages on vibration resistance and anti-damage capability.
The model adopts reel packaging form, perfectly fitting high-speed SMT assembly lines. Optimized welding structure raises assembly yield rate, reduces manual maintenance cost and accelerates whole manufacturing progress for purchasers.
Customized structure of CONSHARE A119106741RHF focuses on wireless module connection, which cannot be replaced by conventional M.2 connectors. It perfectly satisfies exclusive connection requirements of high-speed wireless communication electronic products.
Stable inherent quality reduces after-sales failure probability and daily equipment maintenance expenditure. Complete qualification certifications also help customers smoothly pass customs clearance and global market access verification.
At CONSHARE, we offer tailored customization and in-house custom tooling services for the A119106741RHF M.2 Key E connector. Whether you need adjusted dimensions, specialized plating, or custom PCB layouts, our engineering team delivers flexible solutions to match your unique project requirements, from prototype to mass production.
