Card Edge Connector
Industrial, IT Datacom
There's a point in every high-speed board design where the connector stops being a mechanical afterthought and becomes an active participant in the signal path. For M.2 interfaces running PCIe Gen4.0 and Gen5.0 lanes, that point arrives early — and it's where CONSHARE built these two variants to live.

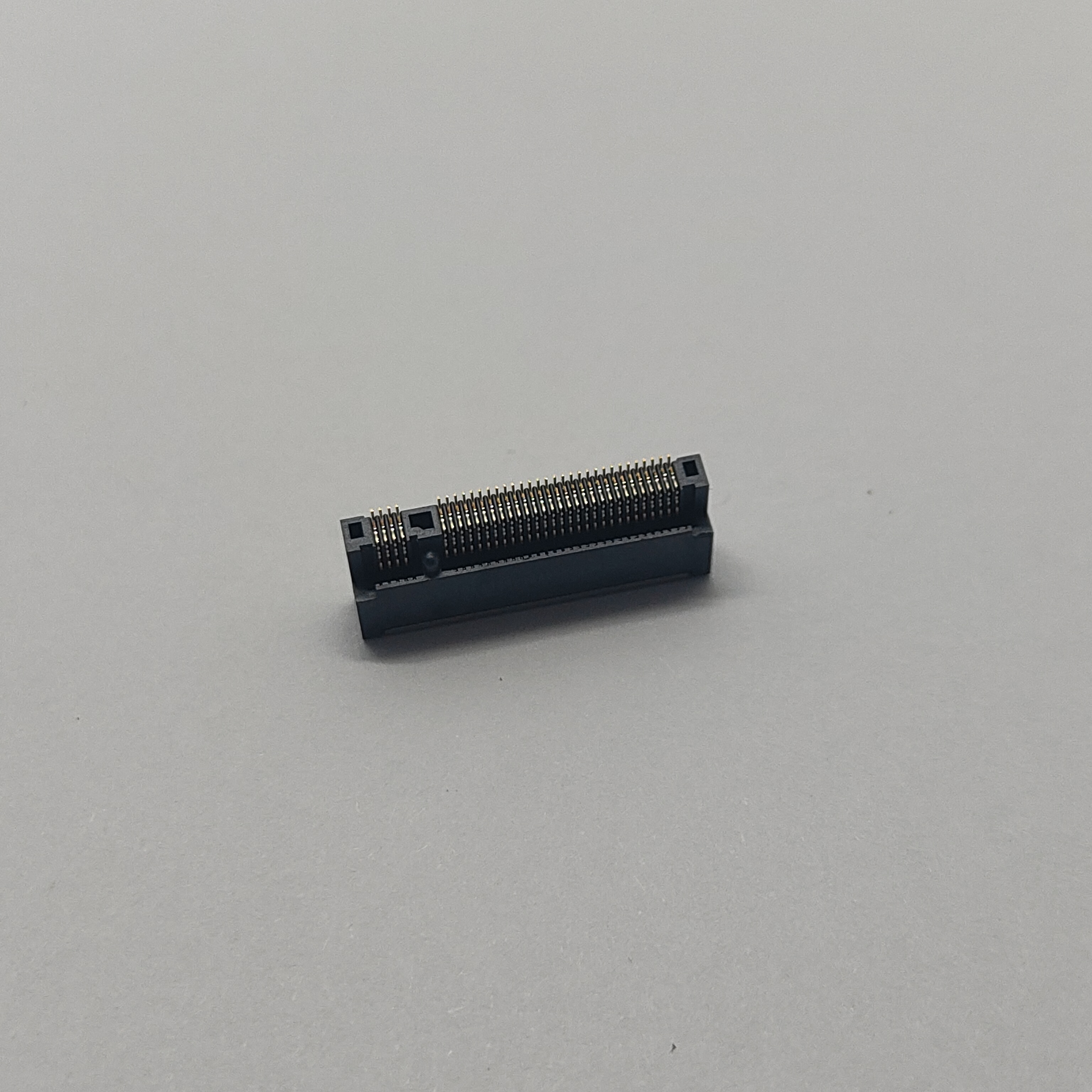

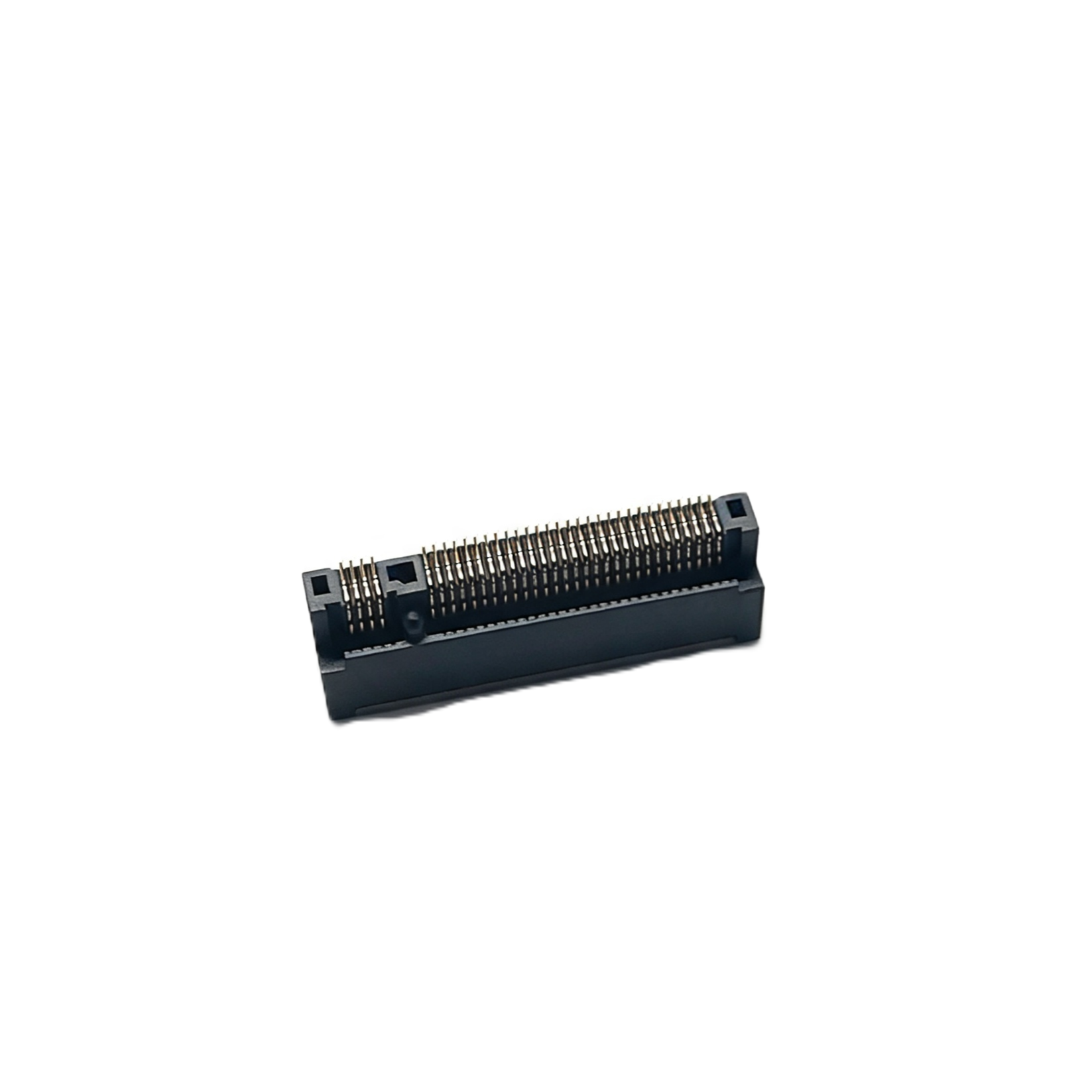

CUF006G67M108 — Gen4.0 E-KEY, engineered for wireless communication modules
CUF010G67M108 — Gen5.0 M-KEY, engineered for next-generation NVMe storage
Both share the same low-profile housing and gold contact system. What separates them is the signal environment they're qualified for.
The E-KEY configuration routes the pinout that wireless modules expect — a single PCIe lane, USB 2.0, I2C, and the control signals WiFi 6/6E and Bluetooth combo modules need. Rated for Gen4.0, the PCIe lane carries up to 16 GT/s.
Why that rating matters: WiFi 6E and WiFi 7 radio modules push significant backhaul traffic through that single lane. If the connector body introduces impedance discontinuities — and cheaper sockets do — the host controller compensates with retransmits, which the user feels as network jitter. The E-KEY variant's contact geometry holds the impedance profile flat across the transition region where the module's edge finger enters the socket.
Where it lands: ultrabooks, tablets, IoT gateways, industrial access points, 5G small-cell reference boards.

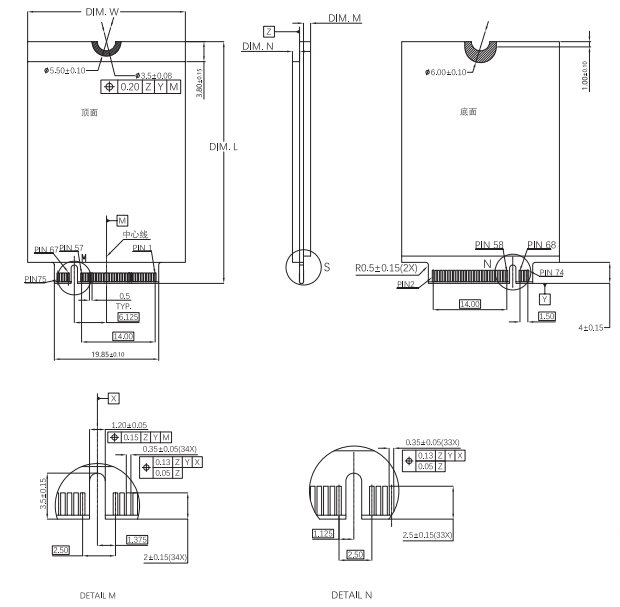

The M-KEY configuration carries a full PCIe x4 bundle — the interface NVMe SSDs use. Rated for Gen5.0, each lane runs at 32 GT/s, double the Gen4.0 rate.
The challenge is different here: at 32 GT/s per lane, the margin for lane-to-lane skew and insertion-loss imbalance shrinks dramatically. A Gen5.0 NVMe SSD can push roughly 14 GB/s across the x4 link. If the connector introduces reflections or unequal loss across the four lanes, the link either fails training or — worse — trains successfully but degrades under thermal load, producing intermittent read errors that are nearly impossible to root-cause in the field.
What this variant does about it: the contact array keeps the four high-speed lanes matched in physical path length, with impedance controlled to a tighter window than a generic M.2 socket requires. The gold plating contributes too — stable contact resistance means per-lane loss doesn't drift as the contact surface ages.
This isn't a performance hierarchy. The two variants serve different module ecosystems, and the M.2 keying system prevents cross-insertion by design.
Design Input | E-KEY (CUF006G67M108) | M-KEY (CUF010G67M108) |
|---|---|---|
Module type | WiFi / Bluetooth / radio combo | NVMe SSD |
PCIe lanes routed | x1 | x4 |
Qualified link rate | Gen4.0 (16 GT/s/lane) | Gen5.0 (32 GT/s/lane) |
Signal-integrity priority | Single-lane impedance flatness | Four-lane skew matching |
Typical host device | Thin laptops, tablets, IoT | Workstations, servers, gaming |
Backward compatibility | Gen3.0 and below | Gen4.0, Gen3.0 and below |
User-serviceable? | Usually fixed | Often upgradeable (gold plating pays off) |
Common scenario: a mini-PC needing both wireless and storage populates one of each — the keying prevents misinsertion. They're complementary, not alternatives.
Future-proofing tip: designing with a Gen4.0 SSD today but want Gen5.0 headroom? Specify the M-KEY Gen5.0 variant now. PCIe is backward compatible — a Gen5.0-qualified connector passes Gen4.0 signals without issue, no PCB redesign needed.

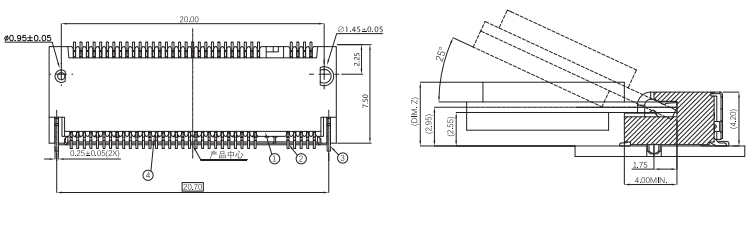

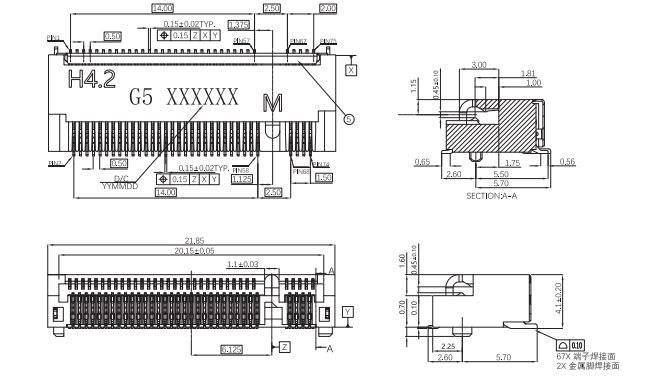

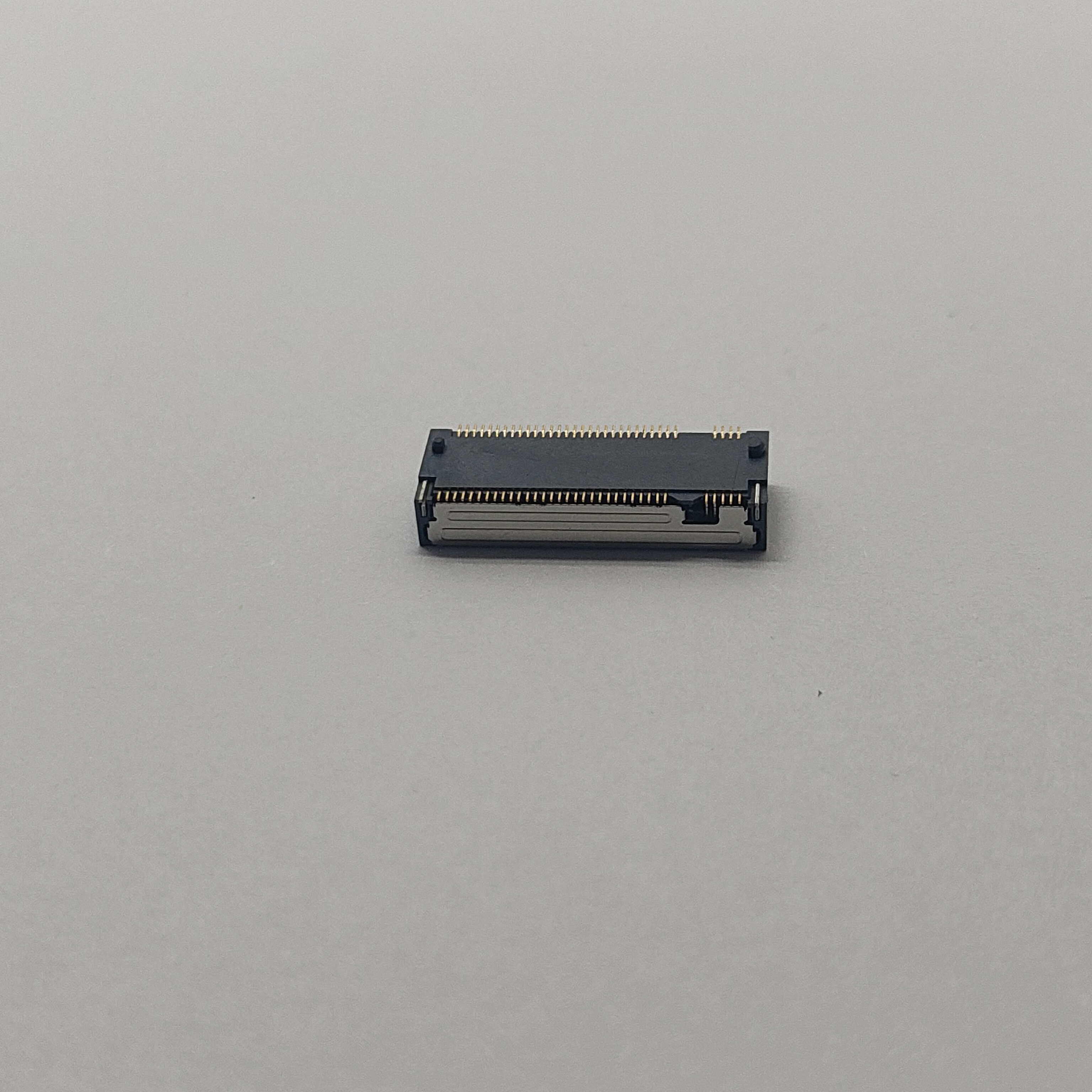

In ultrabooks, handheld gaming hardware, and thin industrial panels, Z-height is the most contested dimension. The battery, thermal solution, display stack, and PCB components all compete for the same vertical space. 4.2mm is the profile that fits a populated M.2 module without forcing a thicker chassis.

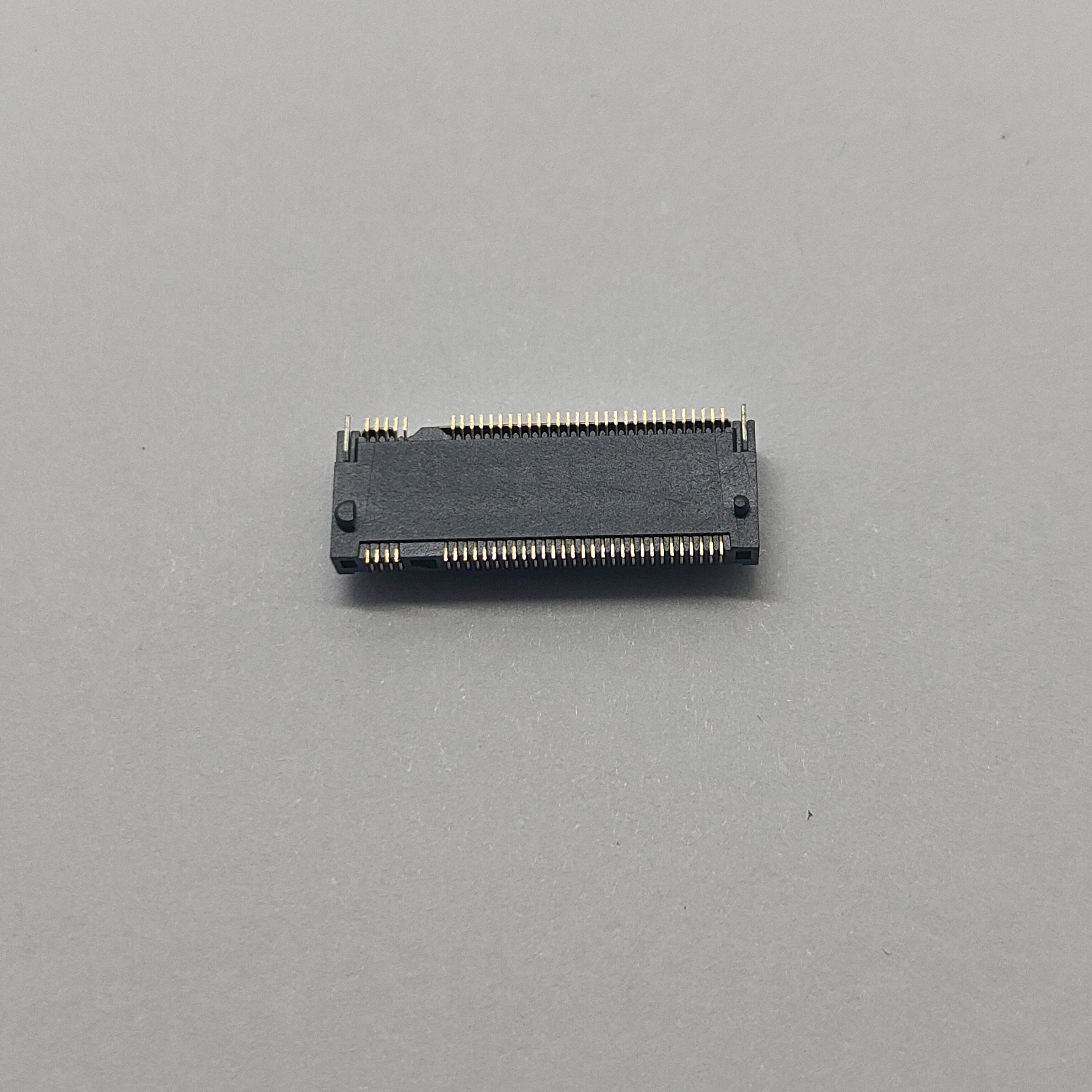

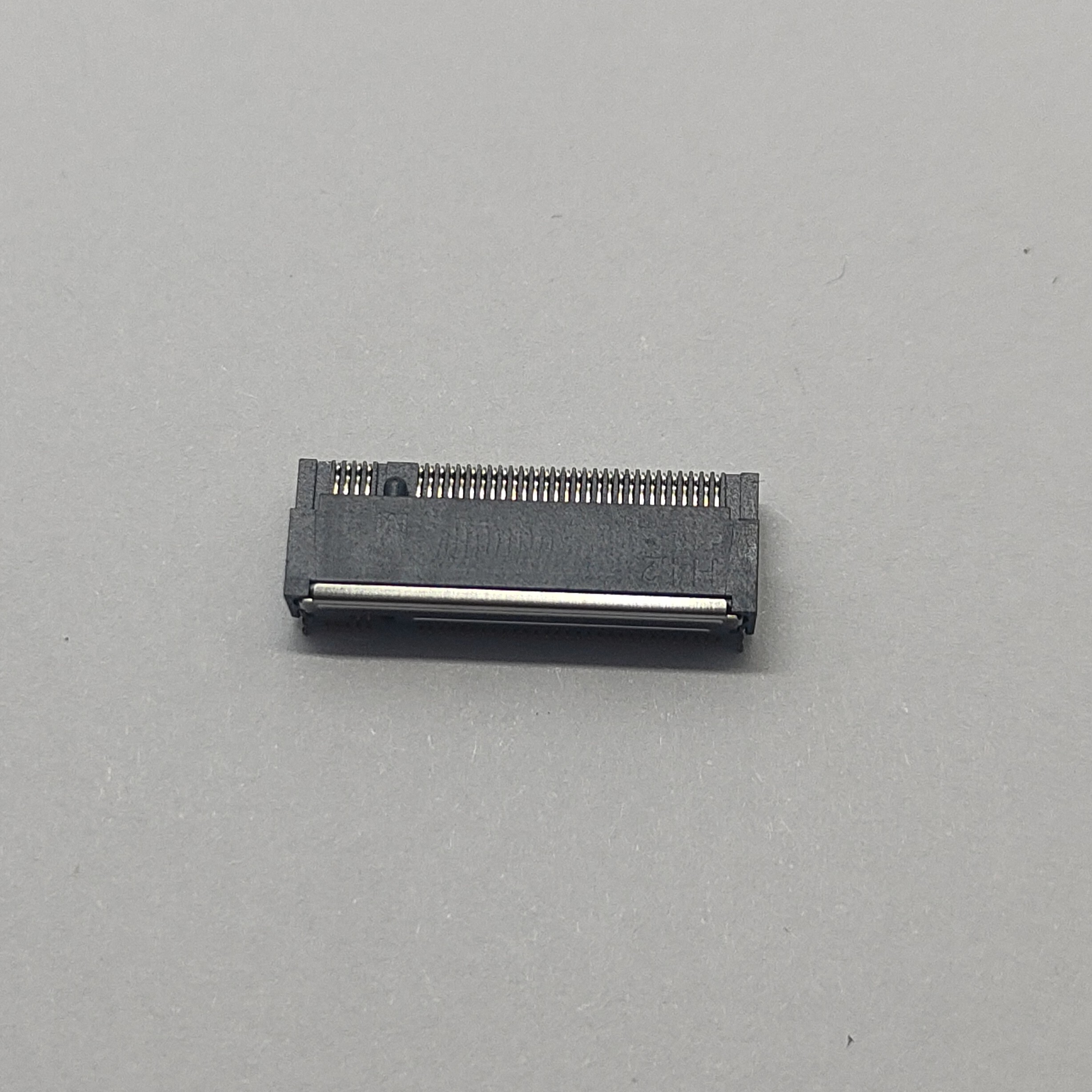

CONSHARE made this profile production-friendly: the solder tail pattern works with standard reflow profiles — no step-stencil, no special paste deposition. The pad layout matches the industry-standard M.2 footprint, so migrating from another supplier's H4.2 socket requires no PCB respin.
Contact resistance stability. Bare copper and tin surfaces oxidize over time. At Gen4.0/Gen5.0 frequencies, that oxide layer shifts contact impedance and creates signal reflections. Gold doesn't oxidize — the impedance stays where it was characterized at qualification.
Insertion cycle endurance. Each insertion removes a microscopic layer of the contact finish. Gold-on-gold mating (the module's edge fingers are typically gold-flashed) survives more cycles before the base metal is exposed. Critical for user-serviceable SSD slots and manufacturing test-insertions.
Environmental robustness. Industrial and outdoor devices face humidity, temperature cycling, and airborne contamination that accelerate contact degradation. The gold layer keeps the contact system within spec across the product's installed life, not just at factory exit.
Consumer mobile computing — ultrabooks and 2-in-1s use E-KEY for WiFi/BT and M-KEY for NVMe SSDs; H4.2 makes the sub-15mm chassis stack work.
Industrial edge gateways — factory and outdoor deployments needing both wireless and local NVMe storage; gold contacts are where lesser connectors fail first.
Gaming and mobile workstations — Gen5.0 NVMe storage directly affects load times; a connector that can't sustain the link forces renegotiation down to Gen4.0, halving bandwidth.
Networking infrastructure — WiFi APs and 5G small cells integrating M.2 radio modules; the Gen4.0 lane supports WiFi 6E/7 backhaul demands.
Medical and diagnostic equipment — portable devices using M.2 storage for imaging data and wireless for connectivity, where intermittent connections are unacceptable.
Every lot passes through:
100% AOI post-reflow — solder tail coplanarity, contact alignment, housing integrity.
Contact resistance lot sampling with rejection thresholds set below PCIe-affecting levels, not just generic industry specs.
Insertion/withdrawal force verification — too loose means intermittent connections under vibration; too tight risks damaging the module.
Signal integrity characterization on qualification lots — TDR impedance profiling and insertion-loss measurement confirming the lot performs at its rated Gen4.0 or Gen5.0 level.
CONSHARE manufactures both variants on our own lines:
Sampling quantities ship from stocked inventory — no tooling NRE, no minimum to evaluate.
Volume orders run on established lines with raw materials held in inventory, insulating delivery from upstream allocation volatility.
Forecast-based inventory holding available for programs with hard launch windows or seasonal ramps — connectors staged against your build schedule.
Gold plating thickness — increased for high-cycle applications (test fixtures, hot-swap bays) or harsh environments.
Packaging — tape-and-reel or tray, with reel pitch matched to your placement equipment.
Labeling — configured to your internal part numbering for inbound traceability.
Application-specific review — unusual module thickness, non-standard edge-finger plating, or thermal edge cases reviewed with your hardware team before volume commitment.
CUF010G67M108. PCIe is backward compatible; a Gen5.0 socket carries Gen4.0 traffic fine. Future-proofing for marginal cost difference at volume.
The connector is one element alongside PCB traces and vias. CONSHARE's variants are characterized to remove the connector as the variable. For Gen5.0 M-KEY, follow PCIe CEM Gen5.0 routing: controlled impedance, lane-length matching, minimal via stubs.
Standard gold plating covers typical M.2 service life. For test fixtures or hot-swap bays, CONSHARE offers thicker gold. Tell us your cycle requirement.
Standard variants cover commercial range. For industrial-temperature applications, the contact alloy and housing resin can be reviewed. We'll tell you honestly whether the standard variant holds or a material change is warranted.
Yes — dimensional drawings, 3D STEP models, and sample units. We recommend physical fit-check against your specific module before committing.
These are CONSHARE-manufactured on our own tooling, not third-party catalog parts. We commit to extended availability for production programs — no EOL without a migration plan and adequate last-time-buy window. Multi-year programs can formalize a long-term supply agreement.
The connector market is full of sockets that look identical on a datasheet and perform differently on a signal analyzer. The difference between a connector that passes link training in the lab and one that holds up across a million-unit production run — in humid warehouses, in devices that get hot, in modules that get swapped — is the manufacturing discipline behind it.
CONSHARE builds these on our own lines, to our own process documentation, with quality data we can show you. The contact geometry is ours, the plating process is ours, and the engineering team that designed both can adjust either for your application. That's the difference between specifying a connector and specifying a connector partner.
