Card Edge Connector
Mobile Devices, Industrial, IT Datacom

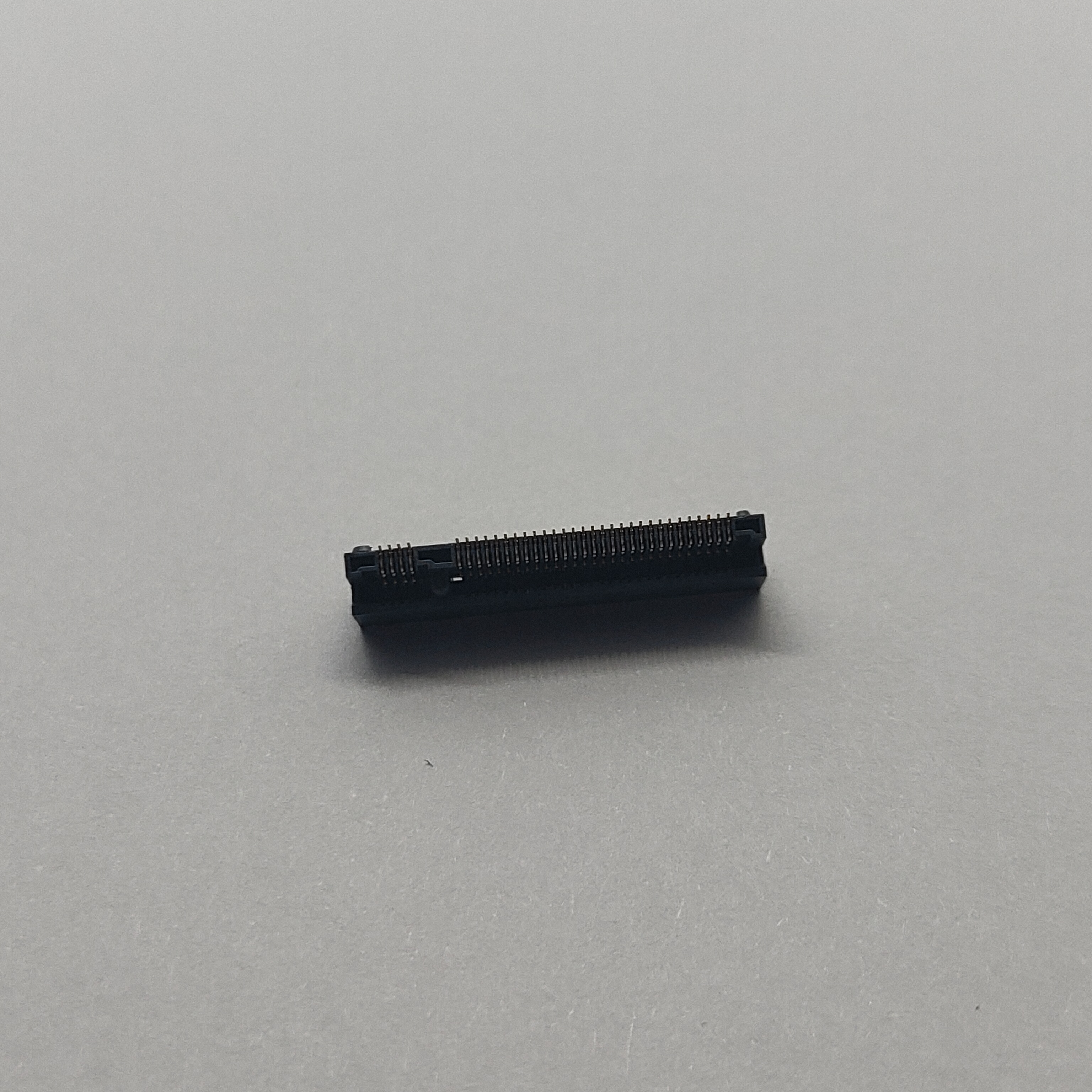

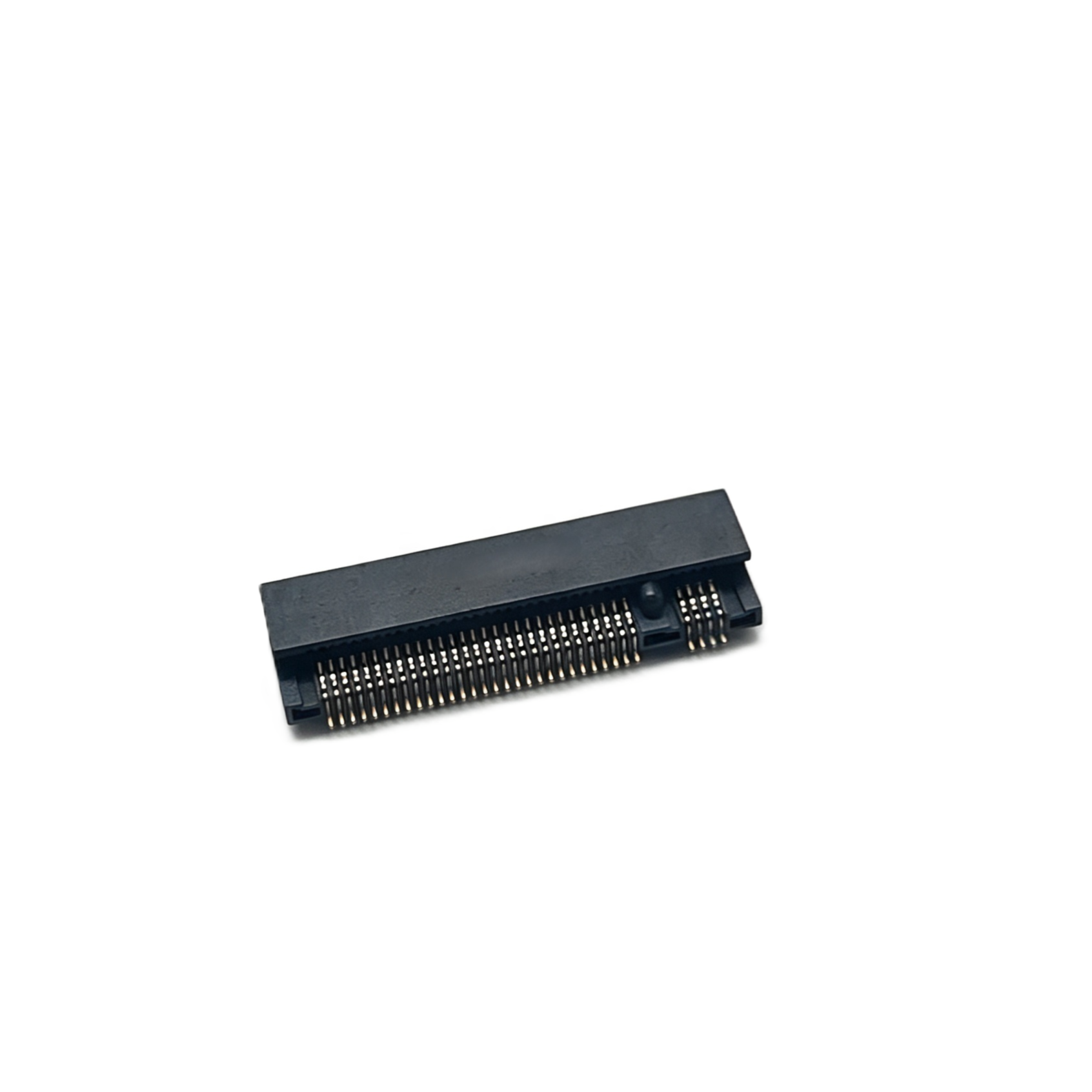

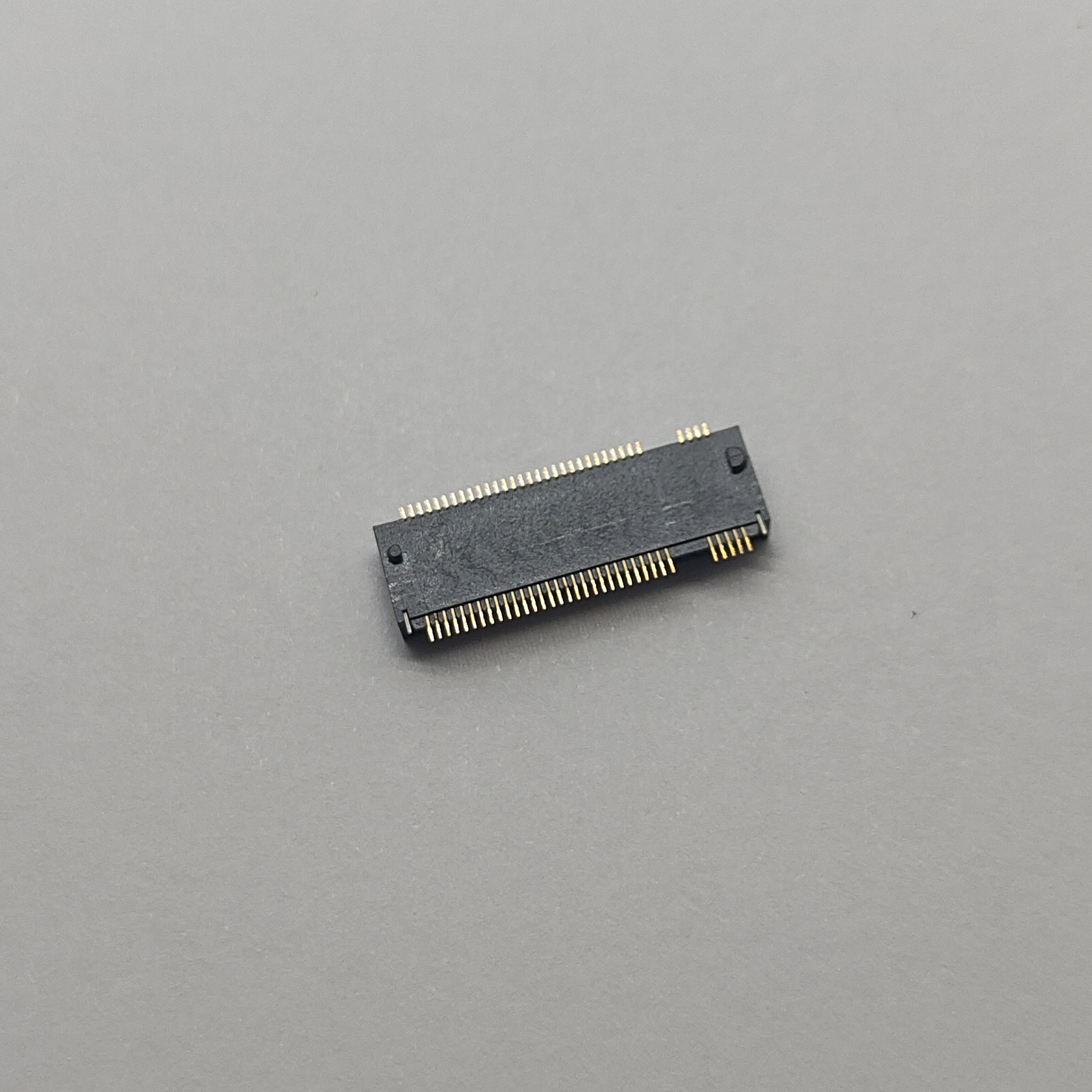

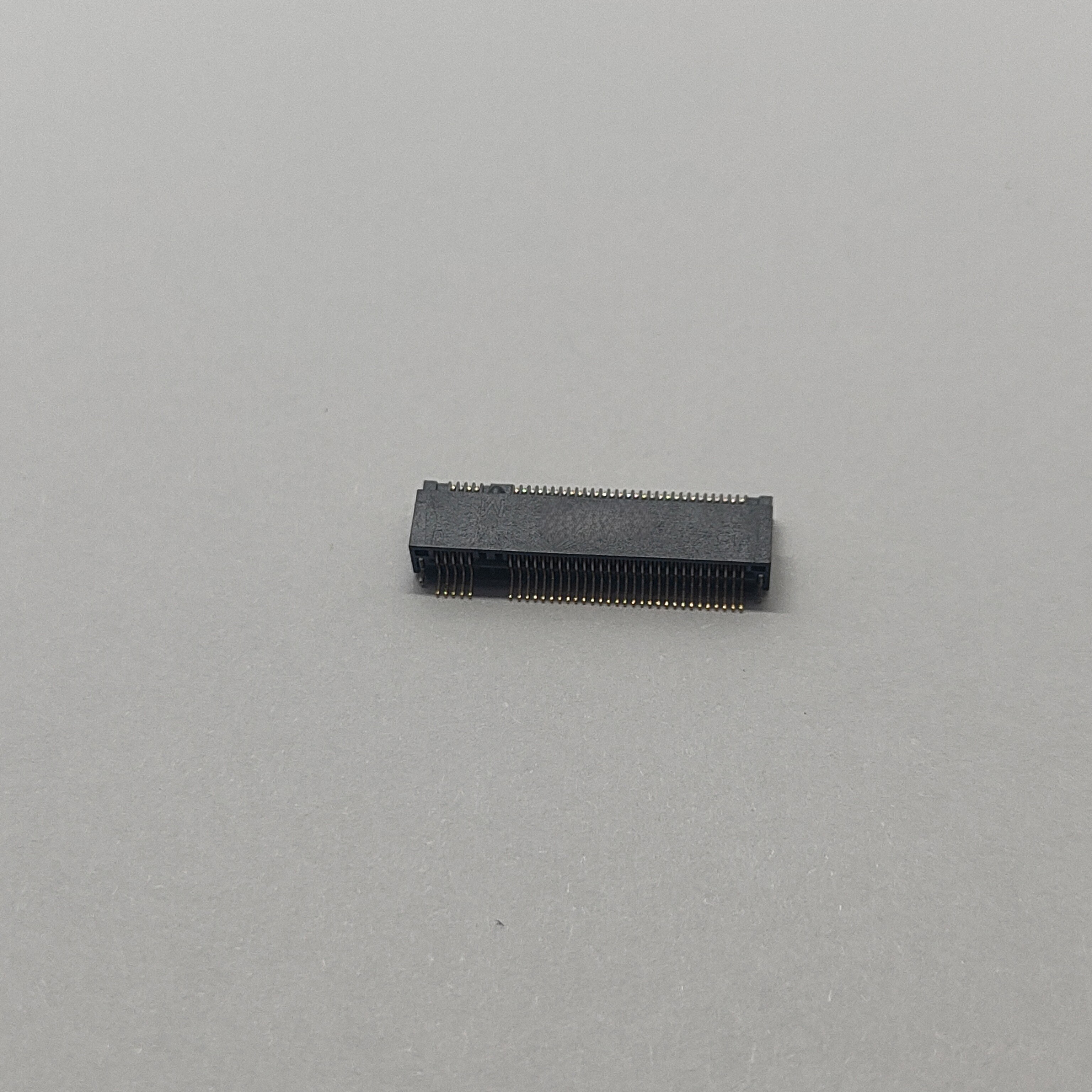

When an NVMe SSD or AI acceleration module underperforms, the bottleneck often sits at the physical interface — not the controller. CONSHARE's M.2 H3.2 M-KEY connector solves this with a 75-pin M-key architecture and 1-microinch hard gold contact plating (Au1u''), delivering a signal path that stays clean across thousands of mating cycles and survives lead-free reflow without contact degradation.
Two part numbers cover the full speed range:
Part Number | PCIe Generation | Aggregate Bandwidth (x4) | Target Application |
|---|---|---|---|
CUF015G67M108 | Gen4.0 | 64 Gb/s | Mainstream NVMe SSDs, Wi-Fi 6E/7 modules |
CUF016G67M108 | Gen5.0 | 128 Gb/s | Flagship NVMe SSDs, AI inference cards |
The H3.2 profile — a 3.2 mm connector height — is the practical middle ground: low enough for slim laptop enclosures, tall enough to maintain proper mating force and mechanical retention in industrial assemblies.
This is the most common question from hardware design teams, and the right answer depends on your controller, not the connector.
A PCIe 4.0 controller IC — pairing a Gen5 connector with a Gen4 controller adds BOM cost with zero performance gain.
Mainstream consumer or enterprise NVMe drives in the 5,000–7,500 MB/s read tier, where Gen4 already outpaces legacy SATA by 7×.
Thermal or power budgets that can't justify the higher PHY power draw of Gen5 signaling.
Full 128 Gb/s aggregate throughput for AI model loading, real-time video pipelines, or HPC scratch storage.
A Gen5-compliant retimer topology or direct CPU-attached NVMe link.
Forward compatibility — one connector footprint that survives a future controller upgrade without board respin.
The mechanical footprint is identical between both SKUs. What differs is the internal contact geometry and dielectric tuning: Gen5 demands tighter differential impedance control (85Ω ±10%) and reduced near-end crosstalk between adjacent lane pairs. CONSHARE's Gen5 variant is validated to these stricter margins through time-domain reflectometry on every production lot.
Au1u'' — one microinch of hard gold over a nickel barrier — is not a cosmetic spec. It directly mitigates three failure modes that storage and embedded system manufacturers encounter:
Contact oxidation in humid climates. Bare copper contacts form oxide layers within weeks in tropical or coastal environments, pushing contact resistance past usability thresholds. Gold's noble chemistry eliminates this drift, keeping per-contact resistance below 30 mΩ for the product's service life.
Wear during repeated mating. Gold functions as a solid lubricant on the contact beam surface, reducing friction-induced wear. Our connectors are rated for 250+ insertion cycles with no measurable resistance increase — critical for test fixtures and field-serviceable designs.
Intermetallic formation during reflow. At peak SMT temperatures (260°C per J-STD-020), inferior plating can form brittle intermetallic compounds at the gold-nickel interface. CONSHARE's plating process is qualified against full JEDEC reflow profiles, ensuring the contact surface remains intact after assembly.
100% electrical continuity verification — every contact, not a sample.
Insertion/withdrawal force testing — each lot is gauge-tested to confirm retention force within 35–70 N, per M.2 mechanical specification.
IPC-A-610 Class 2 visual inspection — plating coverage, solderability, and body integrity checked at 10× magnification.
Post-reflow electrical retest — sample units from each lot run through a full reflow profile, then re-tested to catch any plating or solder degradation.
Both standard SKUs (CUF015G67M108 and CUF016G67M108) ship within 7–10 business days from confirmed purchase order. Volume orders (50,000+ units) are scheduled with rolling delivery windows aligned to your production ramp — no need to hold excess buffer stock.
Contact tail length adjustment for non-standard PCB stackups
Gold thickness upgrade to Au3u'' or Au5u'' for harsh-environment or military-spec deployments
Packaging format: tape & reel or tray, matched to your SMT line configuration
Custom part marking for customer-side lot traceability
The CUF015G67M108 is the workhorse for mid-range NVMe drives targeting the 5,000–7,500 MB/s sequential read tier. The 3.2 mm height mates cleanly with standard thermal pads — no compression force issues that cause contact lift-off over time.
Vibration shock and thermal cycling degrade consumer-grade connectors through fretting corrosion. The hard gold plating and CONSHARE's retention force consistency make both SKUs suitable for −40°C to +85°C environments where intermittent contact faults are unacceptable.
The CUF016G67M108's doubled bandwidth matters when loading large model weights from local NVMe storage. On a 40 GB inference model, Gen5 cuts cold-start load time roughly in half compared to Gen4 — a tangible difference in autoscaling inference clusters.

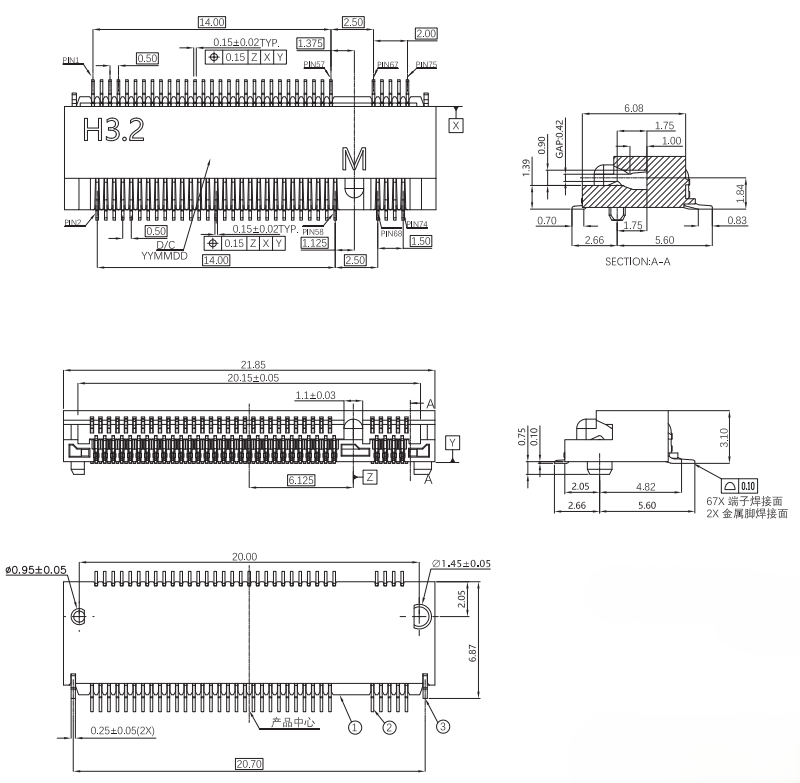

Parameter | CUF015G67M108 | CUF016G67M108 |
|---|---|---|
Interface Keying | M-Key, 75-pin | M-Key, 75-pin |
PCIe Generation | 4.0 | 5.0 |
Bandwidth (x4 lanes) | 64 Gb/s | 128 Gb/s |
Connector Height | 3.2 mm (H3.2) | 3.2 mm (H3.2) |
Contact Plating | Au1u'' hard gold | Au1u'' hard gold |
Rated Mating Cycles | 250+ | 250+ |
Operating Temperature | −40°C to +85°C | −40°C to +85°C |
Mounting Type | Surface mount (SMT) | Surface mount (SMT) |
Yes. The contact array and mechanical dimensions are identical, so the Gen5 connector is fully backward compatible. However, if your entire product line uses Gen4 controllers, selecting the Gen4 SKU (CUF015G67M108) is more cost-effective — you avoid paying for impedance validation your design doesn't require.
H3.2 (3.2 mm) is the standard height for single-sided M.2 modules with conventional thermal pad thickness. H2.1 suits ultra-thin designs but sacrifices retention force. H4.2 accommodates double-sided modules with bulkier thermal solutions. For single-sided SSDs and standard thermal management, H3.2 is the correct and most reliable choice.
Each shipping label carries a CONSHARE lot code linked to the raw material batch, plating bath log, and full test records. Retention samples from every lot are stored for 24 months to support field failure analysis.
Yes. STEP files and recommended land patterns are available on request. The footprint follows the standard M.2 pad layout, but we recommend verifying impedance against your specific PCB stackup — especially for Gen5 designs running at 32 GT/s.
