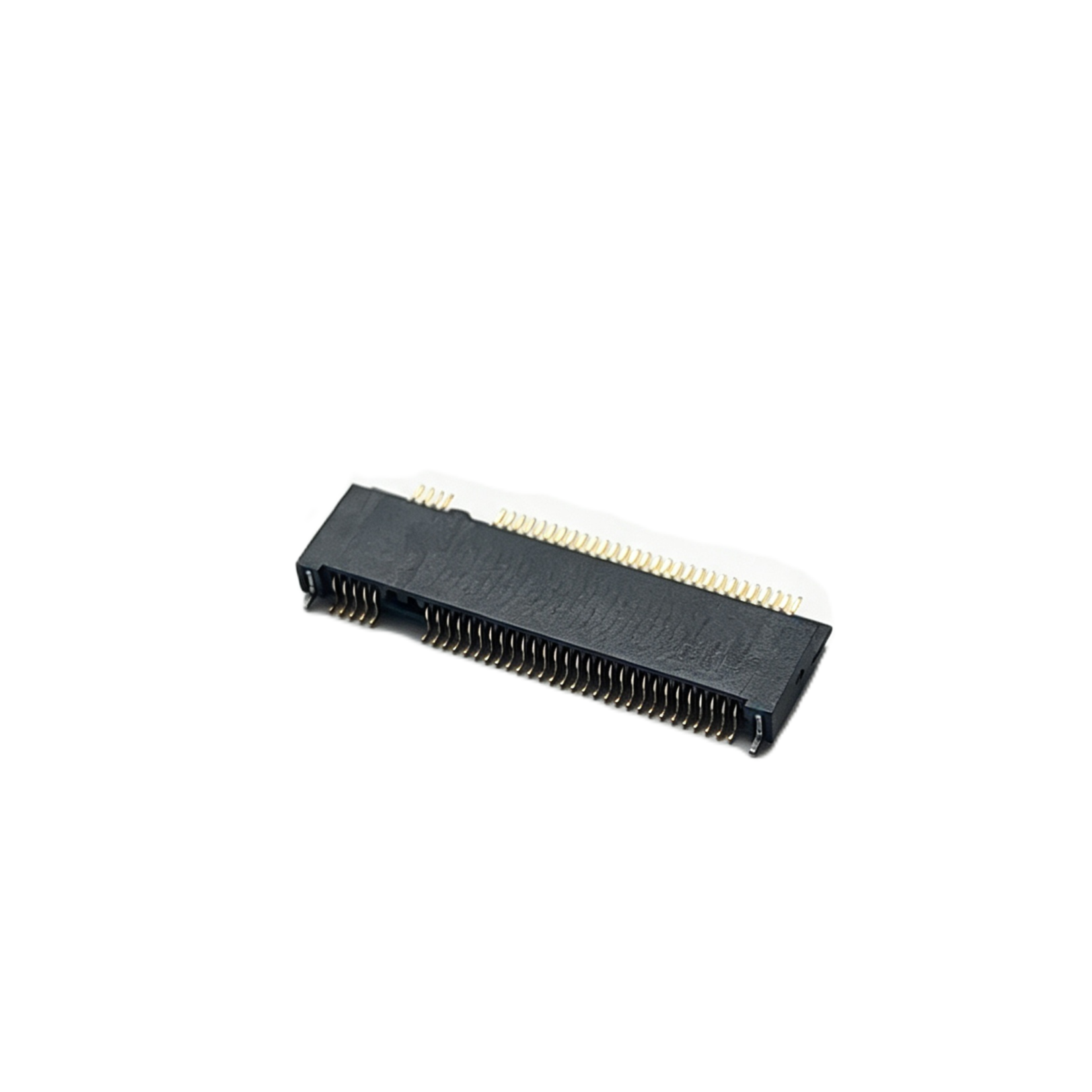

What Changes Between Gen4 and Gen5 — and Why It Matters

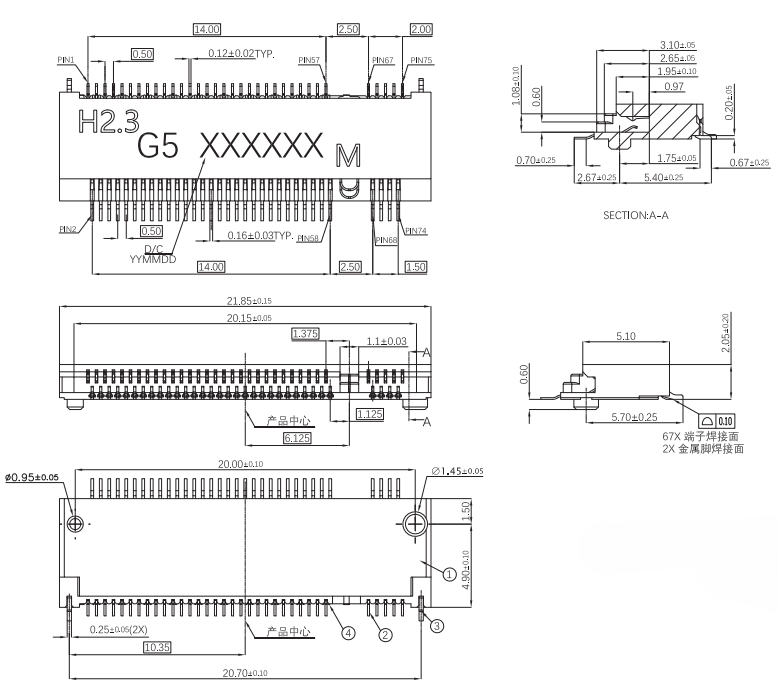

The jump from 0.5A to 1A on CUF026G67M108 reflects the real power draw of Gen5 NVMe controllers that peak above 8W sustained. CONSHARE tested this variant at 1.2A for 72 hours at 85°C — contact resistance shift stayed within 5 mΩ. That's the margin headroom your thermal simulation doesn't reveal.

Choosing Between M Key and E Key

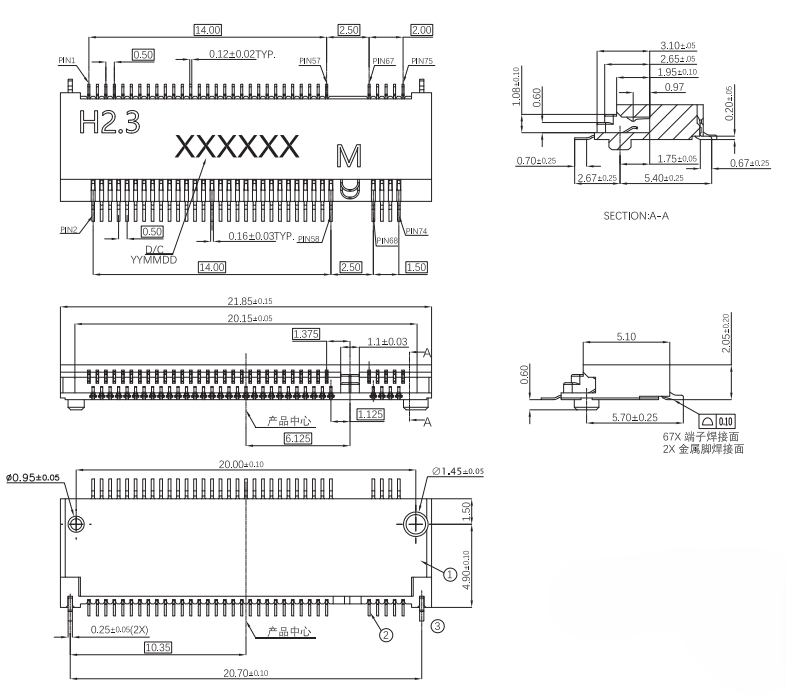

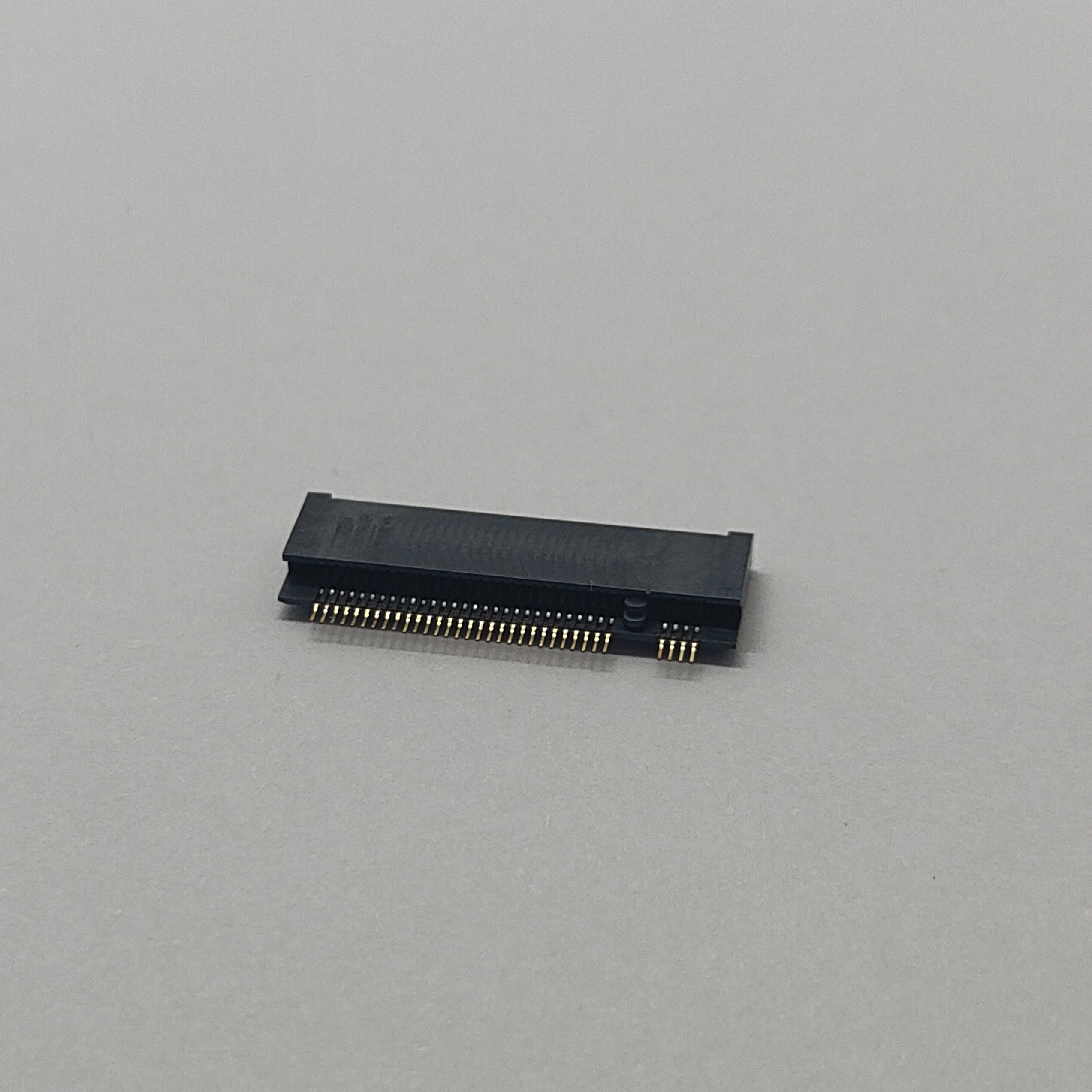

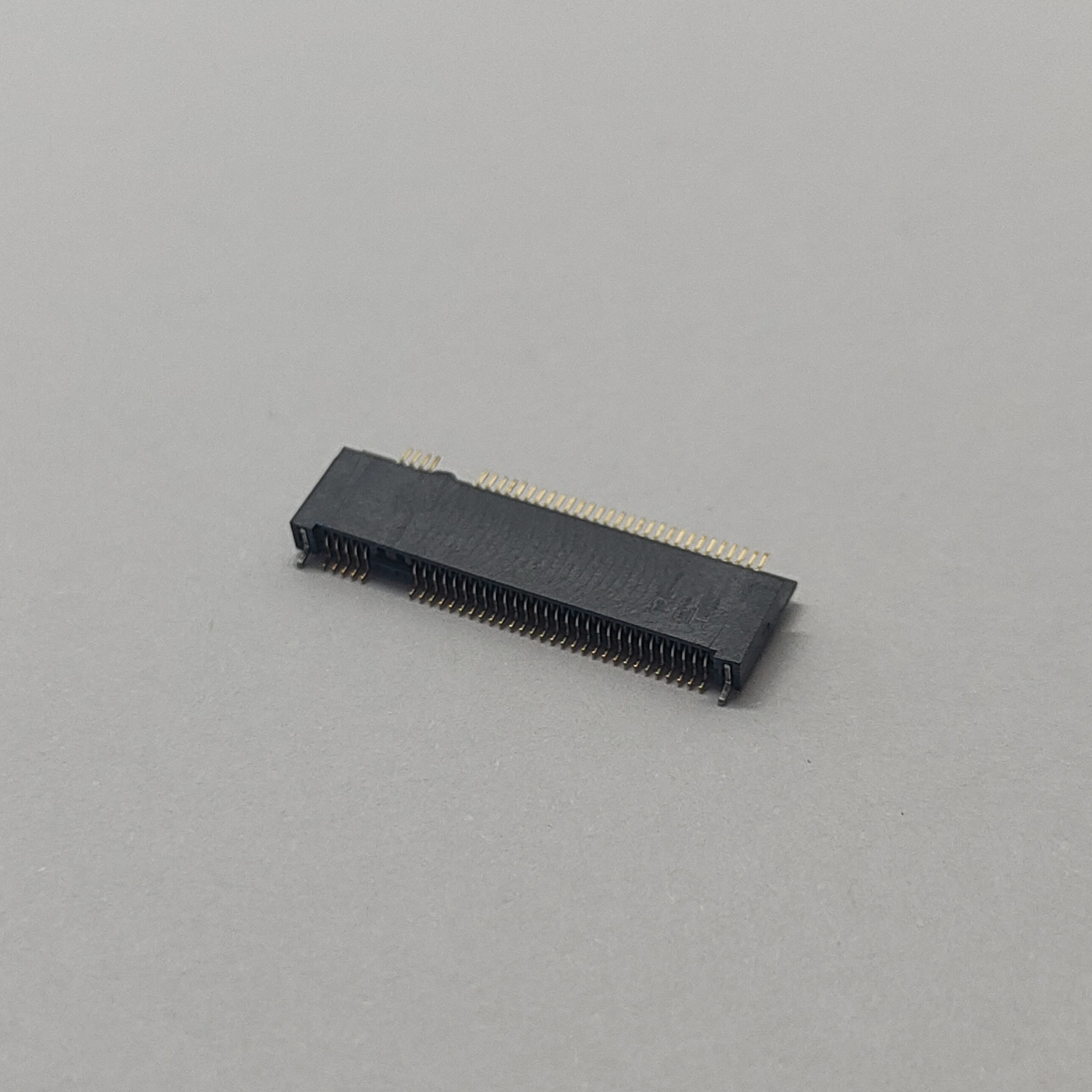

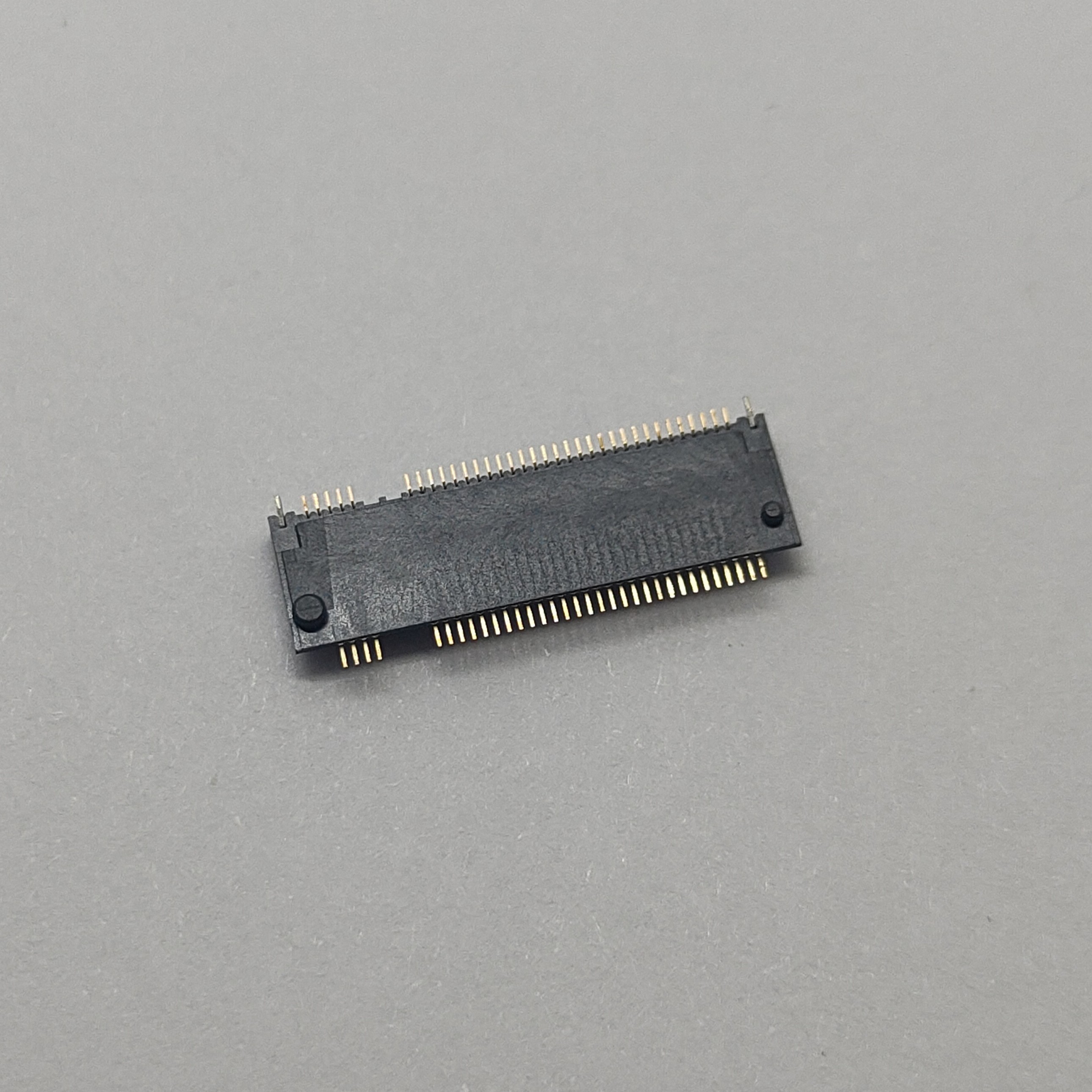

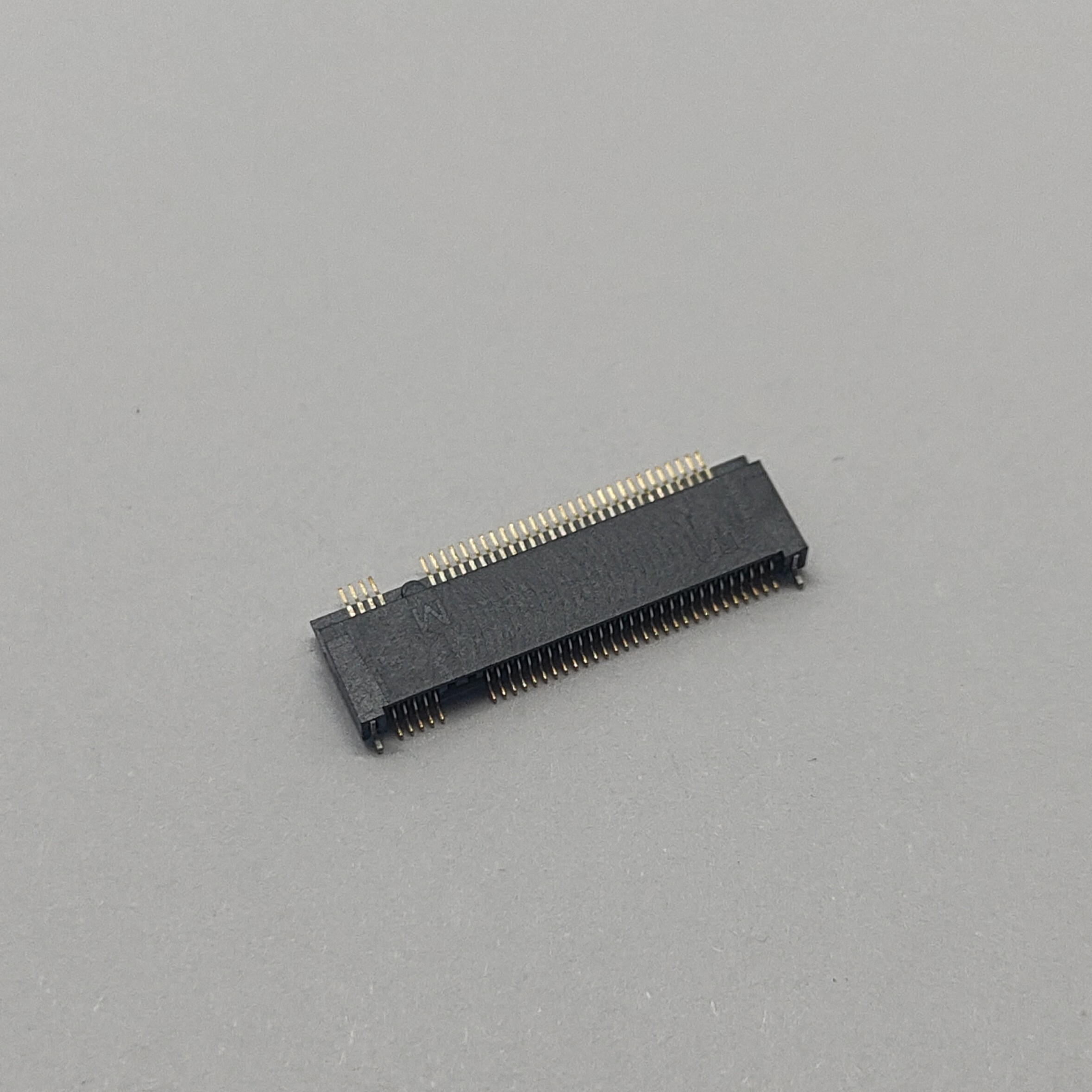

M Key (CUF020G67M108 / CUF026G67M108) exposes PCIe ×4 lanes for NVMe SSDs. Both route four full lanes through a 67-position contact field that interleaves signal and ground pins to suppress crosstalk at 16 GT/s and 32 GT/s. Common pitfall: routing a Gen5 SSD through a Gen4 connector because the part numbers look similar. The contact wipe length and plating differ between CUF020 and CUF026 — the Gen5 variant needs longer engagement to maintain impedance continuity at 32 GT/s. Your Gen5 link will train at Gen4 speeds and you'll chase a "firmware bug" that's really a connector mismatch.

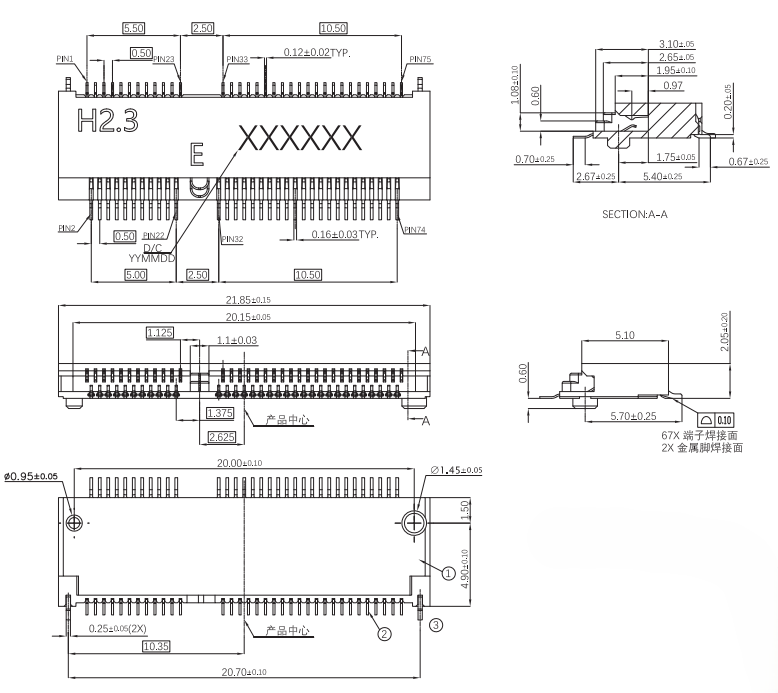

E Key (CUF021G67M108) carries PCIe ×2 plus USB 2.0 — the exact lane map for WiFi 6/6E and Bluetooth 5.x modules. Pin-isolated layout separates the USB pair from PCIe edges, so concurrent Wi-Fi and BLE traffic don't leak jitter into each other. One Tier-1 laptop ODM switched from a generic B+M Key connector to CUF021G67M108's E Key layout and eliminated BLE-induced Wi-Fi jitter, shipping with stable 2.4 Gbps throughput in certification.

Why 2.3mm Height Is a Design Constraint, Not Just a Dimension

Most M.2 connectors sit at 2.5mm+. That extra 0.2mm forces you to thin the thermal pad or relocate the battery in a 7.5mm Z-stack chassis. At 2.3mm, CONSHARE leaves clearance for a 0.5mm thermal pad, a 1.2mm battery cell, and a 4.0mm rigid PCB — all within the same budget. Anything taller, your thermal and battery engineers will object.

Precision That Survives Volume Production

These aren't spec-sheet targets — they're measured production capability verified per lot via CMM sampling. At 0.5mm pitch, individual contact position is controlled within a tighter band than the overall dimension window, keeping your return-loss budget intact where ±0.1mm suppliers would break it.

CONSHARE Quality Control, Delivery & Customization

Incoming inspection:

Every contact strip and insulator batch passes three gates — CMM dimensional verification, XRF plating thickness check, and AOI surface defect scan at 50×. Marginal material is quarantined, never mixed into production.

Plating floor:

Gold ≥0.2μm at the mating interface, nickel underplate ≥1.27μm — a floor, not a range. Each lot ships with a plating certificate measured at 5 random contacts per strip.

Lead time:

Customization (no new tooling):

Tail length ±0.3mm (1 week), thick gold ≥0.5μm (2 weeks), color-coded insulator (3 weeks), custom tape orientation (1 week), selective contact removal (2 weeks). Pin masking on existing stamping die saves 8K–8K–12K in NRE vs. cutting new tooling.

Design Pitfalls Worth Avoiding

Mismatched Key:

Procurement cross-orders CUF020 (M) into an E Key footprint — module won't seat, BIOS switch irrelevant. CONSHARE ships color-differentiated trays on request so line workers verify at a glance.

Gen5 thermal headroom:

1A per-contact rating doesn't mean double margin under sustained multi-contact loading. Aggregate thermal rise follows a different curve. Request CONSHARE's thermal derating curve for CUF026G67M108 and use it in your simulation.

Insufficient wipe at Gen5:

At 32 GT/s, contact engagement wipe length controls impedance continuity. CUF026G67M108's wipe is optimized for Gen5, but angled insertion or side-loading reduces effective wipe. Get the insertion force curve and minimum wipe spec before finalizing your guide rail design.

Frequently Asked Questions

Can CUF020G67M108 (Gen4 M Key) run a Gen5 SSD at full speed?

No — Gen5 at 32 GT/s needs CUF026G67M108's longer wipe and thicker plating. A Gen4 connector mates physically but forces Gen4 link renegotiation.

Does CUF021G67M108 support SATA?

No. E Key carries PCIe ×2 + USB 2.0 only. SATA requires B Key or M Key with SATA-specific pins.

Insertion force?

20–40N insertion, 15–30N extraction across all three variants. Exact values depend on engaged contact count and your PCB guide rail. Test data available on request.

Thick gold for high-insertion-count test fixtures?

Yes — ≥0.5μm available as customization, 2-week turnaround, no new tooling.

Shelf life? 24 months in sealed MBB per JEDEC J-STD-033, MSL 1 rating (unlimited floor life ≤30°C / ≤85% RH once opened).

Custom tail length for via-in-pad?

±0.3mm adjustment in 1 week on current stamping process. Beyond that requires a new die step (~3 weeks, small NRE).
