Why This Connector Exists

System designers today face a mismatch: PCIe Gen4 demands near‑perfect signal integrity, yet many M.2 connectors are still built with Gen3 thinking. CONSHARE closes that gap – not by copying overseas brands, but by engineering a connector that holds impedance, survives reflow, and delivers consistent performance across millions of cycles.

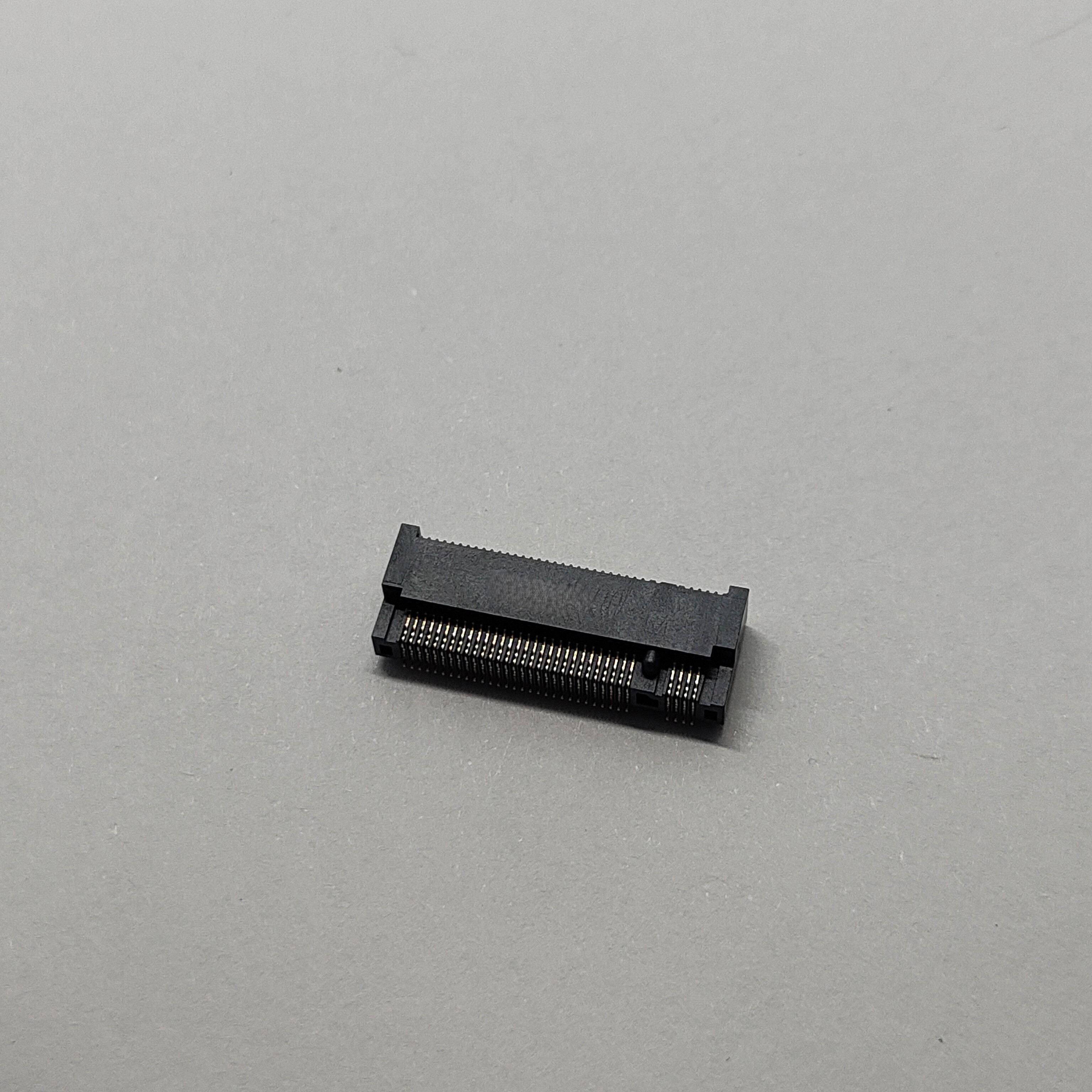

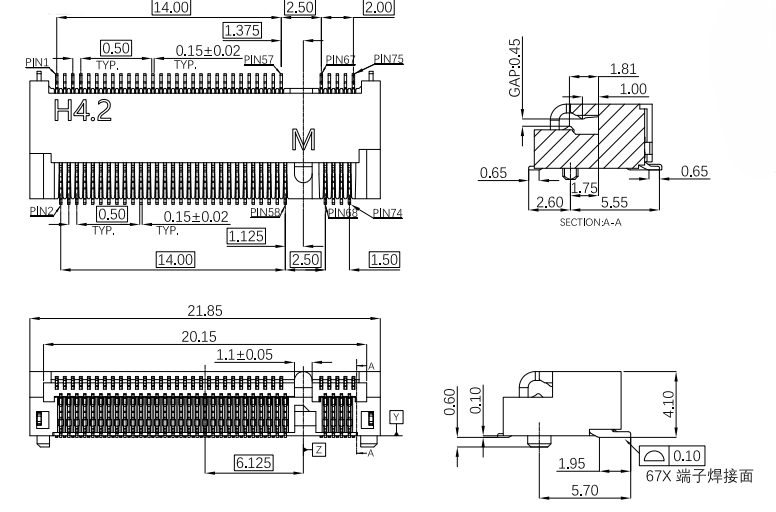

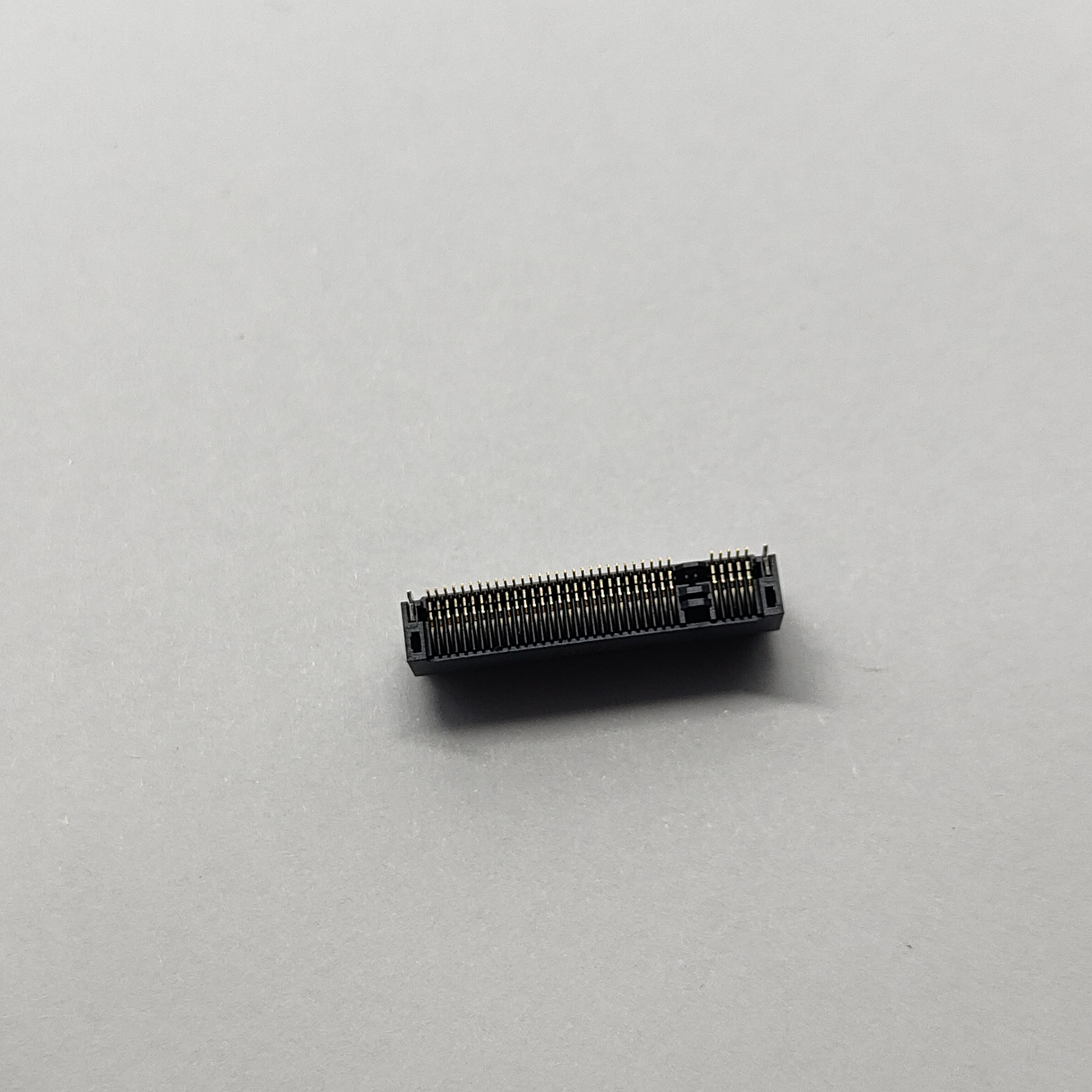

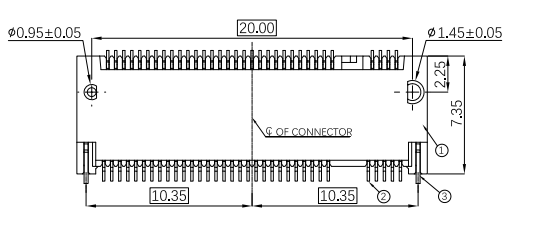

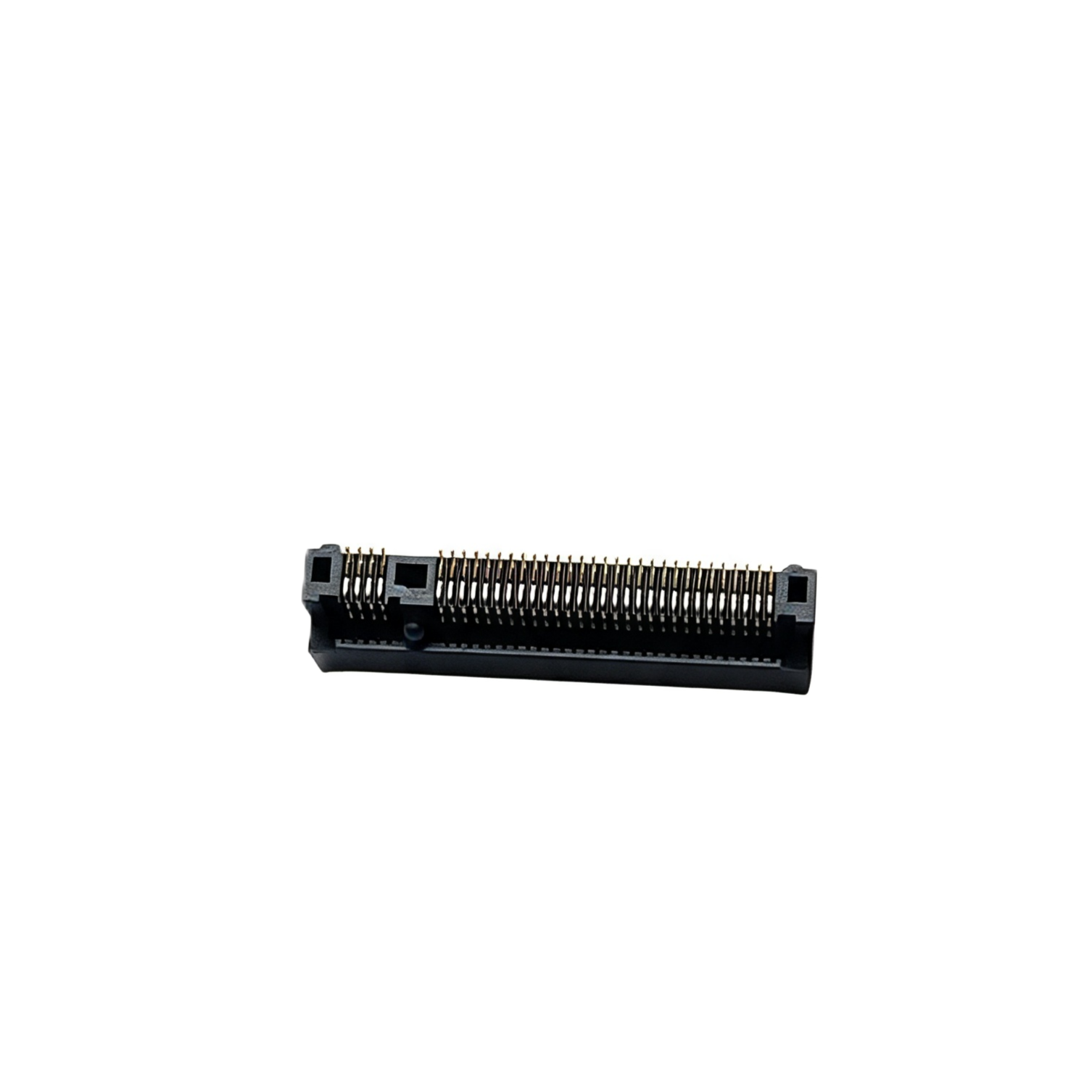

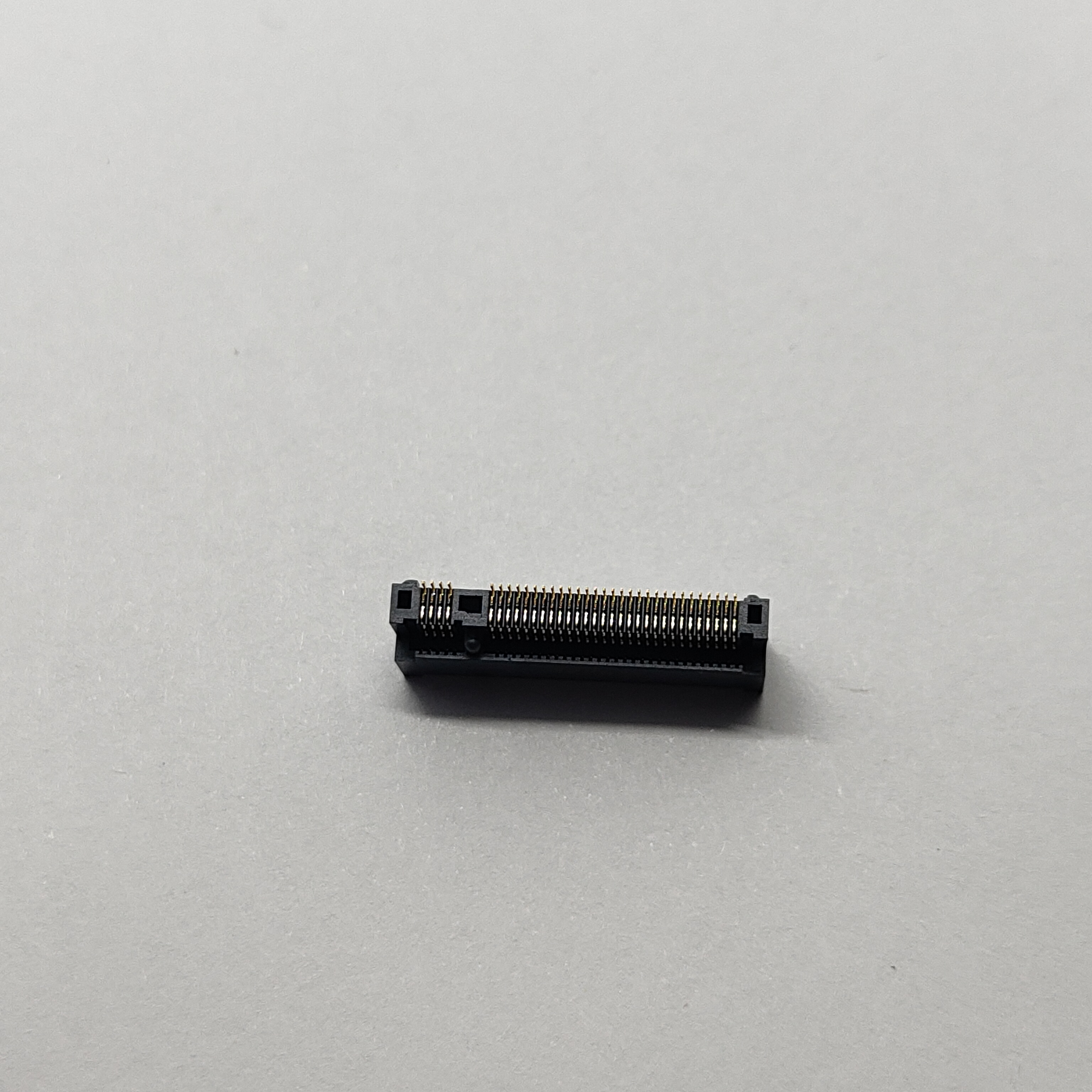

With a 4.0 mm profile, 0.5 mm pitch, and dual‑row SMD termination, this series fits where space is tight – 1U servers, industrial gateways, and compact edge devices – without sacrificing the electrical margins that Gen4 requires.

Technical Foundation – Built for 16 GT/s

Signal Integrity at Speed

At Gen4 data rates, every discontinuity at the connector interface affects return loss and insertion loss. Our design controls the characteristic impedance through contact geometry and housing material, ensuring the eye diagram stays open across temperature and voltage variations. This is not a “generic” M.2 socket – it is a transmission‑line element that has been optimised for 16 GT/s operation.

Material Choices That Matter

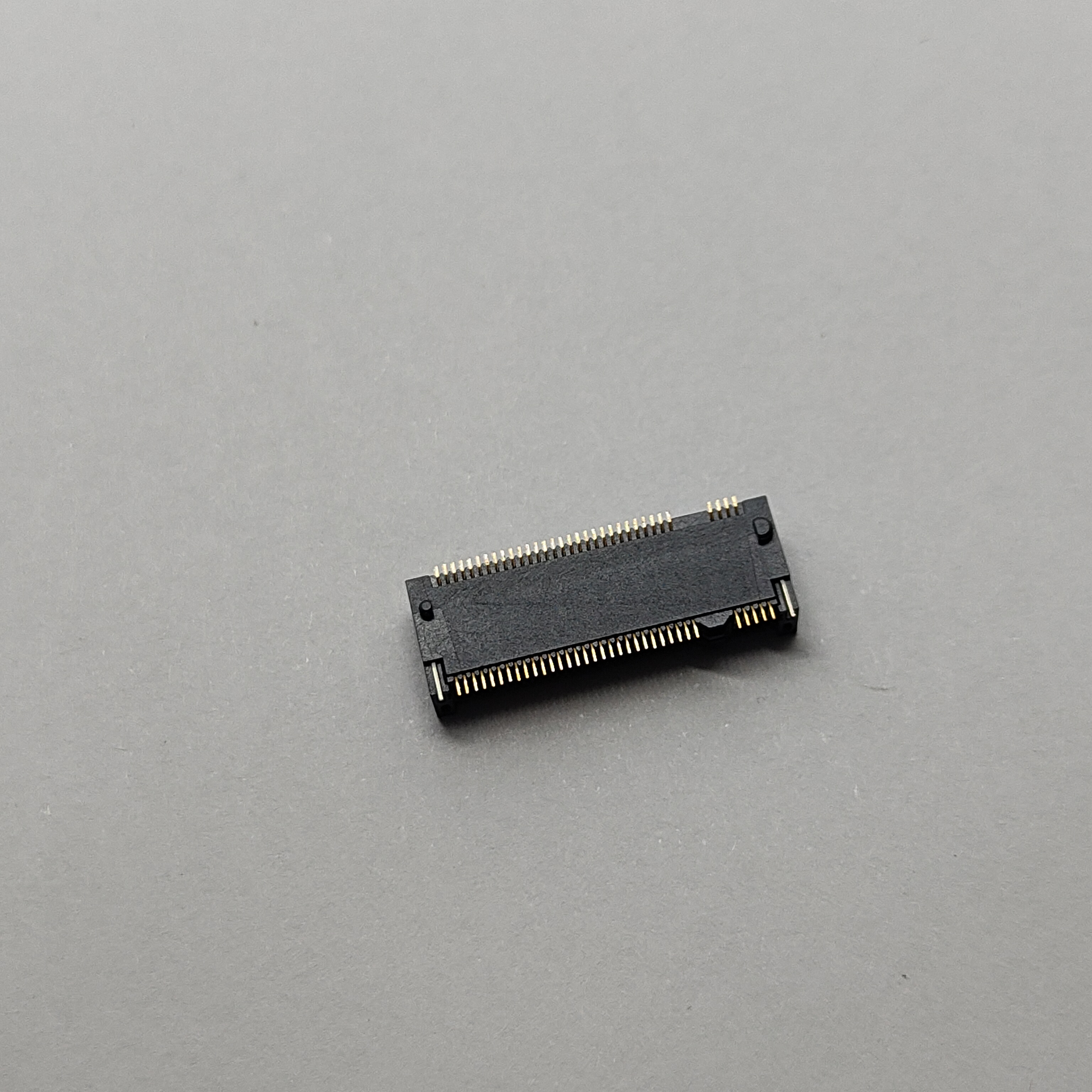

• Housing: Liquid Crystal Polymer (LCP) with UL 94V‑0 rating. It maintains coplanarity through 260°C reflow and does not warp in high‑humidity environments.

• Contacts: Copper alloy, gold‑over‑nickel plated. The nickel barrier prevents copper migration; the gold thickness (1, 10, or 15 µ″) determines wear life and contact resistance stability.

• Termination: SMD, tape‑and‑reel packaged – drop‑in compatible with standard pick‑and‑place lines.

Environmental & Compliance

RoHS compliant, rated for –40°C to +80°C, and capable of 0.5 A per pin. These are not just numbers – they translate into reliable operation in cold storage, factory floors, and outdoor enclosures.

Selection Guide – Which Gold Thickness and Key Type?

Key decision rule:

• M‑Key is for PCIe x4 NVMe SSDs – storage only.

• E‑Key is for wireless cards – do not mix them.

• Plating: Thicker gold does not automatically mean better performance – it means more durable surface. If your product is never opened after assembly, 1 µ″ is cost‑effective. If operators swap modules monthly, 15 µ″ is insurance against contact wear.

Real‑World Application Cases

1U Rackmount Servers

A server OEM faced Gen4 link drops after thermal cycling. They switched from a 5.8H connector to our 4.0H series – not only did the lower profile improve airflow, but the LCP housing eliminated warpage during reflow, and the 10 µ″ M‑Key variant maintained stable contact resistance after 20 drive replacements. The result: lower field return rates and smoother qualification.

Industrial IoT Gateways

An industrial router manufacturer needed an E‑Key connector for cellular modules that change per region. They chose the 15 µ″ version because field technicians often swap modules in dusty, vibrating environments. The connector’s robust contacts and wide temperature range reduced intermittent connection failures by over 70% in their beta tests.

High‑Volume Consumer Storage

For a desktop SSD brand, cost pressure was extreme. They adopted the 1 µ″ M‑Key variant – the connector is mated once at the factory and never touched again. They saved 12% on connector costs compared to 10 µ″ alternatives, with zero Gen4 compliance issues in production.

CONSHARE’s Operational Edge – Beyond the Datasheet

Factory Quality Control (Not Just Inspections)

Every batch undergoes:

• Dimensional verification (coplanarity, pin alignment) – automated optical inspection.

• Contact resistance measurement – 67 pins tested per unit to ensure low and stable values.

• Insulation and dielectric withstand – 50 V isolation check.

• Visual inspection for burrs, scratches, and plating uniformity.

We do not “spot‑check” – we test statistically validated samples from each reel, and we retain traceability data so that any issue can be traced back to production date and material lot.

Lead Time and Responsiveness

Standard configurations are kept in stock for 3‑5 day dispatch. For custom platings (e.g., 5 µ″ or 20 µ″) or special packaging (tray instead of reel), we offer lead times as short as 10–15 working days, depending on volume. No 16‑week waits.

Customisation Options

Beyond plating, we can adjust:

• Pick‑and‑place tape pitch and feeder orientation.

• Laser marking (part number, date code, or customer logo).

• Special packaging for automated assembly lines.

Minimum order quantities are flexible – contact our engineering team to discuss your specific needs.

FAQ – Answers That Save You Time

Q: Can I use a 15 µ″ M‑Key if I only need 10 µ″?

Yes, but you are over‑paying for extra wear resistance you do not need. Our guide above helps you pick the right spec – we are happy to advise.

Q: Is the connector compatible with PCIe Gen5?

Gen5 is still being standardised for M.2. Currently, the connector is validated for Gen4; Gen5 may require even tighter tolerance. We recommend staying with Gen4 for this series until final Gen5 specs are released.

Q: What reflow profile should I use?

We provide a recommended profile in the product datasheet – typical peak temperature 245–260°C. The LCP housing is rated for multiple reflows if needed.

Q: Do you offer samples before bulk orders?

Yes – sample kits with all three variants are available for evaluation. Contact us directly.

Q: How do I know if I need M‑Key or E‑Key?

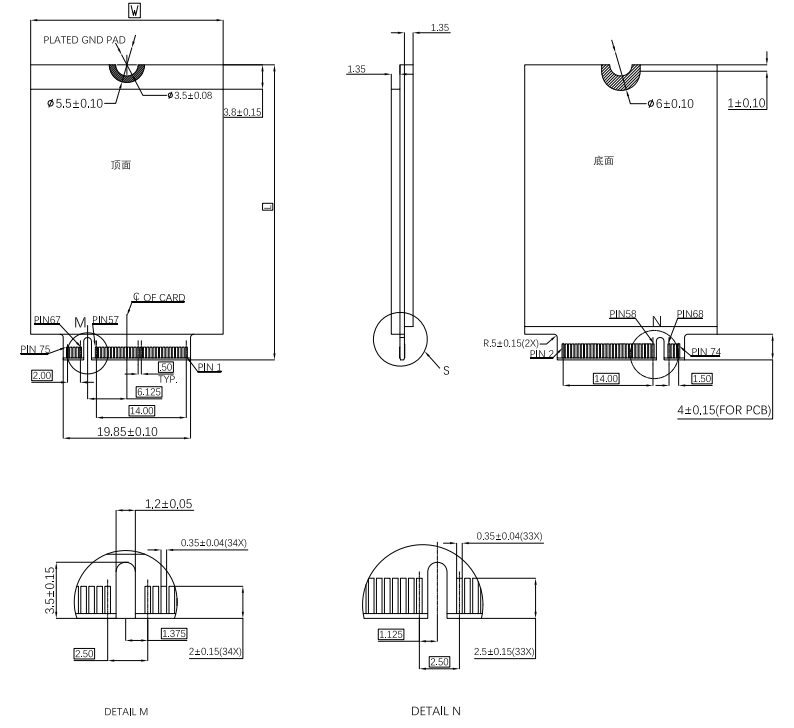

Check your module’s edge connector – if it has a single notch (on the right side), it is M‑Key; if it has two notches, it is E‑Key. The physical keying prevents mis‑insertion, but you must order the right socket.

Ordering Summary – At a Glance

All are RoHS, SMD, –40 to +80°C, UL 94V‑0, and supplied on tape & reel (other packaging upon request).

For technical datasheets, samples, or a custom quote – reach out to CONSHARE’s engineering team.

CONSHARE – Connector performance, shared with you.
