Card Edge Connector
Industrial, IT Datacom

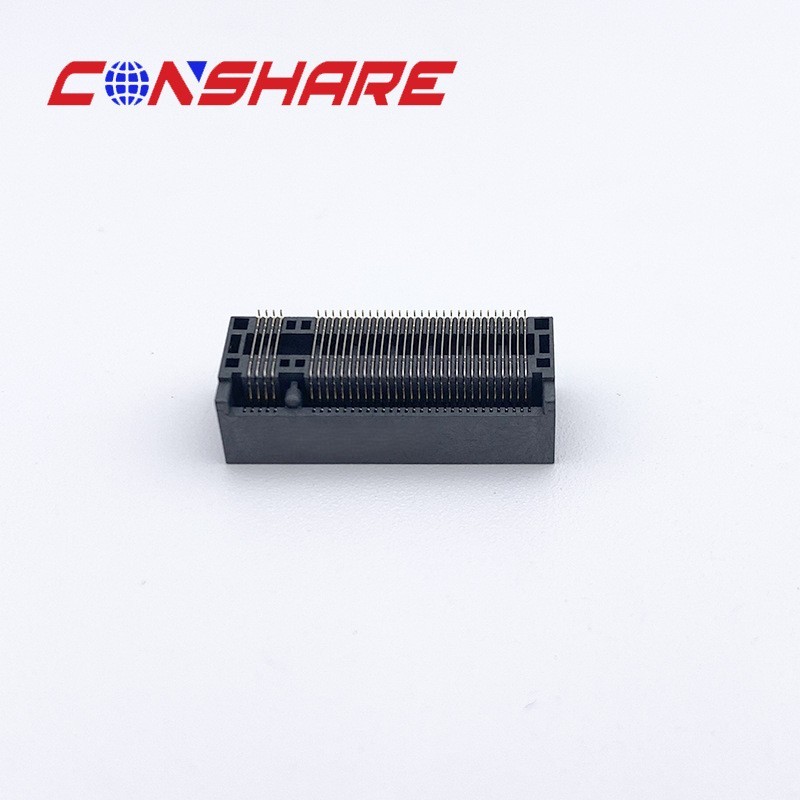

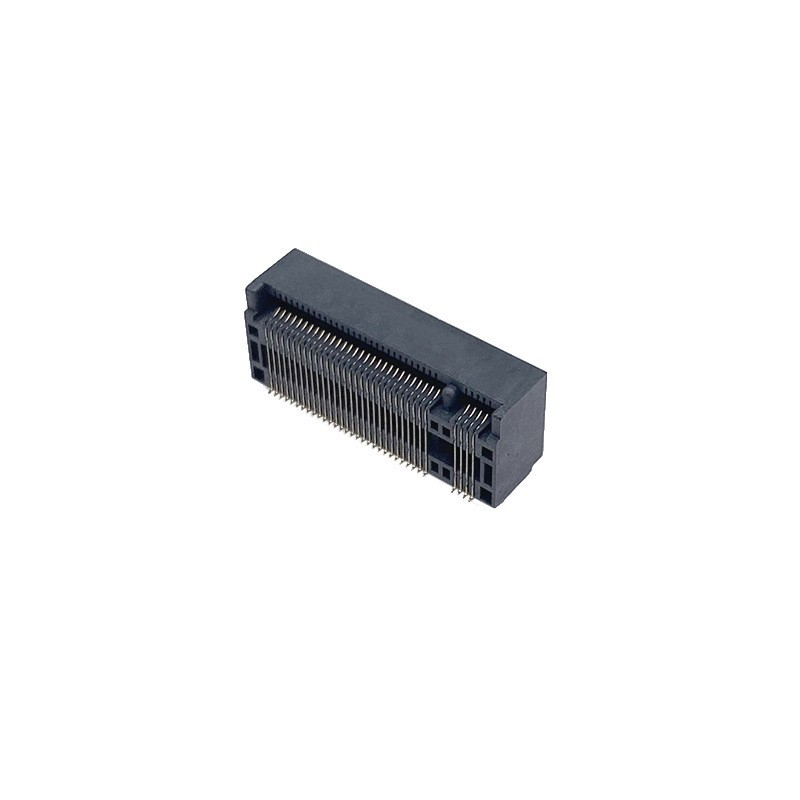

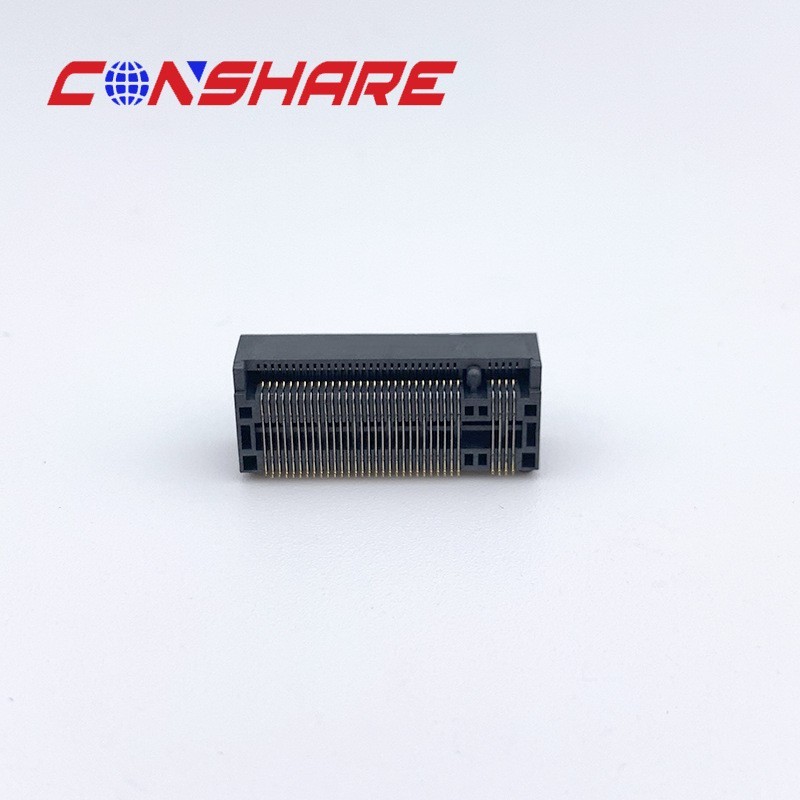

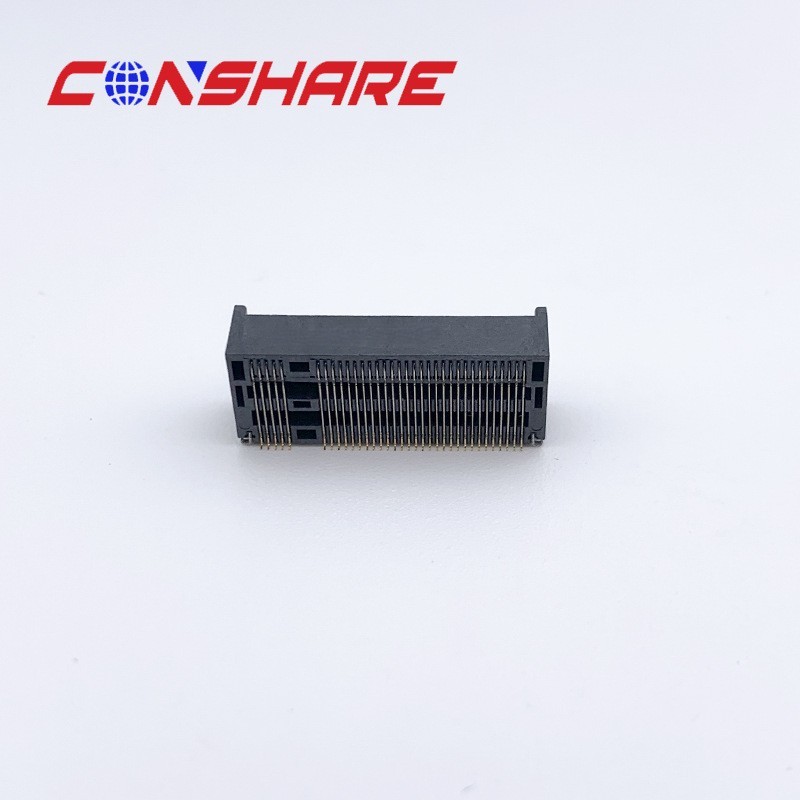

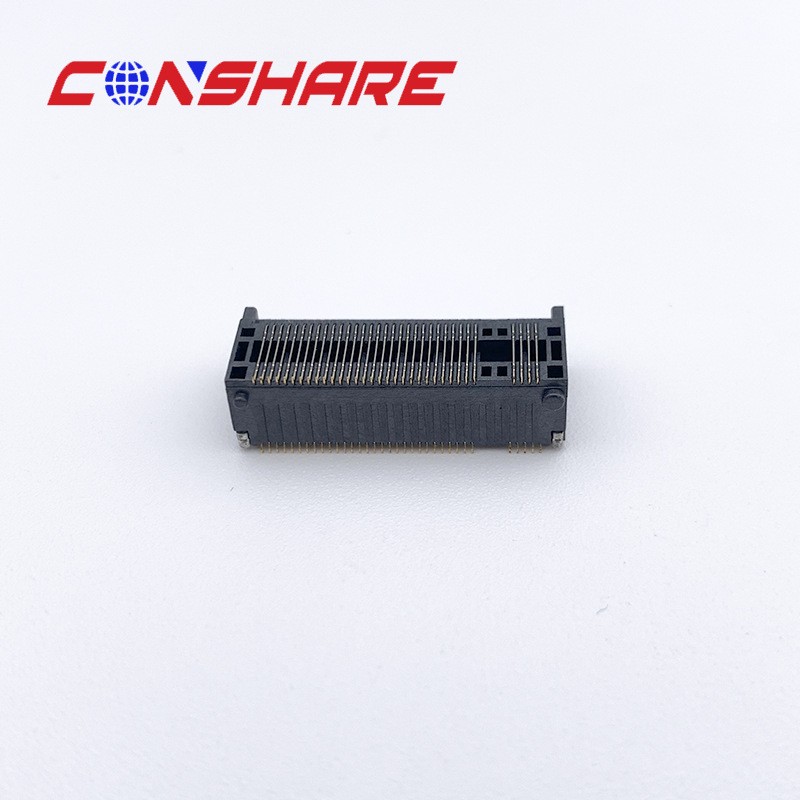

The CONNSHARE A1269067B1RHF is a precision-engineered M.2 (Next Generation Form Factor, NGFF) Key M female receptacle connector, purpose-built for high-speed storage and computing systems. Optimized for NVMe SSD applications requiring PCIe signaling up to 8Gbps, this connector is designed to deliver stable, low-latency data transfer in consumer laptops, motherboards, industrial PCs, and embedded systems.
With an 8.5mm board-mounted height, 67-pin configuration, and 0.5mm contact pitch, this SMD-type connector supports automated reflow soldering for mass production. Built with premium materials and strict quality controls, it ensures long-term reliability while meeting global RoHS and halogen-free environmental standards—making it a drop-in solution for modern, eco-conscious electronic designs.
Category | Details |
|---|---|
Connector Type | M.2 (NGFF) Female Receptacle, Key M Notch |
Board Height | 8.5mm (Board-Mounted Height) |
Pin Configuration | 67 Pins, 0.5mm Contact Pitch, 2 Rows |
Termination | SMD (Surface Mount Device), 180° Orientation |
Maximum Signal Rate | 8Gbps PCIe Signaling |
Current/Voltage Rating | 0.5A per Pin, 50V DC |
Operating Temperature | -40°C to +80°C |
Soldering Compatibility | Reflow Soldering (Up to 260°C, Lead-Free Process) |
Compliance | RoHS, Halogen-Free (HF) |
Signal Integrity: Optimized contact geometry and controlled impedance minimize crosstalk, ensuring reliable 8Gbps data transfer for NVMe SSDs.
Robust Electrical Performance: Copper alloy contacts with gold flash (Au G/F) plating deliver consistent conductivity and corrosion resistance, even in high-vibration or temperature-variable environments.
Designed for durability and precision fit, the A1269067B1RHF addresses common pain points in M.2 connector integration:
Key M Anti-Misinsertion Design: The Key M notch prevents incorrect module alignment, protecting both the connector and your M.2 SSD from damage during installation.
High-Quality Housing: Constructed from UL94V-0 flame-retardant LCP (Liquid Crystal Polymer), the black housing offers excellent dimensional stability and resistance to heat, chemicals, and mechanical stress.
Durable Contact System: Gold-flash-plated copper alloy contacts are rated for 60 mating cycles, ensuring long-term performance even in devices with frequent module swaps.
8.5mm Height Optimization: The 8.5mm board-mounted height is tailored for applications with specific space constraints, offering a balance between mechanical stability and system design flexibility.

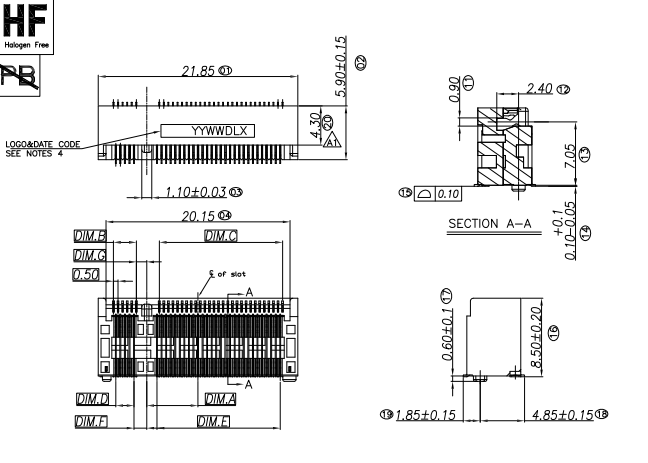

To accelerate your design cycle, we provide comprehensive engineering drawings (available for download) with critical details for seamless integration:

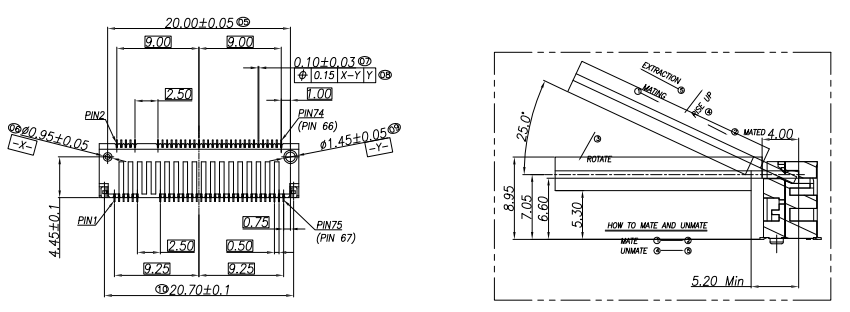

Overall Footprint: The connector features a compact footprint (21.85mm length × 20.00±0.05mm width) with precise tolerances (±0.10mm for high-speed paths) to ensure alignment with standard M.2 module form factors.
Section Views: Detailed cross-sections (Section A-A) illustrate contact geometry and board-mounting dimensions, helping you verify clearances and avoid assembly errors.

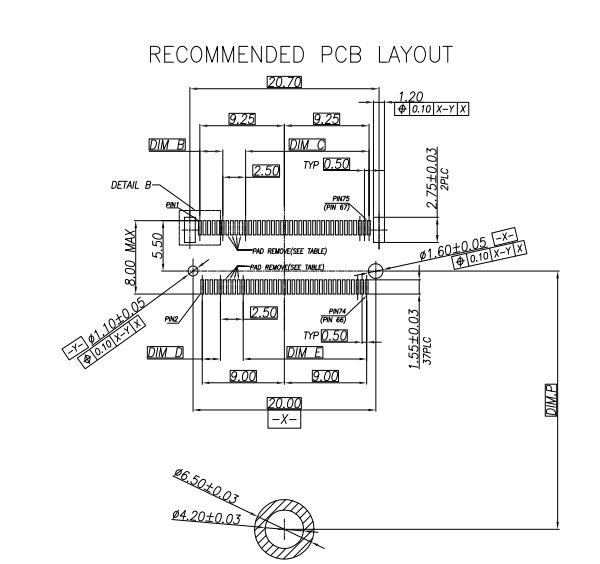

Optimized Pad Design: The recommended layout includes 0.5mm pitch pads with defined via placement and Key M notch pad removal zones, ensuring compatibility with standard M.2 module pinouts.
Tolerance Control: Critical dimensions (e.g., ±0.10mm for high-speed traces) are clearly specified to minimize impedance mismatch and signal degradation at 8Gbps.
Assembly Guidance: Mating/unmating instructions in the drawings ensure proper handling during production, reducing the risk of contact damage.
Top/Bottom Side Views: These diagrams detail pad spacing (0.50±0.05mm) and height tolerances (e.g., 4.00mm minimum engagement depth) for reliable connection with M.2 modules.
Polarization & Alignment: The Key M notch and guide features are clearly marked to prevent misalignment during PCB assembly and module installation.
Automation-Friendly Design: SMD termination and reel packaging support high-volume automated assembly, reducing labor costs and ensuring consistent placement during reflow soldering.

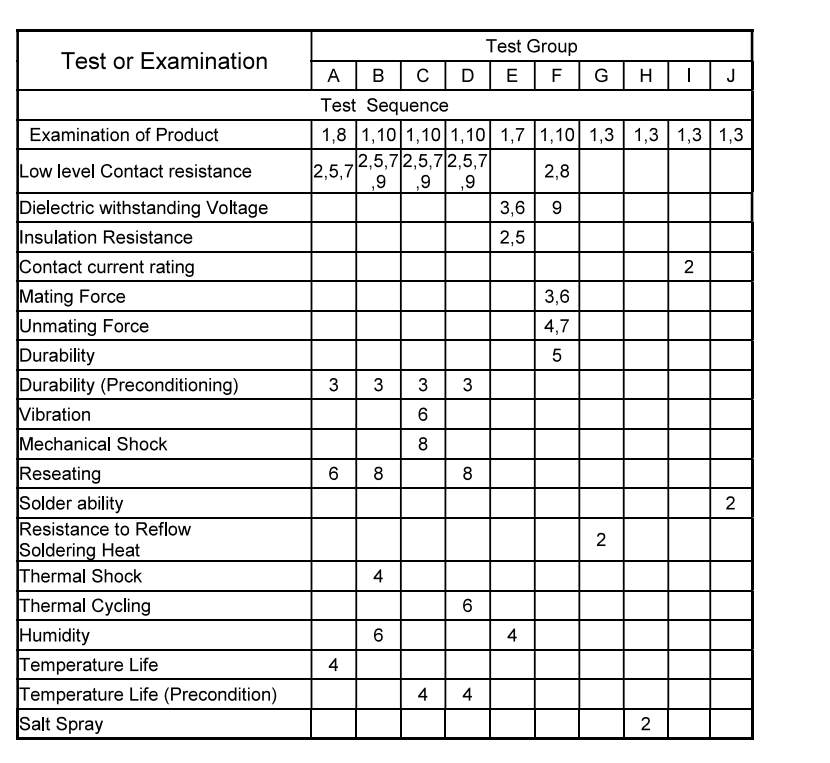

Strict Quality Controls: Every connector undergoes rigorous testing for signal integrity, mechanical durability, and environmental performance, backed by CONNSHARE’s ISO-compliant manufacturing processes.
Global Compliance: RoHS and halogen-free certification ensures compatibility with international regulatory requirements for consumer and industrial electronics.
Unlike generic alternatives, the A1269067B1RHF is built to meet the same high standards as industry-leading M.2 connectors with added benefits:
Cost-Effective Performance: Premium materials and precision engineering at a competitive price point, without compromising on signal integrity or reliability.
Ready-to-Use Design Support: Downloadable datasheets, PCB layouts, and 3D models streamline your design cycle, reducing time-to-market.
Customization Options: We offer plating variations (e.g., Au 5u/15u/30u) and packaging configurations to match your specific application needs.
Download the full datasheet and engineering drawings today, or contact our technical support team for tailored solutions for your project.
