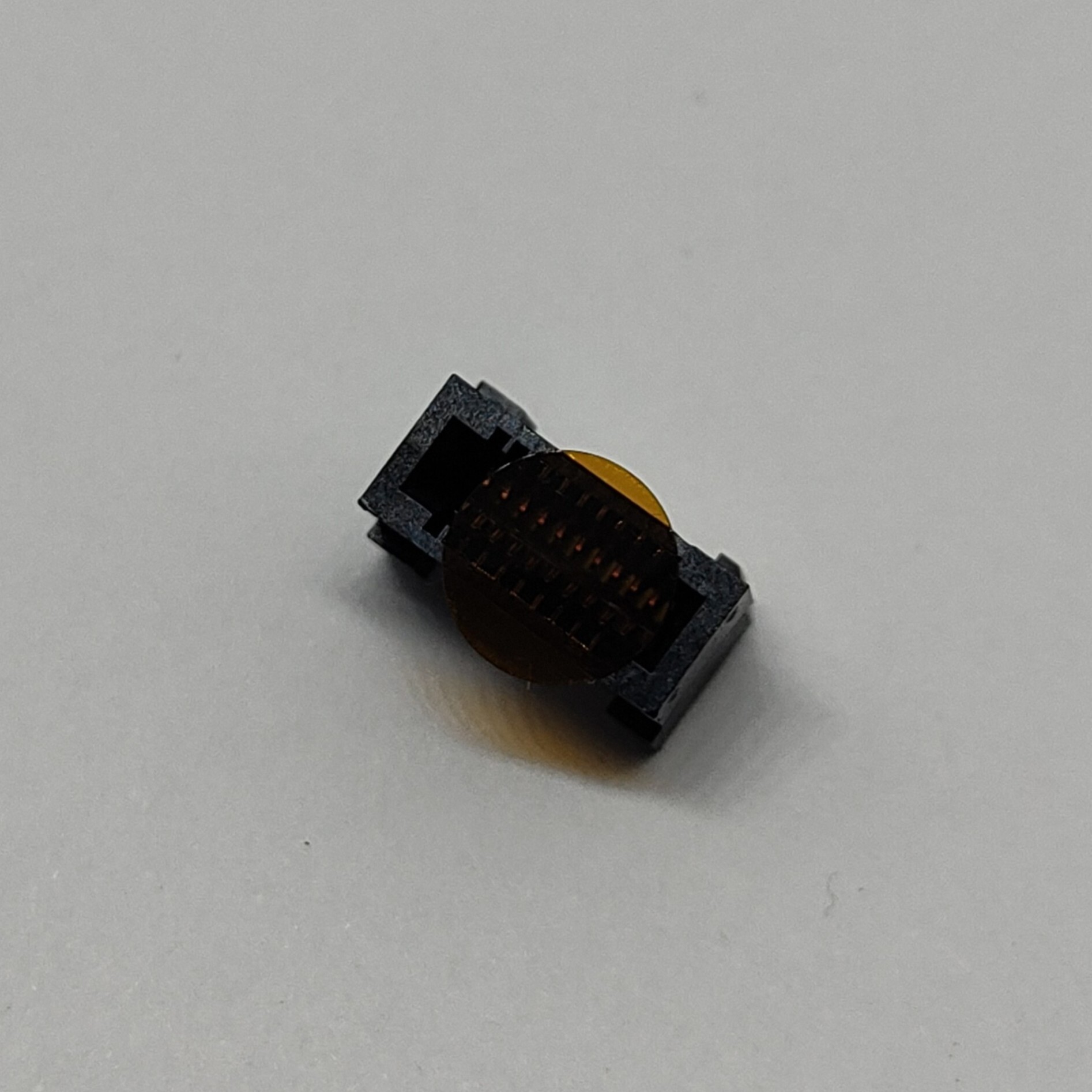

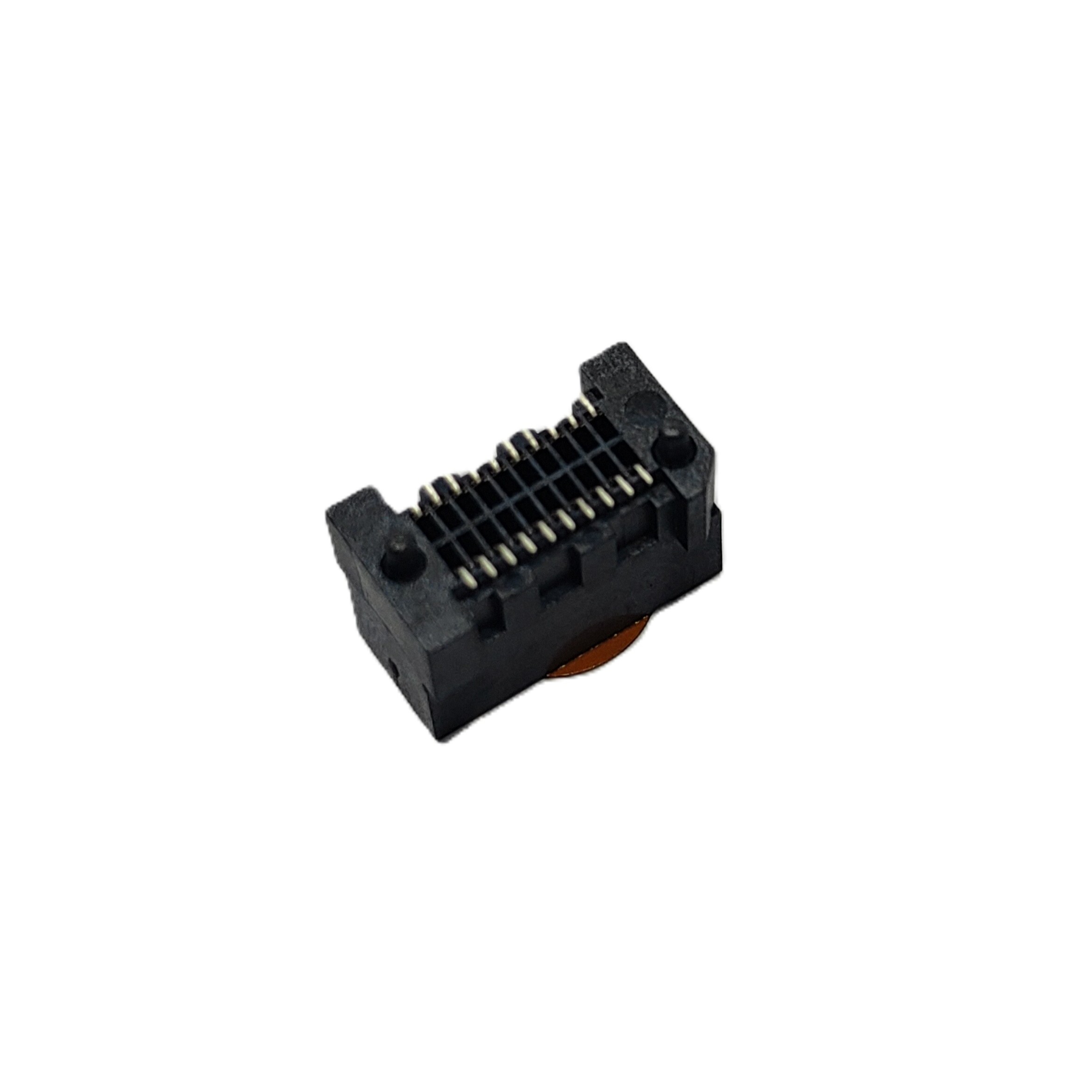

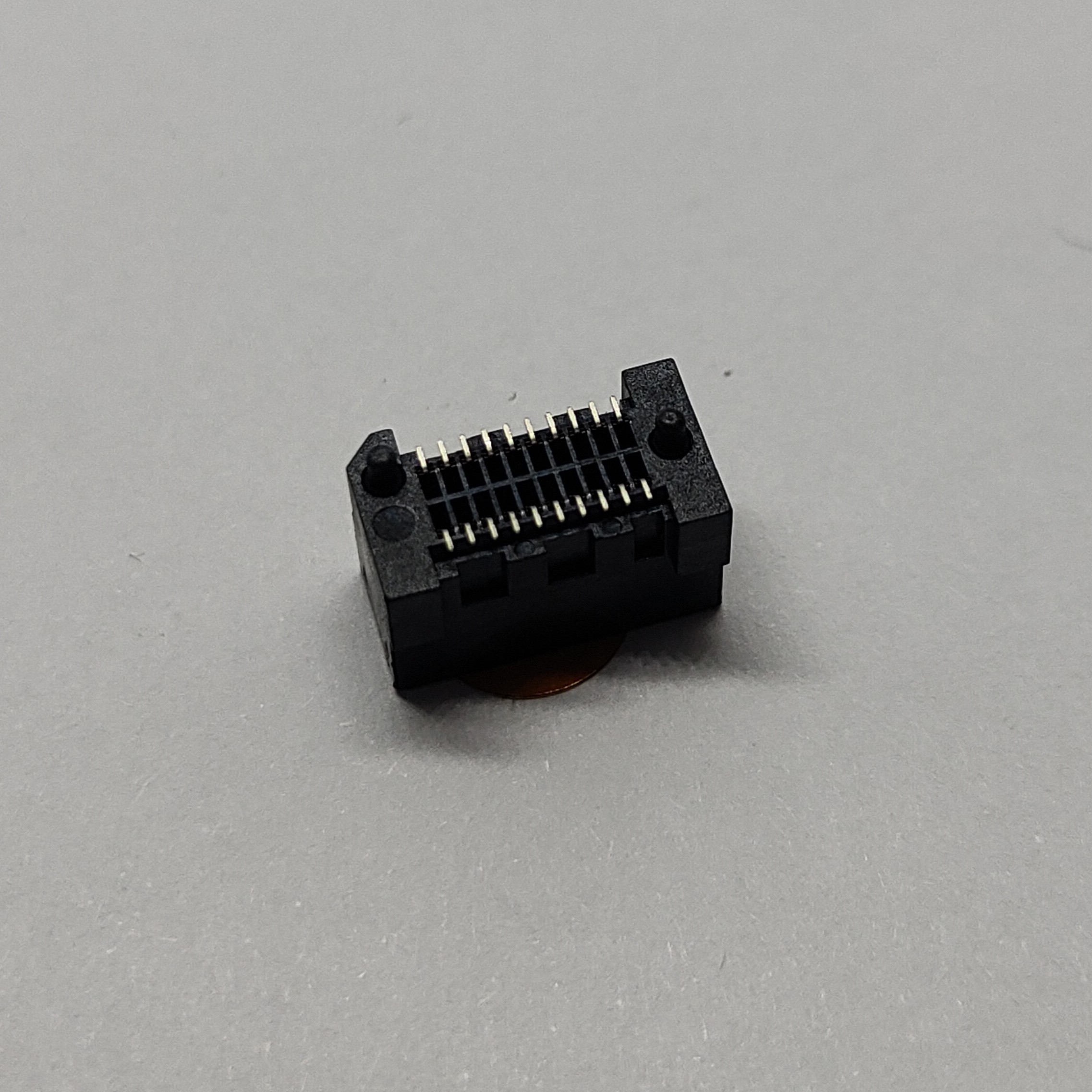

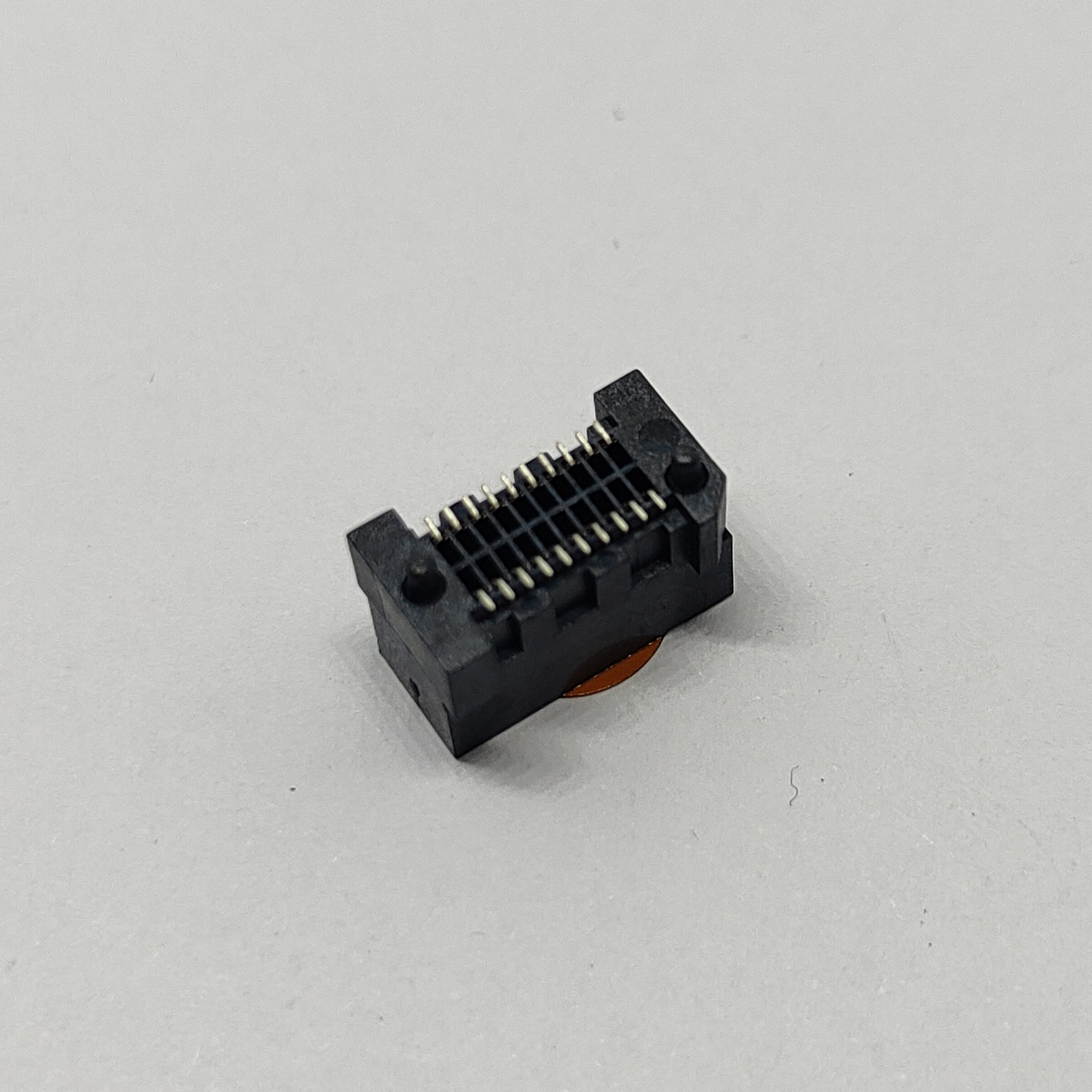

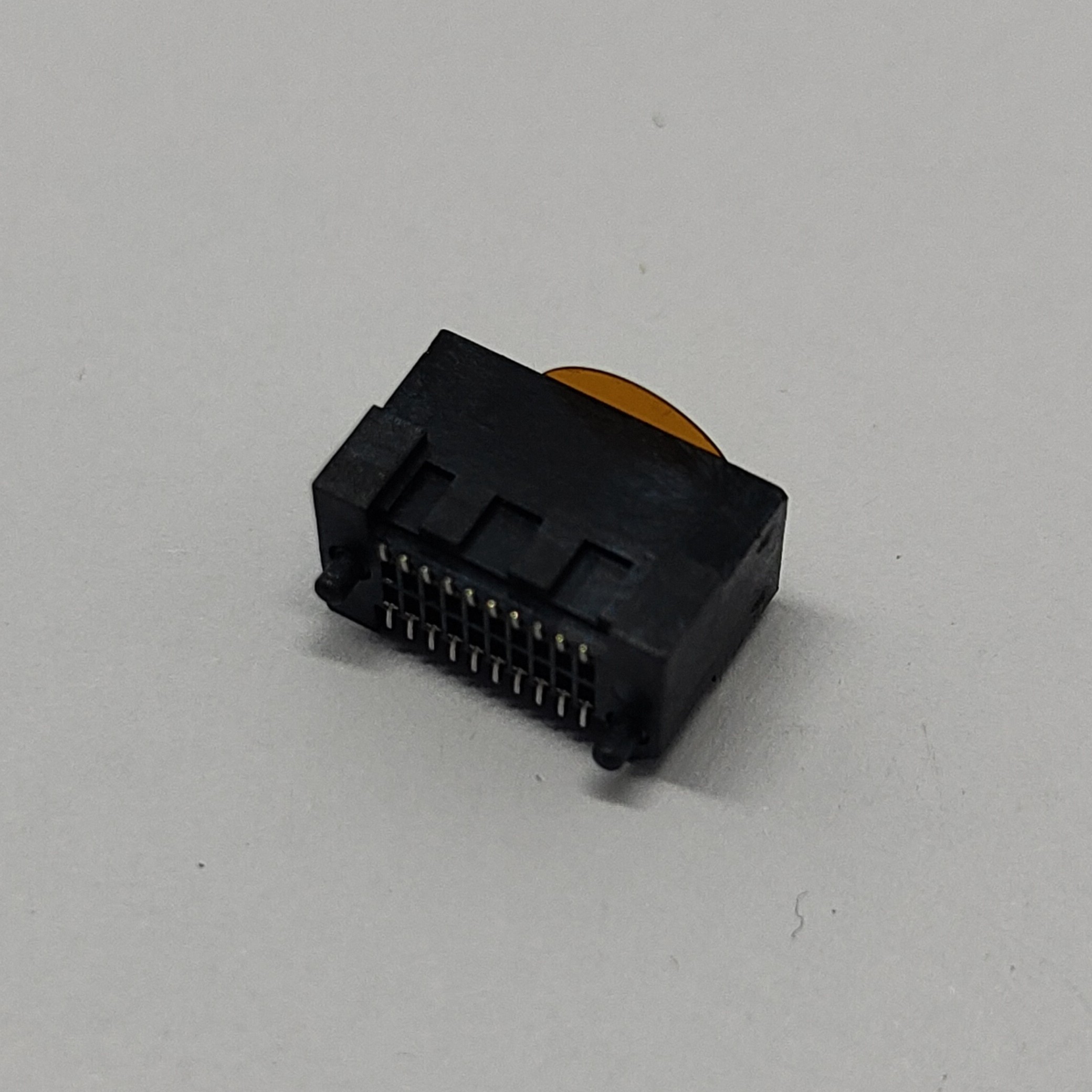

Designed to solve the most common reliability pain points in high-density surface-mount technology (SMT) assembly, the CONSHARE 0.8mm vertical connector combines precision manufacturing, industrial-grade materials, and fully customizable specifications to deliver uncompromising performance in compact electronic designs. Built for 180° gold finger interfaces with optimized L-shaped solder feet, this connector eliminates assembly stress, prevents electrical shorts, and maintains stable connections across extreme temperature ranges—making it the go-to choice for engineers prioritizing long-term reliability and seamless integration.

Core Performance Specifications

This connector is engineered to meet strict electrical, mechanical, and environmental standards, with all parameters validated through rigorous testing. Key specifications include:

Engineered Solutions to Your Top Connector Pain Points

Unlike generic SMT connectors, the CONSHARE 0.8mm model is purpose-built to address the most frequent causes of failure in high-density designs. Every feature is optimized to eliminate common headaches for design and production teams.

Precision MYLAR Insulation Eliminates Short-Circuit Risks

At 0.8mm pitch, even minor insulation gaps can lead to catastrophic electrical shorts. Our connector integrates a precision-cut MYLAR insulation layer between contacts, creating a consistent dielectric barrier that prevents arcing and cross-talk—even in high-humidity environments. This detail, rarely included in standard 0.8mm connectors, ensures reliable isolation without sacrificing the compact form factor your design requires.

L-Shaped SMT Solder Feet Reduce Assembly Stress & Solder Failures

Generic straight-foot SMT connectors often suffer from tombstoning, cold solder joints, or fatigue during reflow soldering. The CONSHARE 0.8mm connector’s L-shaped feet distribute thermal stress evenly across PCB pads, minimizing warping and improving solder wetting. Validated in production trials, this design reduces assembly-related defects by over 30% compared to standard straight-foot alternatives, saving you costly rework and delays.

Multi-Layer Plated Contacts Ensure Long-Term Electrical Stability

Poor plating is the leading cause of intermittent connections in high-density connectors. Our contacts feature a three-layer plating system:

1. Nickel underplate: Prevents base metal migration, extending the life of top plating layers.

2. Matte gold plating (contact area): Delivers low contact resistance and exceptional oxidation resistance, even after thousands of mating cycles.

3. Matte tin plating (solder area): Ensures reliable solderability with lead-free and leaded solders, eliminating the need for extra surface treatments.

   With customizable plating thicknesses (1µ" to 30µ"), you can tailor performance to your application’s lifecycle and environmental conditions.

UL94V-0 LCP Housing Withstands Extreme Temperatures

Flammability and temperature resistance are non-negotiable for industrial and automotive designs. The CONSHARE 0.8mm connector’s housing uses UL94V-0 rated LCP (Liquid Crystal Polymer), a high-performance material that maintains dimensional stability and insulation integrity from -40°C to +105°C. Unlike cheaper plastics that warp or crack at elevated temperatures, our LCP material resists thermal degradation, chemical exposure, and mechanical stress—ensuring reliability in the harshest environments.

Flexible Customization to Match Your Exact Design Requirements

We understand no two applications are identical. The CONSHARE 0.8mm vertical connector is fully customizable to meet your unique specifications, with options including:

Pin Count & Dimension Customization

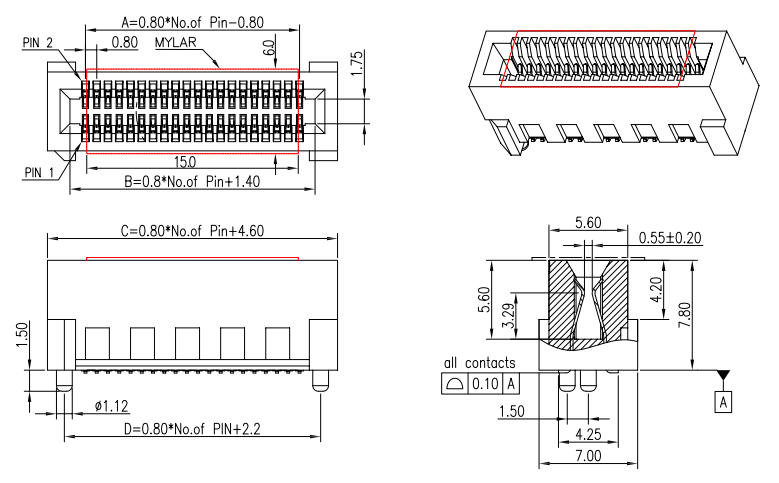

Available in dual-row configurations from 2x5PIN to 2x100PIN, with standardized dimensions (A, B, C, D, E) optimized for each pin count to ensure consistent PCB fit. Refer to our technical table for exact dimensions based on your selected pin count.

Plating Thickness Options

Choose from 6 standard plating configurations to balance performance and cost:

• S1: 1µ" Gold / Tin

• S2: 3µ" Gold / Tin

• S3: 5µ" Gold / Tin

• S4: 10µ" Gold / Tin

• S5: 15µ" Gold / Tin

• S6: 30µ" Gold / Tin

Packaging & Ordering Flexibility

Available in tray packaging (TRAY) for automated assembly, with lead times tailored to your production schedule. Custom packaging solutions are also available upon request.

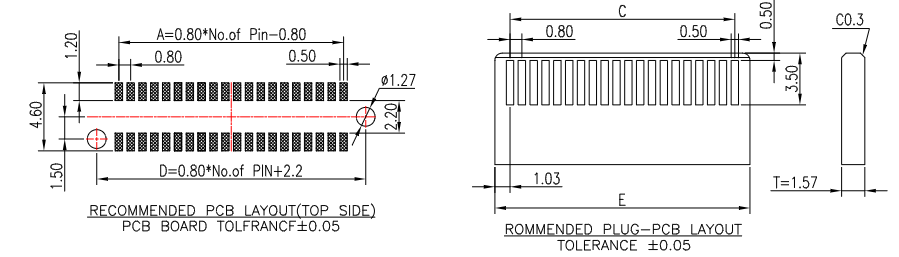

Optimized PCB & Assembly Layout Guidance

To eliminate guesswork and reduce design errors, we provide fully validated PCB and plug layout recommendations, including:

• Top-side PCB pad dimensions with ±0.05mm tolerance

• Recommended component placement to avoid interference with adjacent parts

• Plug-in PCB layout guidelines for consistent mating alignment

• These layouts are tested for compatibility with standard SMT assembly processes, so you can design with confidence knowing the connector will fit and perform as expected.

Ideal Applications

The CONSHARE 0.8mm vertical SMT connector is versatile enough for a wide range of high-density electronic designs, including:

• Industrial control systems

• Automotive infotainment and body electronics

• Consumer electronics (laptops, tablets, wearables)

• Medical devices

• Telecommunications equipment

• IoT and smart home devices

CONSHARE Quality & Reliability Commitment

As a leading manufacturer of precision connectors, CONSHARE delivers products that meet the highest industry standards. Every 0.8mm vertical connector undergoes rigorous quality control, including:

• 100% visual inspection for plating defects and dimensional accuracy

• Electrical testing (contact resistance, insulation resistance, dielectric withstanding voltage)

• Mechanical stress testing to validate solder joint reliability

• Environmental chamber testing to ensure performance across temperature and humidity extremes

We also provide full technical support, including custom design reviews and layout assistance, to help you integrate our connectors seamlessly into your project.

Ready to integrate the CONSHARE 0.8mm vertical SMT connector into your design? Contact our engineering team today to discuss your custom specifications or request a datasheet and sample.
