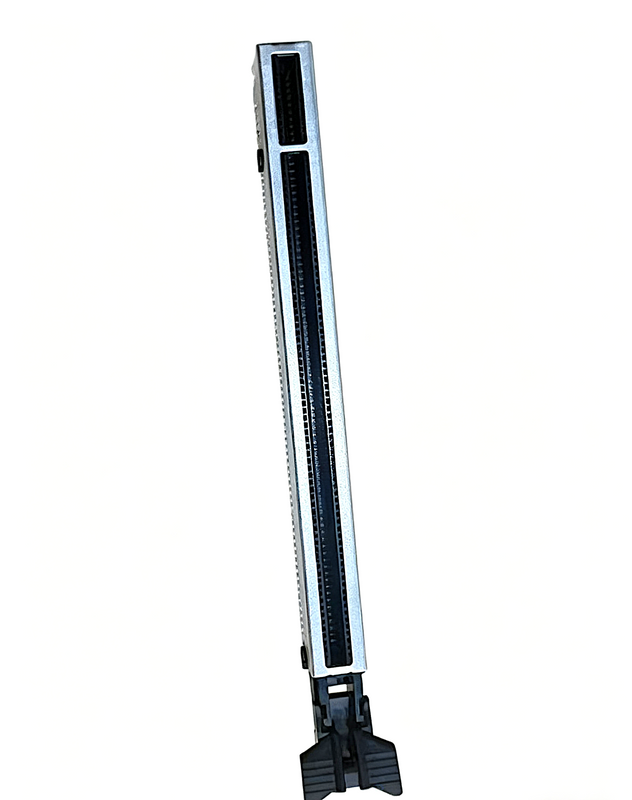

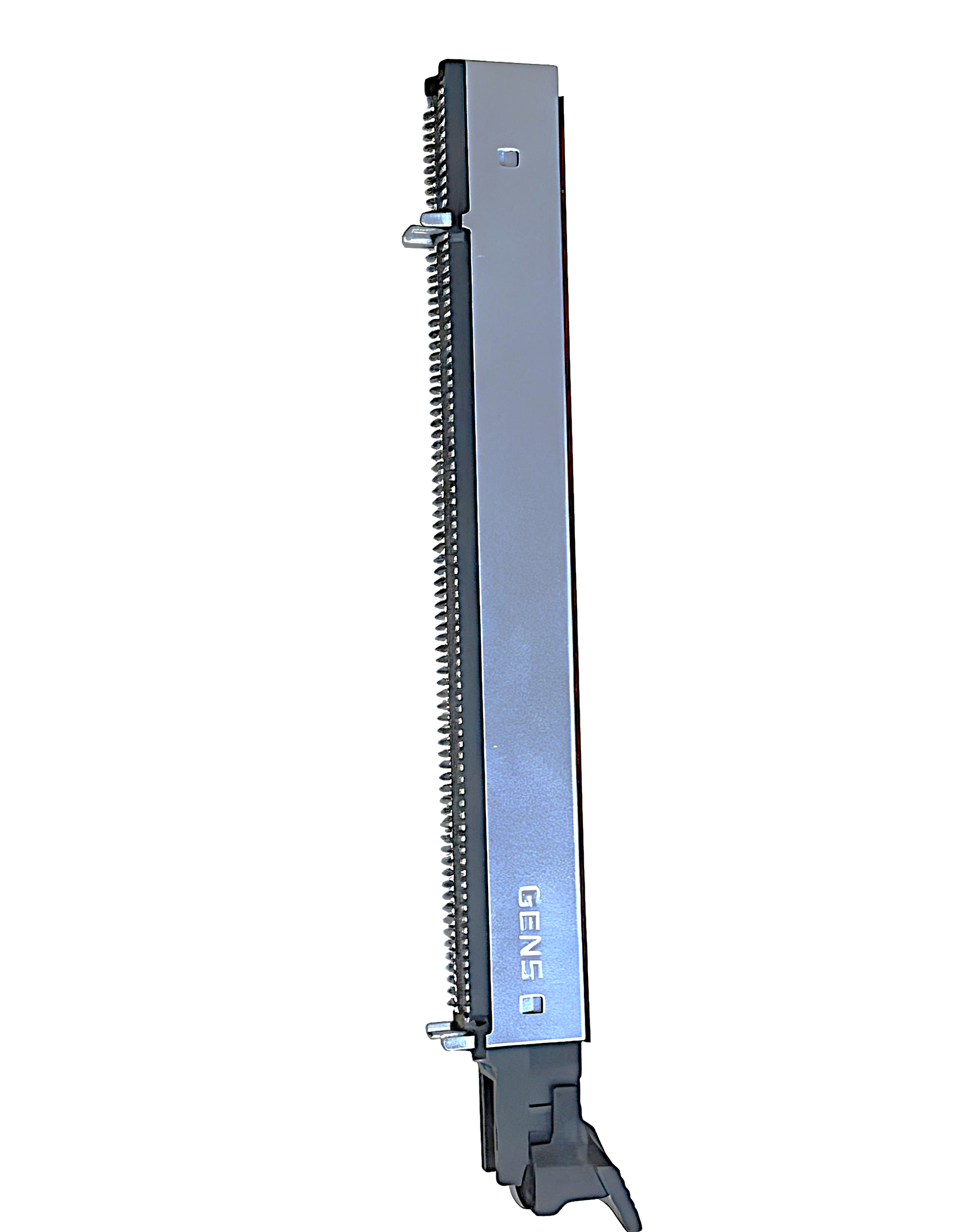

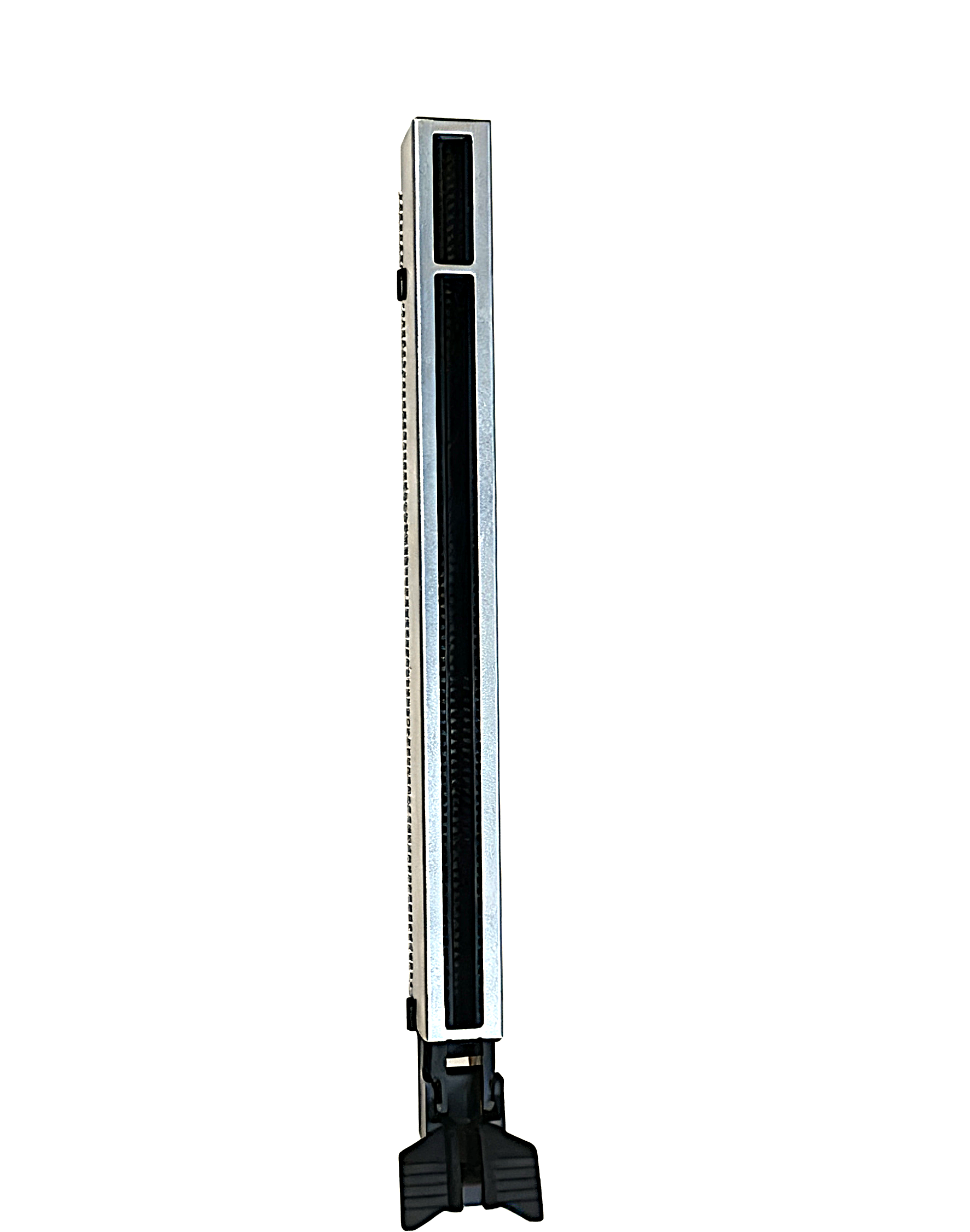

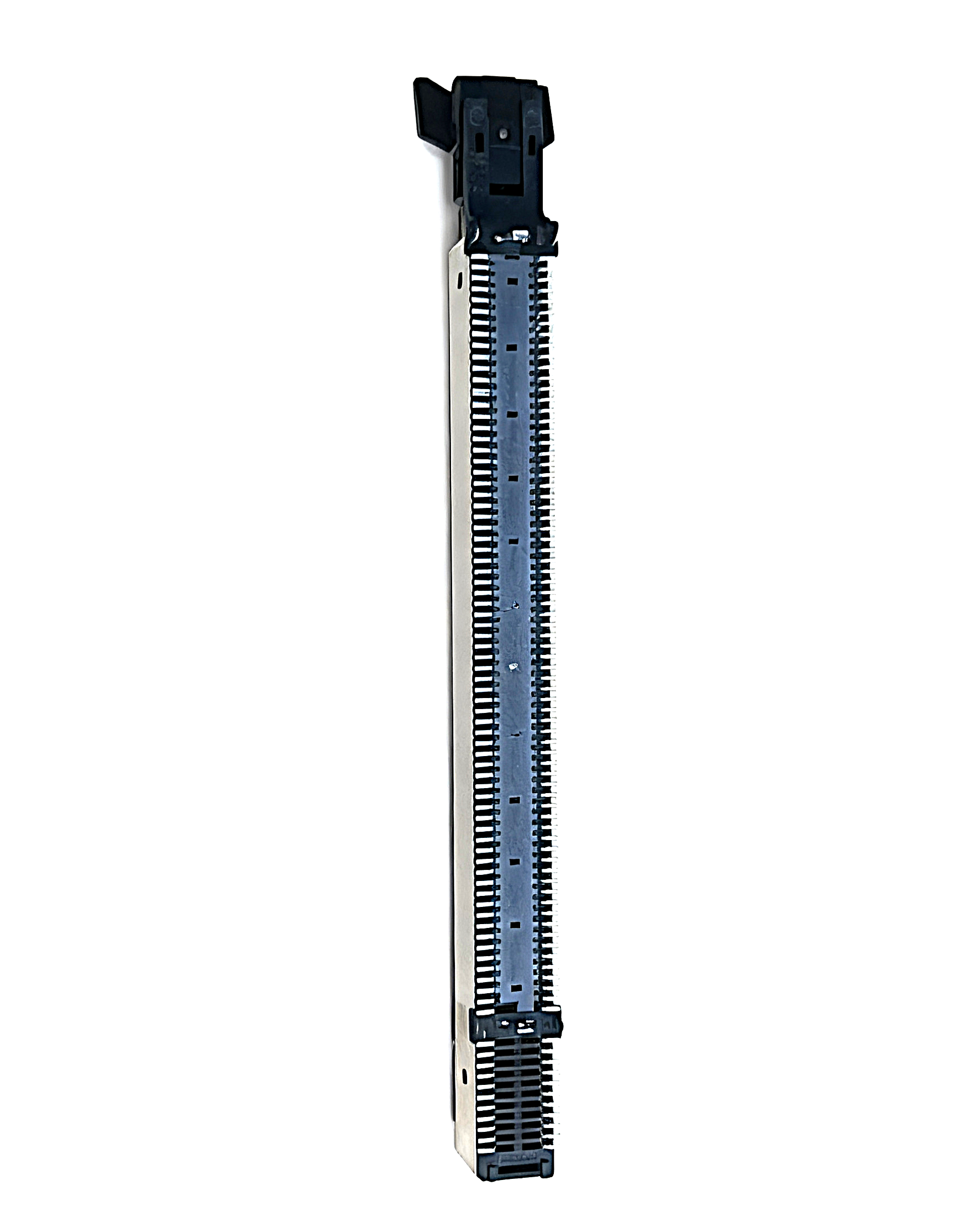

1. The PCIe 5.0 connector is a core component of the 5th-generation high-speed serial computer expansion bus standard. It is specifically designed to meet the requirements of a 32 GT/s transmission rate (with a one-way bandwidth of 4 GB/s per lane) and a total bandwidth of 128 GB/s (for x16 lanes), and is widely used in high-performance computing (HPC), data centers, and consumer electronics

2. Gold finger optimization: Gold fingers with a width of 0.6mm and a length of 3mm are adopted

3. Full-core shielding plane: A dense ground via array (with 1mm spacing) is used to suppress crosstalk and ensure high-frequency signal stability

4. Compatibility and expandability - Backward compatibility: Supports PCIe 4.0/3.0 devices

5. Protocol flexibility: Some products support multi-protocol functionality, adapting to hybrid storage and computing scenarios

◆◆ Product Advantage

1. Ultimate Bandwidth and Performance Breakthrough, Doubled Transmission Rate: Compared with PCIe 4.0 (16 GT/s), the bandwidth of the PCIe 5.0 connector is increased by 100%.

2. Low-Latency Response: Optimized link-layer protocols reduce data packet transmission latency.

3. Power Consumption and Energy Efficiency Optimization, Dynamic Power Management: Supports the L1.2 deep sleep state, which reduces power consumption to near zero while enabling fast recovery (<1ms) to adapt to bursty data transmission.

4. Energy-Saving Design: Adopts SOI (Silicon on Insulator) process and low-loss materials to reduce power consumption of high-frequency signals.

5. Reliability and Stability, Anti-Interference Design: The gold finger shielding layer and differential signal transmission effectively suppress EMI (Electromagnetic Interference).

6. Thermal Management Solution: Some products integrate heat sinks or support liquid cooling.

◆◆ Product Uses

1. AI Training Cluster

2. Storage Array

3. Desktop Computer/Laptop Computer

4. Edge Computing and Industrial Control

5. Communications and Network Equipment

◆◆ Product Documentation
