Card Edge Connector
Industrial, IT Datacom

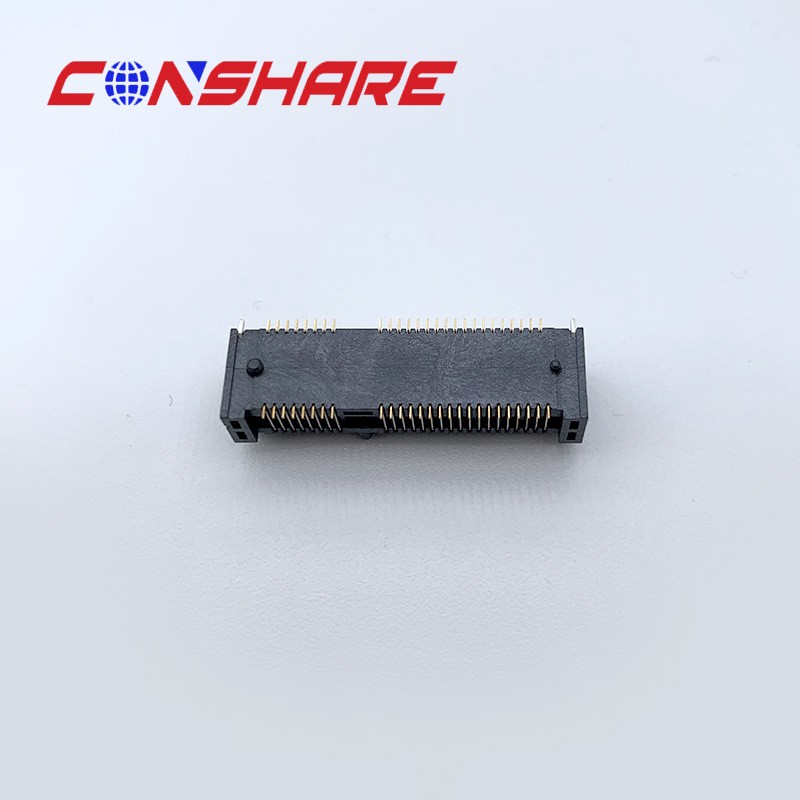

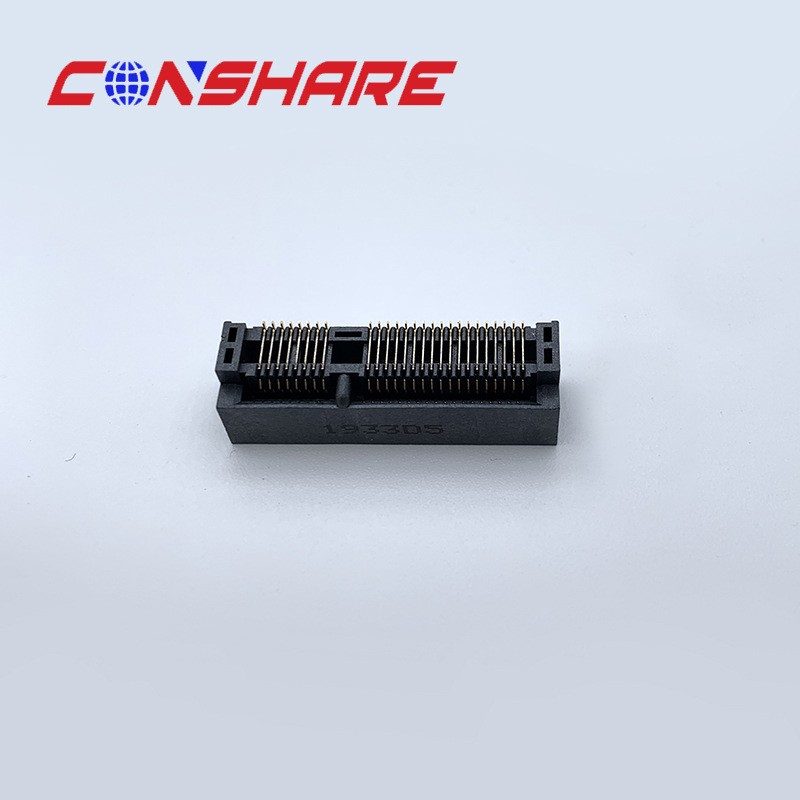

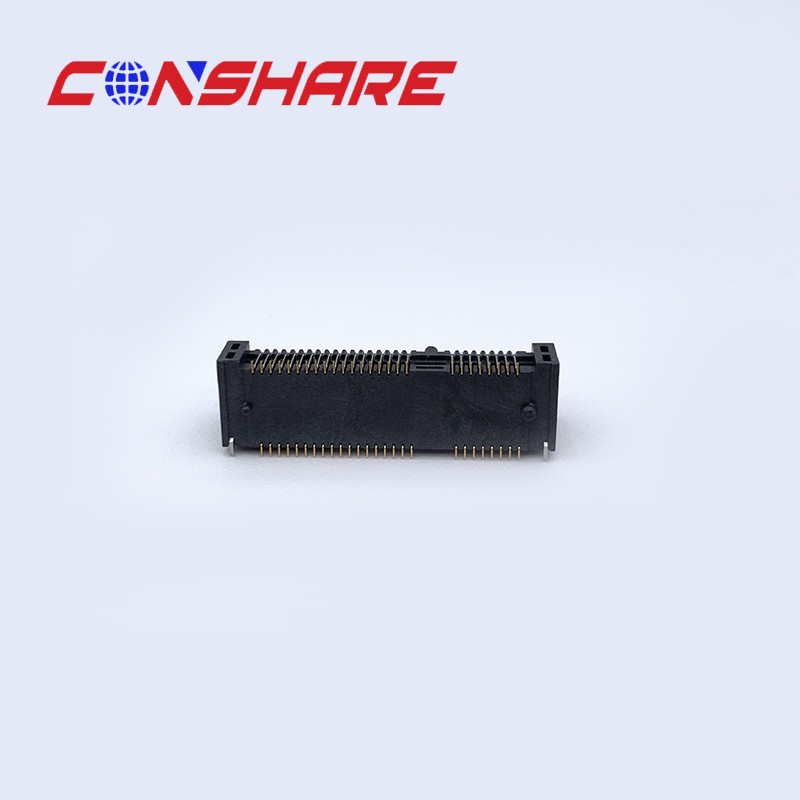

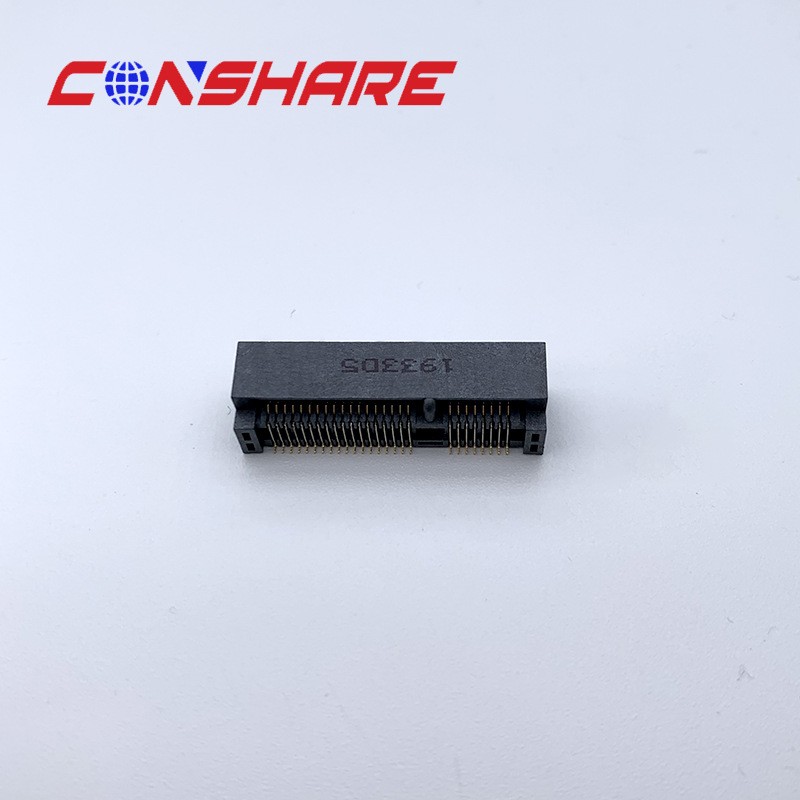

Crafted for tough industrial working scenarios, this surface mount Mini PCIe connection component serves as a core linking part for electronic hardware expansion and data transmission. Developed with strict factory technical standards, it adopts refined fabrication craft and durable raw material matching, effectively overcoming common defects seen in ordinary connecting pieces such as loose contact, weak welding firmness and narrow applicable range. It stably supports long-hour continuous operation and accurate size assembly, fitting various electronic equipment with rigorous connection demands.

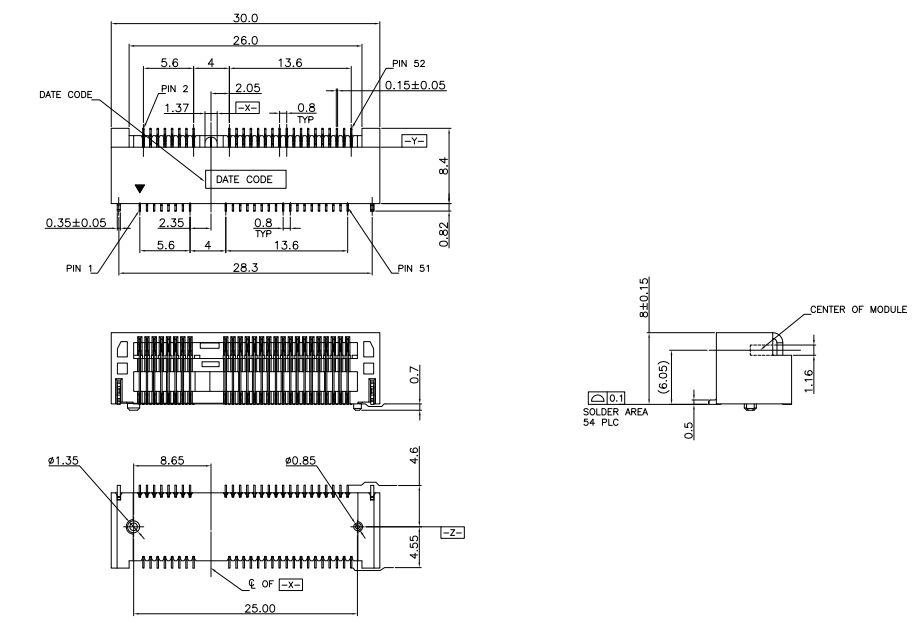

All physical dimensions follow official technical blueprints, keeping linear and angular deviation within the range from ±0.15mm to ±0.40mm. Accurate outline design avoids contact failure brought by size mismatch. It perfectly matches two mainstream specification circuit cards, and runs smoothly during automatic assembly processing without installation failure issues.
The outer shell is made of high heat resistant polymer material, reaching UL94V-0 fire safety grade with classic black appearance. Conductive pins and positioning columns adopt high purity copper alloy raw material. The whole structure can resist high temperature impact in welding process and external mechanical extrusion, maintaining steady physical shape for long service life.
Different areas are equipped with targeted metal coating schemes. Conductive contact surface provides multiple gold plating thickness choices to guarantee smooth signal conduction. Welding end and positioning part are covered with thick nickel base layer plus anti-rust coating. The overall structure gains strong anti-abrasion, anti-oxidation and moisture-proof capacity to adapt complex working surroundings.
One single connector can be matched with two widely used circuit card sizes in the industry. It supports installation and use of 50.8mm & 48.05mm full-size cards, as well as 26.8mm & 23.9mm half-size cards. Flexible compatibility cuts hardware matching troubles and enriches equipment design flexibility.

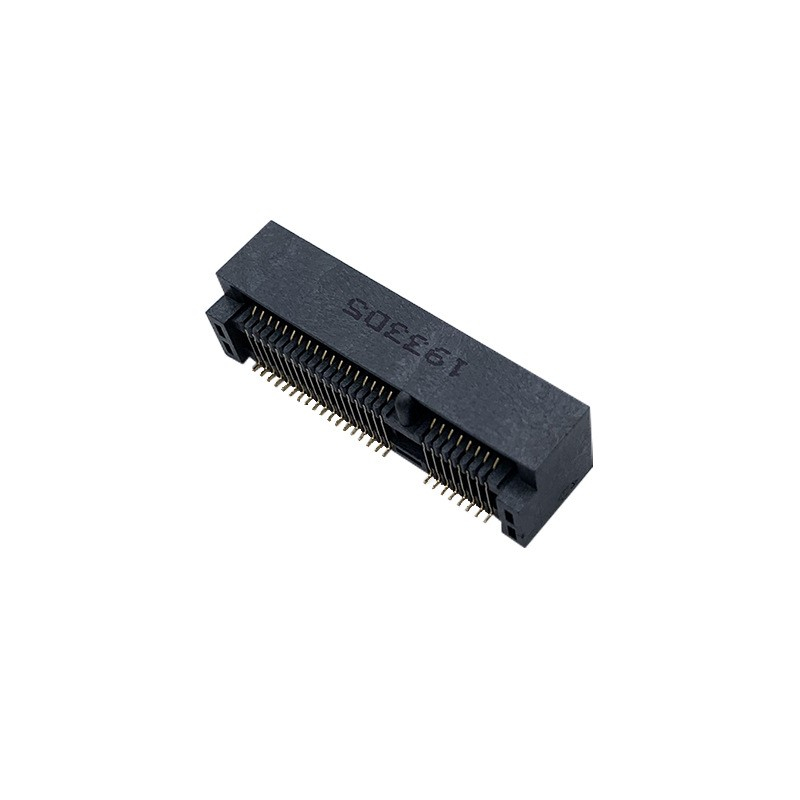

Designed based on circuit board surface installation benchmark, 0.8mm standard pin spacing matches universal 180-degree patch installation mode. Reserved reasonable gap space effectively stops welding overflow and position deviation. The structure fully adapts lead-free welding production flow, convenient for large-scale standardized manufacturing.
Built-in hardware structure supports normal operation of Mini Card 457 and mSATA two mainstream transmission protocols. It simplifies internal circuit layout design and reduces accessory configuration quantity, suitable for integrated hardware design combining data storage and function expansion.
Specification Item | Detailed Parameter |
|---|---|
Product Model | AF00780052R2 |
Total Pin Number | 52 pins |
Pin Spacing | 0.8mm |
Standard Overall Height | 8.0mm |
Installation Mode | 180° Surface Mount |
Max Transmission Speed | 8GT/s PCIe 3.0 rate |
Single Pin Bearing Current | 1.0A |
Applicable Temperature | -40℃ ~ 85℃ |
Shell Fire Resistance | UL94V-0 Grade |

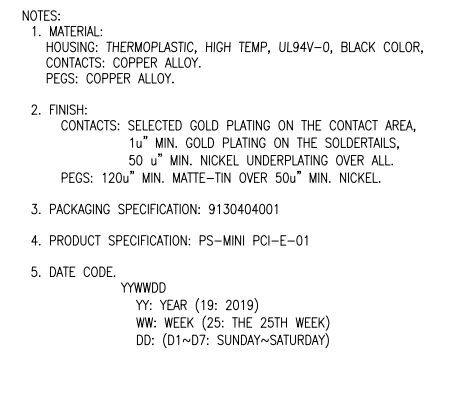

Outer shell uses high temperature resistant flame retardant polymer, optional halogen-free environmental friendly version available. Conductive pins are copper alloy material with customizable gold plating processing. Positioning columns take copper alloy as base, covered with 50μ inch nickel bottom layer and 120μ inch matte tin protective layer.

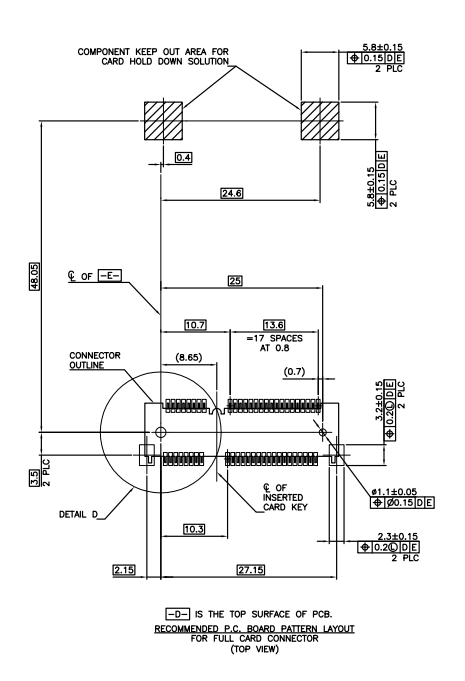

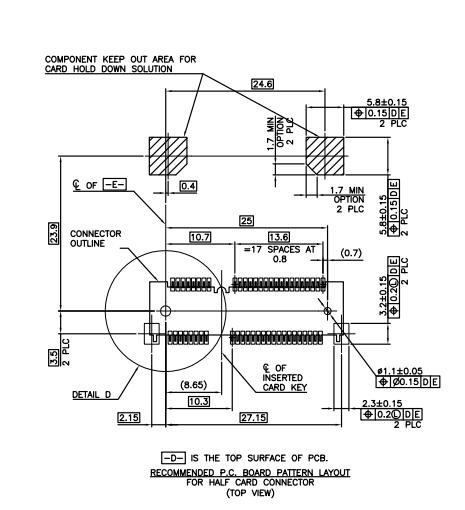

Card Type | Practical Outline Size |
|---|---|
Full Size Expansion Card | 50.8mm / 48.05mm |
Half Size Expansion Card | 26.8mm / 23.9mm |
Edge computing terminal devices and embedded industrial control hosts
Industrial network gateway equipment and data communication facilities
Thin notebook mainboard internal expansion modules
Vehicle mounted multimedia and vehicle intelligent control hardware
High precision medical electronic testing equipment
Automotive electronic parts and automatic industrial control devices
Fixed standard version: AF00780052R2, 8.0mm height 52 pin model, supplied with roll packaging for automatic patch production.
Support diversified personalized modification: Multiple installation heights including 4.0mm, 5.2mm, 7.0mm, 9.0mm and 9.9mm are selectable; three gold plating thickness options for contact position; conventional and halogen-free two environmental protection types; unified roll packaging form applicable to automatic production line.
