Automated production lines now run through more sensors, drives, and controllers than most plants had total devices a decade ago. Every device has to talk to the next, and the physical link that carries that conversation is the connector. When the link is right, nobody notices it. When it is wrong, a single loose mating on a welding cell or a corroded pin in a washdown area can stop a line for hours.
The uncomfortable truth is that connectors get specified late. Mechanical layout, controller choice, and network topology take the budget and the meetings, while the interface at the end of a cable gets a part number in the last week. That habit is where avoidable downtime is born.
This guide explains how automation engineers should choose connector types by matching what each link must carry and where it lives, then shows the board level, harsh duty, compliance, and lifecycle cost factors that separate a part that survives from a part that merely fits.
We have spent years on the floor of packaging lines, cold storage, and metal cutting cells, and the patterns repeat. The failures are predictable, and so are the saving decisions once you know where to look. The sections below walk through the real decision points rather than a catalog of definitions, because the catalog does not tell you which part will still work in year three.
What follows is built for people who buy, specify, or approve connector spend on automation projects. If you are comparing options for a new line or trying to understand why an existing line keeps throwing faults, the structure maps to the questions you should be asking your supplier.
Table of Contents
The right industrial connector is chosen by matching duty cycle, electrical load, and environmental exposure to a specific form factor, not by picking the cheapest part that fits the panel.
Most specification mistakes start with the wrong question. Engineers ask which connector fits the hole, when they should ask which one will still seal and conduct after ten thousand mating cycles in a specific corner of the plant. The difference sounds small and costs real money, because a connector is a system of contacts, seals, and housing that ages under use.
Three pressures decide almost every automation connector decision. The first is production uptime, because a line that runs two shifts cannot absorb a stoppage of fifteen minutes caused by a pin that walked out of its crimp. The second is engineering change frequency, since lines get retooled and a connector family that locks you to one cable vendor slows every future change. The third is audit and traceability, because food, pharmaceutical, and automotive customers now expect a documented material and test trail for components that touch the process.
The table below shows how each driver maps to a consequence when it is ignored.
Selection driver | What it controls | Consequence of ignoring it |
|---|---|---|
Duty cycle | Mating wear and seal life | Random faults after warranty period |
Electrical load | Conductor and contact rating | Thermal rise and intermittent dropouts |
Environmental exposure | Housing and sealing choice | Corrosion and ingress failures |
Change flexibility | Vendor lock and tooling | Slow retooling and high revision cost |
Traceability | Material and test records | Failed customer audits |
Uptime is the loudest driver because management measures it. A connector rated for five hundred mating cycles in a test rig that couples daily will not reach year two, because the published cycle rating is a clean laboratory number that drops on a dusty floor. Specify to at least double the expected cycle count, and more where operators couple by hand without torque control.
Retooling is where cheap choices get expensive. A connector system that needs a proprietary crimp tool and a single source cable locks your maintenance team to one supplier's lead time. Open form factors with standard pin layouts let you qualify two sources and keep the line moving during a shortage.
Regulated plants now ask for the full story on each component, including the base material, the plating, the flammability class, and the test report. A connector with no lot traceability becomes a liability the moment a customer audit lands, so build the requirement into the purchase spec rather than leaving it as an afterthought.
Connectors fail when one body is asked to carry signal, power, and high speed data at once, so the first split is by what each link must transmit.
A common design error is to standardize on a single connector family across the whole machine. It feels efficient during design review but fails in the field, because a contact sized for signal level current around four amps will not survive a servo supply near thirty amps, and a power contact will wreck a low level analog reading with noise. Splitting these decisions up front prevents the common complaint of a link that works on the bench and dies on the machine.
The practical split is into three lanes plus a hybrid option. Signal grade links carry low current control and sensor lines. Power grade links carry motor and supply current. Data grade links carry Ethernet and fieldbus at speeds where shielding matters. Hybrid assemblies combine a power section and a data section in one shell to save panel space.
The table groups common automation connector families by the job they do best.
Link type | Typical current | Typical use | Build focus |
|---|---|---|---|
Signal grade | Under 4 A | Sensors, valves, I/O | Pin density and contact reliability |
Power grade | 10 A to 60 A | Servo, supply, drives | Conductor size and thermal path |
Data grade | Under 2 A | Ethernet, fieldbus | Shielding and impedance control |
Hybrid | Mixed | Robots, compact stations | Separation of noisy paths |
Signal contacts live or die on consistency. A sensor that reads four to twenty milliamps will report garbage if the contact resistance drifts. For these links, plating quality and insertion force matter more than raw size. We see the best field results from a gold flash on signal contacts even in areas that are not corrosive, because the cost is tiny and the drift is lower over time.
Power contacts are a thermal problem dressed as a mechanical one. The limiting factor is how fast heat leaves the contact. A larger pin helps, but the crimp and the cable matter just as much. An undersized crimp creates a hot spot that ages the plastic housing. Specify the crimp tool and the cable together with the contact, never as separate purchases, because the contact, the crimp, and the conductor are one thermal chain.
Data links are where shielding stops being optional. At one hundred megabit speed and especially at gigabit fieldbus, an unshielded run next to a variable frequency drive is a noise antenna. The connector must keep the cable shield through the mating, or the shielding you paid for ends at the plug. Look for a full circular shield contact that wraps the cable inside the shell.
Hybrid shells save space but demand discipline. The power and data sections must be physically separated inside the body so motor current does not inject noise into the link carrying position feedback. When a supplier shows a hybrid part, ask for internal crosstalk test data before you trust it on a robot wrist, because a hybrid that saves two centimeters of panel but adds a position error is a net loss.
The control cabinet is where the machine's brain meets the field, and that meeting point needs two different board interfaces plus a clean transition to field wiring.
Inside the panel, the logic lives on printed circuit boards. Outside, the world is cables, conduits, and machines that shake. The connector has to bridge that gap without becoming the weak link, and two distinct board interfaces do most of this work. Confusing them causes avoidable rework.

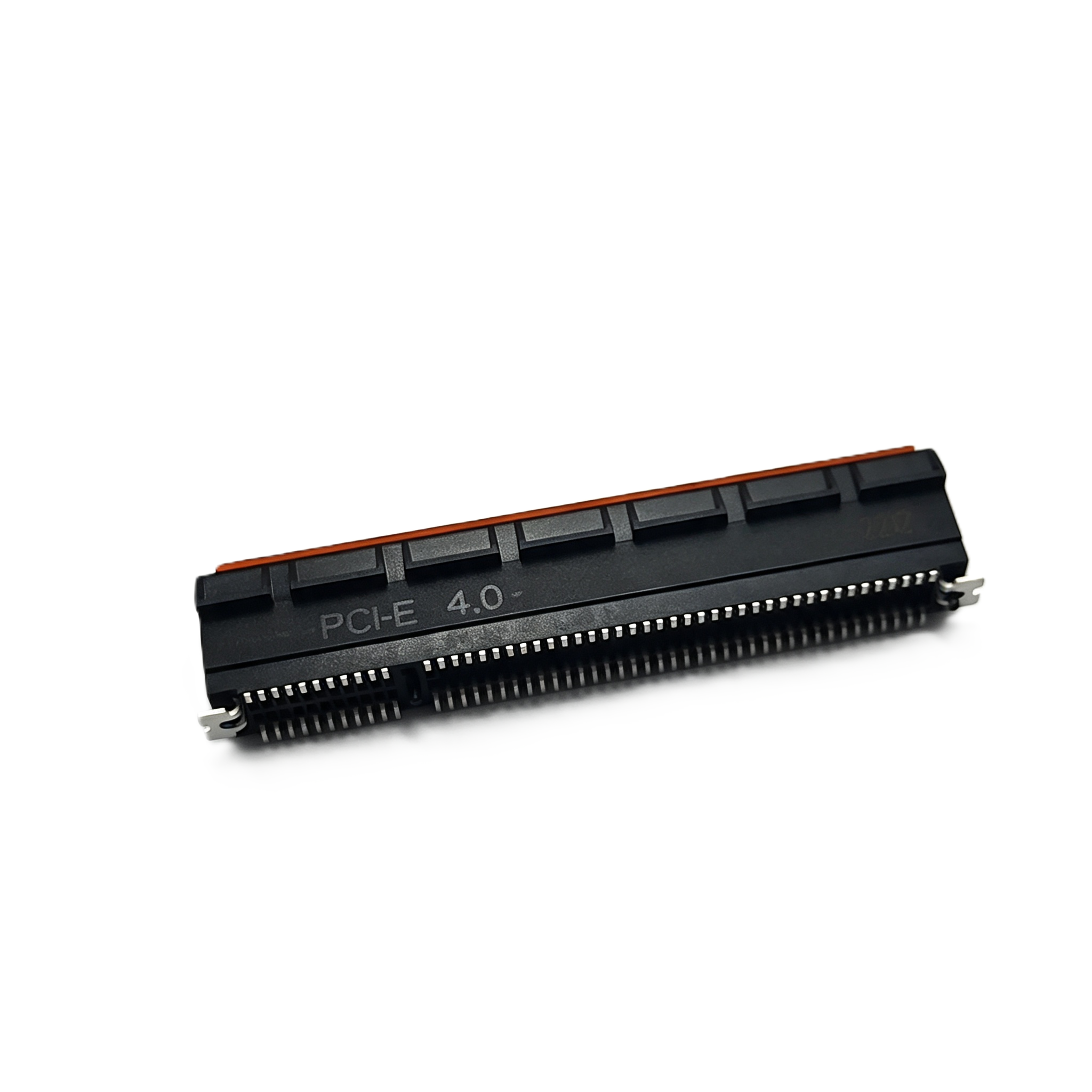

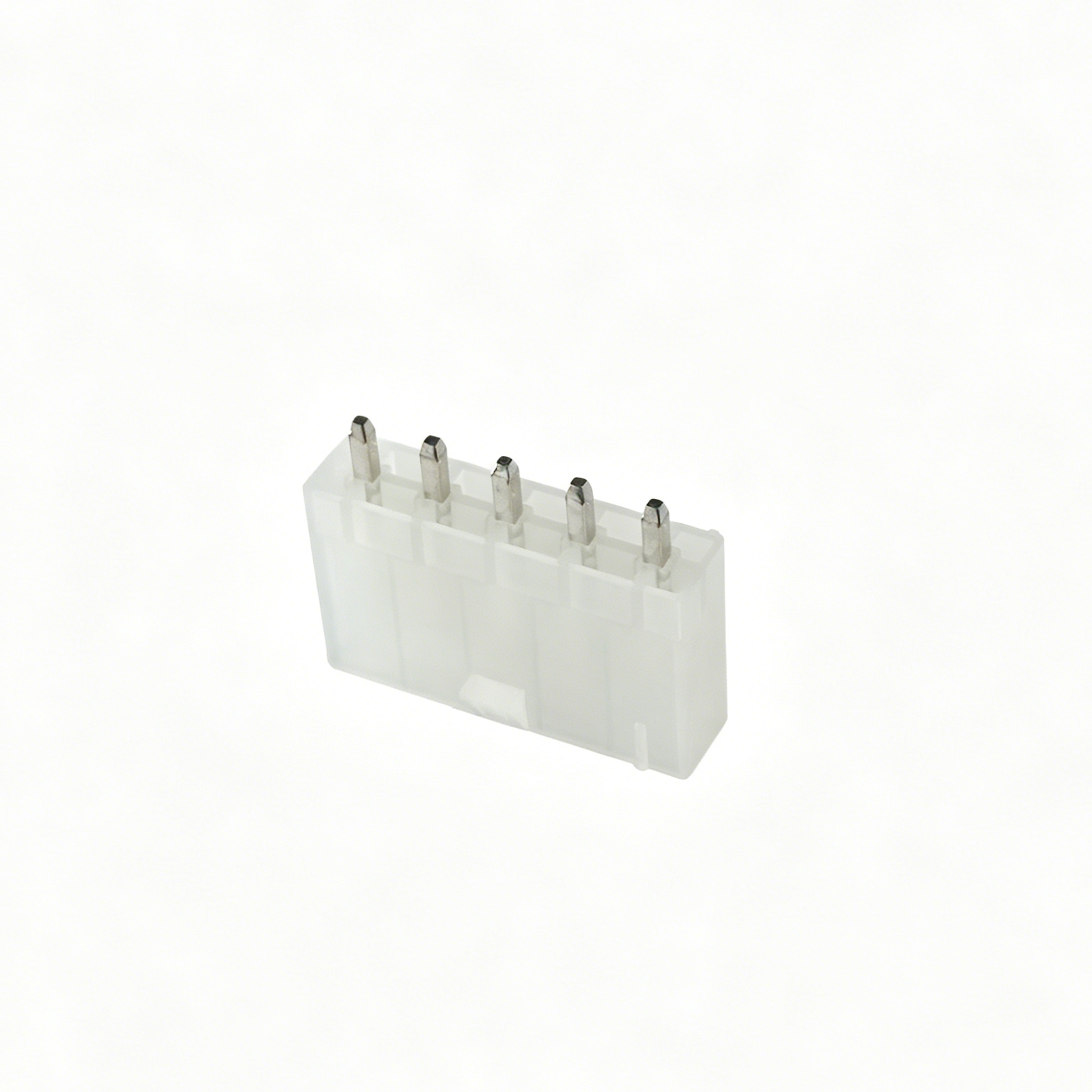

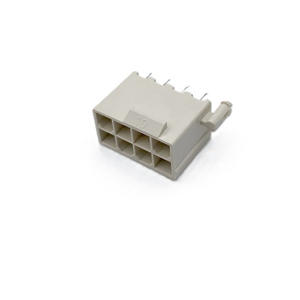

The first is the PCB connector, the part soldered directly to the printed circuit board that brings field wires in through a screw or spring terminal on top. It is the workhorse of terminal blocks and I/O cards. The second is the board connector, a board to board type that stacks one circuit board onto another inside the cabinet, passing signals across the gap without a cable. Both matter, and they solve different problems that are easy to mix up on a drawing but impossible to swap in the field.
The table contrasts the two so the choice is clear.
Interface | Mounts where | Carries | Best when |
|---|---|---|---|
Soldered board interface | Soldered to one board | Field wire to board | Wires enter the panel |
Board to board interface | Between two boards | Board to board signal | Stacking cards in tight space |

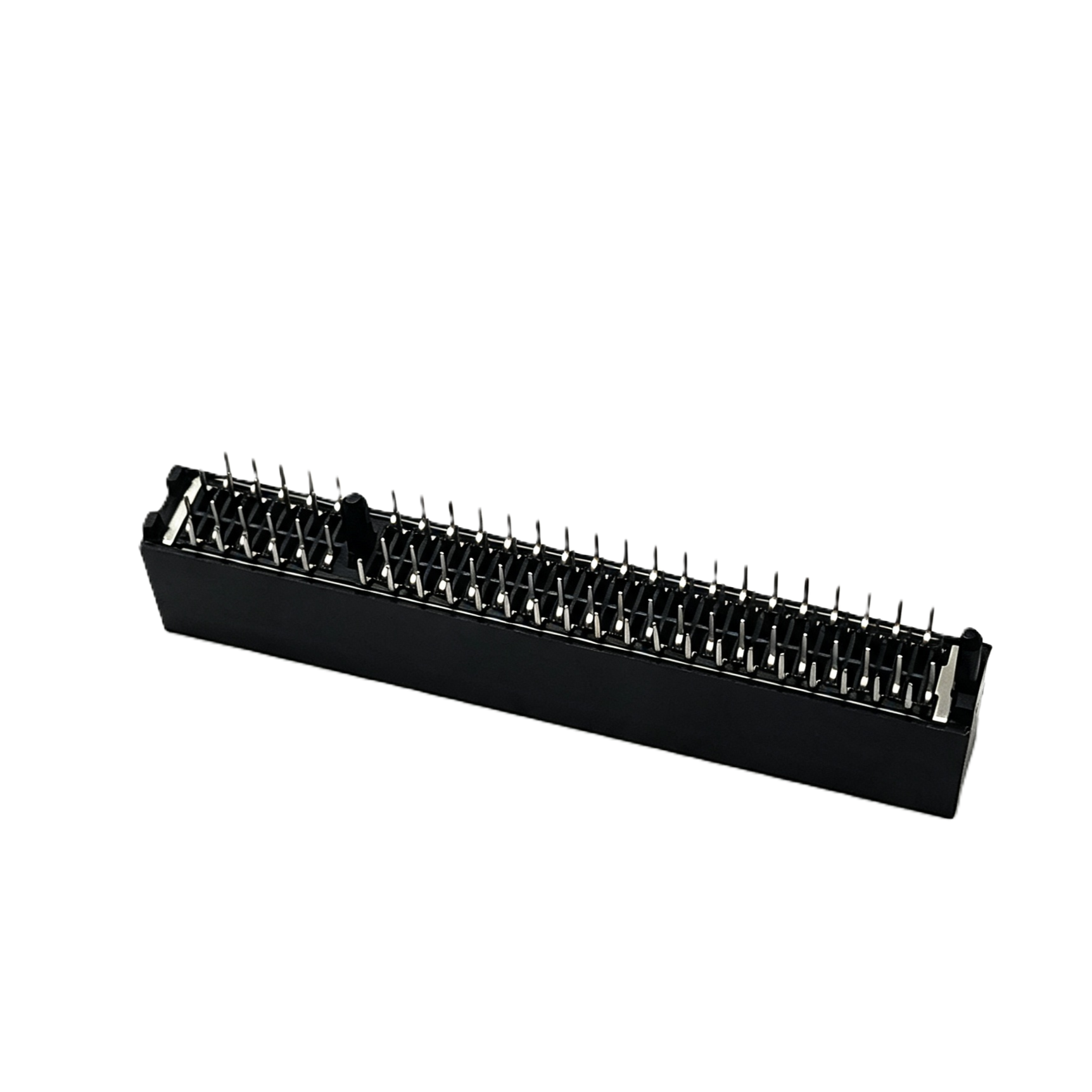

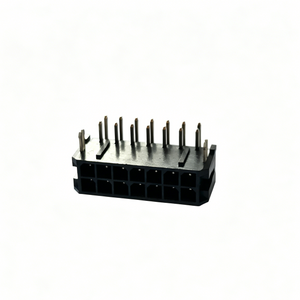

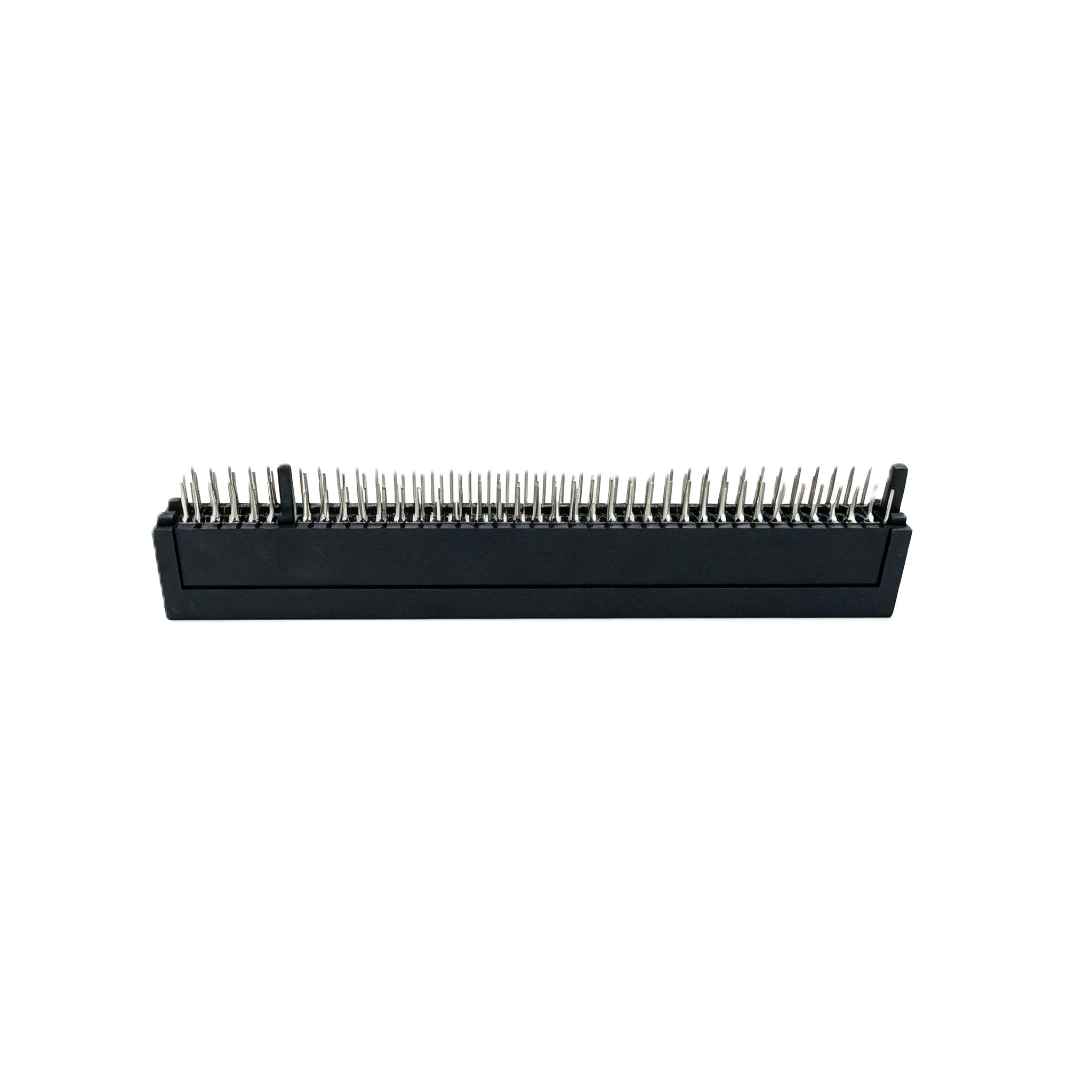

The soldered interface takes the abuse. Field technicians torque wires, yank during fault finding, and sometimes use the wrong tool. A through hole version with mechanical anchors survives better than a surface mount part that relies only on solder, so for high vibration panels specify through hole with extra pad area. The small cost up front prevents a cracked joint that takes a day to find.

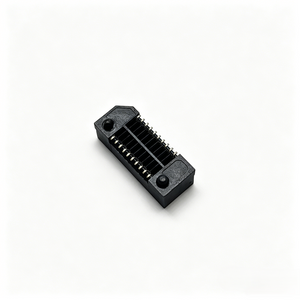

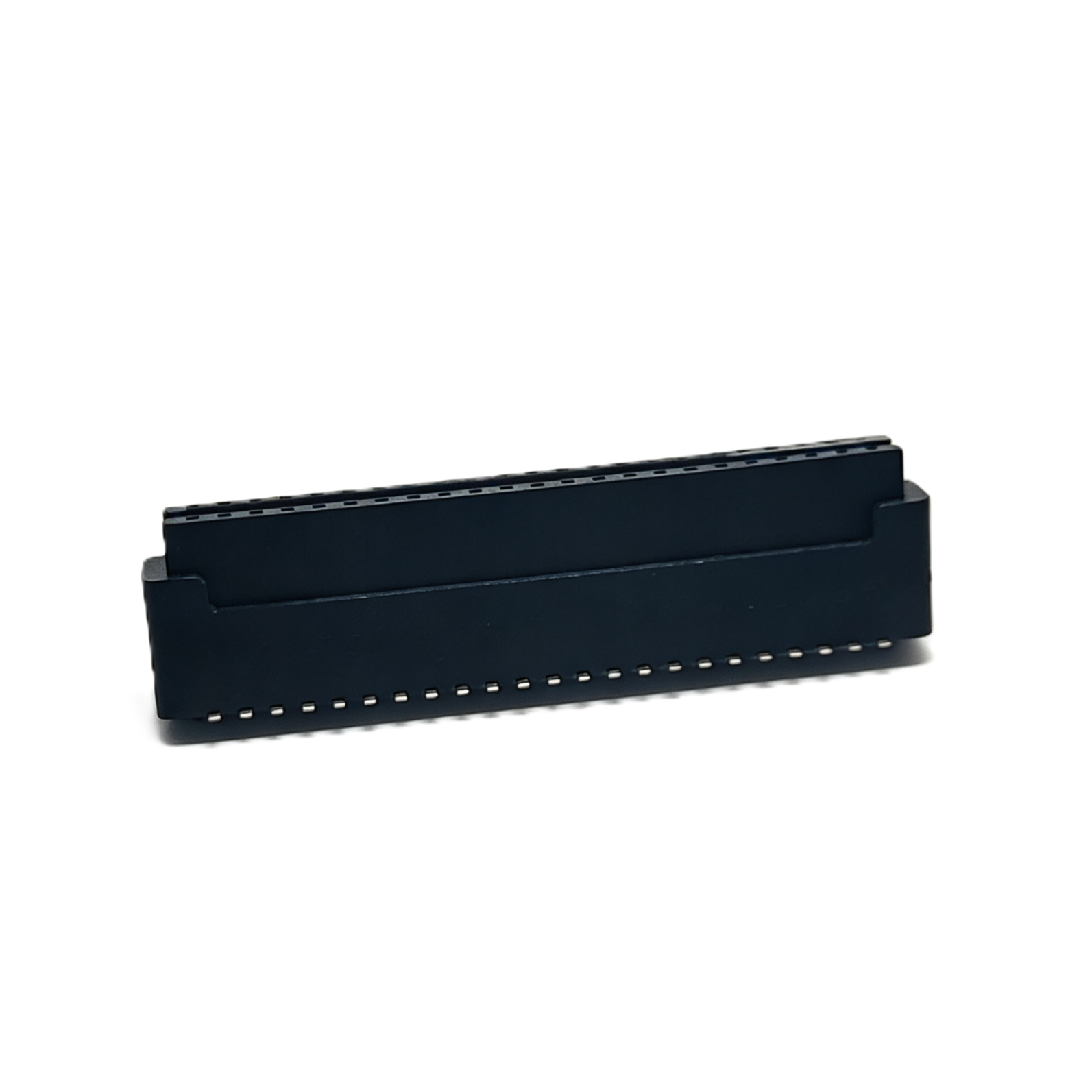

Stacking types earn their place where space is tight and the signal path is short, because they remove a cable and a pair of terminations, which removes two failure points. The tradeoff is serviceability: a stacked board is harder to swap than a cabled one. Keep them where the assembly stays fixed in the field, and use cabled links where maintenance must pull a board.
The transition from board to field cable is where most installation time goes. Spring terminals speed this up and hold better under vibration than many screw types, though some teams distrust them from old experience with weak springs. Modern spring designs have closed that gap, so standardize the panel on one termination style and your technicians carry one tool, not four.
A panel with three termination styles forces technicians to find the right tool before they can look at the fault, and the delay grows when the night shift cannot find the odd tool. One termination style turns a five minute search into five seconds and shortens training.
A connector rated for an office environment will not survive a food line or a stamping press, and the sealing, locking, and material choices have to match the abuse.
The gap between a clean room part and a floor ready part is wider than the price difference suggests. Ingress, shock, and thermal swing each attack a different part of the connector, and a design that handles one can still fail the other. The rugged connector exists for exactly these combined stresses, with a sealed mating, a positive lock, and a housing that shrugs off chemicals and impact. It matches the part to the environment, which is rarely gentle.
Washdown areas use high pressure, often warm water with caustic or acidic cleaners, so a seal rated only for drip protection will fail the first sanitizing cycle. Look for a stated ingress rating backed by a tested standard that covers the mated pair, not just the plug alone, because many cheap parts rate the shell but not the connection facing the spray.
A stamping press or a moving robot passes vibration into every link. Contacts that rely on friction alone will work loose. A threaded or bayonet lock that cannot back off under shake is the difference between a link that lasts and a link that trips a fault at shift change. We specify lock type by the vibration spectrum of the machine, not by what looks convenient on the drawing.
Cold storage and near oven areas swing temperature by tens of degrees across a day, and different materials expand at different rates, so a housing that fits tight at room temperature can open a micro gap when cold. Check the operating temperature range and the number of thermal cycles the seal is proven for, because a part rated to seventy degrees Celsius but never tested through freeze and thaw may crack the seal in a freezer.
The printed range is only useful if you read it as the temperature band the seal survives, not a single peak it can tolerate briefly. A connector that sees minus twenty to plus sixty every day ages faster than one held at a steady forty. Ask for the cyclic test count, because a range without a cycle number is a claim without a proof.
Standards are not paperwork; they are the evidence that a connector will behave the way its data sheet claims when a customer or a regulator asks.
Buyers outside regulated industries sometimes treat standards as optional. Inside food, pharma, and automotive supply chains, they are the gate, because a connector with no recognizable standard cannot enter the audit and can lose a customer certification. The standard lets a reviewer trust your part without testing it themselves.
The useful standards fall into a few groups. Dimensional and mating standards fix the shape so parts from different sources fit. Safety and material standards cover flammability and restricted substances. Ingress and environmental standards prove the sealing and endurance claims. Each answers a different doubt a reviewer might raise.
The table maps the common references to what they actually prove.
Reference | What it governs | Why a buyer cares |
|---|---|---|
Dimensional mating standard | Connector shape and pin layout | Source interchangeability |
Material and flame standard | Plastic class and substances | Safety and substance compliance |
Ingress code | Dust and water sealing | Washdown suitability |
Environmental test method | Vibration and thermal proof | Harsh duty confidence |
When the standard fixes the footprint, you can qualify a second source without redrawing the board, which is leverage during a shortage. We always confirm the specific standard number on the data sheet rather than accepting a vague claim of compatibility, because lookalike parts sometimes differ by a fraction of a millimeter that breaks the mate.
Restricted substance rules reach deep into automation now, and a housing or a plating that fails them can block an entire shipment. The material and flame class also predicts behavior in a fault, where a low grade plastic can spread a small arc into a bigger problem. Ask for the certificate, not just the mark on the part, because a certificate ties the specific lot to the specific test.
The ingress code is the most quoted and most misread number on the sheet. The first digit covers solids, the second covers liquids, and the rating must apply to the mated assembly, so pair it with the environmental test method that proves vibration and thermal endurance.
A plug on a shelf can carry a high ingress number while the connection it makes in the field leaks. The number that matters is the one measured with the mate locked and the cable flexing. When a supplier quotes a rating, ask whether it is for the mated pair under motion, because that is the only version that describes your machine.
The purchase price of a connector is a small slice of what it costs, and the savings that matter come from fewer stops, faster wiring, and lower spare holding.
Procurement teams trained to cut unit price often pick the cheaper plug and miss the larger cost. Field data shows the bought part is commonly only about fifteen to twenty percent of what the connection costs across its life. The rest is labor, downtime, and inventory, so a small upgrade removes a large multiple of that in avoided failure.
The table breaks the lifecycle cost into the parts a buyer can actually influence.
Cost component | Share of lifecycle | Lever to reduce it |
|---|---|---|
Purchase price | 15 to 20 percent | Negotiate but do not lead with it |
Installation labor | 25 to 35 percent | Faster termination style |
Downtime from faults | 30 to 45 percent | Better rating and lock |
Spare holding | 10 to 15 percent | Standardize the family |
The trap is buying on the line item. A plug that costs thirty percent less but needs a proprietary tool, fails twice as often, and forces a stop of four hours to replace is not cheaper. We build the total cost view into the spec so approval compares like for like instead of sticker against sticker.
Termination style drives labor more than any other choice. A spring terminal that a technician closes in seconds beats a screw terminal that needs torque control and a check, and the labor gap across hundreds of points pays for a better part many times over. Rework from miswired points also drops, because clear, keyed shells reduce mistakes.
Every unique connector family is a line in the spare drawer and a risk when a part goes obsolete. Standardizing on a small set of form factors shrinks the spare inventory and the panic when a single source stops production, so cap the number of distinct families on any one line and qualify a second source for each before it is needed.
A sound connector plan starts from the environment and the load, picks a form factor that matches, then standardizes the family so the line stays serviceable and auditable for years.
Pull the threads together this way. List every link and tag it by signal, power, or data. Mark the harsh spots with washdown, vibration, or temperature notes. Choose a form factor that meets the load with margin, not at the limit, then cap the number of families so maintenance carries one tool and one spare bin.
The buyers who get the best result treat connectors as a system decision made early, not a late part number. They ask suppliers for cycle data, crosstalk data, and test reports, qualify a second source before the first fails, and measure stops caused by links, because that number is the real scorecard.
Do this and the connector stops being the thing that fails at shift change. It becomes the part nobody thinks about, which is exactly what a good interface should be.
A: Count the real couplings per year and multiply by the expected service life, then specify at least double that. Hand coupled test points wear faster than laboratory ratings suggest, so margin is cheap insurance against a fault that appears right after the warranty ends.
A: Yes, through a hybrid shell that separates the power and data sections internally. Ask the supplier for crosstalk test data before trusting it on a moving wrist, because poor separation injects motor noise into the feedback link and creates a fault that is hard to trace.
A: The code must apply to the mated pair, not just the loose plug. A shell can seal while the joined connection leaks. Confirm the rating covers the assembled link under the actual spray pressure and motion you see on the machine.
A: It becomes a problem when it locks you to one cable source and one lead time. For critical lines, prefer open form factors with standard layouts so you can qualify a second source and keep moving during a shortage.
A: Typically only about fifteen to twenty percent. Installation labor, downtime from faults, and spare inventory make up most of the rest, which is why a better rated part often costs less across the life of the machine.
A: They can, because a stacked board is harder to pull than a cabled one. Use them where the assembly stays fixed in the field, and keep cabled links where maintenance will need to swap a board during a stop.
