Power Connector
Automotive, Industrial, IT Datacom

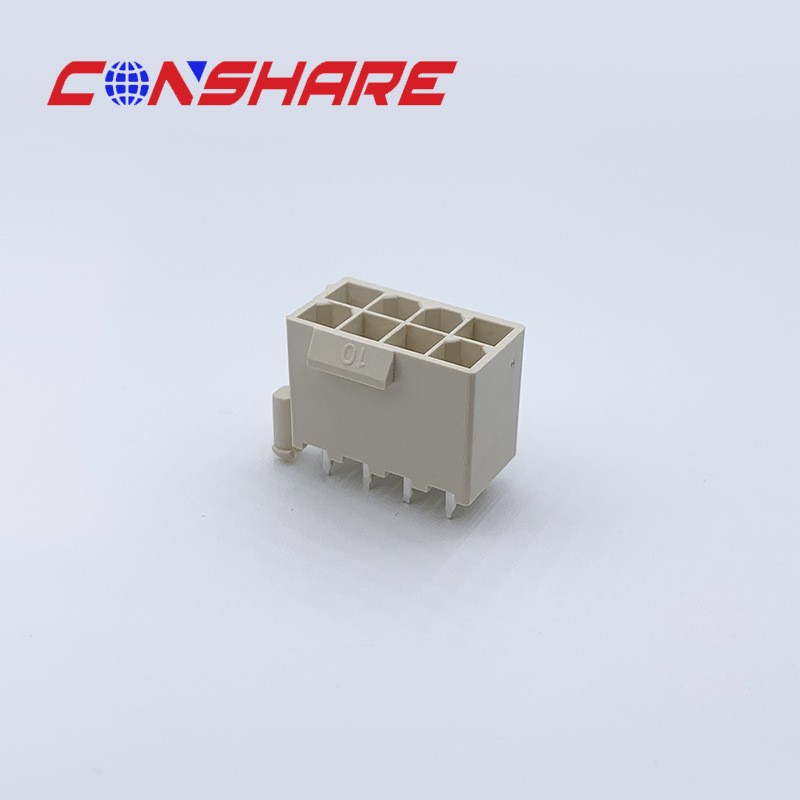

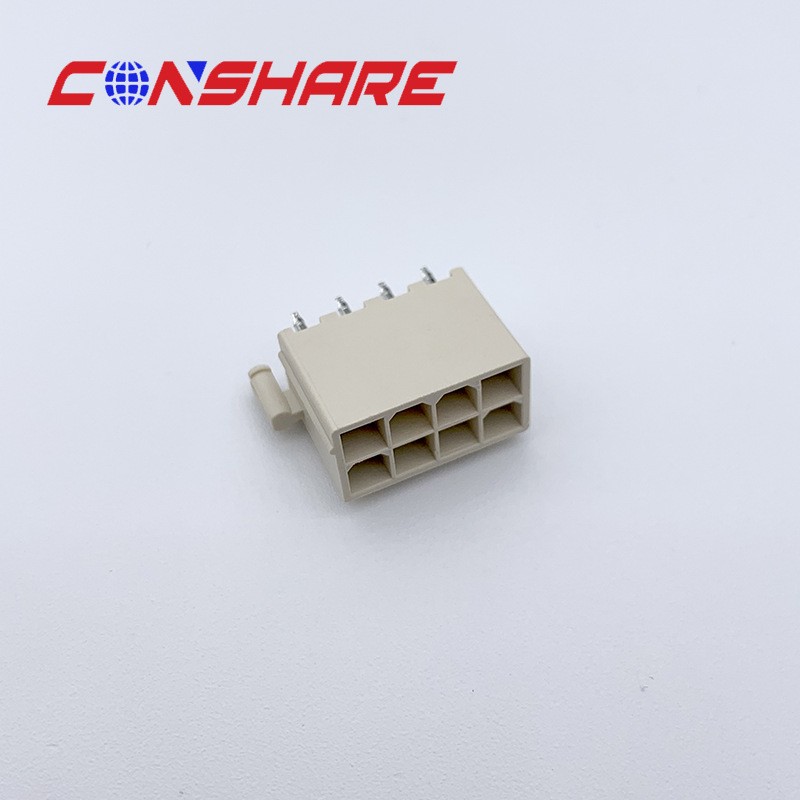

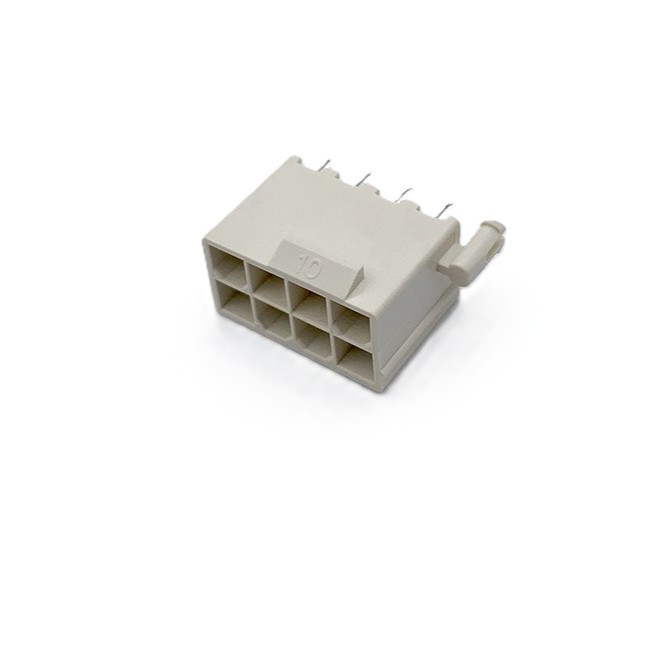

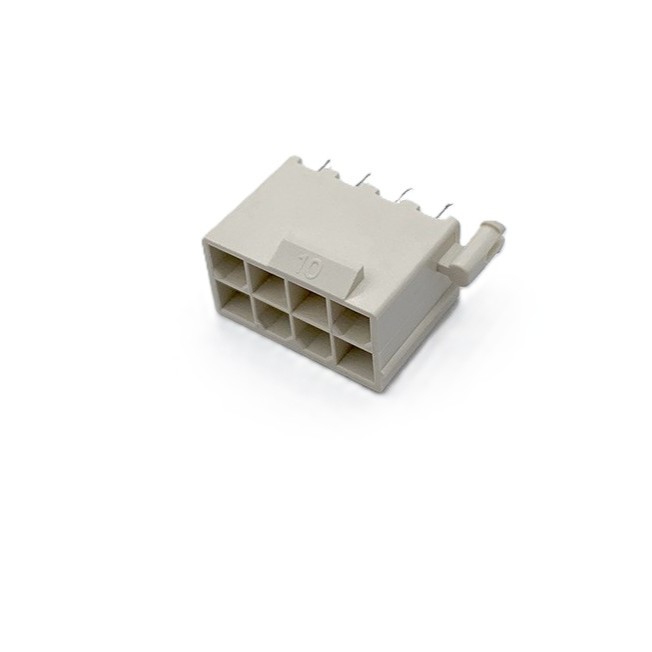

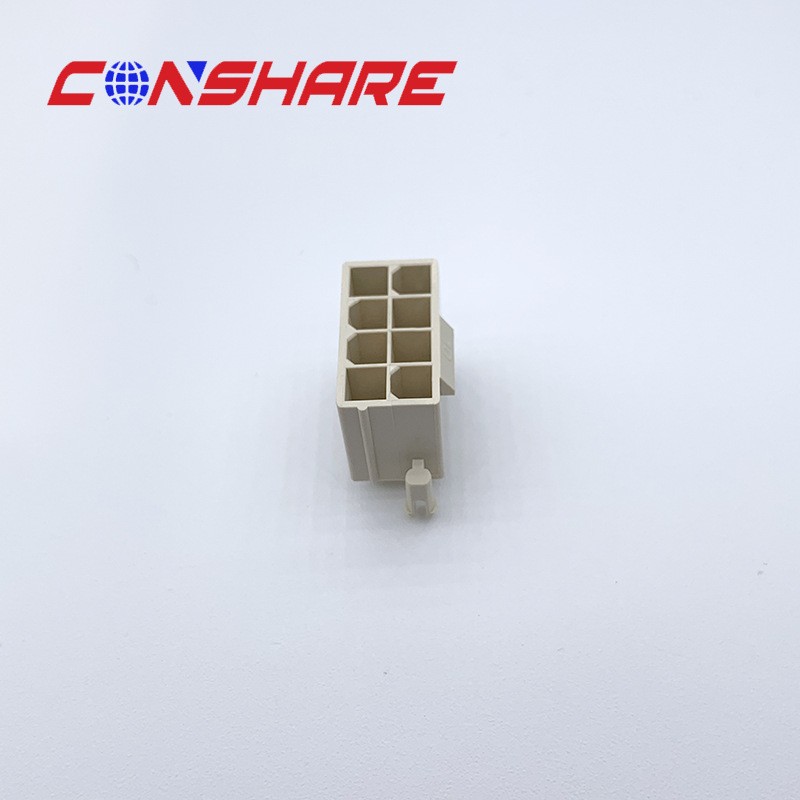

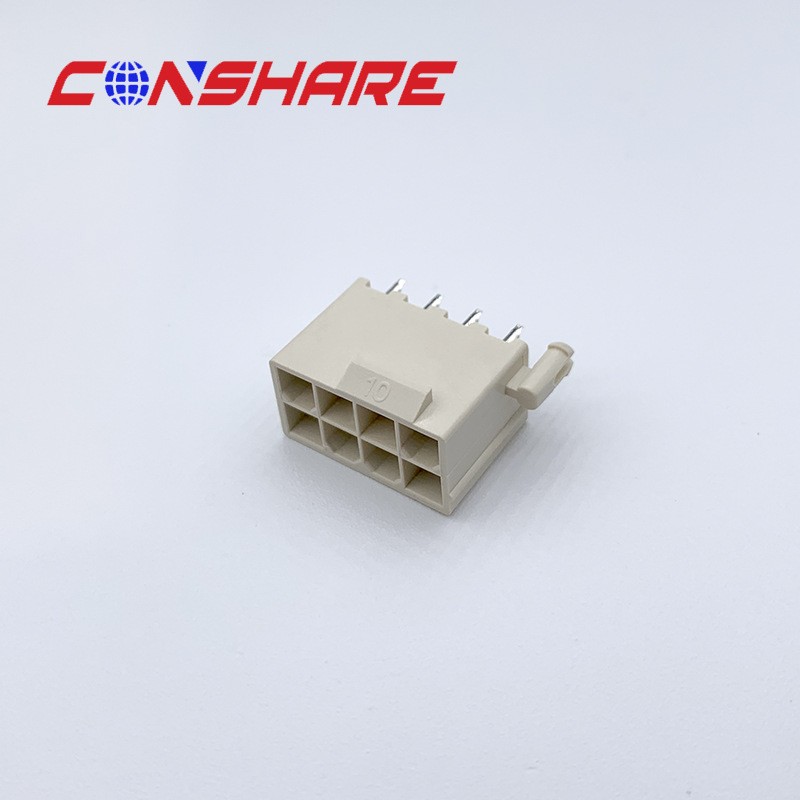

This precision-engineered ATX 2x4Pin power connector from CONSHARE features a specialized left-post design, enabling accurate alignment and a secure fit to eliminate loose connections between motherboards and power supplies.
Constructed with high-temperature resistant housing, it withstands prolonged thermal stress in high-load computing and industrial environments, maintaining structural stability for long-term reliable power delivery.
Optimized for consistent current flow, it ensures steady power transmission to support the power needs of various electronic systems, from PC builds to industrial control devices.
Crafted with CONSHARE’s premium thermoplastic material, this ATX power connector withstands continuous operating temperatures up to 105℃. Meeting UL94-V0 flammability standards, it resists warping and degradation in heat-intensive environments, ensuring consistent power delivery even under prolonged high-load conditions.
Designed with CONSHARE’s specialized left-post structure, this 2*4Pin ATX connector eliminates misconnection risks during installation. The foolproof alignment prevents loose contacts under vibration or movement, maintaining a secure fit and stable current flow for critical electronic systems.
Engineered for lasting reliability, this CONSHARE ATX power connector maintains low contact resistance even after 50+ mating cycles. Rigorously tested for electrical integrity, it minimizes signal noise and power loss, supporting steady performance in both consumer and industrial applications.
CONSHARE offers fully customizable options for this 2*4Pin ATX connector, including plating specifications, housing colors, and packaging designs. Our engineering team works closely with clients to adjust components, ensuring compatibility with your system’s exact performance and form-factor requirements.
Every CONSHARE ATX power connector undergoes strict quality checks, including dimensional verification, electrical testing, and thermal cycling. Backed by industry compliance standards, these components meet global safety requirements, reducing the risk of unexpected system downtime.
Parameter | Specification |
|---|---|
Brand | CONSHARE |
Product Type | 2×4Pin ATX Power Connector (Left-Post Design) |
Mounting Type | Through-Hole (THT) |
Rated Spec | 5A per contact / 250V AC/DC |
Contact Resistance | ≤10 mΩ |
Insulation Resistance | ≥1000 MΩ |
Durability | ≥50 mating cycles |
Operating Temperature | -40℃ ~ +105℃ |
Housing Material | High-temp resistant thermoplastic (UL94-V0) |
Contact Material | Phosphor bronze, tin plated (customizable) |
Compliance | RoHS, REACH certified |
CONSHARE’s ATX power connector is tailored for high-performance desktops and multi-core workstations. Its heat-resistant housing handles sustained thermal stress from powerful CPUs/GPUs, while the left-post alignment prevents loose connections, ensuring stable power delivery for intensive computing tasks.
Built for harsh industrial environments, this connector supports power delivery in industrial PCs, factory controllers, and embedded systems. Its vibration-resistant structure and UL94-V0 rated material maintain reliable performance in fluctuating temperatures and continuous-operation settings.
Ideal for compact edge servers and small network hardware, CONSHARE’s 2×4Pin connector delivers stable auxiliary power. With low contact resistance and long mating-cycle durability, it supports 24/7 operation, minimizing downtime in remote or space-constrained data environments.
This connector fits custom gaming rigs and overclocked systems, where tight chassis spaces and high internal heat demand robust components. The foolproof left-post design prevents installation errors, while heat-resistant materials maintain performance under intense gaming and overclocking loads.
A: Fully compatible with most mainstream motherboards and power supplies. The exclusive left-post structure realizes quick and accurate installation, and fits perfectly with daily computer equipment and conventional industrial power modules.
A: It can work stably between -40℃ and 105℃. Adopting UL94-V0 flame-retardant material, it can adapt to high-heat internal chassis environment and keep stable working state for a long time.
A: Sure. We support customized adjustment of contact plating type, housing color and appearance size. Our professional technical team can match exclusive solutions according to your actual application demands.
A: The product has passed strict plug-in test, supporting more than 50 times of stable plugging. It is not easy to loose and wear, effectively avoiding power interruption and ensuring long-term safe power transmission.
A: All products of CONSHARE comply with RoHS and REACH international standards. Every finished product will go through multi-channel quality inspection, which is safe and reliable for mass export and global market use.
