When Tray Quality Becomes Your Production Bottleneck

Nobody buys memory module trays for the excitement of it. You buy them because a warped tray misaligns pins, a worn contact surface causes intermittent test failures, and a latch that won't hold sends modules sliding across your production line. These aren't theoretical problems — they're the Tuesday morning calls that production managers dread.

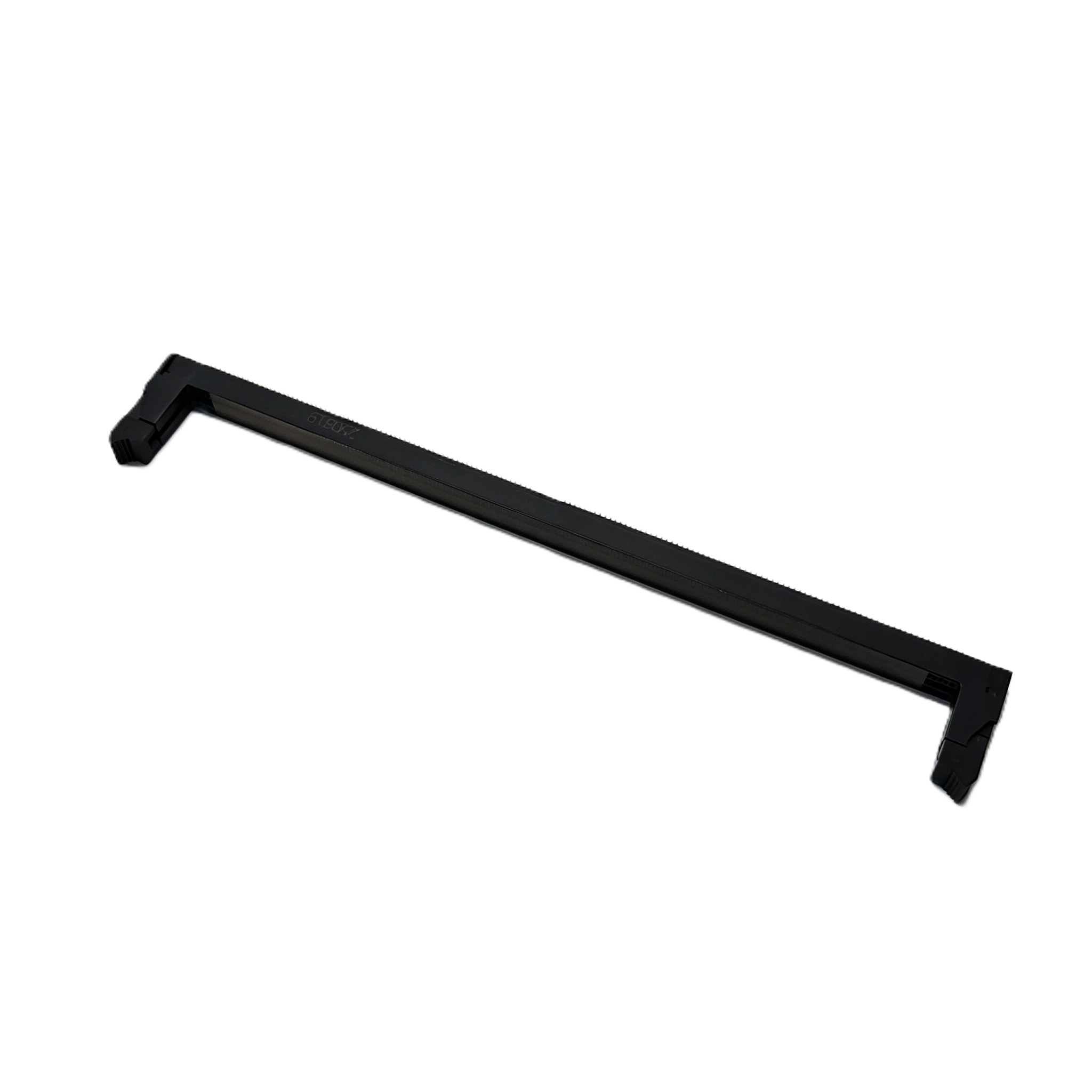

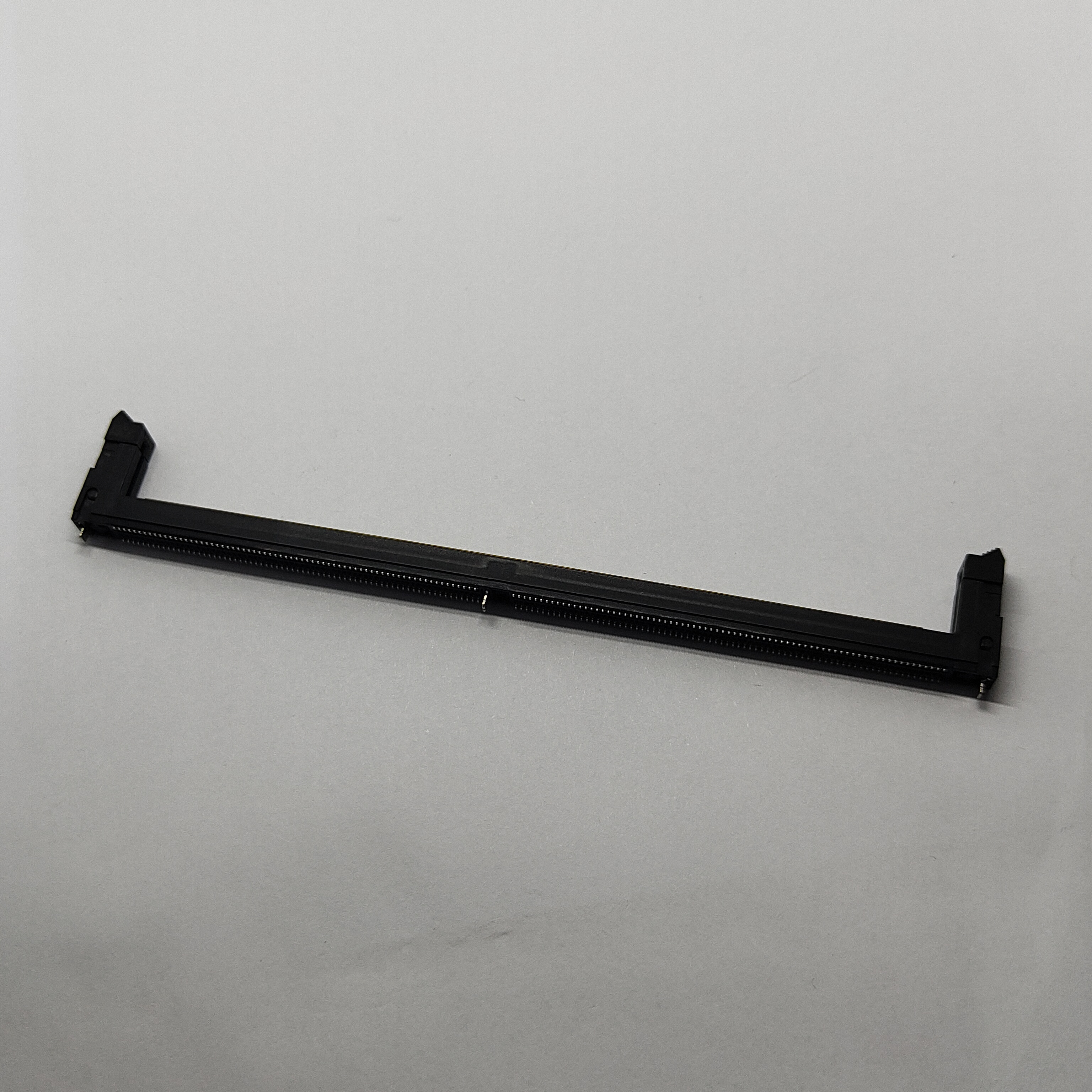

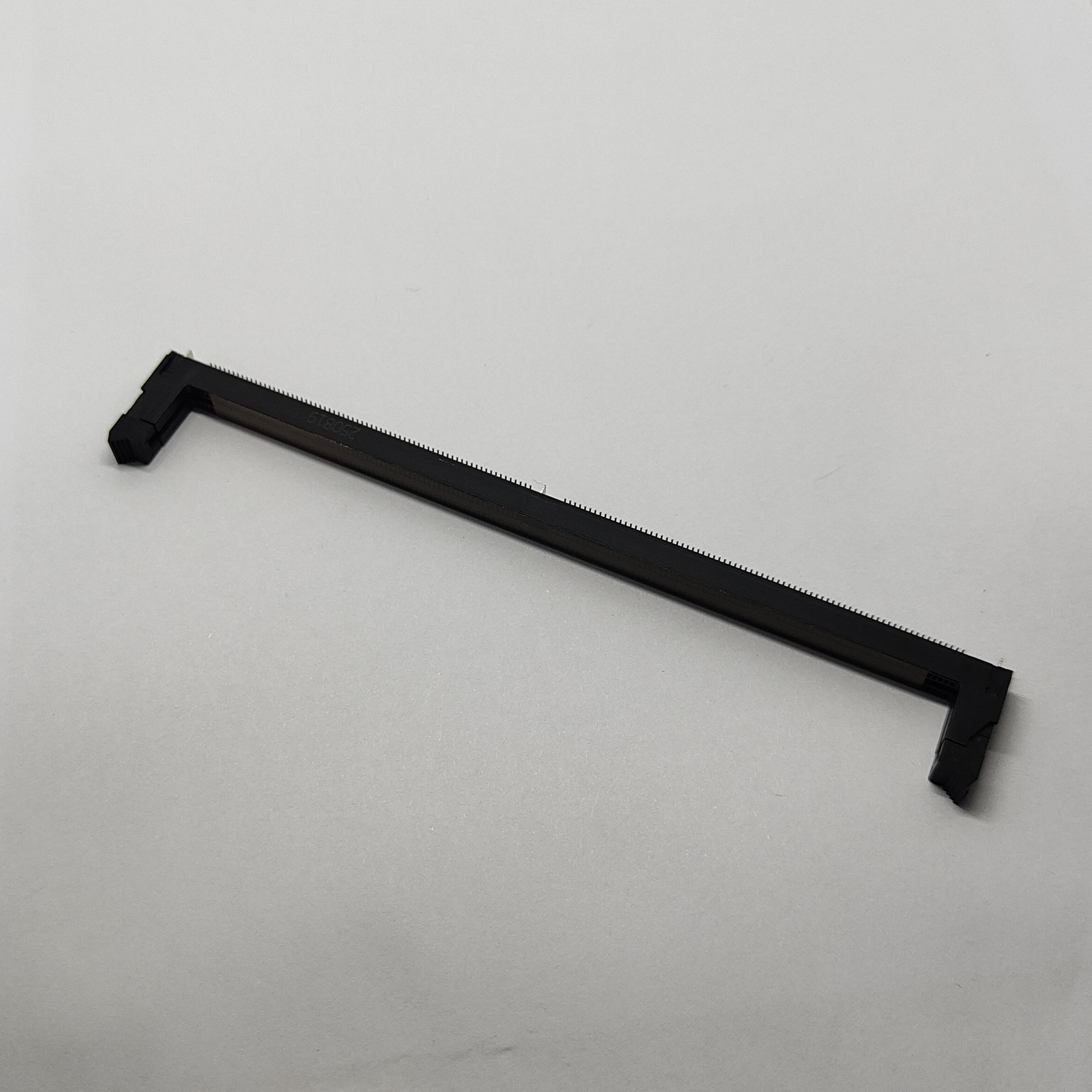

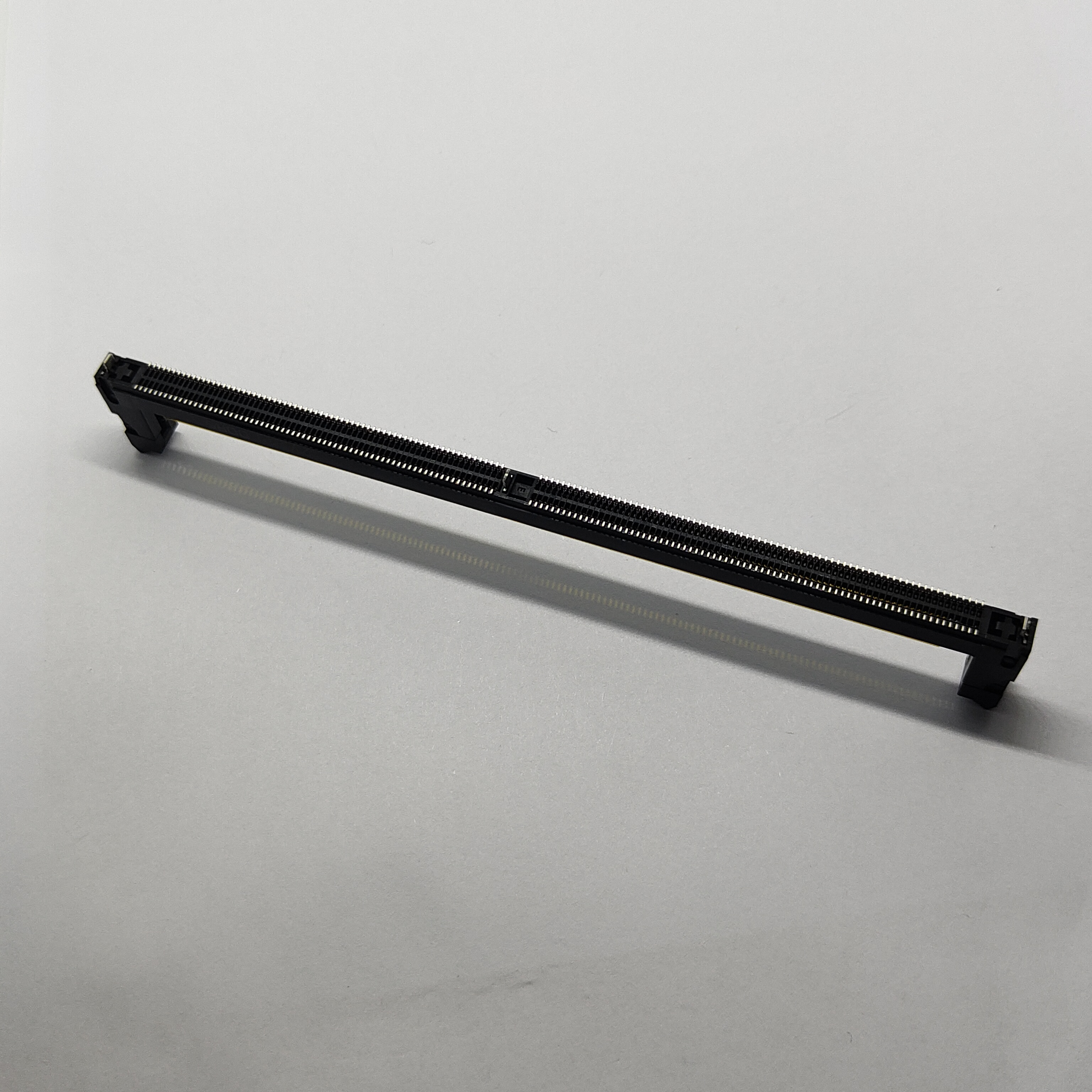

CONSHARE built this DDR5 288PIN RDIMM Short Latch Hard Tray for the specific reality of registered DIMM manufacturing and test environments. The 120mm hard-body construction, integrated Mylar dielectric layer, and Au 30μ" contact plating each address a failure mode that module assemblers encounter when tray quality is treated as an afterthought.

Design Decisions That Matter on Your Line

Short Latch: Less Length, Same Retention

The short latch cuts down the overall tray footprint without compromising module hold-down force. On densely packed burn-in racks and test beds, that extra few millimeters per tray multiplies across a full rack — the difference between fitting 40 modules and fitting 48. The latch geometry engages the RDIMM edge firmly, preventing the lateral drift that causes contact misalignment during thermal cycling.

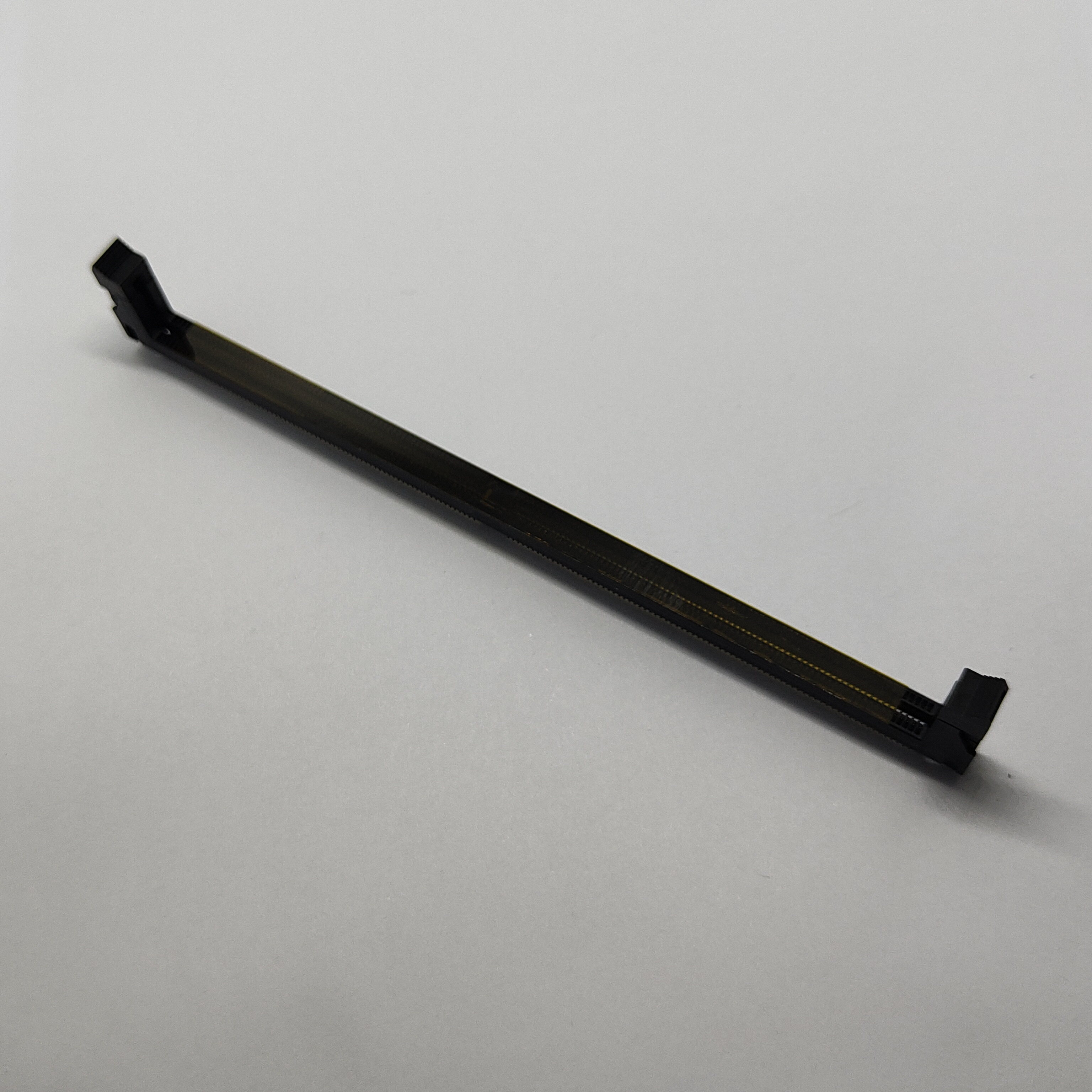

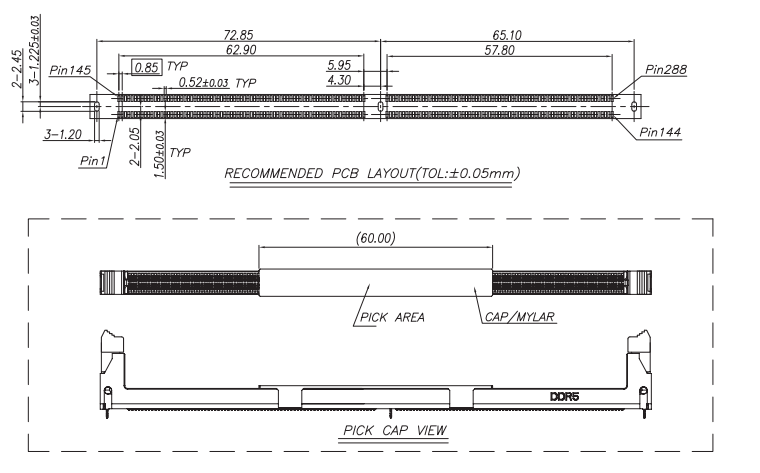

Mylar Insulation: Your ESD Insurance Policy

RDIMM modules carry register and buffer ICs that are far more sensitive to electrostatic discharge than the memory chips themselves. The integrated Mylar layer creates a dielectric barrier between the tray's conductive body and the exposed circuitry on the module's underside. This isn't a value-add — it's a baseline requirement that some trays skip to hit a lower price point. The cost of a single ESD-damaged RDIMM module makes the Mylar layer pay for itself.

Au 30μ" Plating: Where Contact Reliability Lives

Thirty micro-inches of gold on contact surfaces hits the practical sweet spot for test-cycle longevity. Here's the trade-off: thinner plating (10–15μ") saves upfront cost but exposes the nickel underlayer after a few hundred cycles, leading to contact resistance spikes that show up as phantom test failures. Thicker plating (50μ"+) buys more cycles but with diminishing returns that inflate cost without proportional benefit. The 30μ" specification targets the range where most test operations actually run.

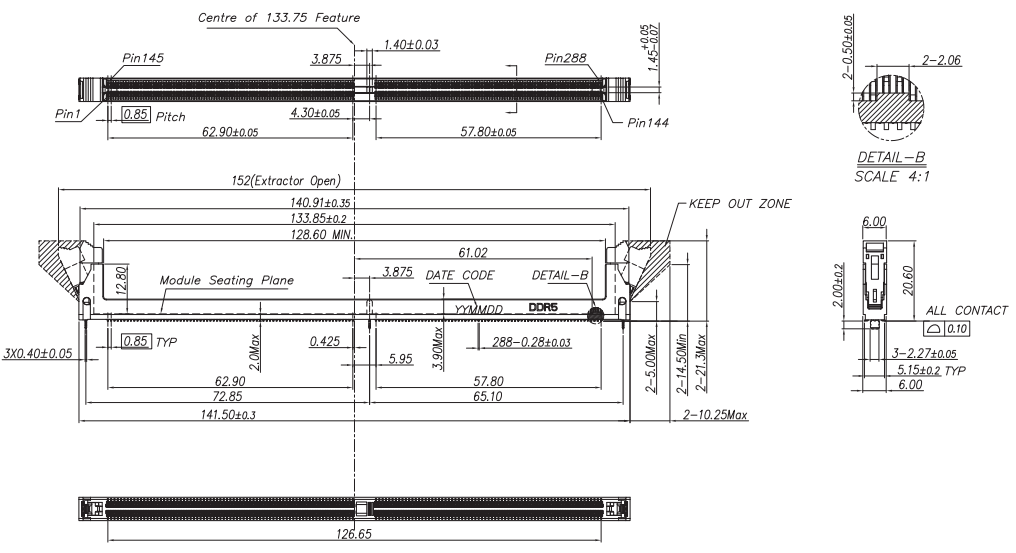

Hard Tray Body at 120mm: Dimensional Stability Under Thermal Stress

Burn-in chambers, environmental test cycling, and even normal production floor temperature variation put tray geometry to the test. The rigid hard tray body maintains its dimensional integrity where softer trays warp, twist, or develop the subtle bowing that causes edge pins to lose contact. At 120mm, the tray length matches the RDIMM module footprint without excess material that adds handling bulk.

Tray Selection Guide: Matching Configuration to Application

Key Questions Before You Order

• What's your typical test cycle count per tray position? If you're running thousands of insertions, Au 30μ" is your baseline. If it's storage-only, you can step down.

• Are your modules entering burn-in or environmental chambers? Hard tray construction is non-negotiable here. Soft trays warp under thermal cycling.

• How tight is your rack or line spacing? Short latch design buys you density without sacrificing retention.

CONSHARE: What You're Actually Getting

Quality Control Beyond First Article

Every production batch undergoes dimensional verification against the engineering drawing, with tolerance bands tighter than industry defaults on critical latch and contact features. Plating thickness is checked per batch — not just on the sample that passed FAI — because plating consistency is where most tray suppliers quietly cut corners. If a batch doesn't meet the Au 30μ" specification, it doesn't ship.

Lead Times That Respect Your Build Schedule

CONSHARE maintains ongoing production capacity for standard RDIMM tray configurations. We work with your production planning team to align delivery timing with your module assembly calendar, because a tray that arrives two weeks late is just as problematic as a tray that fails in service.

Customization Without the Custom Price Gouging

FAQ

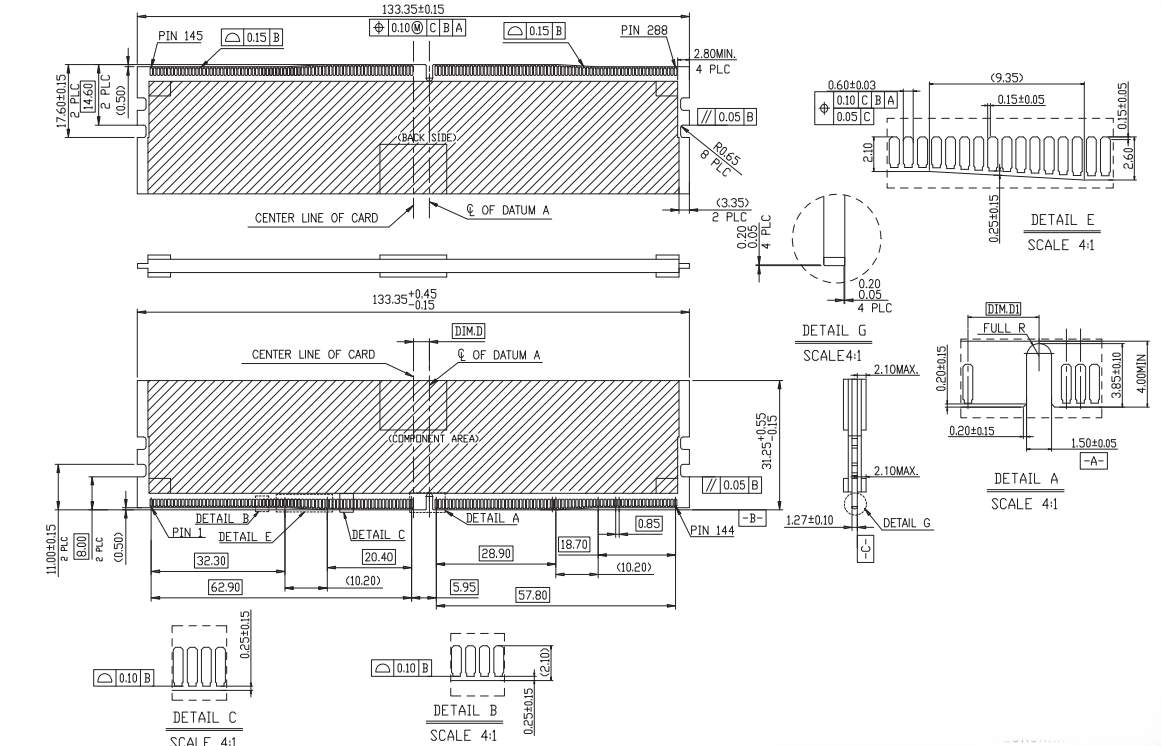

Can I use this tray for DDR5 UDIMM modules as well?

This tray is engineered specifically for the DDR5 288PIN RDIMM form factor. RDIMM modules carry register and buffer components that affect the module's physical profile. While UDIMM shares the 288-pin count, the dimensional differences mean a dedicated UDIMM tray provides better fit and retention. We manufacture both.

How does the short latch hold up during automated handling?

The latch mechanism was designed and validated for automated pick-and-place environments. Retention force comes from the latch's geometry and material spring properties, not from extended length. Production-line testing confirmed secure module hold during standard robotic transfer operations.

What temperature range can the hard tray body handle?

The tray material is specified for the temperature ranges typical of burn-in and environmental test chambers used in DRAM module qualification. For applications operating at the extreme ends of temperature specifications, we can discuss material alternatives suited to your specific thermal profile.

Is the Mylar layer replaceable, or is it bonded to the tray?

The Mylar is integrated into the tray construction as a permanent feature. This ensures consistent dielectric coverage across the tray's service life, eliminating the variability that comes with user-applied insulation films that can shift, tear, or be omitted.

Do you offer volume pricing for production-scale orders?

Yes. Pricing scales with order volume, and we work with procurement teams to establish pricing tiers that align with forecasted demand. Contact us with your projected annual usage and we'll structure a quote that makes sense for your production economics.
