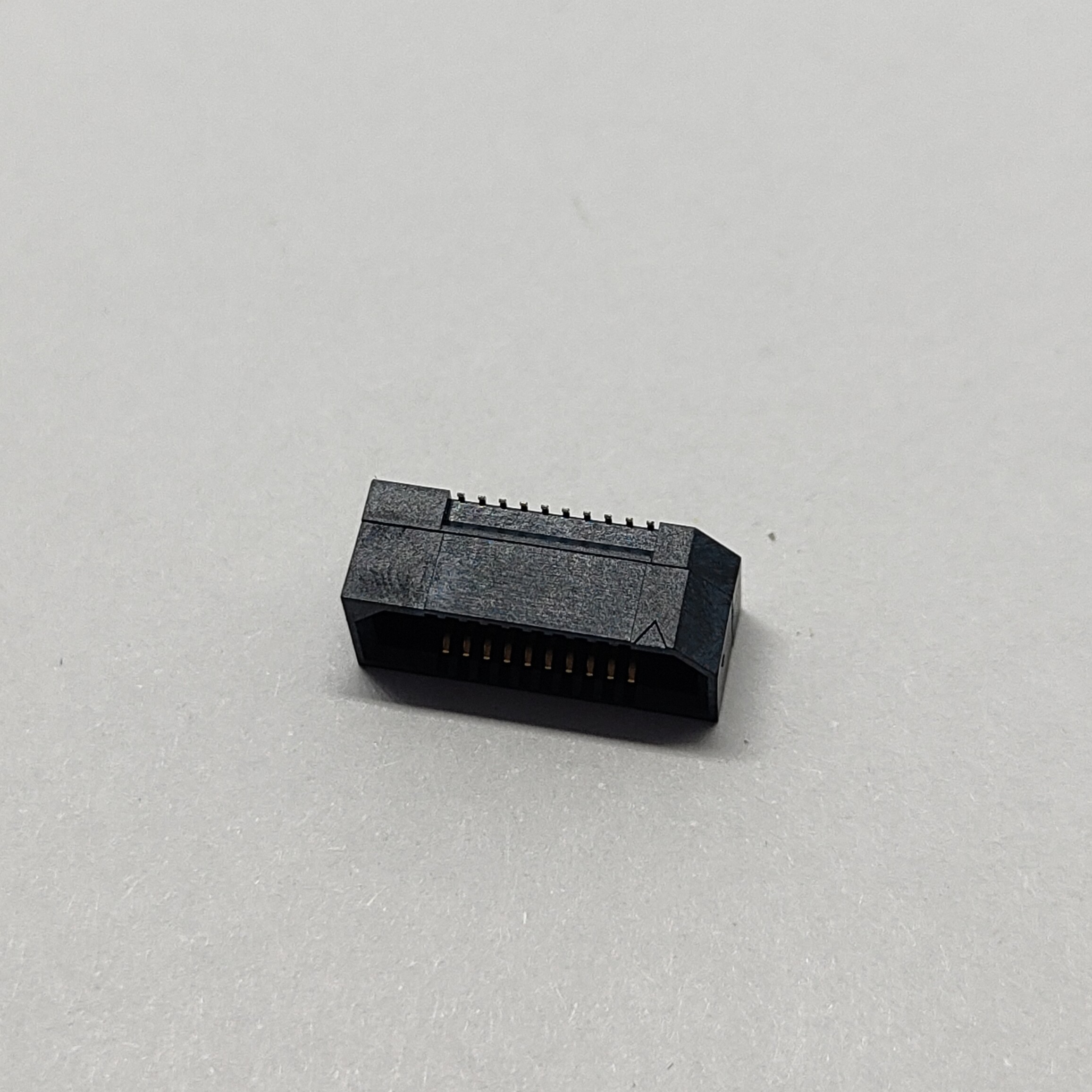

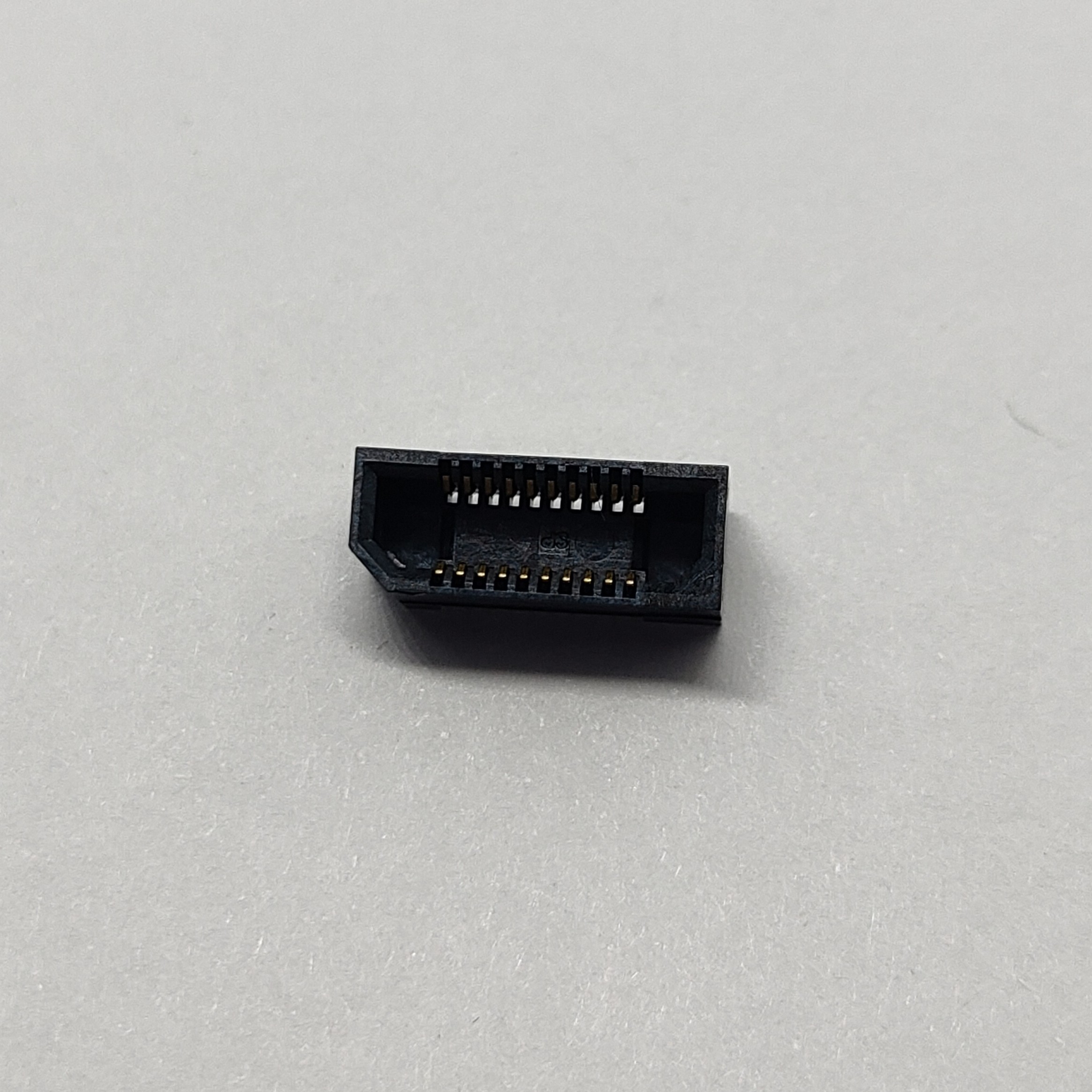

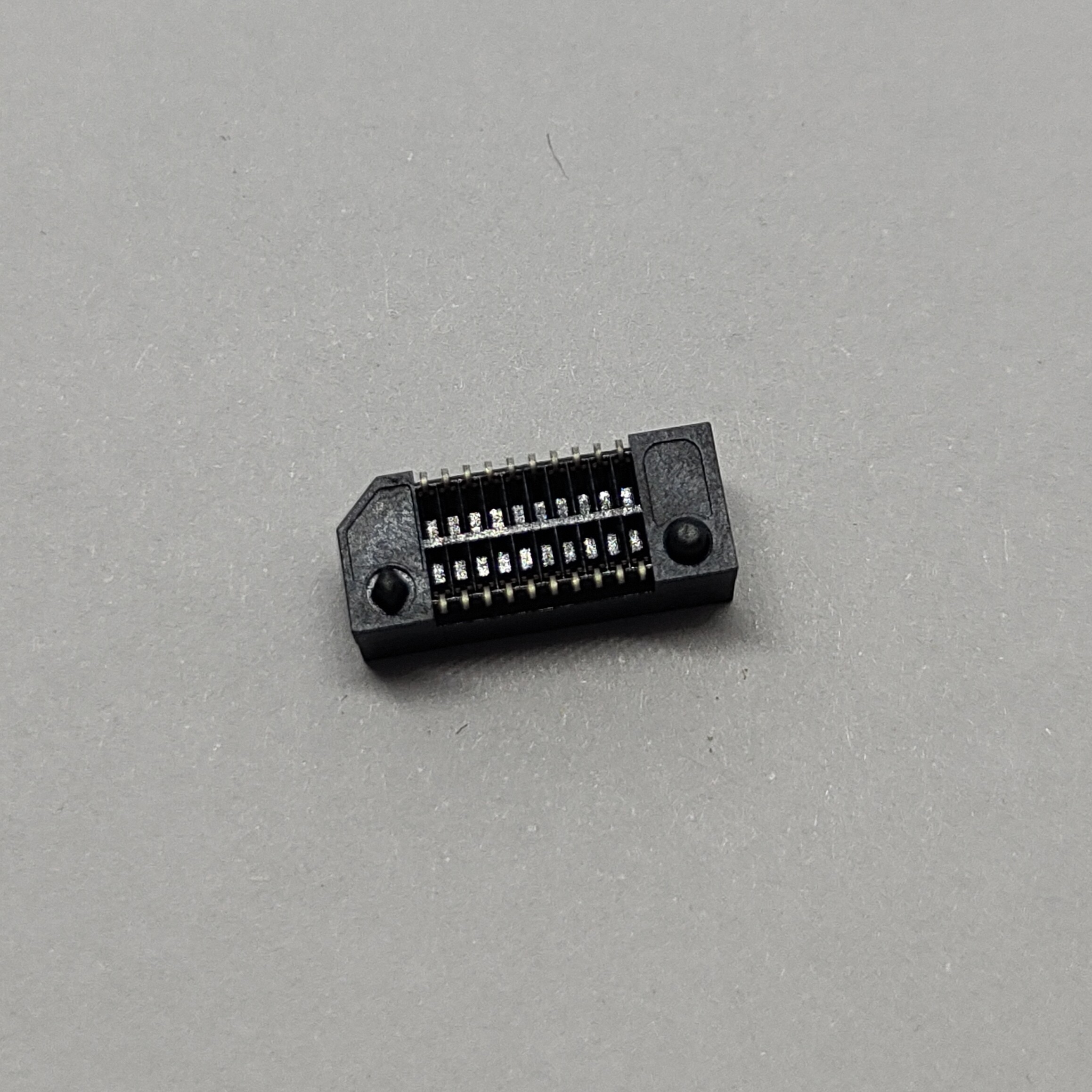

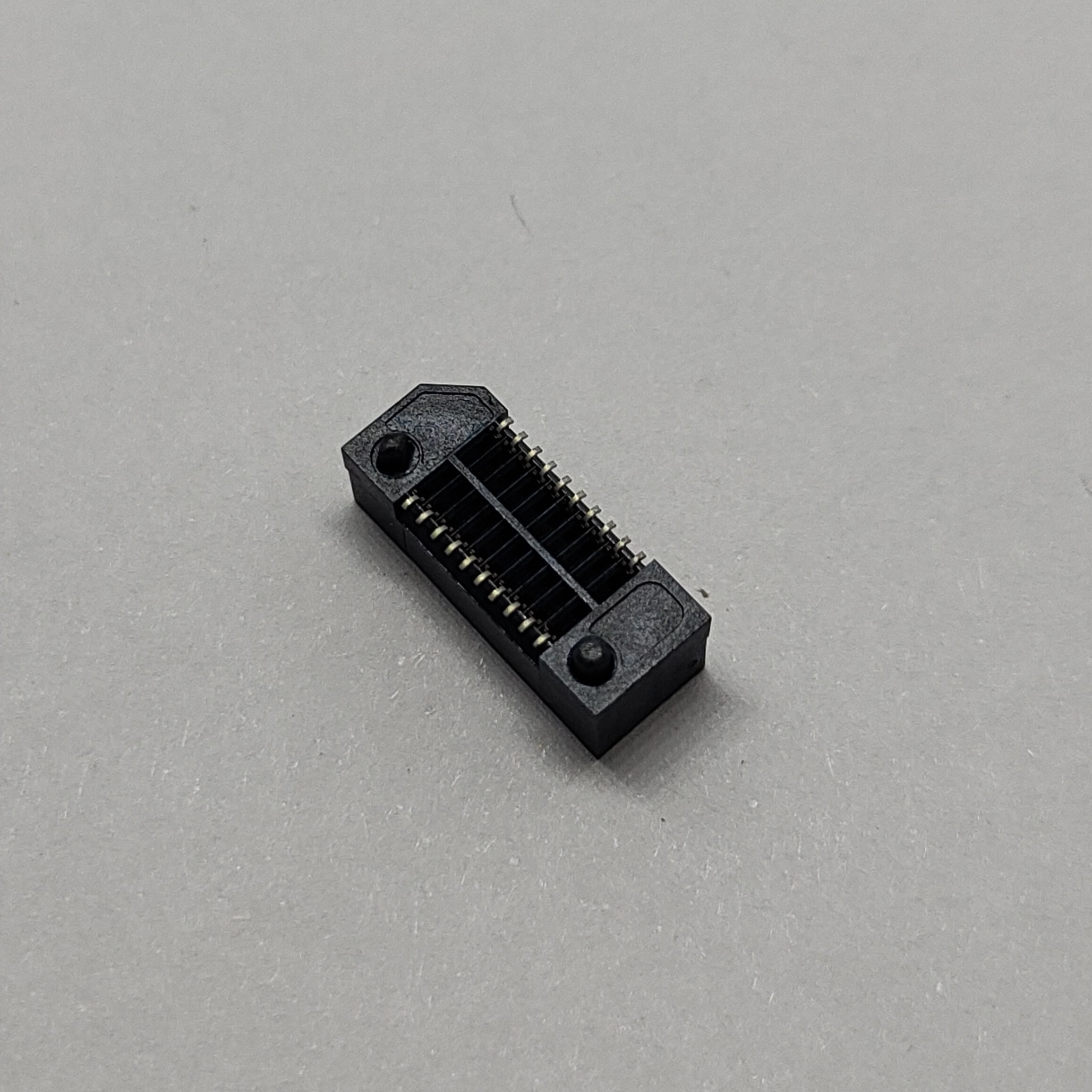

Board to Board Connector
Industrial, IT Datacom
Engineered for upright vertical stacking between separate printed circuit boards, this SMT-type female connector implements vertical onboard installation to organize internal PCB stacking space inside finished electronics. The 2-row ×10-position pinout balances available circuit routing channels, making it a standard reference specification for medium-density onboard interconnection work across multiple electronic sectors. All dimensional benchmarks of the 2×10P model define the baseline dimension standards for all variable pin count options in the same product family.
The connector’s outer insulating frame is injection molded from UL94V-0 certified black LCP granular material, a thermoplastic material formulated to match the thermal characteristics required for standard lead-free SMT reflow soldering cycles during automated PCB assembly. Raw material selection follows unified production standards across the entire CONSHARE vertical BTB female connector range.
Base material of all conductive pins adopts copper alloy as the core conductor substrate, with two separated plating configurations applied on different functional sections of each terminal. Contact mating zones receive dedicated gold plating treatment, while SMT solder foot segments feature matte tin plating with a pre-applied nickel underlayer between base alloy and surface plating layer, following fixed electroplating process standards defined by CONSHARE’s internal production specifications.
The 2×10P unit acts as the base specification to derive tailor-made variants, with four adjustable modification dimensions available for client-specific project configuration. All customizable options are summarized in the table below:
Customization Category | Available Configuration Range & Layout Reference |
|---|---|
Vertical Housing Height | Three fixed standard molded height options; each option corresponds to distinct internal vertical clearance space for finished device enclosure stacking |
Terminal Surface Plating | Seven graded electroplating combinations ranging from flash gold-tin up to 30μ heavy gold-tin finishes, categorized by varied precious metal coating thickness |
Total Pin Configuration | Modular pin arrangement expandable from minimal 2×5P layout to maximum 2×100P high-density specification to match varied PCB circuit density requirements |
Mating Engagement Height | Multiple pre-set mating dimension sets, designed to coordinate with matching CONSHARE male BTB connectors for variable vertical gap between paired PCBs |
Every single contact terminal is rated with fixed current and voltage specifications to support simultaneous layout of power supply tracks and signal traces on a single connector unit. The defined electrical parameters maintain consistent performance when integrated onto densely routed PCBs with mixed signal and power distribution circuits.
The finished connector is tested and certified to operate steadily across a predefined wide ambient temperature range, covering low-temperature installation environments and high-heat sealed equipment spaces for diversified finished product assembly.

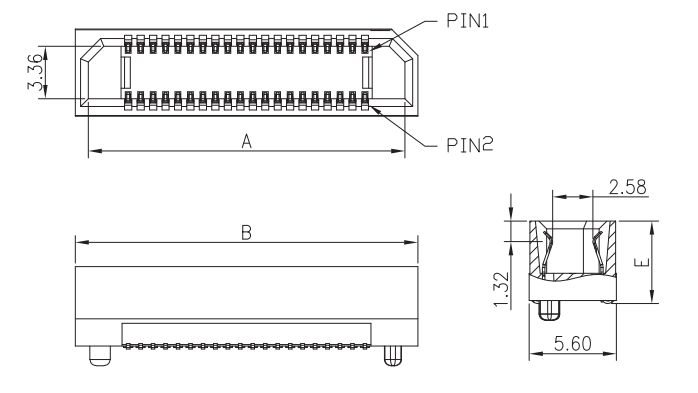

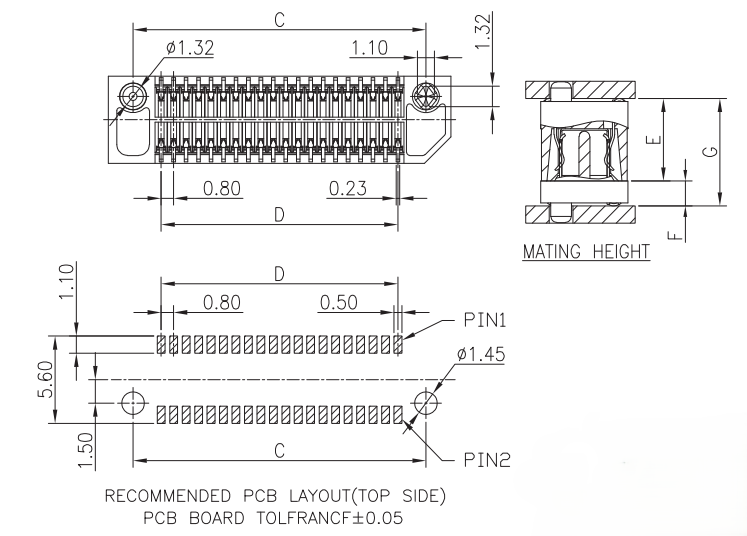

CONSHARE releases pre-verified top-side PCB pad layout drawings for the 2×10P model with regulated dimensional tolerances. Design engineers can reference the certified footprint data directly during PCB schematic and board layout development to align with automated pick-and-place SMT production standards.
A fixed minimum push-in force value is confirmed via standardized mechanical testing for the product, which can be used as a reference parameter during manual or automated equipment assembly processes on production lines.
Two distinct packaging formats are prepared to fit differing manufacturing flow requirements for the connector series:
Tray Packaging: Applicable for small-quantity prototype sampling, laboratory testing and pilot batch production for all pin count specifications in the series.
Tape & Reel Carrier Packaging: Exclusively produced for bulk high-volume automated SMT manufacturing, fully compatible with mainstream feeder systems of industrial placement equipment; this reel-based packing solution is available for all specifications starting from 100-position layout within the product range.
CONSHARE’s 0.80mm vertical SMT BTB female connector (2×10P base model and its customized variants) is widely incorporated into the internal PCB stacking structure of below electronic categories:
Compact wearable electronic hardware including smart wrist devices and miniature fitness monitoring equipment
Miniature industrial control auxiliary modules such as compact sensor circuit boards and small PLC peripheral assemblies
Automobile interior auxiliary electronic components and onboard mini sensing circuit units
Portable compact smart home appliances and small-sized indoor smart sensor hub mainboards
