Power Connector
Automotive, Industrial, IT Datacom

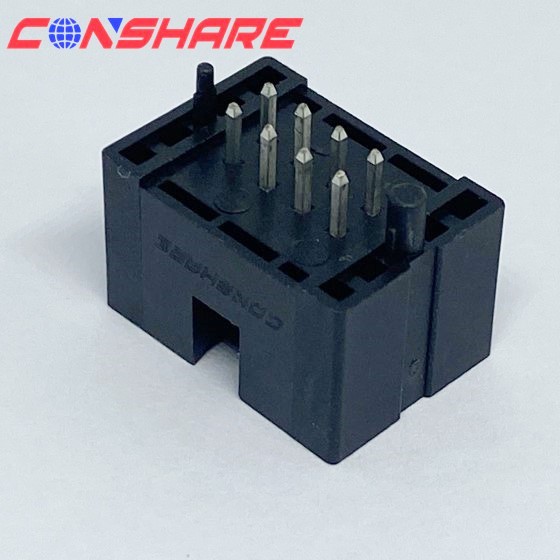

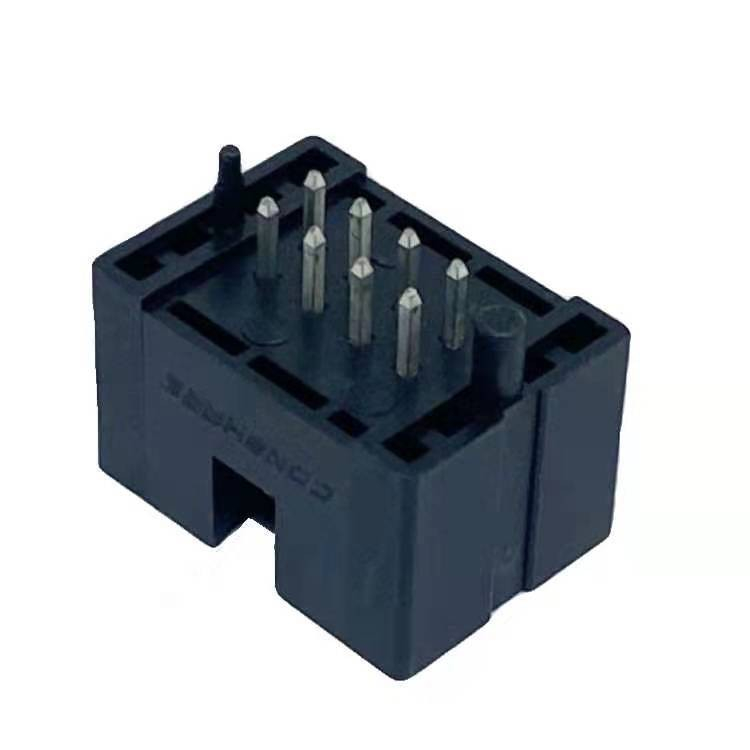

A durable black fan socket from CONSHARE, this connector features a dual-row through-hole design with precision-engineered pins and heat-resistant housing. It delivers secure, stable connections for cooling fan power and signal circuits, built to maintain performance over extended use.
Capable of supporting up to 5A current, this socket ensures consistent power delivery to cooling fans for reliable thermal management. It meets full RoHS environmental standards, making it a safe, eco-friendly choice for consumer and industrial electronic applications.
Currently available for purchase, this connector is ideal for PCs, industrial equipment, and other systems requiring thermal control. Its compact, rugged design adapts to diverse connectivity needs, offering long-lasting reliability for fan power solutions.
Our CONSHARE 2x4P DIP fan socket supports a 5A rated current, delivering consistent power to cooling fans even under sustained heavy loads. Precision-engineered contact pins minimize resistance and overheating risks, ensuring long-term connection reliability. Custom pin configurations are available to match your unique system power requirements.
This black fan socket from CONSHARE adheres to strict RoHS environmental standards, free of harmful restricted substances to support your product’s green compliance goals. Its heat-resistant housing maintains structural stability in high-temperature environments. Custom material options can be tailored to meet your specific safety and regulatory needs.
With a 2x4P dual-row through-hole structure, this CONSHARE fan socket enables secure, error-resistant PCB mounting during production. Precisely spaced pins prevent soldering misalignment, boosting assembly efficiency and long-term connection performance. Custom pin lengths and orientations are offered to fit your exact PCB layout.
Backed by CONSHARE’s rigorous quality testing, this fan socket delivers reliable performance in consumer electronics, industrial PCs, and computing systems. It is engineered to withstand diverse operating conditions for extended use. Customized housing and packaging solutions are available to align with your project specifications.
Parameter | Specification |
|---|---|
Brand | CONSHARE |
Product Type | 2x4P Fan Header Connector |
Pin Count | 8 Pins |
Pitch | 2.54 mm |
Mounting Type | DIP |
Current Rating | 5A/Pin |
Operating Temperature | -40°C ~ 105°C |
Housing Material | PA9T (UL 94V-0) |
Compliance | RoHS |
Our CONSHARE fan socket provides stable 5A power to case fans, CPU coolers and radiators in gaming and desktop PCs. It ensures consistent connections during high-load use, preventing overheating to protect components and support smooth, uninterrupted performance.
Designed for reliability in tough environments, this DIP fan socket powers cooling fans in industrial PCs and embedded systems. Its RoHS-compliant build withstands fluctuating temperatures, supporting long-term, stable operation for factory automation and control devices.
This fan socket delivers reliable power to cooling fans in servers and data center racks, maintaining optimal temperatures for high-density hardware. Its secure through-hole design prevents connection issues, supporting continuous performance for critical IT infrastructure.
Perfect for compact designs, this black fan socket powers cooling fans in set-top boxes, smart home hubs and small appliances. Its space-saving form factor fits tight PCB layouts, delivering steady thermal management for everyday consumer electronics.
A: This fan socket supports a 5A rated current, delivering stable power to most cooling fans. It minimizes resistance and overheating risks, ideal for sustained high-load use in PCs and industrial systems.
A: Yes, this CONSHARE fan socket fully meets RoHS standards, free of harmful restricted substances. It supports your product’s green compliance goals for safe use in consumer, industrial, and commercial applications.
A: With a standard 2x4P dual-row through-hole design, this CONSHARE fan socket is compatible with most cooling fans and PCB layouts, enabling secure, error-resistant assembly for reliable long-term connections.
A: Yes, CONSHARE provides flexible customization for this fan socket, including pin lengths, housing materials, and packaging solutions, tailored to your unique PCB design, regulatory, and application requirements.
