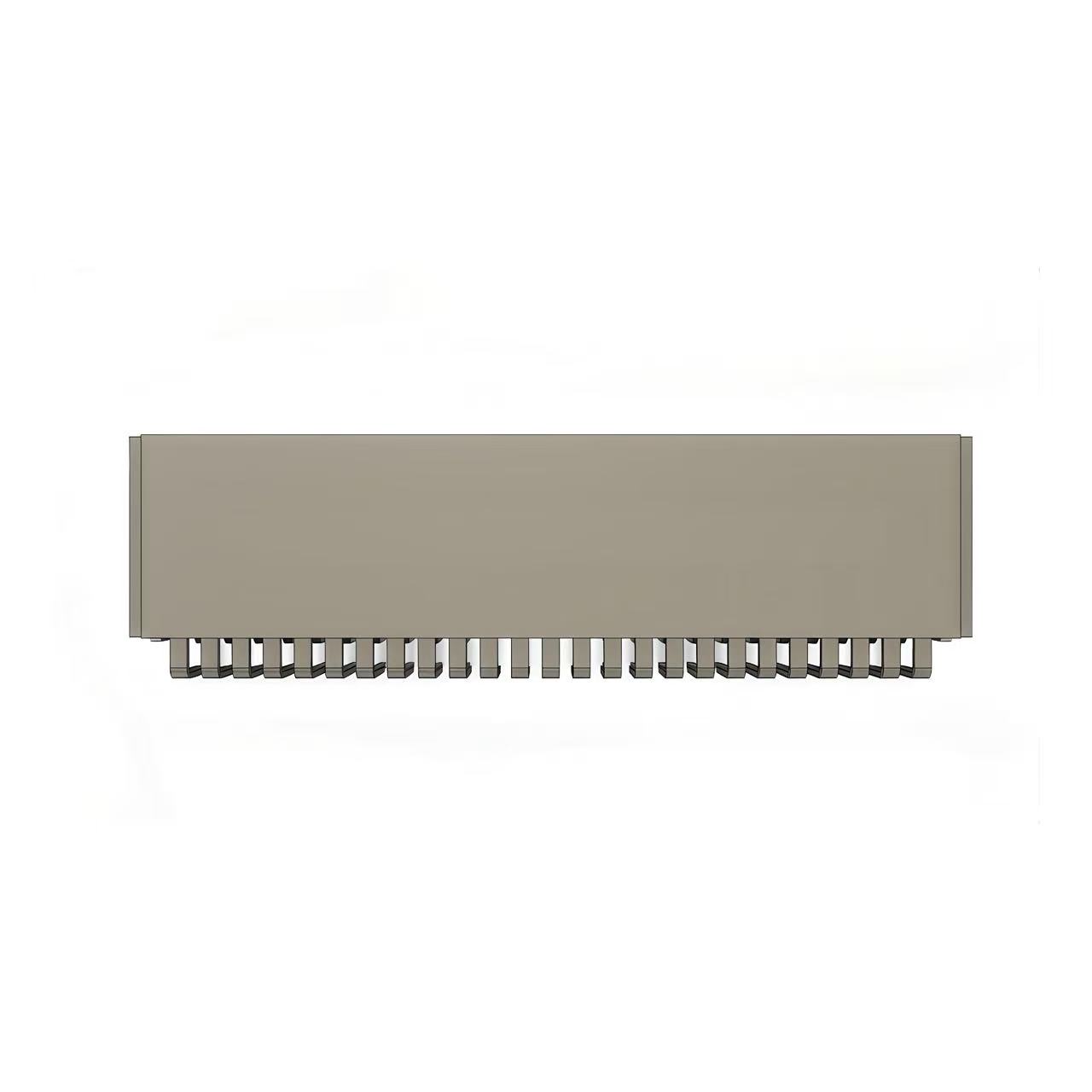

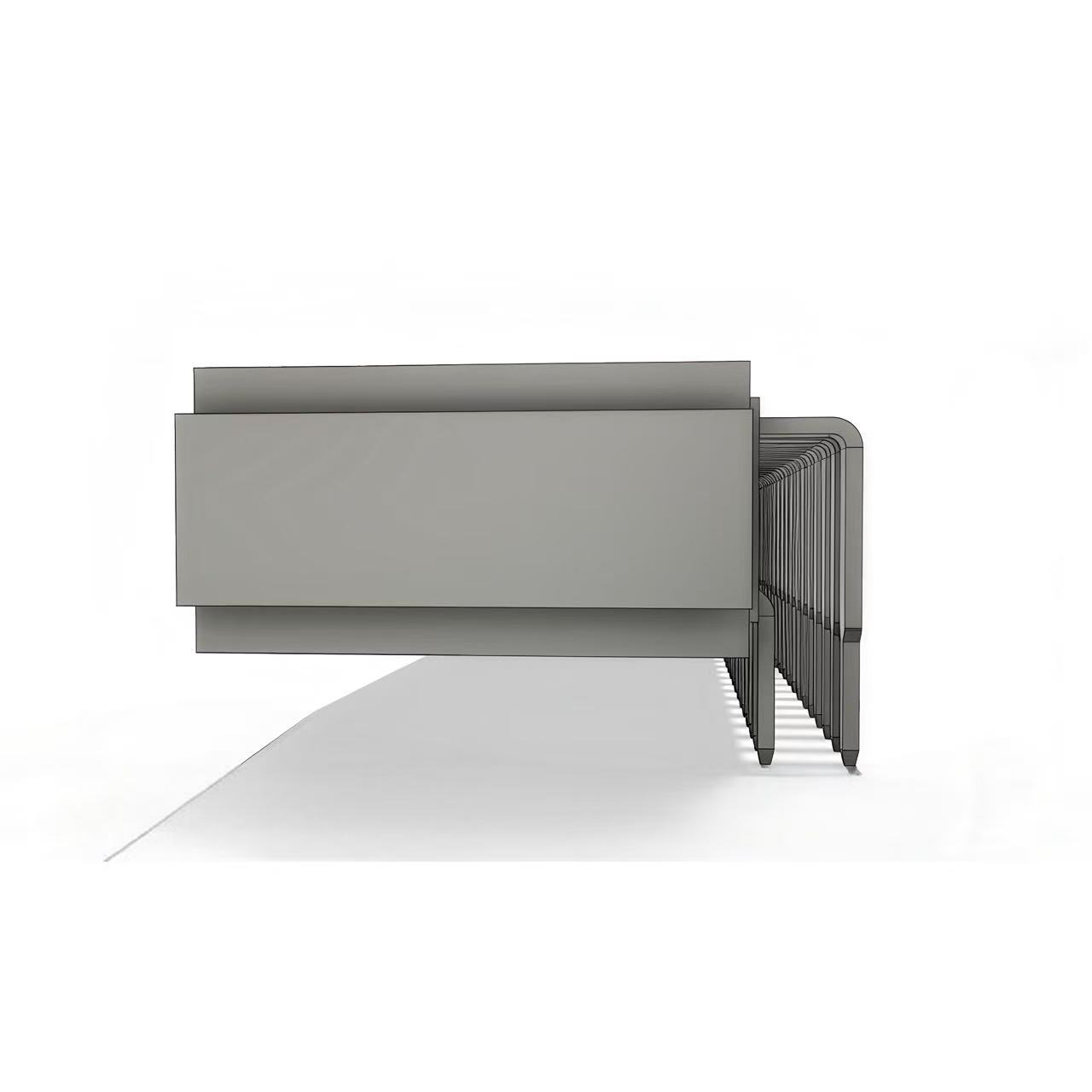

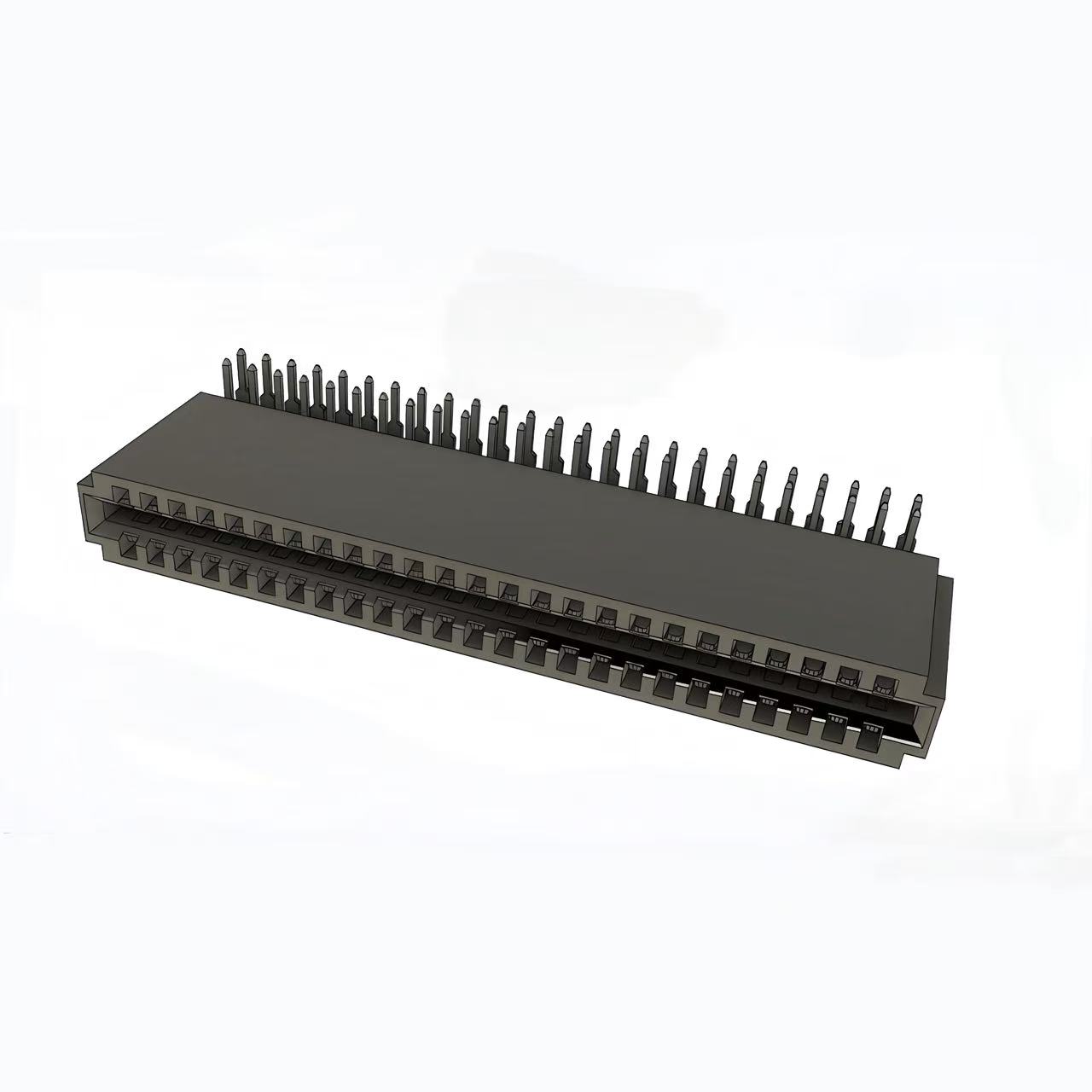

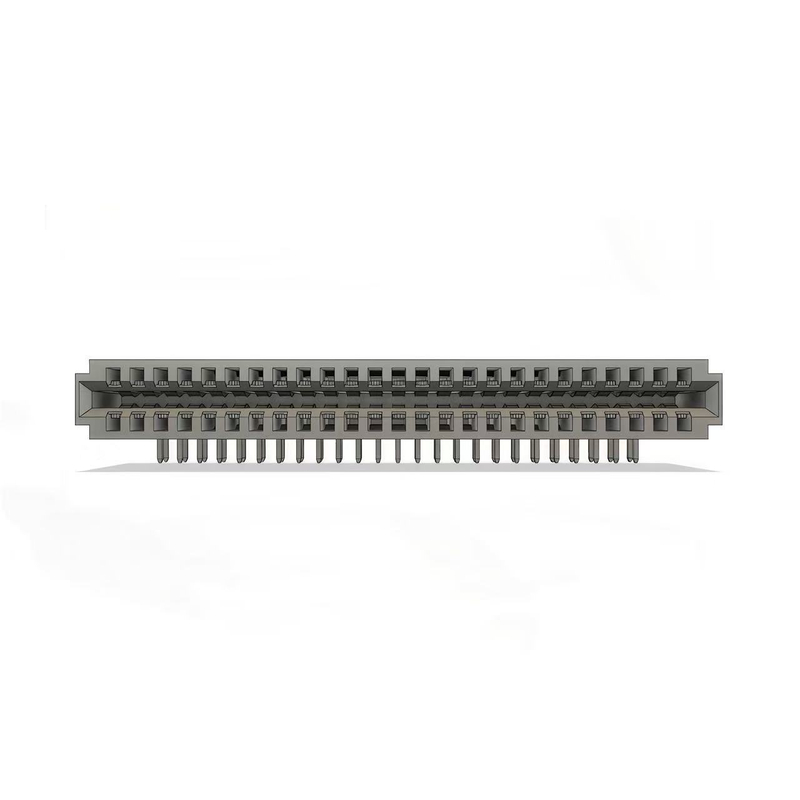

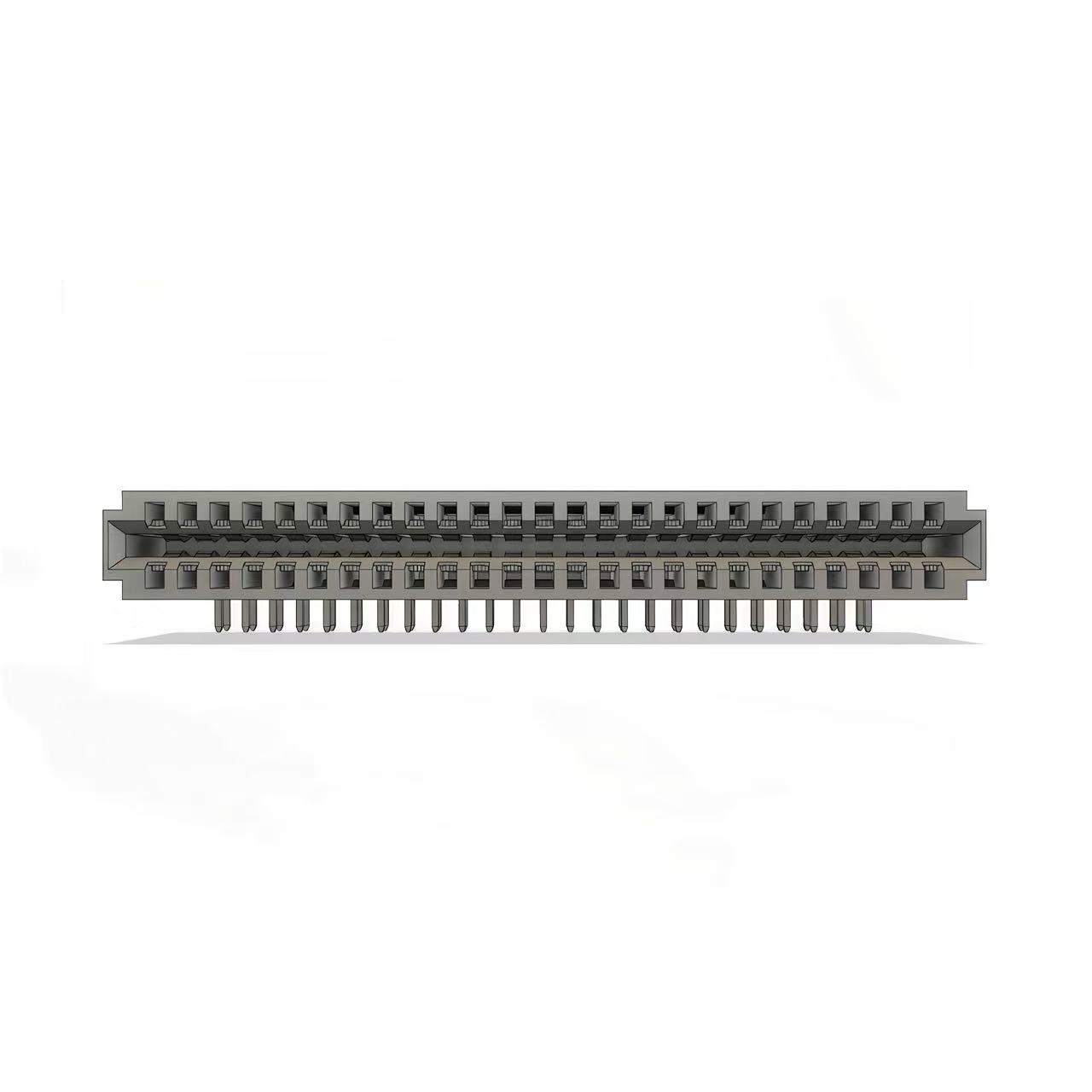

1.This product is a 2.54x5.08mm gold-plated contact DIP (Dual Row In-line) connector, featuring a 90-degree right-angle design. Its core dimensions and pin configuration adhere to high standardization. The pin pitch follows the standard 2.54mm spacing. Key dimensions include a plastic body height of 8.50mm, a slot width of 1.8mm, and a pin length of 3.5mm. Overall dimensional accuracy is strictly controlled, with general tolerances set according to a graded system based on numerical precision.

2.The product offers a wide range of pin configurations, spanning from 2x3PIN (Model 006) to 2x50PIN (Model 100). Critical dimensions can be calculated using standardized formulas:

A = 2.54 × (Number of Pins per Row) + 2.54，B = 2.54 × (Number of Pins per Row) - 2.54，C = 2.54 × (Number of Pins per Row) + 5.54，D = A - 0.40。

Clear dimensional values correspond to different pin counts, accommodating diverse PCB design requirements.

◆◆ Product Advantage

1.The housing is constructed from UL94V-0 flame-retardant PA10T material, offering excellent fire resistance to eliminate safety hazards during use. The contacts are made of C7025 alloy combined with a multi-layer plating process. A base nickel plating enhances adhesion, while the surface gold/tin plating improves conductivity and wear resistance, effectively extending the product's service life.

2.All materials comply with the ROHS environmental standard, meeting the eco-friendly requirements of modern electronic devices.

3.The product features a 12A high-rated current and 750V high-withstanding voltage design, meeting the power transmission demands of medium-to-high-power equipment. Low contact resistance (≤20mΩ) and high insulation resistance (≥1000MΩ) ensure accurate, lossless signal transmission and reduce the risk of electrical failures. With a broad operating temperature range of -40°C to +105°C, it can adapt to extreme high and low-temperature environments, maintaining stable performance in various applications such as industrial control, automotive electronics, and outdoor equipment.

4.Strict dimensional tolerance control (minimum ±0.15mm for linear dimensions, ±1° for angular dimensions) ensures precise alignment with the PCB, enhancing assembly efficiency. The 90° right-angle design optimizes installation space layout, accommodating compact internal equipment structures. Tray packaging facilitates automated production line handling, reduces manual assembly costs, minimizes damage during storage and transportation, and improves supply chain efficiency.

◆◆ Product Uses

1.Industrial Control and Automation Equipment

2.Power and Energy Equipment

3.Display Screen and LED Applications

4.Communication and Network Equipment

5.Test and Measurement Instruments
