When your industrial gateway drops critical data mid-transmission, or your automotive telematics unit fails EMC testing due to hidden signal noise, the root cause often lies in a single overlooked component: your Mini PCIe connector. Standard 52-pin connectors cut corners on grounding and precision, leading to data corruption, assembly errors, and premature failures in high-stakes environments. The CONSHARE AF00770052001 is purpose-built to solve these exact pain points—delivering PCIe 3.0-grade 8GT/s performance, industrial reliability, and manufacturing-friendly design that keeps your projects on track.

The Dual Isolated Ground Pad Architecture: Your First Line of Defense Against Signal Noise

For PCIe 3.0 signals, noise is the silent killer. Most off-the-shelf Mini PCIe connectors force you to share signal pins for grounding, creating high-impedance paths that let EMI and crosstalk corrupt data—even at speeds well below the 8GT/s limit.

The AF00770052001 redefines this with a patent-inspired 54-pad layout: 52 dedicated signal pins paired with 2 isolated grounding pads directly connected to the connector’s metal housing. This isn’t just an extra feature—it’s a complete redesign of how Mini PCIe connectors handle noise:

• Low-impedance grounding diverts electrical noise away from high-speed signals, eliminating common-mode interference in dense PCB layouts

• Consistent 8GT/s throughput in electrically noisy environments (factory floors, automotive cabins, remote industrial sites)

• Reduces reliance on bulky external shielding, cutting EMC compliance testing time and costs by weeks

Zero-Defect Assembly: Precision Engineering That Eliminates Production Headaches

For manufacturing teams, a single misaligned connector or bad solder joint can derail an entire production run. The AF00770052001 is engineered from the ground up to eliminate assembly errors, with micron-level precision tailored for automated SMT lines:

• Anti-Misalignment System: Dual precision alignment holes (φ1.35mm and φ0.85mm) paired with a clear triangular PIN 1 marker ensure perfect orientation every time—no more reversed connectors or wasted boards

• Controlled Dimensional Stability: Critical dimensions held to ±0.05mm tolerances, with a board-mounted height of 7.0 ± 0.15mm (plus 4.0mm, 5.2mm, and 9.0mm variants) to guarantee a snug fit with enclosures and mating cards

• Reflow-Ready Housing: UL 94V-0 rated high-temperature plastic withstands lead-free reflow temperatures without warping, maintaining ±0.1mm flatness for uniform solder joints

• Tray Packaging: Optimized for pick-and-place machines, reducing handling errors and streamlining high-volume production

Built to Survive Where Standard Connectors Fail

Embedded systems don’t get a break—and neither should your connectors. The AF00770052001 is validated for long-term performance in the harshest environments, with every component chosen for reliability:

• Corrosion-Resistant Contacts: High-conductivity copper alloy contacts with optional 15u or 30u gold plating deliver <20mΩ contact resistance and exceptional corrosion resistance, even in humid/dusty industrial settings

• Extreme Temperature Resilience: Rated for -40°C to 105°C operation, maintaining structural and electrical integrity through repeated temperature cycles (critical for automotive telematics and outdoor equipment)

• Stable Power Delivery: Each signal pin supports 1.0A continuous current, ensuring reliable power to expansion modules like 4G/5G wireless cards, industrial SSDs, and field I/O devices

Flexible, Future-Proof Design for Your Product Roadmap

The AF00770052001 isn’t just a connector—it’s a design solution that grows with your project:

• PCIe 3.0 Compliance: Supports data rates up to 8GT/s, ideal for high-speed communication and storage applications

• Multiple Height Options: Choose from 4.0mm, 5.2mm, 7.0mm, or 9.0mm board-mounted heights to fit your enclosure and thermal design requirements

• 180° Vertical SMD Mount: Optimized for compact PCB layouts, saving valuable board space in small form-factor devices

• RoHS Certified: Meets global environmental standards, simplifying regulatory compliance for international markets

Quick Reference Specifications

Ideal Use Cases

This connector is tailored for applications where reliability, signal integrity, and manufacturing efficiency are non-negotiable:

• Industrial embedded computers and control systems

• Rugged laptops and field-deployed computing devices

• Automotive telematics and infotainment systems

• High-speed wireless communication modules (Wi-Fi 6/6E, 4G/5G)

• Compact industrial expansion cards and SSDs

• Networking and telecommunications equipment

Design Support to Accelerate Your Project

We know connector integration shouldn’t slow you down. When you choose CONSHARE, you get more than a component—you get a partner in design:

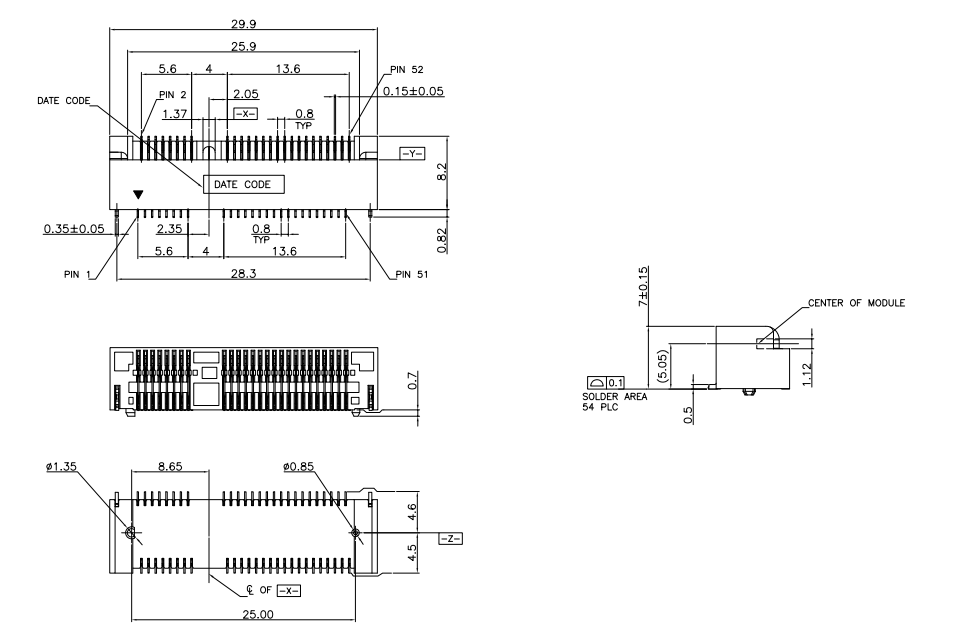

• Downloadable Technical Resources: Access detailed dimensional drawings, PCB footprints, and 3D models directly from our website to speed up your design-in process

• Customization Options: Need modified plating, specialized packaging, or custom height variants? Our engineering team can tailor the AF00770052001 to your exact requirements

• Direct Engineering Support: Our connector specialists are available to answer layout questions, verify compatibility, and help optimize your design for maximum signal integrity

Ready to eliminate signal noise, reduce assembly errors, and build more reliable embedded systems? Contact our engineering team today to request a sample, discuss customization, or get help integrating the AF00770052001 into your design. CONSHARE is here to solve your toughest connectivity challenges.

FAQ

Q1: What merits does the 54-pad design have over regular 52-pin Mini PCIe connectors?

A1: It adopts two separate grounding pads instead of shared signal pins, forming low-resistance loops to curb EMI and crosstalk. It sustains steady 8GT/s transmission speed and helps terminal products pass EMC tests effortlessly with less extra shielding needed.

Q2: Is the connector well compatible with automatic mass production processes?

A2: Absolutely. Built-in positioning holes and pin markers avoid assembly misplacement. High-temperature resistant shell stays intact during soldering. Standard tray packaging fits pick-and-place machines and effectively cuts production defective rates.

Q3: What tough environments can this connector work reliably in?

A3: It runs stably between -40°C and 105°C and copes well with frequent temperature shifts. Gold-plated copper contacts resist corrosion well, and each pin supports 1A continuous current for stable power supply in industrial and automotive devices.

Q4: Can you offer personalized customization according to project requirements?

A4: Custom service is available. We can adjust mounting height, gold plating thickness and packaging styles. Our professional engineers will modify details to perfectly fit your equipment structure and practical application scenarios.

Product Documentation
