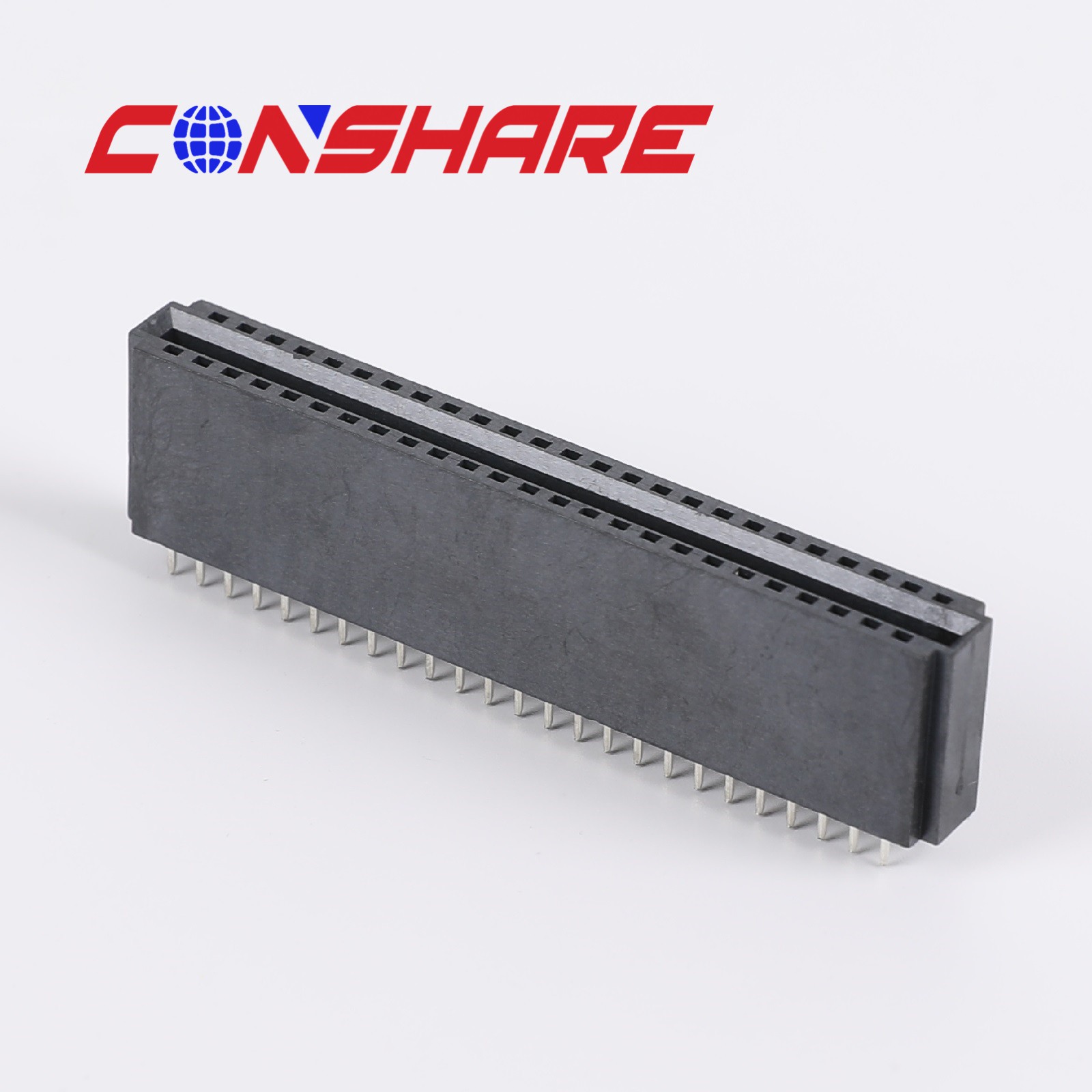

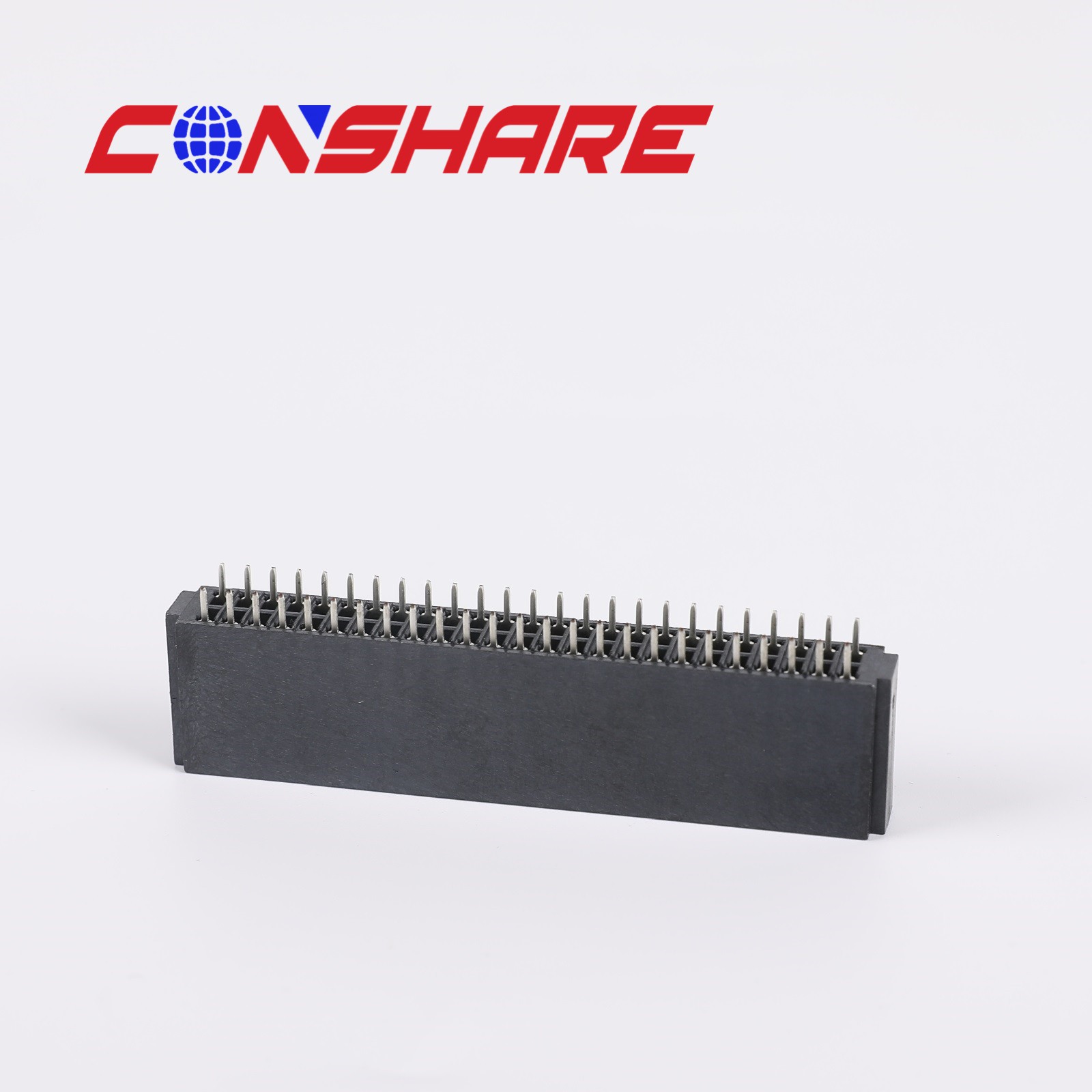

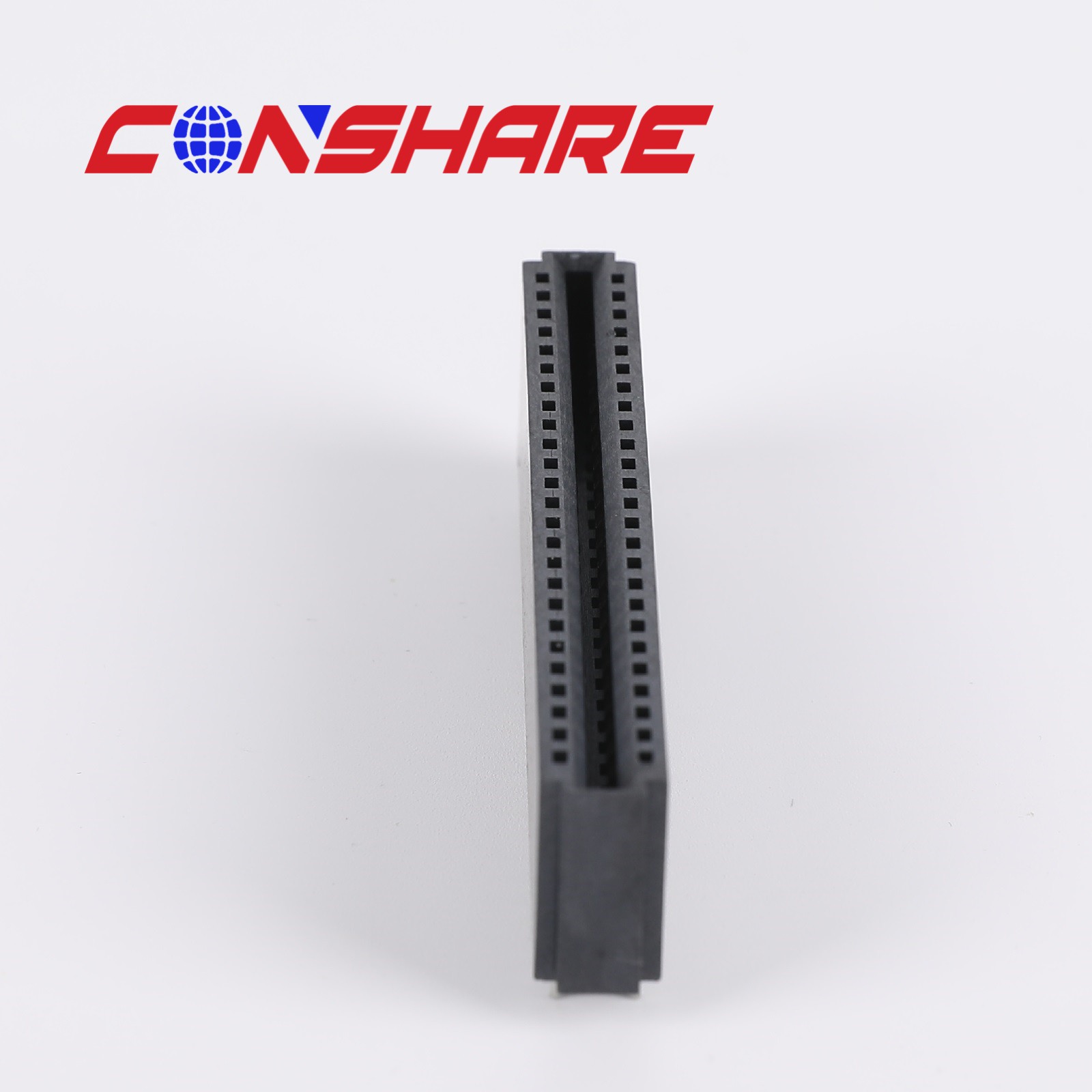

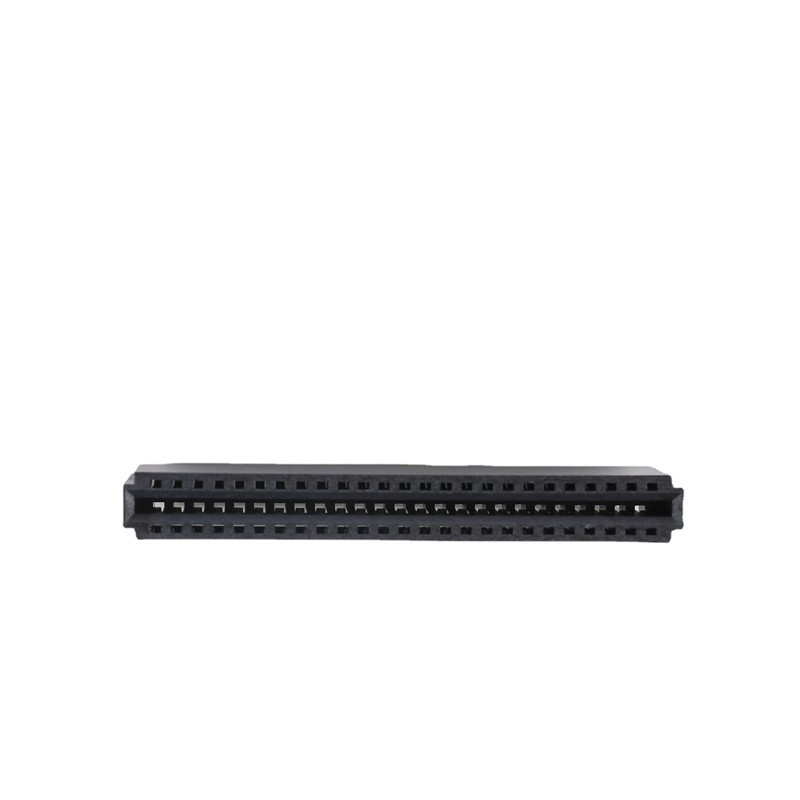

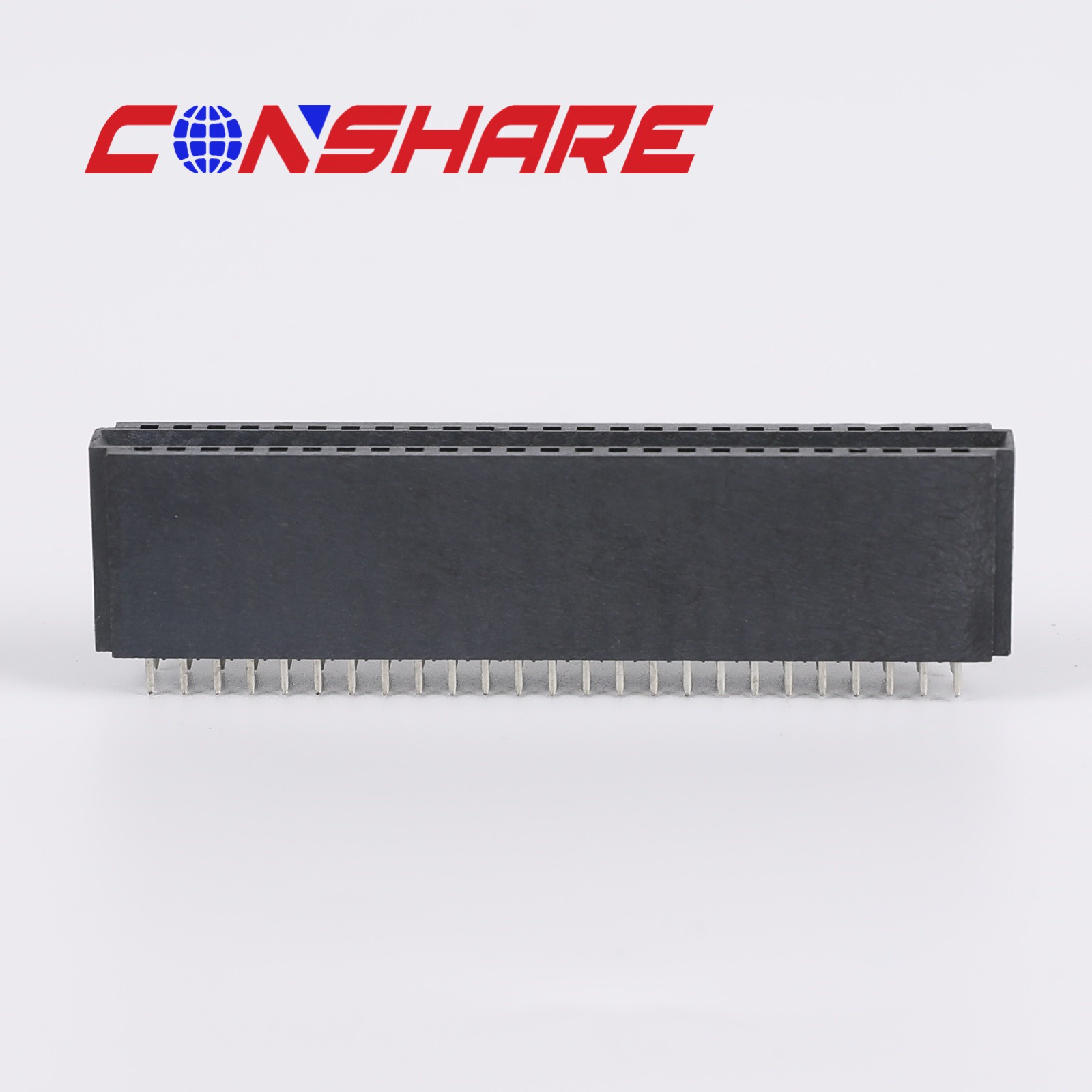

CONSHARE’s 50Pin (2×25-position) 2.54mm pitch vertical DIP power connector features 3µ" gold-plated terminals, ensuring low contact resistance and excellent anti-oxidation performance. It delivers stable power transmission for industrial control systems, server modules and precision testing equipment.
Its upright through-hole design fits standard PCB layouts perfectly, providing secure soldering and stable mechanical connection. The 2.54mm pitch configuration aligns with common industry standards, making integration straightforward for high-volume manufacturing.
CONSHARE’s 50Pin 2.54mm pitch power connector features 3µ" gold-plated terminals, ensuring ultra-low contact resistance and long-term anti-corrosion capability. Every unit undergoes 1000-hour salt spray testing, maintaining stable electrical connection even in humid industrial environments.
The vertical DIP through-hole structure delivers precise pin alignment with ±0.05mm tolerance, enabling secure soldering on standard PCBs. Its upright configuration enhances mechanical stability, ideal for high-volume assembly and use in vibration-prone industrial control systems.
Built for demanding applications, this power connector supports 3A rated current per pin and ≥1000MΩ insulation resistance at 500VDC. With a -40℃ to +105℃ operating range, it performs consistently in server power modules and precision testing equipment.
As a professional manufacturer, CONSHARE offers full customization for this 2.54mm pitch power connector, including pin length, plating thickness, housing color and packaging. We adapt solutions from prototype validation to mass production, matching your project’s specific requirements.
Adhering to industry standards, every 50Pin power connector undergoes 100% electrical and mechanical inspections by CONSHARE. This rigorous quality assurance ensures uniform performance, minimizing failure risks and supporting long-term dependability in diverse applications.
Parameter Item | Specification |
|---|---|
Product Name | 50Pin (2×25) 2.54mm Pitch Vertical DIP Power Connector |
Pin Configuration | 50Pin (2×25-Position) |
Pitch | 2.54mm |
Mounting Type | Vertical Through-Hole (DIP) |
Terminal Plating | 3µ" Gold Plated |
Rated Current | 3A Per Pin (Max) |
Contact Resistance | ≤20mΩ |
Insulation Resistance | ≥1000MΩ @ 500VDC |
Operating Temperature | -40℃ ~ +105℃ |
Industrial Control & Server Power Systems
CONSHARE’s 50Pin 2×25 2.54mm pitch vertical DIP power connector is ideal for industrial control modules and server power supplies. Clean PCB pads first, align pins precisely with through-holes, then solder securely at controlled temperatures to avoid cold joints, ensuring stable long-term power transmission.
Precision Testing & Automated Machinery
This connector suits multi-pin power interfaces in precision testing equipment and automated machinery. When installing, ensure pins are fully seated in PCB holes before soldering, leveraging its gold-plated terminals for reliable anti-oxidation performance in continuous, high-demand operations.
A: Yes, its 2.54mm pitch and vertical DIP design follow industry standards, fitting most common through-hole PCB holes. CONSHARE’s precise pin tolerance ensures seamless alignment for stable soldering and reliable power transmission.
A: The gold plating significantly boosts anti-oxidation performance and reduces contact resistance, minimizing power loss. CONSHARE’s high-quality plating process ensures long-term stability, ideal for industrial and server applications.
A: No, its through-hole pins form a secure mechanical bond with the PCB after soldering. The tight fit and consistent pin design enhance vibration resistance, supporting reliable connections in industrial control and automated machinery.
A: Yes, CONSHARE provides flexible customization, including pin length, plating thickness, and housing color. We adapt the connector to your specific project needs, from prototype validation to mass production.
