Power Connector
Automotive, Industrial, IT Datacom

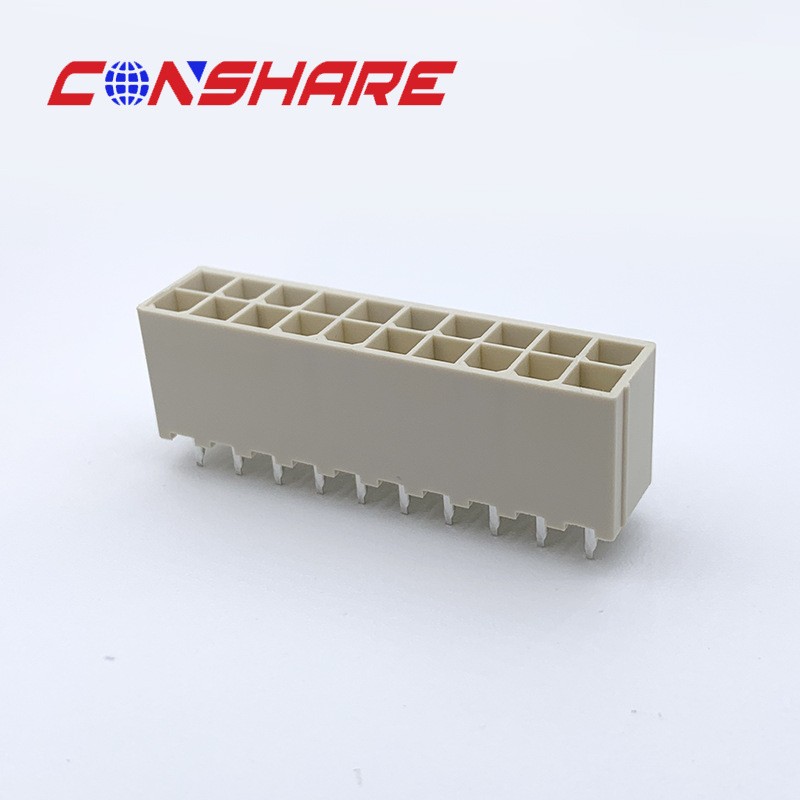

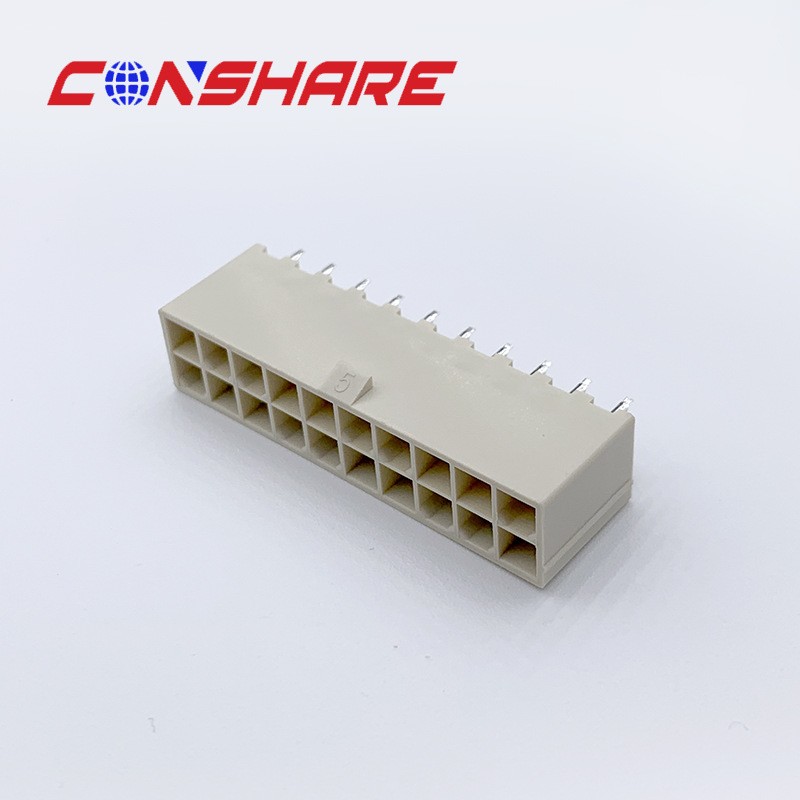

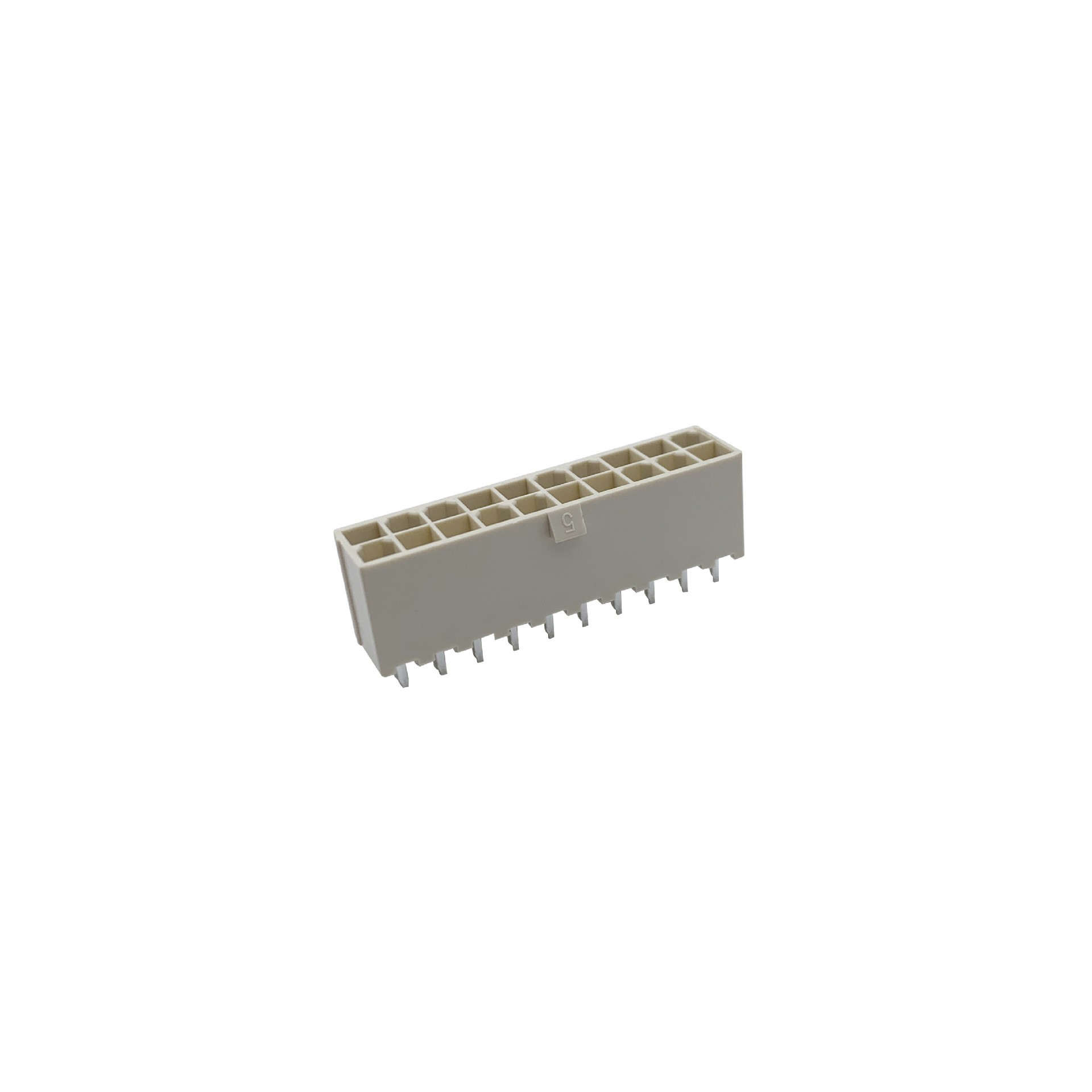

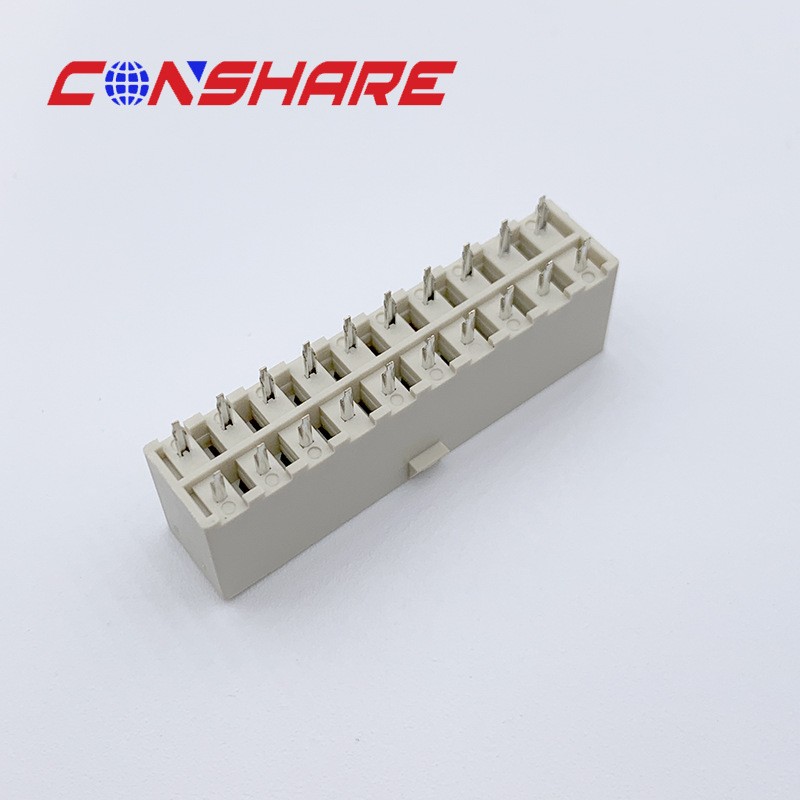

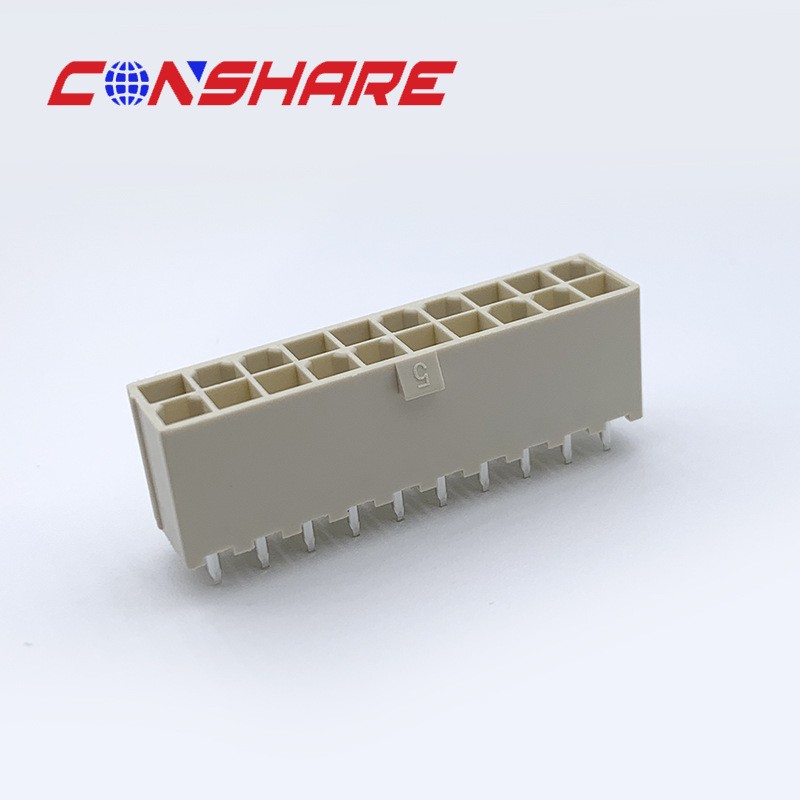

CONSHARE’s 2×12P ATX power connector is a non-post, high-temperature resistant board-mount socket, designed for reliable power delivery to motherboards and industrial control devices. It serves as a stable interface for main power connections in computing and industrial setups.
The locating-post-free design offers greater PCB layout flexibility, simplifying integration into diverse board configurations. Its heat-resistant materials maintain consistent conductivity under elevated thermal conditions, ensuring long-term operational stability.
CONSHARE’s 2×12P ATX power connector is crafted with heat-resistant engineering plastic and high-grade brass terminals, operating reliably from -40℃ to +105℃. This robust build prevents deformation, maintaining stable electrical performance even under prolonged high-temperature stress in industrial power systems.
Unlike standard ATX connectors, this CONSHARE model features a locating-post-free structure, eliminating fixed positioning constraints. Precision molding ensures consistent pin alignment, allowing seamless integration into diverse board designs and simplifying custom layout requirements for your projects.
Designed for stable power transmission, this connector supports a rated current of up to 5A per pin, with contact resistance controlled below 20mΩ. CONSHARE’s strict quality checks ensure minimal power loss, making it ideal for motherboards, industrial control devices, and computing systems.
As a professional manufacturer, CONSHARE offers flexible customization for this 2×12P ATX power connector, including housing color, terminal plating, and packaging specifications. We adapt the design to match your project requirements, supporting both small-batch prototypes and mass production orders.
CONSHARE’s 2×12P ATX power connector uses brass terminals with tin plating to resist oxidation and corrosion. Every unit undergoes over 1000 hours of high-temperature aging tests, ensuring stable performance and extended service life in both consumer and industrial environments.
Parameter Item | Specification |
|---|---|
Product Name | 2×12P Non-Post High-Temp ATX Connector |
Pin Count | 24Pin (2×12P) |
Mounting Type | Through-Hole (DIP) |
Rated Current | 5A Per Pin |
Operating Temperature | -40℃ ~ +105℃ |
Contact Resistance | ≤20mΩ |
Insulation Resistance | ≥1000MΩ @ 500VDC |
Industrial Control & Rugged Motherboard Systems
CONSHARE’s 2×12P ATX power connector delivers stable power for industrial motherboards and control systems. Its non-post design offers flexible PCB layout options, while high-temperature resistance ensures reliable operation in factory environments with fluctuating thermal conditions.
Desktop & Embedded Computing Devices
This high-temperature resistant 24Pin ATX connector serves as a reliable main power interface for desktop PCs and embedded computing setups. With a 5A per pin current rating, it ensures consistent power delivery for stable performance in both standard and compact designs.
Industrial Power Supply & Server Module Connections
Built for durability, this non-post ATX connector is ideal for linking industrial power supplies and server modules. Its robust construction and high insulation resistance prevent power loss, ensuring secure, long-term transmission in high-demand server systems.
Automation & Precision Testing Instruments
CONSHARE’s 2×12P ATX power connector supports continuous power for automation machinery and precision testing equipment. The non-post design adapts to custom PCB layouts, while heat-resistant materials maintain stable conductivity during prolonged operation.
A: Yes, its electrical specifications match standard ATX interfaces. The non-post design only affects the PCB mounting side, while the mating power plug remains fully interchangeable with standard components.
A: Absolutely. It operates stably across -40℃ to +105℃ and undergoes strict high-temperature aging tests, maintaining consistent conductivity even under prolonged heat stress in industrial settings.
A: No, the connector’s pin structure and housing locking mechanism ensure a secure fit on the PCB. The non-post design eliminates layout constraints while maintaining reliable electrical and mechanical performance.
A: Yes, CONSHARE provides flexible customization options, including housing color, terminal plating, and packaging. We can adjust specifications to meet your unique project requirements for both prototypes and mass production.
