If the Connector Arrives Bent, Nothing Else Matters

A DDR5 UDIMM connector carries 288 contacts. Every one needs to land flat on the PCB pad, with coplanarity tight enough that reflow creates 288 identical solder joints. The moment a connector leaves the factory in bulk packaging—contacts rubbing against contacts, housings stacked under their own weight—you have introduced variability that no amount of reflow profiling can fix.

That is the argument for hard tray packaging with an integrated Mylar layer. It is not about presentation. It is about whether your pick-and-place machine picks a connector that matches the datasheet, or one that has been subtly deformed since it left the molding line.

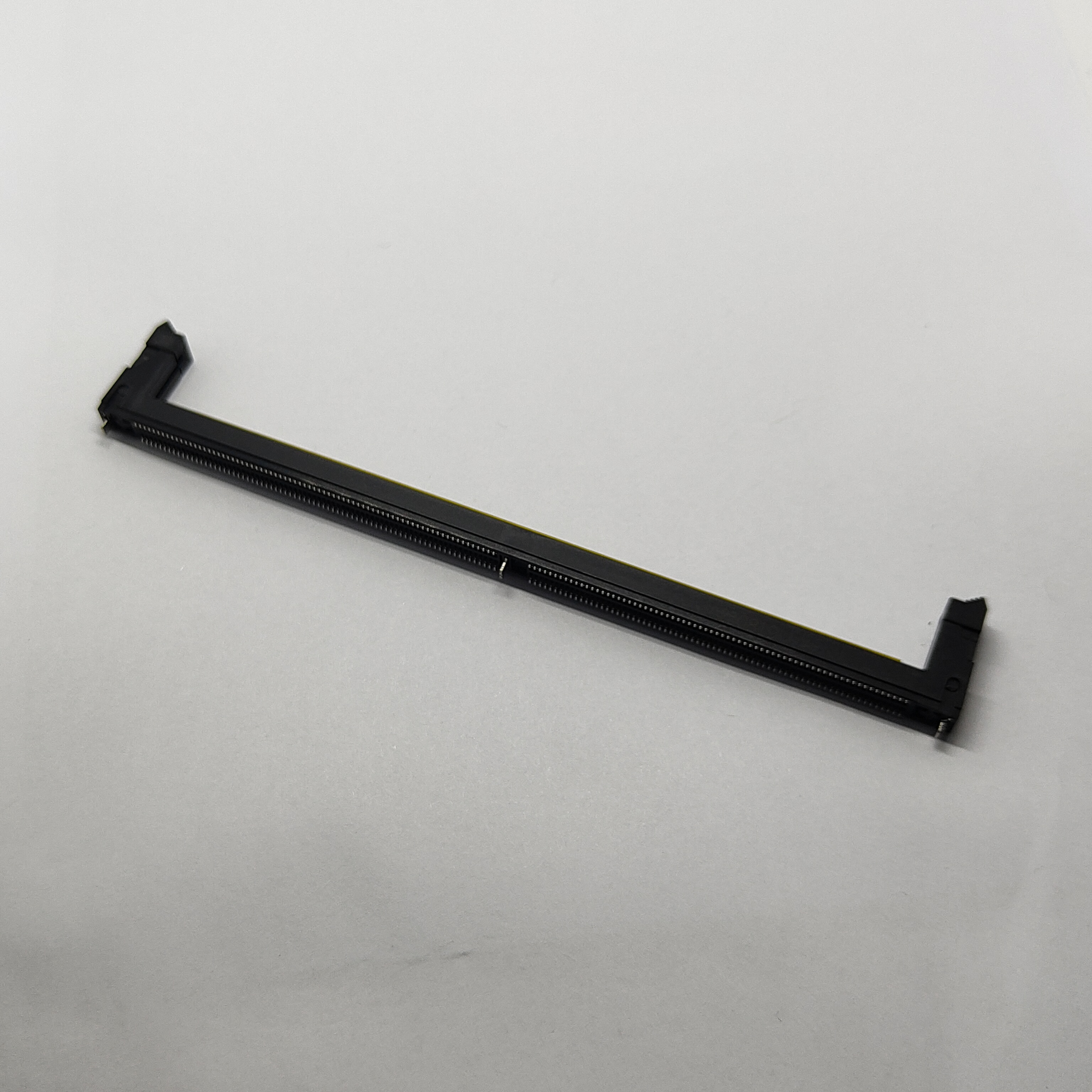

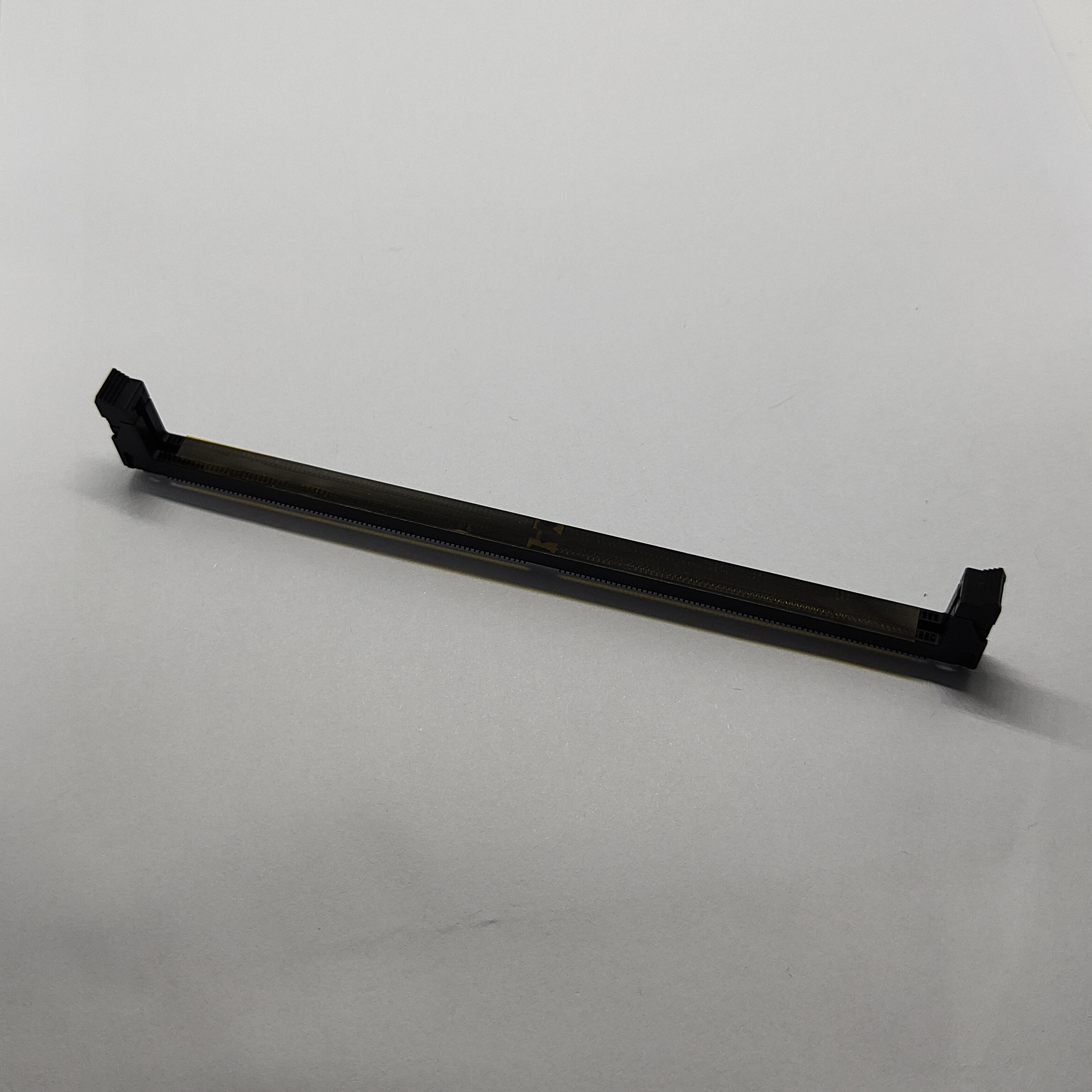

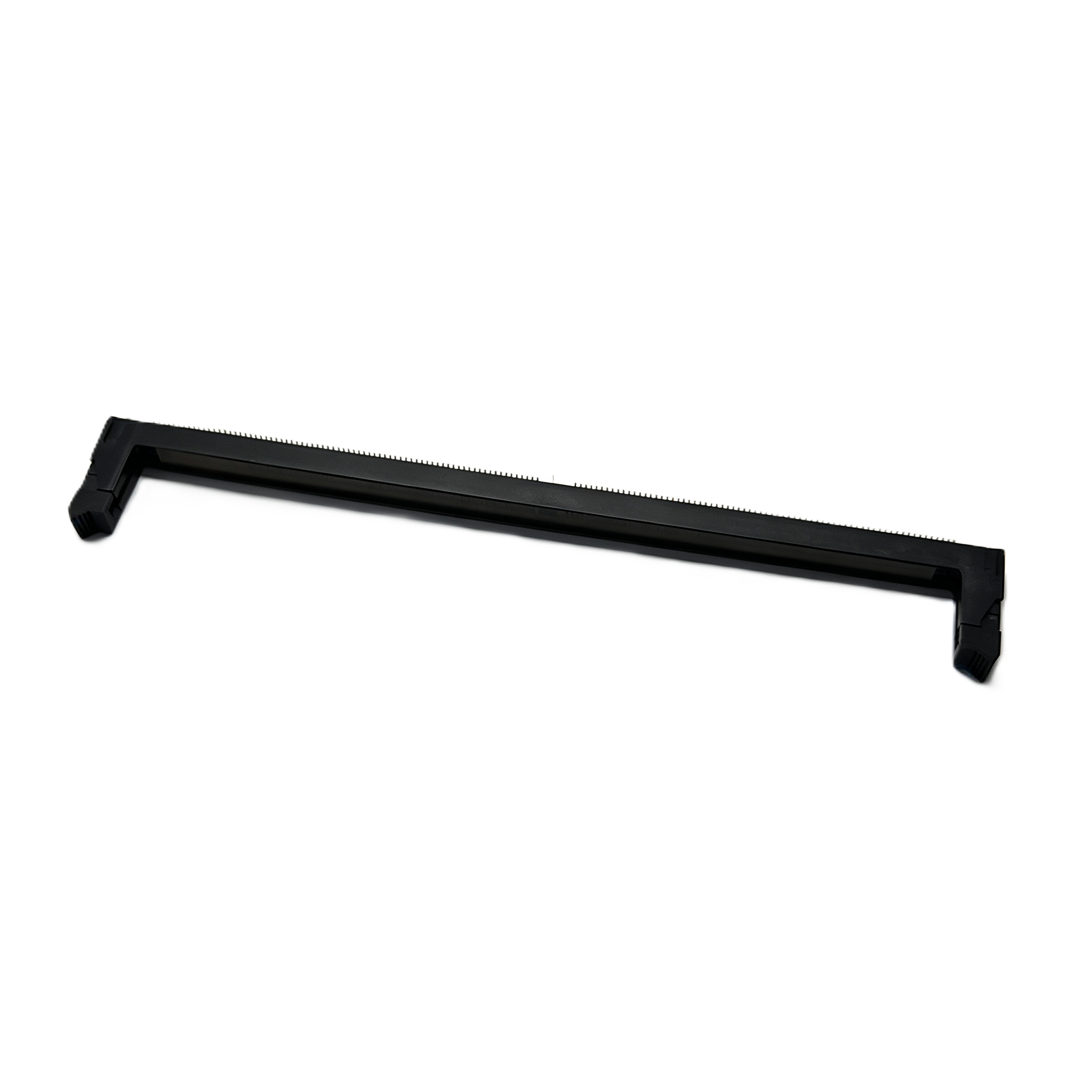

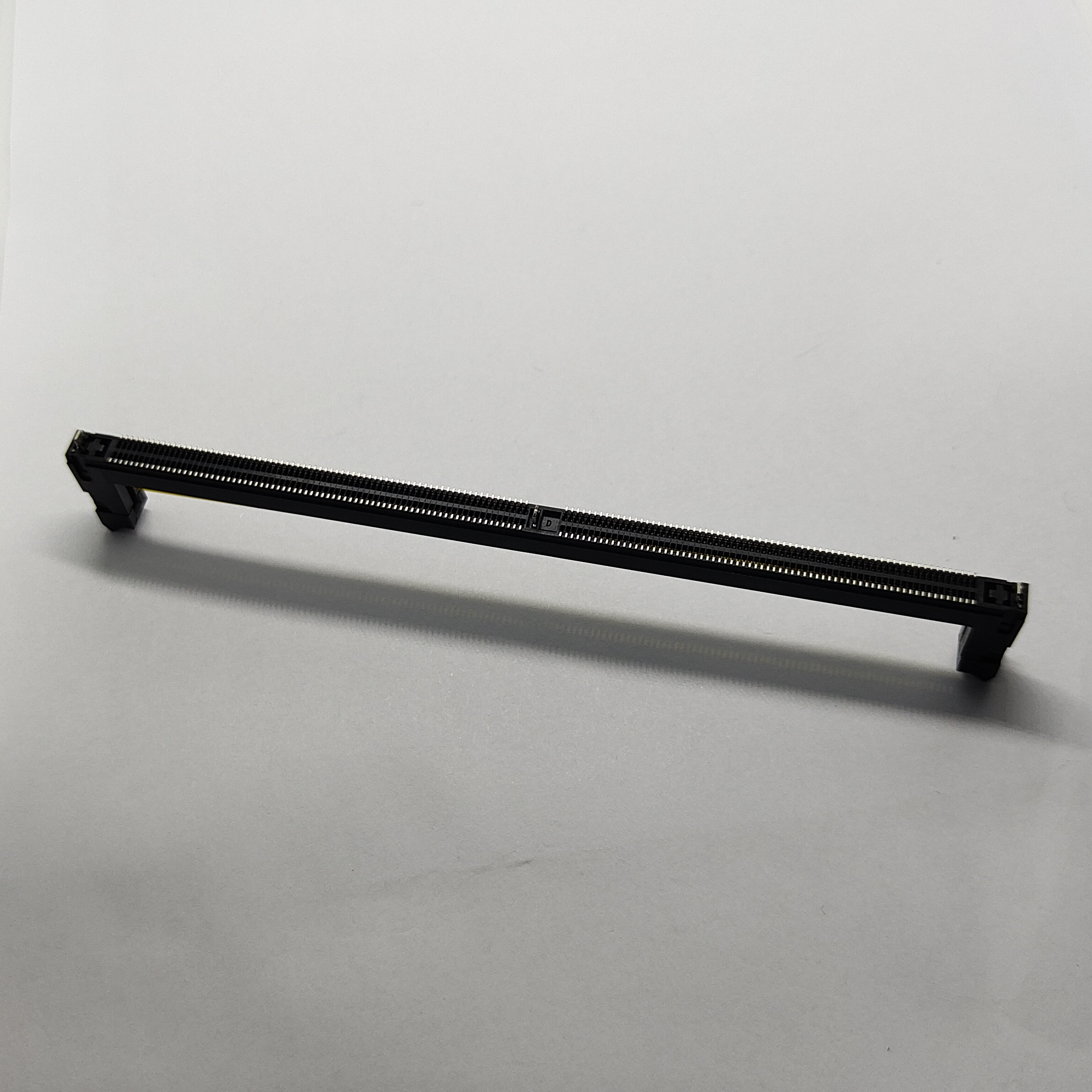

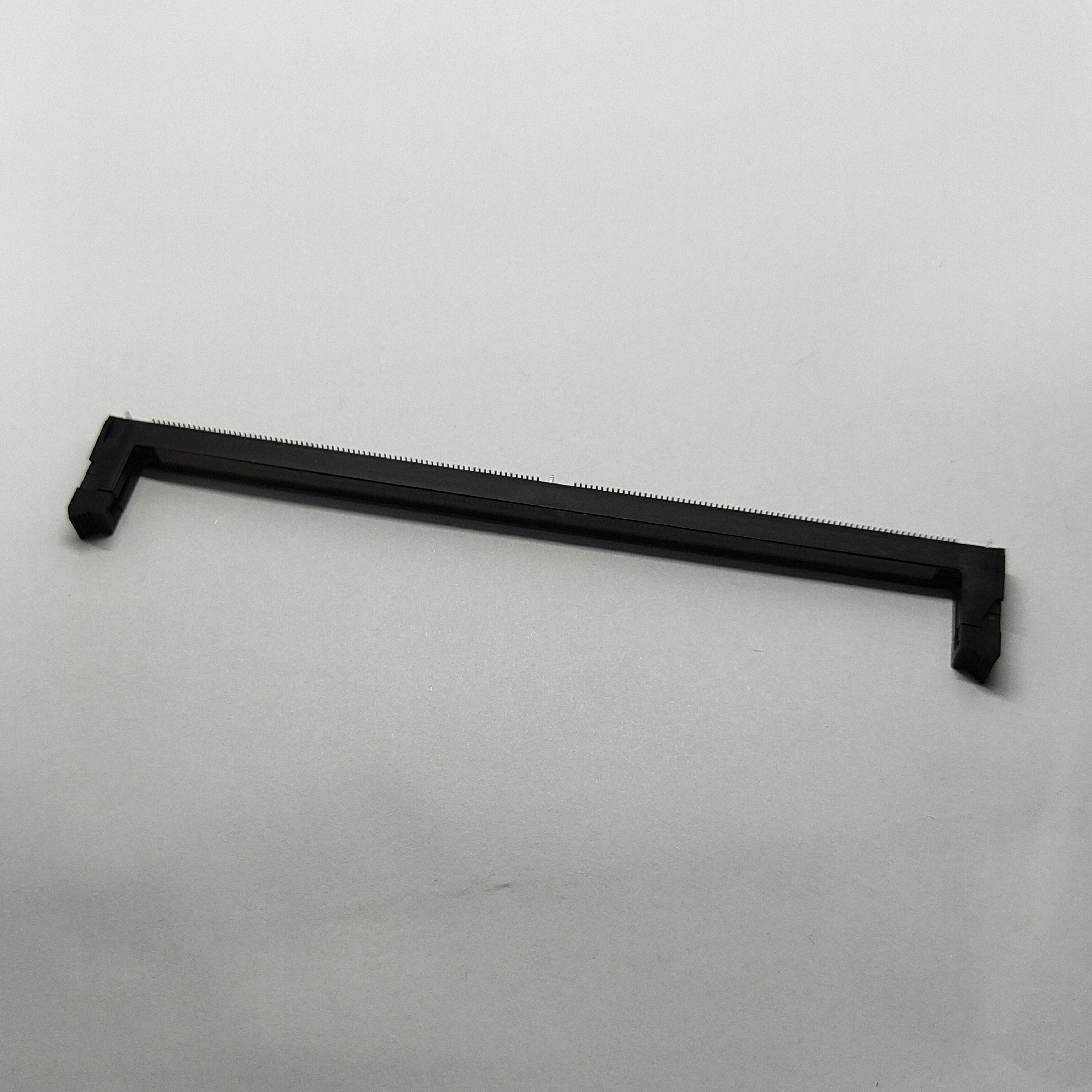

CONSHARE ships CUR028U5XXXXX—the DDR5 288-pin UDIMM with short latch, black housing, and Au 30µ" contact plating—in rigid trays with Mylar interleaf. Each cavity isolates a single connector, shielding contact surfaces from abrasion and environmental exposure during transit. For a line running thousands of placements per shift, tray-packed connectors mean stable first-pass yield. Bulk-packed means an SMT engineer chasing intermittent opens.

Short Latch, Slim Profile: What 120mm Buys You

The Latch That Does Not Waste Board Space

Standard UDIMM latches extend beyond the connector body to provide a grip point for module ejection. That extra length works on an ATX motherboard with generous DIMM slot clearance. On a densely packed embedded board, a 1U server blade, or a board where the DIMM slot sits next to a VRM heatsink, those extra millimeters start a negotiation nobody wants.

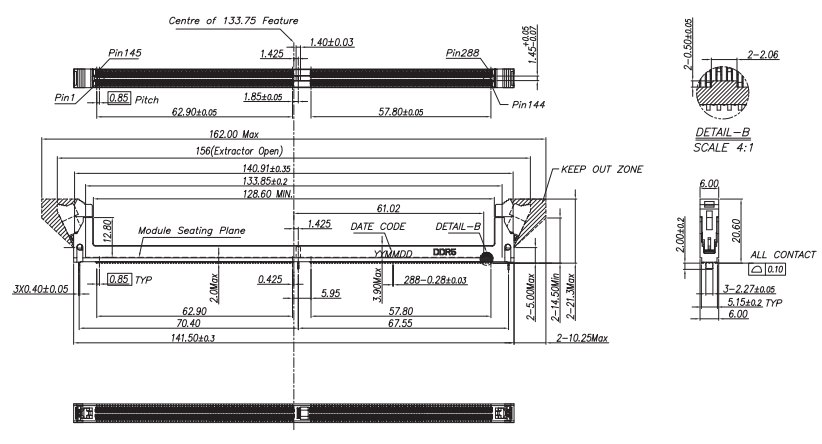

The short latch on CUR028U5XXXXX trims the overall connector envelope to 120mm without reducing latch retention force. The mechanism uses the same spring geometry as a full-length latch but terminates closer to the connector body. Module hold-down force stays within the JEDEC-specified range, so you get the same insertion and extraction behavior in a tighter footprint.

For system designers, the 120mm length means one DIMM slot can sit closer to the board edge and two adjacent slots can share a narrower keep-out zone. Over ten thousand boards, those recovered millimeters translate to routing flexibility a longer connector cannot offer.

Hard Tray + Mylar: A Packaging Decision That Affects Your Line

Hard trays cost more than bulk bags. But a rigid cavity holds the connector body in a fixed orientation, protecting the 288 pins from cumulative micro-deformation during transit. The Mylar adds a dielectric barrier between the tray and contact surfaces—important if connectors sit in storage for weeks before hitting the SMT line, particularly in humid conditions where bare copper can oxidize through microscopic pores in the gold plating.

Au 30µ": When a Specification Becomes a Production Decision

Gold plating thickness is one of those specifications that looks simple on a drawing and turns into a real trade-off the moment procurement gets involved.

Thirty micro-inches of gold sits in a practical middle ground. Au 15µ" meets the contact resistance spec for a connector that is inserted once at the factory and never touched again. Au 30µ" gives you enough gold volume to survive repeated module swaps—during burn-in, during field upgrades, during test-bay cycling—before the nickel under-layer starts to show through and contact resistance begins its slow climb toward spec limit.

Here is the math that matters: every module insertion scrapes a fraction of a micro-inch off the contact surface. At 15µ", you have a tighter margin before the gold wears through. At 30µ", you have roughly double the wear volume for roughly the same initial contact resistance. If your system design calls for modules to be installed once and left alone—a sealed embedded controller, a digital signage player—the 15µ" variant makes economic sense. If your modules will be handled more than twice after assembly, the 30µ" specification on CUR028U5XXXXX is the lower-risk path.

The black housing on this connector is more than a color choice. Dark housings improve visual contrast during automated optical inspection, making it easier for AOI systems to identify bent pins or incomplete seating against the PCB surface. On a high-volume SMT line, that contrast difference translates to fewer false rejects and fewer escaped defects.

CONSHARE Manufacturing: What Happens Between Order and Delivery

Quality Gates Before Tray Packing

Every production batch of CUR028U5XXXXX passes through three inspection stations before the tray lid closes. Pin coplanarity is checked via CCD optical inspection on the stamping line. Contact retention force is sampled per cavity per production lot, with statistical process control limits set tighter than the specification minimum. Plating bath chemistry is logged per shift, and coupon thickness measurements are recorded per batch—not per week, not per month. If a batch falls below the Au 30µ" minimum on any contact zone, it does not leave the facility.

Lead Times and Logistics

Standard lead time for CUR028U5XXXXX runs 4–6 weeks ARO. CONSHARE maintains a rolling production schedule for DDR5 UDIMM variants, which means lead time stability rather than the stop-start pattern that comes from batch-only manufacturing. For programs with forecast visibility, we can establish buffer stock under a consignment or VMI arrangement. International shipping documentation, including Certificates of Origin and RoHS compliance declarations, is included as standard—not as an extra line item.

Where This Connector Fits: Application Profile

Not every DDR5 UDIMM application calls for the same connector configuration. Here is how CUR028U5XXXXX maps to real deployment scenarios.

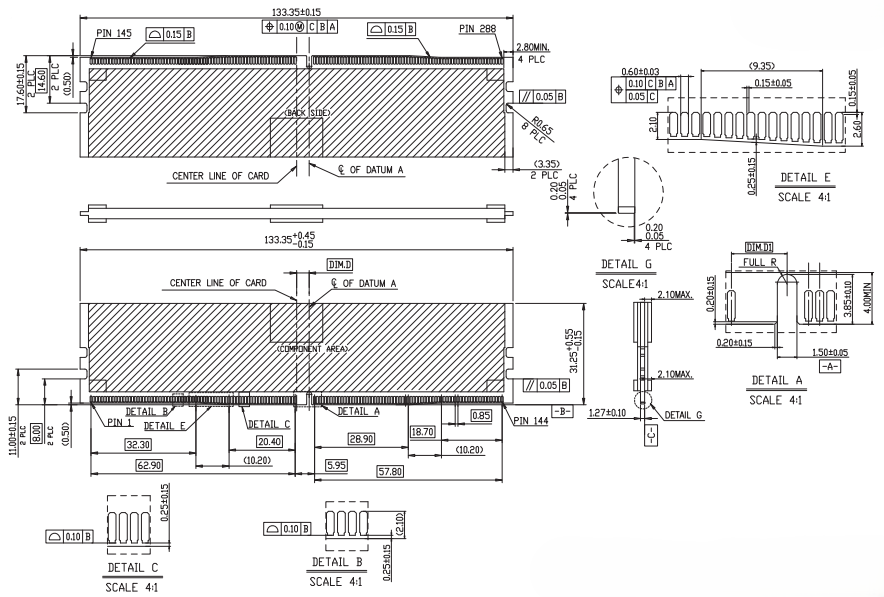

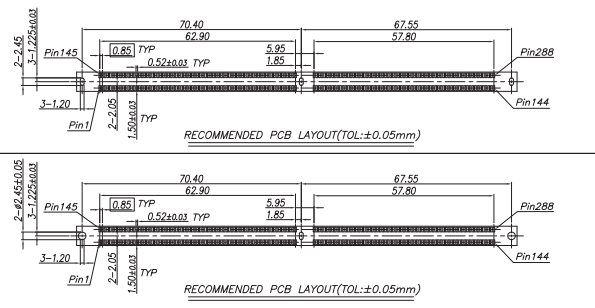

Technical Specifications

Five Questions Buyers Ask Before Ordering

Is this connector compatible with standard DDR5 UDIMM modules?

Yes. CUR028U5XXXXX follows the JEDEC DDR5 UDIMM outline and keying specification. Any DDR5 UDIMM module built to the JEDEC standard will mate correctly. The short latch does not change the module interface—it only reduces the connector's external envelope.

What happens to the Mylar in the tray—do I remove it before feeding?

The Mylar is an interleaf layer between the connector and the tray, not a film applied to the connector itself. Your SMT operator removes the tray lid, lifts the Mylar sheet, and the connector is ready for pick-and-place. If your line uses automated tray feeders, confirm that the feeder mechanism clears the Mylar layer; most standard JEDEC-tray-compatible feeders handle this without adjustment.

Can I get this connector with Au 15µ" instead of Au 30µ"?

The CUR028U5XXXXX part number specifies Au 30µ". If your application calls for Au 15µ", CONSHARE offers that as a separate SKU. The two plating options are not interchangeable at the part number level—this avoids confusion during incoming inspection and ensures your IQC team is testing against the correct specification.

Does the short latch affect module retention in high-vibration environments?

The short latch delivers retention force within the same range as a full-length latch—the spring geometry compensates for the shorter lever arm. For sustained high-frequency vibration in vehicle-mounted equipment or industrial machinery, validate retention under your specific profile. Latching force can be adjusted within the mold tool if needed.

What is the shelf life of a tray-packed connector in storage?

When stored in the original sealed hard tray with Mylar in a controlled environment (15–35°C, <60% RH), CUR028U5XXXXX connectors maintain solderability for a minimum of 12 months from shipment. The Mylar and sealed tray provide substantially better humidity protection than bulk packaging. For storage beyond 12 months, contact CONSHARE for bake-out recommendations.
