Card Edge Connector
Industrial, IT Datacom

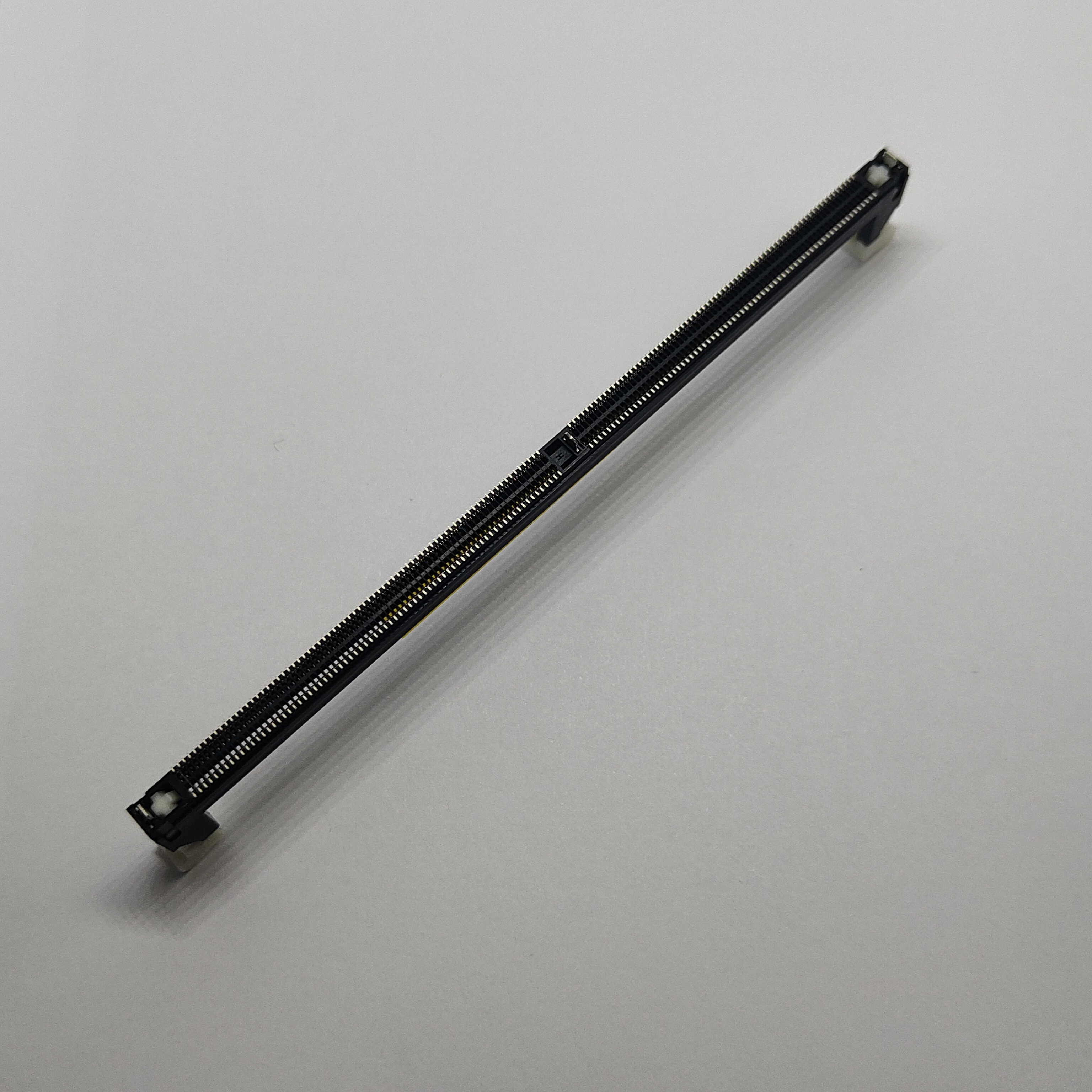

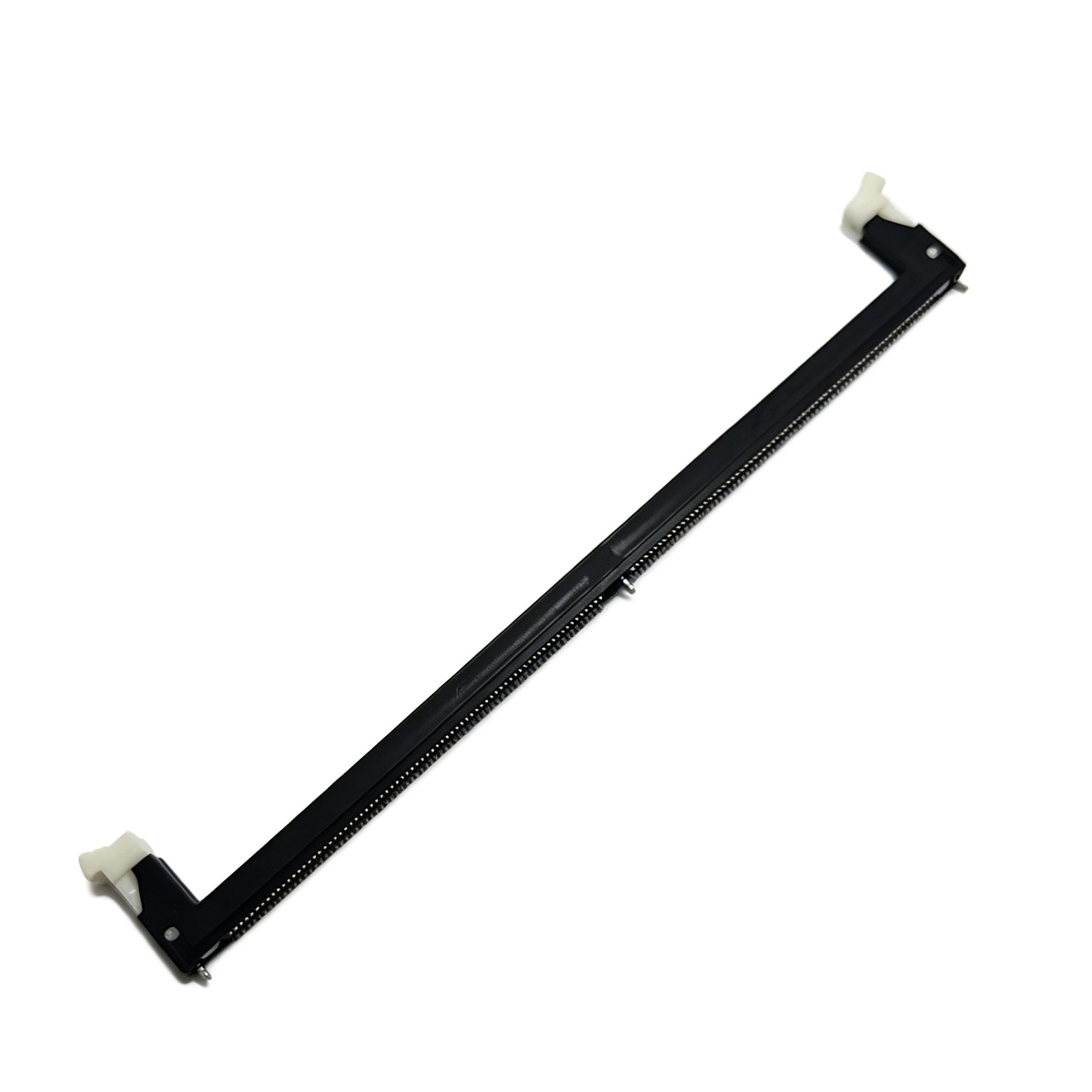

Every trace, every plating choice, and even the color of the connector body influences how a high‑speed memory interface performs on the factory floor and in the field. CONSHARE’s DDR5 288‑pin SMD socket takes those details seriously. Available with a black or blue insulator and fitted with white ejector latches, it is built for engineers who need more than a data‑sheet part number — they need a component that actively reduces assembly mistakes, speeds up visual inspection, and keeps signal paths stable over the product’s lifetime.
DDR5 pushes per‑pin data rates above 4.8 GT/s and onward to 6.4 GT/s and beyond. At those speeds, the memory socket is no longer a passive mechanical bridge. Tiny variations in contact normal force, wipe distance, and plating porosity directly affect impedance continuity and bit error rates.
The 288‑pin interface in this socket is designed with optimized contact geometry that balances insertion force and vibration resistance — a non‑trivial trade‑off for unbuffered and registered DIMMs alike. Rather than just listing pin count, what matters is that each contact beam maintains consistent pressure after multiple thermal cycles and DIMM swaps, helping OEMs avoid field returns caused by intermittent memory training failures.
CONSHARE pairs this contact system with surface‑mount leads engineered for coplanarity within 0.10 mm, which becomes critical when the same board carries heavy BGA packages and thick PCB stacks. Better coplanarity means fewer open‑solder defects after reflow and less time spent on X‑ray inspection of hidden joints.

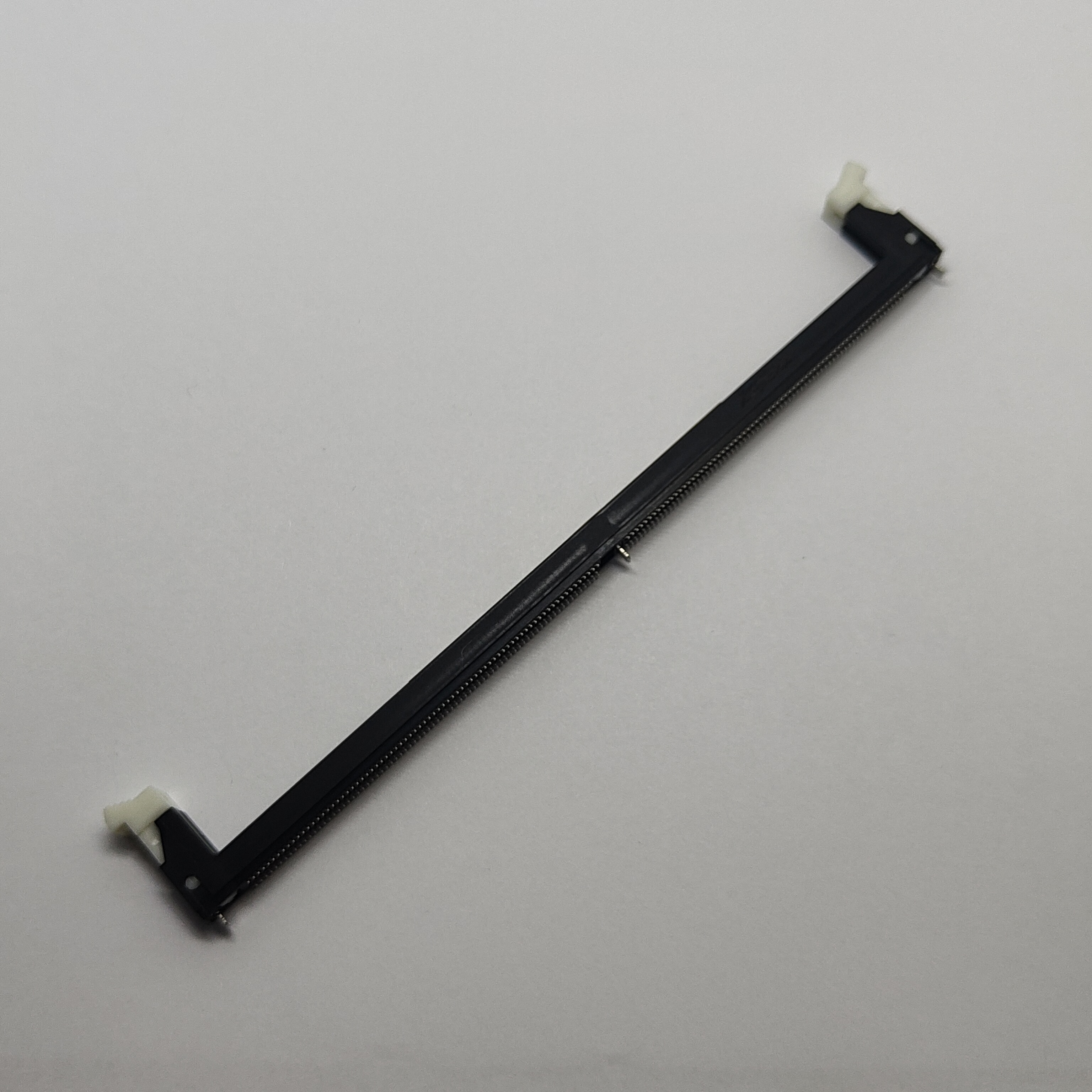

White may seem like a cosmetic choice until you work inside a crammed 2U chassis or under a GPU shroud. Dark‑colored latches blend into matte‑black PCBs, forcing technicians to hunt for the release point, often with a screwdriver dangerously close to surface‑mount capacitors.

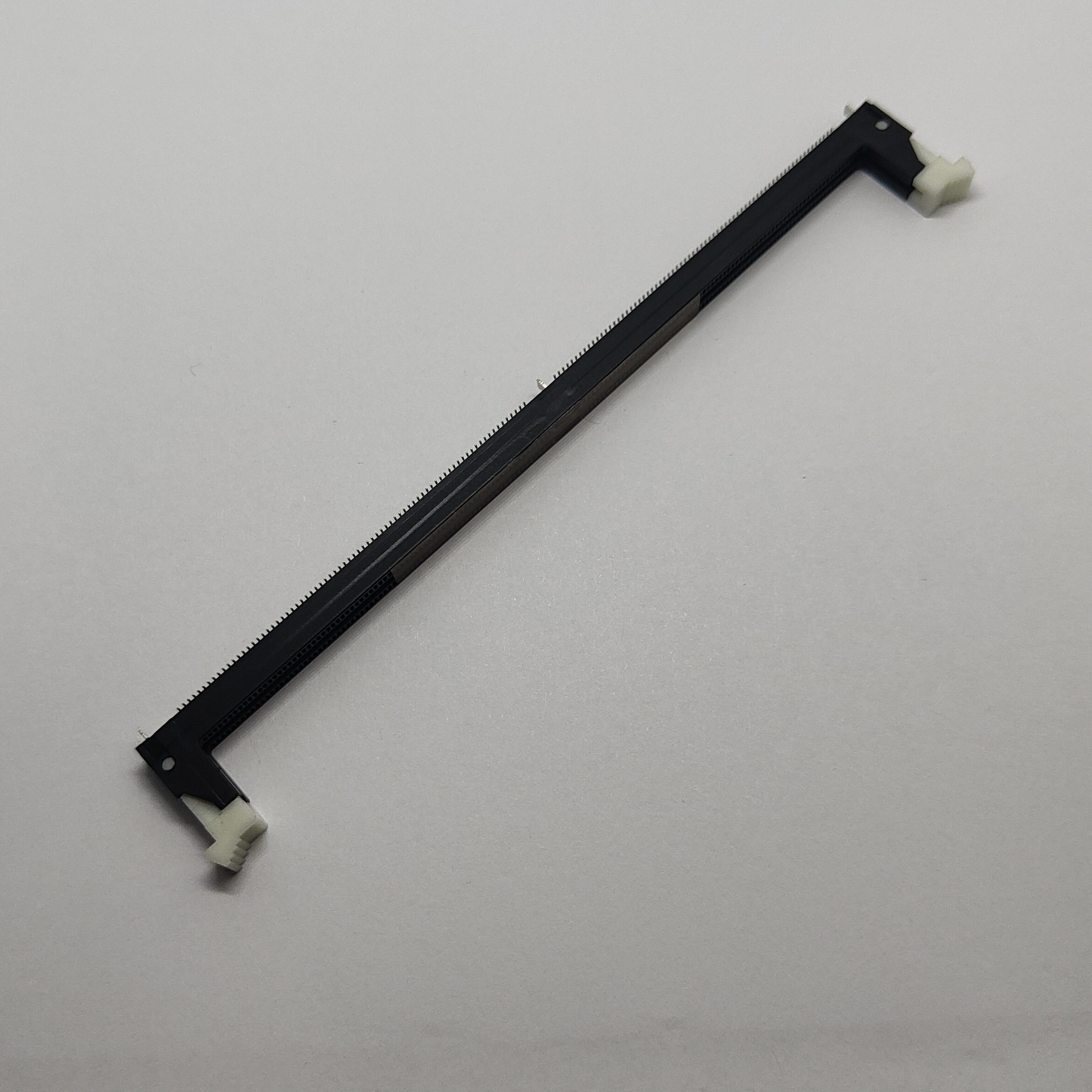

The white ejector latches on this socket offer high contrast against any solder mask — black, blue, or green. During manual DIMM insertion or in‑system troubleshooting, the bright latch immediately signals the actuation point. That reduces:
Accidental scratching of adjacent traces
Ejector breakage from misaligned tool pressure
Time spent per DIMM re‑seat in high‑volume server burn‑in racks
For production lines that still use manual memory population (prototype builds, white‑box servers, industrial motherboards), this single visual cue has been reported by CONSHARE’s integration partners to trim rework time by up to 12% because operators no longer need to tilt boards under a magnifier just to find the ejector tab.
Both insulator colors share identical electrical and mechanical specifications, yet the color option solves a real manufacturing and field‑service problem: channel identification without additional labelling.
nsulator Color | Recommended Use Case | Visual Purpose | Assembly Advantage |
|---|---|---|---|
Black | General‑purpose primary slots | Blends with dark‑theme PCBs, keeps focus on silkscreen | Reduces visual clutter on boards with dense memory routing |
Blue | Secondary channel, Channel A/B designation, or service‑highlighted slots | Creates immediate contrast when adjacent to black slots | Lets operators and field engineers verify dual‑channel population at a glance |
When a board requires two or four DIMM sockets side by side, populating the wrong channel leads to single‑channel fallback — a mistake that often goes unnoticed until benchmark or validation. Mixing one black socket and one blue socket per channel pair acts as a passive poka‑yoke (error‑proofing) that the silkscreen alone cannot provide, especially after the board accumulates dust or the labeling wears off.
Mainboard integrators using this dual‑color approach have shared that post‑assembly channel‑check failures dropped noticeably, simply because a misplaced DIMM looks obviously wrong to the naked eye.

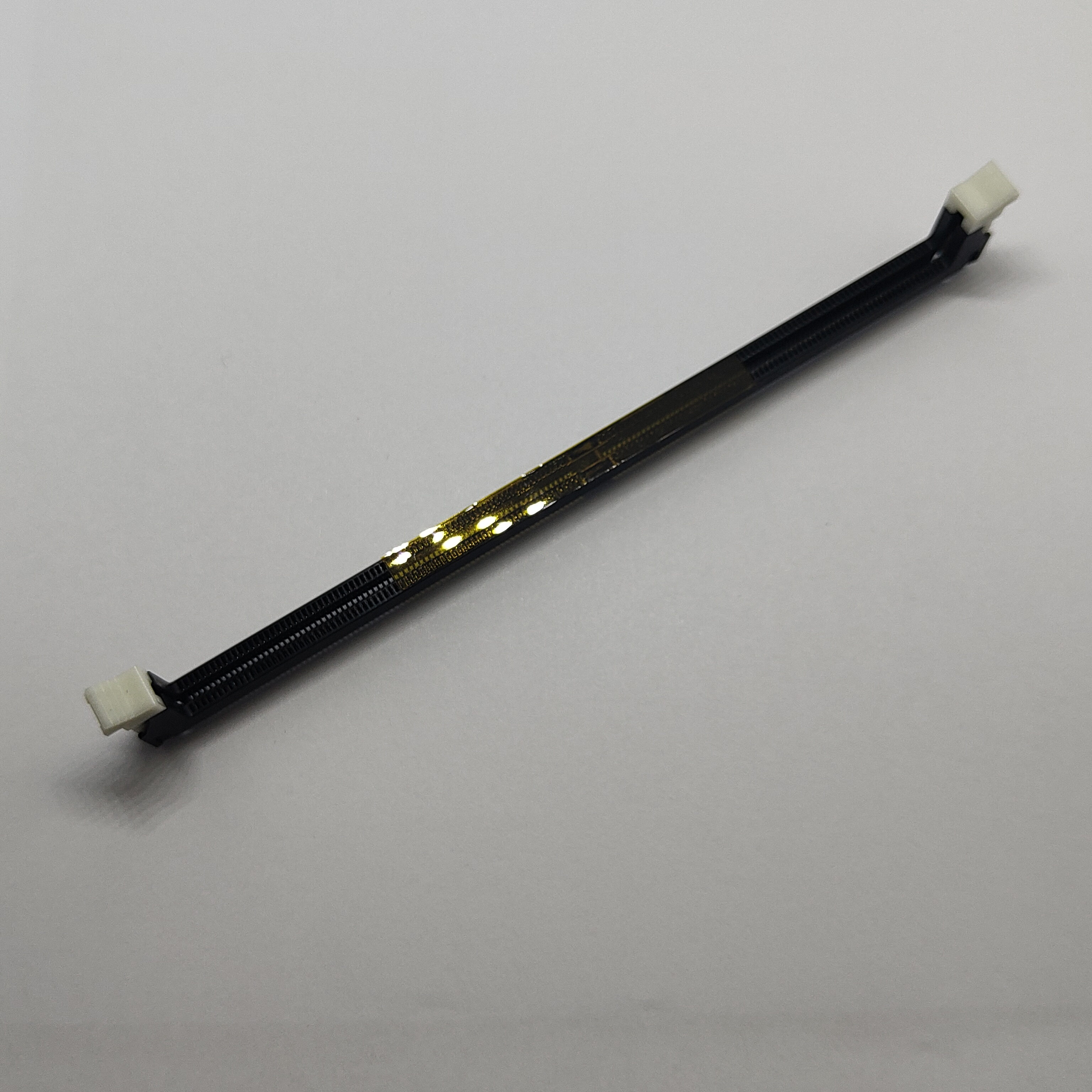

The Au 1µ" (approximately 0.025 µm) plating on the contacts is a deliberate engineering trade‑off, not a cost‑down shortcut. Pure gold is too soft; heavy gold (15–30 µ") adds unnecessary expense for most commercial and industrial products. The 1µ" flash over nickel underplate provides:
Solid corrosion resistance for indoor, non‑condensing environments (servers, desktops, embedded systems).
Low‑porosity finish that maintains contact resistance below 20 mΩ even after exposure to mixed‑flowing gas tests equivalent to 5‑year office‑industrial atmospheres.
Stable wipe dynamics — the thin gold layer does not gall or pile up at the contact wipe track, which could otherwise create intermittent opens after multiple DIMM insertions.
For applications that expect fewer than 50–100 mating cycles over the product’s life (typical of enterprise motherboards and industrial PCs), the 1µ" gold flash is the rational choice. It keeps the bill‑of‑materials lean while still supporting the signal integrity margins DDR5 demands. Only when the socket must survive heavy test‑bed cycling or tropical outdoor enclosures would a heavier gold plating become necessary — and CONSHARE’s engineering team can advise on those higher‑cycle alternatives if needed.
Surface‑mount DIMM sockets impose a footprint challenge: 288 leads with 0.85 mm pitch in a dual‑inline layout. The CONSHARE socket tackles this with kinked‑lead terminals that lock into the PCB prior to reflow, reducing tombstoning and shifting during conveyor vibration.
What often gets overlooked in the sourcing decision is solder‑paste stencil design. Because the lead array is long, the center leads and edge leads experience different thermal ramps. CONSHARE recommends a split stencil aperture with a 10–15% reduction in paste volume for the four corner leads to avoid bridging while maintaining enough solder for fillet formation at the corners where mechanical stress concentrates during latch actuation.
This kind of integration detail is rarely found on a datasheet but prevents costly board respins. When you specify this socket, CONSHARE provides a footprint recommendation document that includes paste aperture tweaks verified through real SMT line trials — not just generic IPC‑7351 footprints.
White‑box server builder (1U/2U rack)
Used blue insulator sockets for channels A/C and black for B/D. End‑of‑line testers could validate dual‑channel mode in seconds just by glancing at the socket color pattern, catching mis‑populated DIMMs before software boot.
Industrial automation motherboard
Black sockets throughout, but the white ejector latches were the deciding factor. Field service engineers frequently swap DIMMs inside sealed HMI panels with minimal lighting. The white latch minimized the “wrong lever” accidents that previously led to broken clips and entire board replacements.
Gaming motherboard prototyping
Engineers needed to quickly differentiate between memory trace‑length test groups. Blue sockets on test channel A provided an unmistakable reference point during oscilloscope probing and swapping different DIMM samples, reducing setup errors during DDR5 signal integrity validation.
The ejector is molded from glass‑filled liquid crystal polymer (LCP) identical in base resin to the dark variants, with a heat‑stable white pigment. IR reflow and long‑term thermal aging up to 260°C peak show no embrittlement difference when compared to black LCP latches. The white tint actually helps spot stress cracks if they ever occur, because micro‑crazing shows up more visibly.
Yes. The insulator color comes from the bulk plastic pigment and does not alter the dielectric constant in a way that measurably changes intra‑pair skew on a DDR5 channel. The metal contacts, contact pitch, and lead frames are identical. What you gain is the visual differentiation; what you do not introduce is an electrical variable.
Gold flash over adequate nickel underplate (typically 50–100 µ" Ni) has been proven in telco central offices and coastal data centers for decades. The corrosion risk in those environments comes from the nickel layer integrity, not from gold thickness. CONSHARE’s barrier layer is specified to pass 48‑hour mixed‑flowing gas tests per IEC 60068‑2‑60 Method 4, which simulates years of urban‑industrial exposure.
The same 288‑pin SMD socket platform supports heavier selective gold plating. While not shown in this standard listing, CONSHARE can deliver higher gold thickness on demand with a slight lead‑time addition. The important point: you do not over‑specify and pay for gold unless the use case truly requires it.
The DIMM socket is often the last component chosen and the first to be blamed when memory training fails intermittently. CONSHARE flips that narrative: the socket becomes an active design element, not an afterthought. Selecting between black and blue insulator, leveraging the white ejector for optical guidance, and correctly interpreting the 1µ" plating as a lifecycle balance point all contribute to a product that tests clean on the first spin and stays reliable in the field.
Every 288‑pin DDR5 socket shipped by CONSHARE goes through automated contact‑force measurement and coplanarity optical inspection before packaging in moisture‑sealed trays. The result is a low‑DPPM BOM line item that you can treat as a settled decision, leaving your engineering team to focus on DRAM training firmware and trace routing — where their time is better spent.
