Card Edge Connector
Industrial, IT Datacom
Walk through any contract manufacturer's SMT line and you will see the same thing: black sockets on black PCBs under fluorescent lights. An operator squinting at slot seven of sixteen, trying to confirm a DIMM is fully seated. Repeat that ten thousand times across a production run.

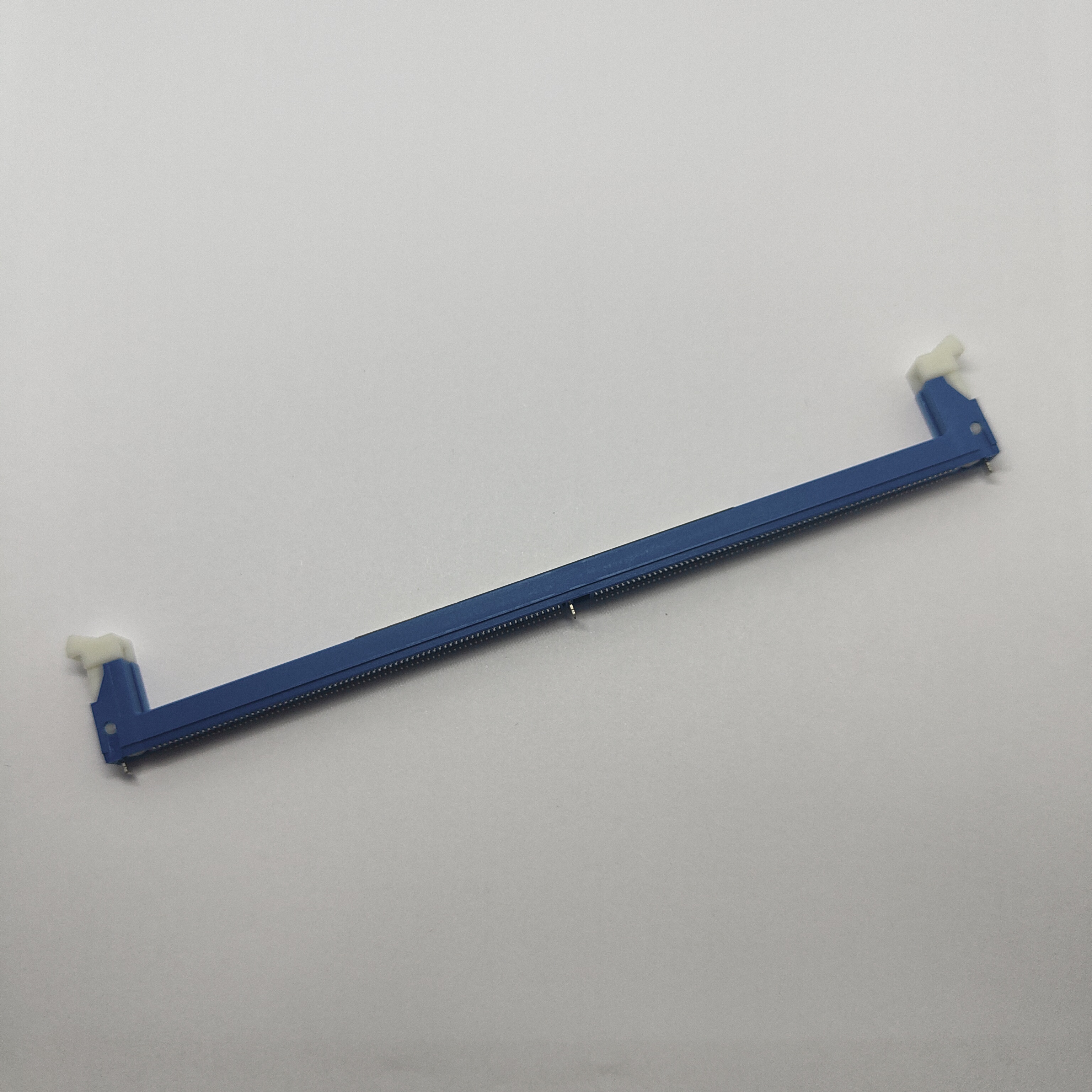

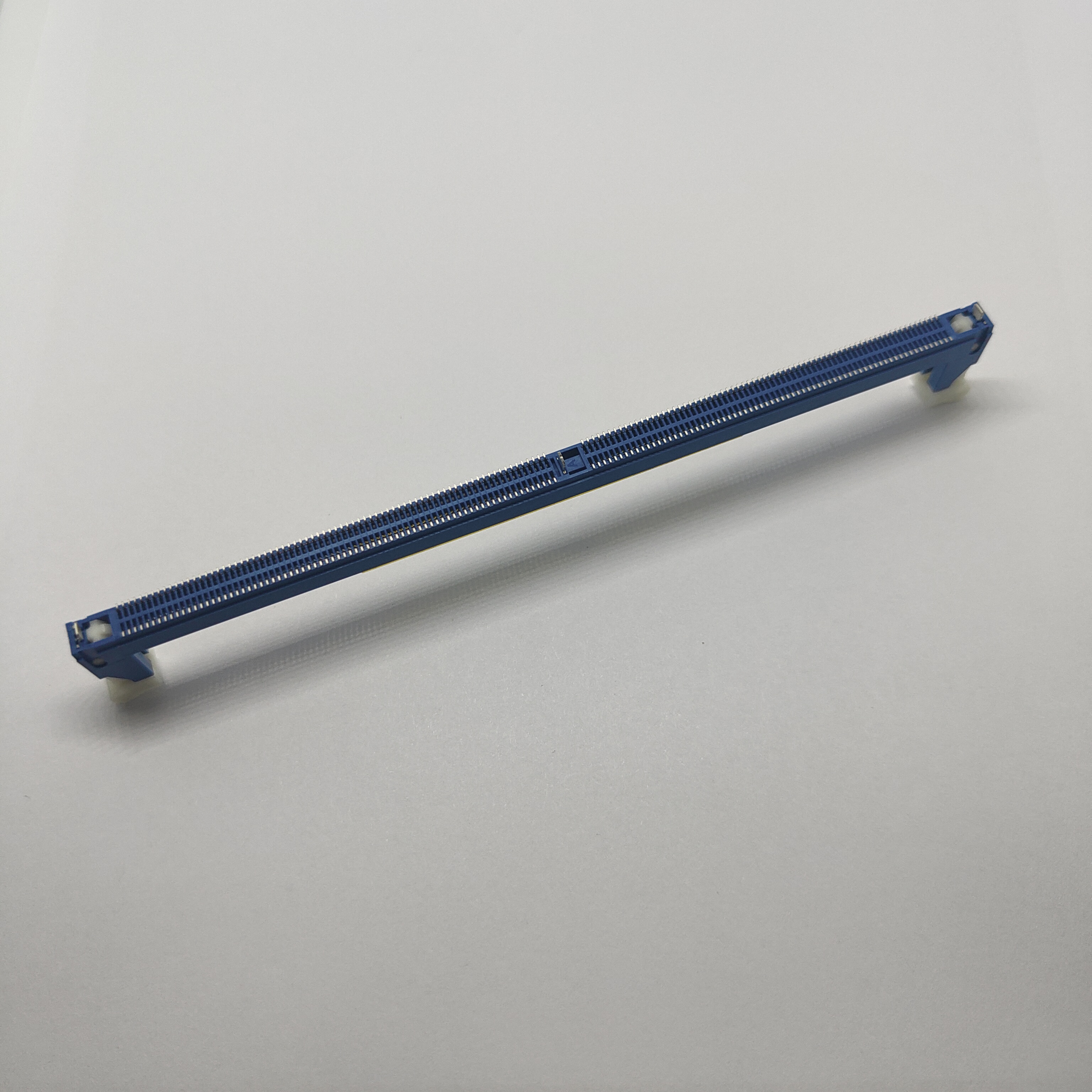

CONSHARE ships this DDR5 288-pin socket in Blue (Pantone 287C) because color on a memory socket is a production throughput decision masquerading as a cosmetic one. A blue housing against a dark green or black PCB creates an instant visual anchor. It tells the assembly operator — and later, the QC inspector — exactly where the DDR5 bank begins and ends, separates memory slots from PCIe and M.2 real estate at a glance, and makes a half-inserted DIMM obvious before the board ever reaches functional test.
The material carrying that color is PA9T, a high-performance polyphthalamide with a glass transition temperature comfortably above 125°C. Unlike PA66 — which can soften and warp through lead-free reflow — PA9T holds its geometry across 260°C peak temperatures and cools without residual deformation. In a 288-position connector where contact pitch is 0.85mm, the difference between a housing that stays flat and one that does not is the difference between 288 good solder joints and a board that fails at ICT.
Material | Tg | Reflow Suitability | Moisture Absorption | Best Fit |
|---|---|---|---|---|
PA9T | ~125°C | Excellent | ~0.3% | Dual-latch DDR5, dense SMT layouts |
PA10T | ~135°C | Very Good | ~0.4% | Standard single-latch DIMM sockets |
LCP | ~280°C | Outstanding | ~0.02% | Ultra-fine pitch, cost-insensitive applications |
PA66 | ~75°C | Marginal | ~2.5% | Through-hole only, legacy designs |
PA9T occupies a narrow but important band: thermal headroom above what commodity nylons offer, without the material cost of LCP. For DDR5 sockets running through modern lead-free profiles, that band is where most designs should live.
A single-latch DIMM socket holds a module. Until it does not.
DDR5 modules are taller and heavier than DDR4 — JEDEC allows up to 65 grams for a loaded RDIMM. That mass, sitting in a vertical socket, acts as a lever. Every vibration pulse from a chassis fan, every thermal expansion cycle from ambient to full load, every bump during freight applies rotational force to the latch interface. A single latch can micro-creep open over weeks or months. When it does, the module lifts by 0.1–0.2mm at one end, contact resistance climbs at a handful of pins, and the system starts logging correctable ECC errors. Left unchecked, those become uncorrectable errors and a field return.
A dual-latch design shares the retention load across two independent latch towers. If one latch deforms — from heat, fatigue, or a rough insertion — the second latch holds. The DIMM stays seated. The system keeps running.
This is not a theoretical edge case. Contract manufacturers serving industrial automation, edge computing, and telecom infrastructure report measurably lower field return rates on systems built with dual-latch DDR5 sockets versus single-latch equivalents. The bill-of-materials delta is cents per socket. The cost of dispatching a field engineer to a remote cell site to reseat a DIMM runs into hundreds — before accounting for the downtime.
For any application where the enclosure gets shipped, vibrated, or thermally cycled, dual-latch retention is cheap insurance against an expensive failure mode.

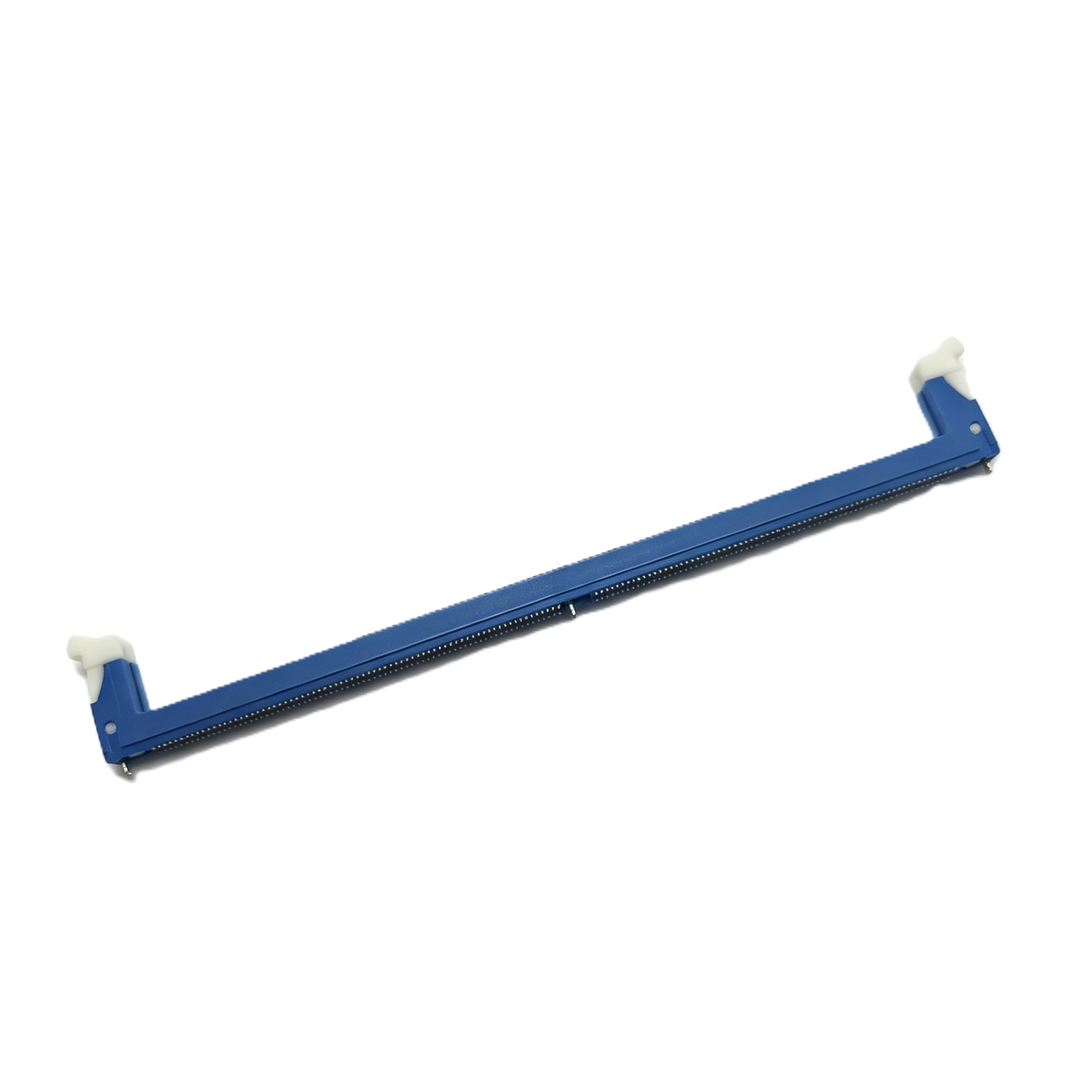

Pair a white extractor with a blue housing and the luminance contrast ratio hits roughly 0.75 — versus about 0.15 for black-on-black or 0.40 for beige-on-black. In an assembly environment where an operator handles thirty board variants per shift, that contrast makes the ejector tab immediately identifiable. The operator sees the latch position, orients the DIMM correctly, and confirms engagement — all in a single glance.
Misorientation during DIMM insertion is the single most common installation defect on memory sockets. A white extractor against a colored body reduces that error rate because the operator's eye does not have to hunt for the ejection mechanism. The feature announces itself.
The extractor itself pivots to lift the module evenly from both ends on ejection. No rocking. No bent contacts. For field-serviceable equipment — edge servers inside enclosure cabinets, digital signage controllers mounted behind panels, test instrumentation that sees frequent reconfiguration — a predictable, damage-free extraction cycle is not a convenience. It is the difference between a five-minute module swap and a board-level repair.
Gold plating on connector contacts follows a simple rule: thicker gold costs more, nearly linearly, but durability does not scale the same way. The jump from flash gold to 15µ" buys you meaningful extra mating cycles. The jump from 15µ" to 30µ" costs roughly 65% more in plating material and only matters if your socket sees more than twenty-five insertion cycles in its deployed life.
Plating Specification | Rated Mating Cycles | Relative Plating Cost | Where It Makes Sense |
|---|---|---|---|
Au Flash (~3–5µ") | ~10 | 1.0× | One-time assembly, consumer desktop |
Au 15µ" | 25 | ~1.8× | Commercial servers, industrial controllers, test equipment |
Au 30µ" | 50+ | ~3.0× | Telecom CO, defense, high-cycle validation labs |
For most commercial and industrial deployments, Au15µ" covers the full lifecycle: factory installation, burn-in, possible rework, and several field service events across a 5-to-7-year deployment window. Specifying Au30µ" across the board adds cost without adding uptime — unless the socket is in a validation lab where DIMMs are swapped daily.

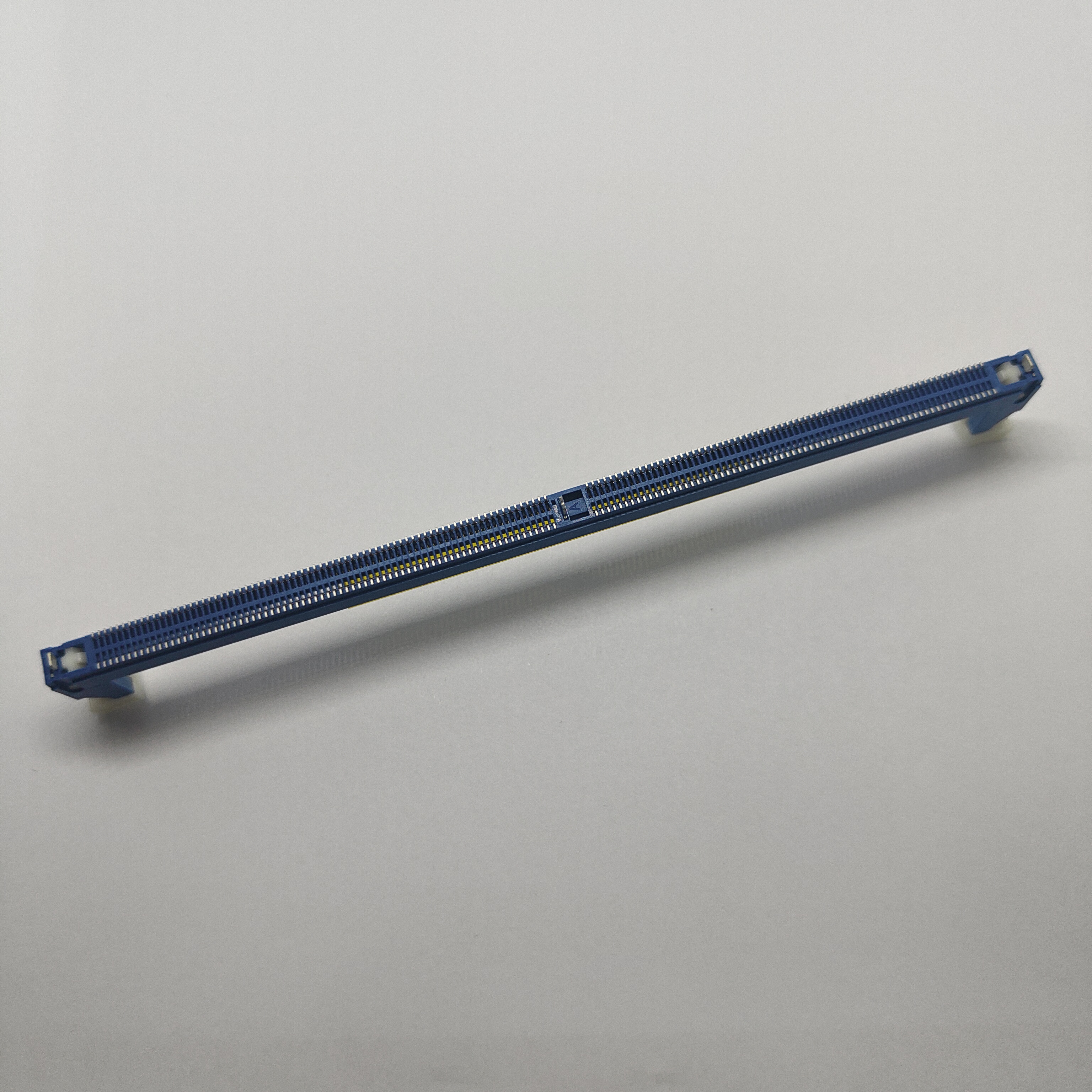

CONSHARE plates Au15µ" over a nickel underlayer on C7025 copper alloy contacts. The nickel barrier prevents copper atoms from migrating into the gold surface — the root cause of contact resistance drift in connectors that skip this step. It is one of those invisible details that separates a socket that measures fine at outgoing QC from one that still measures fine after two years in the field.
At DDR5-6400, the unit interval — the window in which a signal must arrive, settle, and be sampled — spans roughly 156 picoseconds. Every impedance discontinuity along the signal path shaves margin off that window. A 2-ohm mismatch at the socket-to-board interface, barely noticeable at DDR4 speeds, can close the eye diagram enough to push bit error rates past acceptable thresholds at DDR5.

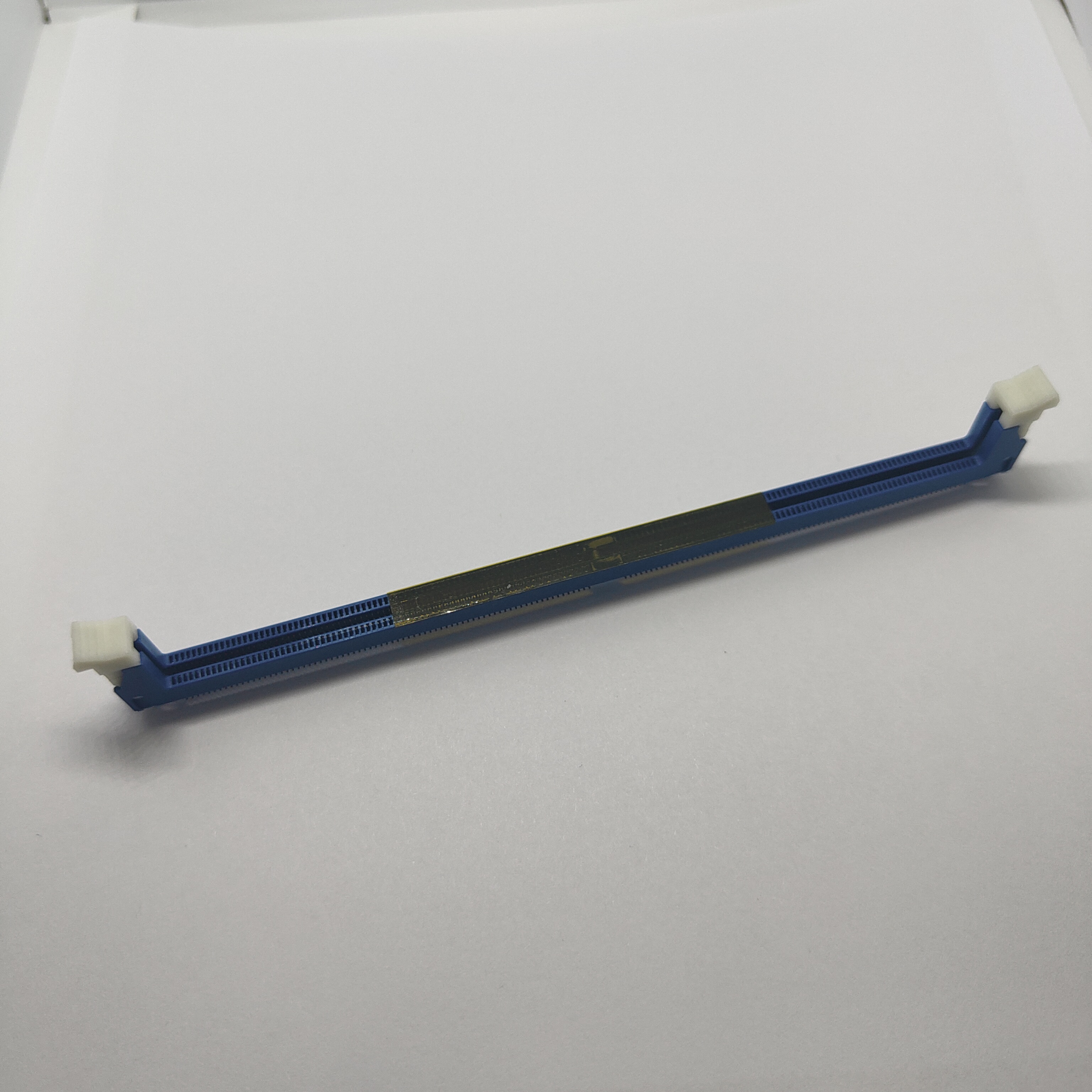

The culprit is often coplanarity. With 288 SMT leads spanning the length of the connector body, a deviation of just 0.10mm between the highest and lowest lead means some pads get proper solder fillets and others get marginal ones. The resulting impedance scatter shows up during DDR5 training — the automated calibration sequence where the memory controller tunes per-DIMM timing parameters during POST. When training fails, the board goes to rework. When it passes marginally, the system is one thermal cycle away from a field error.
A PA9T housing that stays dimensionally stable through reflow keeps all 288 leads inside the coplanarity window. Cleaner eye diagrams. More timing margin. Higher first-pass yield at the factory. Every percentage point of yield improvement on a volume production line pays for the connector BOM several times over — which is why connector selection is fundamentally a manufacturing economics decision, not a component datasheet exercise.
Most connector datasheets quote the same numbers: 1A per pin, 25 mating cycles, 500V dielectric withstand. The difference between suppliers is not what the datasheet says — it is how consistently every unit leaving the factory actually meets those numbers.
CONSHARE runs three QC gates on every production lot of this DDR5 socket:
Each lot of PA9T resin and C7025 copper alloy strip is tested for melt flow index, tensile strength, and alloy composition before release to the molding and stamping floor. This catches the batch-to-batch variability that causes subtle dimensional drift in molded and stamped parts — drift that passes visual inspection but fails at coplanarity test.
After SMT lead forming, every single connector passes through automated optical inspection. Units exceeding the 0.10mm coplanarity threshold are rejected before they reach a customer's pick-and-place feeder. Many connector suppliers perform coplanarity checks on an AQL sampling basis — testing a statistical subset and assuming the rest of the lot is conforming. The cost of one coplanarity-induced solder joint failure on a populated server board, in rework labor and scrapped components, exceeds the cost of 100% inspection by a wide margin.
A statistically significant sample from each lot is tested with a reference DDR5 DIMM for contact resistance, insulation resistance, and dielectric withstanding voltage. Test data is archived by lot number and traceable on request. If a field issue arises two years into deployment, CONSHARE can pull the QC records for the exact production batch that shipped.
Most large connector manufacturers treat customization as a high-volume privilege. Below a certain order threshold — often in the hundreds of thousands — color changes, plating variations, and latch options require an NRE charge, a long lead time, or both.
CONSHARE takes a different approach on this product line. The following options are available with no minimum-order-quantity surcharge:
Housing color: Blue (287C) is standard; black, green, and natural are available as alternates
Extractor color: White standard; customer-specified for visual channel coding
Plating: Au flash, Au15µ", or Au30µ"
Latch type: Dual latch standard; single latch optional
PCB thickness compatibility: 1.60mm standard; 2.40mm and 3.20mm available
Packaging: Tray standard; tape-and-reel for select volumes
Configuration Type | Typical Lead Time | Notes |
|---|---|---|
Standard (Blue/Au15µ"/Dual Latch/Tray) | 2–4 weeks | Stock available on most SKUs |
Custom color or plating variant | +1–2 weeks | No MOQ surcharge |
Volume orders (50K+) | Dedicated schedule | Fixed delivery commitment provided |
For engineers building mid-volume industrial or embedded systems — not hyperscale data centers buying millions of sockets — this flexibility means the connector is specifiable to the design, rather than the design being constrained by available connector configurations.
No — and that is intentional. DDR5 sockets use a different key notch position from DDR4. A DDR5 DIMM cannot physically seat in a DDR4 socket, and vice versa. DDR5 also operates at 1.1V VDD versus DDR4's 1.2V. If your design needs to support both standards, you need separate connector banks.
No. The colorant used to achieve Pantone 287C is thermally stable through standard lead-free reflow (peak 260°C, time above liquidus ~60–90 seconds). PA9T's thermal performance is unchanged by pigmentation. Use the same profile, stencil design, and paste as you would for a black-housing version.
JEDEC specifies a maximum of 106.8N for DDR5 DIMM insertion. In practice, most modules seat at 60–85N depending on module PCB thickness and chamfer quality. If you are designing automated insertion tooling, budget for the upper end.
Sample quantities of 5–50 pieces ship within one week for standard configurations. Production volumes start at 1,000 pieces with tiered pricing at 10K, 50K, and 100K+ breakpoints. For volume pricing and scheduled delivery agreements, contact CONSHARE directly.
