Board to Board Connector
Industrial, IT Datacom

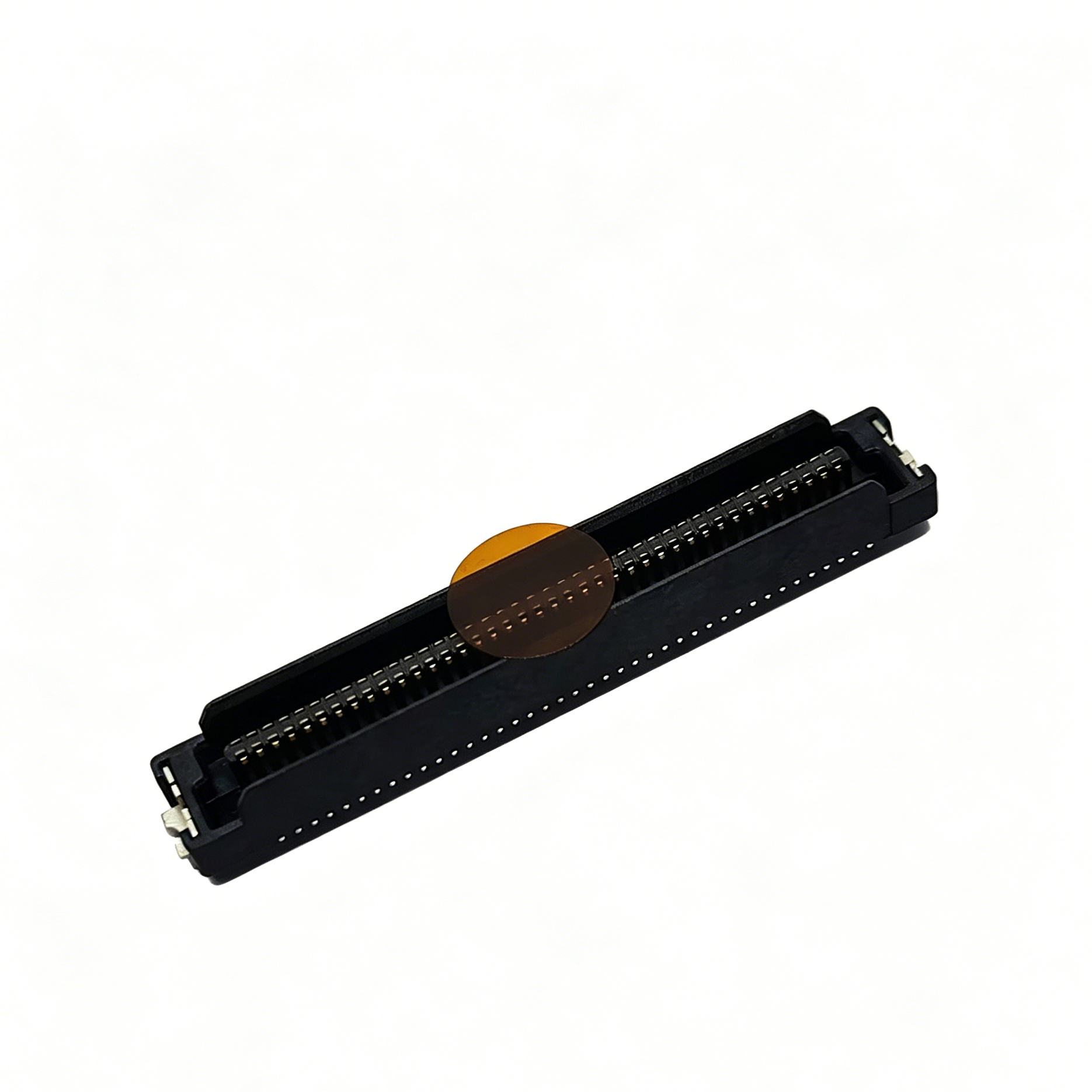

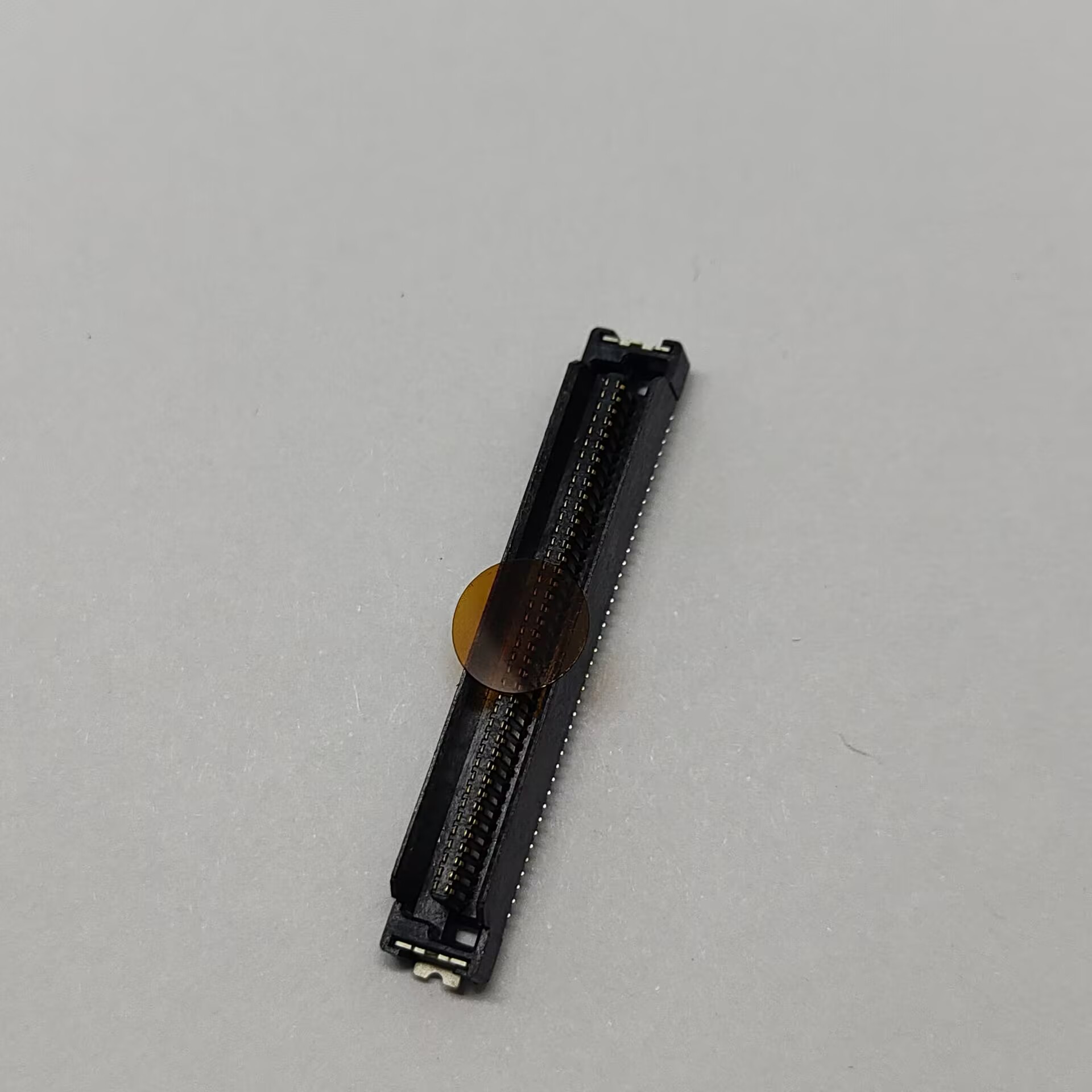

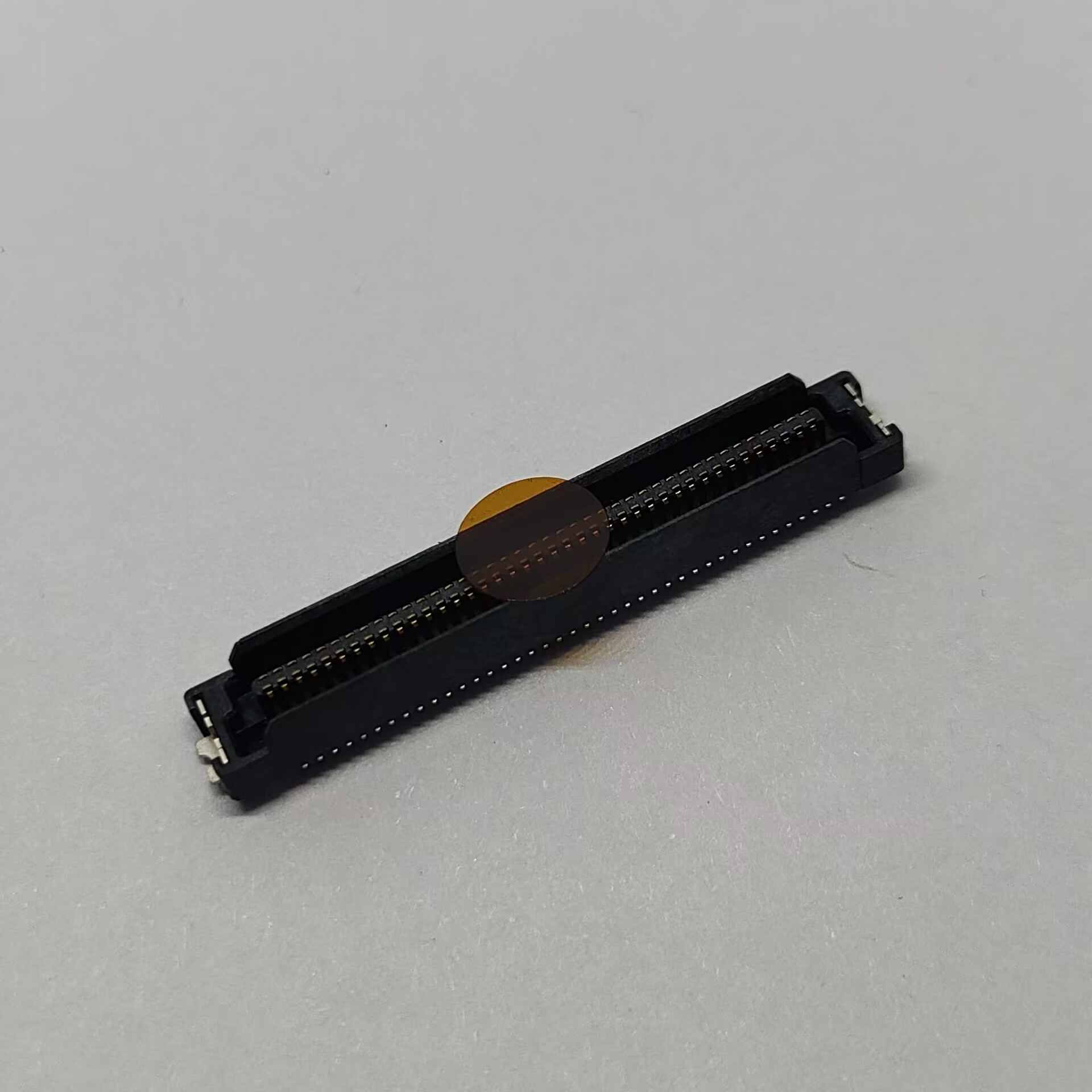

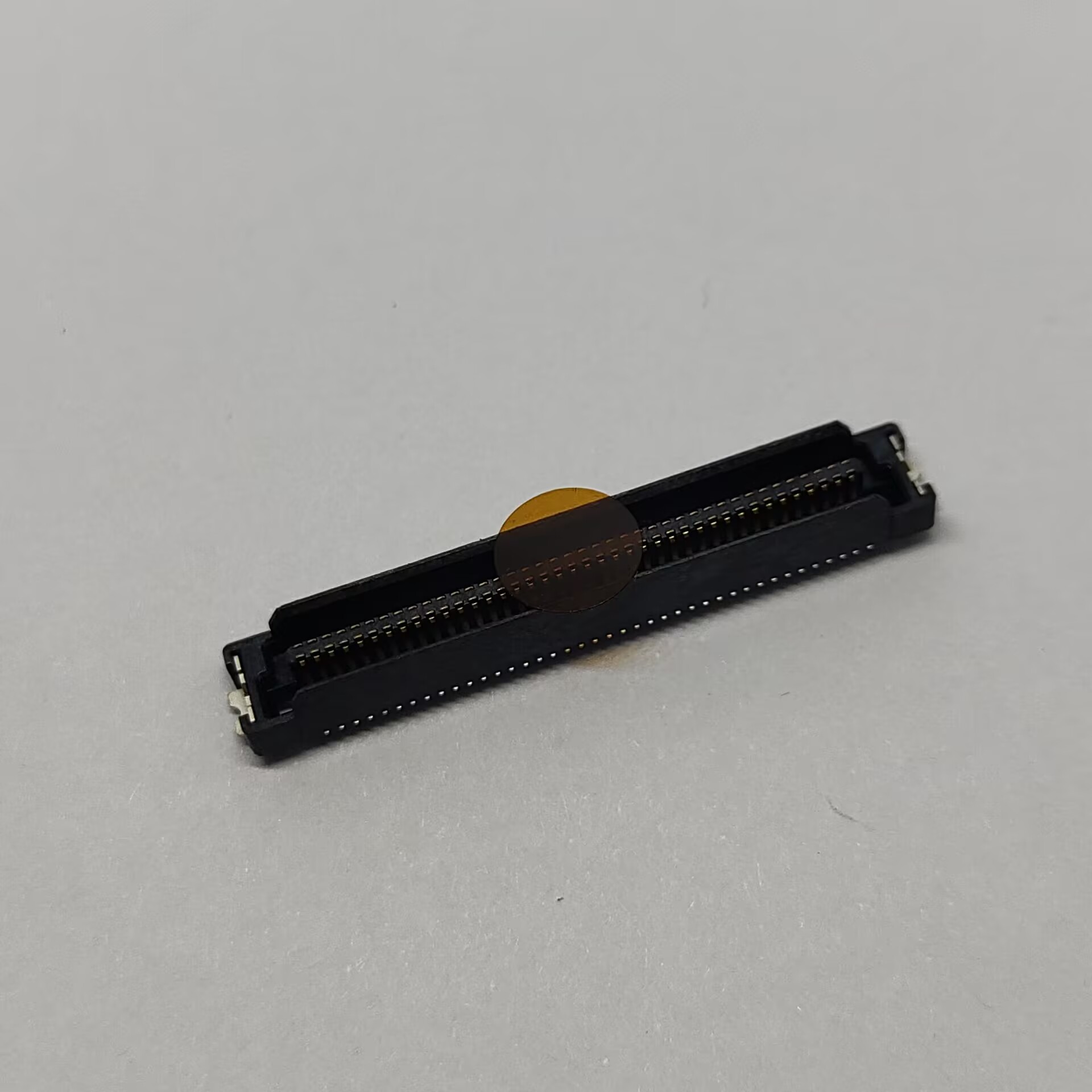

Board-to-board connectors get bought as standalone parts, and that is where the trouble starts. This one is the male half of a 0.80 mm pitch pair: it stands 4.50 mm above your PCB and, mated with a 5.00 mm socket body, puts the two boards 5.00 mm apart. CONSHARE keeps four codes in regular production, all black LCP, tape and reel, reflow only. Four questions pick the right one: how many nets, how much length you can spare, how often the pair gets separated, and how much Z-height the enclosure allows.
CONSHARE part number | Positions | Contact finish | Where it usually ends up |
|---|---|---|---|
AA2M080G1045R | 2 x 40 (80) | 3 µin gold | Display, camera and sensor modules |
AA2M100G5045R | 2 x 50 (100) | 15 µin gold | Fixtures and serviceable modules |
AA2M100S2045R | 2 x 50 (100) | 3 µin gold, tin tails | Volume builds, assembled once |
AA2M120S2045R | 2 x 60 (120) | 3 µin gold, tin tails | Dense mezzanine cards |
The four share pitch, body height, width and land pattern. Switching between them changes the length and nothing else, so you can lay out a board before the pin count is frozen.
Final board spacing is a property of the pair, not of one half. This plug contributes 2.55 mm of it; the socket supplies the rest. Ordering the plug alone and assuming 4.50 mm of gap is the fastest way to a stack that will not close.
Socket body height | Board-to-board spacing | Why you would pick it |
|---|---|---|
5.00 mm | 5.00 mm | Default. The lowest this plug can go |
6.00 mm | 6.00 mm | One more millimetre for a shield can, taller caps or a stiffener |
10.00 mm | 10.00 mm | Components under the daughter card |
Need more than 10 mm? Change the plug, not the socket. CONSHARE also runs 9.50 mm and 14.50 mm bodies on the same tooling family, taking the pair to 15.00, 16.00 and 20.00 mm.
These are signal-grade contacts. A 0.80 mm pitch pair behaves well when every fast net has a return beside it and badly when it does not. Reserve a quarter to a third of the positions for ground and put them at the row ends, where the brass end plates already give you a low-impedance path into the plane. Assign every pin to a signal and you will be back for the next size up.

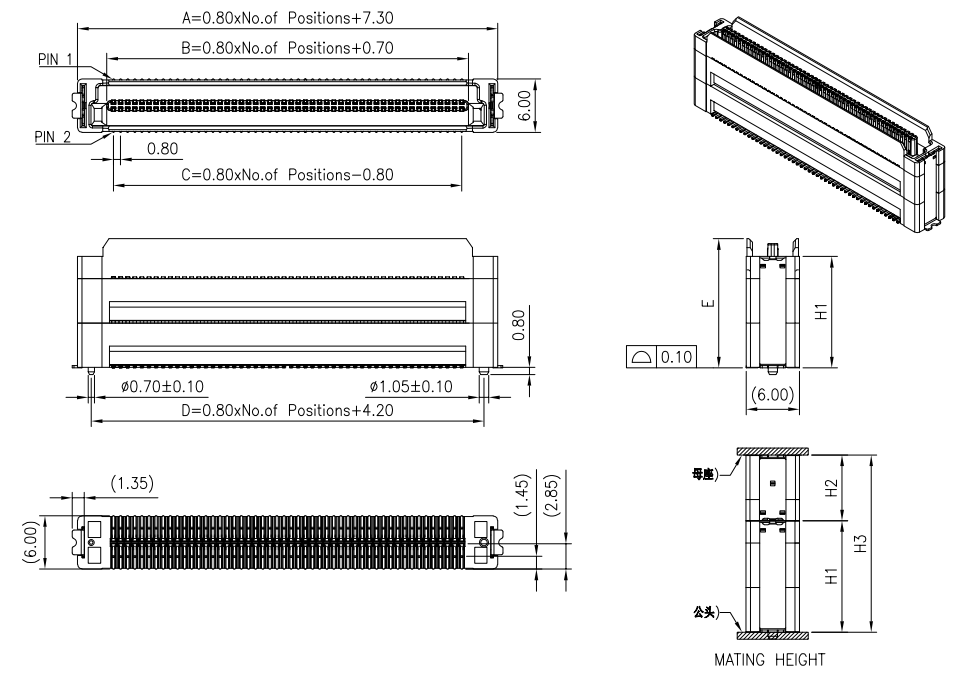

Code | Positions | Overall length | First-to-last contact span |
|---|---|---|---|
080 | 2 x 40 | 39.30 mm | 31.20 mm |
100 | 2 x 50 | 47.30 mm | 39.20 mm |
120 | 2 x 60 | 55.30 mm | 47.20 mm |
Both numbers are linear: overall length is 0.80 mm times positions per row plus 7.30 mm, and the contact span is 0.80 mm times one less than the positions per row. Nothing else in the footprint moves.
The standard grid steps from 2 x 50 straight to 2 x 70. The 2 x 60 is built on shared tooling, so it is real and repeatable, but it is not a shelf item. Plan a production slot, or take 2 x 50 if the schedule is tight.
Finish | Fits | Trade-off |
|---|---|---|
3 µin gold | Assembled once, separated rarely | Lowest piece price; resistance drifts sooner under repeated mating |
15 µin gold | Test fixtures, field-serviceable modules | Five times the gold, a small step in piece price, far longer wear life |
Gold is priced by thickness, but it is one line in the cost of a moulded, plated and taped part, so moving from 3 to 15 µin moves the piece price far less than buyers expect. Quote both.

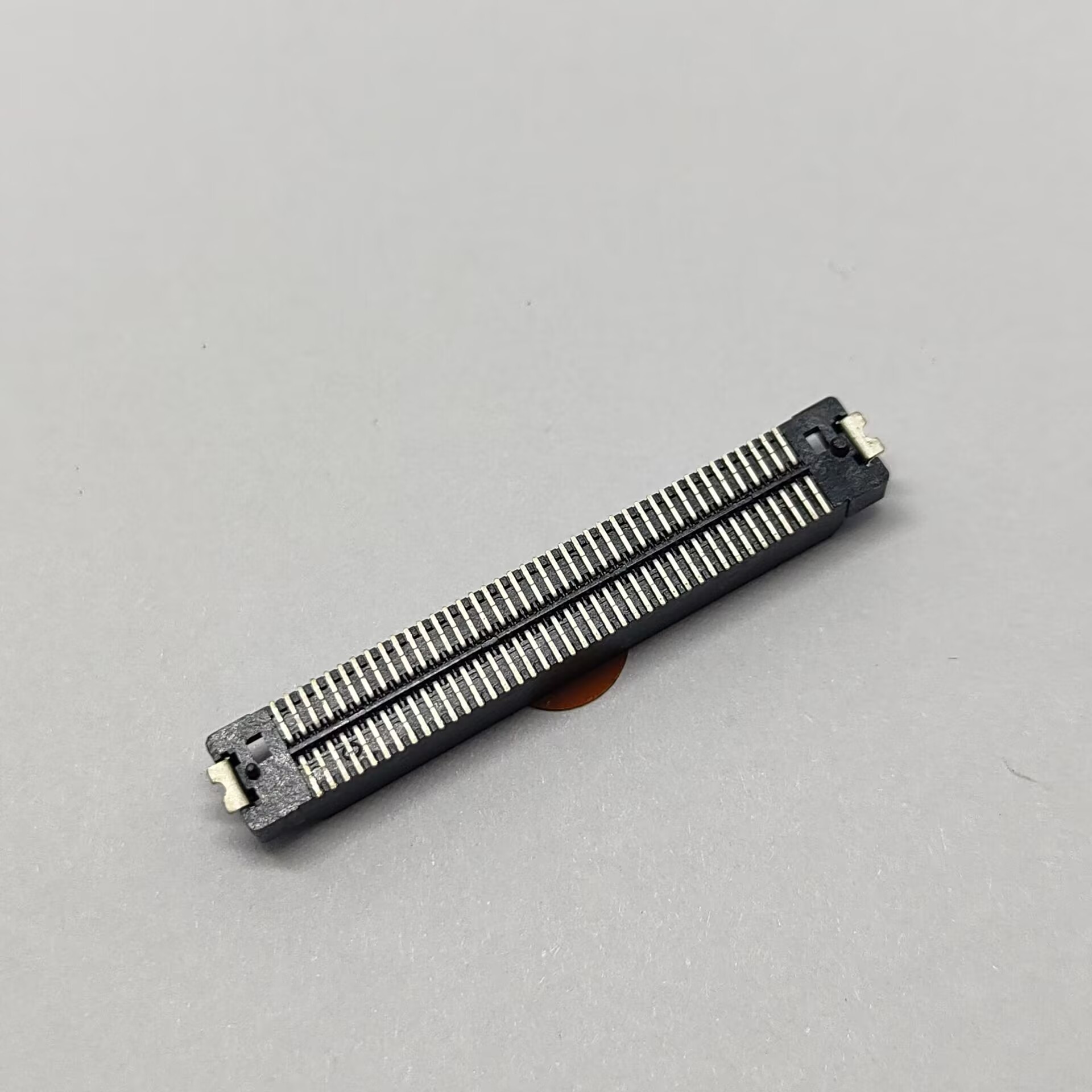

Gold goes on the contact area only. The tails are matte tin and a nickel barrier sits under both. You are not paying for gold where it does nothing, the tails solder with the paste and profile you already run, and the barrier stops gold migrating into the joint.

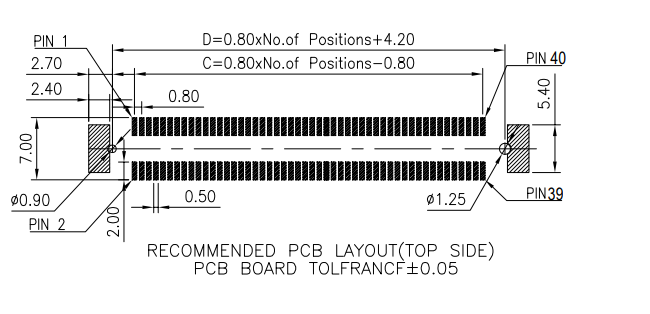

Hold your fabricator to ±0.05 mm on the lands. At 0.80 mm pitch that is the difference between a clean fillet and a bridge. Do not enlarge pads for hand assembly; this is a reflow-only part.
Each end carries a brass grounding plate, matte tin over nickel, doing three jobs: a low-impedance return for the outermost signals, the anchor that takes the unmating pull instead of your solder joints, and the stop that keeps the housing corners from lifting when the boards are pried apart. Give those pads full copper and via them into the plane. A starved ground pad is the usual reason one of these cracks off a board in service.
The LCP housing is UL94V-0 and runs a normal lead-free profile. Parts arrive on tape and reel, flat top face for the nozzle. Support the panel under the connector when you press the boards together; a 55 mm housing will bow a thin PCB before it damages itself.
Rating | What it means on your board |
|---|---|
0.5 A per contact | Signals and low-power rails. Share a hungry rail across two or three positions |
50 V AC/DC | Logic and sensor rails. Not a mains part |
80 mΩ max contact resistance | Up to 40 mV dropped at full current |
200 V AC for one minute | Wide margin over the 50 V working figure |
-40 °C to +105 °C | Industrial and in-cabin environments |
The line that bites is contact resistance: up to 40 mV per contact at full current, so a net going up one contact and back down another loses about 80 mV. On a 1.2 V rail that is 7 percent of your tolerance spent in the connector.
An 80-position link carrying a display interface, touch and control lines in a 5.00 mm gap. Grounds take every fourth position and the pair is mated once on the line, so 3 µin gold is the right spend.
A sensor node ships with two radio options on one host footprint. 100 positions, separated a few times a year in the field. The 15 µin version earns its premium back in the first year of service calls.
A test jig uses a 100-position pair because the board under test already carries a fine-pitch connector. It cycles hundreds of times a week, so the thicker gold and the end plates both work hard here.
A single net needs more than 0.5 A, even paralleled
Board misalignment over a few tenths of a millimetre; a floating design absorbs that, this does not
You need more than 20 mm of separation
The boards sit side by side, not face to face
The build needs wave soldering or hand assembly
You need 2 x 60 in volume next week
Plating thickness is verified on every production lot, nickel barrier included, because a thin barrier is what lets gold diffuse and contact resistance drift in the field. Coplanarity is checked across the full part length, which matters far more on the 2 x 60 than the 2 x 40.
The four codes above are held as finished goods, so samples and small batches move without waiting on a plating or tooling queue. Everything else is built to order on tooling that already exists: 2 x 60, the 9.50 and 14.50 mm bodies, gold flash or 1, 5, 10 and 30 µin finishes, and other packing. No tooling charge, low-thousand order quantities. Send us your stack height and pin list and we will name the matching socket too, so you are not left with two halves that do not close to the height you designed for.
No. It is the plug half. You need the matching 0.80 mm socket on the other board; the pair sets your board spacing.
5.00 mm with a 5.00 mm socket body, 6.00 mm with a 6.00 mm body, 10.00 mm with a 10.00 mm body.
3 µin for a product assembled once. 15 µin for anything unmated repeatedly: fixtures, field-replaceable modules.
Not through one. Parallel two or three positions and re-check the drop.
No. It is a regular build on shared tooling, so plan a production slot or use 2 x 50.
