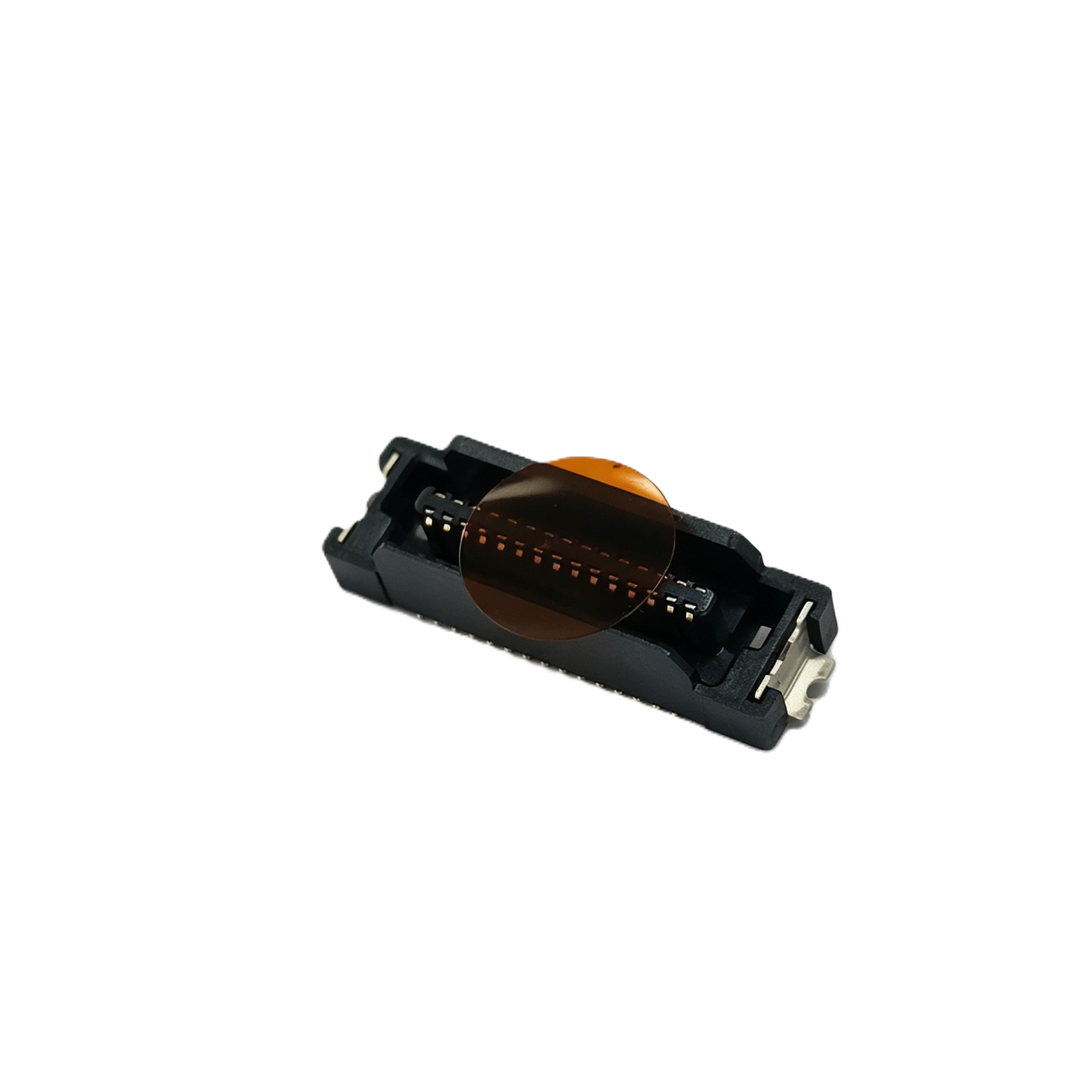

Engineered for modern high-density electronics, this CONSHARE vertical SMT board-to-board connector addresses the most common pain points in compact PCB design: unreliable signal integrity, assembly inefficiencies, and environmental performance limits. Built with precision materials and manufacturing, it delivers consistent, long-lasting connectivity for critical applications.

Product Technical Specifications

We organize core technical indicators into categorized modules for quick reference by R&D engineers, procurement and production teams. All data is tested in accordance with international electronic component standards to ensure practical applicability in actual projects.

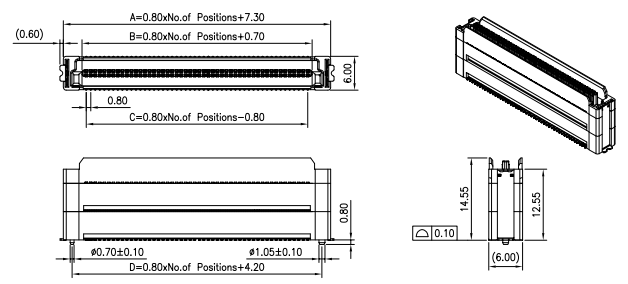

Core Performance & Dimension Data

Uncompromising Electrical Reliability

Precision Plating for Stable Signal & Power Transmission

• The contact zone features a controlled 1μ” gold flash over a nickel underplate, minimizing contact resistance to eliminate signal dropouts or noise interference in low-power and low-voltage circuits.

• Solder tails use matte tin plating for robust, long-lasting solderability, while the nickel underlayer prevents oxidation and corrosion, ensuring consistent performance through repeated thermal cycles.

Built-In Safety & Environmental Electrical Stability

• Tested to meet strict dielectric withstand voltage standards, the connector prevents short circuits and insulation failure, even in environments with fluctuating temperatures or humidity.

• Optimized for continuous low-current operation, it maintains stable electrical performance without degradation, supporting reliable power and signal flow in both consumer and industrial applications.

Durability for Manufacturing & Real-World Use

UL94V-0 Rated LCP Housing for Reflow Compatibility

• Molded from UL94V-0 rated black Liquid Crystal Polymer (LCP), the housing withstands the high temperatures of standard SMT reflow soldering without warping, shrinking, or degrading, ensuring dimensional stability through every assembly cycle.

• The material’s inherent heat and chemical resistance makes it suitable for both everyday consumer devices and harsh industrial environments, from wearables to factory automation equipment.

Structural Design for Secure, Repeatable Mating

• The rigid, precision-molded housing prevents pin misalignment during automated assembly and manual mating, eliminating the risk of bent pins or intermittent connections that cause costly system failures.

• Engineered to maintain mechanical integrity across thousands of mating cycles, it delivers consistent connection performance in devices that require frequent board access or reconfiguration.

Optimized for Automated High-Volume Assembly

SMT-Friendly Design for Zero-Defect Production

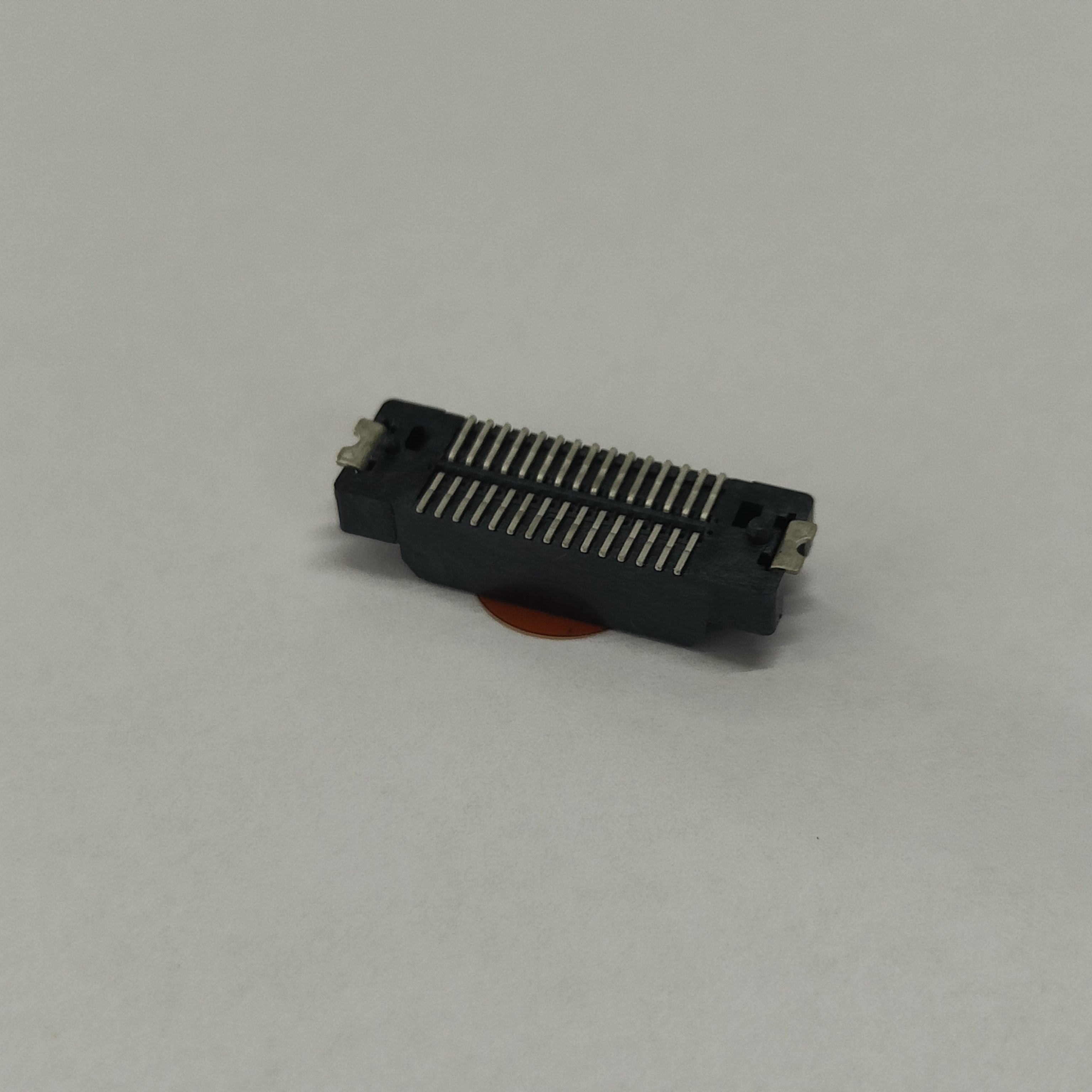

• Precision-molded SMT pads and a tape-and-reel compatible form factor support seamless pick-and-place operations, reducing assembly errors and improving yield rates in high-volume manufacturing.

• The connector’s tight dimensional tolerances ensure alignment with standard assembly equipment, eliminating the need for custom tooling or process adjustments.

PCB Layout Guidance to Accelerate Time-to-Market

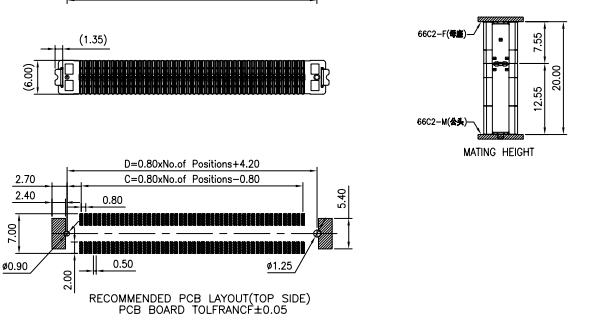

• Comprehensive recommended PCB layout specifications are provided to simplify integration, helping engineers avoid common design pitfalls like improper trace spacing or insufficient pad size.

• The vertical orientation of the connector allows for simplified board stacking, reducing complex routing and streamlining the transition from prototype to mass production.

Compact Form Factor for High-Density PCB Layouts

0.8mm Fine Pitch for Space-Conscious Designs

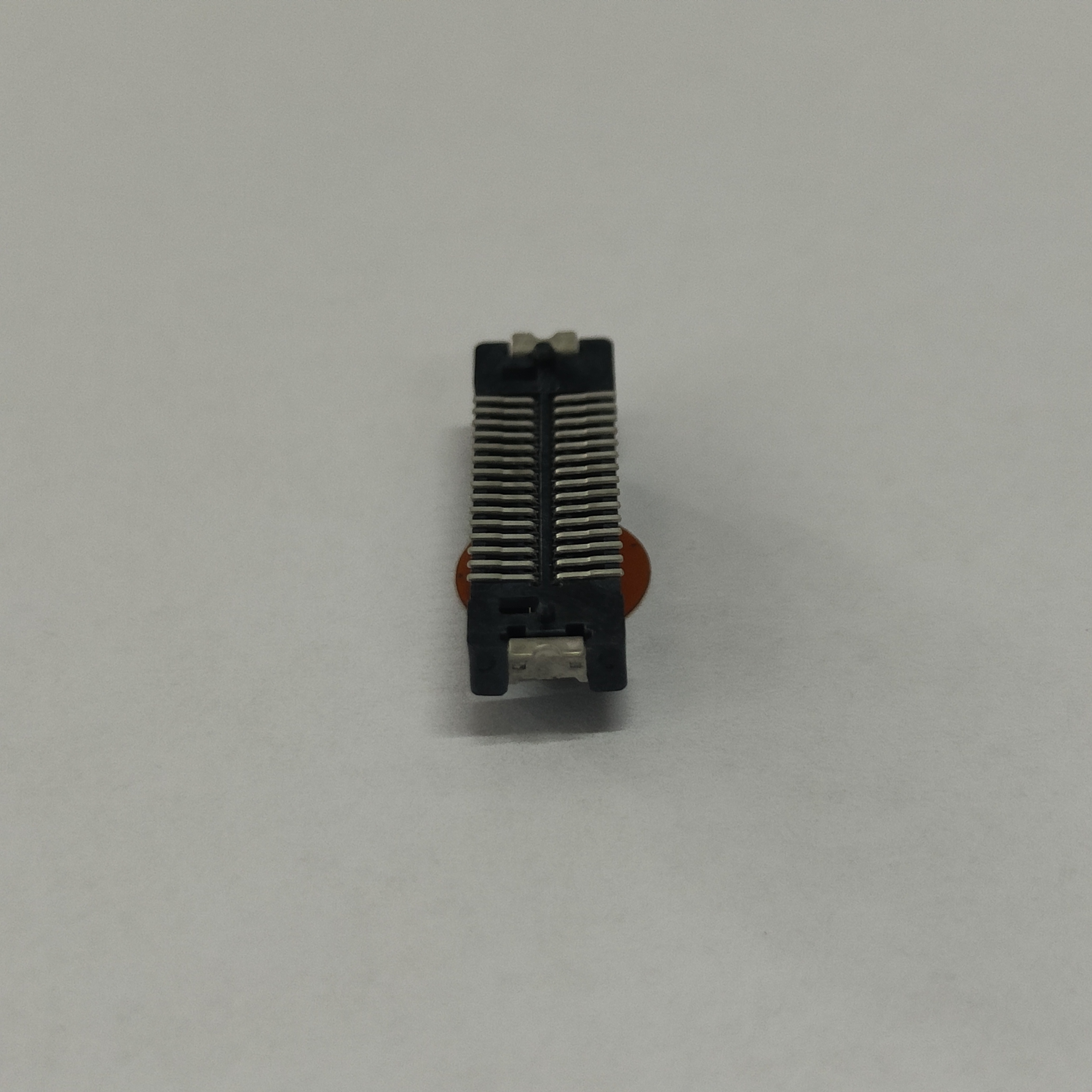

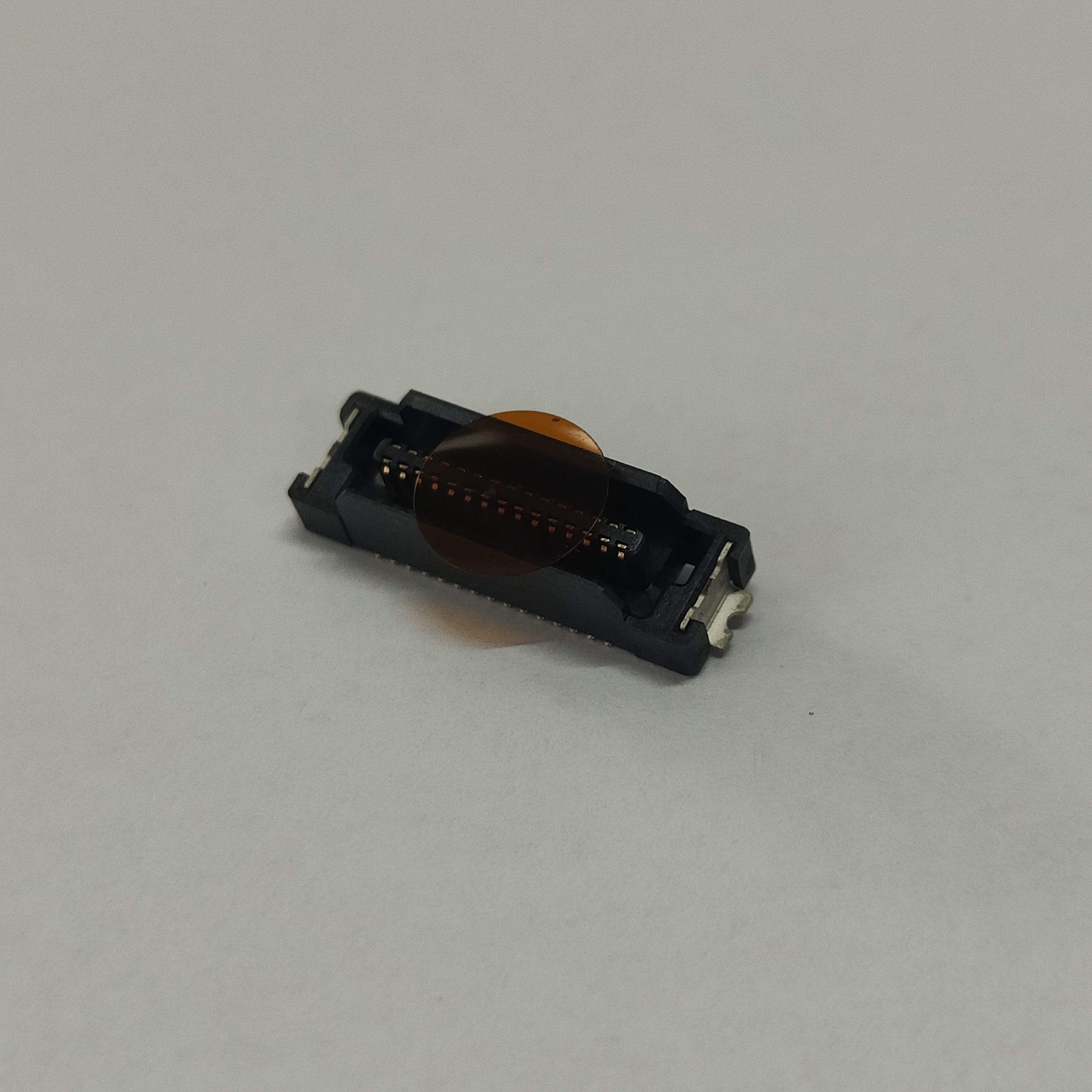

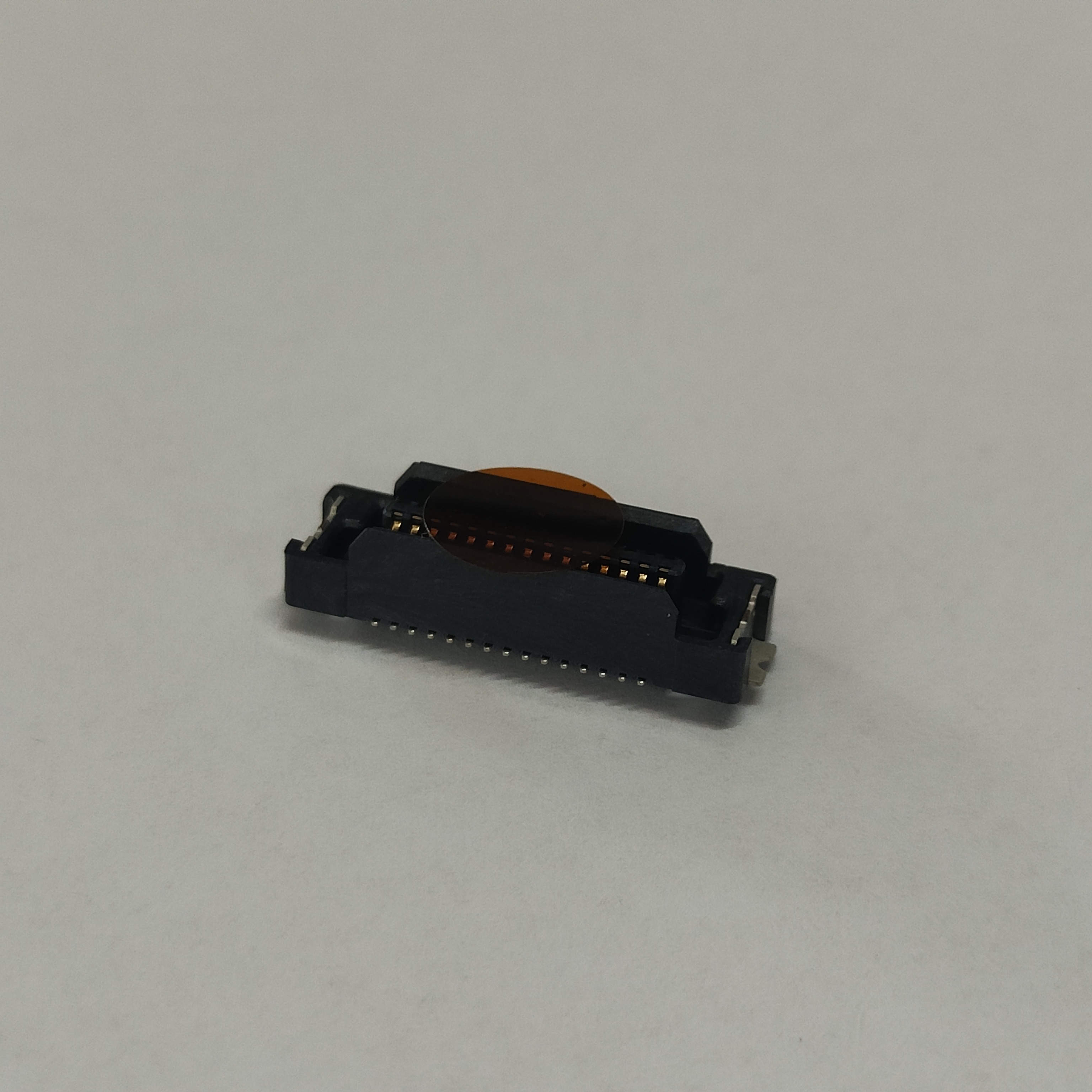

• The ultra-fine 0.8mm pitch and dual-row 2x15 pin configuration deliver robust connectivity without sacrificing valuable PCB real estate, making it ideal for slim, compact devices like wearables, IoT modules, and portable medical equipment.

• The design maximizes board space efficiency, allowing engineers to add more functionality to their designs without increasing the overall footprint.

14.5mm Housing Height for Slim Stacked Architectures

• Designed with a 14.5mm housing height, this vertical connector enables low-profile PCB stacking, supporting the slim form factors required in modern consumer electronics and industrial control systems.

• The vertical orientation simplifies thermal management in stacked layouts, improving heat dissipation compared to horizontal connector configurations.

Fully Customizable Solutions for Unique Design Needs

Tailor Every Specification to Your Project Requirements

This connector is part of CONSHARE’s fully customizable board-to-board connector line, allowing you to modify key parameters to match your exact design goals:

• Pin counts from 2x5 to 2x70 (and custom configurations)

• Housing heights from 5mm to 15mm (including our standard 14.5mm option)

• Contact plating options (gold flash, 1μ”, 3μ”, 10μ”, 15μ”, 30μ” gold/tin)

• High-conductivity copper alloy upgrades for enhanced performance

• Custom packaging and labeling for OEM/ODM projects

CONSHARE’s End-to-End Engineering Support

Our dedicated engineering team works closely with you from initial concept through prototype validation to full-scale production, ensuring your custom connector meets all performance, cost, and timeline requirements. We provide detailed design support, including PCB layout reviews and material recommendations, to help you bring your product to market faster.

Versatile for a Wide Range of Applications

Ideal for Critical Industries

This connector is designed to meet the demands of diverse sectors, including:

• Consumer electronics (wearables, tablets, smart home devices)

• Industrial control and automation systems

• Medical devices and diagnostic equipment

• IoT and smart city modules

• Automotive infotainment and telematics systems

• Telecommunications and networking hardware

CONSHARE Quality Assurance

Every connector undergoes rigorous testing to verify compliance with industry standards, including electrical performance, mechanical durability, and environmental resistance. Manufactured under strict quality control protocols, each unit is traceable from raw material sourcing to final packaging, ensuring consistent quality in every shipment.
