Board to Board Connector
Industrial, IT Datacom

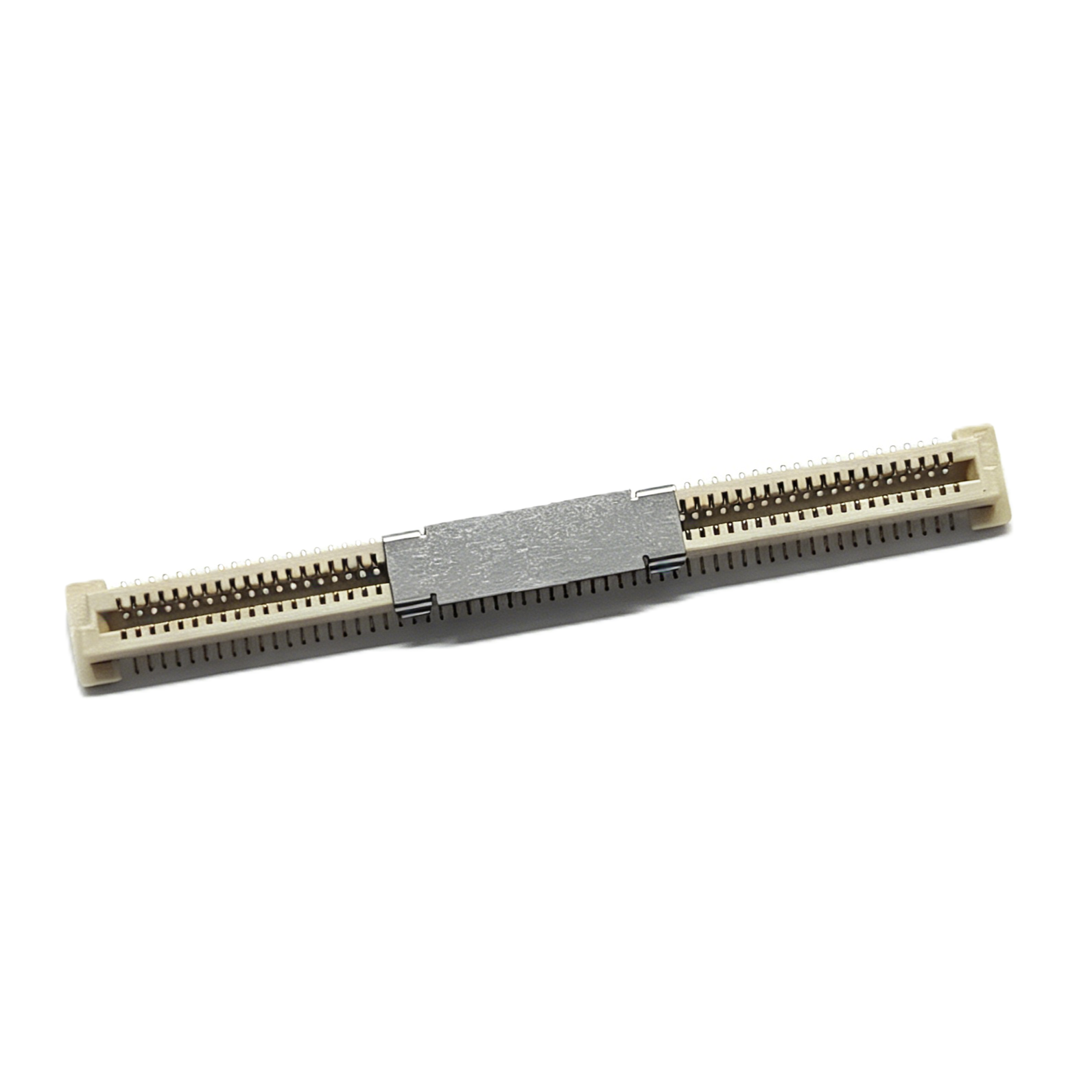

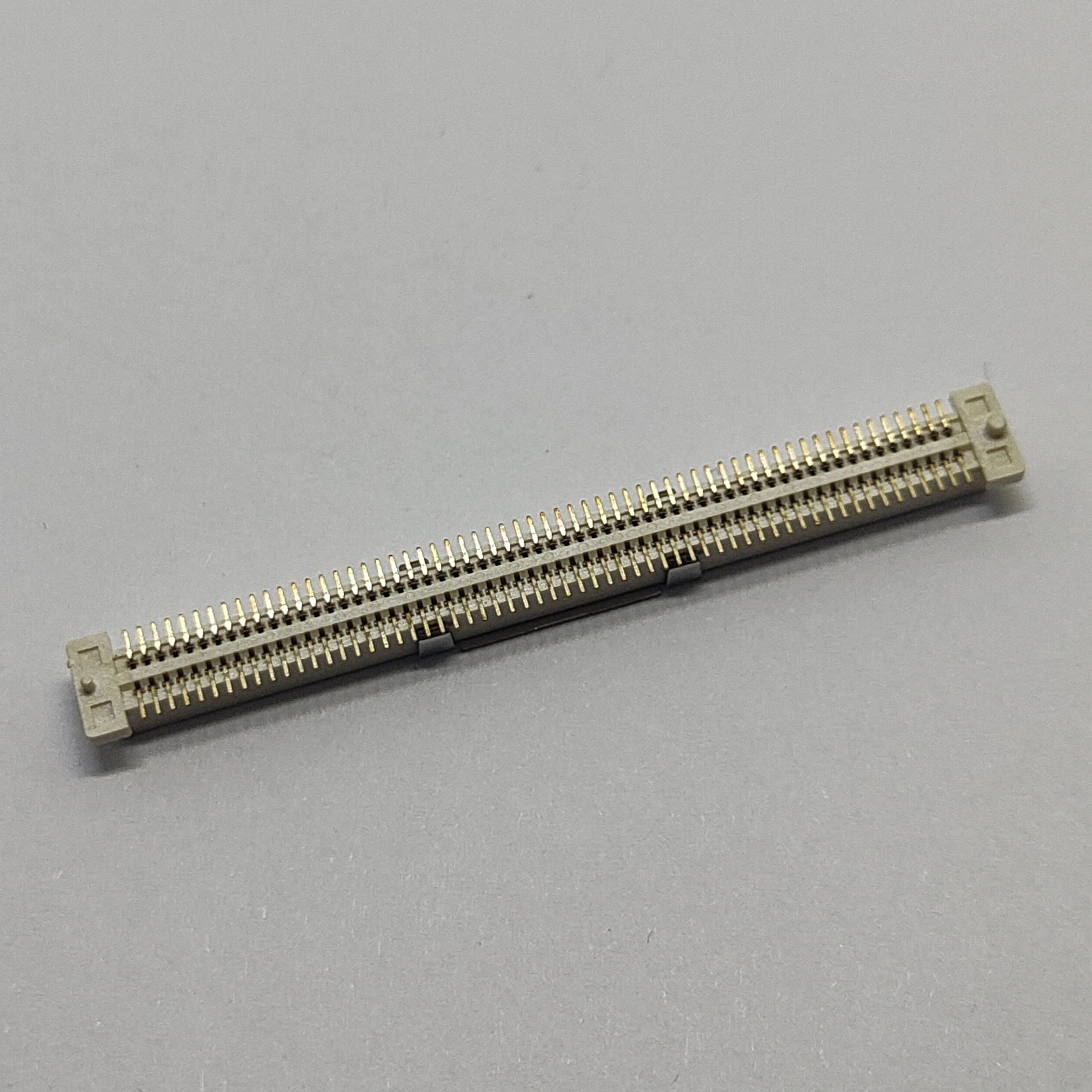

The 0.8mm pitch board-to-board connector series addresses a specific engineering challenge: how to route 120+ signals between parallel PCBs while maintaining signal integrity, mechanical stability, and assembly yield in high-volume production. This 120-position female SMT receptacle with 5.0mm mating height is CONSHARE‘s answer to the mezzanine interconnection needs of industrial control systems, telecommunications infrastructure, medical electronics, and automotive electronics.
Unlike commodity connectors that prioritize low cost over performance, this series is engineered around a “reliability-first” philosophy—every material choice, from the PA9T housing to the multi-layer gold plating stack, is selected to maximize field performance over the product’s service life.
Why 0.8mm pitch for 120 pins?
At 120 positions, the 0.8mm pitch delivers an optimal density-to-reliability ratio. Finer pitches (0.4mm–0.5mm) pack more pins into the same length but introduce significant tradeoffs: tighter PCB routing constraints, higher crosstalk risk, more demanding soldering process control, and reduced mechanical robustness. Coarser pitches (1.0mm+) consume excessive board real estate. The 0.8mm pitch sits in the “sweet spot”—dense enough for compact mezzanine stacking yet forgiving enough for reliable SMT assembly and field service.
The contact system employs a multi-layer plating architecture that distinguishes CONSHARE connectors from lower-tier alternatives. A minimum of 50µ" nickel underplating is applied overall as a diffusion barrier—this prevents base metal migration into the gold layer, a common failure mode that causes contact resistance drift over time. The nickel layer also provides mechanical support and ensures consistent adhesion of the subsequent gold plating.
For the contact mating area, CONSHARE utilizes a refined electroplating process with tight thickness uniformity control. Unlike immersion gold processes that can produce uneven deposition, electroplated hard gold achieves a denser grain structure with superior wear resistance. Contact resistance stability is maintained through controlled grain orientation and minimized surface porosity—critical factors that determine whether a connector maintains <50mΩ contact resistance after hundreds of mating cycles or degrades into an intermittent failure.
Available gold plating thicknesses: Gold Flash, 1µ", 3µ", 5µ", 10µ", 15µ", 30µ"
The 50µ" minimum nickel underplating is applied uniformly across all surfaces, including the solder tail area where gold flash plating ensures solderability without compromising the contact area’s wear performance.
The insulator is molded from PA9T, a high-temperature thermoplastic specifically selected for SMT reflow compatibility. PA9T maintains dimensional stability through lead-free reflow profiles (peak temperatures up to 260°C) without warpage or deformation—a common issue with lower-grade liquid crystal polymer (LCP) housings in fine-pitch connectors. The white housing color provides high visual contrast for automated optical inspection (AOI) systems, enabling consistent solder joint quality verification in high-volume assembly lines.
The UL94V-0 flammability rating ensures compliance with fire safety requirements for equipment installed in commercial, industrial, and transportation environments.

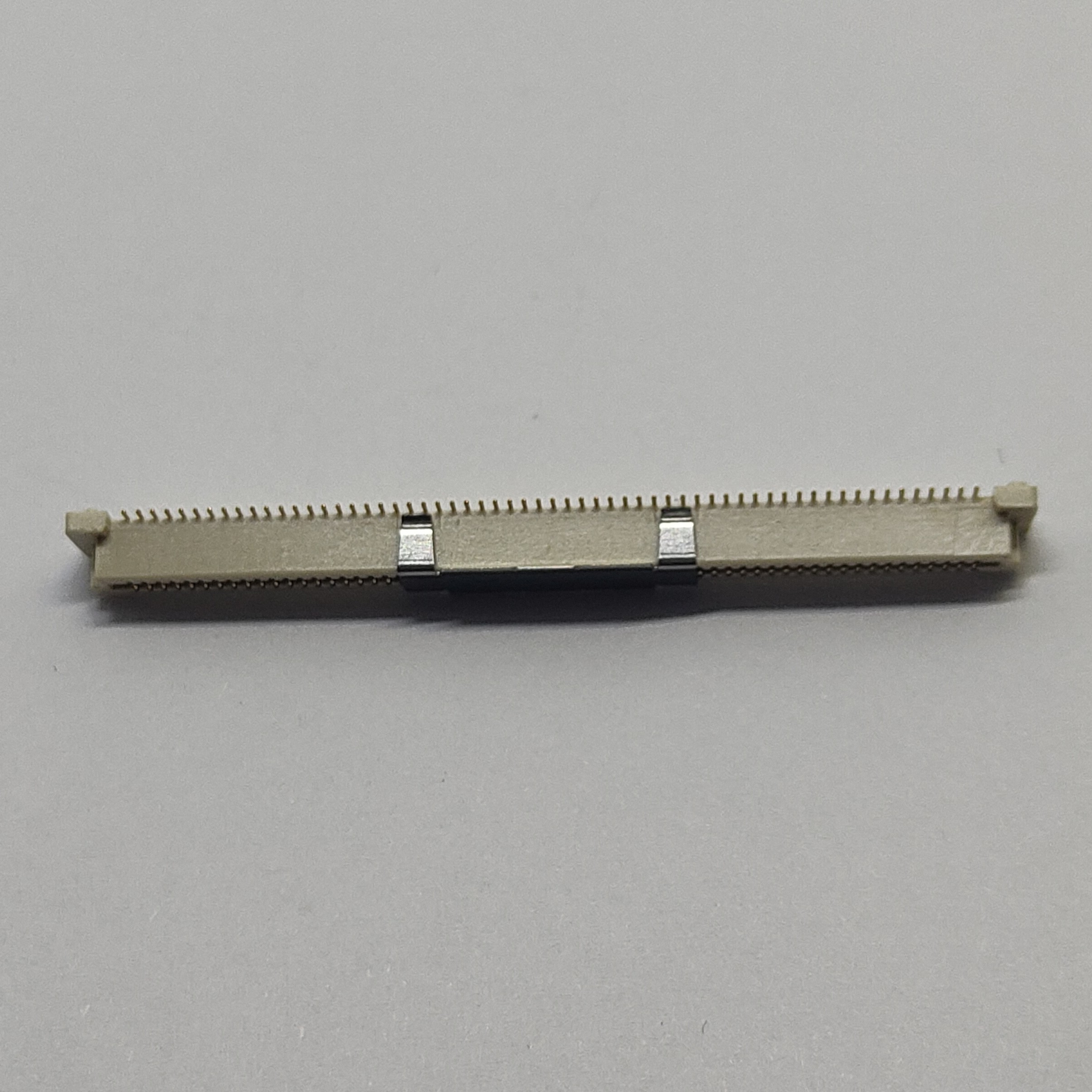

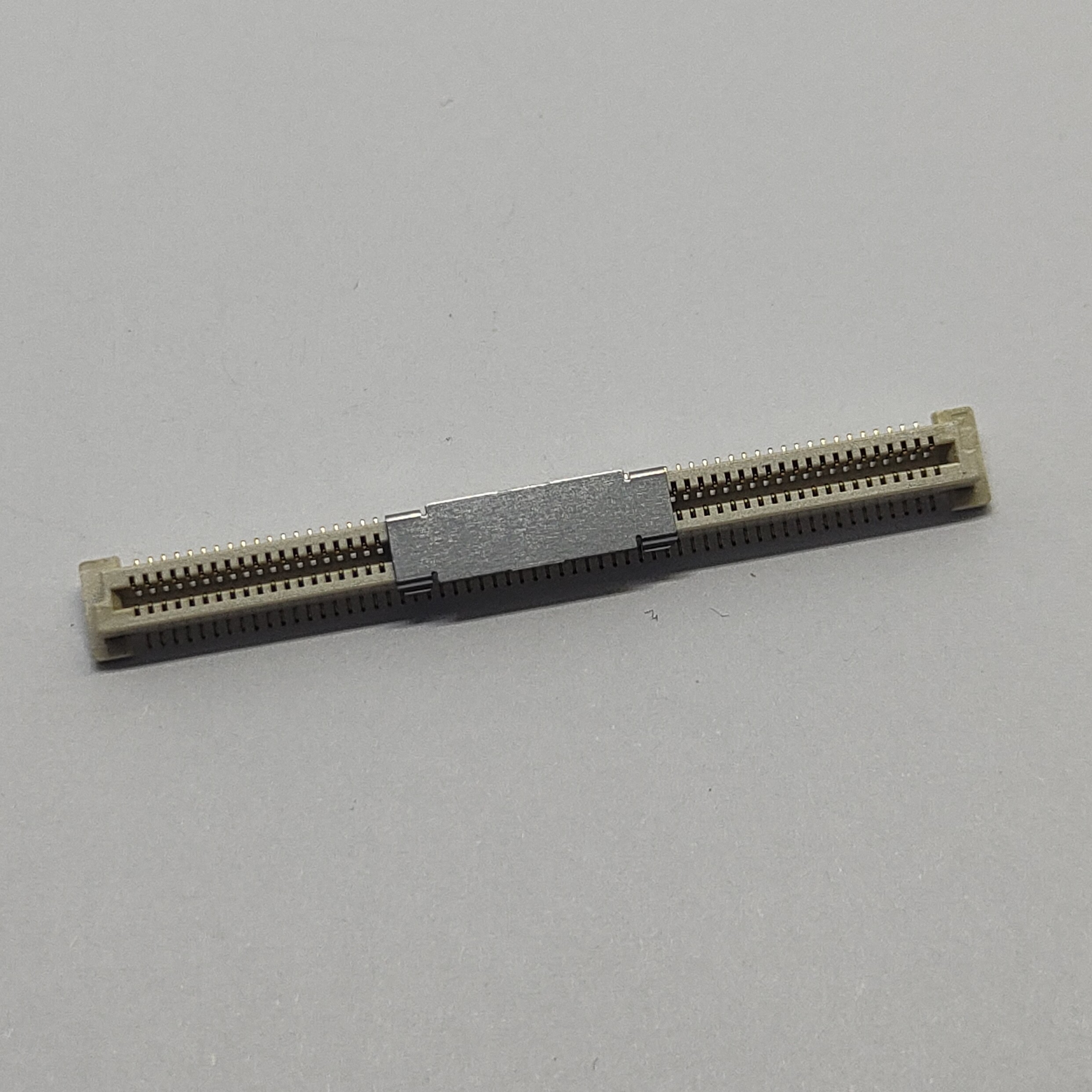

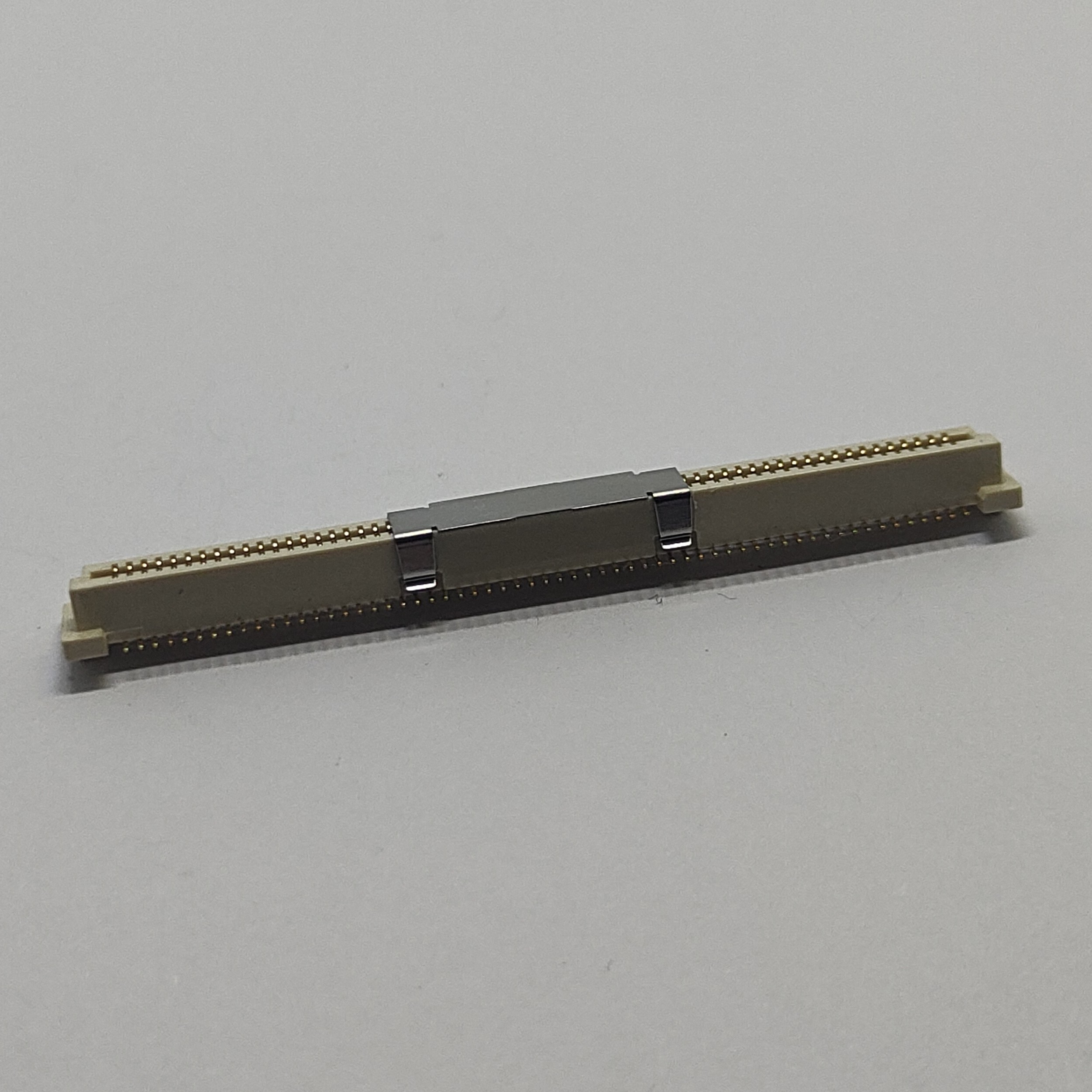

The stainless steel cap serves a dual function that directly impacts manufacturing yield:
Pick-and-place compatibility: The cap provides a flat, vacuum-compatible surface for automated placement equipment, eliminating the need for custom nozzles or handling fixtures
Contact protection: During board handling, panel routing, and secondary assembly operations, the cap shields the delicate contact beam structure from mechanical damage—a critical consideration given that contact beam deformation is one of the leading causes of field failures in fine-pitch connectors
The cap remains in place through the reflow soldering process and is removed after assembly, ensuring the contact mating area is contamination-free at the point of board-to-board mating.
A leading medical device manufacturer faced a recurring reliability issue in their portable patient monitor platform. The existing 0.5mm pitch mezzanine connector solution—while compact—was experiencing intermittent signal loss after 6–12 months of field use in mobile hospital environments (ICU carts, emergency transport). Failure analysis traced the issue to two factors: contact fretting corrosion from vibration during transport, and solder joint cracking from thermal cycling between operating room (20°C) and ambulance storage (-10°C) conditions.
CONSHARE engineering conducted a side-by-side evaluation with the 0.8mm pitch 120-position receptacle:
Contact force analysis: The 0.8mm pitch design accommodates larger contact beams with higher normal force, improving fretting corrosion resistance in vibration-prone environments
Solder joint reliability: The larger SMT termination pads (compared to 0.5mm pitch alternatives) provide increased solder volume and improved shear strength under thermal cycling
Plating optimization: Upgraded from 1µ" to 5µ" gold plating extended the contact wear life from 50 to 200+ mating cycles—critical for field-serviceable modules that require periodic board separation for calibration
The result: after 18 months of field deployment across 2,000+ monitors, the connector-related failure rate dropped from 3.2% to below 0.1%. The customer has since migrated their entire portable monitoring platform to CONSHARE‘s 0.8mm pitch series.
Other verified application environments:
Factory automation: PLC I/O expansion modules requiring 100+ signal paths between processor and field I/O boards
Telecom line cards: Backplane-to-blade connections where front-panel real estate limits connector width
EV battery management systems: Stacked BMS PCBs operating in -40°C to +105°C thermal environments
Consideration | 0.5mm Pitch | 0.8mm Pitch (This Series) |
|---|---|---|
PCB routing density | Higher density; tighter trace spacing required | Moderate density; easier routing with standard design rules |
Crosstalk risk | Higher due to closer contact spacing | Lower; better signal isolation |
SMT assembly process | Demanding; tighter stencil alignment and reflow control | Forgiving; higher solder joint yield |
Contact normal force | Lower; more susceptible to fretting corrosion | Higher; better vibration resistance |
Field serviceability | Limited mating cycles (<50 typical) | Extended mating cycles (100–500+ with appropriate gold thickness) |
Board real estate | Minimal footprint | Slightly larger but still compact |
Typical applications | Smartphones, tablets, wearables | Industrial, medical, automotive, telecom |
Decision framework:
Choose 0.5mm pitch when absolute PCB footprint minimization is the primary constraint and mating cycles are limited (<50)
Choose 0.8mm pitch when reliability, signal integrity, and manufacturability are prioritized over marginal space savings—particularly for industrial, medical, automotive, and telecom applications
The stack height—the distance between parallel PCBs when mated—is determined by two factors:
Enclosure internal clearance: The maximum allowable height between boards
Component height on the baseboard: Tall components (inductors, electrolytic capacitors, heatsinks) on the lower PCB must fit beneath the upper board

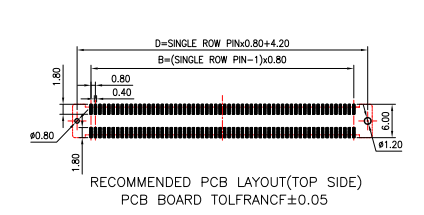

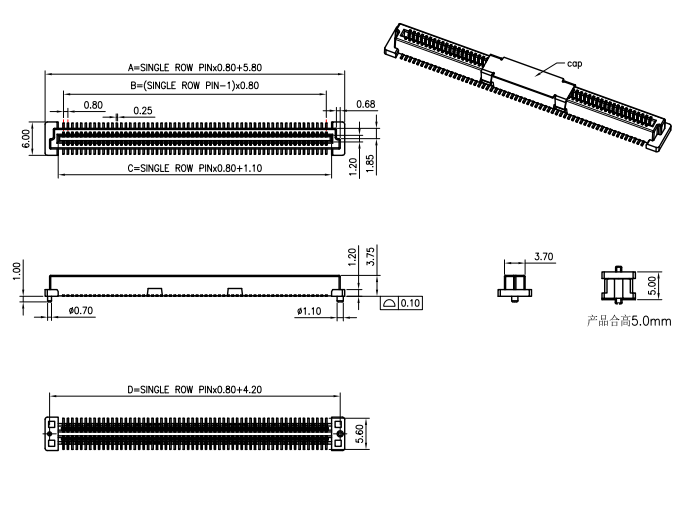

For this 120-position receptacle, the 5.0mm mating height (H5.0mm) is optimized for applications where the board-to-board gap must accommodate both the connector and low-profile components on the baseboard. CONSHARE supports custom mating heights across the full pin count range (20 to 200 positions) to match specific enclosure requirements.
Mating height selection checklist:
Measure the tallest component on the baseboard within the connector footprint area
Add 0.5–1.0mm clearance for manufacturing tolerances and PCB warpage
Verify that the selected connector height provides sufficient clearance
Confirm that the mating male connector (header) is available in the corresponding height
Gold plating thickness directly correlates with mating cycle life and environmental robustness:
Gold Thickness | Recommended Mating Cycles | Best-Fit Applications |
|---|---|---|
Gold Flash | <30 cycles | Cost-sensitive, single-assembly products |
1µ"–3µ" | 30–100 cycles | Consumer electronics, limited field service |
5µ"–10µ" | 100–300 cycles | Industrial equipment, periodic maintenance |
15µ"–30µ" | 300–500+ cycles | High-reliability systems, frequent board swaps |
Gold’s noble metal properties prevent surface oxidation, maintaining low and stable contact resistance even under varying temperature and humidity conditions. The nickel underplating (50µ" minimum) is essential regardless of gold thickness—it prevents copper diffusion into the gold layer, which would otherwise degrade contact resistance over time.
Yes. The combination of copper alloy contacts with 50µ" nickel underplating and selective gold plating provides excellent mechanical retention and fretting corrosion resistance. The SUS304 stainless steel cap adds structural rigidity to the housing during assembly. For extreme vibration applications, specify 5µ" or thicker gold plating to enhance wear resistance and extend contact life.
Yes. The PA9T housing material is specifically selected for its high-temperature stability during lead-free reflow soldering (peak temperatures up to 260°C). The SMT termination design is compatible with standard SAC305 solder alloys and typical reflow profiles.
Yes. CONSHARE supports customization across the full spectrum of pin counts from 20 to 200 positions, with various mating height options available. Contact our engineering team to discuss your specific requirements.
Nickel underplating serves as a diffusion barrier between the copper alloy base material and the gold plating. Without adequate nickel thickness, copper atoms can migrate through the gold layer over time—particularly under elevated temperatures—forming copper oxides on the contact surface that increase contact resistance. The 50µ" minimum specification ensures long-term contact resistance stability, a critical factor for equipment designed for 10+ year service life.
CONSHARE brings over a decade of connector engineering and manufacturing experience to every product. Our 0.8mm pitch board-to-board connector series is designed and manufactured with:
Material traceability: Every batch of contact material, plating solution, and housing resin is tracked and tested—no undocumented substitutions
In-process quality control: Automated optical inspection, dimensional verification, and electrical testing (contact resistance, insulation resistance, dielectric withstand voltage) at multiple manufacturing stages
Environmental compliance: RoHS-compliant materials and processes; UL94V-0 flammability rated housing
Application engineering support: Technical assistance for footprint design, assembly process optimization, plating thickness selection, and custom configurations
When you specify CONSHARE, you are not just purchasing a connector—you are partnering with a team committed to your design success from concept through production.
For detailed specifications, dimensional drawings, or to request samples, please contact CONSHARE sales directly.
