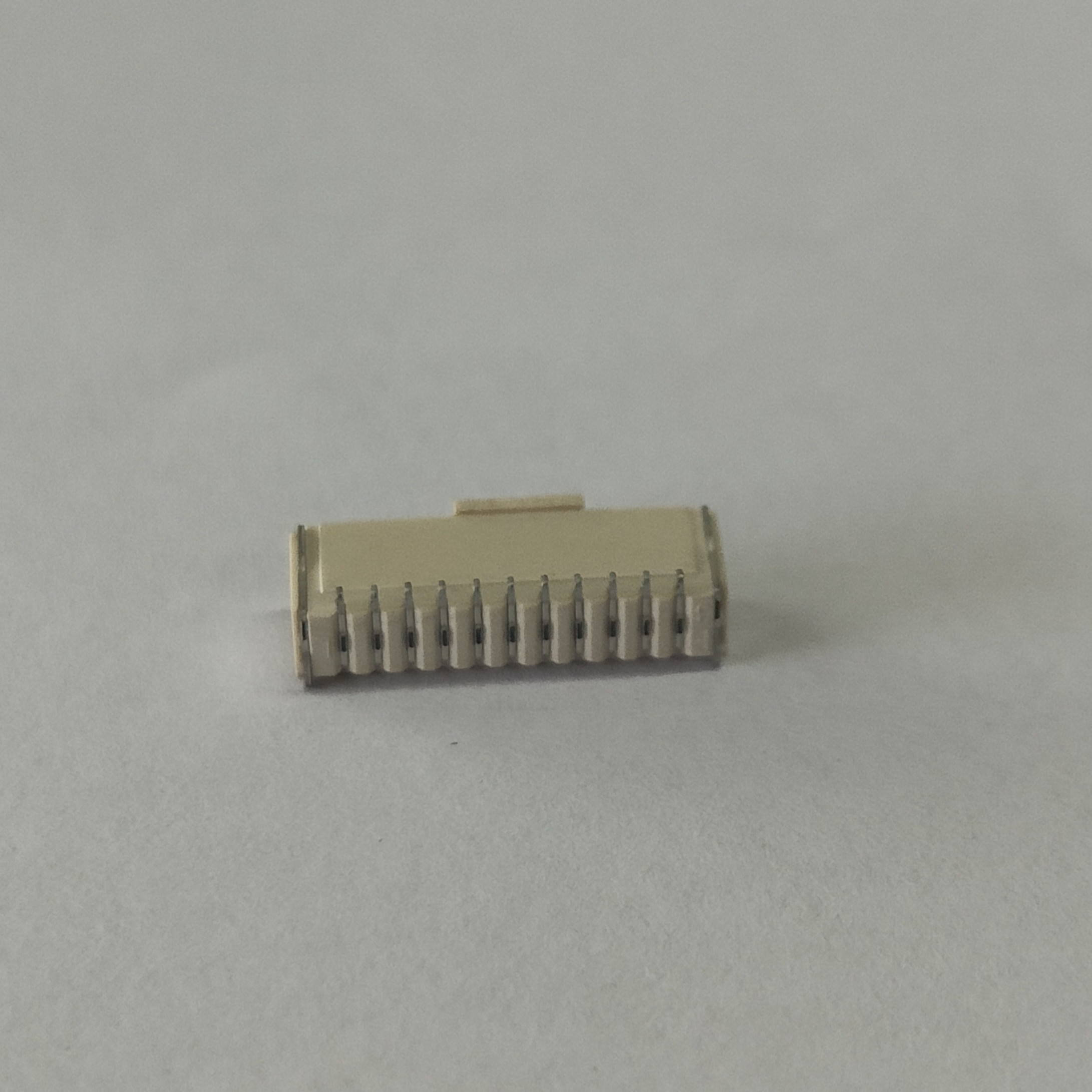

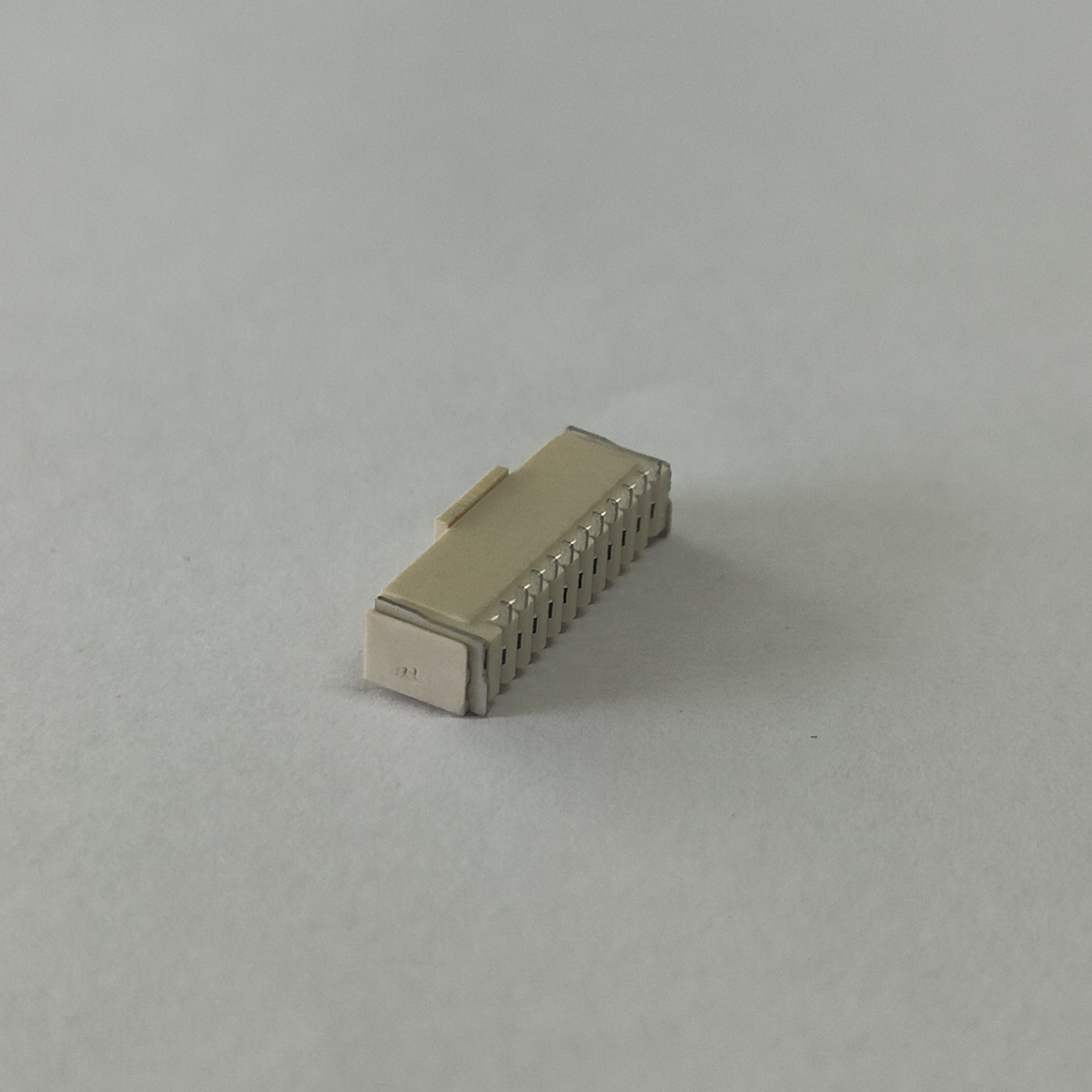

When every millimetre matters on your board, CONSHARE’s 1.00mm pitch single row SMT connectors deliver a reliable, space‑saving solution. Designed for automated pick‑and‑place assembly and reflow soldering, these 180° vertical connectors use a high‑temperature LCP housing that withstands lead‑free soldering processes without deformation or wicking.
This series focuses on two ready‑to‑ship configurations: 11‑pin and 15‑pin. Both maintain the same compact footprint, allowing you to scale I/O counts without redesigning your PCB layout. Need other pin counts? CONSHARE supports custom lengths from a few pins up to full‑row densities – just share your requirements.
LCP (Liquid Crystal Polymer) housing retains dimensional accuracy through multiple reflow cycles (up to 260°C peak).
No blistering, warping, or solder wicking into the housing – reduces post‑reflow inspection failures.
Compatible with both leaded and lead‑free soldering profiles.

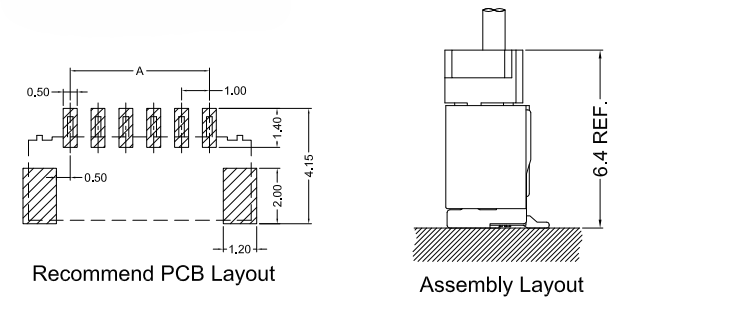

The 180° SMT footprint features enlarged or strategically placed retention pads (based on CONSHARE’s internal design validation).
Results: Higher shear strength compared to generic 1.0mm pitch parts, especially for 11‑pin and 15‑pin lengths where lever‑age forces are higher.
Reduces tombstoning or shifting during reflow – critical for dense boards with fine‑pitch components nearby.

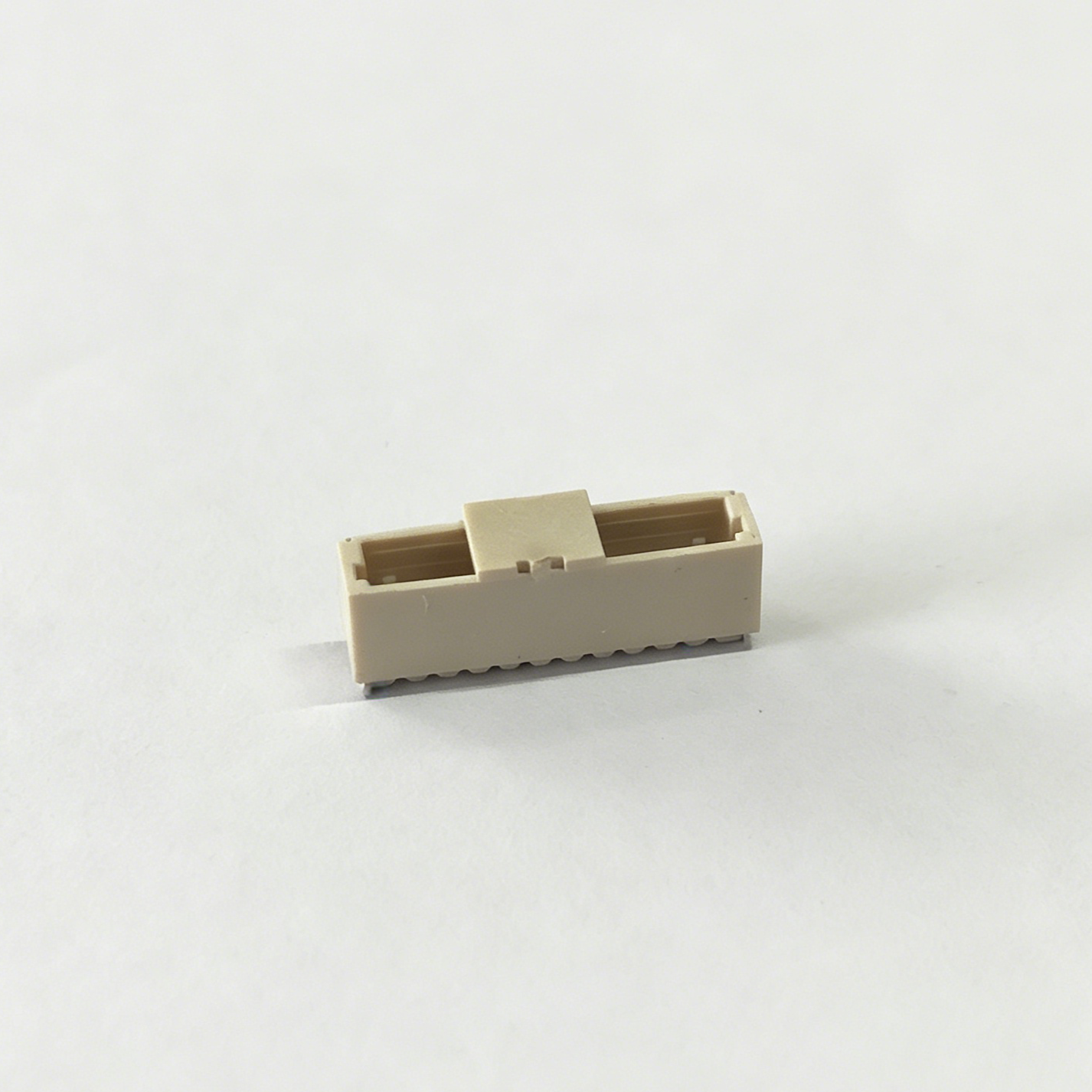

Flat top surface enables reliable vacuum pick‑up by standard SMT nozzles.

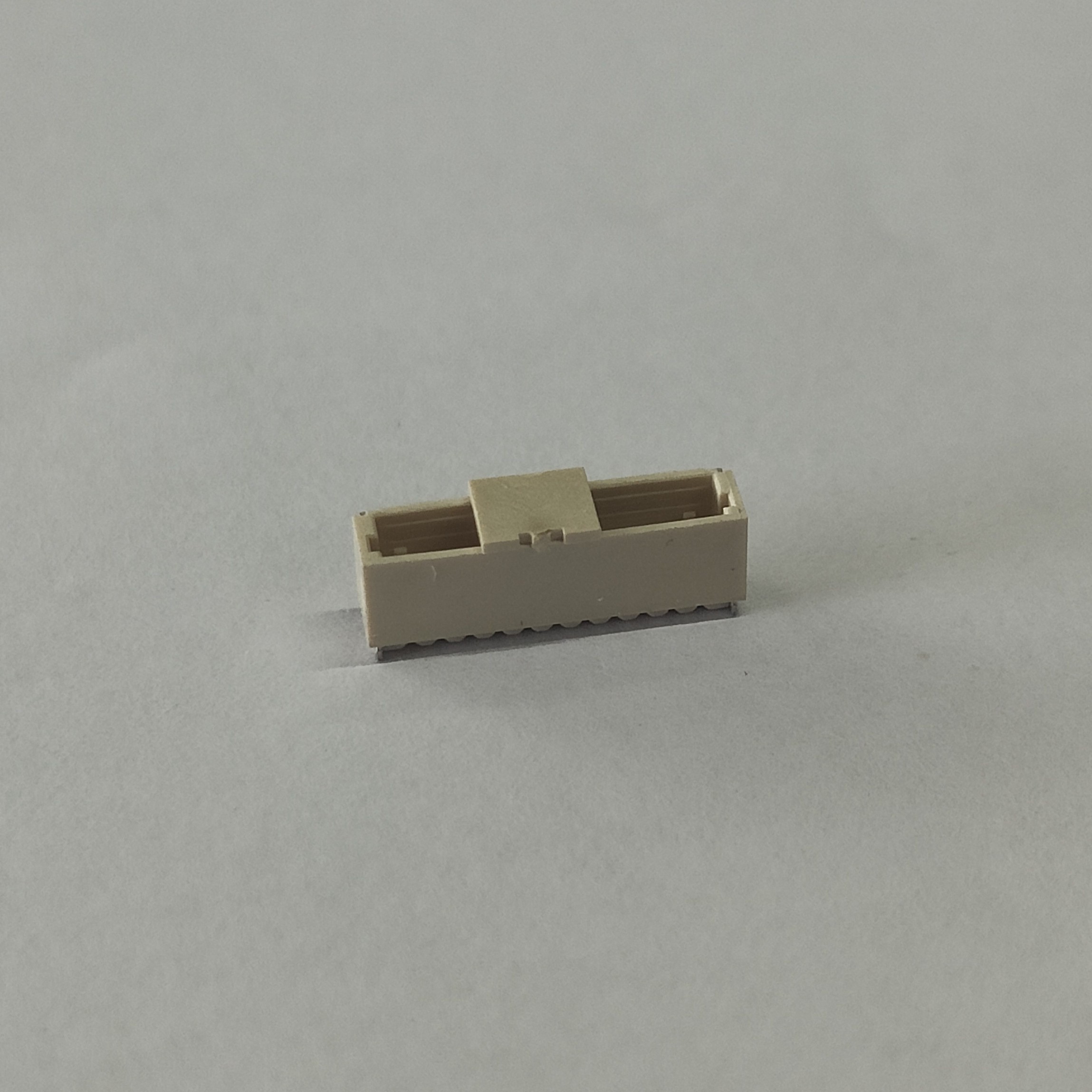

Edge‑guide ribs (visible on the housing) prevent mismating and centre the mating plug automatically.
Compatible with tape‑on‑reel packaging (default for 11‑pin and 15‑pin) – no custom feeder adjustments needed.
Feature (Derived from CONSHARE’s Engineering Data) | What It Means for You |
|---|---|
1.00mm pitch, single row | Cuts board space by ~20% compared to 1.25mm pitch designs – fit more traces or shrink your product. |

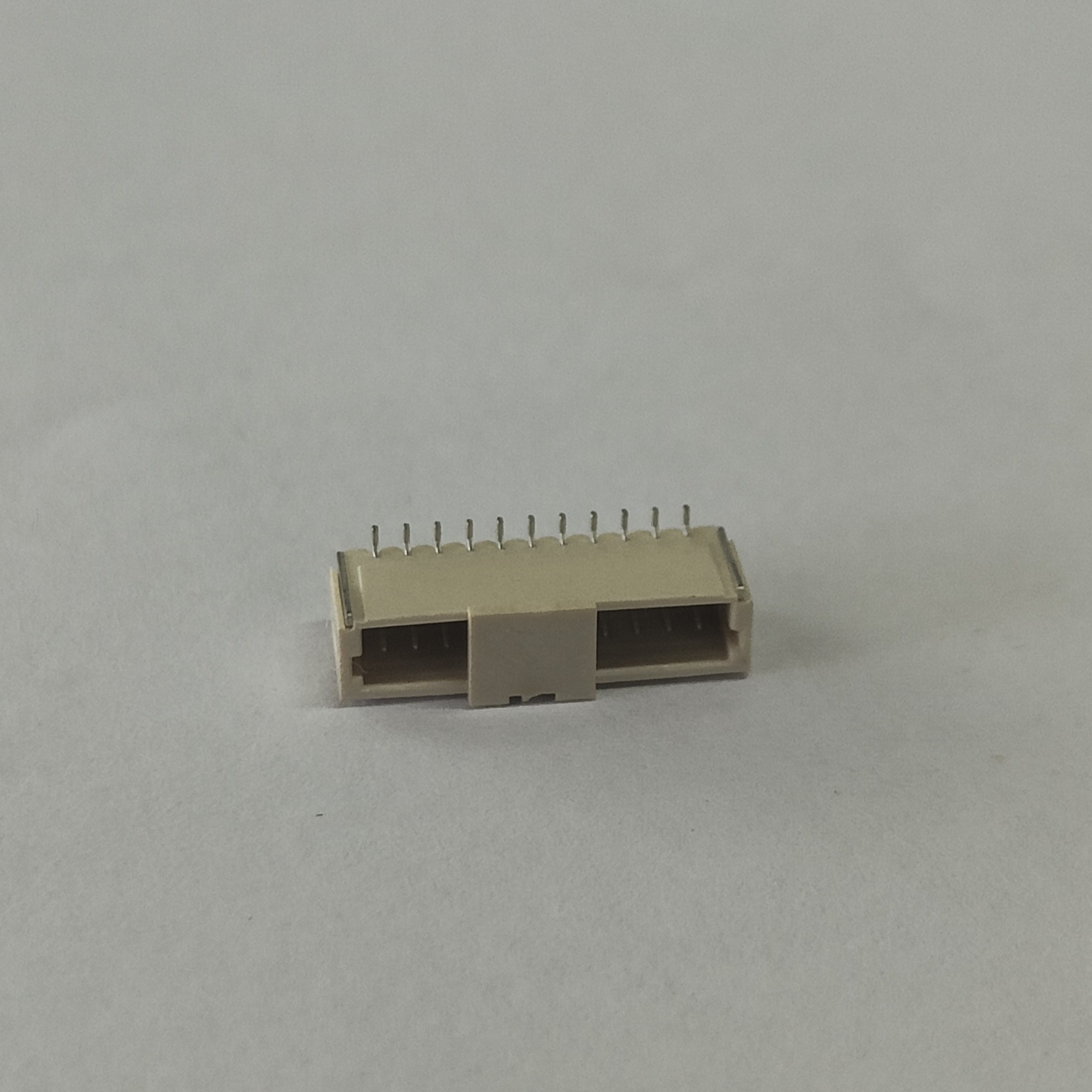

180° vertical SMT | Ideal for edge‑mounting or stacking boards vertically. No extra right‑angle adapter needed. |
LCP housing + high‑retention contacts | Withstands > 50 mating cycles without losing normal force – field maintenance is safer. |
11‑pin and 15‑pin as standard | Covers common I/O counts (e.g., power + 10 signals, or 14 signals + shield). Order off‑the‑shelf. |
Custom pin lengths supported | One BOM, multiple variants – prototype with 11‑pin, then scale to 20‑pin using the same housing family. |
Criteria | CONSHARE 1.00mm 11‑Pin | CONSHARE 1.00mm 15‑Pin |
|---|---|---|
Typical Use Cases | Battery management boards, LED strips, small sensor arrays | Industrial control I/O, automotive interior modules, medium‑density signal interfaces |
PCB Footprint Length | Short – saves space on narrow boards | Moderate – extra pins for future expansion |
Mating Force | Lower – easier for manual service | Slightly higher but still within one‑hand operation range (no tools required) |
Stock Availability | High – ready for same‑day sample shipping | High – same lead time as 11‑pin |
Customisation Option | Can be extended to lower or higher pins | Base for building up to 20+ pins with identical pitch and orientation |
Both versions share the same housing material, contact plating (enhanced anti‑corrosion), and SMT footprint guidelines – so you can mix them on the same PCB without changing reflow profiles.
Portable electronics – Smartwatches, medical patches, handheld terminals (low profile and vibration‑resistant).
Automotive interior lighting / climate controls – LCP withstands temperature cycling from -40°C to +125°C.
Industrial sensors & encoders – 1.00mm pitch allows dense I/O on small sensor PCBs.
Test & measurement equipment – Reliable mating for frequent board swapping.
Not recommended for high‑current power transmission (above 1.5A per pin) – use our dedicated power connectors instead.
CONSHARE doesn’t just sell standard 11‑pin and 15‑pin versions. Based on the original design’s modular structure, we offer:
Any pin count from 2 to 30 (single row, 1.00mm pitch, same LCP housing profile).
Tape‑on‑reel packaging for all custom lengths – no extra tooling fee for common increments (e.g., 12, 14, 16 pins).

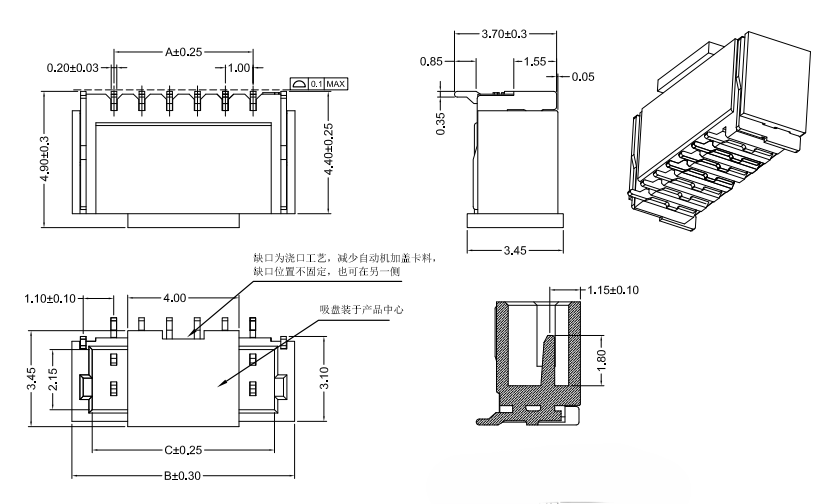

Optional pick‑and‑place caps if your nozzle needs extra stability.
Lead time for custom pin counts: 10–15 working days for samples.
100% electrical test (continuity & insulation resistance) for every connector before taping.
RoHS & REACH compliant – full declaration available.
Reflow simulation tested – no solder balling or housing degradation after 3 reflow passes (peak 260°C).
