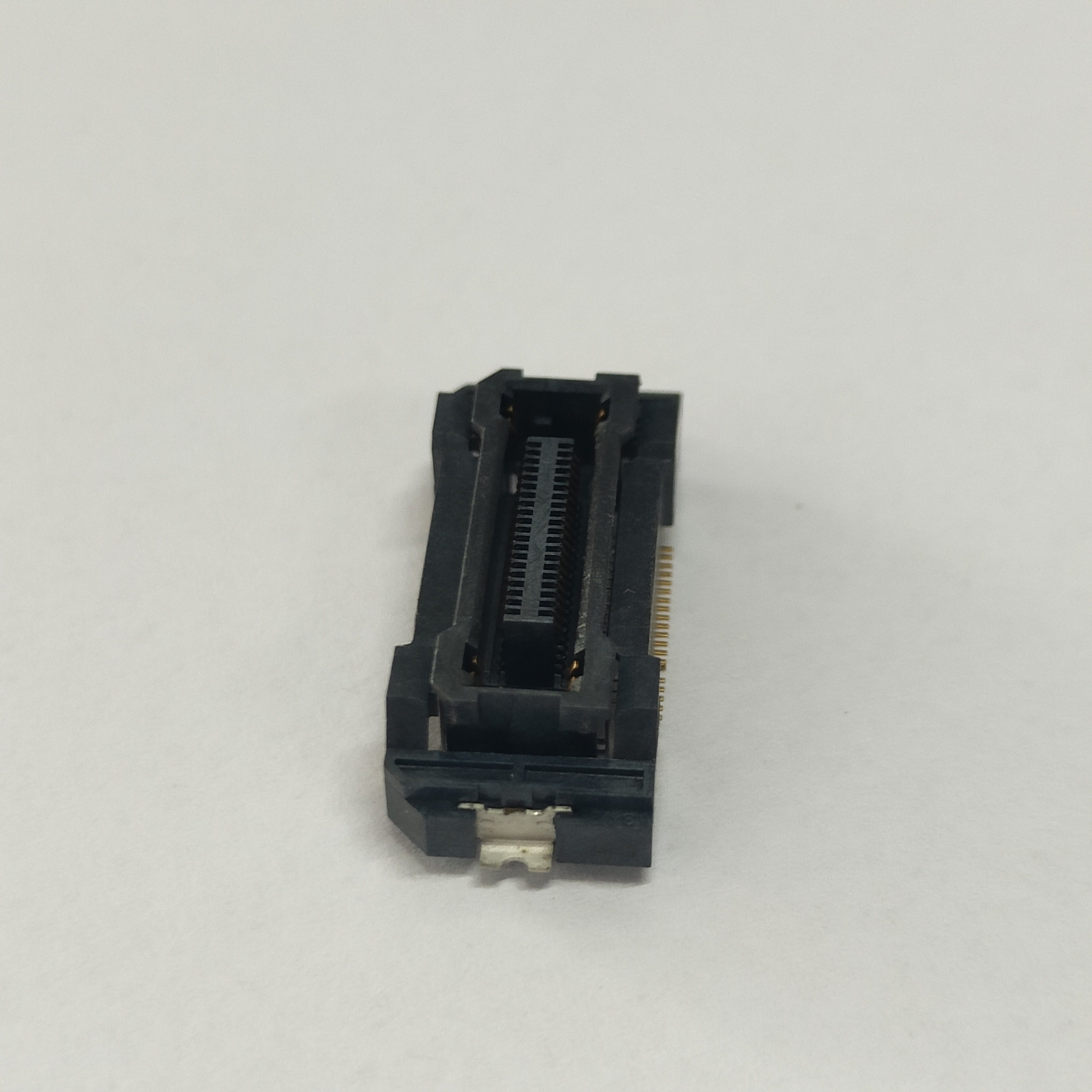

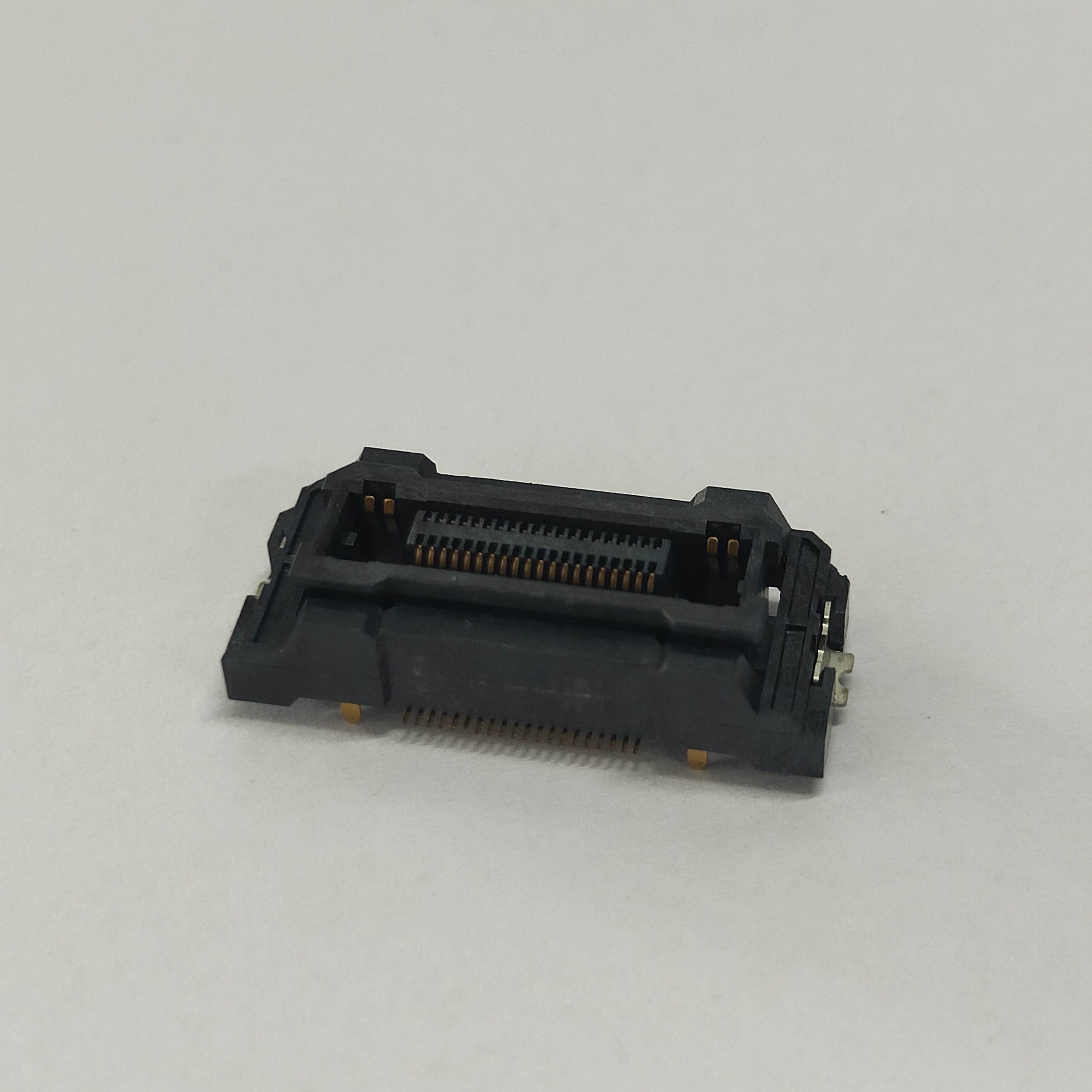

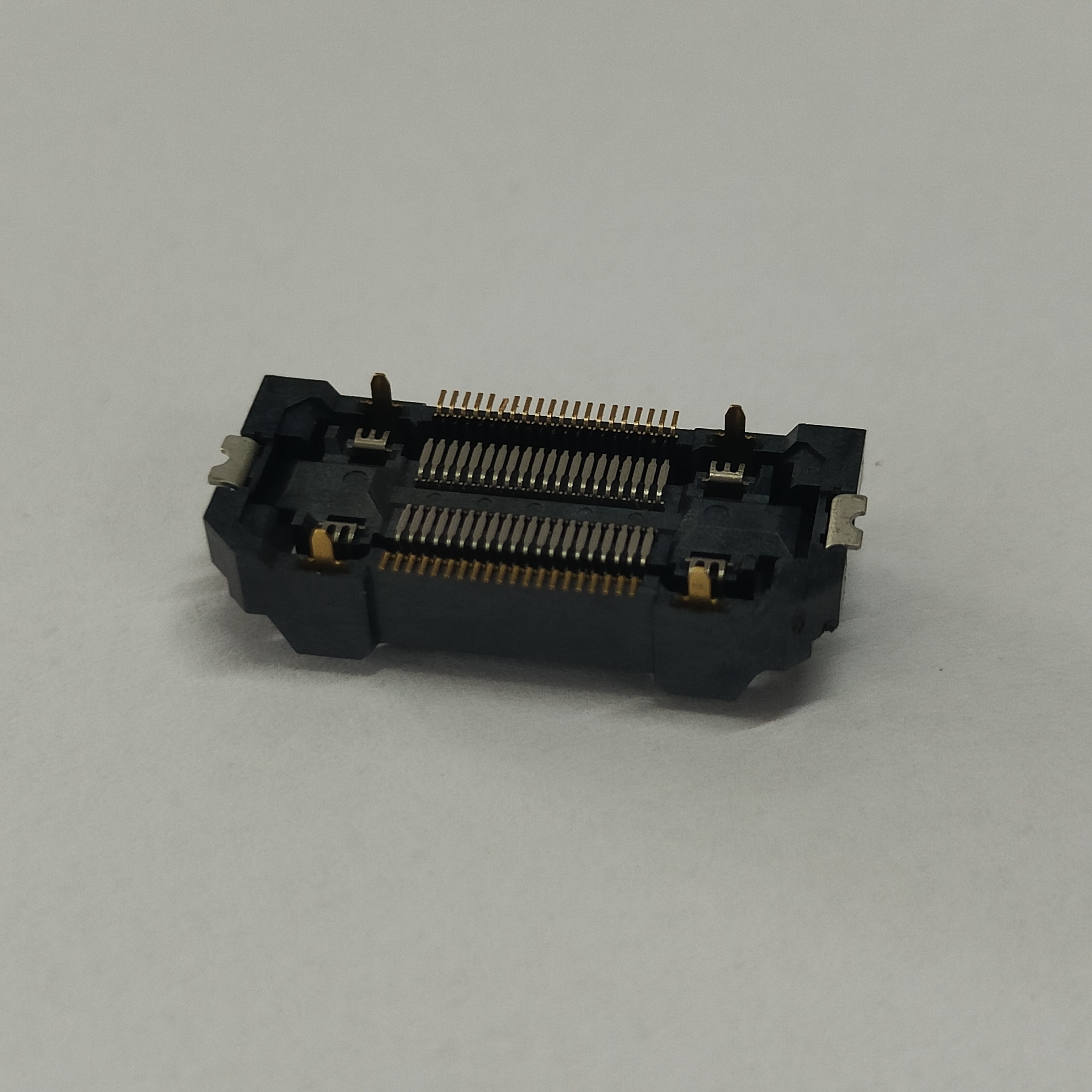

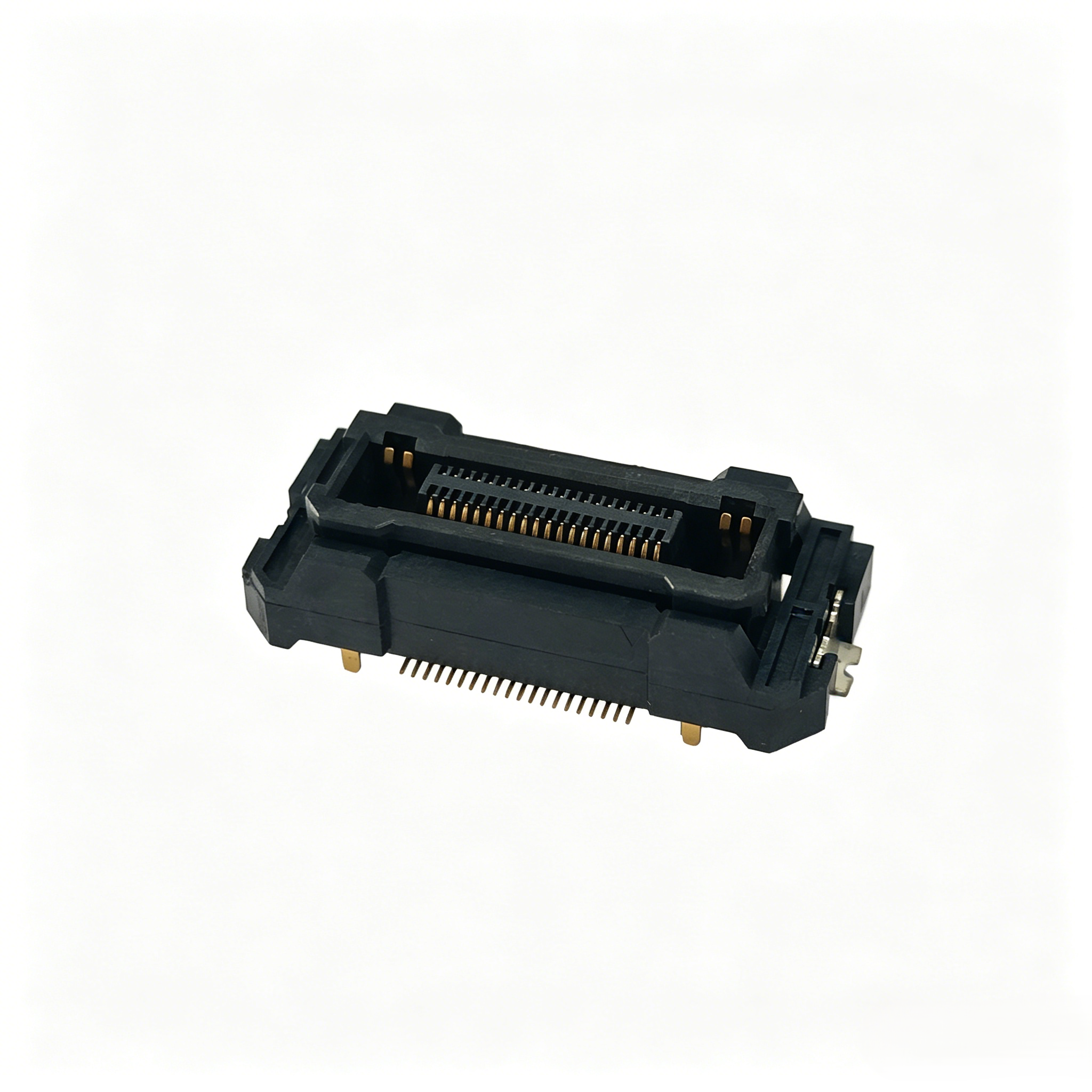

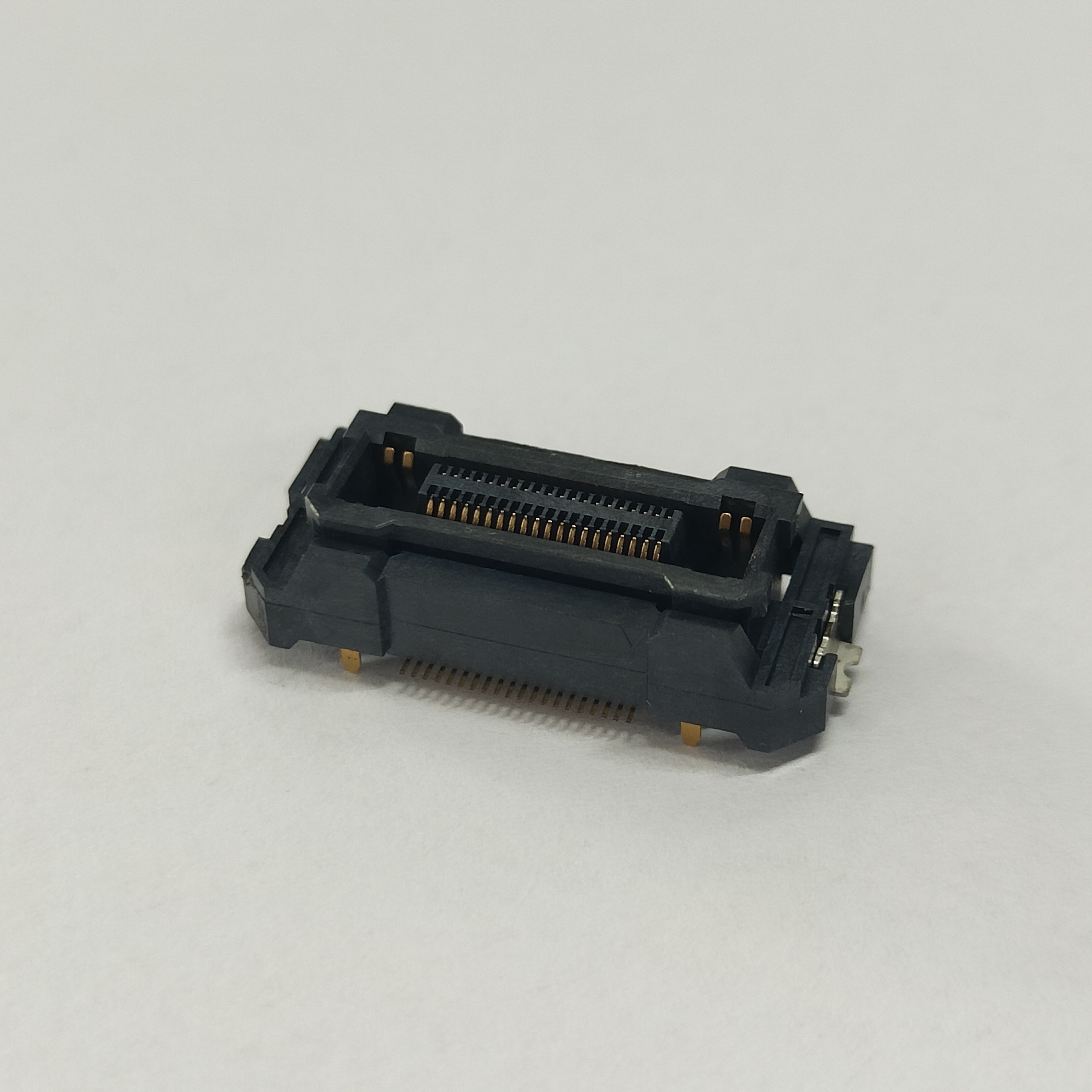

CONSHARE’s vertical dual-row floating receptacle falls into high-precision board-to-board interconnect product series, designed with 0.50mm contact pitch and fixed 6.00mm core stacking height. The vertical floating structure enables stable vertical interconnection between paired PCBs, with flexible pin layout selections to implement simultaneous signal and power routing, widely adopted in automotive electronics, industrial controllers and intelligent wearable devices.

Core Optimized Design Advantages

XY Dual-Axis Floating Mating Structure

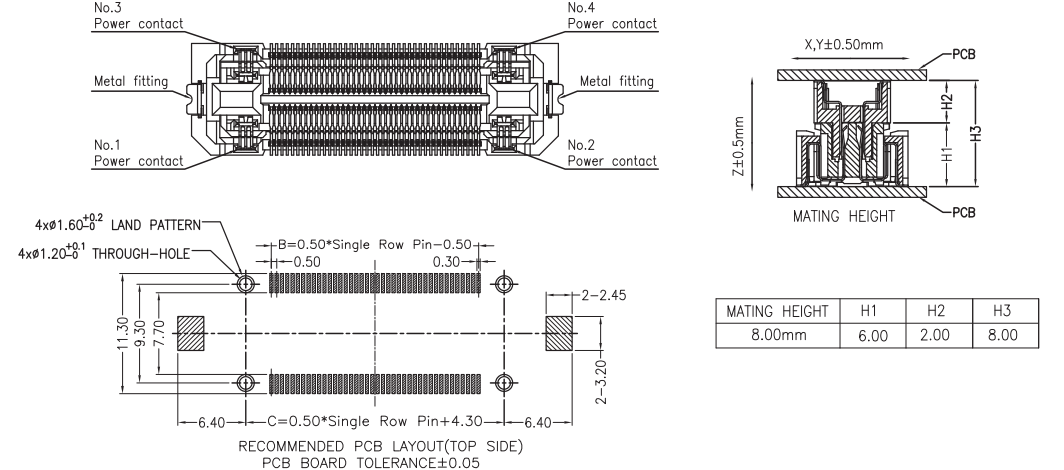

Integrated bidirectional floating construction reserves ±0.5mm compensation margin on X and Y axes when two boards mate. The floating clearance absorbs dimensional discrepancy stemming from PCB processing tolerance and automated assembly offset, preventing pin bending, poor soldering and intermittent circuit failures triggered by mismatched board placement. Its standardized 8.00mm total mating height (H1=6.00mm, H2=2.00mm, H3=8.00mm) fixes the spacing between two interconnected PCBs to maintain overall assembly flatness after locking.

Graded Raw Material & Multi-Layer Electroplating Structure

Insulating shell is molded from UL94V-0 compliant LCP plastic, capable of enduring 265°C instantaneous high heat for 40s during lead-free SMT reflow without deformation or shrinkage.

Conductive terminals are split into independent signal contact, power contact and ground contact with customized plating solutions:

• Signal & power pins use copper alloy base pre-coated with minimum 50μ nickel; contact surface supports optional flash gold plating from 6μ up to 30μ to enhance abrasion resistance as per application scenarios;

• Ground terminal is built on brass substrate with 80μ nickel underlayer plus full matte tin outer plating. Multi-layer anti-corrosion plating lets the connector pass 8-hour 5% concentration salt spray testing at 35±2°C with zero rust or surface oxidation.

Differentiated Electrical Spec for Hybrid Power-Signal Transmission

Signal and power circuits adopt separated electrical thresholds to accommodate mixed-current transmission, effectively restraining unexpected voltage drop and dielectric leakage under irregular load fluctuation:

Production & Environmental Adaptability Optimization

• Extended service temperature scope: Maintains stable mechanical locking and electrical conduction from -40°C to +125°C, perfectly adapting to fluctuating ambient temperature of vehicle-mounted and field-installed industrial equipment;

• Tape & reel packaging design: Standard reel packing matches fully automatic SMT pick-and-place equipment, helping manufacturers cut down manual assembly cost and improve PCB assembly efficiency.

CONSHARE Customization & After-sales Quality Commitment

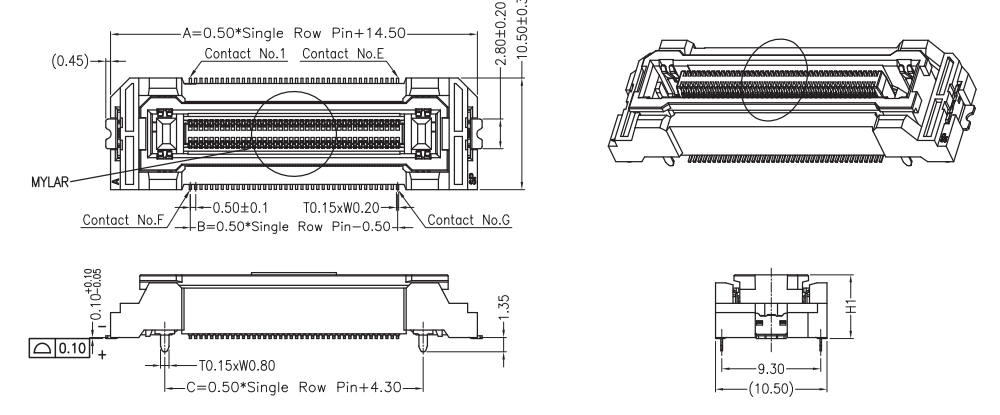

CONSHARE provides personalized adjustment on gold plating thickness and pin configuration matching clients’ unique PCB layout requirements. Standard PCB pad and through-hole dimensional blueprint can be supplied to shorten customers’ prototype validation cycle. All finished receptacles are covered under a 6-month quality warranty against raw material and workmanship defects from CONSHARE.
