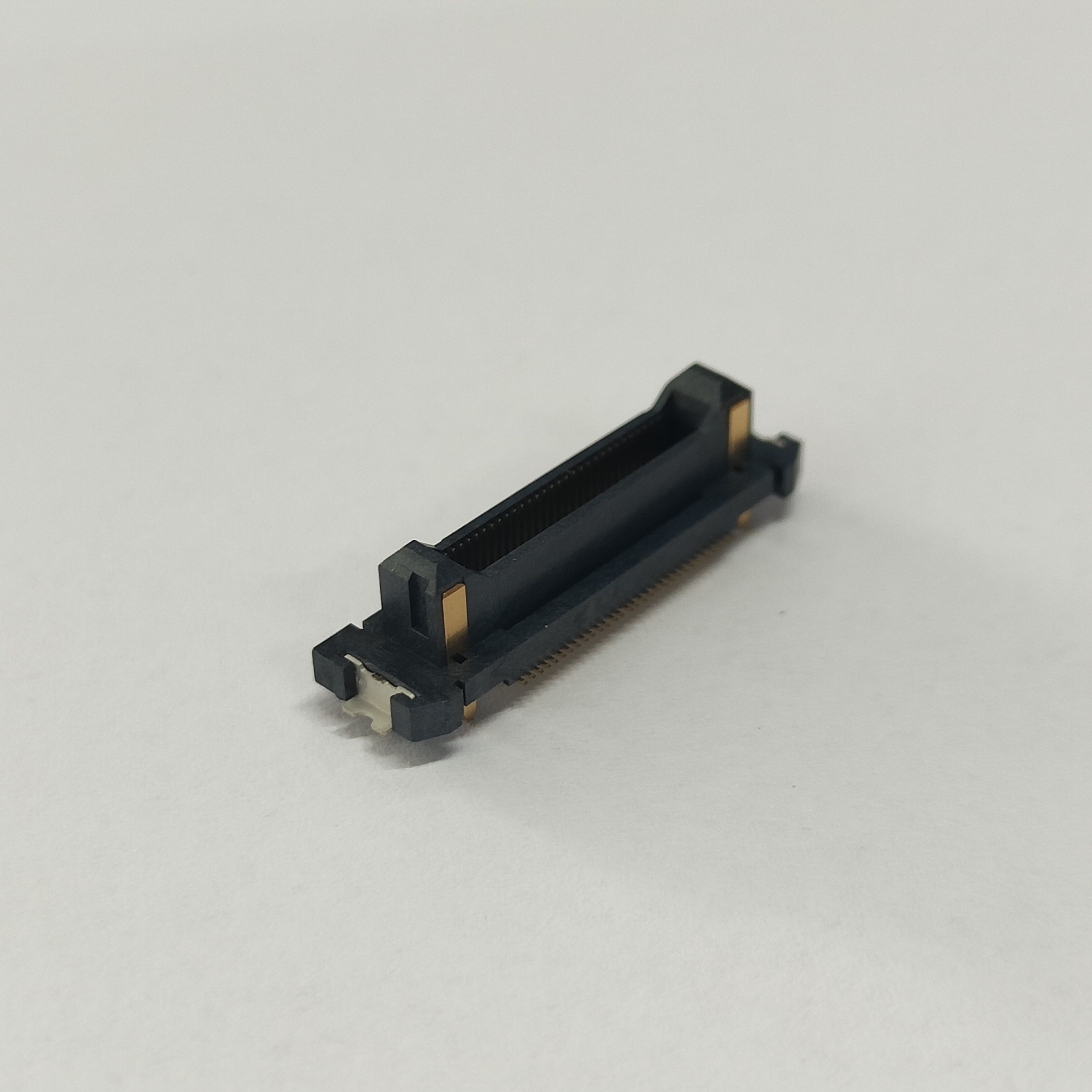

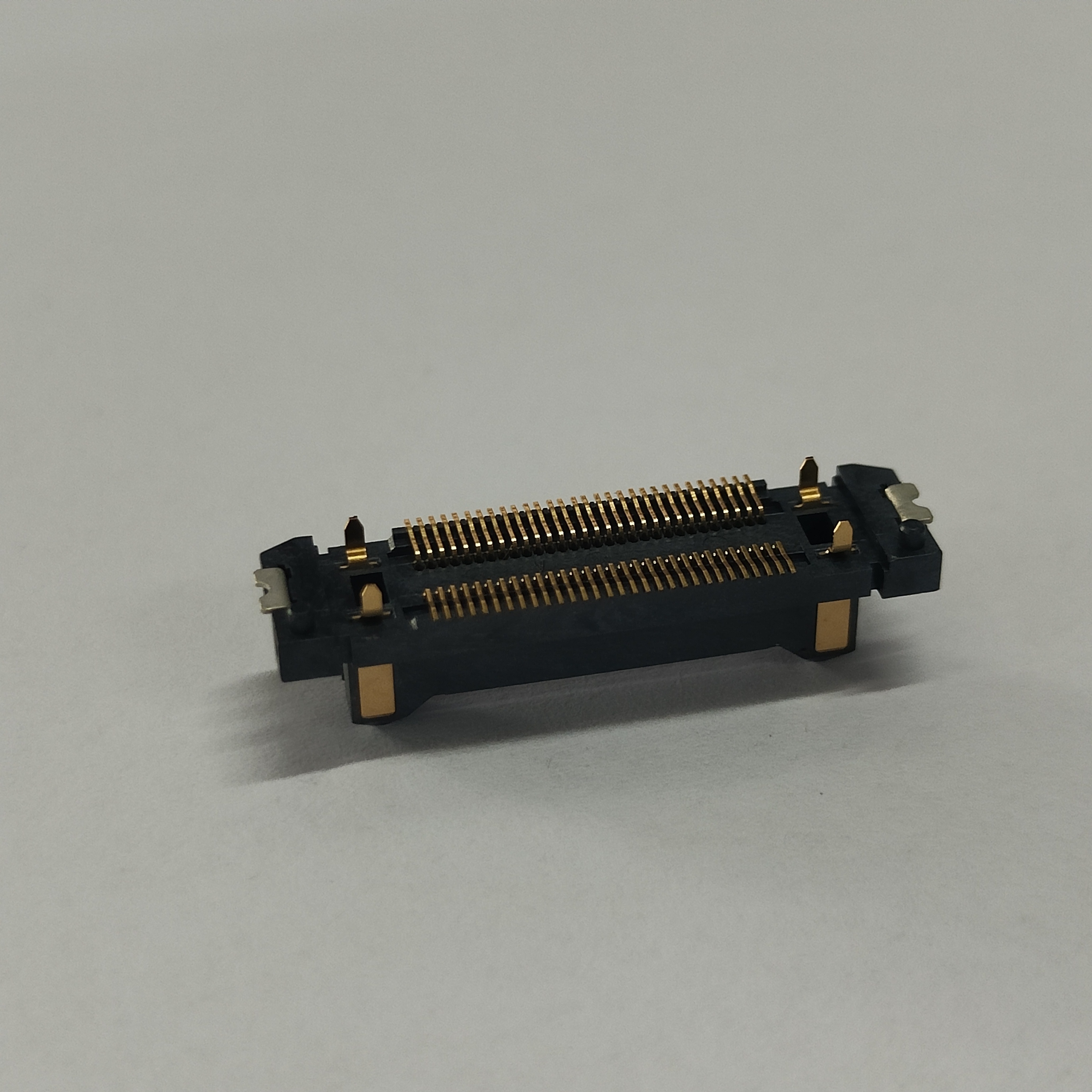

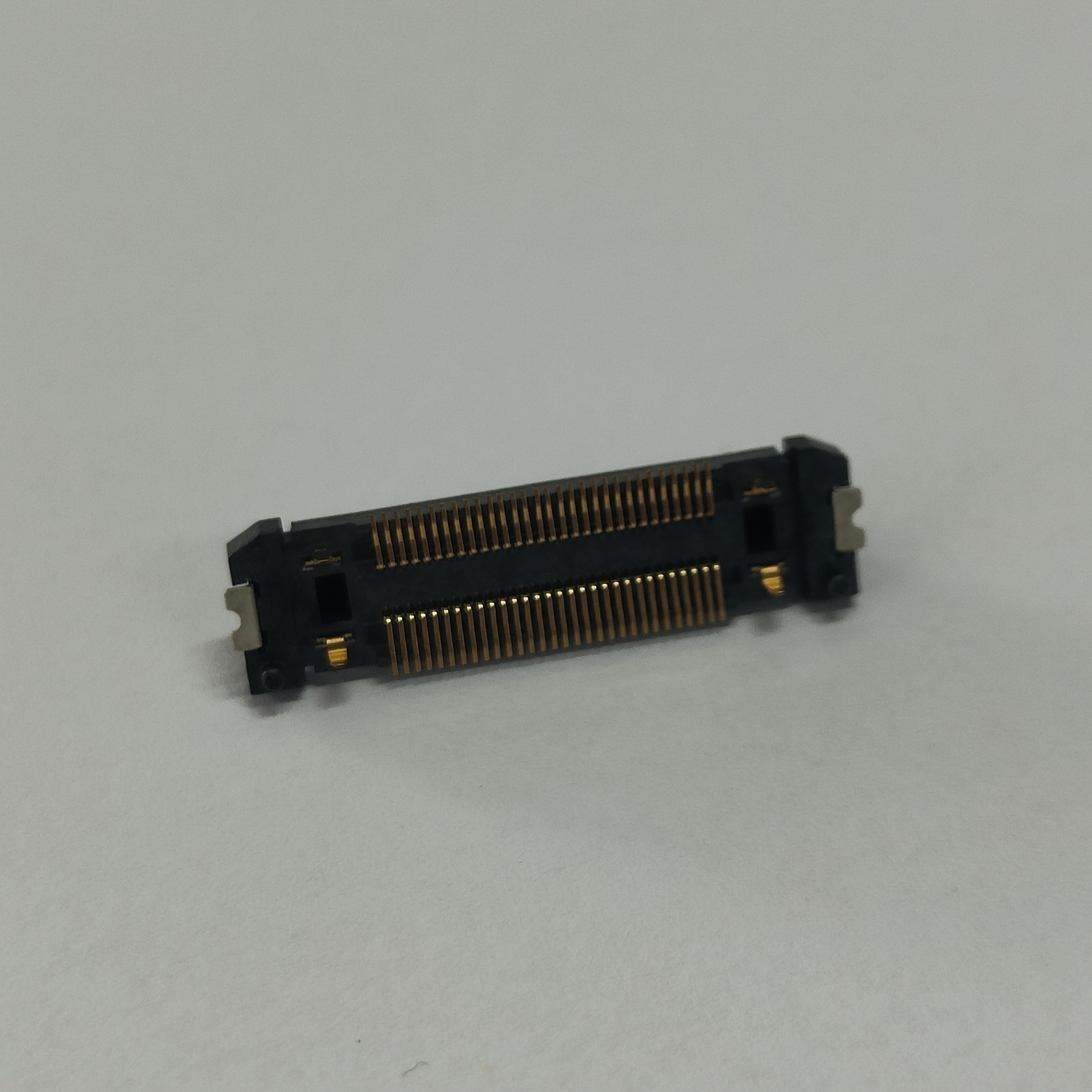

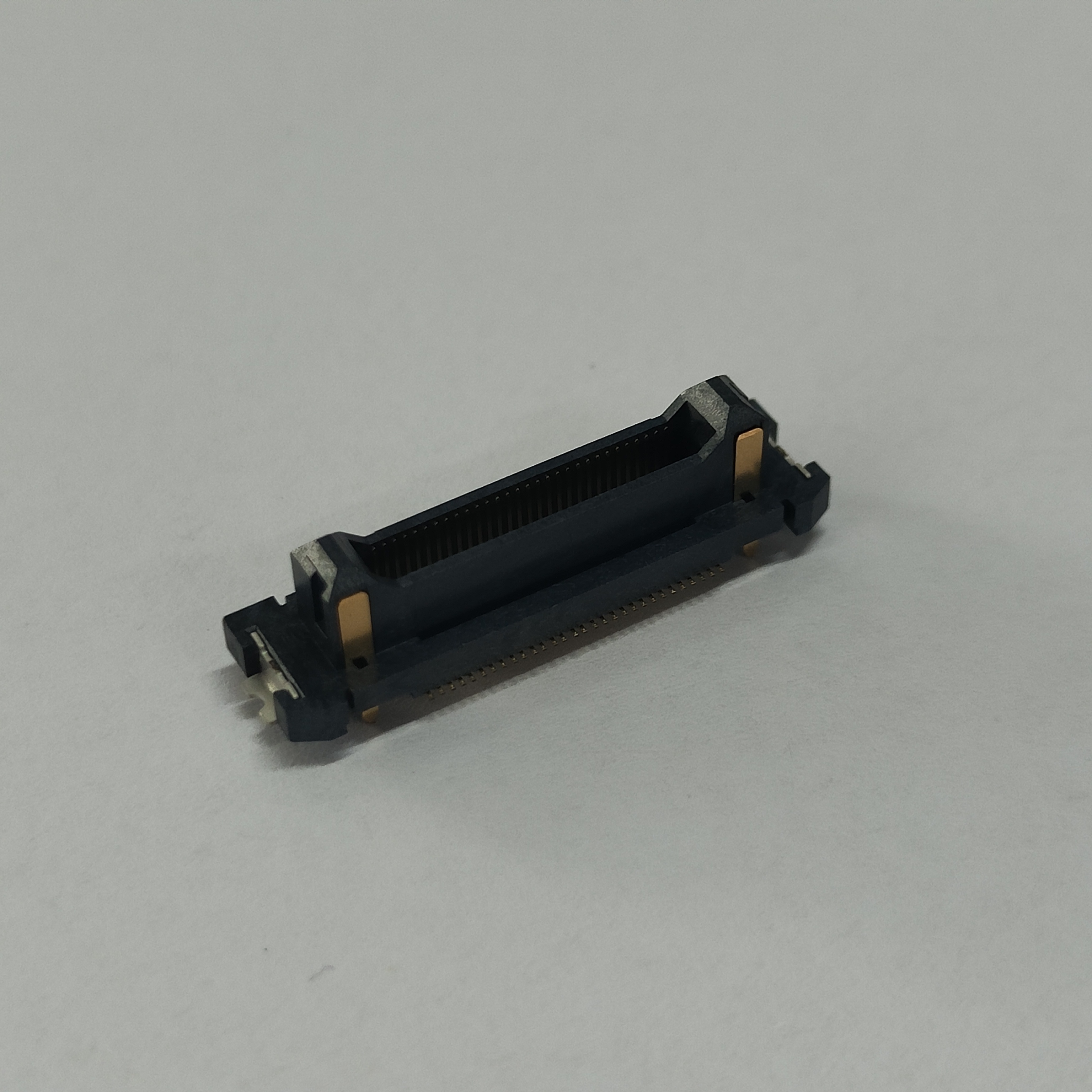

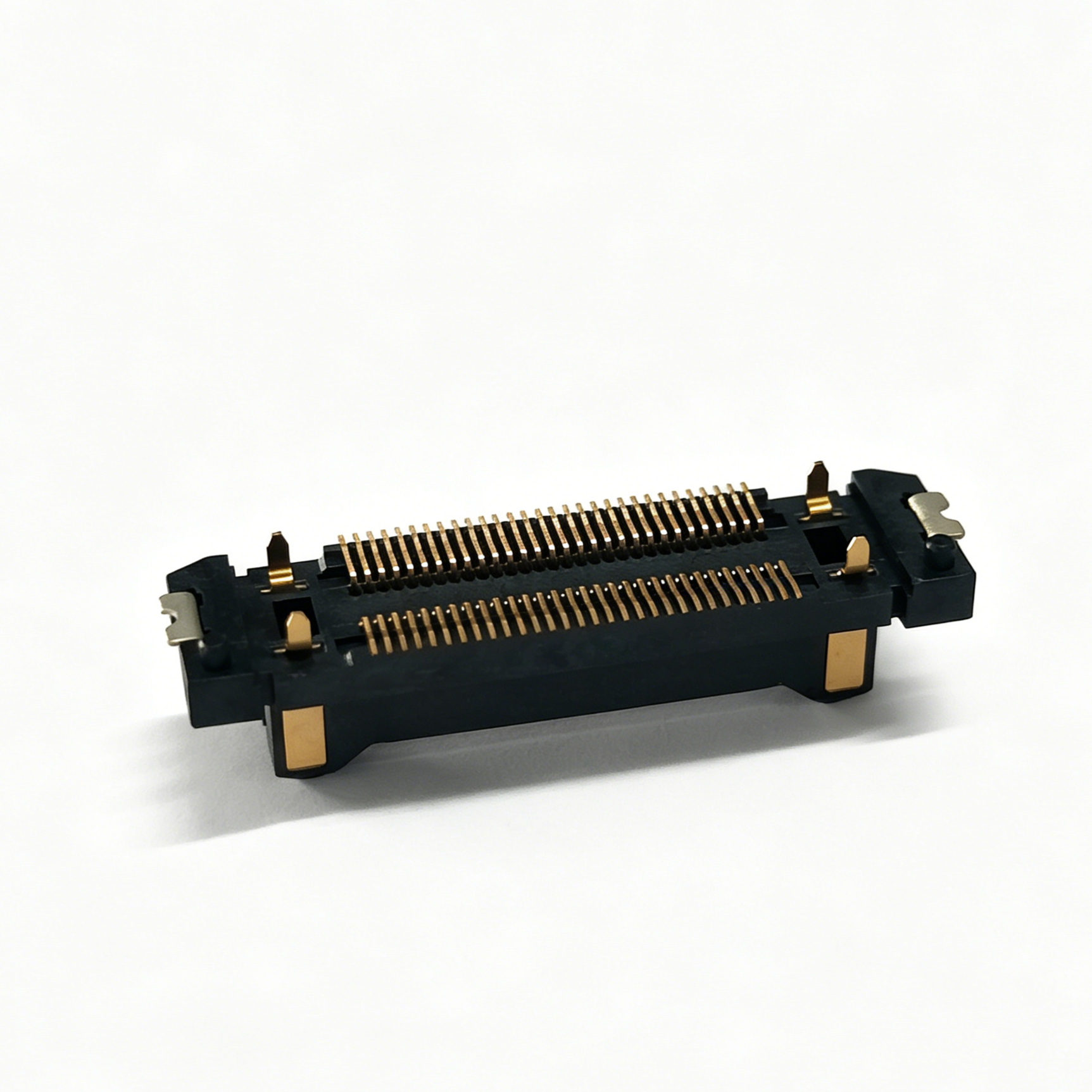

Designed for high-density, high-reliability board-to-board (BTB) interconnects, the CONSHARE 0.50mm Floating Male Connector is engineered to solve common assembly and performance challenges in modern electronics. Built with precision manufacturing and application-focused features, this 60-position vertical DIP connector delivers consistent signal and power integrity across demanding environments, backed by CONSHARE’s commitment to quality.
Rigid BTB connectors often fail to accommodate minor PCB misalignments, thermal expansion, or assembly tolerances, leading to intermittent connections, solder joint damage, or permanent device failure. These issues are especially common in designs with tight stack-up requirements or applications exposed to temperature fluctuations and vibration.
Unlike fixed connectors, this model features a purpose-built floating design that absorbs positional deviations between mating boards. By reducing mechanical stress on pins and solder joints, it eliminates the risk of connection failures caused by assembly offsets, thermal cycling, or shock. This design ensures reliable long-term performance even in high-tolerance production environments or harsh operating conditions.
Constructed from UL94V-0 rated black Liquid Crystal Polymer (LCP), the housing offers exceptional dimensional stability and flame retardancy. It withstands peak reflow soldering temperatures up to 265°C, ensuring compatibility with standard DIP assembly processes without warping, melting, or degradation. The robust housing also protects internal contacts from physical damage during handling and mating.
Contacts are precision-stamped from high-strength copper alloy, with a 50µ minimum nickel underplate for enhanced corrosion resistance. Contact areas feature 3µ" gold plating, while solder tails receive flash gold plating to balance performance and cost. This combination delivers low contact resistance, minimal signal loss, and consistent power distribution—critical for both high-speed signal paths and power-carrying applications.
Every connector undergoes rigorous environmental testing, including 8 hours of salt spray exposure with no oxidation or rust. It operates reliably across a wide temperature range of -40°C to +125°C, making it suitable for industrial, automotive, and consumer electronics applications. Power contacts are optimized to handle higher current loads without overheating, ensuring stable performance even under peak demand.
The vertical through-hole (DIP) configuration provides strong mechanical anchoring to the PCB, offering superior shock and vibration resistance compared to surface-mount-only alternatives. This design ensures the connector remains securely attached to the board, even in applications exposed to frequent movement or vibration.

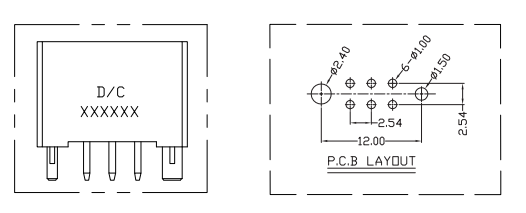

The connector features a precision pin retention system that prevents pins from lifting out of the housing during handling or mating, reducing assembly defects. A recommended PCB land pattern is provided to ensure consistent soldering results, with controlled mating heights that fit standard board-to-board stack-up requirements, maximizing PCB real estate in compact designs.
While this listing features the 60-position (2x30P) configuration, CONSHARE offers full customization capabilities to align with your unique project requirements. Available modifications include:
Pin count variations from 2x10P to 2x60P, with custom configurations available upon request
A range of gold plating thicknesses (1µ", 3µ", 6µ", 15µ", or 30µ") to balance performance, cost, and corrosion resistance
Packaging options including tape-and-reel for automated assembly, or custom packaging to suit your production line
Specialized adjustments such as enhanced grounding configurations, higher current ratings, or mechanical tweaks for unique design challenges
Category | Key Details |
|---|---|
Pitch | 0.50mm |
Positions | 60P (2x30P) |
Mounting Type | Vertical Through-Hole (DIP) |
Contact Plating | 3µ" Gold on contact areas (flash gold on solder tails, nickel underplate) |
Housing Material | Black LCP (UL94V-0) |
Operating Temperature | -40°C to +125°C |
Soldering Compatibility | Reflow soldering up to 265°C (40 seconds max) |
Salt Spray Resistance | 8 hours (no oxidation/rust) |
Mating Orientation | Vertical Board-to-Board |
At CONSHARE, we don’t just manufacture connectors—we deliver interconnect solutions tailored to your design goals. When you select this floating BTB male connector, you benefit from:
Rigorous quality testing including dielectric withstand, contact resistance, and environmental validation to ensure consistent performance
Dedicated engineering support to optimize PCB layouts, validate designs, and customize connectors for your unique challenges
A 6-month warranty against manufacturing defects, providing peace of mind for your production
Years of expertise in high-density BTB interconnects, with solutions proven in consumer, industrial, and automotive applications
Ready to integrate this connector into your design? Contact our sales team today to discuss customization options, request a quote, or learn more about how CONSHARE connectors can solve your interconnect challenges.
