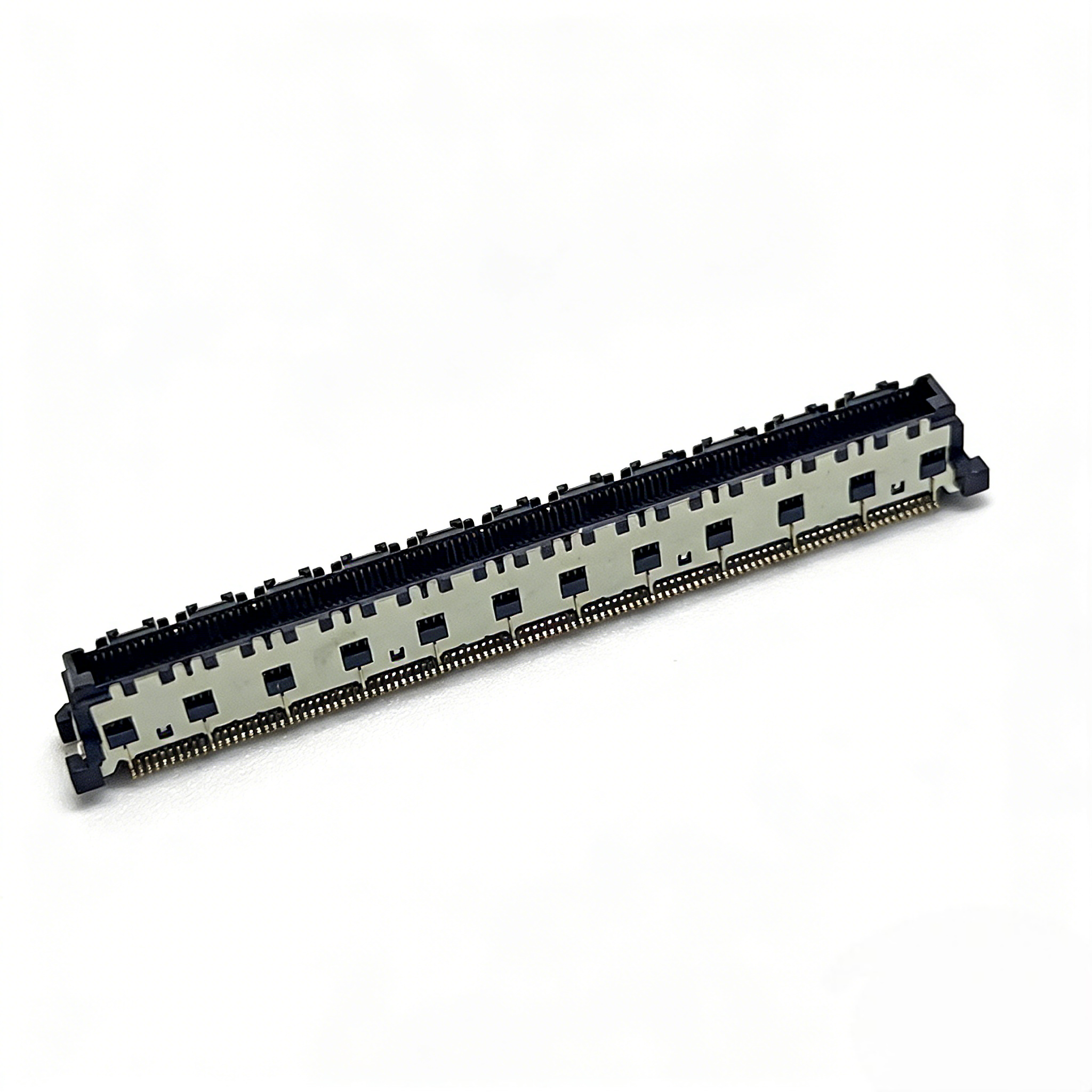

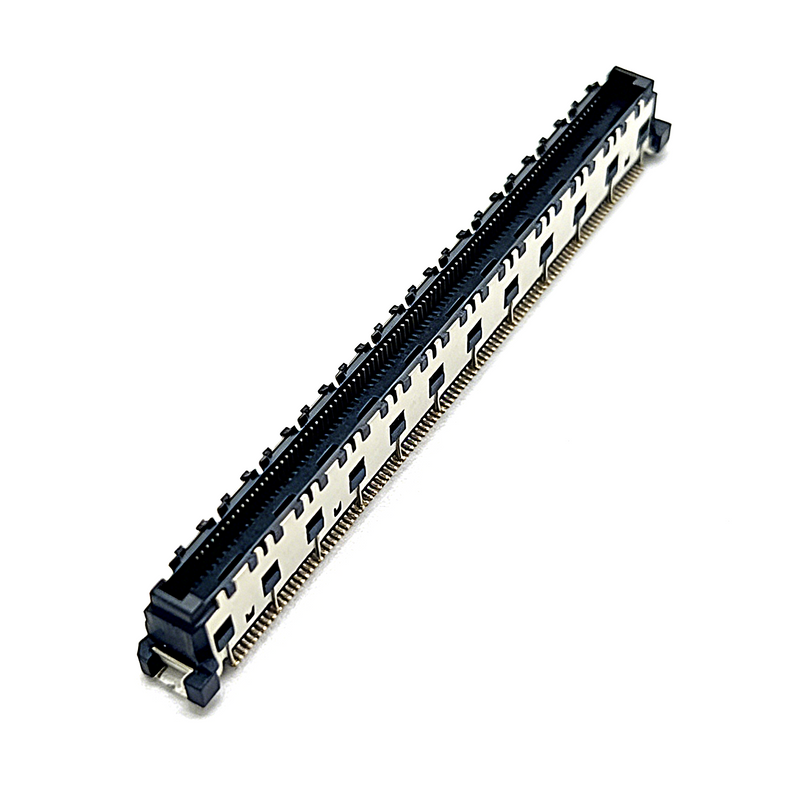

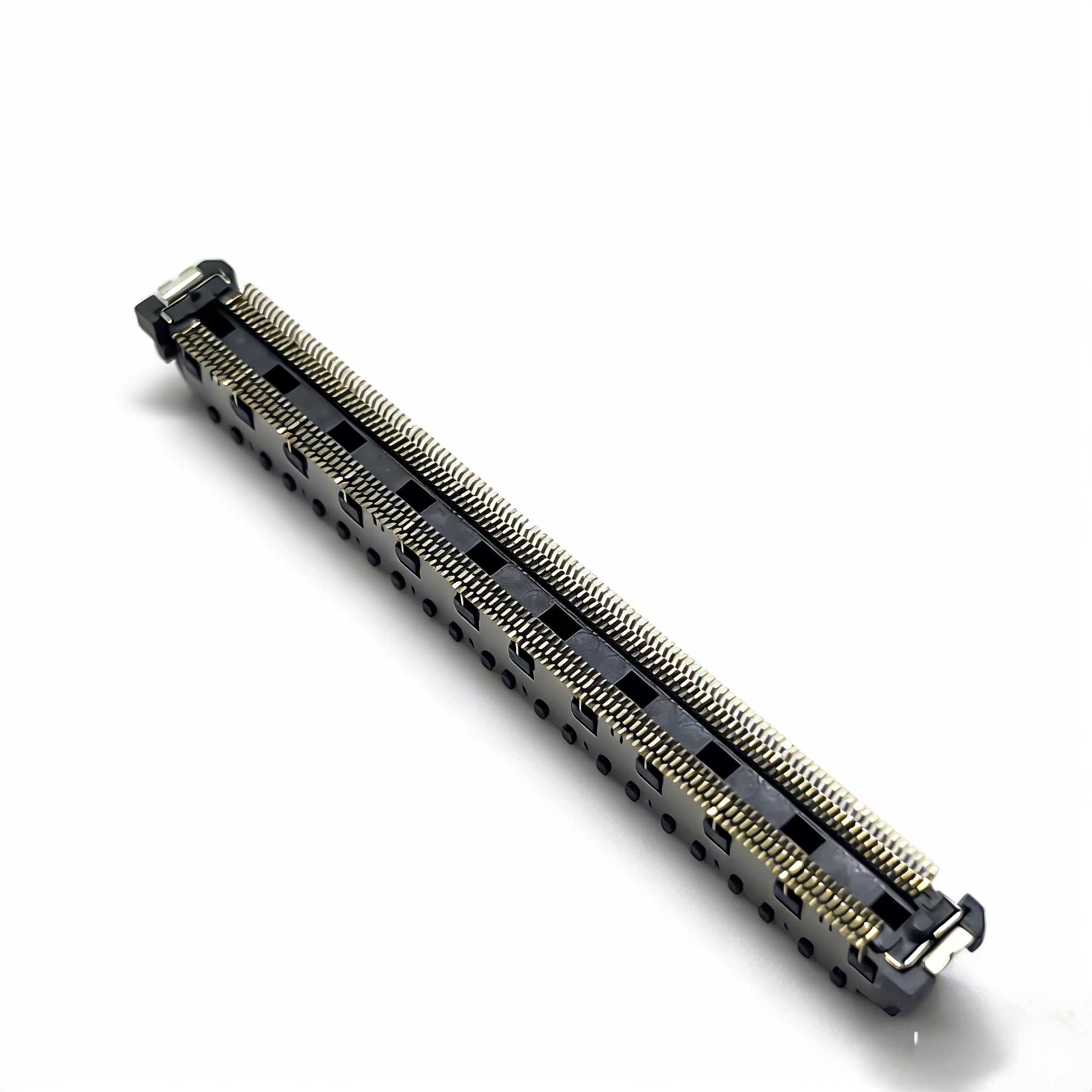

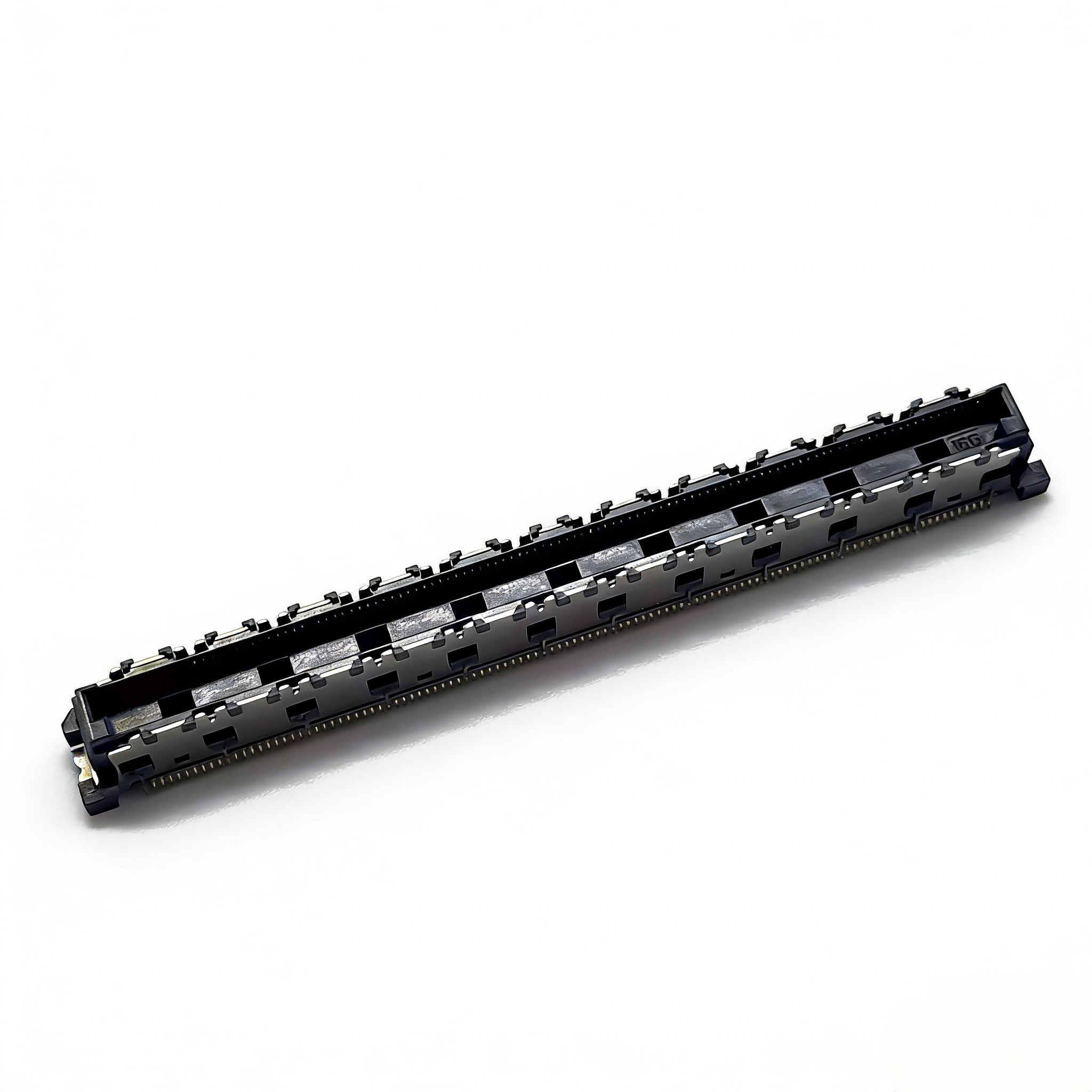

1. The Board-to-Board Com Express® connector is a shielded dual-row SMT connector system with a 0.5 mm pitch, specifically designed for high-speed data transmission applications. It supports various data rates ranging from 8 Gbps to 16 Gbps, with top configurations reaching up to 25 Gbps.

2. In addition to the available pin counts of 40, 80, 120, and 160, versions with 220 and 440 contacts are also offered, primarily catering to the widely used BTB Express® applications.

3. Compact size, high speed, and reliable performance.

4. To accommodate diverse application scenarios in real-world customer implementations, this 0.5 mm pitch product is designed with different mating heights. The male and female connectors corresponding to each mating height are also differentiated, with three available mating height options: 8.0 mm, 6.0 mm, and 5.0 mm.

◆◆ Product Advantage

1. 0.5 mm pitch minimizes PCB space requirements

2. 196 signal pins and 24 ground pins enable high-density signal contacts

3. Plug-in compatibility with other manufacturers' connectors

4. 3D models and comprehensive high-frequency test reports provided

5. Excellent coplanarity ensures secure soldering through optimized manufacturing processes

6. EMC shielding cover enhances electromagnetic compatibility and delivers optimal signal integrity

◆◆ Product Uses

1. Industrial Automation and Control

2. Telecommunications and Network Equipment

3. Medical Equipment

4. Transportation and Automotive Electronics

5. Power and Energy Systems

6. Test and Measurement Equipment

7. Embedded Computing and Edge Computing
