• CONSHARE DF13 series features DF13-2-NAB and DF13-2*10AB, standard 1.25mm pitch wire-to-board WTB connectors. They are engineered to realize stable signal and power connection between cables and PCB boards, widely applicable to consumer electronics and compact intelligent devices.

• Built with UL94-V0 flame-retardant plastic housing and tin-plated copper alloy terminals, these WTB connectors perform steadily at -25°C to 85°C, offering low contact resistance and long service life for daily and light industrial use.

• CONSHARE provides flexible customization services for this DF13 series, including pin arrangement, surface plating and packaging options, to tailor exclusive connection solutions for your different project requirements.

Product Advantage

Ultra-Slim Mini Body for Space-Saving Installation

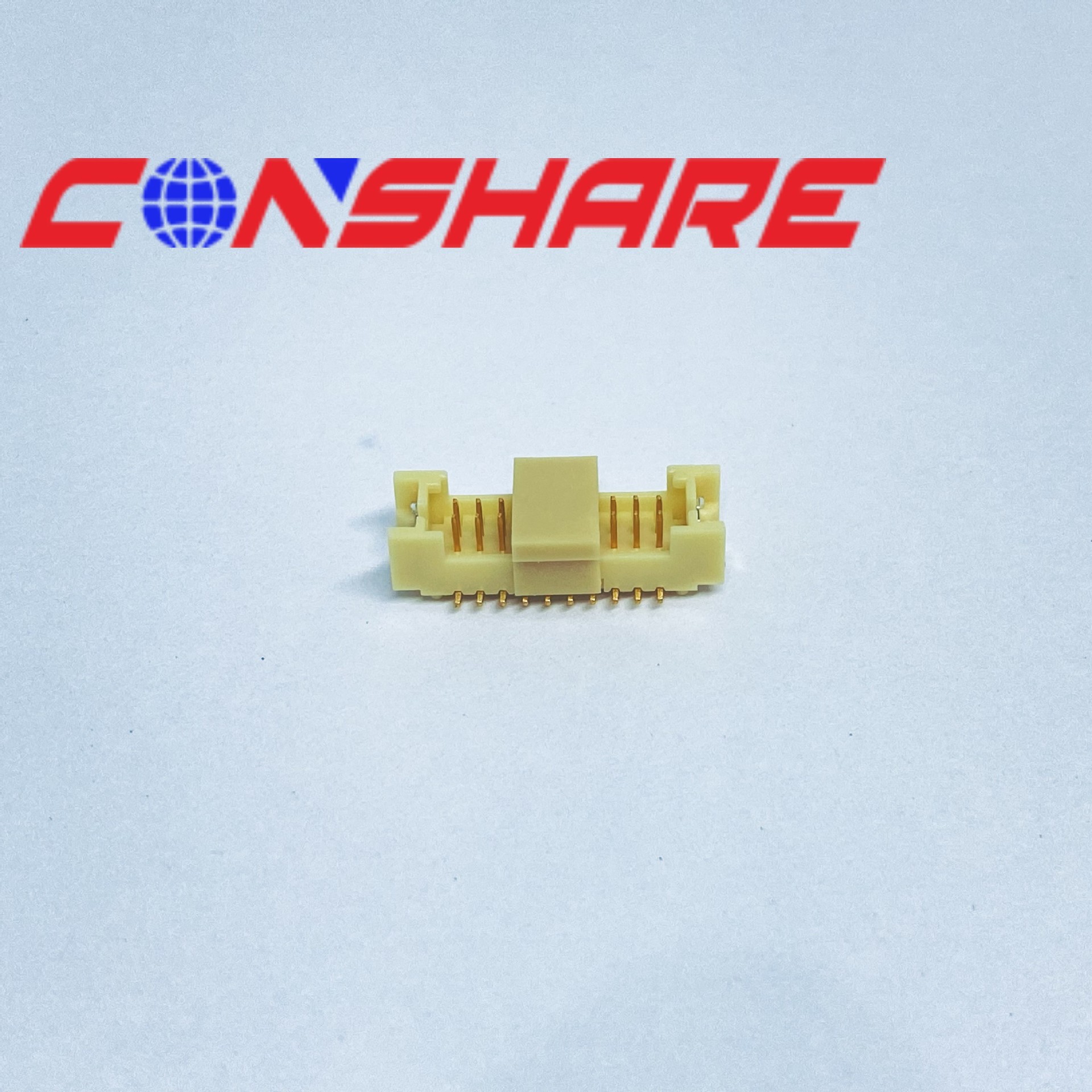

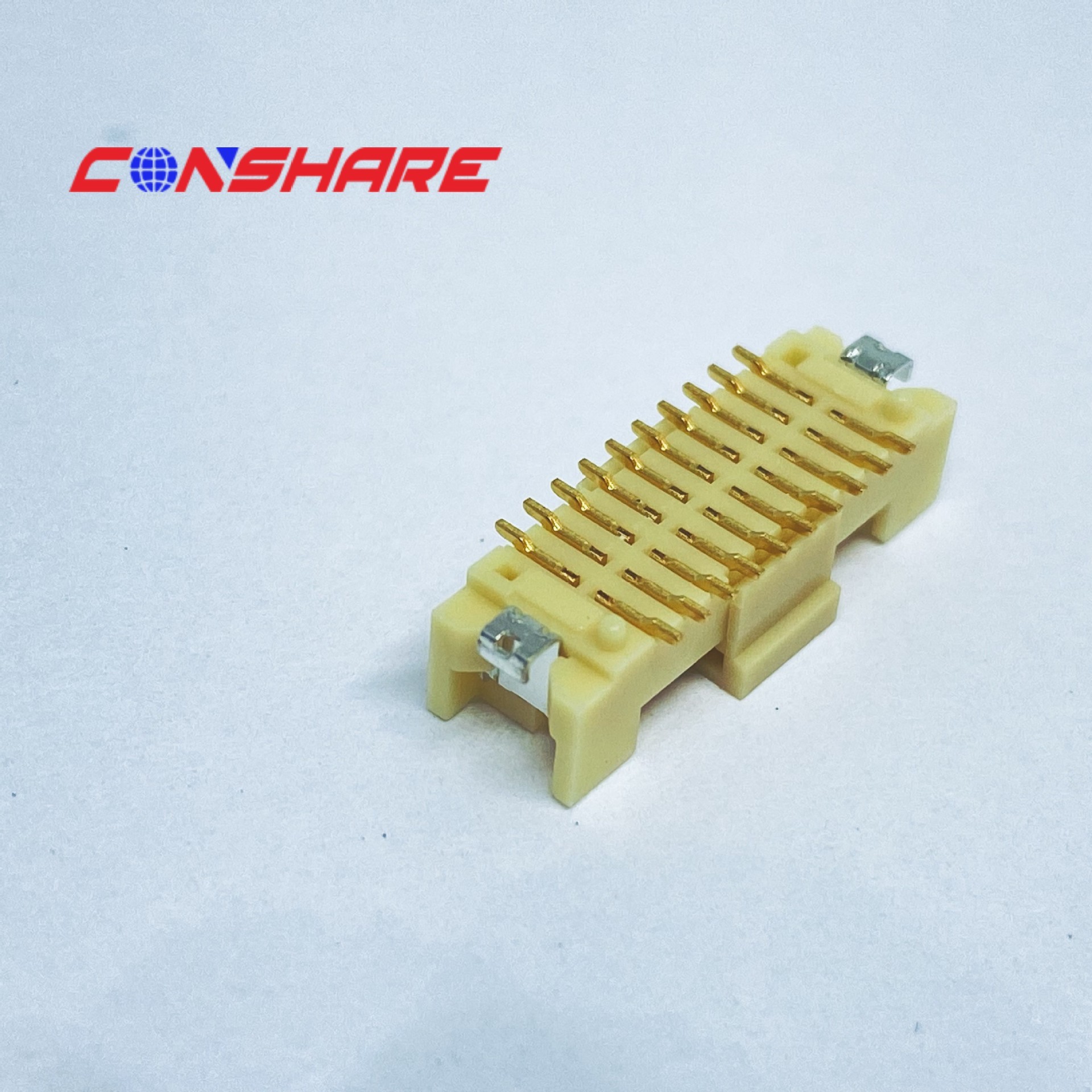

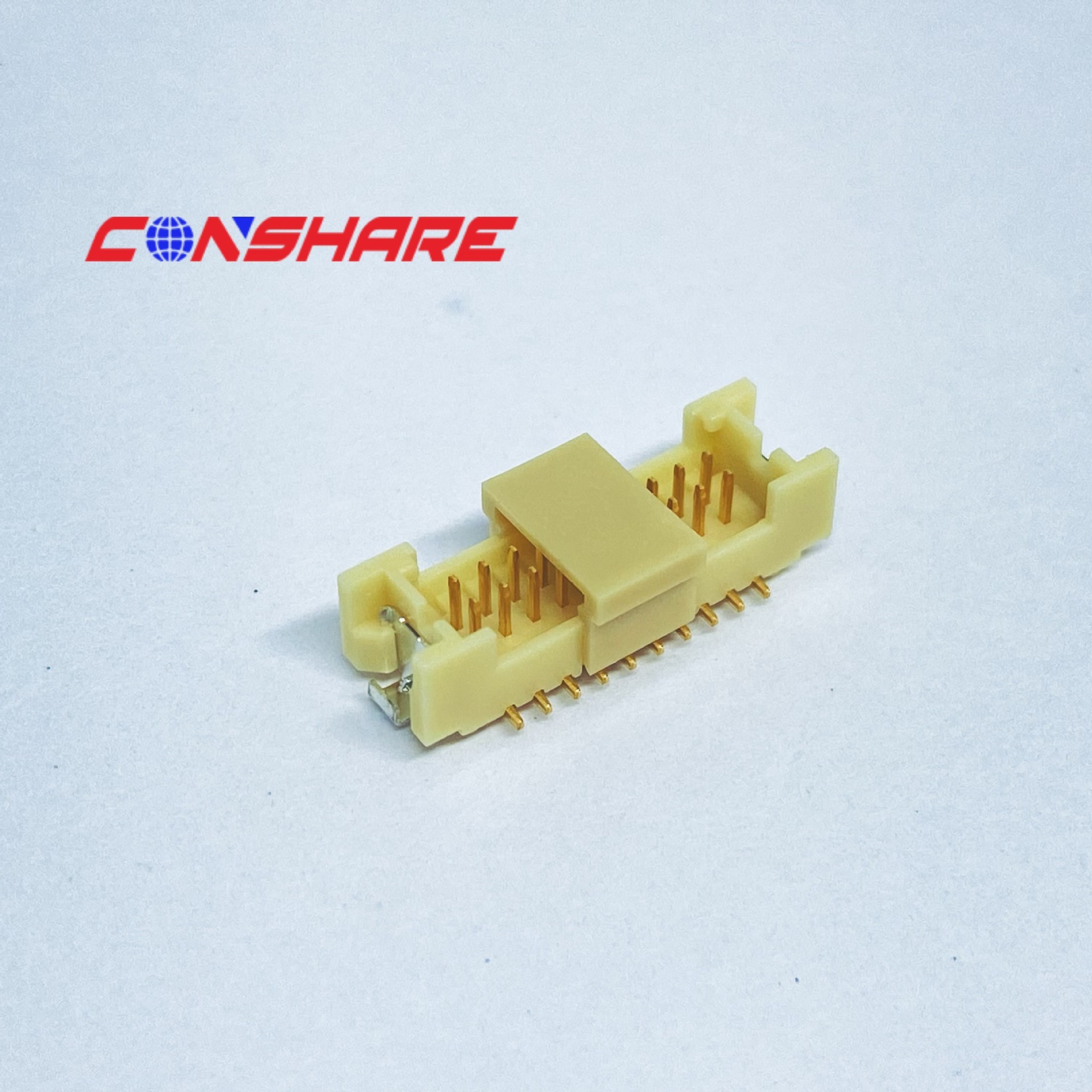

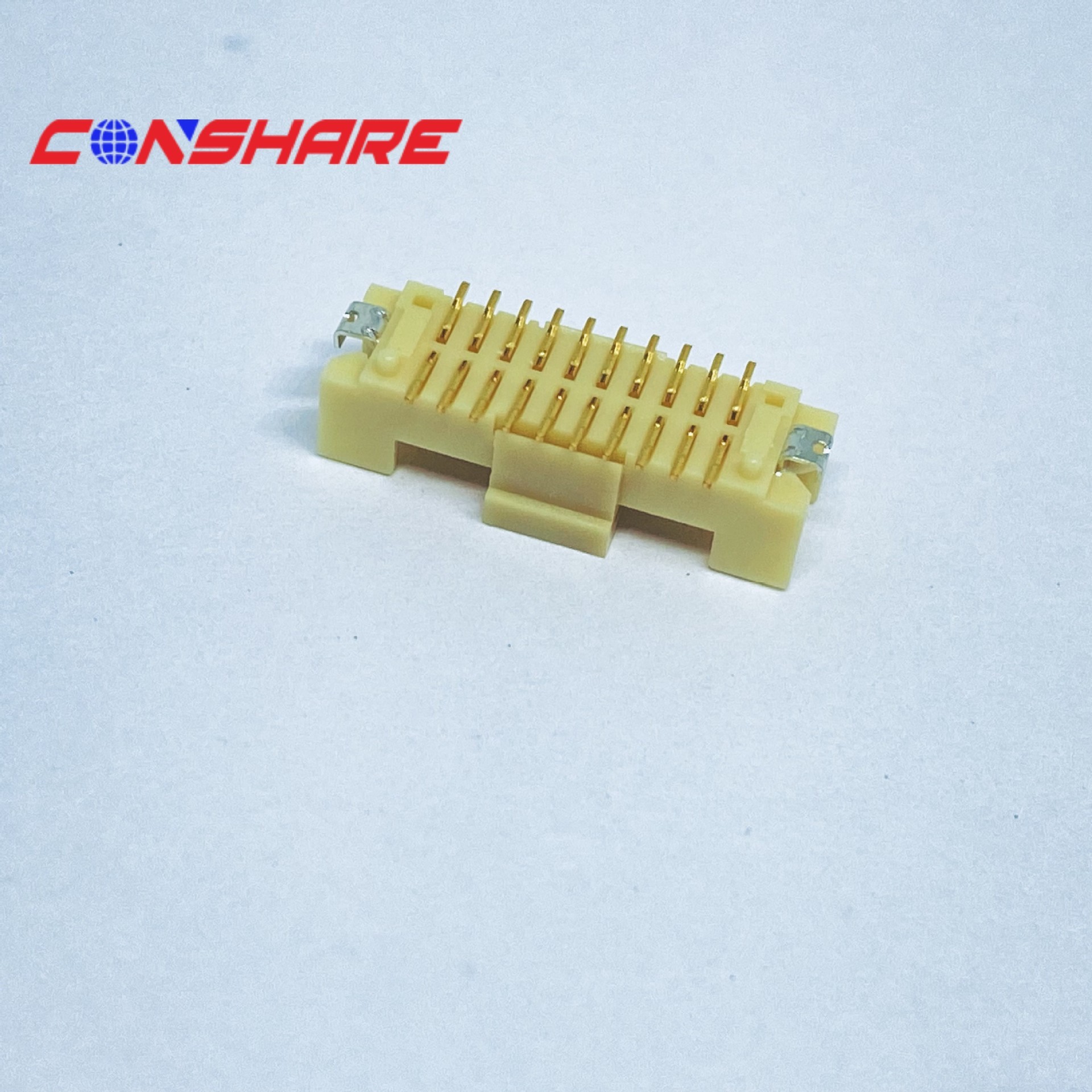

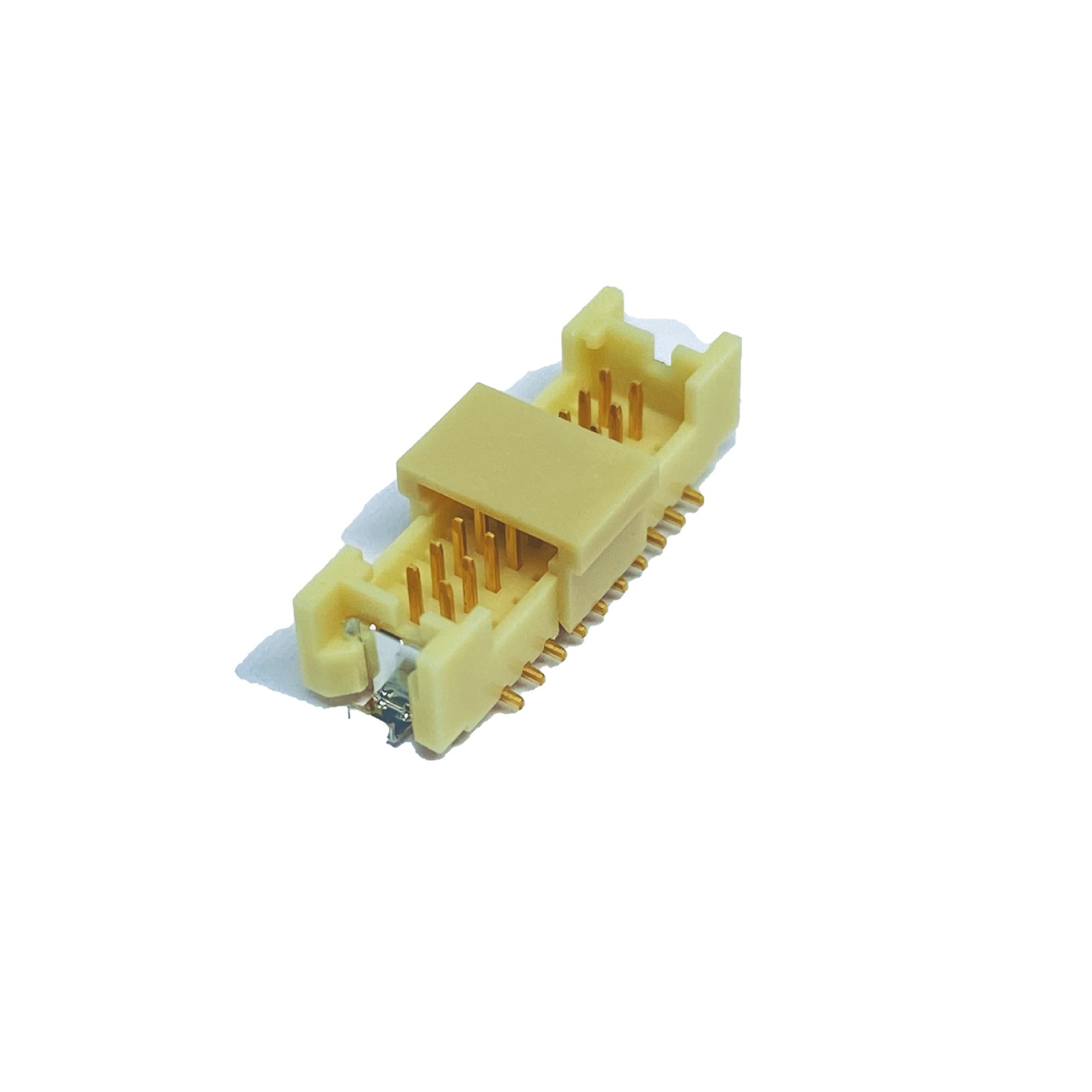

CONSHARE DF13 wire-to-board connector series adopts a fine 1.25mm pitch design with an ultra-slim low-profile structure. The SMT version features an ultra-low mounting height of only 5.8mm, greatly saving PCB layout space. It is available in two mainstream specifications: DF13-2-NAB and DF13-2*10AB, covering 2Pin single-row and 20Pin dual-row configurations. It is an ideal connection solution for mini consumer electronics and compact smart hardware with strict space constraints.

Premium Conductive Structure for Stable Signal Output

We adopt high-quality tin-plated copper alloy as contact material for this WTB connector. It keeps contact resistance under 30mΩ steadily, with a single-pin rated current reaching 1A. The product can withstand 500V AC voltage for 1 minute without breakdown risk, delivering consistent signal transmission capability. It adapts perfectly to daily consumer use and conventional industrial environments, ensuring long-term stable electrical connection safety.

High-Grade Flame-Retardant Housing with Wide Temperature Tolerance

DF13 series connector enclosure is made of premium UL94-V0 flame-retardant engineering plastic. It maintains stable working performance in a wide temperature range from -25°C to +85°C. The material effectively resists high-temperature aging and insulation failure, and has passed professional vibration and damp endurance tests. It can maintain reliable connection stability even in complex indoor and semi-industrial harsh application scenarios.

Anti-Drop Buckle Design for Fast Automated Assembly

This 1.25mm pitch wire-to-board connector is fitted with a precision integrated buckle locking structure. It enables tight pairing and effectively avoids loose connection or accidental disconnection caused by equipment vibration. Supporting standard SMT surface mounting process, it is fully compatible with automated assembly lines. It greatly boosts mass production efficiency and lowers assembly error rates in manual and automatic production processes.

Eco-Friendly Standard & One-Stop Customization Service

All connectors in CONSHARE DF13 series meet RoHS environmental protection regulations fully, complying with mainstream access standards of global markets. We offer flexible personalized customization services, including pin position quantity adjustment, terminal surface plating treatment and diversified packaging options. We can tailor exclusive wire-to-board connection schemes according to your actual project and equipment matching needs.

Technical Parameters

Product Uses

• Household & Miniature Electronic Devices

  Suitable for internal wiring connection of household small appliances (such as mini fans, small chargers) and miniature electronic products. The compact design fits the limited internal space of small devices, ensuring stable signal transmission between wires and PCB boards, and meeting daily use needs.

• Smart Home Control Modules

  Applied to smart home control modules, including smart socket controllers, light control panels and small sensor connections. With good anti-interference performance, it can stably transmit control signals, adapting to the daily use environment of smart home equipment.

• R&D Prototypes & Small-Scale Production

  Ideal for electronic product R&D prototypes, small-batch production of electronic components and DIY electronic projects. The detachable and easy-to-install features facilitate quick wiring and adjustment, improving R&D and production efficiency.

• Light Industrial Control Equipment

  Used for internal signal connection of light industrial control small equipment, such as small instrument panels and mini control boxes. It has good temperature adaptability and anti-aging performance, ensuring stable operation in general industrial indoor environments.

FAQ

Q1: What is the difference between DF13-2-NAB and DF13-2*10AB?

A: DF13-2-NAB is a 2Pin single-row wire-to-board connector, while DF13-2*10AB is a 2×10Pin dual-row type. Both feature the same 1.25mm pitch and identical material and performance standards.

Q2: What are the main performance parameters of this DF13 connector?

A: It has a rated current of 1A per pin and works steadily between -25°C and 85°C. Tin-plated copper alloy contacts guarantee low resistance and stable signal transmission.

Q3: Is the DF13 series environmentally and safely certified?

A: Yes, all CONSHARE DF13 connectors comply with RoHS standards. The housing adopts UL94-V0 flame-retardant material, meeting international safety and environmental requirements.

Q4: Do you support customization for this wire-to-board connector?

A: Absolutely. We provide custom services for pin count, contact plating and packaging to fit your personalized project and mass production needs.
