A precision-adapted vertical connector designed for compact low-pin scenarios, focusing on stable electrical performance, low plug-in loss, and small-space compatibility. Suitable for network and radio frequency equipment requiring moderate pin counts and emphasizing transmission reliability.

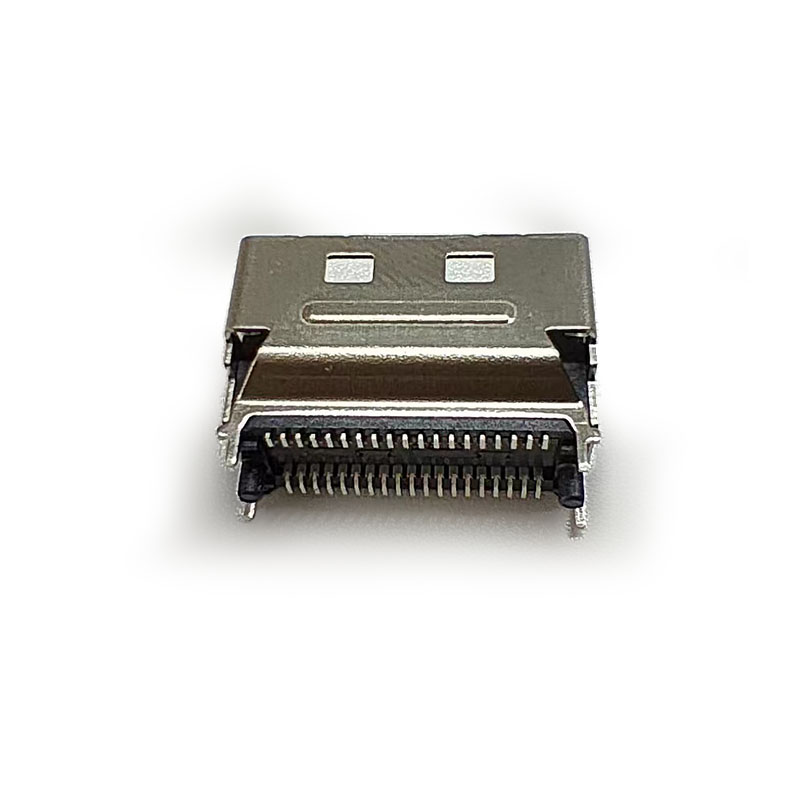

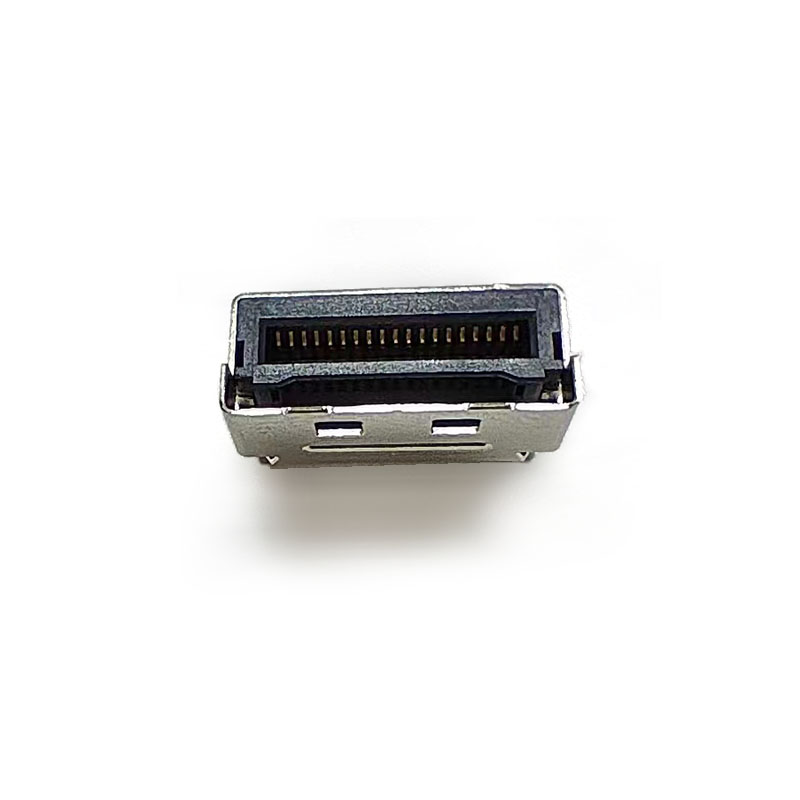

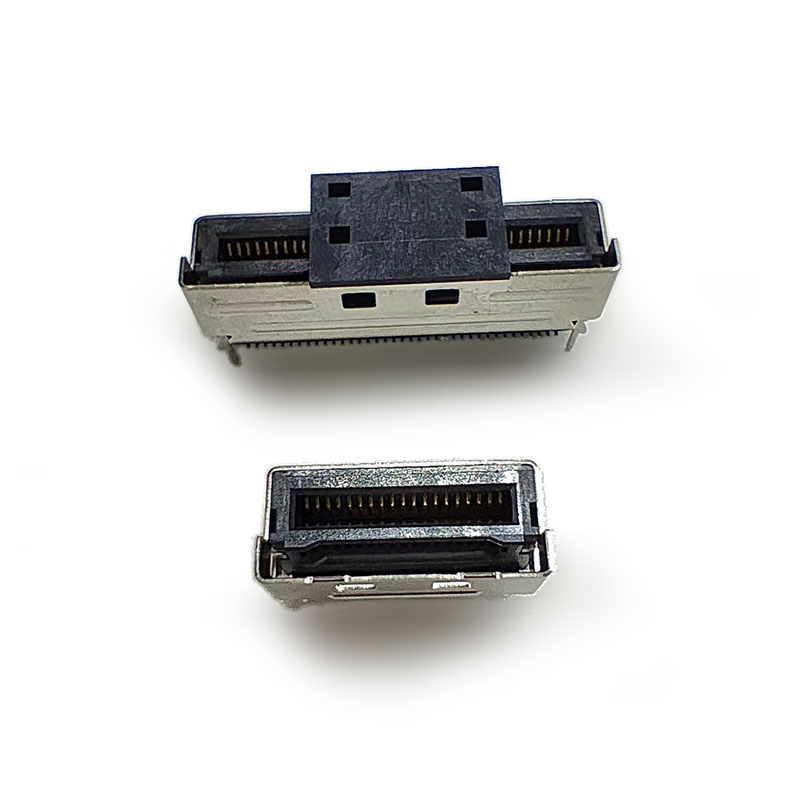

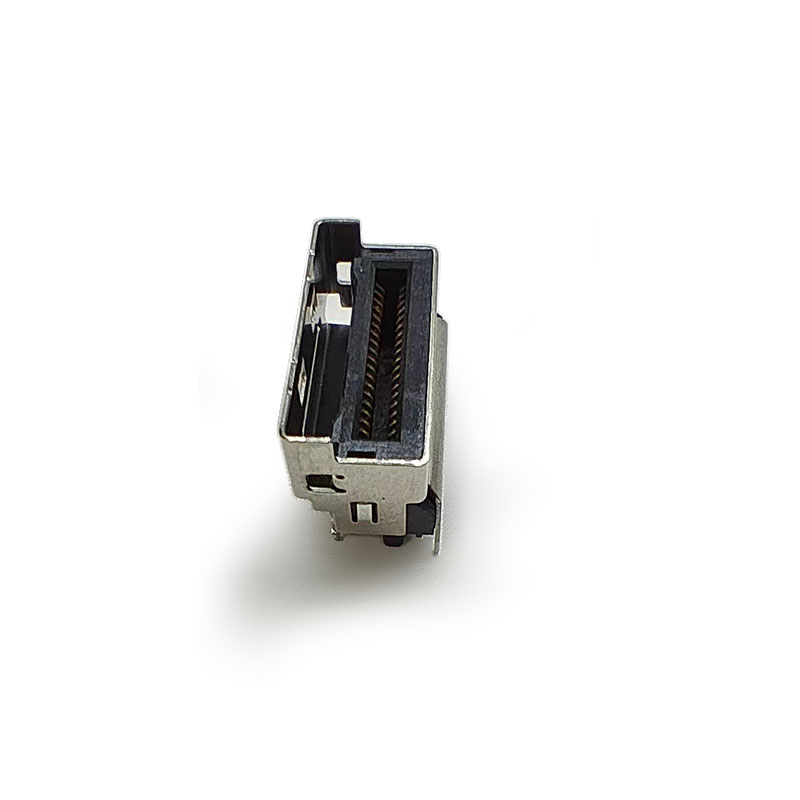

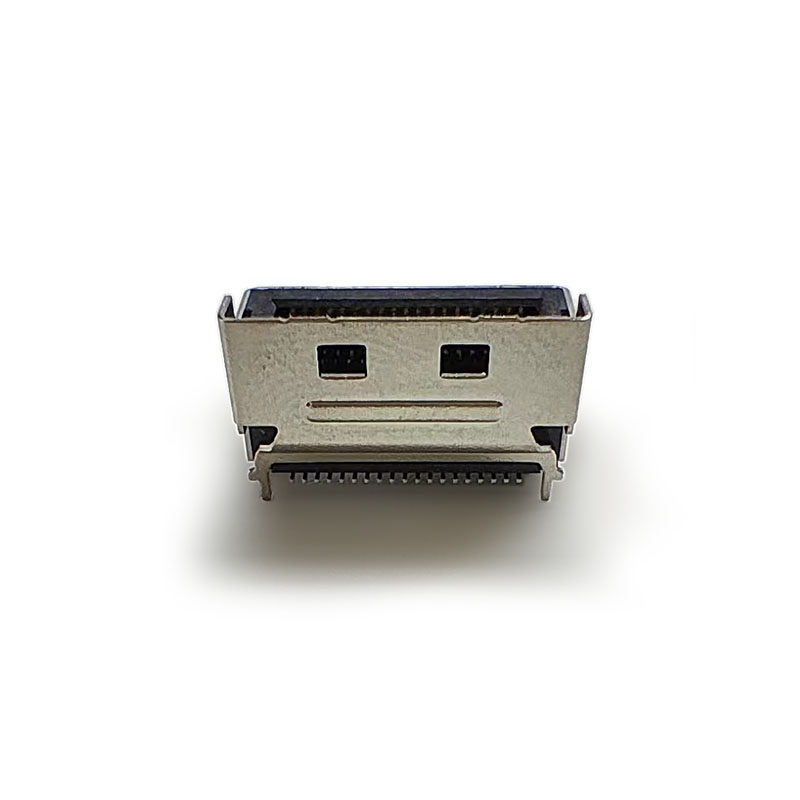

This product is a 38Pin vertical interconnect system with a 0.60mm pitch, designed for reflow soldering (supporting 260℃ for 3-5 seconds) and compatible with 56G PAM4/PCIe® Gen 4/5/6 high-speed transmission protocols. It delivers excellent electrical performance: rated current of 0.5A, initial contact resistance ≤30mΩ (≤50mΩ after testing), insulation resistance ≥100MΩ, and withstand voltage ≥500V AC, ensuring stable signal transmission without interference. In terms of mechanical properties, the single-pair terminal insertion force is ≤1.1N + 10N total insertion force, single-pair withdrawal force ≥0.10N, and plug-in durability reaches 200 cycles, meeting regular equipment maintenance needs. The housing is made of UL94V-0 flame-retardant material, and the terminals are high-performance copper alloy. All materials comply with RoHS HF environmental standards. Packaged in Tape & Reel format (300PCS/reel, 2400PCS/carton), it reserves 15 empty positions at the front and rear before winding, with the top tape extended by 200mm, adapting to small-to-medium batch assembly scenarios.

◆◆ Product Advantage

1. Precision-Meeting Electrical Performance Standards: 500V AC high withstand voltage and ≤30mΩ low initial contact resistance design ensure lower transmission loss and stronger anti-interference capability in scenarios like radio frequency units and network equipment with strict electrical stability requirements.




2. Flexible Adaptation with Low Pin Count: The 38Pin configuration accurately matches devices with low-channel needs such as baseband and commercial systems, avoiding resource waste from high-pin connectors and simplifying PCB wiring design.





3. Balanced Plug-In Feel and Service Life: Optimized terminal insertion/withdrawal force parameters ensure connection tightness while reducing operational difficulty during manual maintenance. The 200-cycle plug-in durability meets the full-life cycle needs of equipment.





4. Efficient Small-to-Medium Batch Assembly: Large-capacity packaging of 2400PCS/carton, combined with reflow soldering compatibility, adapts to automated assembly for small-to-medium production scales, reducing line change costs and human errors.





◆◆ Product Uses

• Baseband

• Commercial Systems

• Networking

• Radio Units

• High-end Computing System

• Server and Storage Systems
