Six years ago, cabling the inside of a 1U server was not a design problem. Most internal links ran at 6 Gbps, an eight lane bundle was a handful of 30 AWG pairs, and there was room above the drive cage to route whatever needed routing. That world is gone. Lane rates now sit at 24 Gbps, the lane count behind each front bay has roughly doubled, and the mechanical envelope has not grown by a millimeter. What has grown is the attention a single internal interface has to receive before a platform ships.
The failure mode has changed with the speed. At the old rates you could get away with a careless internal assembly: a tight bend, a plug that was not quite seated, a ground path that existed only on the schematic. At 24 Gbps those shortcuts produce links that pass at bring up and then fall over between month nine and month eighteen, usually in the warmest rack in the row. We now treat internal interface selection as a reliability decision rather than a mechanical one.
This interface is the right choice when you need four or eight high speed differential pairs moved from a motherboard or riser to a backplane through an opening smaller than the cable bundle it replaces, at lane rates up to 24 Gbps, with a connection that has to be separated and remated during service. It is the wrong choice when the run exceeds roughly 700 mm, when the environment pushes contact temperature above 105 degrees Celsius, or when assembly and service teams cannot control mating force and alignment.
The rest of this guide walks through the decisions that determine whether those links survive: pin maps, loss budgets, mechanical limits, thermal behavior, and the qualification tests that catch bad parts before they reach a rack. The numbers quoted here come from our own bench measurements and teardown analysis of returned assemblies rather than from datasheet tables, because datasheet numbers come from a fixture that does not look like your board.
Table of Contents

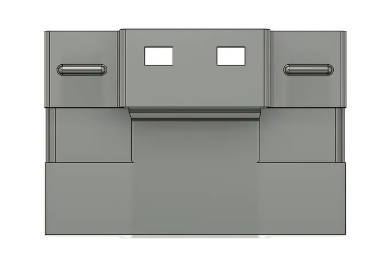

It solves a geometry problem before it solves anything else. You have a fixed height between the top of the drive cage and the underside of the lid, a fixed width of usable bezel area, and a growing number of differential pairs that have to cross from the compute side to the storage side. The interface gets four or eight of those pairs through that gap in a footprint about 20 mm wide, with a plug that fits under the lid and a latch a technician can release with one hand.
In a 1U front loading storage server, the gap between the top of the drive carriers and the underside of the lid is 25 to 30 mm on paper. Subtract the lid stiffening ribs, the gasket compression allowance, and the lift where the harness crosses the fan wall, and you are working with closer to 18 mm of clean height. An eight lane twinax assembly with a plug on each end is roughly 9 to 11 mm across the flat and 5 to 6 mm thick at the plug body. That leaves room for one assembly stacked on another and nothing else, which is why the second harness in these boxes ends up tucked against the side wall, directly in the exhaust path.
The older SAS connector family that this interface grew out of was designed when the same job was done at 6 Gbps with far more margin. The mechanical shell survived the speed increase well. What did not survive it is the assumption that any routing path is acceptable as long as the plug seats.
Bezel area is the resource nobody budgets and everybody runs out of. A ten bay front loader has about 110 mm of horizontal bezel width not consumed by drives or the control panel. Fitting four eight lane links into that width means either accepting a very narrow pitch or moving some lanes to the rear of the chassis. Each eight lane port occupies roughly 20 mm including the latch ears, so four links consume about 80 mm and leave almost nothing for service clearance. This is where teams discover that the interface choice was really a layout choice that should have been made two months earlier.
Internal interface | Lanes per port | Typical plug width | Practical lane rate | Service clearance needed |
|---|---|---|---|---|
SlimSAS 4i | 4 | 12 mm | 24 Gbps | 8 mm |
SlimSAS 8i | 8 | 20 mm | 24 Gbps | 10 mm |
Mini SAS HD internal | 4 | 16 mm | 12 Gbps | 10 mm |
Passive direct attach | 8 | not applicable | 24 Gbps | 30 mm |
Honest limits matter more than clever arguments. Beyond roughly 700 mm at 24 Gbps, the transitions at each end plus the twinax loss consume the entire budget on most silicon. Passive direct attach assemblies avoid two of the four transitions by terminating the twinax straight onto the paddle card, and they are the better answer when the run is long and the route is fixed. The tradeoff is service. A direct attach assembly with a damaged latch usually means replacing the whole cable, whereas a SlimSAS connector at each end lets you replace one end at a time. If the platform is serviced in the field, that difference pays for itself the first time a technician avoids pulling the entire harness.
The pin map is built from one lane group per lane, each carrying a transmit pair and a receive pair with grounds interleaved around them, plus a separate block of sideband pins at one end. Once that pattern is clear, every 4i and 8i variant reads the same way, and the only thing left to check carefully is host versus device orientation.
Each lane group is a transmit pair and a receive pair, with grounds interleaved so that no signal pin sits more than one position from a return path. On an 8i port that is 32 signal pins; on a 4i port it is 16. In the SFF8654 definition that interleaving is not decoration. At 24 Gbps return current follows the signal path within a fraction of a millimeter, and a group that loses its adjacent ground picks up several decibels of crosstalk from its neighbours. We have measured 3 to 4 dB of extra integrated crosstalk on assemblies where a builder reordered grounds to make termination easier.
The sideband block carries presence detect, the two wire management bus, reset, and a handful of vendor defined pins. In our experience the most common integration failure is not a high speed problem at all. It is a sideband pin left unconnected because the harness was built from a generic drawing. The link then either never trains or trains at reduced width with nothing obviously wrong in the log. Verify sideband continuity before you spend a day debugging the differential path.
Host and device ports share the same shell and the same pin count, and they are not interchangeable. On a host port the transmit pairs sit where a device port puts its receive pairs, so a cable wired straight through mates mechanically and produces a link with reversed polarity. The second trap is a 4i variant looking like an 8i variant across a bench. Counting contact positions is a five second check that saves a board respin.
A connector datasheet gives you the performance of the connector on the vendor fixture. Your channel includes two transitions, two solder breakouts, several hundred millimeters of cable, and a host board you designed, and the connector is usually the smallest term in that budget. Budget the whole channel in decibels, and you will almost always find the breakout vias and the cable, not the connector.
Channel segment | Typical loss at 12 GHz | Share of a 28 dB budget |
|---|---|---|
Host package and die pad | 4.5 dB | 16 percent |
Host board breakout and vias | 6.0 dB | 21 percent |
Plug transition at the host end | 1.8 dB | 6 percent |
500 mm of 30 AWG twinax | 11.0 dB | 39 percent |
Backplane breakout and vias | 3.5 dB | 13 percent |
Plug transition at the drive end | 1.8 dB | 6 percent |
Both transitions together contribute about 12 percent of a typical end to end budget. When a channel fails, blaming the connector is almost always the wrong first move. Check the host board via stubs first; a stub of 12 mils that nobody back drilled costs more than both transitions combined.
Near end crosstalk is dominated by the transition region where the cable pairs fan out from the tight twinax pitch to the wider pad pitch at the connector. That fanout is 5 to 8 mm of uncontrolled geometry in every assembly, and it is where two builders using the same connector and cable can differ by 3 dB. Ask for integrated crosstalk measured on a production sample, not on a laboratory golden unit. The golden unit answers a question nobody asked.
A compliance report tells you that a part passed a defined test on a defined fixture, not that it will behave the same on your stackup, after your reflow profile, or once a technician has mated it four times. We treat compliance as a filter that removes bad parts, then measure a first article from the production tool ourselves.
Two numbers matter and only one of them is usually quoted. The mated pair cycle rating, typically 250 cycles, applies when a plug and receptacle age together. The plug only rating, sometimes as low as 50 cycles, applies when one plug is moved between many receptacles, which is what happens on a manufacturing line or during depot service.
Contact wear depends on the specific pair of surfaces that rub together. When a plug and its receptacle stay together for their whole life, the wear track stabilizes and the gold over nickel plating survives a few hundred cycles. When one plug is cycled through dozens of receptacles, each with slightly different contact geometry, the wear track keeps moving and no stable surface forms. We have seen plugs cross the 30 milliohm limit before 60 cycles under that duty.
From teardown analysis of 1,200 returned internal assemblies, 34 percent failed mechanically for reasons that started at the latch: cracked latch arms, bent receptacle shields, and plugs that had been pulled by the cable instead of the housing. Roughly 21 percent were fretting or contact wear, and the rest split between cable damage and genuine electrical failure. The lesson is boring but useful. Specify the pull tab, put it in the assembly drawing, and make the cable exit direction match how a hand actually reaches into the chassis.
Blind mating systems work when the tolerance stack is honest. A typical receptacle tolerates about 0.5 mm of lateral misalignment and roughly 1 degree of angular misalignment before insertion force rises sharply and contacts scrub. That sounds generous until you add the guide pin clearance, the sheet metal tolerance on a 1U chassis, and the float in a drive cage. If the design needs more, buy the float in the bracket rather than expecting the interface to absorb it.
The connector is the part you specify, but the assembly is the part that determines performance. Twinax construction, drain wire treatment, length, and strain relief at the plug exit account for most of the variation we measure between suppliers claiming the same connector and the same cable.
Construction | Crosstalk at 12 GHz | Bend tolerance | Cost index | Best use |
|---|---|---|---|---|
Parallel twinax, 30 AWG | low | moderate | 1.0 x | Runs up to 500 mm |
Parallel twinax, 32 AWG | low | good | 1.2 x | Tight routing, short runs |
Bonded twinax with drain | very low | poor | 1.4 x | Electrically noisy chassis |
Discrete wire pairs | high | excellent | 0.7 x | 6 Gbps and below only |
Discrete wire is still sold into internal assemblies, and it should not be used above 12 Gbps. The pairs drift apart along the run, so the resulting skew shows up as eye closure, and no amount of connector quality fixes it.
A common mistake is to read a cable attenuation figure and assume the transitions add nothing. Each transition adds reflection as well as loss, and reflections do not accumulate the way loss does. Two transitions at 600 mm behave differently from two at 200 mm even after the cable loss is accounted for, because reflected energy has more time to disperse before the second reflection returns. In our measurements, moving from 300 mm to 600 mm at 24 Gbps cost about 5 dB of cable loss and another 1.5 dB from transition interaction.
Assemblies die here. The plug exit is where a flexible cable meets a rigid body, and every tug on the harness puts full force into the terminations. A molded strain relief extending at least 15 mm past the back of the plug, with a 25 mm minimum bend radius held for the first 50 mm of exit, removes most of this failure mode. Every server cable we have qualified for internal use carries that specification, and it is the first thing we check on a sample.
The current rating on these parts is a temperature rise number wearing a current number as a disguise. The useful specification is the current that produces a 30 degree Celsius rise over ambient in still air, because that number tells you the contact temperature in a rack where the inlet air is already at 45 degrees Celsius.
Power pins energized | Current per pin | Rise over a 45 degree inlet | Contact temperature |
|---|---|---|---|
4 | 1.0 A | 12 degrees | 57 degrees |
4 | 1.5 A | 27 degrees | 72 degrees |
6 | 1.5 A | 34 degrees | 79 degrees |
8 | 1.5 A | 41 degrees | 86 degrees |
Notice how fast the number climbs as you parallel more pins inside the same shell. The pins share a small volume of plastic enclosed on five sides and cooled only by airflow passing outside the receptacle.
A backplane populated with eight of these ports blocks a measurable share of the open area in front of the fan wall. On one 1U platform we measured a 6 percent drop in system airflow against an empty bezel, which translated into a 2 to 3 degree rise at the processor inlet. That belongs in the thermal model, not in the integration surprise folder.
The late failure is not melting. It is contact resistance drift as nickel diffuses through the gold and the contact spring relaxes. We run 3,000 hour exposures at 70 degrees with periodic resistance measurements. Parts with a nickel underlayer and no diffusion barrier typically climb 8 to 15 milliohms; parts with a barrier stay under 5 milliohms. Both pass a resistance check on day one, which is why that check is not enough.
Qualify the assembly, not the datasheet. Every meaningful failure we have investigated in the field was visible in a first article test that nobody ran, and most of those tests cost less than a day of engineering time.
Test | Condition | Pass criteria we use | What it catches |
|---|---|---|---|
Contact resistance, four wire | 100 mA dry circuit | under 30 milliohms, drift under 10 milliohms | Plating thickness and spring force |
Mating cycle wear | 50 cycles, plug only duty | resistance rise under 10 milliohms | Field service reality |
Thermal aging | 3,000 hours at 70 degrees | resistance rise under 5 milliohms | Diffusion through gold |
Vibration | 5 to 500 Hz, three axes | no discontinuity over 1 microsecond | Fretting debris |
Insertion loss and crosstalk | to 16 GHz, production sample | within 1 dB of the golden unit | Assembly build variation |
Two suppliers selling the same interface are not interchangeable until you prove it. The specification controls the dimensions that let parts mate and leaves free the ones that make parts perform. Contact geometry, plating thickness, and the shape of the transition region sit inside the mechanical envelope and outside the interoperability requirement. We keep at least two qualified sources for every internal interface, and we re qualify whenever a supplier changes a plating vendor, which they are rarely in a hurry to mention.
The connector is roughly 8 to 12 percent of a finished internal assembly, and the assembly is a small fraction of a field service visit. A part costing 15 percent more that removes 3 percent of the field failure rate pays for itself many times over. Purchase price is the wrong metric for a component whose failure requires a truck roll.
Three decisions determine whether internal links survive the warranty period, and all three belong in the design review rather than in procurement: budget the whole channel in decibels, specify the assembly rather than only the connector, and qualify against real duty instead of against a compliance report. Everything else in this guide is detail attached to one of those three.
Loss hides in breakout vias rather than in the connector. Twinax construction, strain relief geometry, and sideband continuity matter more than the part number on the shell. And the cycle count that matters is the plug only count measured after aging at 70 degrees, because that is the duty a service depot applies.
SlimSAS earns its place in a modern server because it fits where nothing else fits and it survives service. It is not the answer for every run length, and saying so early in the design cycle is far cheaper than discovering it at integration.
Plan for 250 cycles when a plug and receptacle stay mated to each other for their service life. If one plug moves between many receptacles during manufacturing or depot repair, plan for 50 to 60 cycles before contact resistance climbs. The difference is not a defect; it is the difference between a stable wear track and one that keeps moving.
Stop at around 700 mm at 24 Gbps on 30 AWG twinax. Past that point the cable loss plus four transition reflections exceeds what most host and device silicon can equalize. Move to a passive direct attach assembly if the route is fixed, or to optical if it is not.
In our experience it is usually a polarity or sideband problem rather than a signal integrity problem. Training logic detects the condition and falls back to fewer lanes instead of reporting a hard failure. Check host versus device orientation and sideband continuity before touching the loss budget.
Mechanically yes, electrically only after you qualify both. The specification controls the dimensions that let parts mate and leaves the dimensions that control performance to the supplier. Measure insertion loss and crosstalk on production samples from each source against the same golden unit.
In our teardown data it is mechanical damage at the latch and strain relief, at 34 percent of returned assemblies, followed by fretting and contact wear at 21 percent. Failures caused by the connector design itself are a small minority. Better handling discipline and a proper pull tab remove most of the problem.
