Overview

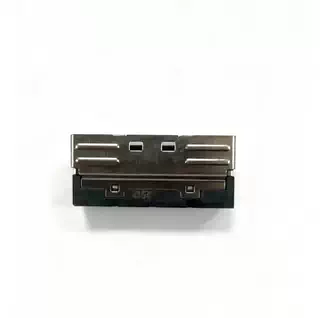

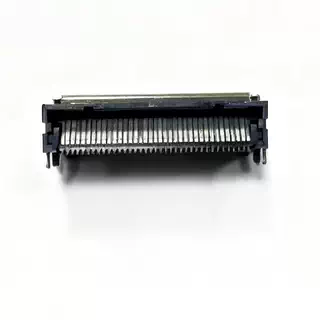

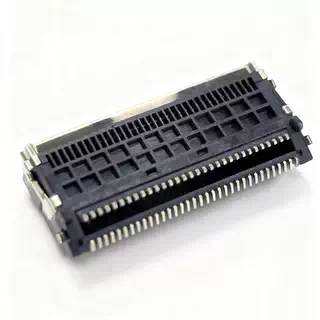

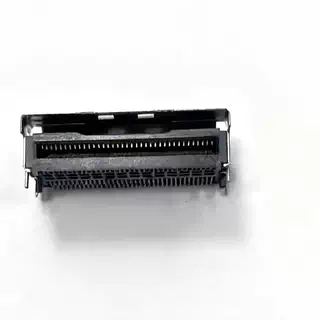

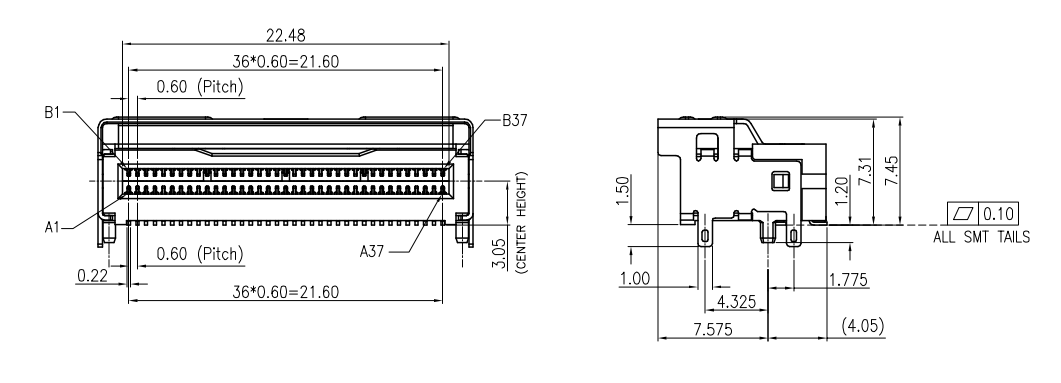

As a dedicated supplier of high‑speed interconnect solutions, CONSHARE offers the 74‑pin MCIO right‑angle SMT receptacle – a direct answer to the density and signal‑integrity challenges of PCIe Gen 5. With 0.60mm pitch, 30µ" gold over 50µ" nickel on the contact area, and a 1.50mm terminal optimised for reflow soldering, this connector delivers stable performance in 1U/2U servers, storage arrays, and networking switches.

Part Number: CUC21FW7400XX

MCIO Connector vs SlimSAS – Which One Fits Your Gen 5 Design?

At 32 GT/s, the interconnect choice directly impacts your channel margin. Legacy SlimSAS (SFF‑8654) was originally conceived for Gen 3/4, while MCIO (SFF‑TA‑1016) was built from the ground up for Gen 5 – with tighter impedance control, shorter stubs, and a smaller footprint. The MCIO connector vs SlimSAS debate often comes down to this: if you need extra eye‑width for future Gen 6 upgrades and want to pack more ports per board edge, MCIO is the clear winner. CONSHARE’s 74‑pin variant supports 8 lanes plus sideband signals, all in a right‑angle form factor that preserves critical airflow over CPUs and retimers.

Core Features That Set This SMT Receptacle Apart

• Signal Integrity for 32 GT/s – 30µ" selective gold plating over 50µ" nickel underplating ensures stable contact resistance through 200 mating cycles, even under vibration and thermal cycling – a must for high‑density racks.

• Thermal & Process Reliability – High‑temp thermoplastic (UL94V‑0) withstands 260°C IR reflow without warping, eliminating hidden soldering defects.

• EMI & Mechanical Protection – Stainless steel shell with solderable nickel plating provides robust shielding and structural rigidity, especially important for repeated cable mating in tight chassis.

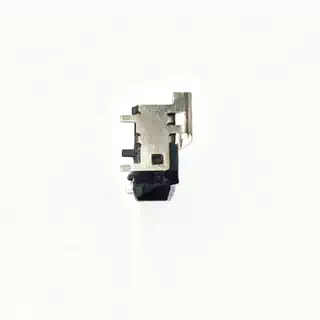

• Right‑Angle Design – Routes cables parallel to the PCB, preserving vertical headroom for cooling – a critical advantage in 1U AI nodes and high‑performance compute clusters.

Where to Deploy This 74‑Pin MCIO Right‑Angle Receptacle

• 1U Servers & Accelerator Cards – Direct motherboard‑to‑NVMe or co‑processor connections with 8 PCIe lanes, without blocking airflow.

• All‑Flash Storage Arrays – Smaller than SlimSAS, it allows more connectors per board edge, simplifying cable management in 24‑drive systems.

• Network Switches & Routers – Meets 56G PAM4 SI requirements and scales to 112G, making it suitable for internal PCIe fabrics in next‑gen platforms.

Quick Selection Guide

Ideal for: space‑constrained, airflow‑sensitive designs that need Gen 5 margin.
Consider alternatives if: you only need 4 lanes (38‑pin version) or a straight orientation.

Frequently Asked Questions

Q: MCIO connector vs SlimSAS – which is better for Gen 5?

MCIO offers superior eye margin and a more compact footprint, but its pinout (SFF‑TA‑1016) is more complex – best for integrated platforms where motherboard and cable assembly are co‑designed. SlimSAS may still work for simpler Gen 4 backplanes, but MCIO provides a future‑proof path.

Q: Why 30µ" gold instead of 15µ"?

Thinner gold wears faster under repeated mating and vibration, leading to intermittent contact failures. 30µ" gives you a safety buffer that reduces field returns.

Q: Can I use this with non‑standard PCB thickness?

Yes – CONSHARE offers custom terminal lengths. Contact our engineering team with your PCB stack‑up.

Q: Is this receptacle compatible with Gen 4 systems?

Absolutely – the extra Gen 5 margin actually improves signal quality at lower speeds, so you can design once and deploy across generations.

Why CONSHARE as Your 74‑Pin MCIO Right‑Angle SMT Receptacle Supplier

• Vertically Integrated Manufacturing – In‑house molding, stamping, assembly, and testing ensure consistent quality and fast iterations – no third‑party variables.

• Customisation Flexibility – Gold thickness, terminal length, and packaging (tape & reel standard, tray/tube optional) can be tailored to your project.

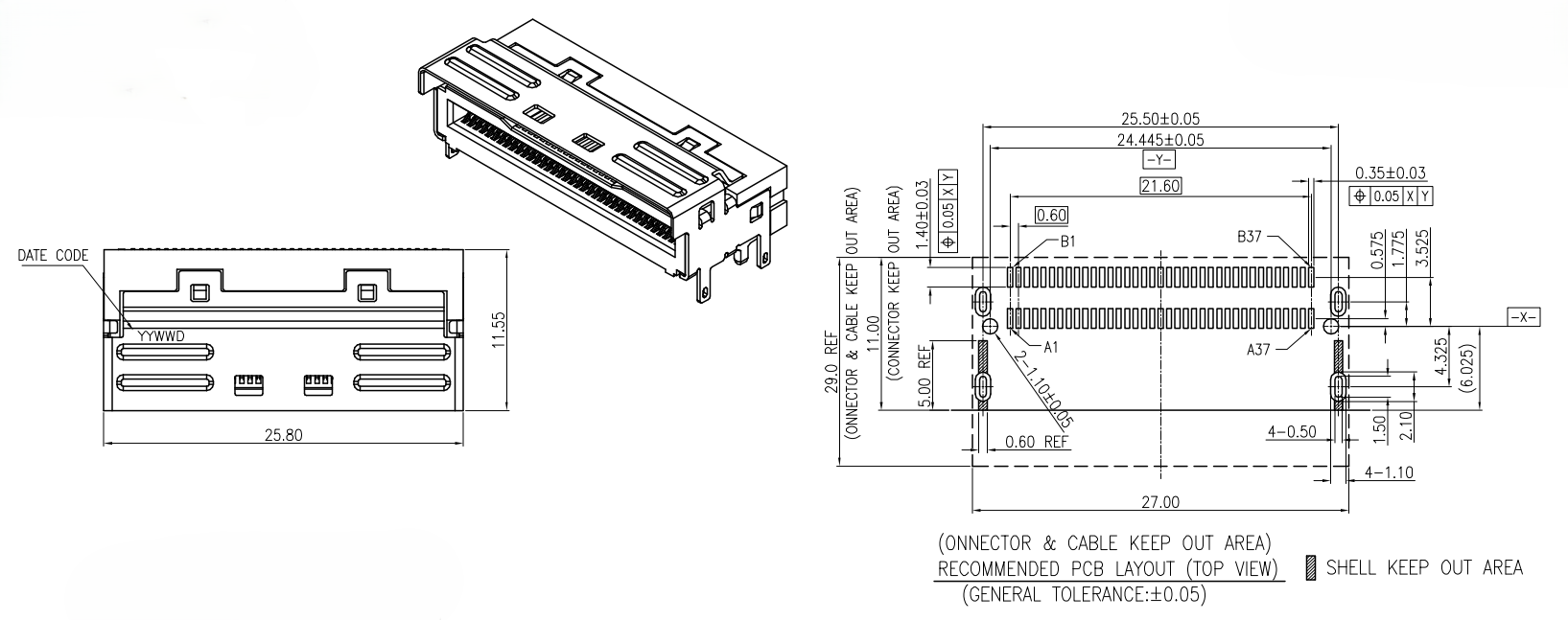

• PCB Layout Co‑Design – Our SI engineers review your breakout region to minimise impedance discontinuities – a service that saves you re‑spin costs.

• Short Lead Times – Stock to 4 weeks for most orders, with flexible MOQ to support both prototyping and volume production.
