Many engineers face the same headache – how to route both moderate power and sensitive signals through a single, compact interface without sacrificing reliability. Using separate connectors wastes board space, doubles assembly steps, and invites layout headaches.

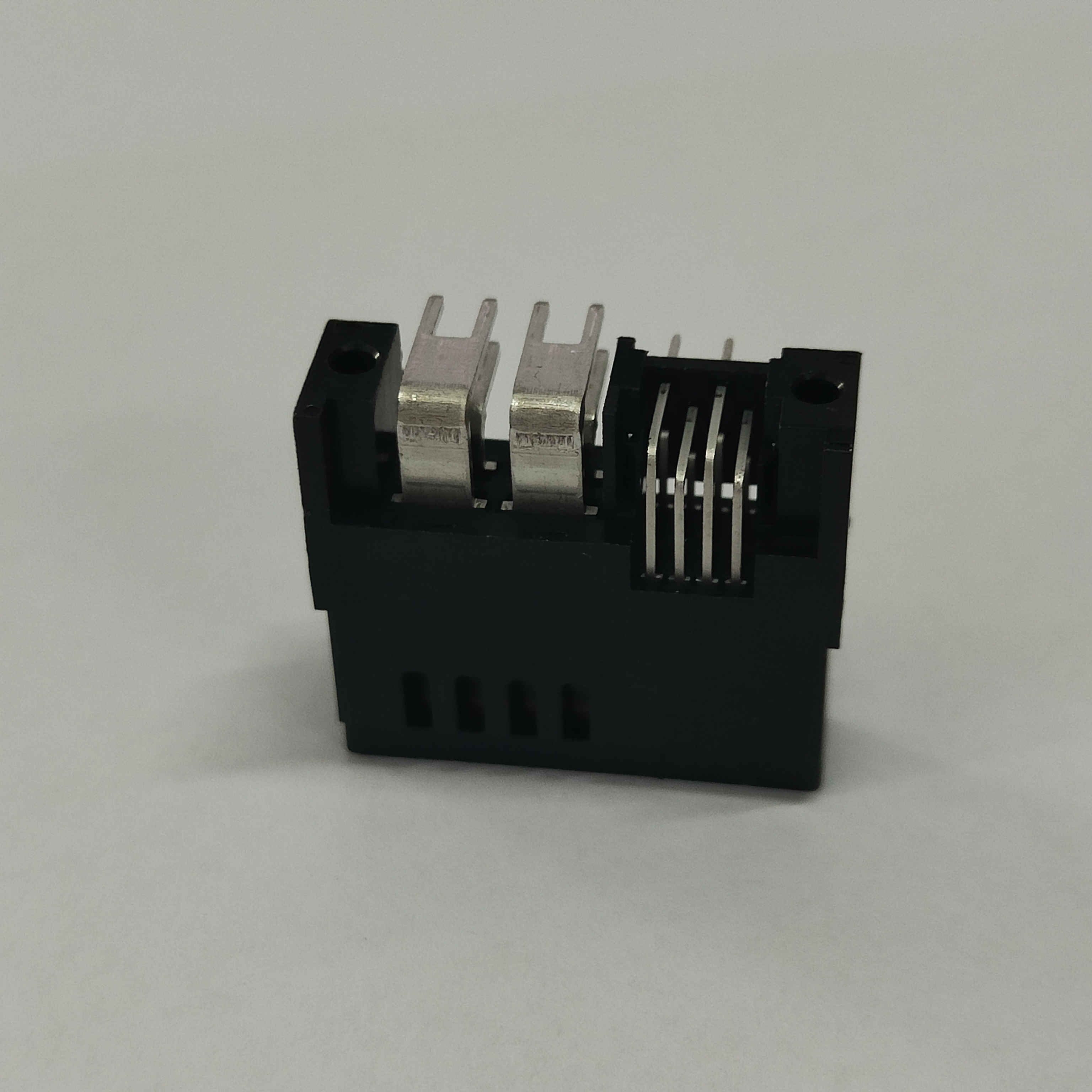

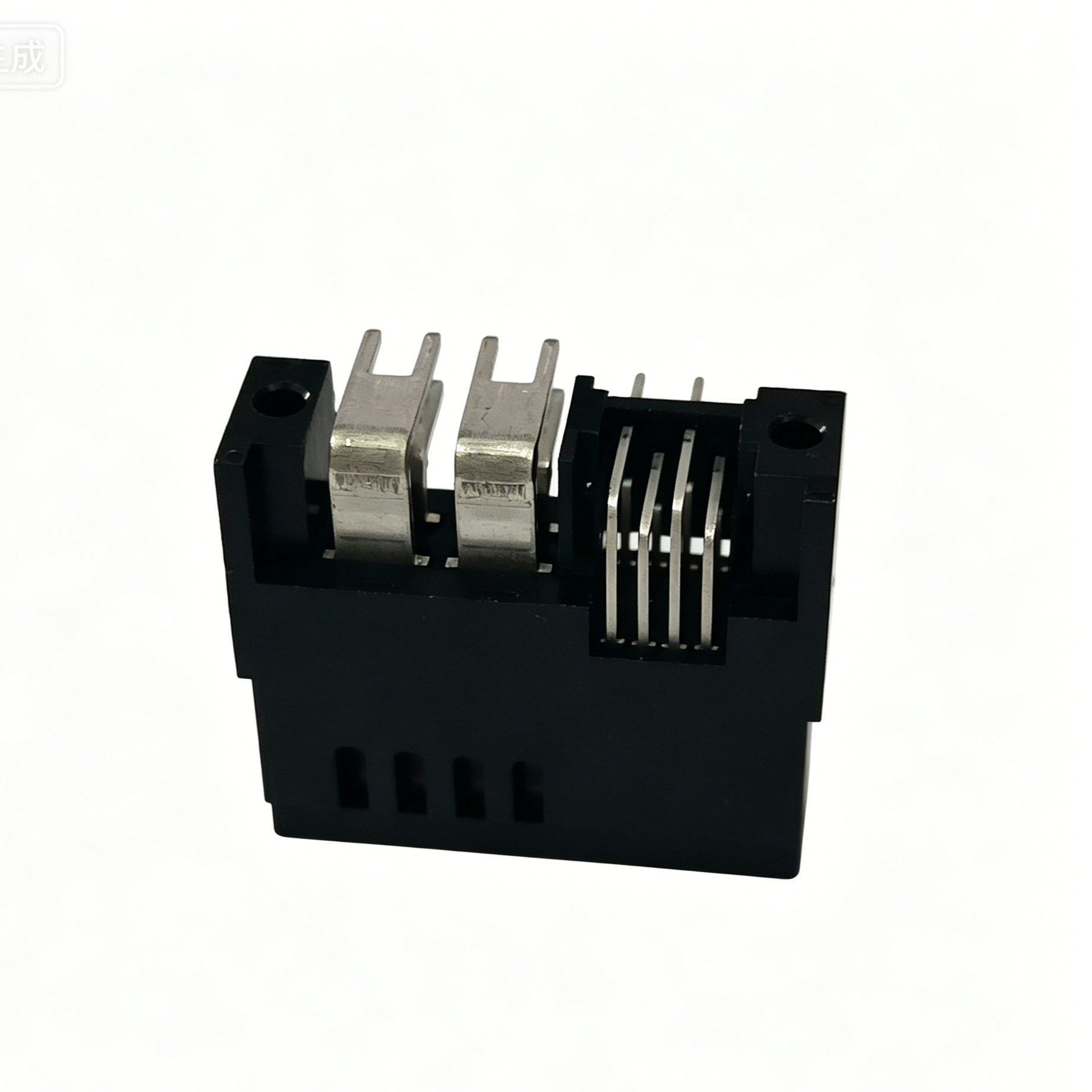

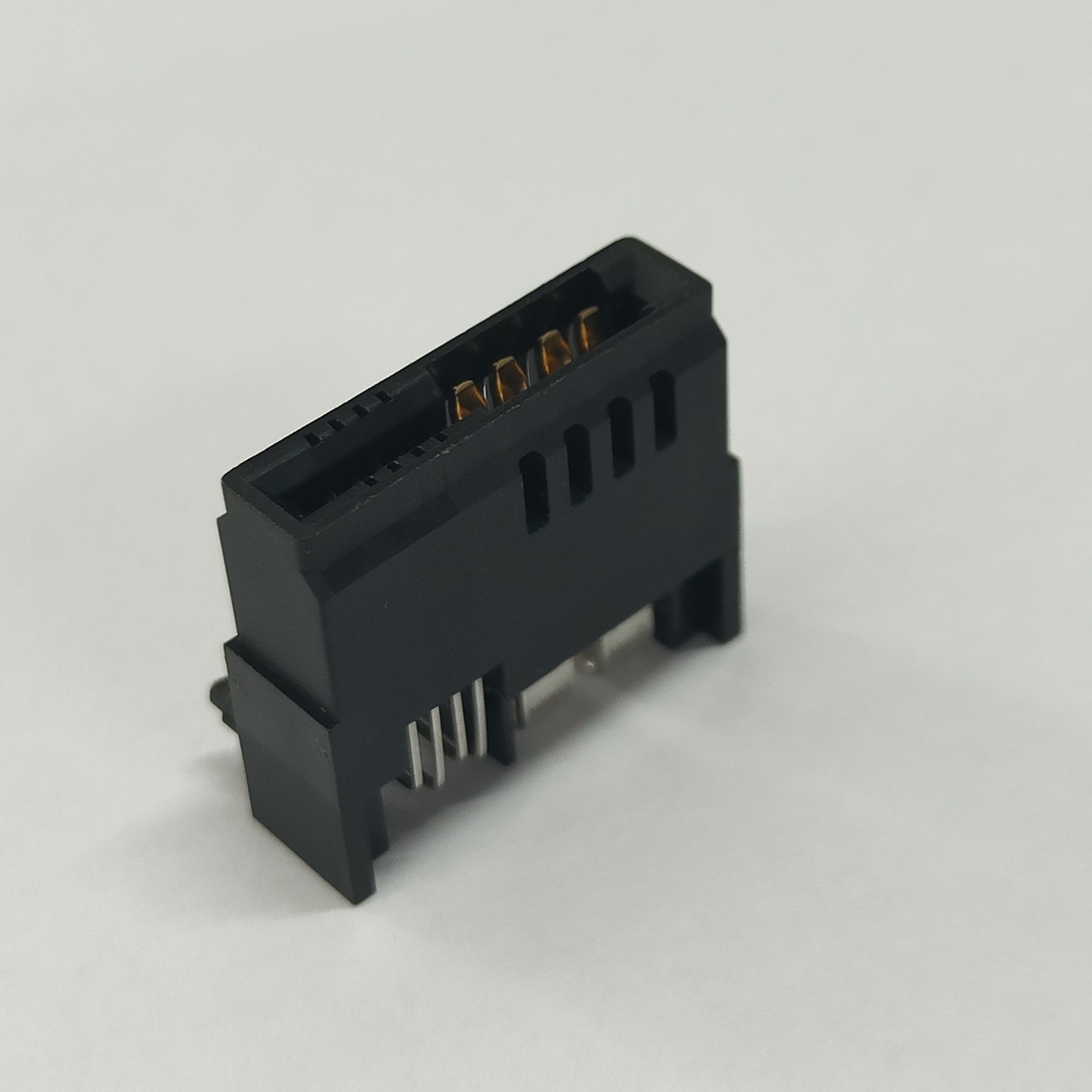

CONSHARE’s answer? A purpose‑built right angle female connector that blends two dedicated contact zones into one robust housing. No more mixing pin pitches or guessing clearance. You get a clean, repeatable solution for applications like industrial drives, battery management systems, or telecom power distribution.

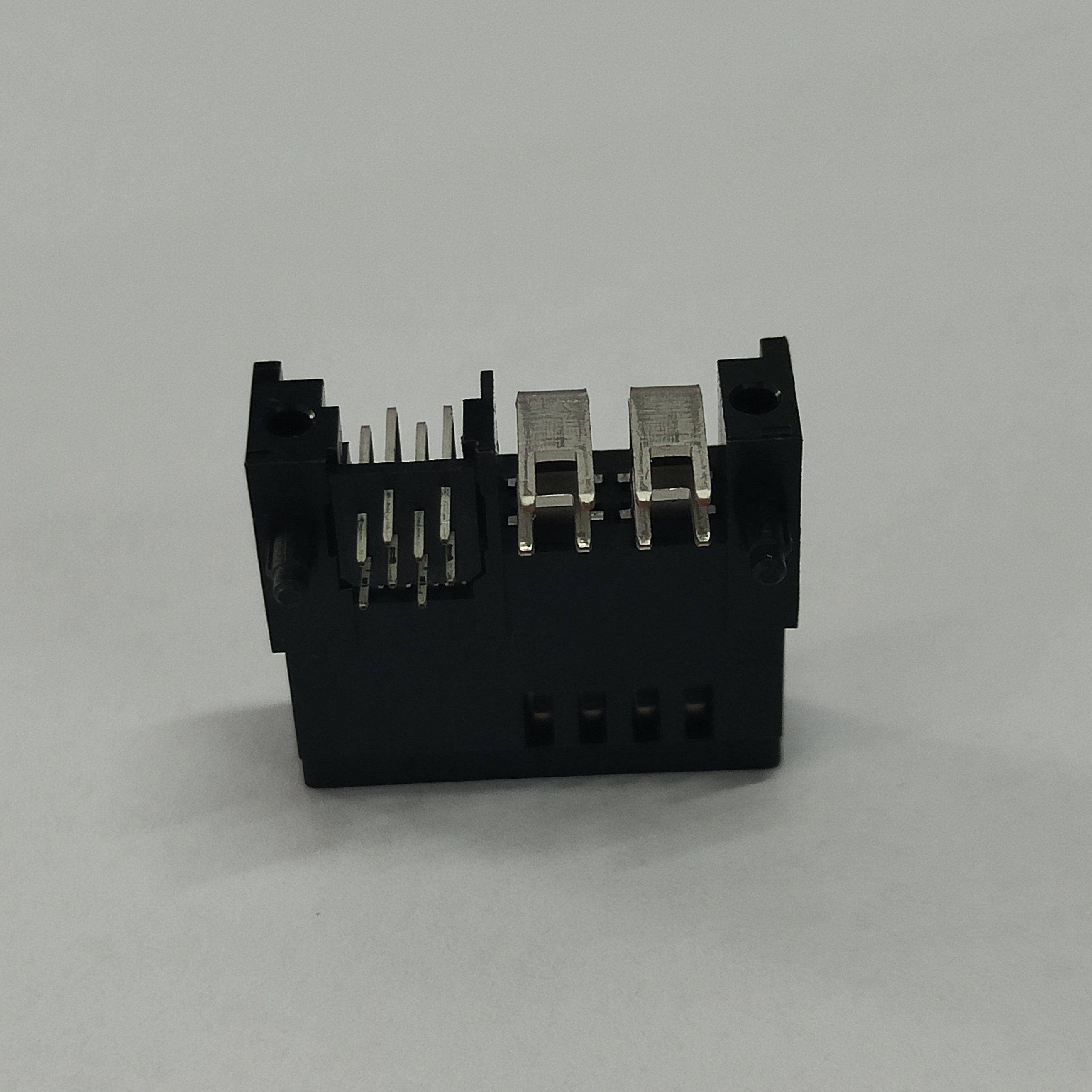

What Makes This Connector Different

nstead of forcing every pin into the same current‑handling mold, we designed two distinct regions inside the same connector body:

Why does this matter to you?

• No derating surprises – each pin works inside its safe electrical zone.

• Lower voltage drop on power lines – 0.6mΩ max means less heat and better efficiency.

• Clean signal integrity – physical separation from noisy power paths reduces crosstalk.

Built for Real‑World Production and Field Use

We didn’t stop at electrical specs. Every material and process choice was made to survive automated assembly and harsh operating conditions.

Reflow‑Ready Without Compromise

• Housing & cover: High‑temp thermoplastics (UL94V‑0) – no deformation during lead‑free soldering.

• Peak process temperature: 260°C for 10 seconds – compatible with standard SMT reflow profiles.

• Terminal finish: Gold in contact area (10µ” minimum) over nickel, matte tin on solder tails – excellent solderability and long shelf life.

Corrosion Protection You Can Trust

Salt spray tested: 5% NaCl, 35±2°C, 8 hours – no oxidation or rust. That means reliable field performance even in non‑climate‑controlled cabinets or humid environments.

Wide Thermal Operating Window

From ‑55°C to +105°C – workable for outdoor base stations, EV charging modules, or cold storage equipment.

Real example: A customer designing a 24V robotic actuator reduced their PCB height by 30% and cut component count by 2 SKUs after switching to this CONSHARE hybrid family.

Why Choose CONSHARE’s 2x2P Right Angle Design Over Generic Options?

Most “hybrid” connectors either over‑spec (expensive) or under‑spec (unsafe). Our approach hits the sweet spot for medium‑power systems. Here’s what you gain:

• Board space efficiency – one footprint replaces two connectors. The recommended PCB layout tolerance is ±0.05mm, easy to achieve with standard CNC routing.

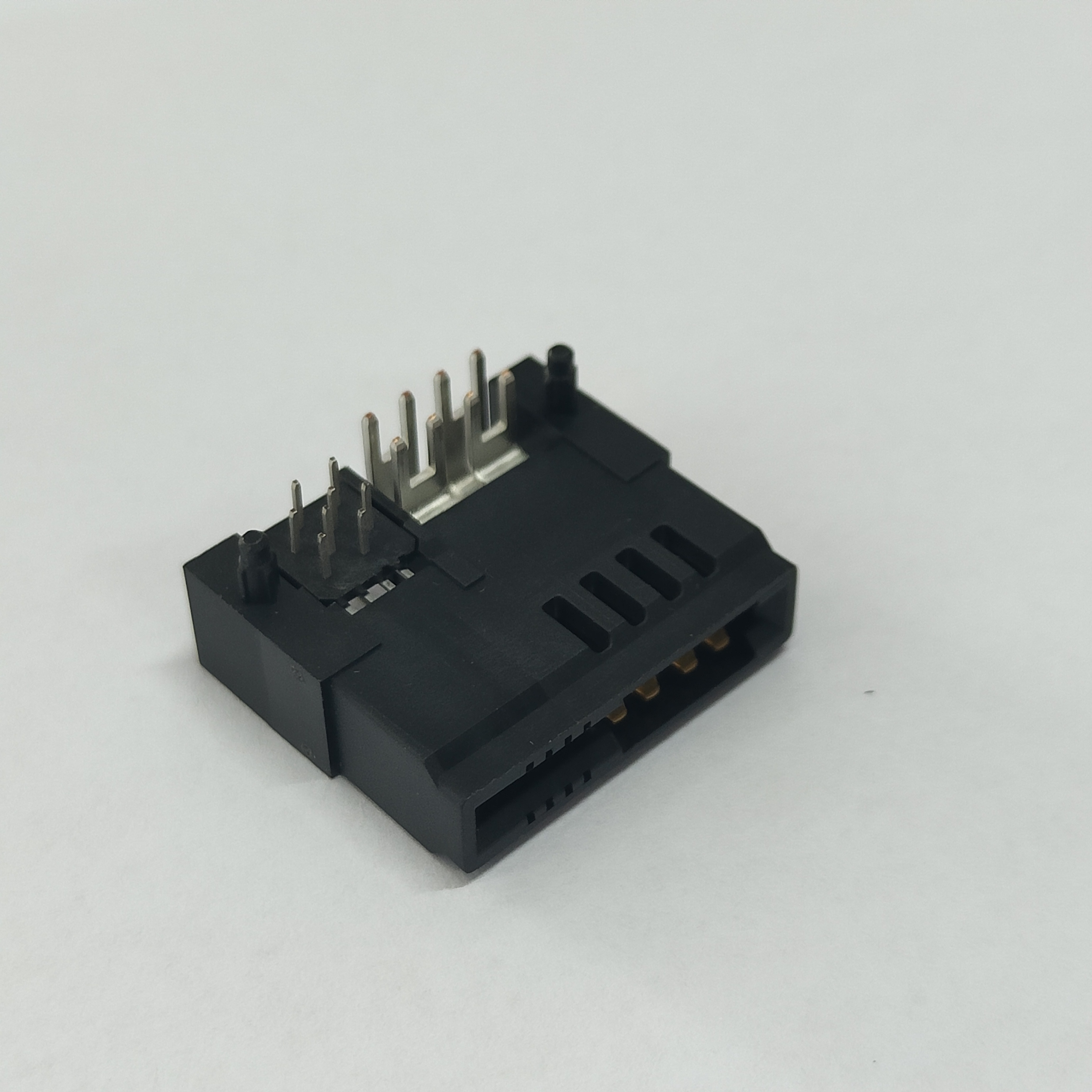

• Assembly friendliness – right‑angle orientation allows low‑profile cable entry, perfect for edge‑mount or tight enclosures.

• Inventory simplification – one part number serves both power and signal needs. No more tracking separate headers and sockets.

Ordering & Customisation

Your selected configuration:
2x2 positions (2 power + 2 signal), right angle, female, black housing, 10µ” gold on contact area, matte tin on tails.

Order reference: AAF6F02008475 – with the 10µ” gold option.

Need a different plating or longer tail length? CONSHARE offers custom options – contact our engineering team for lead time.

Quick Selection Checklist – Is This Connector Right for You?

• You need 9A per power contact and 1.5A per signal contact on the same board edge.

• Your PCB layout already uses 5.08mm (power) and 1.27mm (signal) pitches – no respin needed.

• Operating environment: indoor or outdoor, ‑55°C to +105°C, occasional humidity or mild salt spray exposure.

• Assembly method: reflow soldering (260°C peak) or hand soldering.

• You prefer a single sourced component from a brand that publishes real test data – CONSHARE.

Ready to Order or Validate?

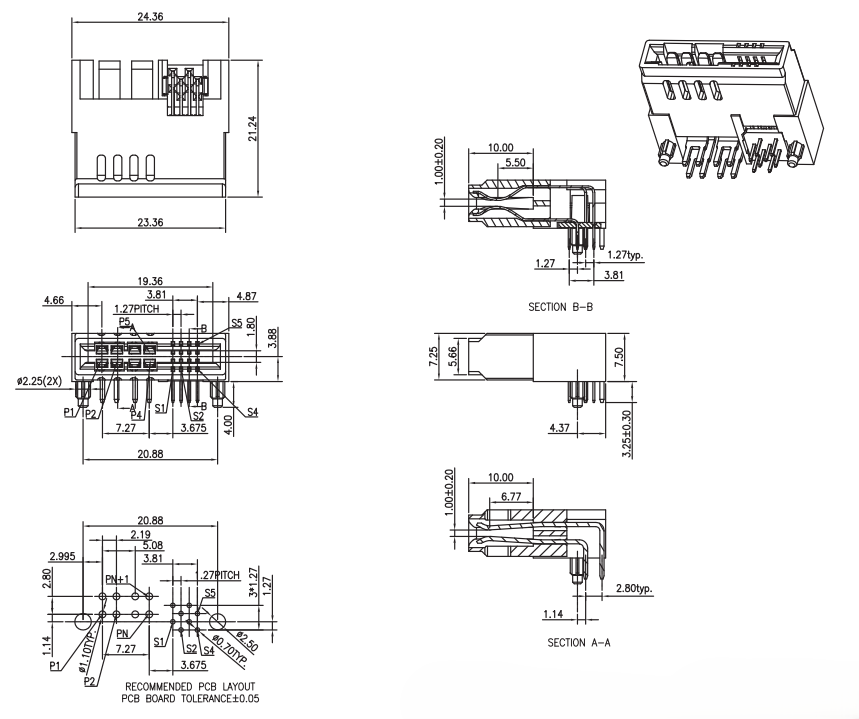

Download the full drawing (including recommended PCB land pattern) from our product page. For sample requests, 10µ” gold black version is stocked in standard quantities.

CONSHARE – bridging power and signals without bridging problems.
