The interconnect is the most common undiagnosed cause of GPU cluster instability, because a marginal link does not fail loudly; it simply drops the cluster into a slower, less reliable state that masquerades as a software fault.
When a cluster slows down, the first instinct is to blame the scheduler, the framework, or the model code. That instinct is reasonable, and it is why interconnect problems hide for so long. A link that loses signal margin raises the retry rate and nudges the effective bandwidth down instead of throwing an error that pages anyone.
The dangerous category of failure is the link that reports as healthy yet performs poorly. Standard link training negotiates a lower speed before giving up entirely, so the system keeps running at a reduced rate while the accelerators wait on data that arrives a few microseconds late, thousands of times per second.
The table below shows the failure modes we see most often during audits, ranked by how hard they are to detect rather than by how often they occur. Detection difficulty is the right lens, because failures that are easy to see get fixed quickly and stop costing money.
Failure mode | How it shows up | Typical time to diagnose |
|---|---|---|
Under seated contact | Lower effective bandwidth, no error | Two to six weeks |
Cable near a power rail | Intermittent retries under load | One to four weeks |
Wrong lane width set | Cap at half speed permanently | Hours to days |
Thermal drift at socket | Errors rise with ambient heat | Days to weeks |
Firmware untracked link | Silent fall back to older rate | Often never found |
There is a cultural reason interconnects are checked last. Compute and software are visible, scriptable, and owned by teams with dashboards. The physical layer is owned by facilities or hardware staff who may not sit in the same standup. By the time a signal problem is suspected, the software teams have already burned their iteration budget chasing a ghost that was never in their code.
Our recommendation is to instrument the interconnect from day one. A simple per link counter for retrains and corrected errors turns a silent tax into a visible line item, changing the question from whether the wires are the problem to exactly which wire.
A healthy rack shows stable per link error counts that do not climb with load or time of day. The retrain count stays near zero after first power up. When we audit a site that meets this bar, the interconnect there is almost always one whose selection and installation were engineering decisions, not a procurement afterthought.
The takeaway is simple but easy to ignore. The interconnect is cheap relative to the accelerators it serves, yet it governs whether those expensive devices ever reach their rated output. The rest of this guide is about making sure they do.

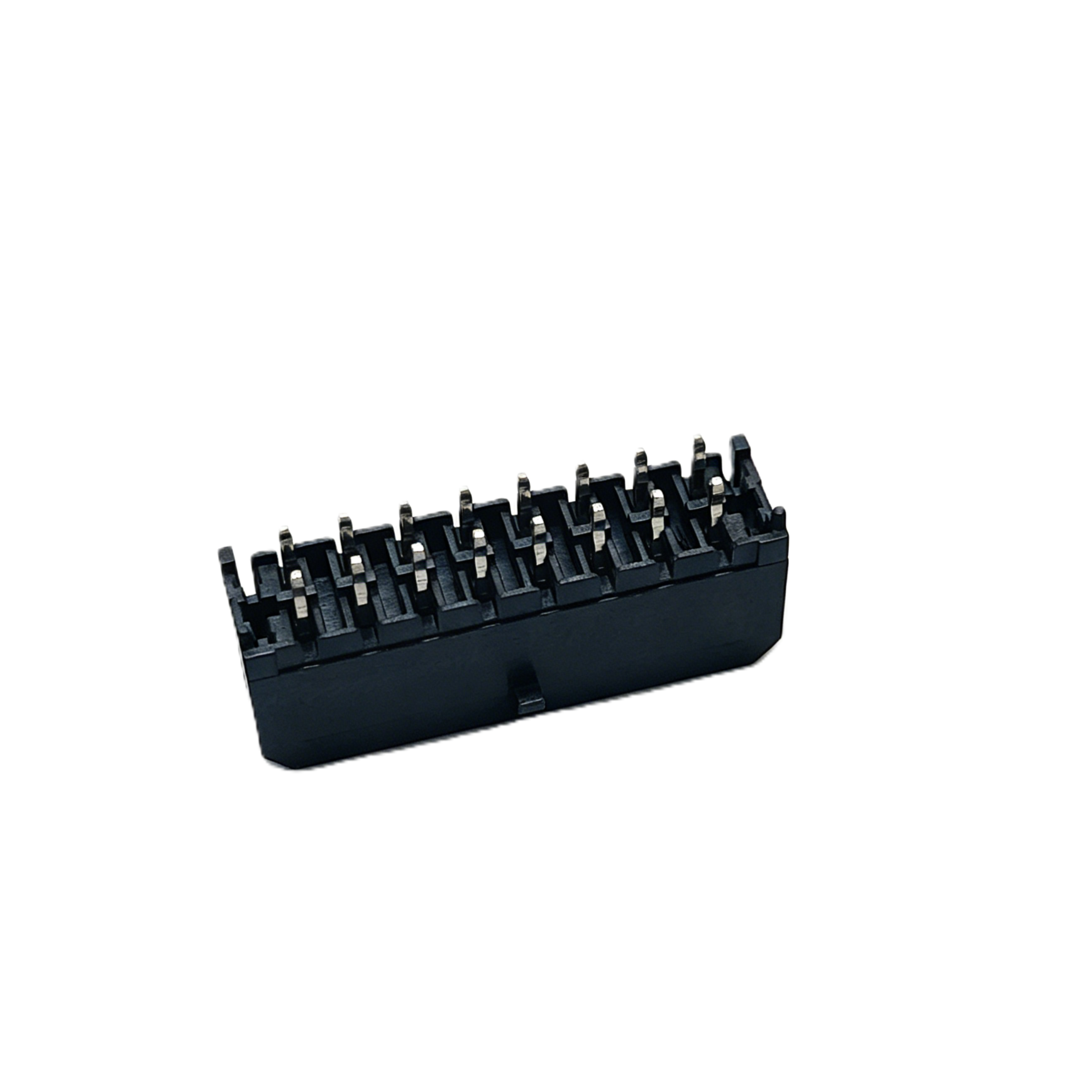

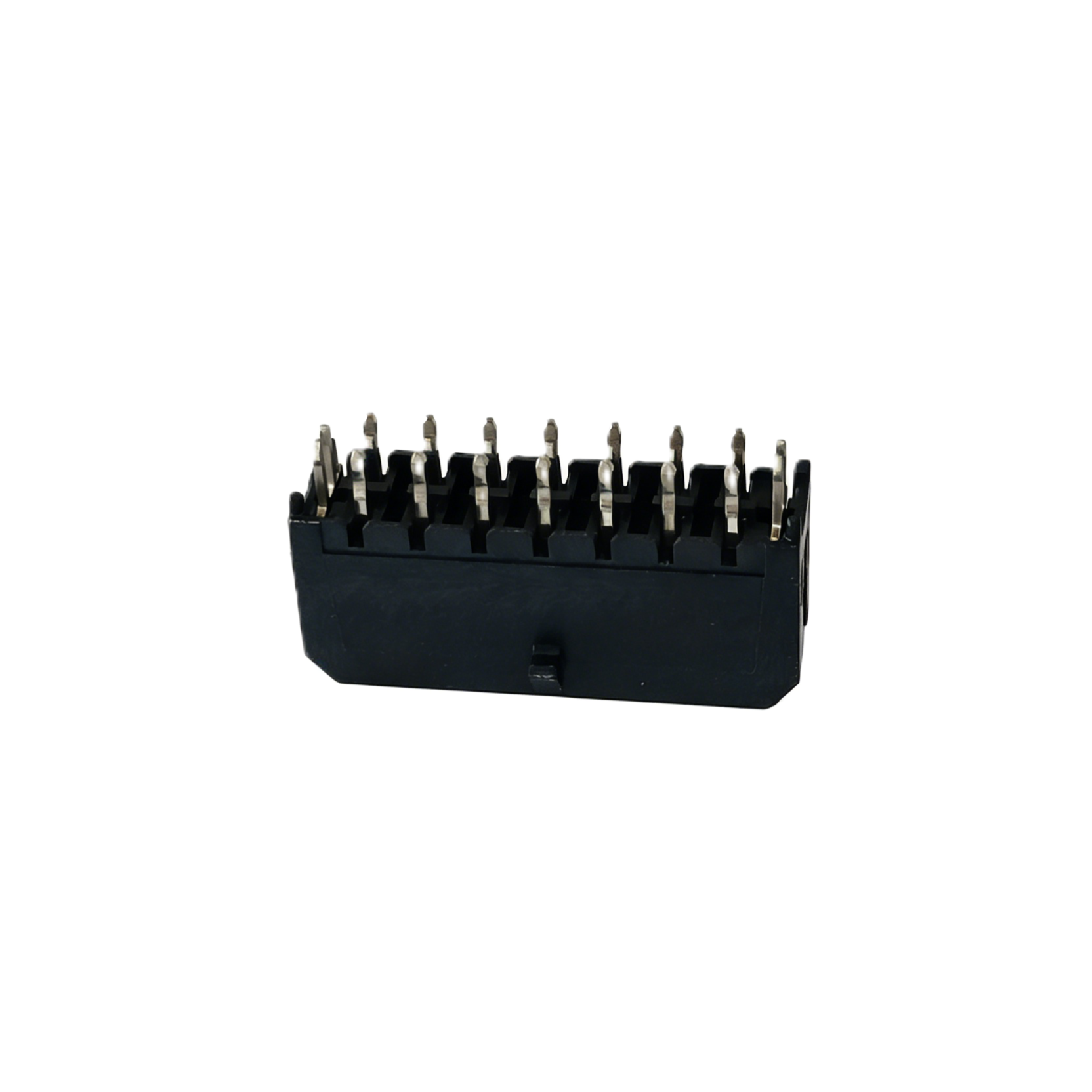

A GPU server connector is the mechanical and electrical interface that carries high bandwidth traffic between the accelerator, the host processor, and neighboring nodes, and its job is to preserve signal integrity while surviving heat, vibration, and the repeated service cycles that a production rack demands.
People often describe this part as a plug, which undersells it. Inside a training rack, the interconnect is the last controlled point where the signal is still clean before it enters a long, lossy channel, and its geometry, contact finish, and retention mechanism decide impedance, reliability, and whether a technician can service the node without inducing a fault three months later.
Trace a single transaction and you see why the part matters. Data leaves the accelerator package, crosses a short board trace, reaches the interconnect, enters the cable or the backplane, travels to a peer device, and crosses a second interconnect on the far end. Every one of those crossings is a place where the signal can reflect or attenuate.
The interconnect is the only crossing a human installs by hand, which makes it the most variable and most worth controlling. In our teardowns, the parts that age best share a few traits: a contact finish that resists film formation in warm spaces, enough normal force that thermal expansion cannot open the contact, and a clear seating indication for the installer.
A training rack pushes air that is already warm past components that run hot. The interconnect near a GPU sees sustained temperatures that would be unacceptable in an office switch. At those temperatures, two things happen at once. The contact resistance creeps upward, and the housing softens enough that retention force drops.
We advise specifying the interconnect for the actual sustained temperature at its location, not the ambient reading at the cold aisle. In one audit, the cold aisle sat at twenty two degrees C while the interconnect measured eighty one degrees C during a training burst. A part rated only to the cold aisle number would have failed outright. Even a part rated to one hundred five degrees C left only a thin margin once the cooling sagged.
Racks get opened and cards get reseated during upgrades. A part rated for fifty mate cycles that is actually opened two hundred times will eventually lose its position. We have seen nodes where the visible damage was a cracked latch, but the real damage was a contact that no longer returned to its designed position after the tenth pull.
The practical rule is to choose parts whose service life matches how often you actually touch the hardware, then track that count in a log. A small record of mate cycles per slot turns invisible wear into a scheduled replacement you control, instead of a field failure during a paid training window.

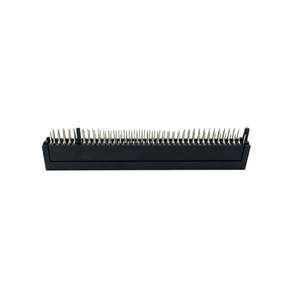

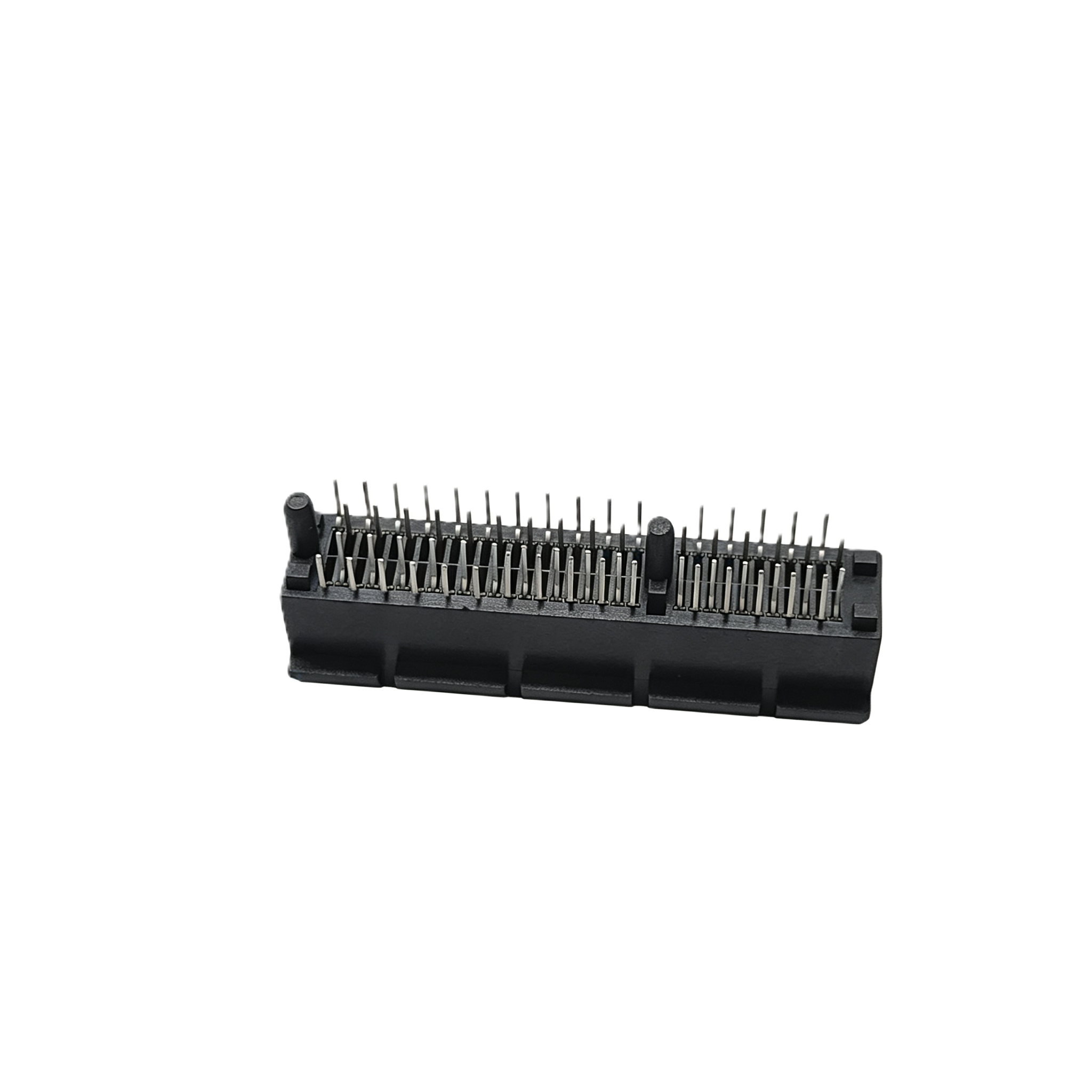

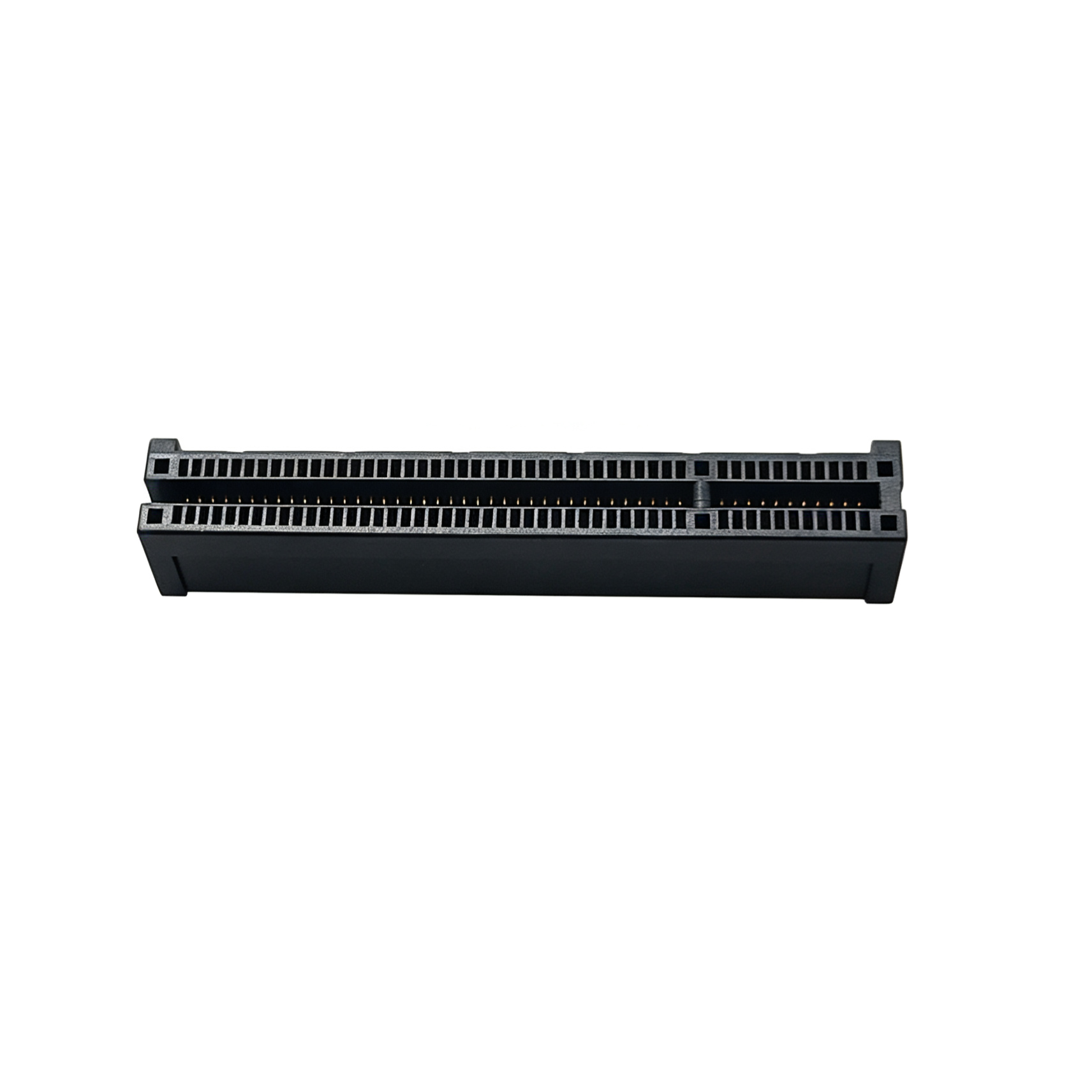

A PCIe connector defines the lane width and the electrical channel your accelerators use to reach the host, and the way those links are arranged decides whether your cluster runs at full bandwidth or quietly throttles itself to a fraction of it.
The specification gives you a menu of lane counts and speeds, but the menu is not the deployment. The real performance is set by how many lanes each accelerator gets and how those lanes are routed. Getting this wrong is silent, because the system reports success while it leaves performance on the table.
A slot may be built for sixteen lanes, but the device might train down to eight or four because of a signal problem somewhere in the channel. The table below maps the common configurations to the bandwidth you should expect, assuming the link trains to its intended rate rather than falling back under marginal conditions.
Configuration | Intended lanes | Approx bandwidth at Gen5 | What we commonly observe |
|---|---|---|---|
x16 full | 16 | About 64 GB per second | Rarely sustained in dense racks |
x8 effective | 8 | About 32 GB per second | Common after down train |
x4 constrained | 4 | About 16 GB per second | Frequent in oversubscribed nodes |
x16 through switch | 16 shared | Variable | Drops under collective load |
The gap between intended and observed is almost always a signal integrity issue, not a specification limit. A clean channel holds x16, while a marginal one quietly falls back and the application never learns why, because the job still completes.
Training collects gradients across all accelerators in lockstep, which is brutal on a topology that oversubscribes the path to the host. If eight accelerators share a single upstream link during an all reduce step, the step waits on the slowest path every iteration, and over a long job that wait compounds into days of lost compute nobody sees.
We recommend mapping the collective communication pattern onto the physical topology before buying hardware. The question is whether every accelerator can reach every peer without funneling through a shared bottleneck during the operation that runs most often.
Direct attach gives each accelerator a clean path but costs board space and cable count. A switch saves both but introduces a shared resource that can saturate. There is no universal answer, because the right choice depends on whether your workload is bandwidth hungry at the collective step or latency sensitive at the point to point step between two devices.
In our field experience, teams that skip this analysis buy the switch heavy design because it lays out cheaper, then discover the bottleneck during the first large training run.
A GPU cable that is bent too tightly, routed past a power rail, or left untracked in firmware will lose signal margin long before it fails completely, and that partial loss is the hardest fault class to find in a running cluster.
Cables look like the easy part of the build, but they are not. A cable is a tuned transmission line, and the moment it is bent, pinched, or run next to a noisy neighbor, its electrical behavior changes by a margin small enough that the link stays up, which is exactly why it is dangerous.
Every cable has a minimum bend radius published in its data. Exceed it and the impedance at the bend shifts, creating a reflection that eats into the margin. We have measured return loss climb several decibels on a cable bent around a chassis lip during installation, with no visible jacket damage and no link error until the room warmed up.
The fix is unglamorous and cheap. Route with a measured radius, use the strain relief the design intended, and record the route. A five minute install discipline prevents a fault that otherwise shows up as a mysterious throughput dip six months later.
High current rails throw magnetic fields, and a signal cable run parallel to one for a few centimeters will pick up that field, adding jitter the receiver must clean up at the cost of margin you may not have. We have traced intermittent retrains to a cable zip tied to a power distribution bar.
The discipline that works is separation by design. Keep signal cables away from power runs, cross them at right angles when a crossing is unavoidable, and document the route so the link does not flake when the rack draws peak current.
A cable that falls back to a lower rate should announce it. Too many deployments leave the link state inside a vendor tool nobody polls. We treat link rate and retrain count as first class telemetry, because a falling rate warns a cable is about to become a problem.
Routing practice | Effect on margin | Effort to fix after install |
|---|---|---|
Tight bend at chassis edge | Several dB return loss | High, requires re route |
Parallel to power rail | Added jitter | High, requires re route |
Unsupported long span | Sag and micro movement | Medium |
Documented and verified | Stable over life | Low, done at install |
The throughline is that cable problems are installation problems more often than manufacturing problems. The cable is fine when it leaves the reel, and the way it was placed in your rack is what bites, which is good news because placement is something you control completely.

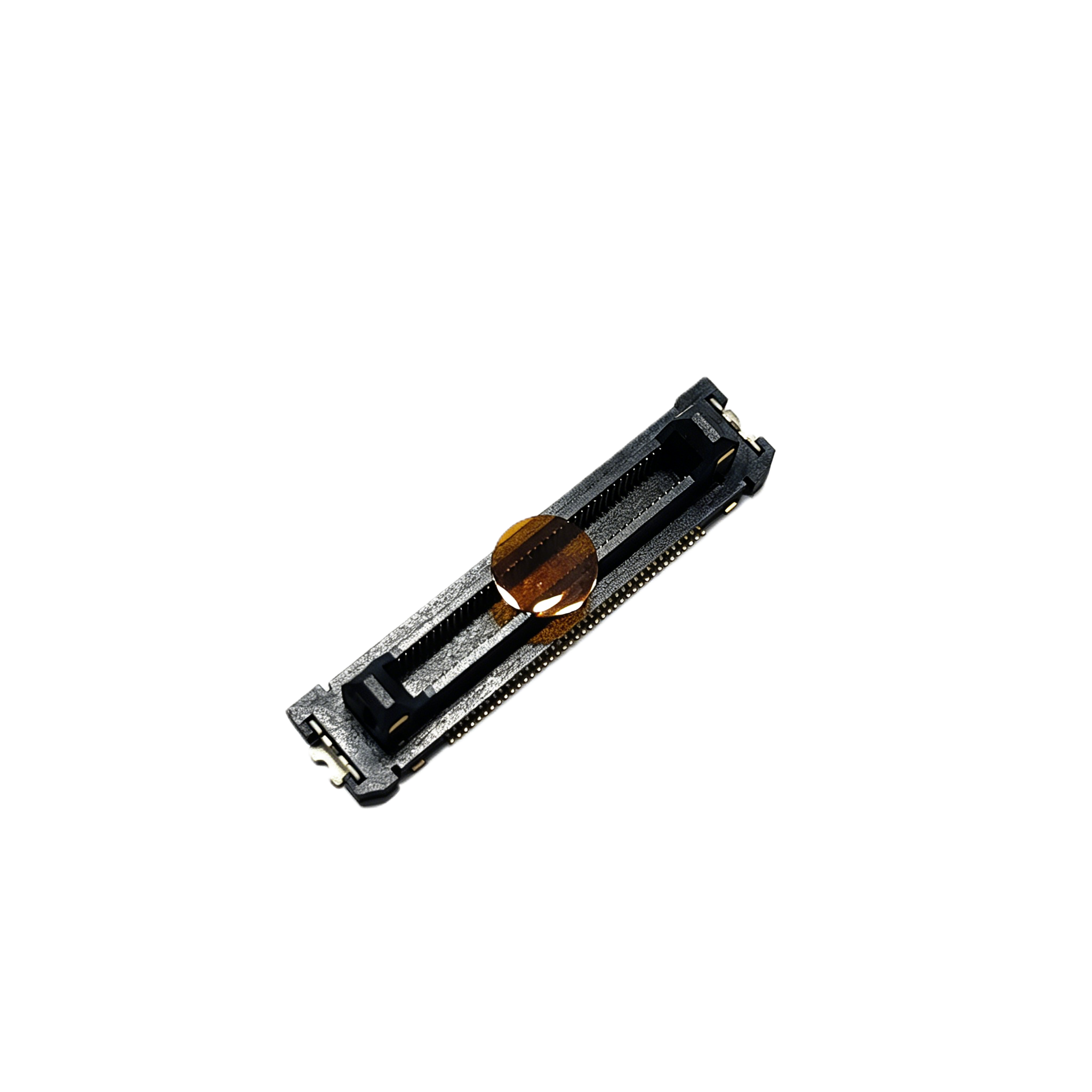

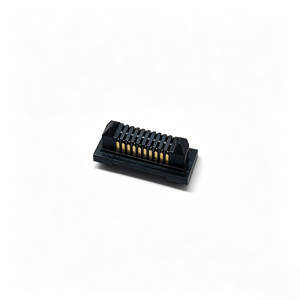

A high speed connector that is specified for your actual thermal and cycle profile costs a little more up front and returns many times that amount by avoiding downtime, service truck rolls, and premature rack retirement.
It is tempting to treat the interconnect as a commodity and buy on price. We understand the temptation completely. The part is small, the accelerator next to it costs a fortune, and the budget line for interconnects looks trivial next to the compute line. But the math changes once you account for what the small part can take down with it when it fails at the wrong moment.
When an interconnect fails in a way that crashes a node, you lose more than the part. You lose the accelerator time, the job progress, the engineer paged at midnight, and the trust of the planning team. In one case, a single bad connection took a node offline during a paid training window and the lost compute exceeded the entire interconnect budget for that rack.
We estimate the purchase price of the interconnect is roughly three to five percent of the three year total cost of the rack it serves. Yet in our failure reviews, interconnect related issues accounted for more than half of unplanned downtime with no obvious software cause. Spending a little more to remove that risk is the cheapest insurance in the build.
The table below lays out where the money actually goes over a deployment, contrasting a lowest price part with a properly specified one. The unit price is the smallest and least important number on the page.
Cost element | Lowest price part | Properly specified part |
|---|---|---|
Unit purchase | Low | Moderate |
Install rework rate | Higher | Lower |
Unplanned downtime | Significant | Minimal |
Service life | Shorter | Longer |
Three year total | Higher | Lower |
The properly specified part wins not because it is cheaper to buy, but because it is cheaper to own. That distinction is the whole point of total cost of ownership, and it is routinely missed when procurement compares line items instead of outcomes.
The trap is to stop at the first row. Procurement teams see the unit purchase gap and stop reading, because that is the number their process rewards them for minimizing. The last row should decide the purchase, and it almost always favors the part specified for the environment instead of the catalog.
The right specification starts with the environment, not the catalog. What is the sustained temperature at the interconnect location? How many times will the node be opened over its life? What is the vibration profile from the adjacent fans? Answer those first, then choose a part that meets the real numbers with margin rather than matching the easy numbers exactly.
We have watched teams specify a part rated to eighty five degrees C for a location that runs at eighty two, leaving three degrees of margin that evaporates on the first hot day, while a part rated to one hundred five degrees C in the same spot costs marginally more and never becomes the problem.
You should qualify every interconnect against your real rack conditions rather than against the vendor data sheet alone, by running insertion, thermal, and signal margin tests before a single production unit ships.
A data sheet describes a part in a lab under ideal conditions. Your rack is not a lab, and the gap between the two is where field failures are born. The responsible move is to close that gap with your own tests before you commit to a volume purchase that is hard to unwind.
Treat qualification as a gate, not a formality. The checklist below covers the items we consider non negotiable before a part enters the bill of materials. Together they form a fence that keeps bad batches out of production nodes where they are expensive to reach.
Check | Why it matters | Pass criterion |
|---|---|---|
Insertion force | Confirms correct seating tool | Within spec band |
Thermal soak | Reveals drift at real temp | Margin above site max |
Signal margin | Catches marginal channels | Above link budget |
Mate cycle test | Predicts service life | Meets planned opens |
Crosstalk scan | Exposes routing issues | Below noise floor |
Each line is a small test that prevents a large embarrassment, and none requires exotic equipment.
Do not qualify a part on a reference board and assume it behaves on yours. Board stackup, trace length, and interconnect placement all shift the channel in ways the reference design does not capture. We insist on testing on the actual production board, with the actual cable, in the actual airflow.
A useful trick is to build a small batch of ten nodes, run them hard for two weeks, and watch the per link telemetry daily. If any link shows retrains or corrected errors, that part or route is not ready, regardless of what the data sheet promised under lab conditions.
Qualification only helps if the records survive the people who wrote them. We keep test results attached to the part number in the bill of materials so a future buyer can see why a part was chosen and what it was proven against. That paper trail turns tribal knowledge into a team asset, even after the original engineer has moved on.
The discipline is the same as everywhere else in this guide. Treat the interconnect as a load bearing part of the system, because in a GPU cluster that is exactly what it is.
What is the most common cause of silent GPU cluster slowdown? The most common cause we find is a marginally seated or thermally drifted interconnect that negotiates a lower link rate instead of failing outright. It looks like a software problem and hides for weeks because the job still completes, just slower than it should.
How do I know if my PCIe links are running at full speed? Read the negotiated lane width and data rate from the system, then compare it to the intended configuration for that slot. A persistent gap between the two is a signal integrity problem in the channel, not a specification limit, and it is worth chasing before you blame the framework.
Can a cable really cause errors without any visible damage? Yes. A tight bend or a run next to a power rail changes the cable electrical behavior and adds return loss or jitter while the jacket looks perfect. The fault lives in the transmission line and the placement, not in the appearance, which is why it escapes a visual inspection.
Why not just buy the cheapest interconnect? Because the interconnect governs whether your far more expensive accelerators reach their rated output. The part is a few percent of rack cost but drives a large share of unplanned downtime, so the cheapest unit price is rarely the cheapest to own.
When should I qualify an interconnect instead of trusting the data sheet? Always, before production. Qualify on your actual board, cable, and airflow, because the data sheet describes a lab condition your rack will never reproduce exactly, and the only number that matters is how the part behaves in your environment under your load.
