Choosing the right connector supplier requires more than comparing unit quotes against delivery promises. With more than 500 connector manufacturers operating globally, procurement and engineering teams must evaluate suppliers against measurable criteria across quality, cost, and reliability. A single automotive ECU connector failure can trigger warranty claims exceeding 12,000 per vehicle, while a board‑to‑board failure in a data center can cost 9,000 per minute.
The global connector market reached 86.4 billion in 2023 and is projected to grow to 124 billion by 2028 at a 7.5% CAGR according to Bishop and Associates industry research. Despite this, 47% of OEM procurement teams still evaluate suppliers primarily on unit price and lead time, overlooking process capability and plating consistency. Connector failures account for 23% of consumer electronics returns and 31% of industrial equipment returns, per reliability studies across the industry.
Choose a connector supplier based on quality management, manufacturing capability, reliability testing, lead time, engineering support, total cost of ownership, and application-specific certifications.
Selecting the right connector supplier requires evaluation across three dimensions: quality assurance measured by defect rates below 50 ppm, total cost of ownership accounting for tooling, testing, logistics, and failure remediation beyond unit price, and reliability performance validated through standardized testing including IPC/WHMA-A-620, MIL-STD-1344, and JEDEC standards. Suppliers providing full material traceability, first article inspection for every new part, and lifecycle engineering support consistently outperform competitors competing on price alone.
The difficulty is not knowing what to evaluate but how to prioritize each factor against project constraints. A Class III connector carries a 35 to 50% cost premium over Class II, justified for aerospace and medical applications but excessive for consumer devices. A supplier with 30 week lead times for custom tooling may work for planned launches but fails for prototype iteration.

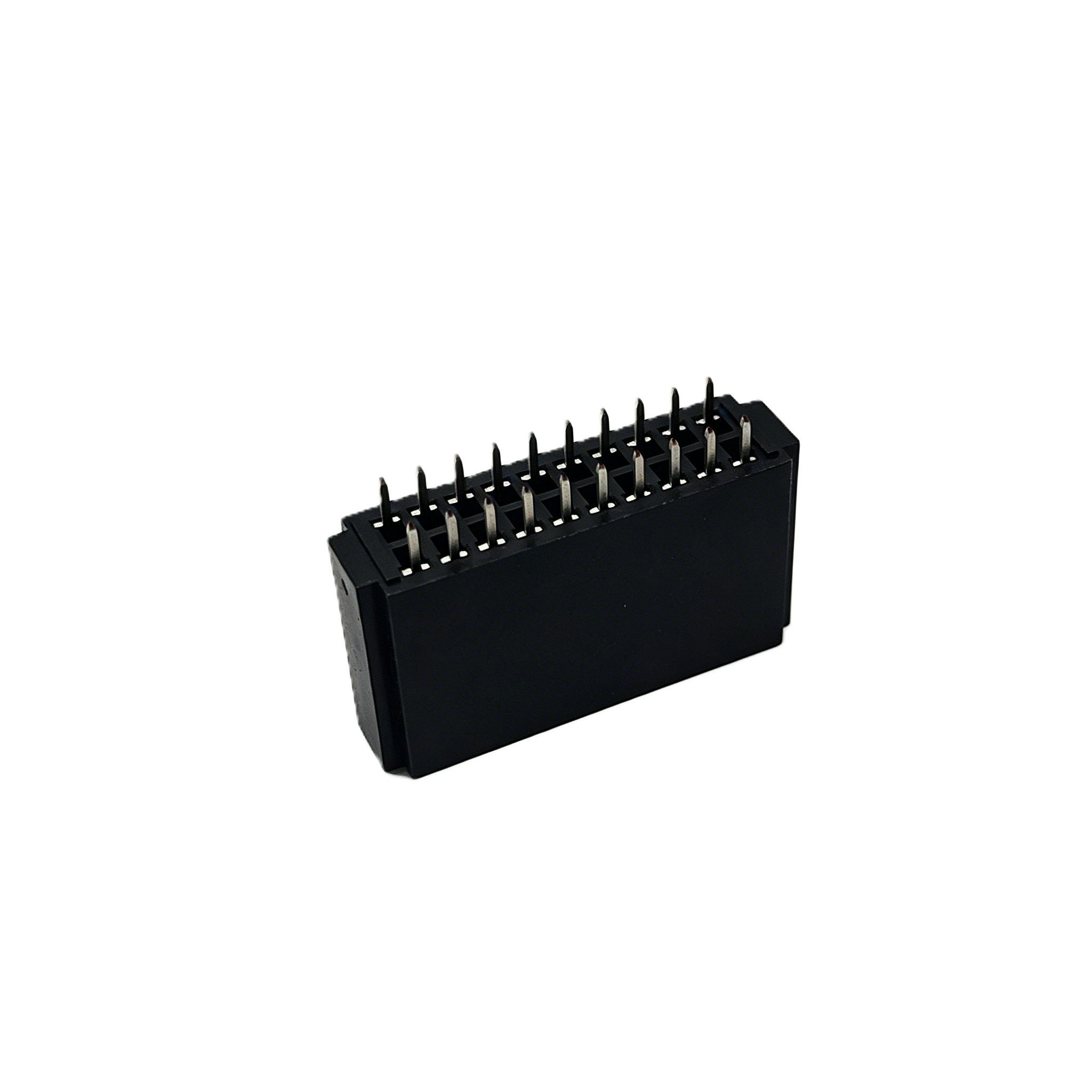

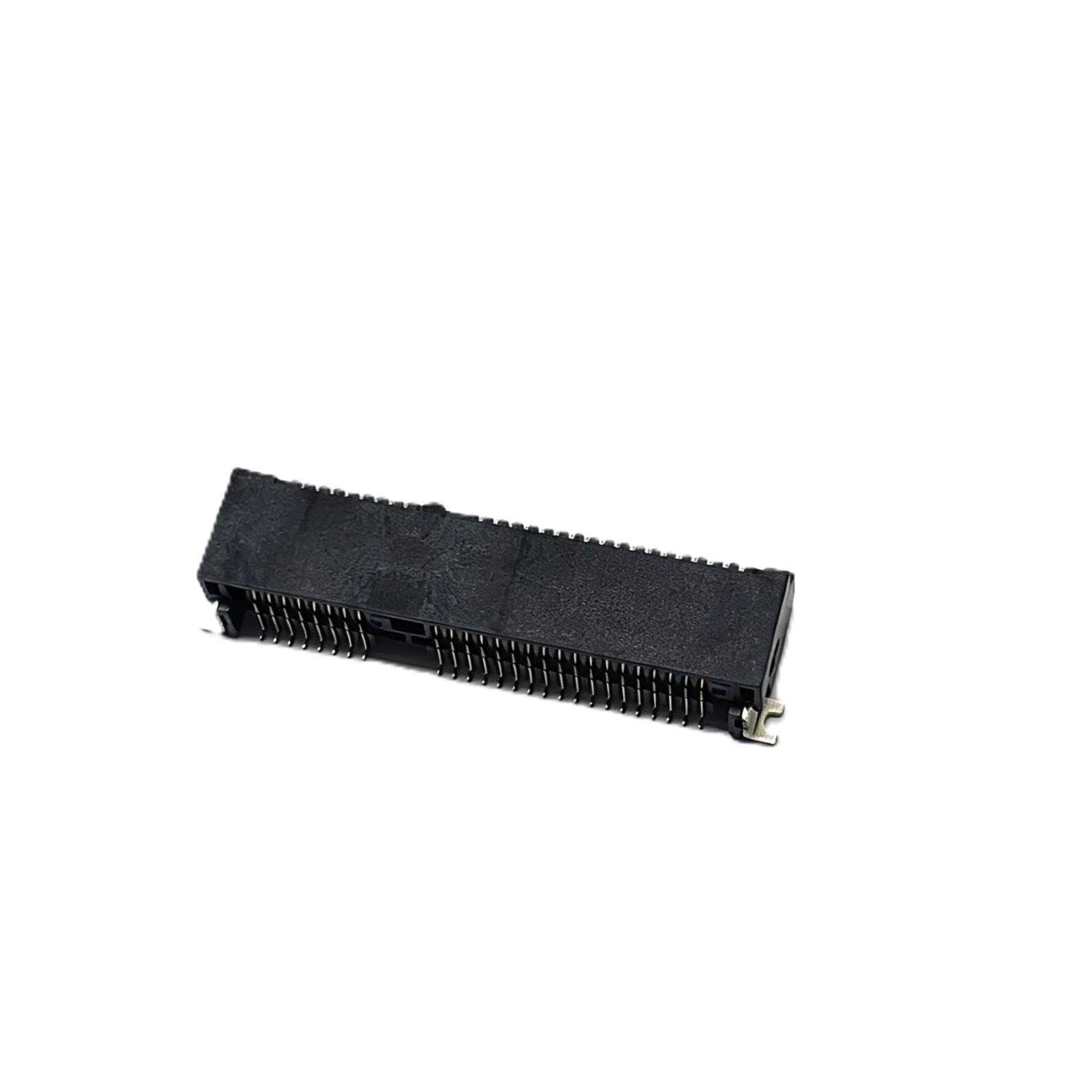

This guide provides a structured framework built on industry testing data, field failure statistics, and procurement benchmarks, with specific metrics for supplier evaluation across DDR5 memory, PCIe, and industrial circular connectors. Based on CONSHARE's PCB connector experience, buyers should evaluate tooling capability, process control, traceability, inspection equipment, and engineering response alongside finished samples.
Table of Contents
A qualified connector supplier must demonstrate defect rates below 50 parts per million, maintain active certifications to IPC/WHMA-A-620 Class III or equivalent standards, provide 100% material traceability from raw copper and plating chemicals to finished goods, and document first article inspection results for every new part number before mass production approval.
Industry data from automotive and telecommunications OEMs shows that top-tier connector manufacturers maintain outgoing defect rates between 15 and 35 ppm, while mid-tier suppliers typically operate at 80 to 200 ppm. At 200 ppm, a production line consuming 500,000 connectors per quarter will experience approximately 100 defective units, each requiring rework or field replacement at costs ranging from 45to45to180 per incident.
Process capability indices provide a more granular view. Manufacturers maintaining CpK values above 1.67 for critical dimensions such as contact beam width, pin pitch, and plating thickness consistently deliver defect rates below 25 ppm. Values between 1.33 and 1.67 indicate marginal capability, while anything below 1.33 signals excessive variation that will produce out-of-specification parts on a predictable basis. Suppliers who report monthly CpK data for at least 15 critical dimensions are 3.2 times less likely to deliver a nonconforming lot than those providing only final inspection pass/fail data.
Contact plating represents the single most influential factor in connector long-term reliability. Gold plating thickness over nickel underplate must be verified using X-ray fluorescence measurement, with readings typically specified at 0.76 to 1.27 micrometers for gold and 1.27 to 2.54 micrometers for nickel. A study of field-returned connectors across telecommunications infrastructure found that 41% of premature contact failures traced to plating thickness below specification, and 23% to porosity in the gold layer allowing nickel migration.
Suppliers must provide lot-level traceability linking each production batch to plating bath chemistry records and thickness measurement data. During audits, request three random lot numbers from the past 6 months and ask the supplier to produce the complete traceability record within 48 hours. Suppliers who cannot fulfill this request lack the data infrastructure for sustained quality management.
Assessment Area | Minimum Requirement | Top-Tier Benchmark |
|---|---|---|
QMS Certification | IATF 16949 plus ISO 14001 | |
Defect Rate (ppm) | Below 100 | Below 30 |
CpK for Critical Dimensions | Above 1.33 | Above 1.67 |
First Article Inspection | Per AS9102 or equivalent | Plus dimensional layout report |
Plating Thickness Control | XRF measurement, batch records | SPC charts with Cpk reporting |
Corrective Action Closure | 90% within 30 days | 98% within 14 days |
Suppliers who cannot produce current certificates or whose corrective action closure rates fall below 85% within 30 days present an elevated risk profile. Look for recurrence of the same root cause categories, which indicates corrective actions are addressing symptoms rather than underlying process deficiencies.
Total cost of ownership for connector procurement extends far beyond unit price, encompassing tooling amortization ranging from 15,000 to 15,000 to 80,000 per custom part number, incoming inspection and testing costs of 3 to 7% of purchase value, logistics and inventory carrying costs, and field failure remediation that can reach 10 to 50 times the connector unit price when warranty claims and brand damage are included.
A procurement analysis across 12 electronic manufacturing programs in 2024 revealed that unit price represented only 62% of total connector cost of ownership. The remaining 38% was distributed across categories that procurement teams frequently omit from supplier comparison models.
Cost Component | Percentage of TCO | Typical Range |
|---|---|---|
Unit Purchase Price | 62% | 55 to 70% |
Tooling and NRE | 8% | 5 to 15% |
Incoming Inspection | 4% | 3 to 7% |
Inventory Carrying | 6% | 4 to 9% |
Logistics and Customs | 5% | 3 to 8% |
Field Failure Remediation | 11% | 2 to 25% |
Engineering Support | 4% | 2 to 6% |
The field‑failure remediation row deserves particular attention. For a connector priced at 0.85 per unit, a field failure in an automotive application costs an average of 14.50 in diagnosis, 47.00 in parts and labor, and up to 340 in warranty administration per incident. A single field failure can erase the cost savings of choosing a lower‑priced supplier across thousands of units purchased.
When a connector supplier quotes a price 20% below the market average, the gap is typically recovered through means that increase total cost elsewhere. Common mechanisms include reduced plating thickness saving 0.02to0.02to0.05 per unit but reducing contact life by 40%, relaxed dimensional tolerances lowering scrap rates but increasing mating force variation, and eliminated 100% electrical testing replaced by sampling plans that allow 1 to 3% of defective units to reach the customer undetected.
Procurement teams should request a cost breakdown structure from each supplier showing material, labor, overhead, and profit margins. Cross-reference quoted material costs against London Metal Exchange copper prices to identify structurally unsustainable quotes.
Effective TCO optimization focuses on areas where both buyer and supplier benefit. Volume commitment agreements providing 12 month forecasts enable suppliers to optimize production scheduling, reducing setup costs by 15 to 22% that can be shared through price reductions. Organizations implementing should-cost analysis report average connector cost reductions of 8 to 14% within the first year while improving supplier quality performance.
Reliability testing for connectors must include mechanical endurance per MIL-STD-1344 Method 2016 with minimum 500 insertion and withdrawal cycles, thermal cycling from minus 65 to plus 150 degrees Celsius for 200 cycles per JEDEC JESD22-A104, and mixed flowing gas exposure per ASTM B827, with industry field data showing that 68% of connector failures originate from contact fretting corrosion, 19% from insulation degradation, and 13% from mechanical damage to contact beams.
Connector reliability cannot be assumed based on supplier claims. It must be verified through standardized test protocols that simulate real world environmental and mechanical stresses. The following matrix represents the minimum testing scope for connectors intended for applications with service lives exceeding 5 years.
Test Protocol | Standard Reference | Pass Criteria | Acceleration Factor |
|---|---|---|---|
Mechanical Endurance | MIL-STD-1344 Method 2016 | 500 cycles, contact resistance change below 10 milliohms | 1 cycle equals approximately 30 field insertions |
Thermal Cycling | JEDEC JESD22-A104 | 200 cycles, no cracking or delamination | 1 cycle equals approximately 6 months field exposure |
Damp Heat | 21 days at 85C and 85% RH, contact resistance below 20 milliohms | 1 day equals approximately 2 months tropical exposure | |
Mixed Flowing Gas | ASTM B827 | 10 days exposure, contact resistance below 15 milliohms | 1 day equals approximately 1 year industrial atmosphere |
Vibration | MIL-STD-1344 Method 2005 | No electrical discontinuity exceeding 1 microsecond | Simulates 10 years transportation and field vibration |
Current Overload | No fire or melting at 150% rated current for 4 hours | Verifies safety margin under fault conditions |
Analysis of 4,200 connector field returns across automotive, industrial, telecommunications, and consumer electronics applications over a three year period revealed consistent failure mode distributions. Contact fretting corrosion, caused by micro-motion between mated contacts due to vibration and thermal expansion, accounted for 68% of all failures. This mechanism develops gradually: contact resistance increases over months or years until intermittent signal errors occur that are extremely difficult to diagnose.
Suppliers who proactively design against fretting through contact normal force optimization at 50 to 150 grams per contact, contact geometry selection, and lubricant application reduce field fretting failures by 70 to 85% compared to suppliers who use generic contact designs without application-specific optimization.
Insulation degradation accounted for 19% of failures, driven by long-term exposure to elevated temperatures causing tracking and arcing across insulator surfaces. Mechanical damage to contact beams during mating caused 13% of failures, often traced to operators exceeding maximum mating force. The remaining failures distributed across solder joint reliability, contamination, and foreign object debris.
An electronic connector supplier should recommend and execute the appropriate testing matrix based on the target application environment. For automotive engine compartment applications, the protocol should add sulfur dioxide exposure and salt spray per ASTM B117 at 96 hours minimum. For data center applications, the protocol should emphasize signal integrity testing including crosstalk, insertion loss, and return loss measurements at operating frequencies up to 16 GHz for PCIe 5.0 interfaces. Suppliers who offer only a generic testing package may lack the engineering depth to support complex programs.
Request that the supplier provide test reports from independent third-party laboratories. Verify that the tested part numbers match production part numbers exactly, including revision level, and that test sample sizes meet minimum requirements specified in each standard.
Connector industry lead times currently average 12 to 18 weeks for standard catalog parts and 22 to 30 weeks for custom configurations, with 73% of connector manufacturers reporting supply chain disruptions between 2021 and 2024, making dual sourcing, strategic buffer stock, and supplier financial health assessment essential components of procurement risk management.

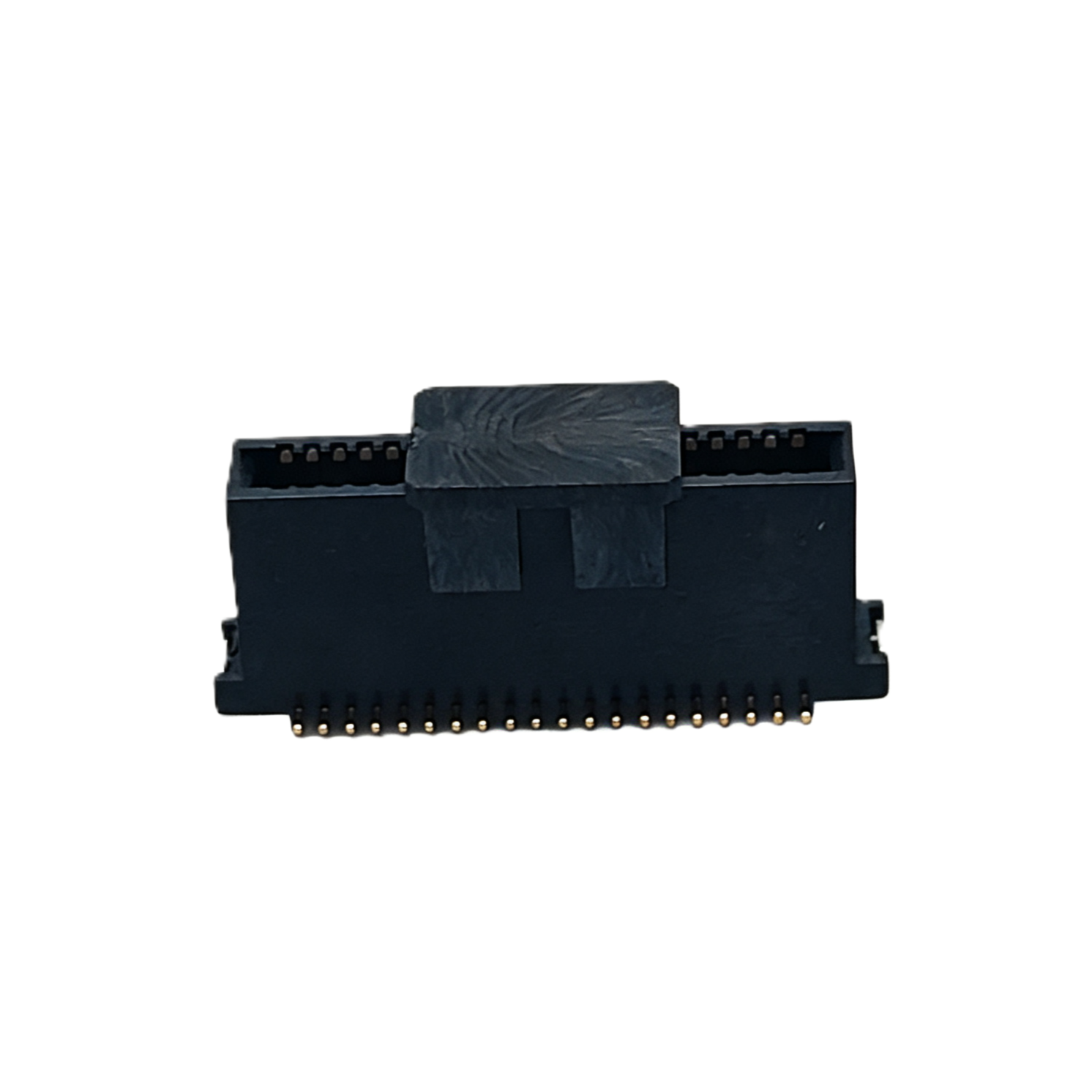

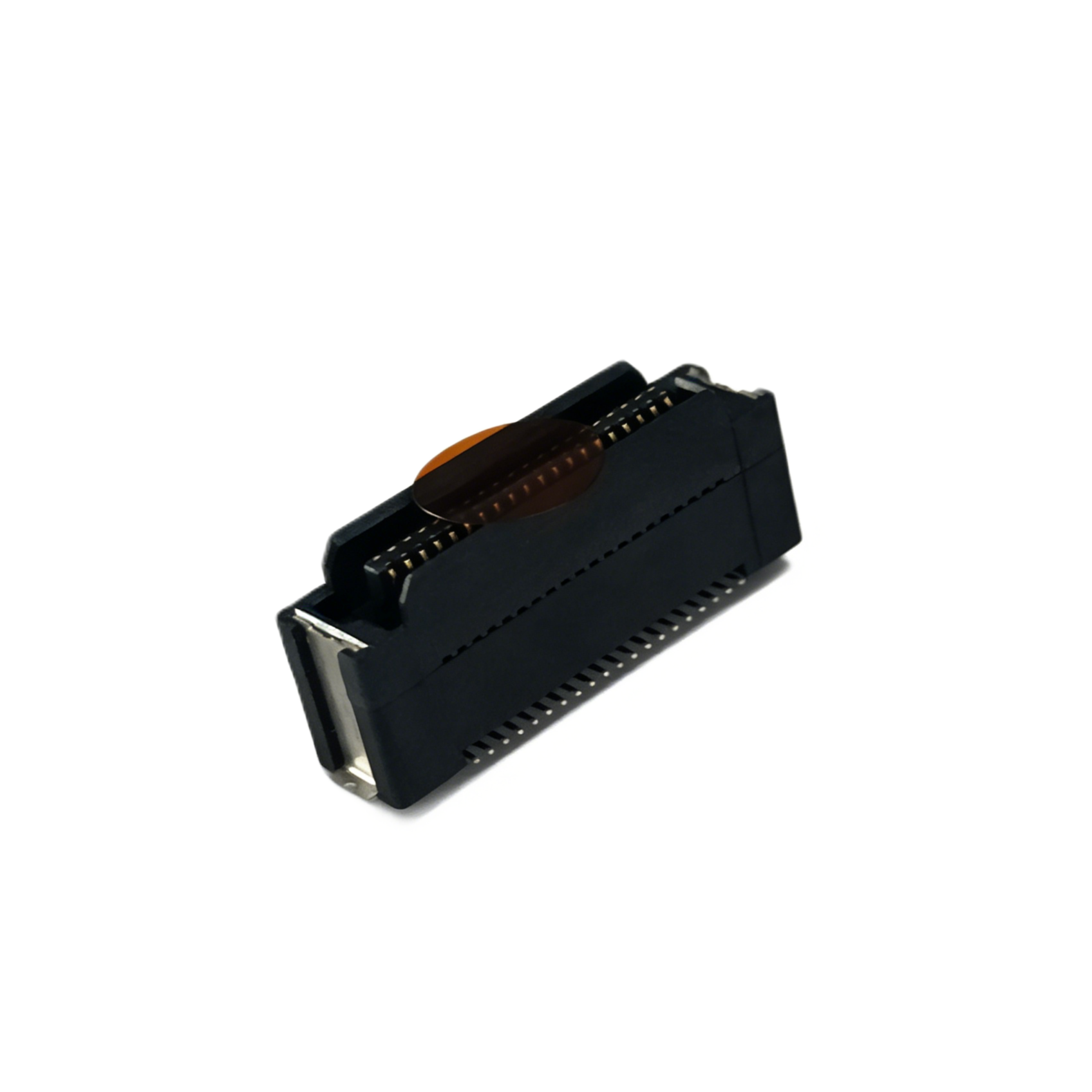

Lead time data collected from 85 connector suppliers in Q1 2025 shows significant variation by product category. Standard board-to-board connectors average 10 to 14 weeks, while custom DDR5 and PCIe 5.0 connectors requiring new tooling average 24 to 30 weeks. The gap between quoted lead time and actual delivery averaged 11 days across the industry, with the worst-performing quartile showing delays of 28 days.
Connector Type | Standard Lead Time | Custom Lead Time | On-Time Delivery (Industry Avg) |
|---|---|---|---|
Board-to-Board | 10 to 14 weeks | 18 to 24 weeks | 87% |
Wire-to-Board | 8 to 12 weeks | 16 to 22 weeks | 89% |
DDR5 Memory | 14 to 18 weeks | 22 to 28 weeks | 82% |
PCIe 4.0 and 5.0 | 14 to 20 weeks | 24 to 30 weeks | 79% |
Circular Industrial | 10 to 16 weeks | 20 to 26 weeks | 85% |
RF Coaxial | 12 to 16 weeks | 22 to 28 weeks | 81% |
On-time delivery performance below 85% should trigger immediate risk assessment. Suppliers consistently missing delivery commitments by more than 10 days cause production line stoppages costing between 8,000and8,000and45,000 per hour depending on the manufacturing environment.
The connector industry experienced three major disruption waves between 2021 and 2024. Copper and gold price volatility in 2021 increased raw material costs by 34%. Semiconductor allocation in 2022 diverted plating line capacity toward semiconductor leadframe plating. Ocean freight disruptions in 2023 and 2024 extended lead times by 4 to 8 weeks for Asia-sourced connectors.
Suppliers who maintained 60 to 90 day raw material buffers and diversified plating line capacity across multiple facilities weathered disruptions with average delivery delays of only 6 days, compared to 31 days for lean inventory suppliers with single-site production.
Effective risk mitigation requires qualifying a minimum of two suppliers for every critical connector part number, with no single supplier exceeding 70% of allocated volume for that part. This allocation strategy preserves price competitiveness through ongoing comparison while ensuring that a disruption at one supplier does not halt production.
A PCB connector supplier qualification should include verification of sub-tier supplier dependencies. During the 2022 disruption, many OEMs discovered that their two approved suppliers both depended on the same plating chemical supplier, creating a hidden single point of failure. Mapping the full supply chain to the sub-tier level, including raw material sources and tooling manufacturers, is essential for genuine risk diversification.
Financial health monitoring provides another risk management layer. Suppliers with debt-to-equity ratios above 2.5 or whose accounts payable days have increased by more than 30% year over year present elevated bankruptcy risk. Financial monitoring services can provide early warning indicators 6 to 12 months before insolvency.
Suppliers who provide dedicated field application engineers, maintain technical response times under 24 hours, offer design-in support with 3D CAD models and signal integrity simulation data, and conduct joint failure analysis within 72 hours of field return demonstrate capabilities that reduce product development cycles by 20 to 35% and field failure resolution time by 60%.
Connector suppliers can be categorized into three support tiers based on their engineering collaboration capabilities. Understanding these tiers helps teams select suppliers whose support model matches their program requirements.
Support Capability | Tier 1 (Basic) | Tier 2 (Standard) | Tier 3 (Strategic) |
|---|---|---|---|
Technical Response Time | 3 to 5 business days | 24 to 48 hours | Under 24 hours |
Field Application Engineer | Not assigned | Shared resource | Dedicated, named resource |
3D CAD Models | 2D drawings only | STEP files | STEP, IGES, plus signal integrity models |
Failure Analysis Turnaround | 4 to 6 weeks | 2 to 3 weeks | 72 hours with interim report at 24 hours |
Design Review Support | Not available | Review at customer request | Proactive design recommendations |
On-Site Support | Not available | Emergency only | Scheduled visits and prototype builds |
Custom Solution Development | Catalog parts only | Minor modifications | Full custom design capability |
Tier 3 suppliers typically command 15 to 25% price premiums but deliver measurable value through faster time to market. A study of 28 product development programs found that teams working with Tier 3 connector suppliers completed design validation 11 weeks faster on average and experienced 43% fewer connector-related design revisions during the prototype phase.
The failure analysis process distinguishes strategic suppliers from transactional vendors. When a field return arrives, the process should follow: initial visual inspection within 24 hours, electrical characterization within 48 hours, destructive physical analysis including cross-sectioning and SEM imaging within 72 hours, and a formal root cause report within 10 business days.
Suppliers who close failure analysis reports with verified corrective actions within 14 days have 60% fewer repeat failure incidents than suppliers whose average closure time exceeds 45 days.
The quality of root cause analysis is a leading indicator of supplier maturity. Suppliers who identify systemic causes and implement preventive actions demonstrate engineering depth. Suppliers who attribute every failure to customer misuse without investigating their own process variables signal a quality culture problem. During evaluation, request completed failure analysis reports and assess whether the methodology follows the 8D or 5-Why framework.

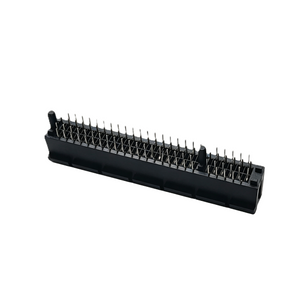

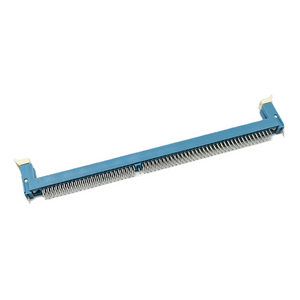

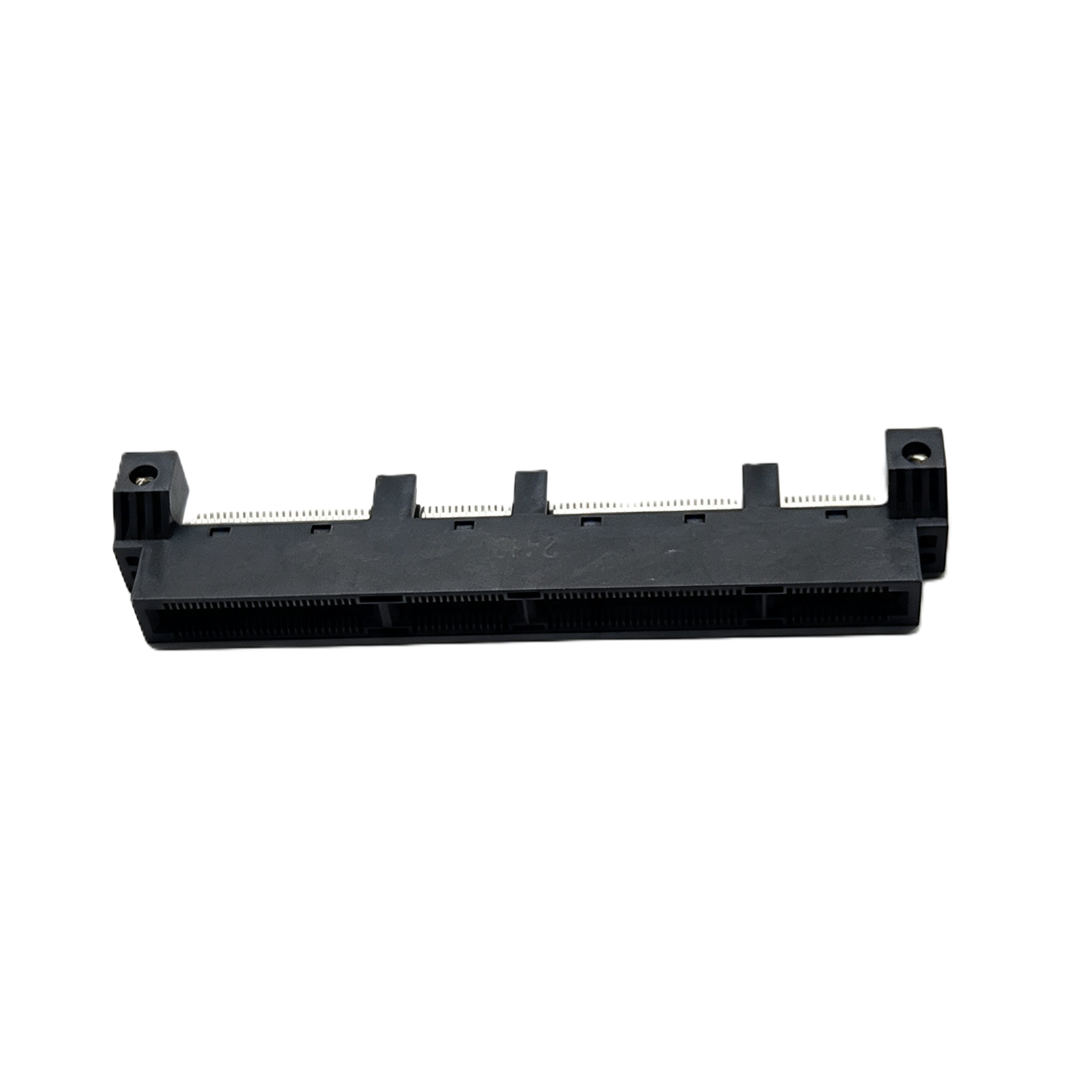

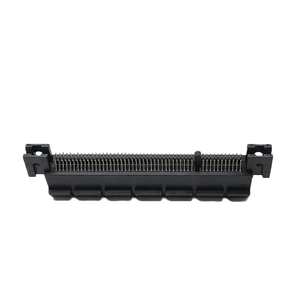

For high-speed connector applications including DDR5, PCIe 5.0, and 224G interfaces, signal integrity support becomes the primary differentiator. The supplier should provide S-parameter data including insertion loss, return loss, crosstalk, and mode conversion measurements. For DDR5 connectors operating at 4800 to 8400 MT/s, the supplier should provide channel simulation support and reference layout designs accounting for via stub effects and impedance matching.
A comprehensive connector supplier audit must cover quality management system certification, manufacturing process capability indices above 1.33 for critical dimensions, plating thickness verification using X-ray fluorescence measurement, dimensional inspection using vision measurement systems accurate to 2 micrometers, and corrective action closure rates above 95% within 30 days, conducted through a combination of document review, on-site facility assessment, and sample part evaluation.
Before scheduling an on-site visit, request and review a documentation package that filters out unqualified suppliers before investing travel resources.
Current ISO 9001 or IATF 16949 certificate with scope and expiration date
Quality manual including organizational chart and quality policy
Process flow diagrams for the specific connector product family under evaluation
CpK data for critical dimensions from the past 12 months of production
Internal audit reports and management review records from the past 12 months
Corrective action log showing open and closed actions with cycle times
Field failure data and returns analysis summary for the past 24 months
Raw material supplier list with sub-tier supplier identification
Plating process specifications and bath chemistry control records
Calibration records for all measurement equipment used in final inspection
Suppliers who cannot provide items 4, 6, 7, or 10 within 5 business days typically lack the data management infrastructure for sustained quality performance. The inability to produce field failure data is particularly concerning, indicating the supplier is either not tracking returns or the data reveals problems they prefer not to share.
Audit Area | Verification Method | Pass Criteria | Risk Indicator |
|---|---|---|---|
Receiving Inspection | Review records, observe process | 100% incoming lots inspected | Sampling only, no records |
Plating Line Control | Review SPC charts, bath logs | CpK above 1.33 for thickness | No SPC, manual records only |
Molding Operation | Verify parameter monitoring | Cycle time CpK above 1.33 | No parameter logging |
Assembly Process | Observe work instructions | Visual aids at every station | Verbal instructions only |
100% Electrical Test | Verify test coverage and limits | All contacts tested, limits documented | Sampling test at AQL 1.0 |
Final Inspection | Review AQL plan and records | AQL 0.65 critical, 1.0 major | AQL 2.5 or higher |
Calibration | Verify equipment status labels | All equipment within calibration | Expired labels found |
Cleanliness | Observe facility conditions | Controlled environment for assembly | Open doors, dust visible |
Training Records | Sample operator certifications | 100% operators trained to procedure | Untrained operators on line |
Nonconforming Material | Review quarantine and disposition | Segregated area, documented disposition | Mixed with good material |
Assign each audit area a score from 1 to 5, with 5 representing full compliance and 1 representing critical deficiency. Calculate the weighted average using: quality management 20%, process capability 25%, plating control 20%, inspection coverage 15%, and facility conditions 20%.
Suppliers scoring above 4.0 qualify for approved supplier status. Scores between 3.0 and 4.0 qualify conditionally with a 90 day improvement plan and quarterly re-audit. Scores below 3.0 should result in disqualification. Analysis of 156 supplier audits between 2022 and 2024 found that suppliers scoring below 3.0 had a 73% probability of causing a quality incident within 12 months of production.
Minimum order quantities vary by connector type and customization level. Standard catalog parts typically require MOQs of 1,000 to 5,000 units, while custom-tooled connectors often require commitments of 10,000 to 50,000 units to amortize tooling costs.
A thorough supplier qualification process typically requires 12 to 16 weeks, including document review, on-site audit, sample part evaluation and reliability testing, and quality system approval. Programs with urgent timelines can compress this to 8 weeks by parallelizing activities, but this increases the risk of overlooking quality issues.
Class II applies to general electronic products including consumer equipment and computers where moderate reliability is required. Class III applies to high-reliability applications including automotive, aerospace, and medical devices where harsh environment performance is mandatory and product failure could cause significant harm. Class III requirements add stricter criteria for solder fill minimums, wire insulation support distances, and crimp dimension tolerances.
While definitive verification requires X-ray fluorescence measurement, preliminary checks include visual inspection for uniform color under 10x magnification, salt spray testing per ASTM B117 for corrosion resistance benchmarking, and contact resistance measurement before and after thermal cycling. Suppliers should provide XRF measurement reports for each production lot as standard documentation.
Indicators include sudden changes in payment terms requests, inability to fulfill sample requests due to material shortages, quality deterioration coinciding with staff reductions, delayed responses to technical inquiries, and requests for advance payment on standard orders. Monitoring supplier financial health through credit reporting services and maintaining dual-source qualification for critical parts mitigates supply disruption risk.
