Wire to Board Connector
Industrial, IT Datacom

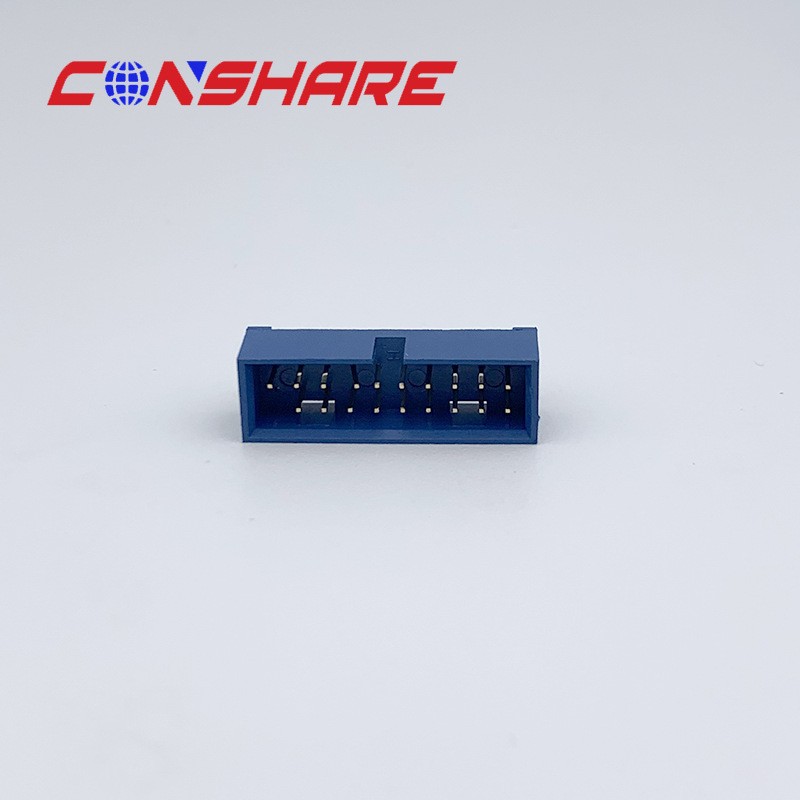

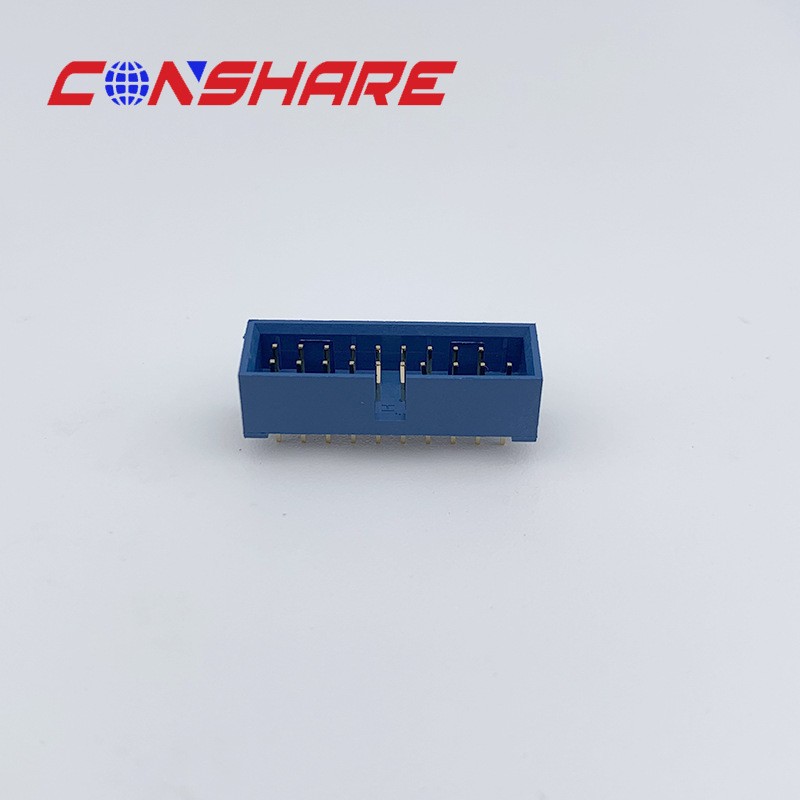

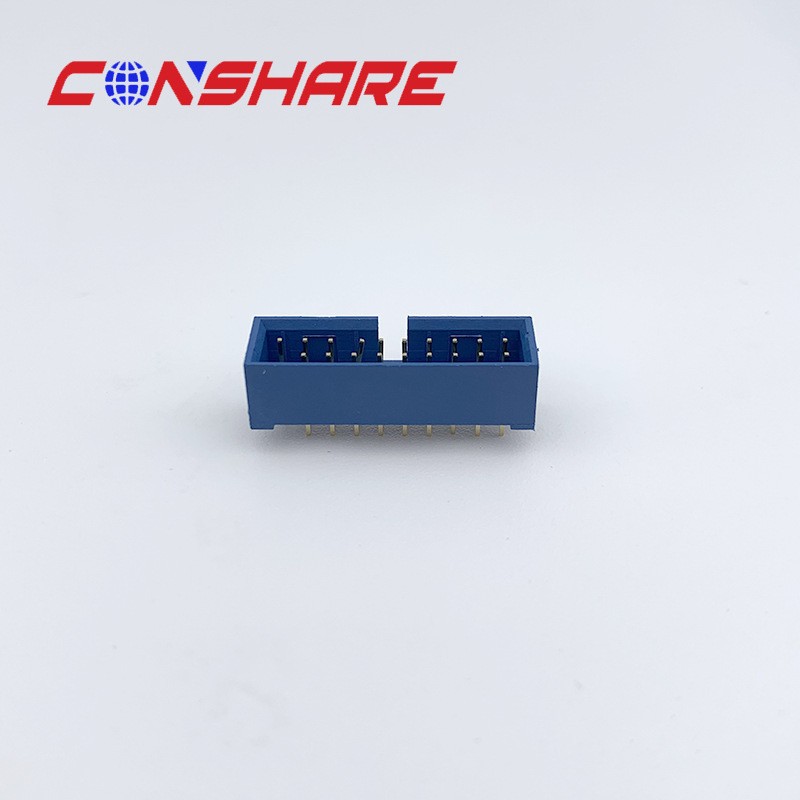

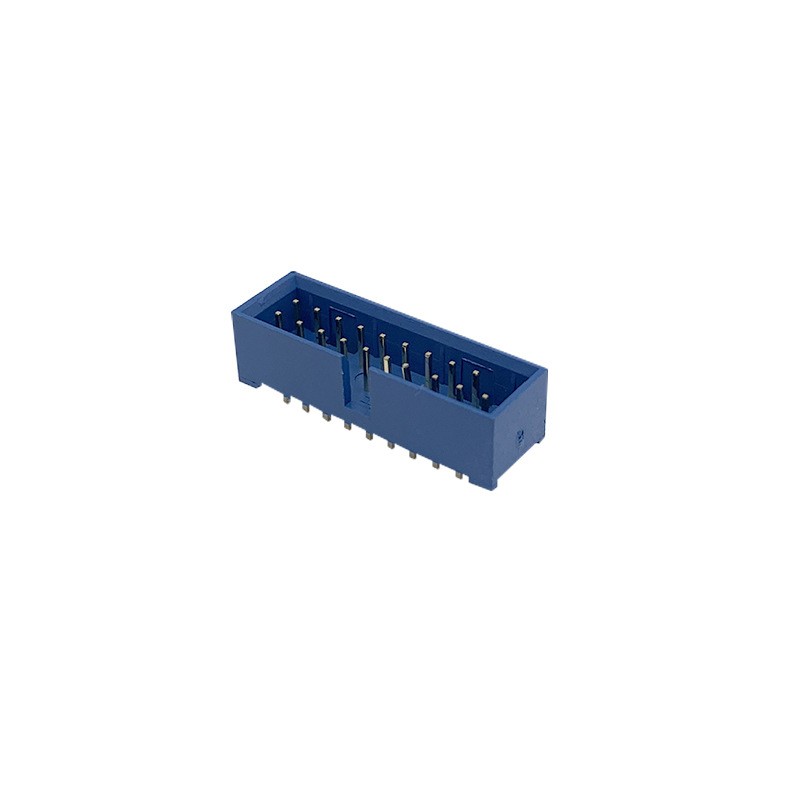

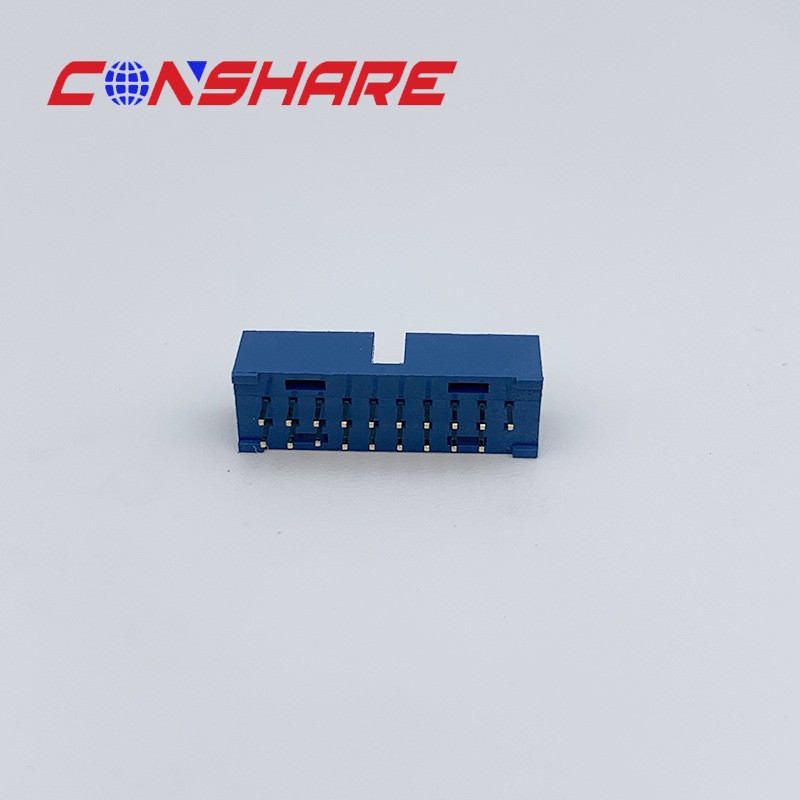

This CONSHARE 3.0mm pitch box header male connector is a dependable wire-to-board solution engineered for secure, stable PCB connections in compact electronic assemblies. Built with 12 pins, it features a 180° straight DIP design for easy through-hole mounting on standard circuit boards.
The gold flash (G/F) plating enhances corrosion resistance, while the robust blue housing ensures long-term durability. Ideal for consumer electronics and light industrial setups, it delivers consistent signal and power transmission for OEM builds and custom projects.
This CONSHARE 3.0mm pitch box header male connector is crafted with ±0.03mm pitch tolerance, far exceeding standard industry precision. Its 180° straight DIP footprint is optimized for automated assembly lines, eliminating alignment errors and streamlining PCB mounting for compact electronic builds.
Featuring CONSHARE’s proprietary gold flash (G/F) plating, this 12-pin connector delivers 3x better corrosion resistance than standard tin-plated alternatives. The robust blue UL94-V0 rated housing withstands 48-hour salt spray testing, ensuring stable performance even in high-humidity environments.
As a trusted connector manufacturer, CONSHARE offers fully customizable options for this 3.0mm box header, including pin configurations, plating types, housing colors, and pin lengths. We support low-MOQ prototype orders and fast bulk production, with dedicated support for OEM/ODM projects.
Every CONSHARE 12-pin wire-to-board connector undergoes 100% in-line electrical testing to verify contact resistance below 20mΩ across all pins. This rigorous quality check ensures consistent signal and power transmission, even in long-term, high-duty-cycle consumer and light industrial applications.
Designed for universal integration, this CONSHARE DIP180 degree male header fits standard PCB layouts without modification. Its precision-molded housing prevents misalignment during hand or automated assembly, reducing rework time and ensuring secure, reliable connections in every build.
Parameter Name | Core Value |
|---|---|
Product Model | AWRH412100L20 |
Connector Type | Box Header Male (Wire-to-Board) |
Pitch | 3.0mm |
Pin Count | 12 Pins |
Mounting Type | 180° Straight DIP (Through-Hole) |
Terminal Plating | Gold Flash (G/F) |
Housing Color | Blue |
Customization Support | CONSHARE OEM/ODM Customizable |
This CONSHARE 3.0mm 12PIN box header adopts 180° DIP installation way, easy to weld and fix on circuit boards. Equipped with gold flash plated terminals, it keeps smooth signal output, which is well applied to internal circuit connection of various small household electronic products for daily stable use.
Featured with compact overall structure and solid blue insulated shell, this wire to board connector occupies less installation space. It can maintain excellent connection stability in long-time working state, and is widely used for circuit assembly of various miniature smart sensing and control modules.
It is an ideal connecting part for electronic research and development and sample trial production. Its standard electrical performance can meet most circuit test demands. Meanwhile, CONSHARE provides flexible personalized customization service to adjust specifications to match different independent research and development design solutions.
Able to resist daily oxidation and avoid loose contact effectively, this practical male box header adapts to indoor stable working environment. It is commonly used for built-in low-power signal circuit layout of office electronic devices to ensure safe and smooth electric transmission.
A1: This CONSHARE 12-pin male box header uses standard 180° DIP structure and standard pitch size. It matches most common PCBs perfectly, easy to cooperate with matching wire harnesses for smooth assembly and daily electronic connection use.
A2: G/F plating effectively prevents oxidation and poor contact issues, keeps stable signal conduction all the time. It prolongs the whole service life greatly and adapts to long-term continuous working status in various civilian electronic equipment.
A3: Yes, CONSHARE supports flexible OEM and ODM customization. We can adjust pin length, housing color, surface plating and other details. Fast sample making and steady bulk production are available to satisfy different project needs.
A4: The 180° straight DIP design is suitable for both manual welding and automatic assembly. Accurate pin layout reduces assembly deviation, helps clients improve production efficiency and control overall assembly cost well.
