Power Connector
Automotive, Industrial, IT Datacom

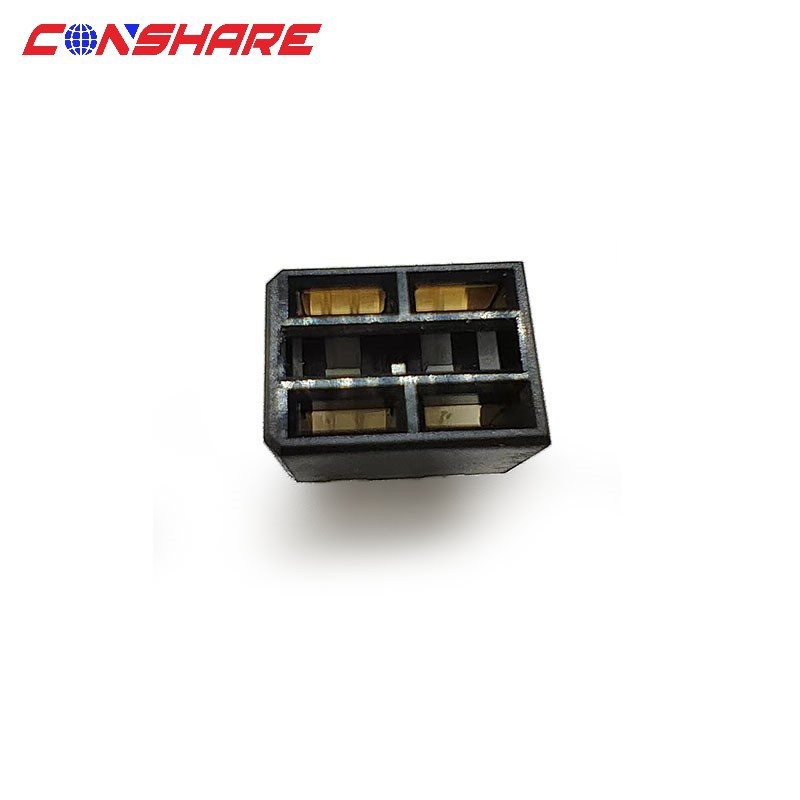

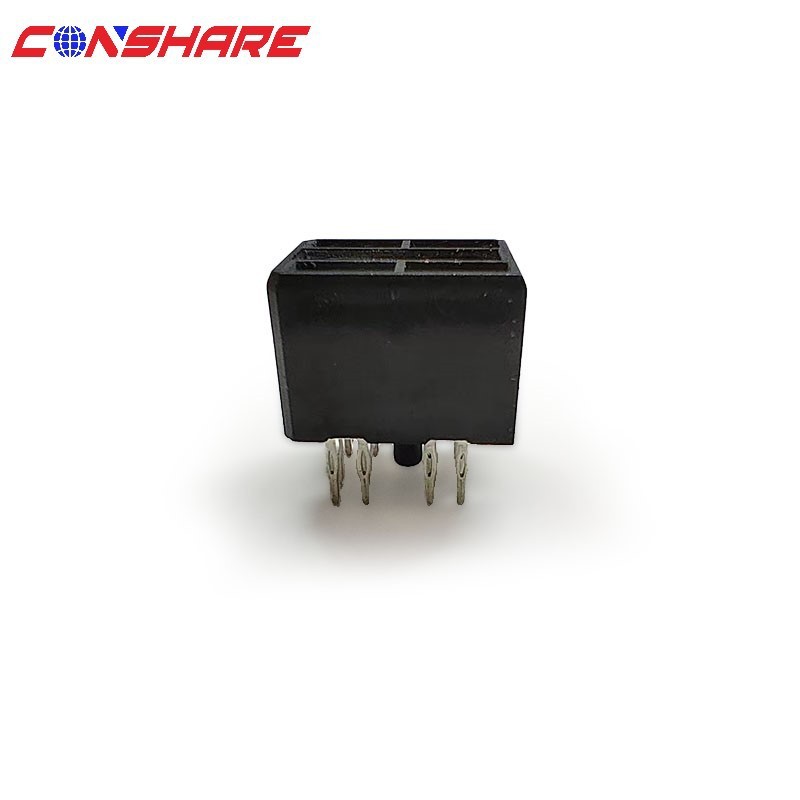

This CONSHARE 4Pin high-current backplane power connector features a 180° straight configuration with press-fit pins, delivering robust 20A per pin power for servers and high-speed backplane systems.
Built with UL 94V-0 rated PA66 housing and gold-plated copper alloy contacts, it ensures reliable conductivity and durability, operating stably across a wide temperature range of -55°C to 105°C.
RoHS-compliant and supplied in tray packaging, this connector is optimized for high-volume assembly, making it ideal for demanding industrial and server power connection applications.
CONSHARE’s 4Pin backplane power connector delivers an impressive 20A per pin rating, engineered to handle the high power demands of servers and high-speed backplane systems. The gold-plated copper alloy contacts ensure minimal resistance and stable power flow under continuous heavy loads.
Built with UL 94V-0 flame-retardant PA66 housing, this connector operates reliably across a wide temperature range of -55°C to 105°C. Its rugged construction resists heat, vibration, and harsh industrial environments, ensuring long-term durability for critical applications.

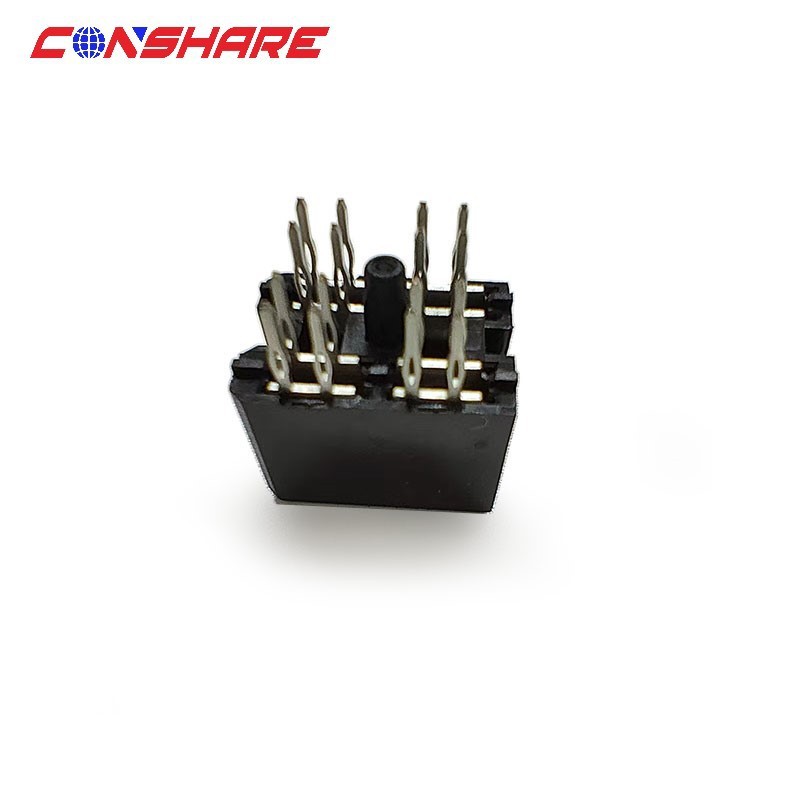

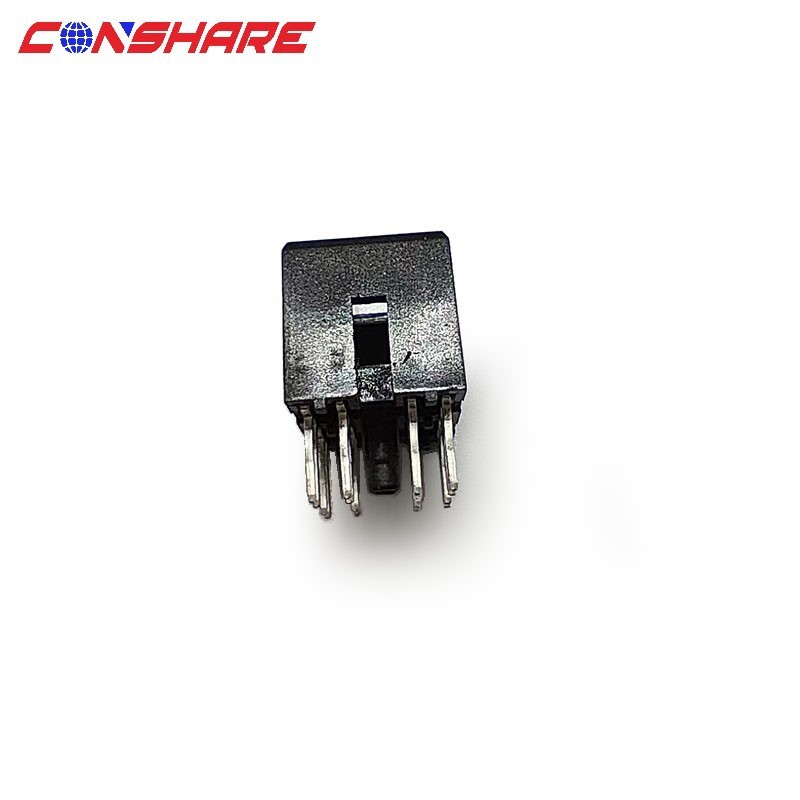

The press-fit pin design eliminates the need for soldering, creating a strong, gas-tight connection that maintains electrical integrity even under mechanical stress. The 4.0mm pitch and 180° straight configuration ensure stable alignment in high-density PCB layouts.

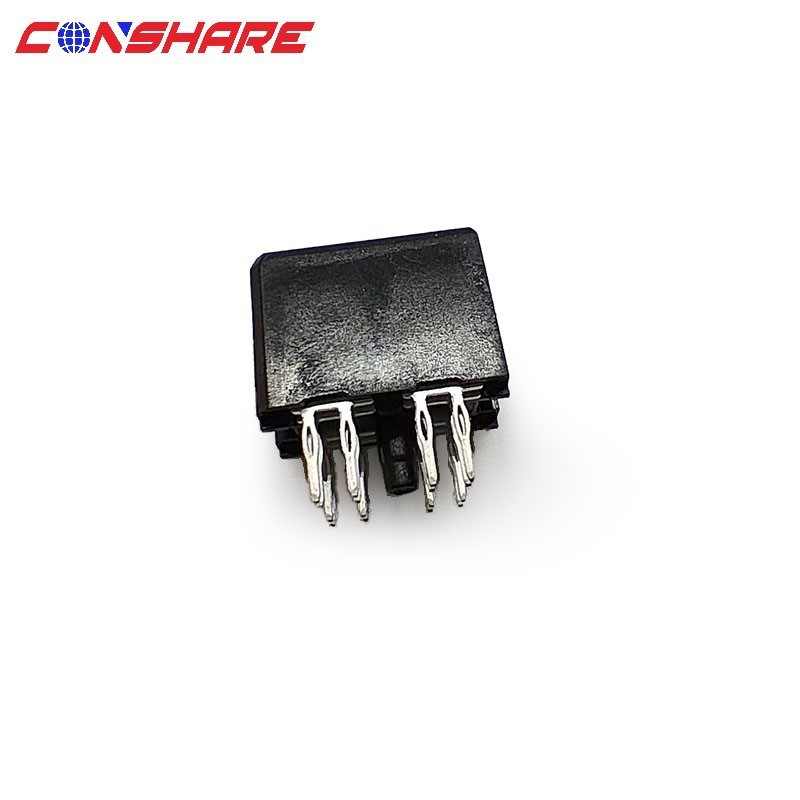

Supplied in tray packaging, this CONSHARE connector is optimized for automated assembly lines, reducing handling errors and improving production efficiency. The 4.5mm press-fit pins are precision-engineered for consistent insertion and reliable retention.
Fully RoHS-compliant, this connector meets global environmental standards for use in commercial and industrial electronics. CONSHARE also offers customization options for plating, pin lengths, and configurations to match your specific backplane and server power requirements.
Parameter | Specification |
|---|---|
Brand | CONSHARE |
Product Type | 4Pin Backplane Power Connector |
Pin Count | 4 Pins |
Pitch | 4.0 mm |
Mounting Type | Press-Fit (180° Straight) |
Current Rating | 20A/Pin |
Operating Temperature | -55°C ~ 105°C |
Housing Material | PA66 (UL 94V-0) |
Compliance | RoHS |
Designed for high-speed server and data center environments, this 20A per pin connector delivers reliable power to backplane and midplane assemblies. It supports the demanding power requirements of enterprise servers and network switches.
With a wide operating temperature range (-55°C to 105°C) and UL 94V-0 flame retardant housing, this connector is ideal for industrial PCs, control cabinets, and rugged computing equipment in harsh environments.
The gold-plated contacts and press-fit design ensure stable, low-resistance connections in telecom base stations, routers, and high-bandwidth communication hardware requiring consistent power delivery.
RoHS-compliant and built for durability, this connector is suitable for precision test equipment and lab instruments, providing reliable power connections for sensitive and high-performance electronic systems.
A: This CONSHARE backplane connector is rated for 20A per pin, making it ideal for high-power applications like servers and data center backplanes.
A: It operates reliably from -55°C to 105°C, with UL 94V-0 rated PA66 housing for heat and flame resistance in harsh environments.
A: It features a press-fit (180° straight) design, creating a secure, solderless connection for high-volume PCB assembly.
A: Yes, it is fully RoHS compliant, meeting global environmental standards for use in commercial and industrial electronics.
A: Yes, CONSHARE offers customization for plating, pin lengths, and configurations to match your specific backplane and server power requirements.
