The exponential demand for bandwidth in enterprise datacom, industrial automation, and aerospace pushes legacy interconnects past their physical limits. System architects face a strict bottleneck: selecting an interconnect that handles massive data throughput without degrading signal integrity. Selecting an inadequate high-speed connector introduces severe signal reflection, electromagnetic interference vulnerability, and system-level failures under thermal or mechanical stress. These failures inevitably lead to board redesigns and delayed time-to-market.
This guide provides an engineering-focused framework for evaluating high-speed interconnects. We compare form factors, including copper versus fiber and ruggedized versus standard options. You will learn how to mitigate implementation risks, evaluate mechanical durability, and ensure strict protocol compliance before finalizing your Bill of Materials.
Bandwidth vs. Signal Integrity: True high speed performance requires balancing raw data rates with strict insertion loss, return loss, and crosstalk limits.
Application-Specific Durability: High mating cycle environments demand ruggedized plating and contact designs (capable of 5,000 to 10,000+ cycles) without compromising impedance.
Form Factor Trade-offs: The choice between board-to-board, wire-to-board, and fiber optic variants dictates thermal management strategies and EMI shielding requirements.
Total Cost of Implementation: Beyond unit cost, procurement decisions must evaluate long-term reliability, protocol compliance (e.g., PCIe, Ethernet), and supply chain availability.
Modern system designs are rapidly transitioning from 10 Gbps to 56 Gbps and 112 Gbps PAM4 architectures. At these frequencies, the interconnect acts as a complex transmission line rather than a simple mechanical bridge. Pushing higher data rates through standard contacts causes severe signal degradation. Engineers must evaluate how well a component maintains signal fidelity across the entire channel.
Impedance mismatch, insertion loss, and return loss directly impact data transmission reliability. When a signal encounters an impedance change at the mating interface, a portion of the energy reflects back to the source. This return loss reduces the transmitted signal amplitude and creates noise. Insertion loss, the total attenuation of the signal as it passes through the interconnect, worsens at higher frequencies due to dielectric absorption and skin effect. You cannot ignore these physical realities when routing multi-gigabit signals.
A properly designed high-speed connector minimizes discontinuities at the printed circuit board launch zone. Engineers optimize the transition from the PCB trace to the contact pad using precisely tuned geometries. This careful matching prevents signal reflections and ensures maximum energy transfer through the mating interface. Field experience shows that a poorly designed launch footprint will ruin the performance of even the most expensive interconnect.
The internal mechanical structure dictates electrical performance. Advanced interconnects utilize optimized contact geometries, such as blade-on-beam contacts or hermaphroditic interfaces. These designs shorten the signal path and reduce parasitic inductance and capacitance. Shorter electrical lengths directly correlate with higher bandwidth capabilities and lower signal distortion.
Differential pair routing is standard for high-frequency data transmission. Shielding structures and strategic ground pin placements are essential for crosstalk mitigation. By surrounding differential pairs with ground contacts or metallic shields, designers isolate adjacent signals. This prevents Near-End Crosstalk (NEXT) and Far-End Crosstalk (FEXT), which easily corrupt high-frequency data streams.
Dense multi-connector layouts introduce the risk of mismating. Physical coding keys, polarization features, and color-coding systems prevent operators from forcing incompatible plugs and receptacles together. Mechanical shrouds protect delicate pins during blind-mating procedures, ensuring long-term reliability in complex assemblies. We frequently see bent pins on the assembly line when shrouds are omitted from the design.

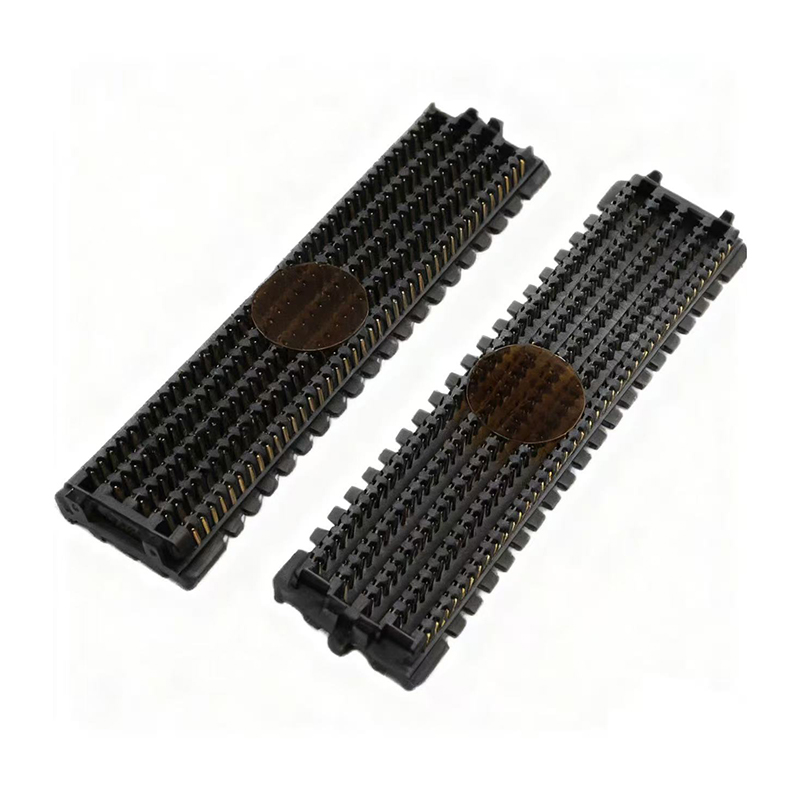

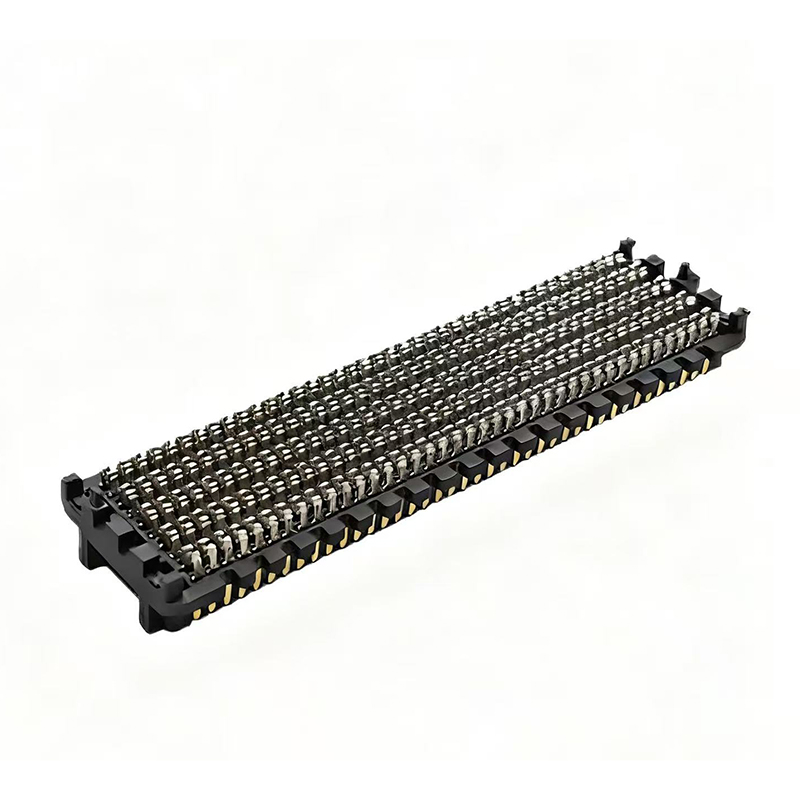

Board-to-board interconnects handle high-density routing and short signal paths within a single chassis. Mezzanine configurations stack boards parallel to each other, saving horizontal space. Backplane architectures connect multiple daughter cards at right angles to a central hub, enabling modular system expansion. Coplanar designs link boards edge-to-edge.
Engineers must evaluate several physical trade-offs. Stack height limitations often conflict with necessary airflow for cooling components. Tighter stack heights improve signal integrity by shortening the transmission path but restrict thermal management. Coplanarity tolerances are critical during surface-mount assembly; uneven pins lead to open circuits or weak solder joints.
Extending high-frequency signals off-board requires specialized cable assemblies. Twinax, coaxial, and micro-coaxial solutions provide controlled impedance environments for routing data between separate modules. Twinax cables are particularly effective for differential signaling, offering excellent shielding and low skew.
Cable routing provides mechanical flexibility, allowing designers to bypass congested PCB areas. However, this flexibility comes with a penalty. Longer cable runs introduce higher insertion loss and phase skew. Engineers must carefully calculate the loss budget when selecting cable lengths and wire gauges to ensure the signal reaches the receiver intact.
Copper interconnects eventually hit physical bandwidth limits. Engineering teams must transition to optical solutions for extreme bandwidth and complete EMI immunity. Fiber optics transmit data via light pulses, eliminating electrical crosstalk and ground loop issues entirely. This transition is typically required when routing 400G+ signals over distances exceeding a few meters.
Different fiber optic types serve distinct architectural needs. Simplex and duplex connectors, like LC and SC, are common for point-to-point links. High-density parallel ribbon architectures utilize MTP/MPO interfaces to route 12, 24, or more fibers through a single housing. These high-density options are standard in modern optical transceivers.
Optical interconnects introduce specific trade-offs. They require optical-to-electrical transceivers at both ends, increasing system complexity. Fiber end-faces are highly sensitive to dust and contamination, requiring strict cleaning protocols. Despite these challenges, fiber remains the only viable solution for long-haul, ultra-high-bandwidth applications.
Industrial and aerospace applications subject electronics to harsh environments. Standard commercial components fail quickly under these conditions. Ruggedized interconnects incorporate specific design modifications to survive. IP67 and IP68 sealing prevents moisture and dust ingress. Robust screw-locks or bayonet couplings prevent accidental disconnection during heavy vibration.
Achieving both high-frequency performance and mechanical endurance is challenging. Rugged designs utilize specialized contact systems, such as Edge Rate contacts, which offer high mating cycle durability while maintaining excellent signal integrity. Robust ground planes integrated into the housing provide both structural integrity and EMI shielding.
Material selection is critical for extreme environments. Housings must withstand extreme temperature fluctuations without warping. In vacuum environments, materials must resist outgassing to prevent contamination of sensitive optics or sensors. Contacts require heavy gold plating to resist corrosive exposure in marine or chemical processing facilities.
Evaluating vendor S-parameters is the first step in component selection. Insertion loss dictates how much signal power is lost through the interconnect. Return loss measures the reflected energy caused by impedance mismatches. Near-End Crosstalk (NEXT) and Far-End Crosstalk (FEXT) indicate how much noise bleeds between adjacent contact pairs. Engineers must analyze these metrics across the entire target frequency range.
Matching the nominal impedance of the interconnect to the PCB trace is mandatory. PCIe applications typically require 85Ω impedance, while Ethernet and SATA protocols demand 100Ω. Any deviation from these target values creates signal reflections and degrades the eye diagram at the receiver.
Dielectric materials heavily influence signal propagation delay and attenuation. High-performance liquid crystal polymers (LCP) offer lower dielectric constants and dissipation factors compared to standard plastics. These advanced materials reduce signal loss and allow for tighter contact pitches without increasing crosstalk.
Performance Metric | Primary Impact on System | Target Optimization |
|---|---|---|
Insertion Loss | Reduces signal amplitude at receiver | Minimize attenuation at target Nyquist frequency |
Return Loss | Causes signal reflections and noise | Maximize impedance matching (e.g., 85Ω or 100Ω) |
Crosstalk (NEXT/FEXT) | Corrupts adjacent data channels | Utilize internal shielding and strategic ground pins |
Propagation Delay | Introduces timing skew between pairs | Select low-Dk dielectric materials |
High-cycle applications demand superior contact plating. Standard flash gold degrades quickly under repeated mating. Environments requiring 5,000 to 10,000+ mating cycles necessitate heavy gold over nickel or palladium-nickel plating. These robust finishes prevent base metal exposure, oxidation, and the subsequent escalation of contact resistance.
The manufacturing method of the contacts affects mechanical compliance and signal integrity. Machined contacts offer precise geometries and high current-carrying capacity but are often bulkier. Stamped and formed contacts provide excellent high-frequency performance due to shorter electrical paths and tighter tolerance stack-ups, making them ideal for high-density layouts.
Insertion and extraction forces dictate assembly and maintenance procedures. High pin-count arrays can require significant force to mate. Automated surface-mount assembly lines need components with predictable mating forces. Manual field servicing requires ergonomic locking mechanisms that provide tactile feedback without requiring excessive physical effort.
Noisy industrial, medical, or RF environments require robust electromagnetic shielding. High-frequency signals act as antennas, radiating noise and absorbing external interference. 360-degree shielding designs enclose the entire mating interface in a conductive shell. Multi-point grounding fingers ensure a continuous, low-impedance path to the chassis ground.
Effective shielding prevents radiated emissions from violating strict regulatory standards. FCC and CE compliance testing often fails due to poorly shielded interconnects. Integrating metal shells and conductive gaskets at the panel interface contains high-frequency noise within the enclosure, ensuring regulatory compliance and system stability.
Modern data centers rely on high-density backplane and mezzanine interconnects. These facilities process massive volumes of data, requiring hardware that supports PCIe Gen 5/6, Compute Express Link (CXL), and 400G/800G Ethernet protocols. Components must deliver ultra-low insertion loss to maintain signal integrity across large server racks while supporting dense routing configurations.
Factory floors present harsh mechanical and electrical challenges. Industrial automation requires ruggedized interconnects to handle real-time sensor feedback, EtherCAT protocols, and high-resolution machine vision systems. These applications demand zero latency and absolute reliability in environments subject to constant vibration, extreme temperatures, and chemical exposure.
Military and aerospace systems prioritize SWaP (Size, Weight, and Power) optimization. Interconnects must be compact and lightweight while surviving extreme shock, vibration, and temperature extremes. Compliance with military standards, such as MIL-DTL-38999, is mandatory. Modern mil-spec components integrate high-speed inserts into traditional rugged circular shells to support advanced radar and targeting systems.
Poor PCB layout easily negates the performance of a premium interconnect. Improper via design, excessive stub lengths, and sharp trace routing introduce impedance discontinuities. These layout errors cause severe signal reflections, rendering the high-frequency capabilities of the component useless.
Engineering teams must utilize vendor-supplied S-parameters and 3D CAD models early in the design phase. Rigorous pre-layout signal integrity simulation is essential. Time Domain Reflectometry (TDR) and Vector Network Analyzer (VNA) testing on evaluation boards help identify and correct impedance mismatches before finalizing the board design.
Import vendor S-parameters into your simulation environment.
Model the exact PCB stack-up and trace geometries.
Run TDR simulations to identify impedance drops at the connector launch.
Adjust anti-pad sizes and via transitions to smooth the impedance profile.
High-density electronics generate significant heat. Heat accumulation alters the electrical characteristics of dielectric materials. Sustained high temperatures degrade contact normal force through stress relaxation and can physically warp plastic housing materials, leading to open circuits or intermittent failures.
Mitigating thermal risks requires proactive system design. Select vented housings that allow airflow through the contact array. Optimize board spacing and component placement to facilitate cooling. De-rate the current carrying capacity of the contacts based on the ambient operating temperature, and always conduct comprehensive thermal simulations during the design phase.
Selecting the right high-speed connector is essential for achieving reliable signal transmission, excellent electrical performance, and long-term system stability. By carefully evaluating signal integrity, mechanical durability, EMI shielding, environmental requirements, and connector compatibility, engineers can design high-performance electronic systems that meet the demands of modern networking, industrial automation, aerospace, and enterprise computing applications.
Working with an experienced connectivity solutions provider is equally important for ensuring product quality and long-term reliability. CONSHAREA offers a comprehensive range of high-performance high-speed connectors designed for data communication, industrial electronics, AI computing, and advanced networking equipment. With advanced engineering, strict quality control, and professional technical support, we help customers optimize signal integrity, improve system reliability, and accelerate the development of next-generation electronic products.
Download precise 3D CAD models to verify mechanical clearances and footprint compatibility.
Request evaluation boards from the manufacturer to perform physical bench testing.
Run comprehensive signal integrity simulations using vendor-supplied S-parameters.
Conduct thermal and mechanical stress tests to validate environmental endurance.
A: High-frequency variants feature strict impedance control, specialized low-loss dielectrics, and internal shielding. They utilize optimized contact geometries to shorten the signal path and specific ground pin placements to mitigate crosstalk. Standard connectors lack these features and cause severe signal degradation at faster data rates.
A: Repeated mating causes plating wear, micro-fretting, and contact surface oxidation. This physical degradation increases contact resistance and alters the impedance profile. Over time, these changes degrade signal integrity, increase insertion loss, and cause intermittent data transmission failures.
A: Transition to fiber optics when routing 400G+ signals over distances exceeding a few meters, or when operating in environments with severe electromagnetic interference. Fiber offers extreme bandwidth capabilities and complete EMI immunity, justifying the higher implementation costs for long-haul or noisy applications.
A: Complex assemblies utilize mechanical polarization keys, physical shrouds, and color-coding. These systems physically prevent operators from forcing incompatible plugs and receptacles together, eliminating the risk of mismating and pin damage in dense, multi-port environments.
A: Engineers use Vector Network Analyzers (VNA) to measure S-parameters like insertion loss and crosstalk in the frequency domain. Time Domain Reflectometry (TDR) is used to map impedance profiles and locate physical discontinuities. Eye diagram analysis verifies overall channel performance and jitter tolerance.
