Wire to Board Connector
Industrial, IT Datacom

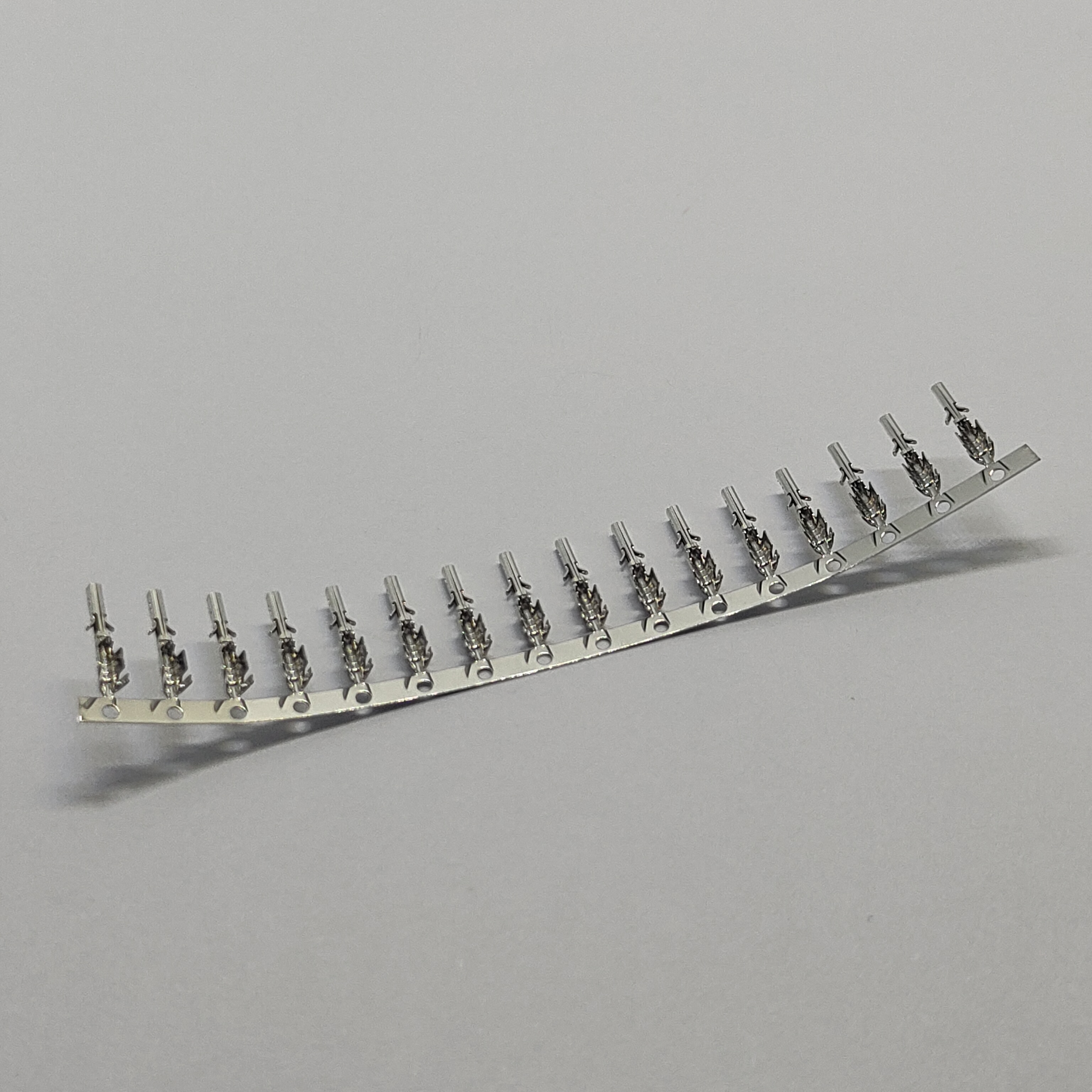

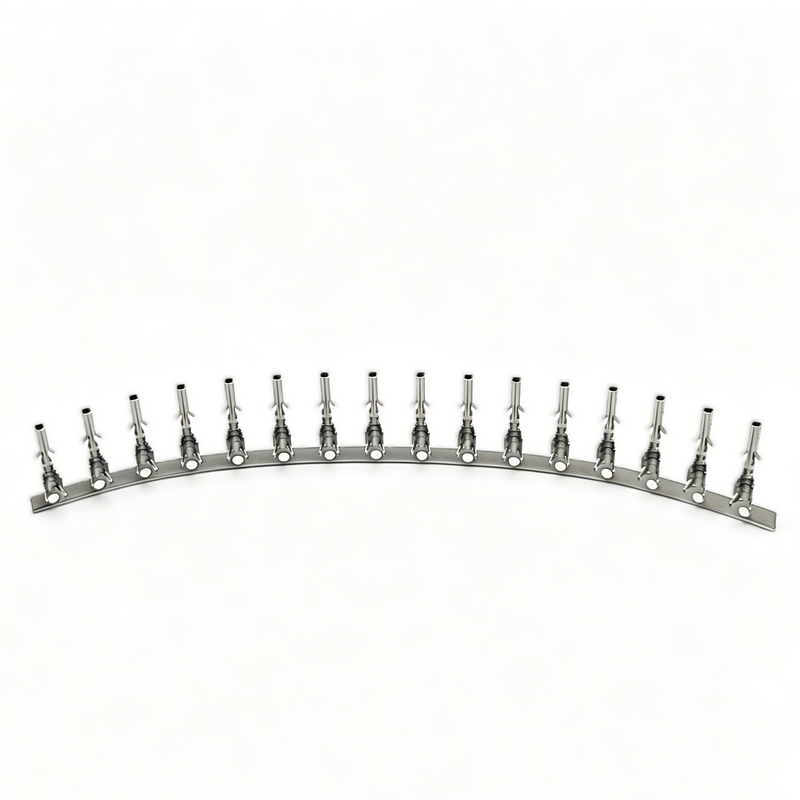

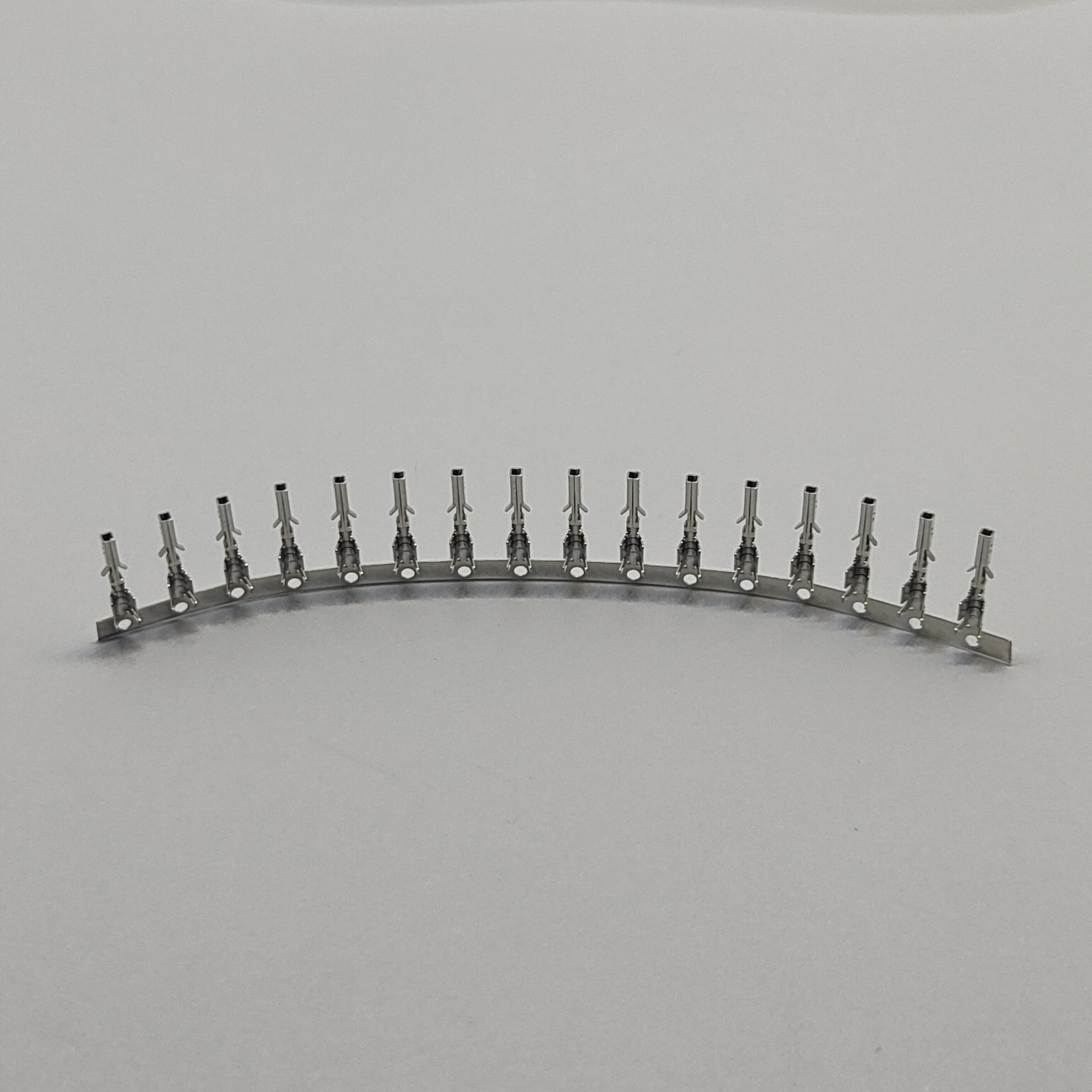

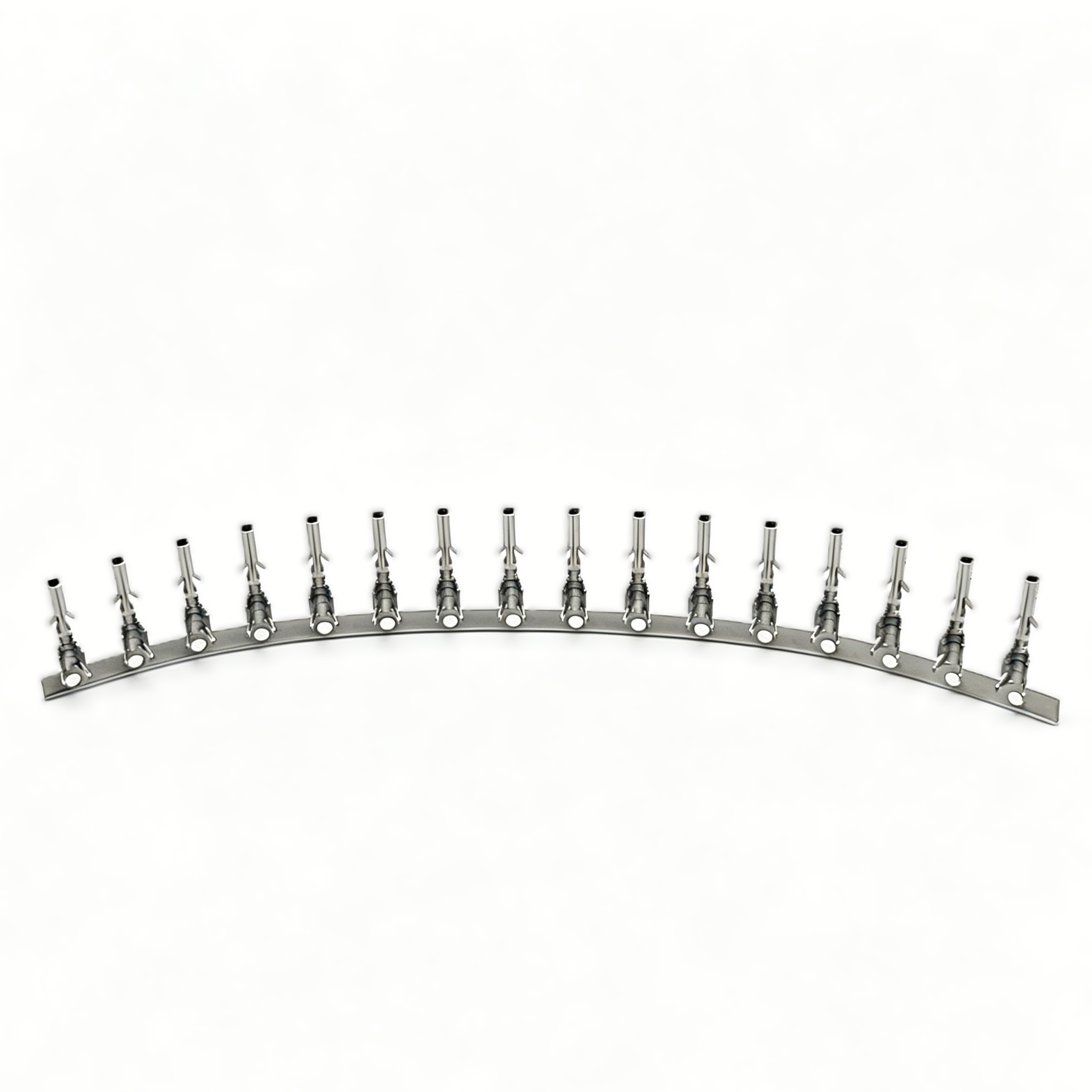

When precision and durability matter in your electrical assemblies, CONSHARE's 3.00mm terminal connectors deliver consistent performance you can count on. Designed specifically for 20-26 AWG wire applications, these terminals represent our commitment to manufacturing excellence and electrical integrity.
Crafted from high-grade phosphor bronze, these terminals offer superior electrical conductivity combined with exceptional mechanical strength. Unlike cheaper alternatives that compromise on material quality, our phosphor bronze construction ensures:
Consistent electrical performance across temperature variations
Resistance to fatigue and deformation during repeated mating cycles
Natural corrosion resistance that extends product lifespan

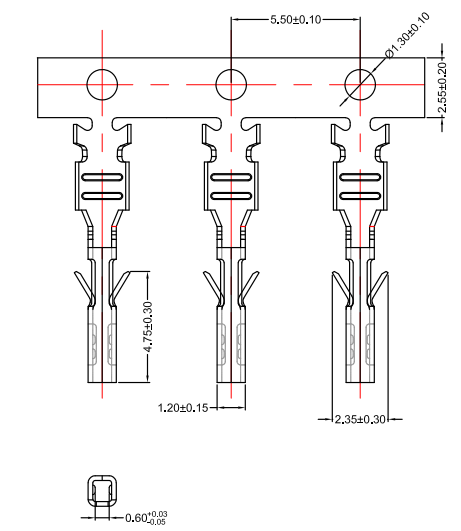

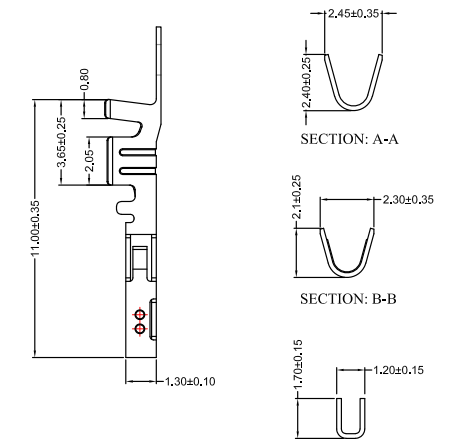

The geometric design of our 3.00mm terminals is engineered to create optimal crimp integrity. The carefully dimensioned crimp barrels provide:
Uniform compression around both conductor and insulation
Maximum pull-out resistance that exceeds industry standards
Proper strain relief to prevent wire breakage at the connection point
Accommodation for insulation diameters up to 1.60mm
Parameter | Performance Capability | Application Benefit |
|---|---|---|
Voltage Rating | 250V AC/DC | Suitable for most low-to-medium voltage applications |
Current Rating | 5A AC/DC | Reliable power delivery for control and signal circuits |
Contact Resistance | ≤20mΩ | Minimal voltage drop, efficient power transmission |
Insulation Resistance | ≥1000MΩ | Excellent isolation, preventing current leakage |
Operating reliably from -25°C to +85°C, these terminals maintain their electrical and mechanical properties across extreme temperature fluctuations. With a 1000V AC dielectric withstand rating, they provide an extra margin of safety in demanding electrical environments.

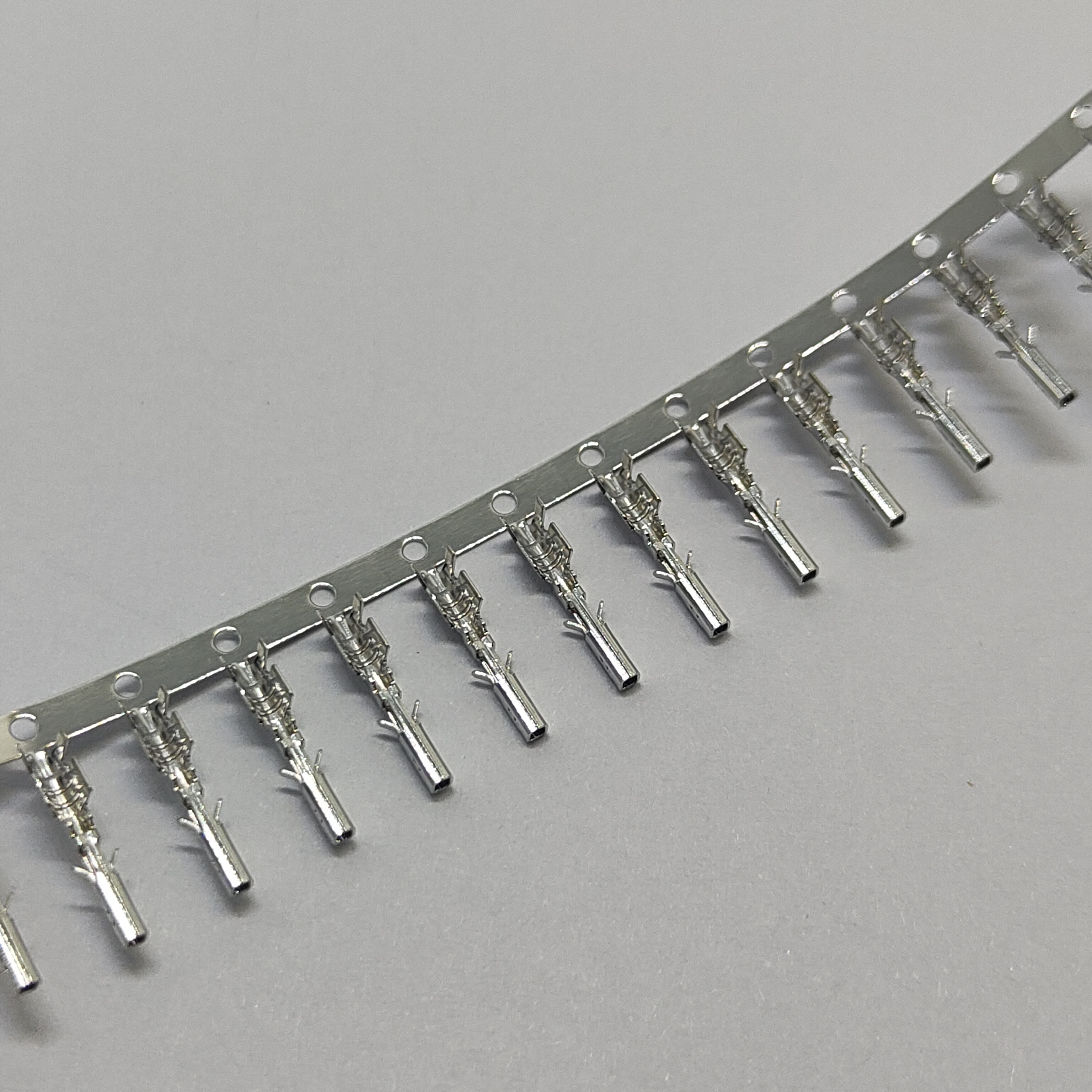

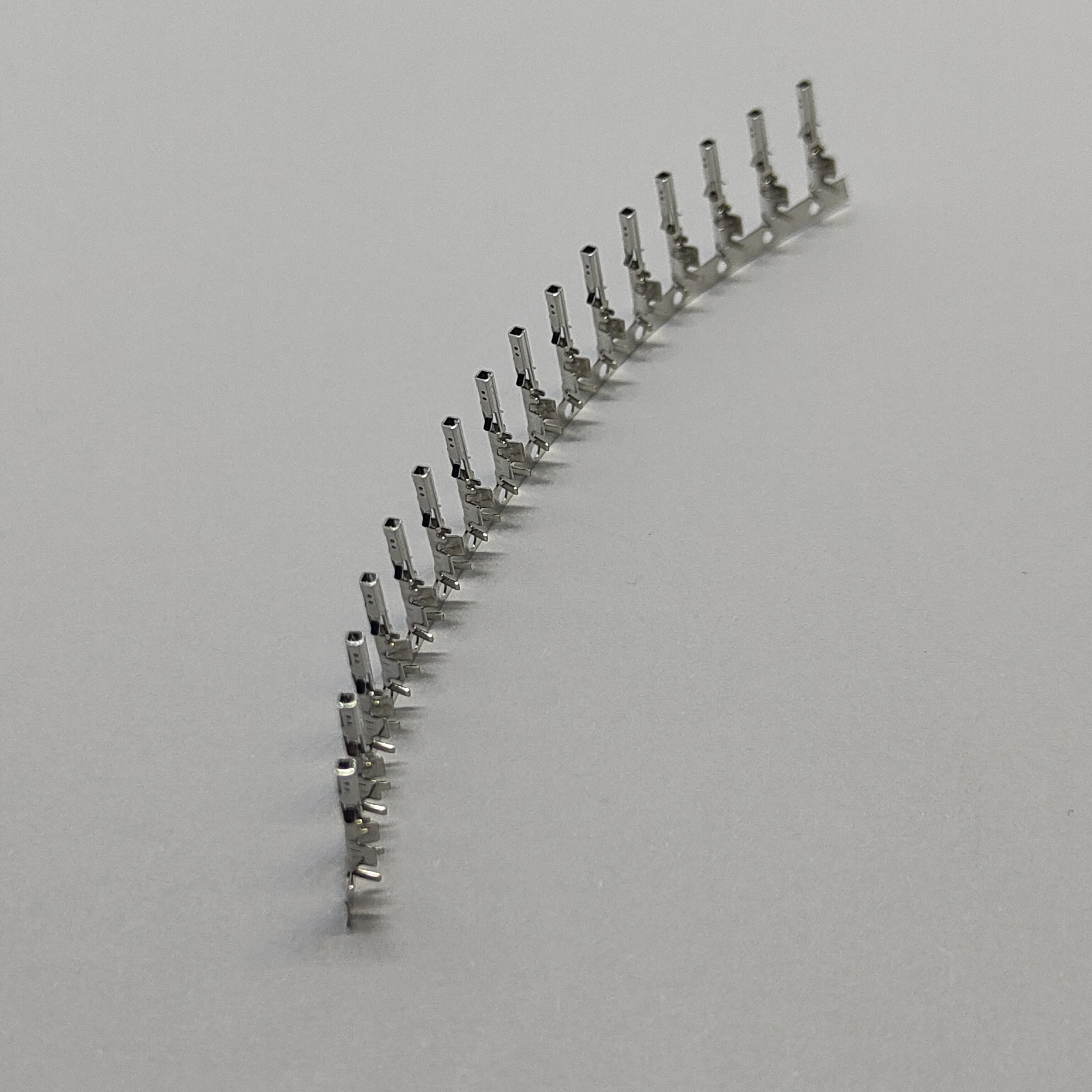

Every terminal undergoes our precision stamping process, ensuring:
Consistent dimensional accuracy across every piece
Clean, burr-free edges that prevent insulation damage
Uniform material thickness for predictable crimp results
Strict quality control that eliminates defective pieces
The tin-plated finish provides:
Excellent solderability for secondary operations
Enhanced corrosion protection
Consistent contact surface for reliable electrical performance
Smooth mating with corresponding receptacle housings
The 3.00mm pitch design is compatible with industry-standard connector housings, making these terminals ideal for:
Wire-to-board connections in consumer electronics
Automotive wiring harnesses
Industrial control systems
Home appliance internal wiring
LED lighting assemblies
When you specify CONSHARE terminals, you're investing in:
Reduced field failure rates
Lower warranty claims
Faster production throughput
Consistent quality batch after batch
Compliance with RoHS environmental standards
Every 3.00mm terminal we manufacture reflects our dedication to being your trusted connectivity partner. We don't just supply components—we deliver connection solutions that enhance your product reliability and reduce your total cost of ownership.
For custom specifications or volume pricing, our engineering team stands ready to support your specific application requirements.
