Card Edge Connector
Industrial, IT Datacom

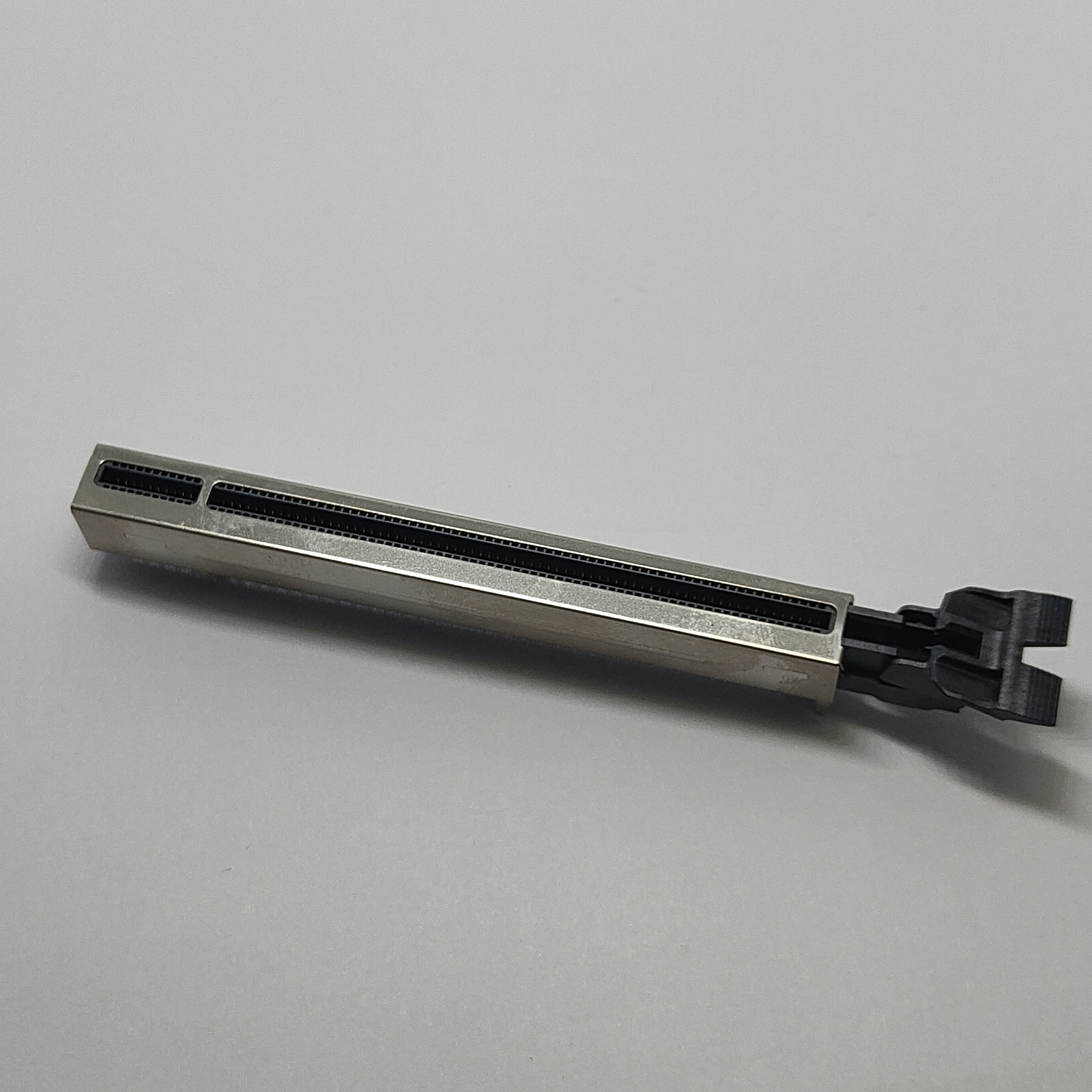

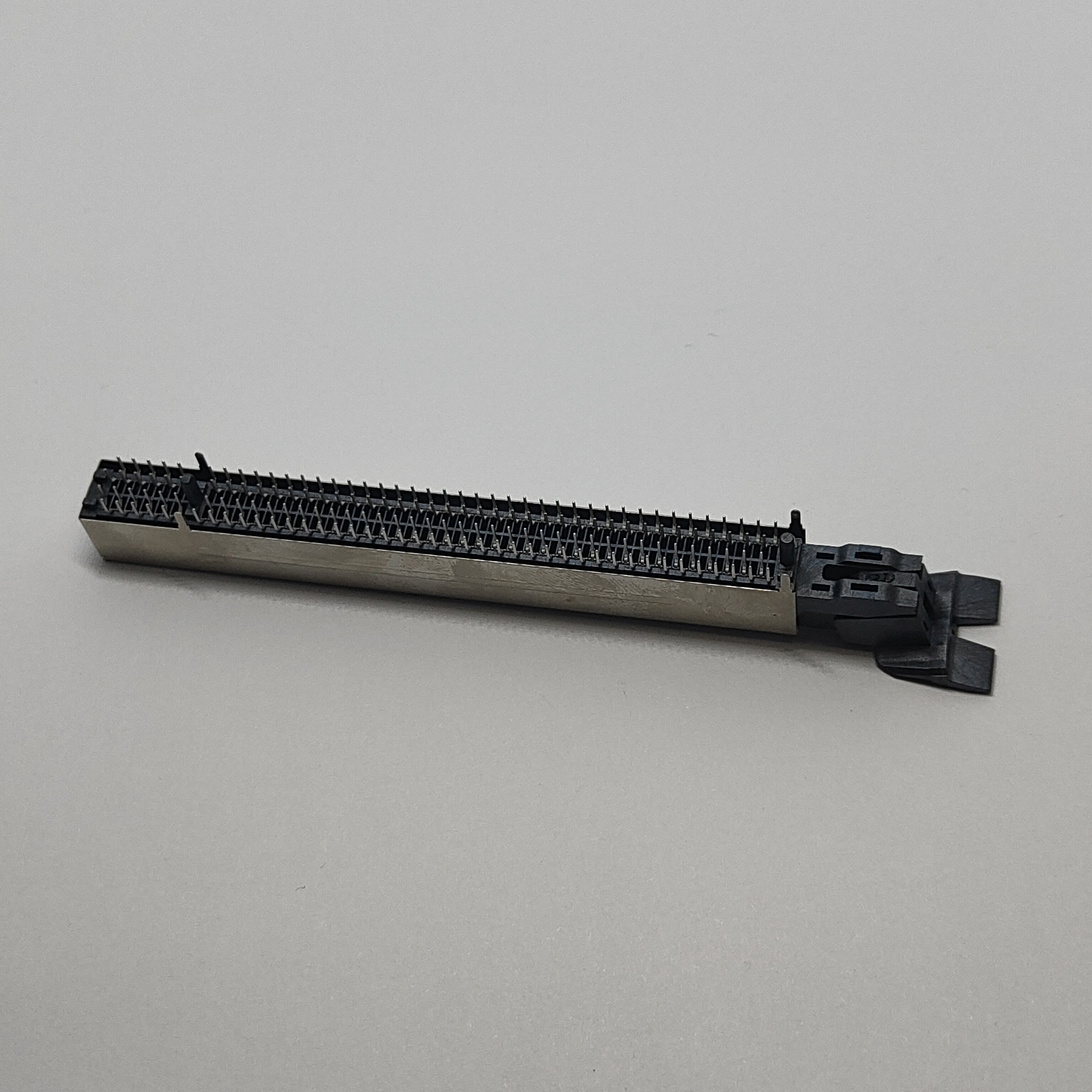

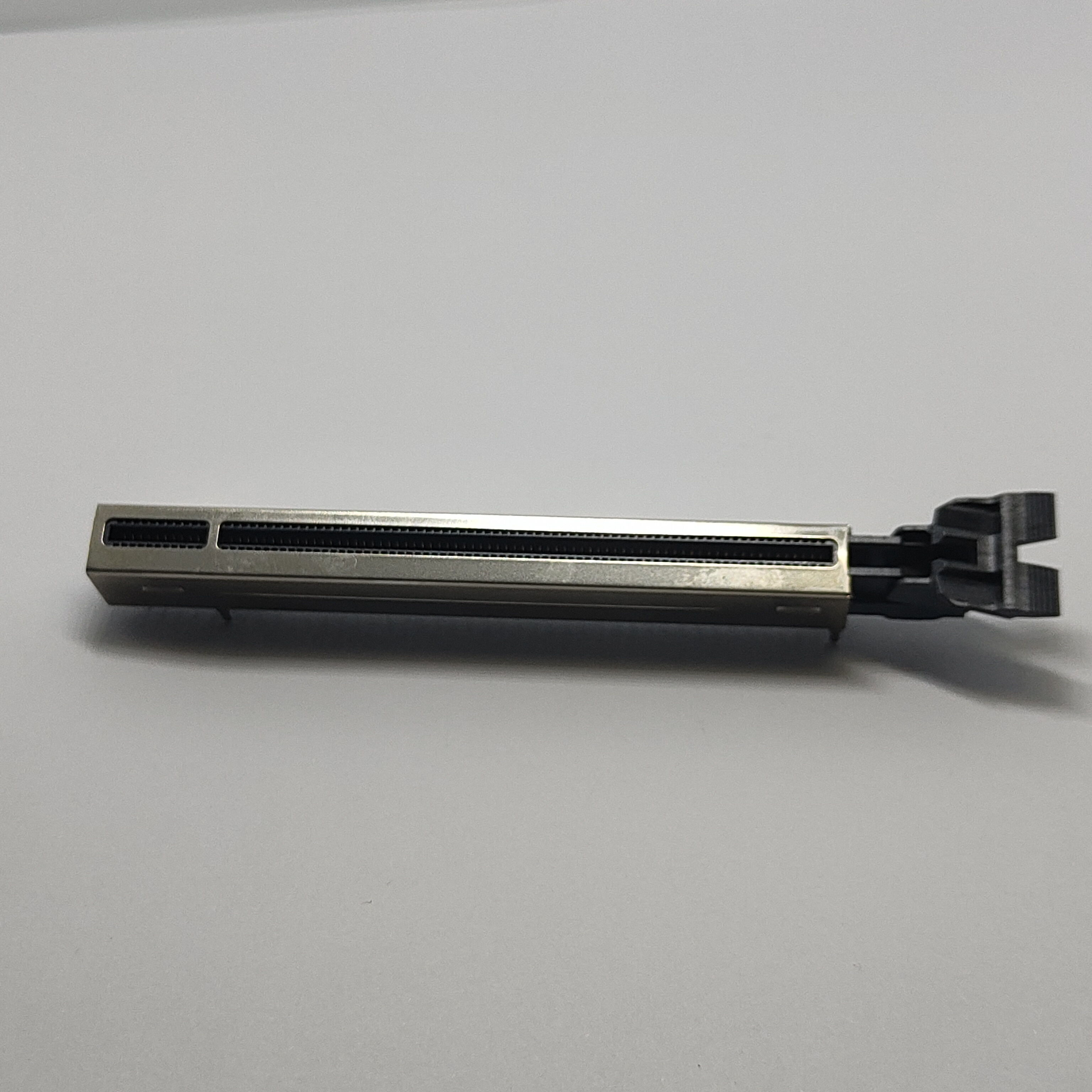

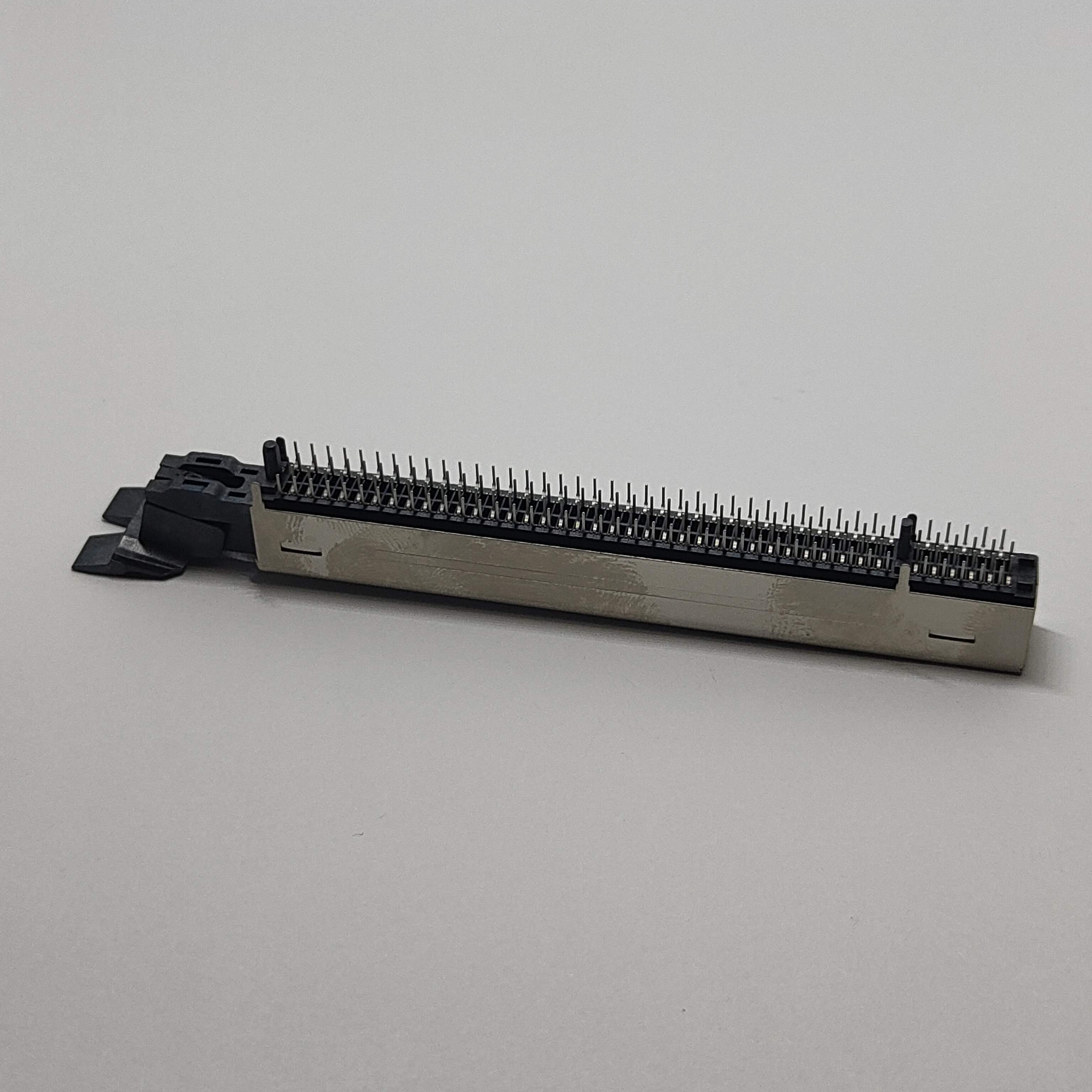

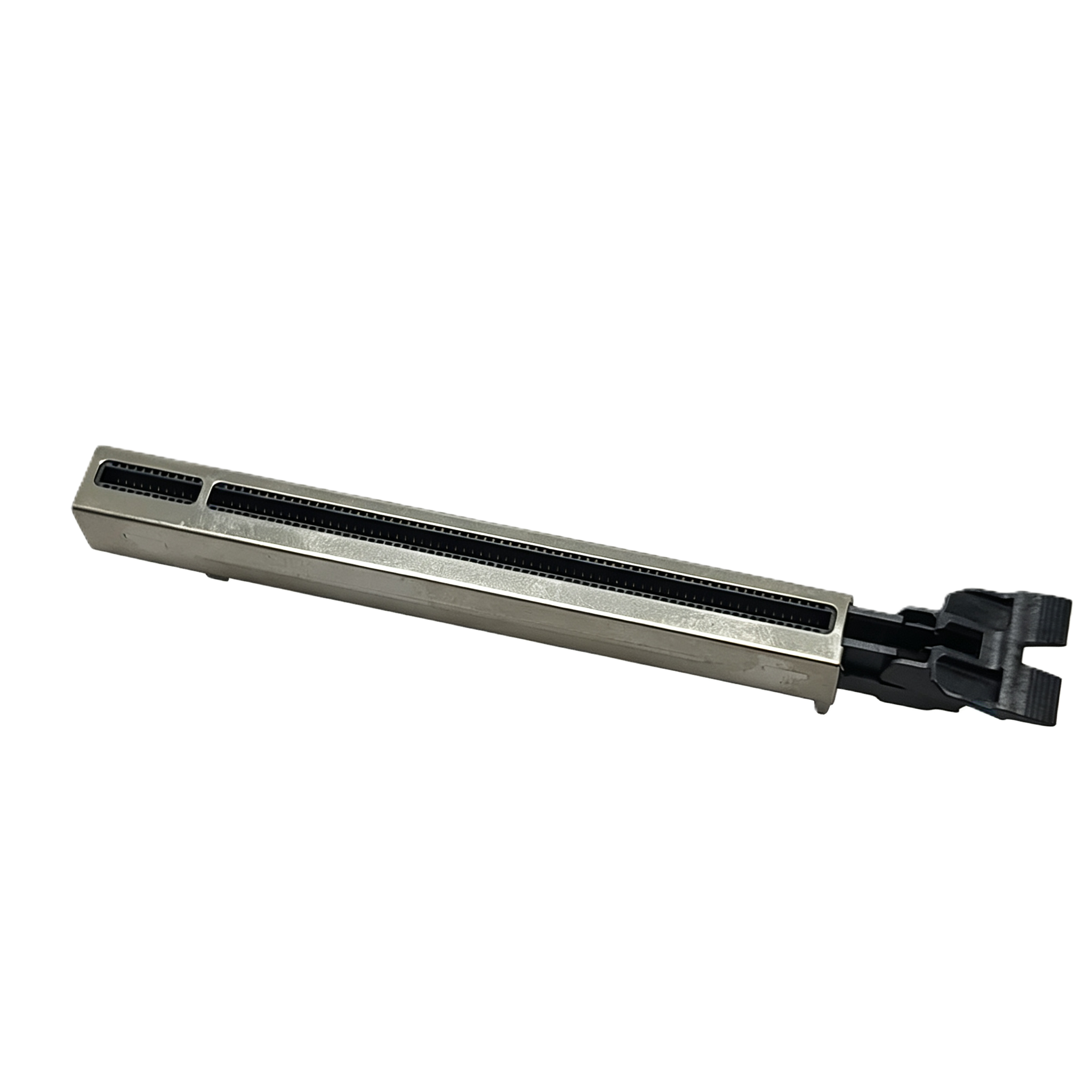

Every high-speed slot connector eventually gets asked the same question: can it survive the assembly line, not just the datasheet? This CONSHARE 164-pin connector answers it three times over — with a rotating guide post system that straightens the card on insertion, an overhang shell that keeps stray hands and solder debris away from the contact field, and a grounded shield that holds the electrical noise floor down while 16 GT/s traffic runs through it. Built for full-size PCIe Gen 4 add-in cards, it fits standard CEM footprints and ships in trays that protect SMT coplanarity all the way to your reflow line.
Most card-edge connectors rely on fixed posts that do one job: stop the card from going in crooked. Fixed posts tolerate that, but they also transmit every bit of misalignment straight into the plastic housing. This connector takes a different route — each guide post rotates as the card enters.
The card settles onto the contact beams gradually instead of being forced into position, so corner-loading on the housing drops sharply. That matters because concentrated insertion stress is the failure mode behind most cracked-insulator rejects: the connector looks fine at incoming inspection, then develops contact intermittency after a few thermal cycles in the field.
Field-replaceable GPU and accelerator cards get pulled and reseated many times over their service life. Rotating posts spread the insertion force across the travel instead of concentrating it at first contact, so every service event looks like the first one to the contact interface — not like the tenth.
The overhang shell above the contact field adds one more layer of protection: a physical ledge that deflects tools, fingers, and stray debris away from gold-plated contacts during board handling. It is a small structural detail that quietly removes a whole category of cosmetic and functional defects.
A connector datasheet is only useful when you know which numbers actually move the needle. Here is how the key figures on this part translate into board-level decisions:
Parameter | What it is | Why it matters to your design |
|---|---|---|
Pin count — 164 (82 per side) | Full x16 lane configuration | Supports complete Gen 4 x16 bandwidth, roughly 31.5 GB/s in each direction — no lane drops, no bifurcation workarounds |
Signaling rate — 16 GT/s | PCIe Gen 4 native | Gen 3 parts retested at Gen 4 speeds often fail margin testing; this connector is designed for the rate from the start |
Contact plating — 5 μin gold over nickel | Selective Au on contact zones | Low, stable contact resistance across thermal cycling without paying for gold where it isn't needed |
DIM A — 2.50 mm | Controlled overhang reference dimension | Governs the seating geometry between shell ledge and card edge; holds card retention consistent across the production lot |

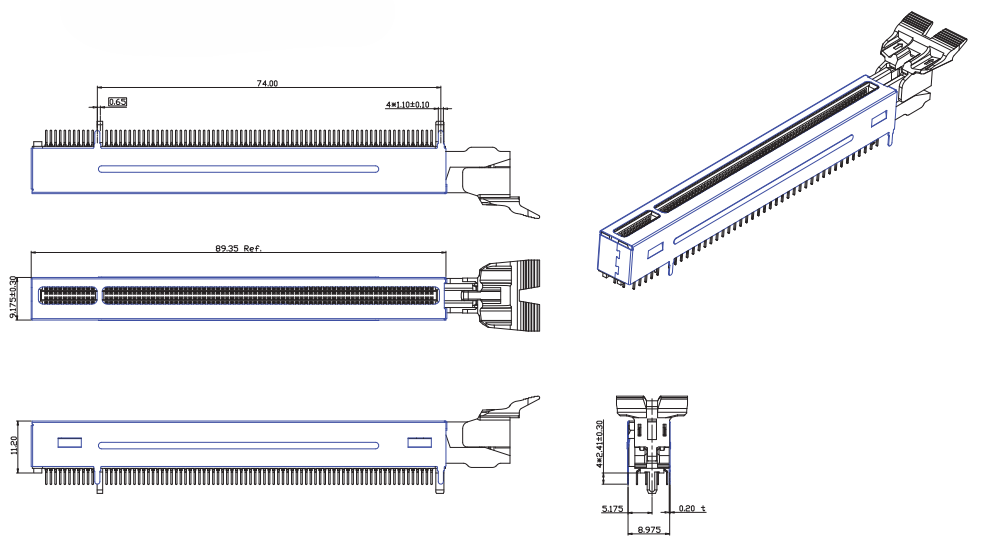

Shield shell — full wrap | EMI containment, board-level ground path | Gives return current a short, low-inductance path and shields the slot against radiated emissions testing |
Packaging — tray | Form-stable trays | Keeps SMT tail coplanarity within reflow spec; no tape reel flex on a part this long |
Two of these deserve a closer look, because they are where cheaper connectors cut corners: plating and shielding.
Gold plating on a card-edge connector is a trade-off between contact performance and cost, and the honest answer is that more gold is not automatically better.
The 5-microinch gold layer sits over a nickel barrier, which is the combination the industry has settled on for good reason. Gold provides the low-contact-resistance, oxidation-proof interface the card pads touch. Nickel underneath blocks copper diffusion, so the gold layer stays pure through years of thermal cycling instead of degrading into a high-resistance alloy.
CONSHARE applies the gold selectively on the contact zones rather than flooding the entire stamping. That keeps unit cost down where gold adds nothing and concentrates it where every insertion cycle depends on it. For connectors rated across an industrial temperature window of −40 °C to +85 °C, this plating stack is what keeps contact resistance flat after hundreds of hours of environmental stress screening.
A PCIe Gen 4 link has almost no timing margin to spare. At 16 GT/s, the slot connector sits directly in the signal path, and its geometry becomes part of the channel budget. The full shield shell contributes here as much as it does for EMC: it fixes the return-current path next to the contact field, which controls impedance discontinuity at the card interface — the single largest insertion-loss contributor at Gen 4 rates in a poorly shielded slot.
In practical terms, systems built around properly shielded Gen 4 slots pass compliance eye-diagram testing with real margin, while the same boards with unshielded slots tend to scrape through on a good day. When your product has to survive channel-loss qualification, third-party compliance lab runs, and a field replacement cycle, that margin is not a luxury — it is schedule insurance.
AI inference and training accelerators put the most stress on a slot: full-height cards carrying 300 W-plus draw their signal-integrity budget tight, and a fully shielded, mechanically forgiving slot is standard practice on these boards. Production workstation and server motherboards benefit just as much — consistent card retention across thousands of units means less rework and fewer cracked housings on the line.
Industrial imaging and machine-vision frame grabbers live in electrically noisy enclosures near motor drives, where the shield shell earns its keep every shift. ATE backplanes and validation rigs insert and extract cards far more often than end-use systems, so anything that spreads insertion wear extends fixture life. And anywhere a x16 card meets a board through a riser or adapter, overhang protection and guided insertion cut the defect rate directly.
Before committing to a slot connector for a Gen 4 board, run every candidate through these questions.
What does the insertion-force curve look like? A single peak-force number hides the story; you want force spread over the travel, which is what the rotating posts deliver.
How many service cycles does it survive? A rating is only meaningful if it reflects guided insertion, not forced seating.
Was it designed for Gen 4, or re-graded from Gen 3 tooling? Ask for channel-model support, not just a speed rating on a line card.
What is the impedance behavior at the card interface? A shielded return path is what separates slots that pass compliance from slots that scrape by.
How is it packaged? Long SMT connectors are vulnerable in tape reels. Tray packaging holds coplanarity; insist on it for anything over 100 mm.
What is the traceable inspection process? Coplanarity, contact-resistance sampling, and plating-thickness verification should be documented per lot, not promised verbally.
What happens when you need a variant? A supplier with in-house tooling turns a shell or post change into a drawing revision, not a redesign.
Every lot ships with inspection records covering coplanarity of the SMT tails, contact-resistance sampling, and plating-thickness verification — the data your quality engineers will ask for anyway, provided up front. Production runs on in-house stamping and molding with statistical process control, which is what allows realistic lead times on both standard builds and custom variants.
Guide post style, shell options, plating zones, and marking requirements are all tooling-level changes CONSHARE handles in-house — typically without any impact on your board layout.
Trays are packed for direct line feed: orientation-marked, moisture-protected, and dimensioned for standard pick-and-place magazine handling, so the parts arrive at your SMT line ready to run without a repacking step.

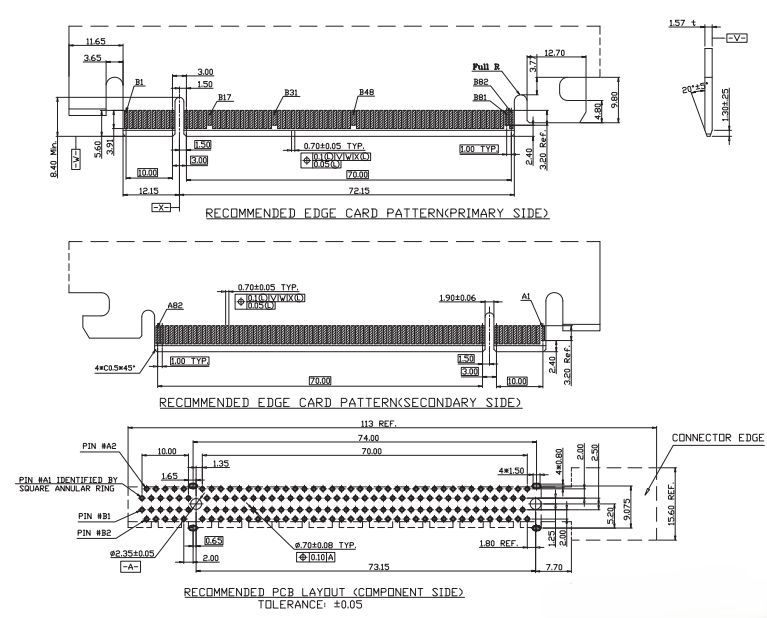

Yes. The 164-contact, dual-row layout matches the standard x16 card-edge form factor, so existing card designs seat without modification.
The guided-insertion design is rated for service-level cycling well beyond what a field-maintained card typically sees over its lifetime. Lot-specific cycle-test data is available on request.
Yes. Selective plating zones, guide post configuration, and shell variants are all tooling-level customizations CONSHARE handles in-house — typically without changing your board footprint.
Yes. The contact system carries power pins consistent with full-size accelerator card requirements; current derating curves per pin group are available from our engineering team.

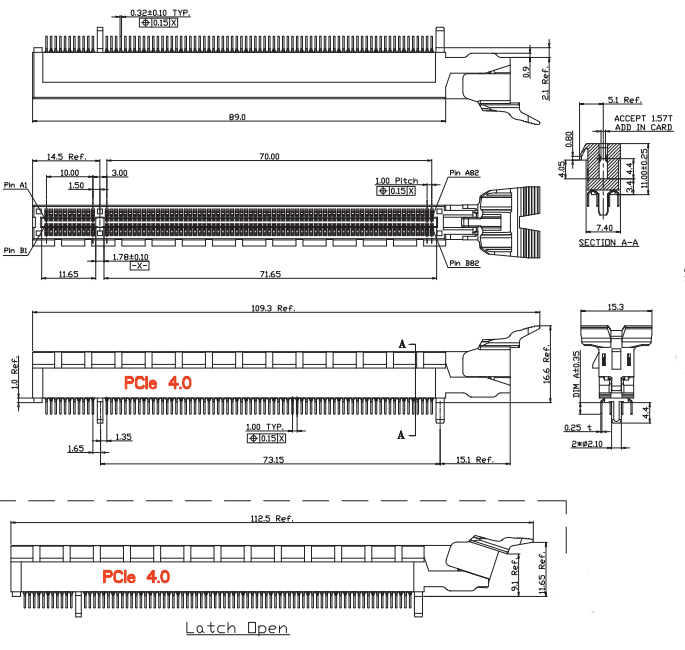

Dimensional drawing, recommended reflow profile, packaging spec, and lot inspection records, including plating thickness and contact-resistance data.
Yes. Sample trays for bench validation and compliance pre-testing can be arranged before a production commitment.
