1. Provides flexible connectivity: Supports wire-to-board and board-to-board applications, enabling multiple connection methods such as chip-to-chip, chip-to-module, chip-to-board, and card edge connections. This delivers high flexibility for component connections within the system
2. Extends signal transmission distance: Helps extend the transmission distance of high-speed data signals, meeting the long-distance signal transmission requirements between devices in scenarios such as data centers.
3. Ensures signal integrity: Features excellent signal integrity, capable of supporting high-speed signal transmission while reducing signal attenuation and crosstalk, thus ensuring the accuracy and stability of data transmission.
◆◆ Product Advantage
1. Multiple channel and configuration options available: Offers a variety of channel selections, along with multiple connector configurations such as straight, right-angle, right-exit, and left-exit. Flexible selection can be made based on different application scenarios and device layouts.

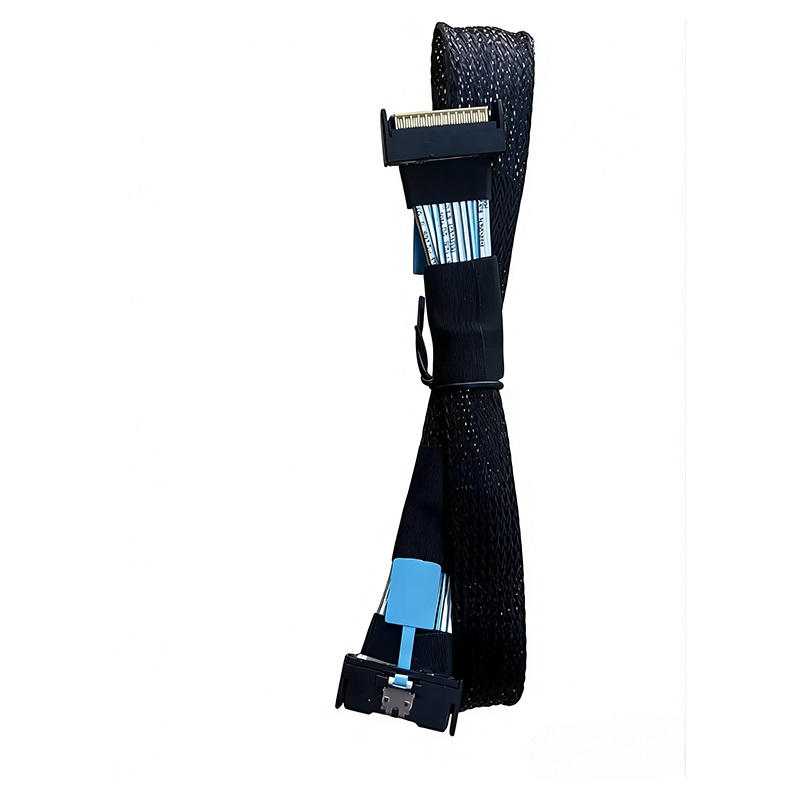

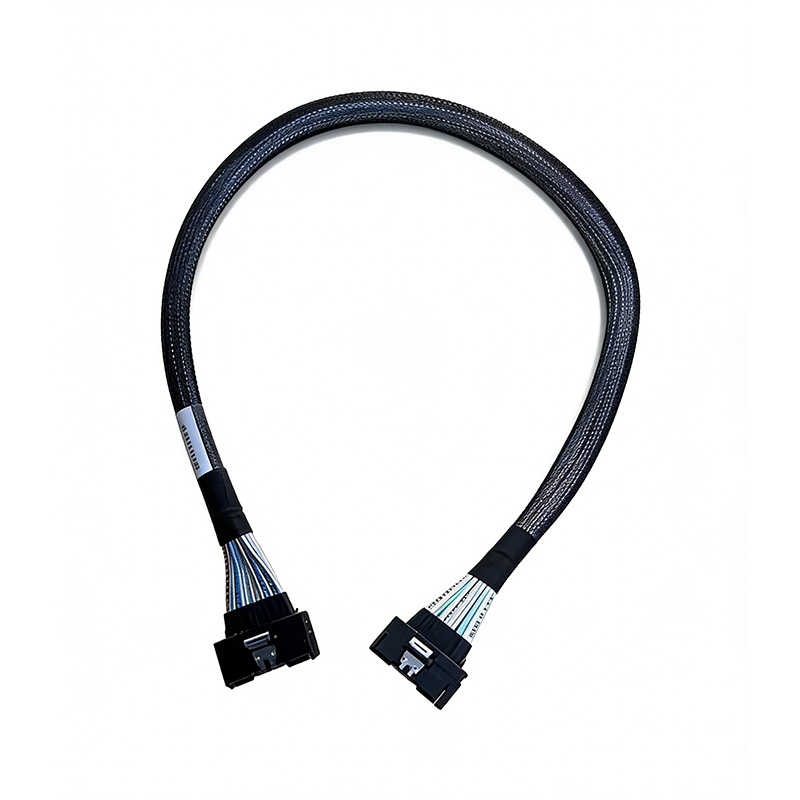

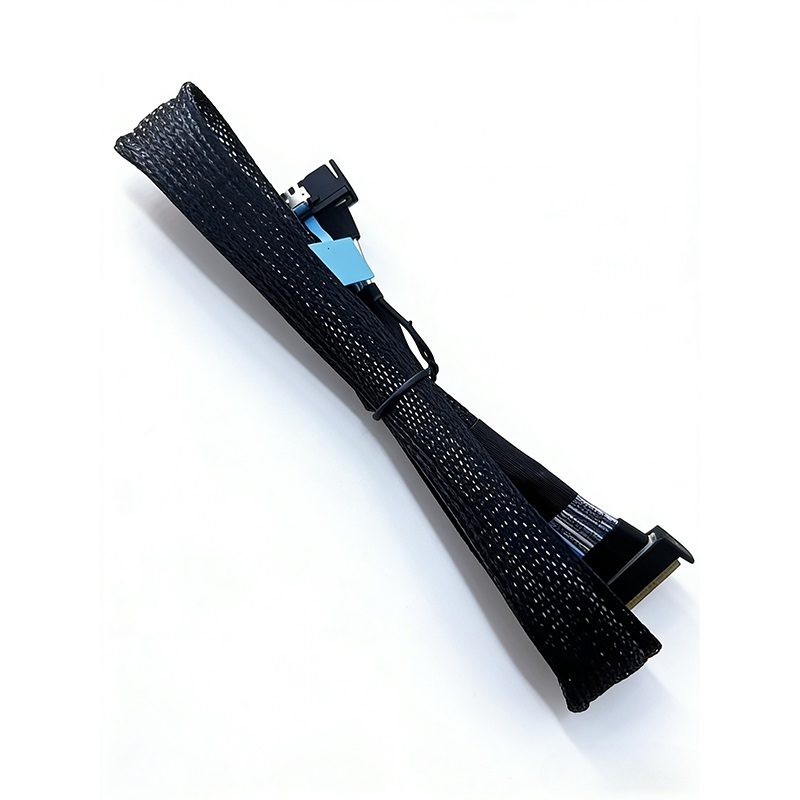

2. Small-size design: Adopts a 0.6mm pitch connector design with a 750mm cable length. It features a compact size and space-saving property, making it suitable for use in high-density equipment.
3. High signal transmission speed: Supports a signal transmission speed of up to 32GT/s for PCIe 5.0, with future scalability to 112GT/s PAM-4, capable of meeting the ever-growing demands for high-speed data transmission.
4. Compatibility with multiple protocols: Compatible with a range of industry standards and protocols, including Ethernet, 56GT/s NRZ, 112GT/s PAM-4, SAS, and PCIe, offering strong versatility and compatibility.
5. Excellent mechanical performance: The connector boasts high robustness and has passed a torsion test with a maximum force of 25N, ensuring connection stability and reliability during use.
◆◆ Product Uses
1. Data Center
2. Servers and Storage Devices
3. High-Performance Computing (HPC)
4. Wireless Base Stations and Radio Equipment
